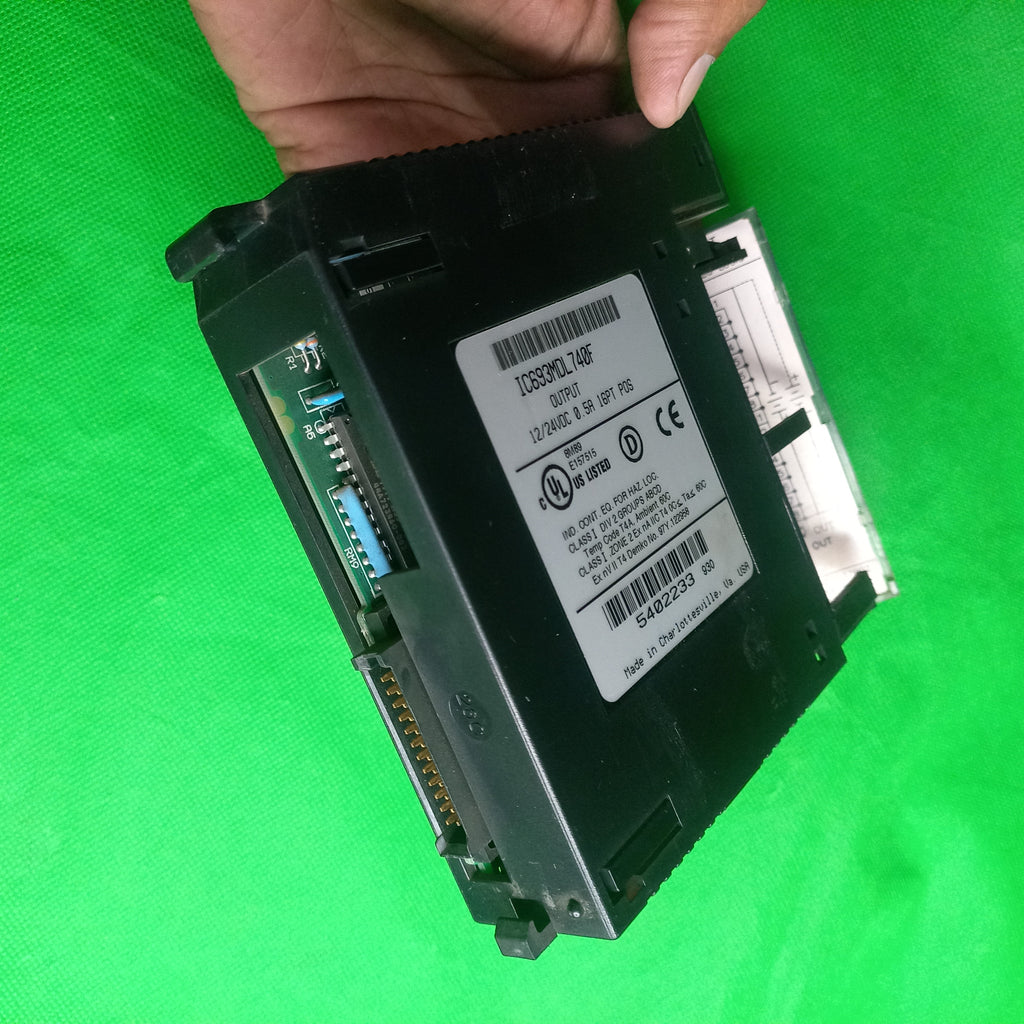

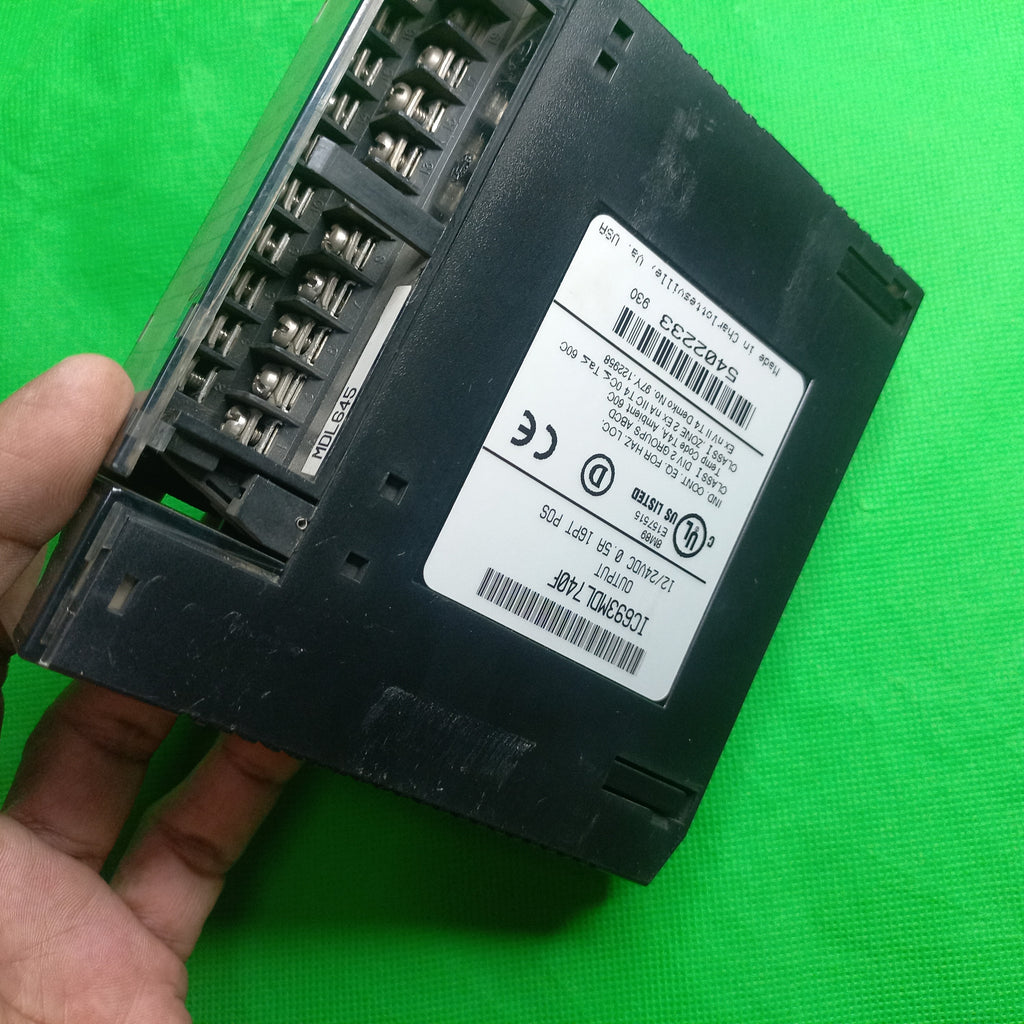

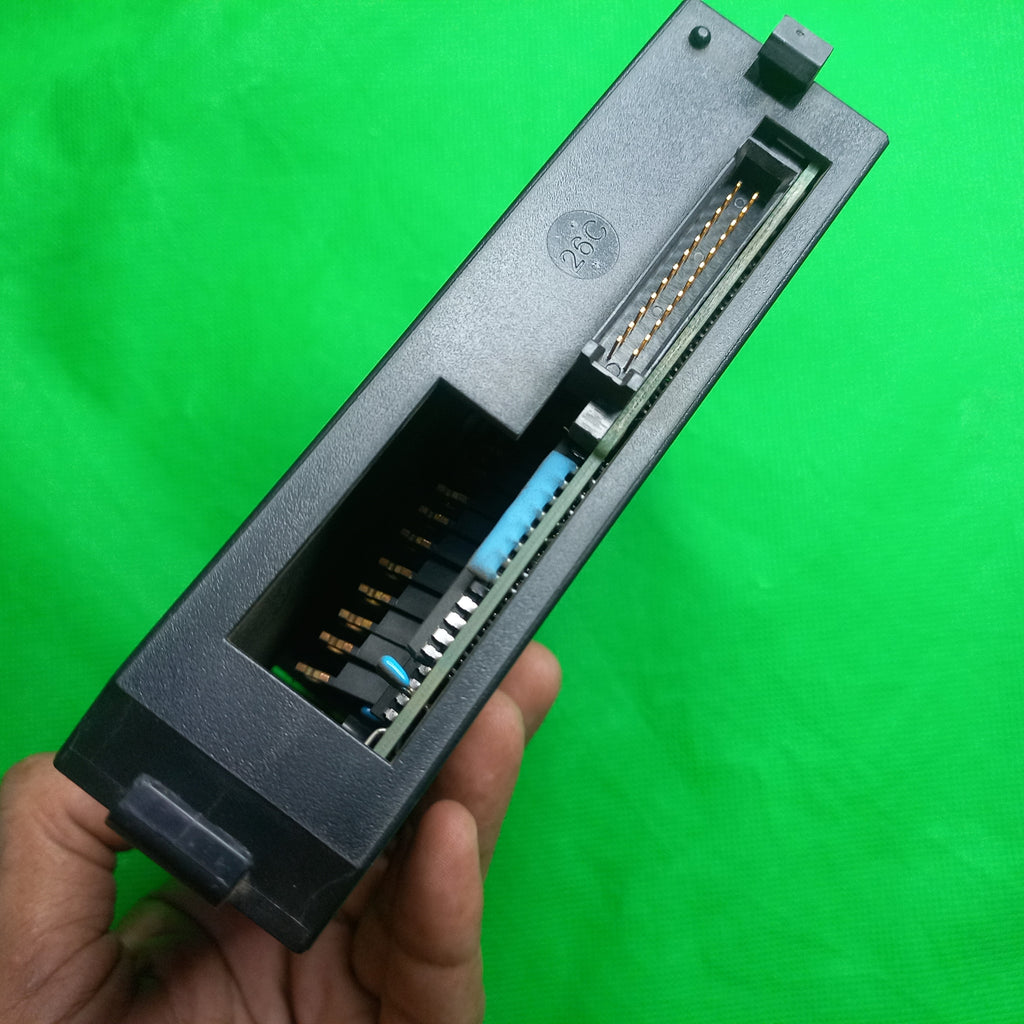

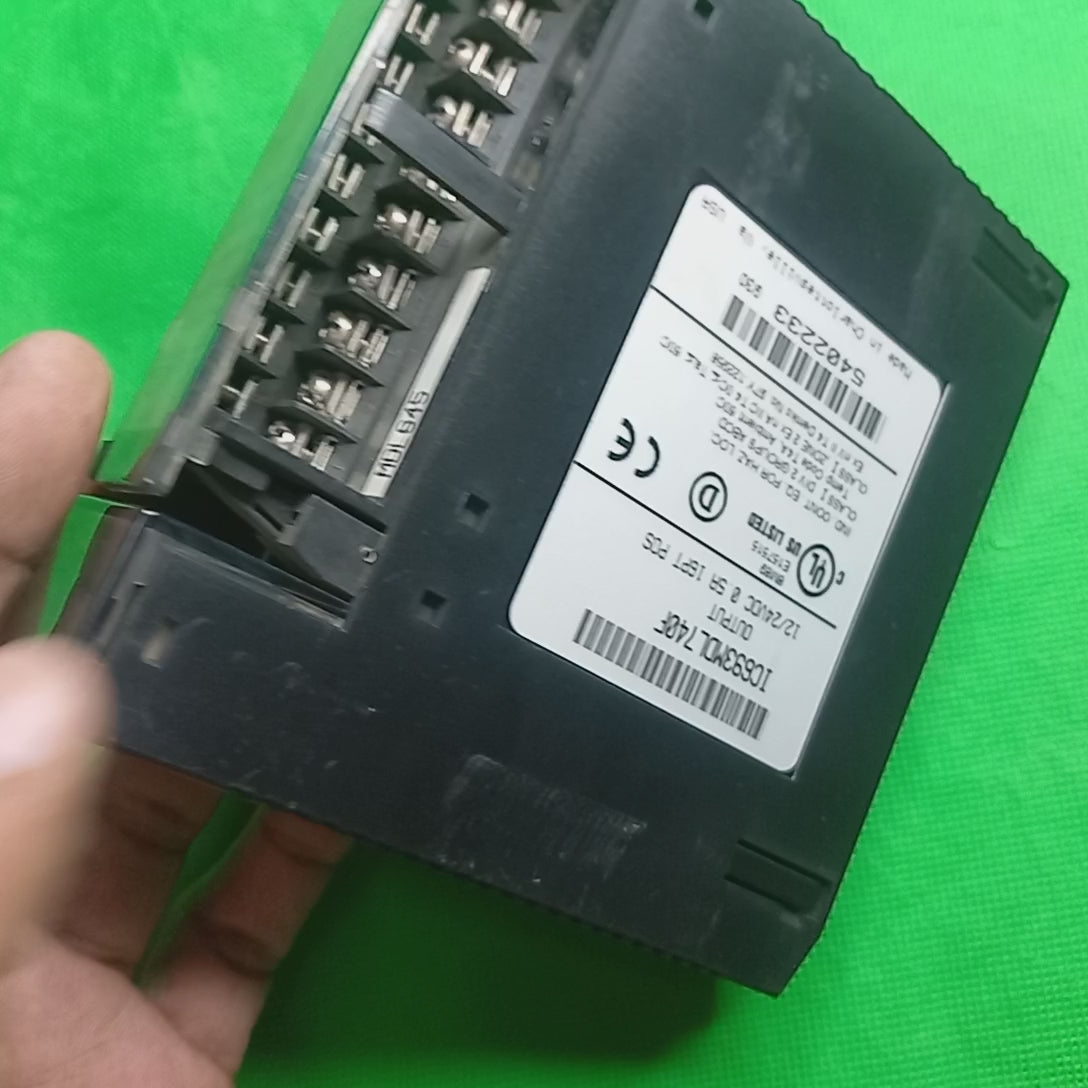

IC693MDL740F Output 12/24vDC 0.5A 16PT POS
Key Specifications
• Type: DC Output Module (Positive Logic)
• Voltage Rating: 12/24 VDC
• Output Points: 16 output points (divided into 2 groups, each with 8 points and 1 common terminal)
• Current Rating: Maximum 0.5 Ampere per point, and maximum 2 Ampere per common terminal.
• Control Type: Programmable Logic Controller (PLC) Module
• Built-in protection: Fuse protection for each group (Green LED indicator 'F' lights up when fuse blows).
GE Fanuc PLC series 90-30 : Output Module 0.5A 12/24VDC POS 16PT .
Compatible with the following revisions :
Revision Numbers: IC693MDL740A, IC693MDL740B, IC693MDL740C, IC693MDL740D, IC693MDL740E, IC693MDL740F, IC693MDL740G, IC693MDL740H, IC693MDL740I, IC693MDL740J, IC693MDL740K, IC693MDL740L, IC693MDL740M, IC693MDL740N, IC693MDL740O, IC693MDL740P, IC693MDL740Q, IC693MDL740R, IC693MDL740S, IC693MDL740T, IC693MDL740U, IC693MDL740V, IC693MDL740W, IC693MDL740X, IC693MDL740Y, IC693MDL740Z.
12/24 Volt DC Positive Logic Output - 0.5 Amp, 16 Point
IC693MDL740
The 12/24 volt DC Positive Logic 0.5 Amp Output module for the Series 90-30 Programmable
Logic Controller provides 16 output points in two groups of eight with a common power output
terminal for each group. This output module is designed to have positive logic characteristics
in that it sources current to the loads from the user common or positive power bus. The output
device is connected between the negative power bus and the module output. The output
characteristics are compatible with a wide range of user-supplied load devices, such as: motor
starters, solenoids, and indicators. Power to operate the field devices must be supplied by the
user.
LED i
