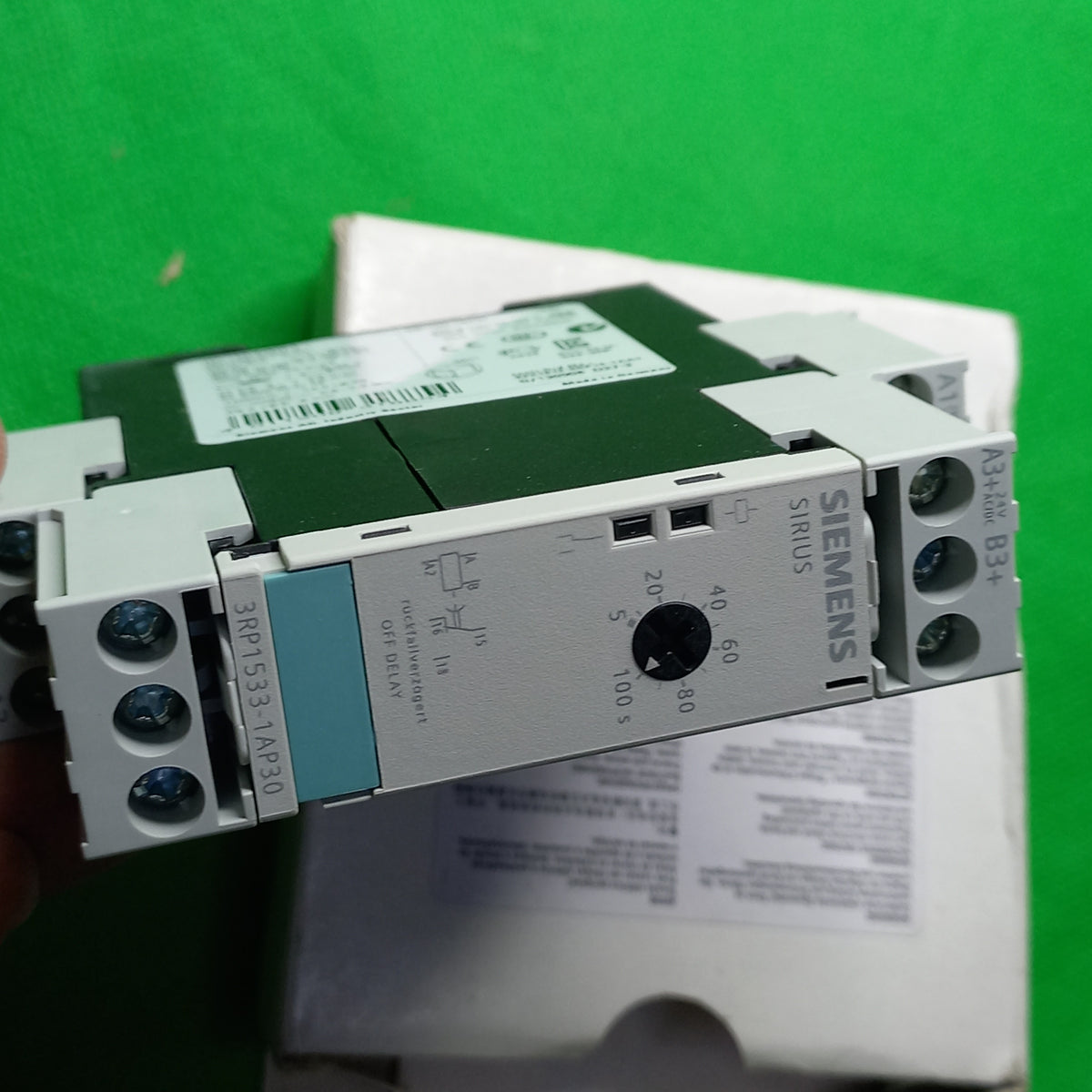

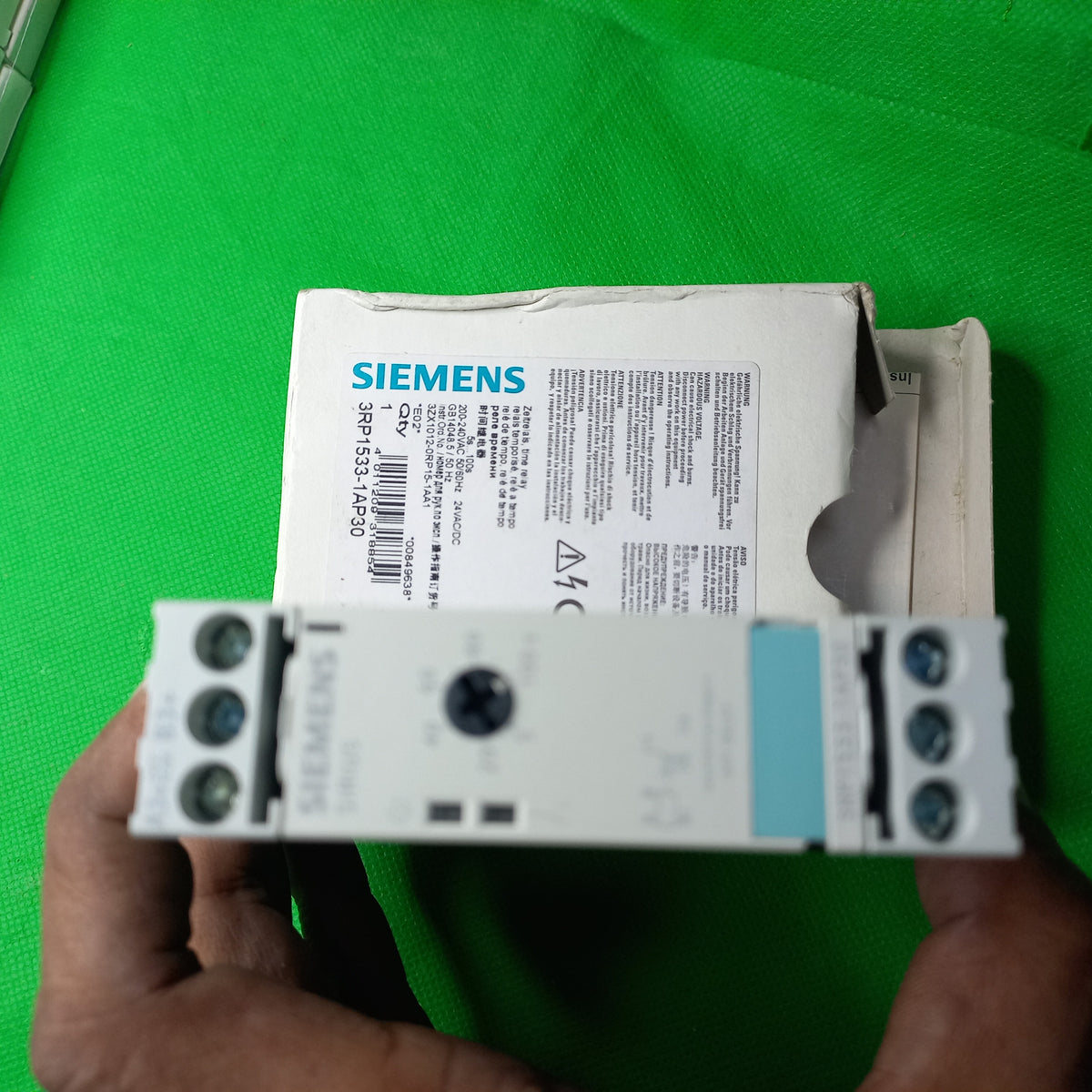

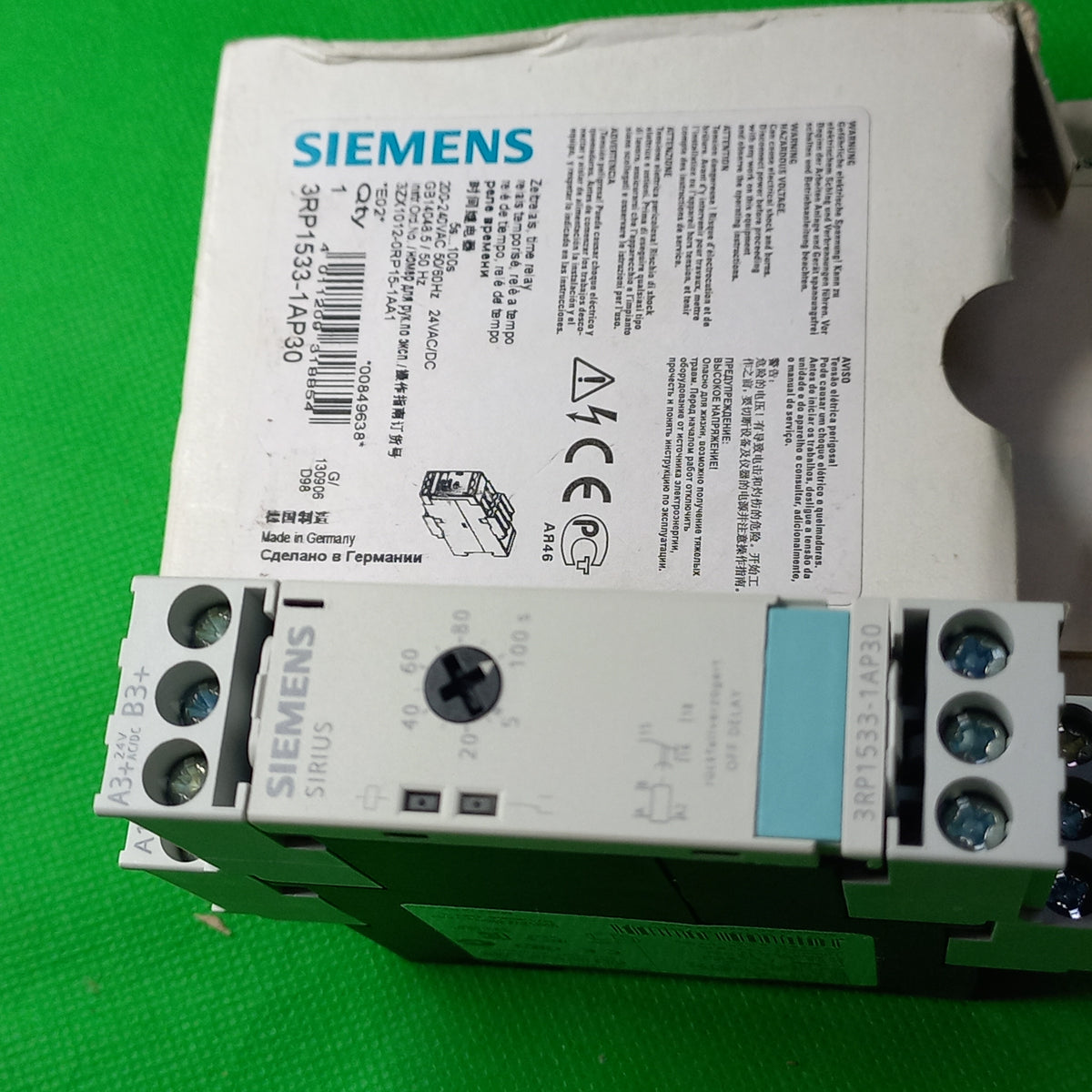

Ready Stock Siemens - 3RP1533-1AP30 TIMING RELAY, OFF DELAY 1 CHANGE-OVER CONTACT, WITH AUXILIARY VOLTAGE 1 TIME RANGE, 5 S...100 S 24 AC, 200...240 V AND 24 V DC AT 50/60 HZ AC WITH LED

Product brand name SIRIUS
Product designation timing relay
Product type designation 3RP15

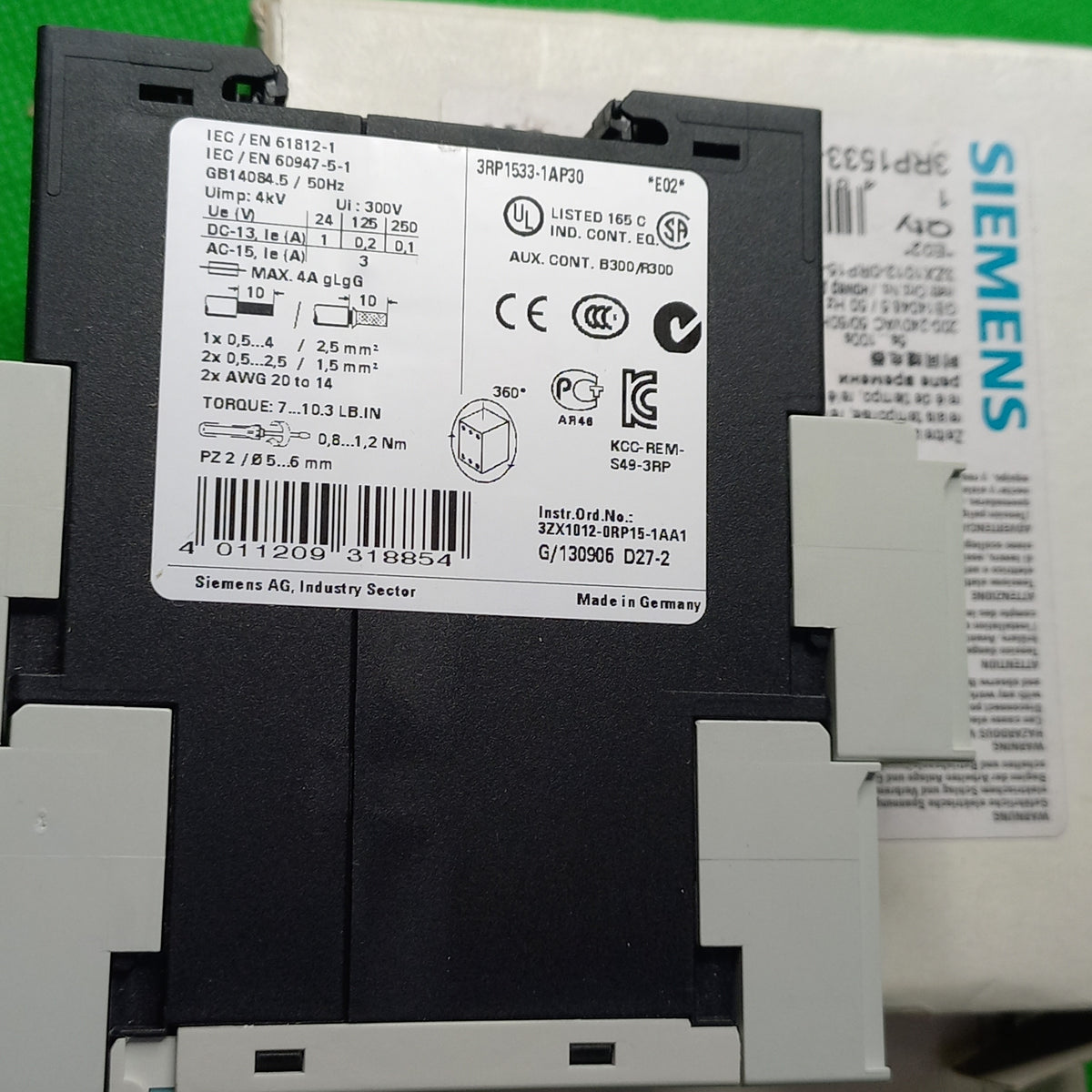

General technical data
Product component
● Relay output Yes
● semi-conductor output No
Product extension required remote control No
Product extension optional remote control No
Power loss [W] total typical 2 W
Insulation voltage
● for overvoltage category III according to IEC
60664
— with degree of pollution 3 rated value 300 V
Test voltage for isolation test 2 kV
Degree of pollution 3
Surge voltage resistance rated value 4 000 V
Protection class IP IP20

 acc. to IEC 60068-2-27 11g / 15 ms
Mechanical service life (switching cycles)
● typical 10 000 000
Electrical endurance (switching cycles)
● at AC-15 at 230 V typical 100 000
Adjustable time 5 ... 100 s
Relative setting accuracy relating to full-scale value 5 %
Thermal current 5 A
Minimum ON period 35 ms
Recovery time 150 ms
Reference code acc. to DIN 40719 extended
according to IEC 204-2 acc. to IEC 750
K
Reference code acc. to DIN EN 81346-2 K
Reference code acc. to DIN EN 61346-2 K
Relative repeat accuracy 1 %

ontrol circuit/ Control
Type of voltage of the control supply voltage AC/DC
Control supply voltage 1 at AC
● at 50 Hz rated value 24 V
● at 60 Hz rated value 24 V
Control supply voltage 2 at AC
● at 50 Hz 200 ... 240 V
● at 60 Hz 200 ... 240 V
Control supply voltage frequency 1 50 ... 60 Hz
Control supply voltage 1
● at DC rated value 24 V
Operating range factor control supply voltage rated
value at DC
● initial value 0.85
● Full-scale value 1.1
Operating range factor control supply voltage rated
value at AC at 50 Hz
● initial value 0.85
● Full-scale value 1.1
Operating range factor control supply voltage rated
value at AC at 60 Hz
● initial value 0.85
● Full-scale value 1.1

 passing make contact No
● passing make contact/instantaneous contact No
● OFF delay No
Switching function
● flashing symmetrically starting with
interval/instantaneous
No
● flashing symmetrically starting with interval No
● flashing symmetrically starting with
pulse/instantaneous
No
● flashing symmetrically starting with pulse No
● flashing asymmetrically starting with interval No
● flashing asymmetrically starting with pulse No
Switching function
● star-delta circuit with delay time No
● star-delta circuit No
Switching function with control signal
● additive ON delay No
● passing break contact No
● passing break contact/instantaneous No
● OFF delay Yes
● OFF delay/instantaneous No
● pulse delayed No
● pulse delayed/instantaneous No
● pulse-shaping No
● pulse-shaping/instantaneous No
● additive ON delay/instantaneous No
● ON-delay/OFF-delay/instantaneous No
● passing make contact No
● passing make contact/instantaneous contact No
Switching function of interval relay with control signal
● retrotriggerable with deactivated control
signal/instantaneous contact
No
● retrotriggerable with activated control signal No
● retrotriggerable with activated control
signal/instantaneous contact
No
● retriggerable with deactivated control signal No
Design of the control terminal non-floating Yes
