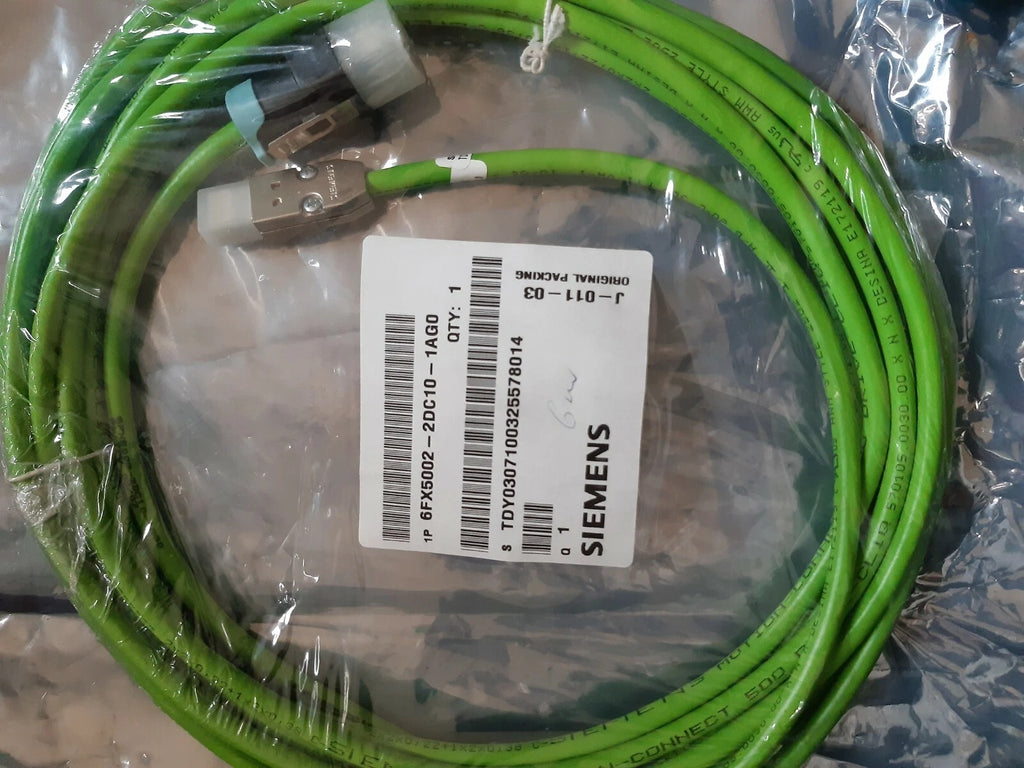

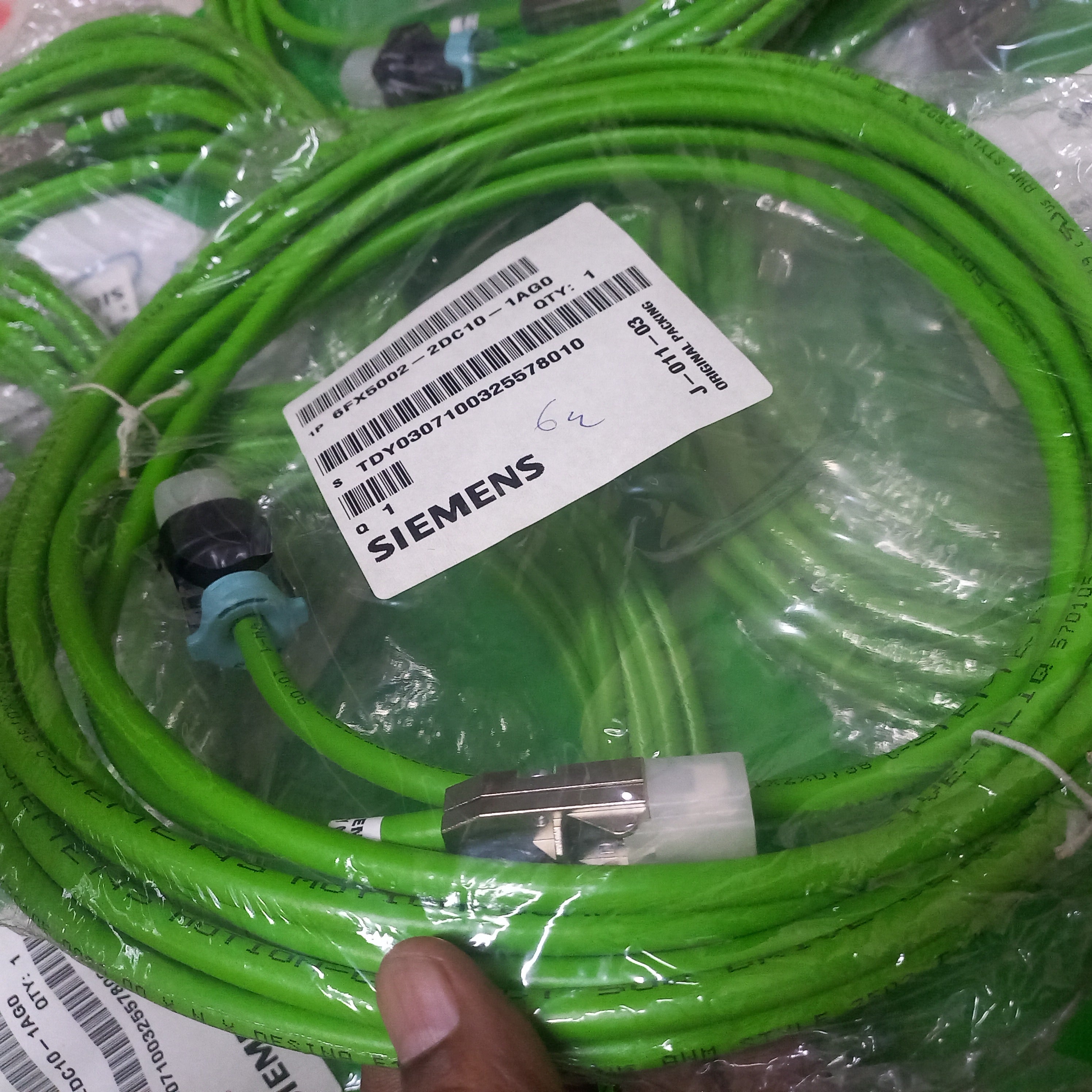

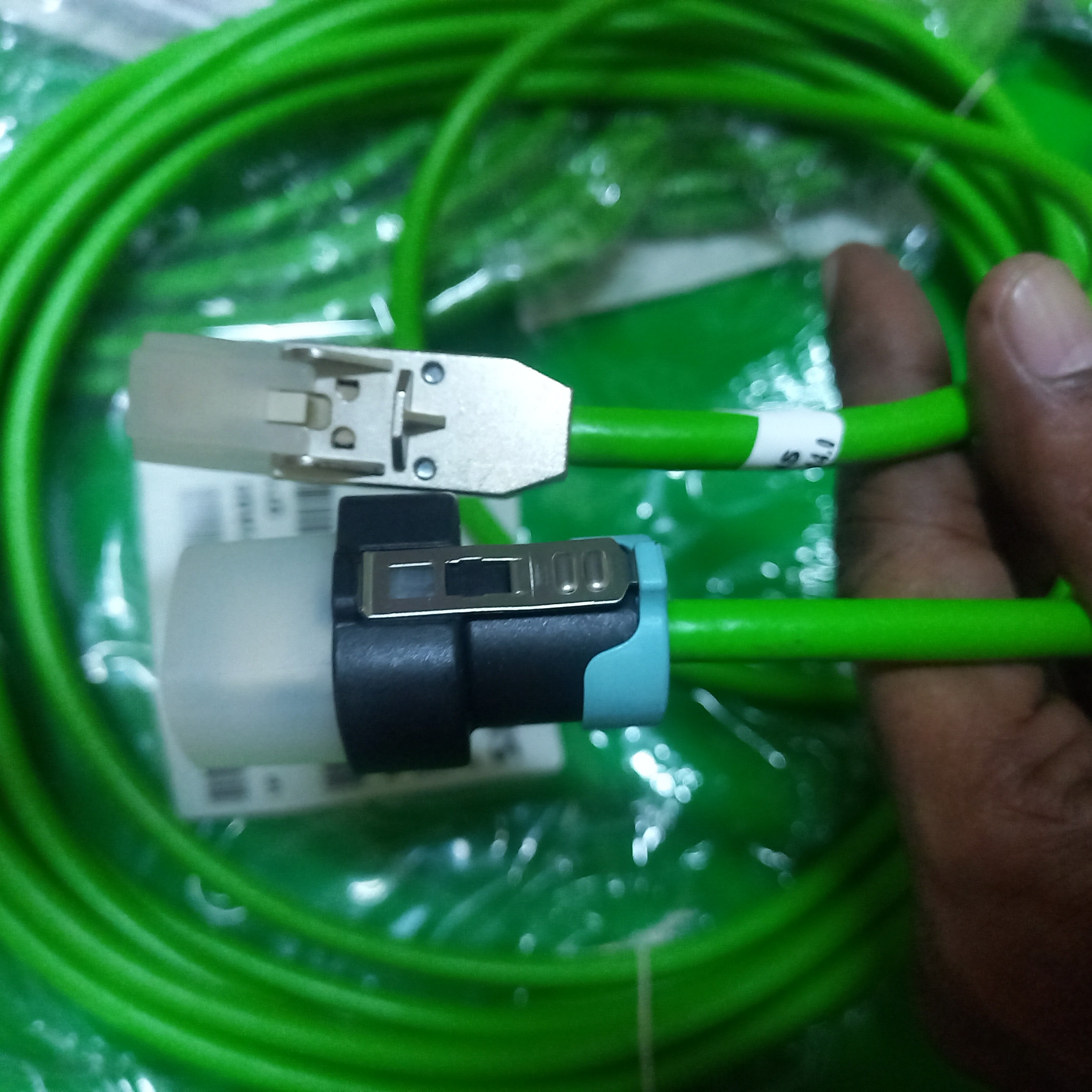

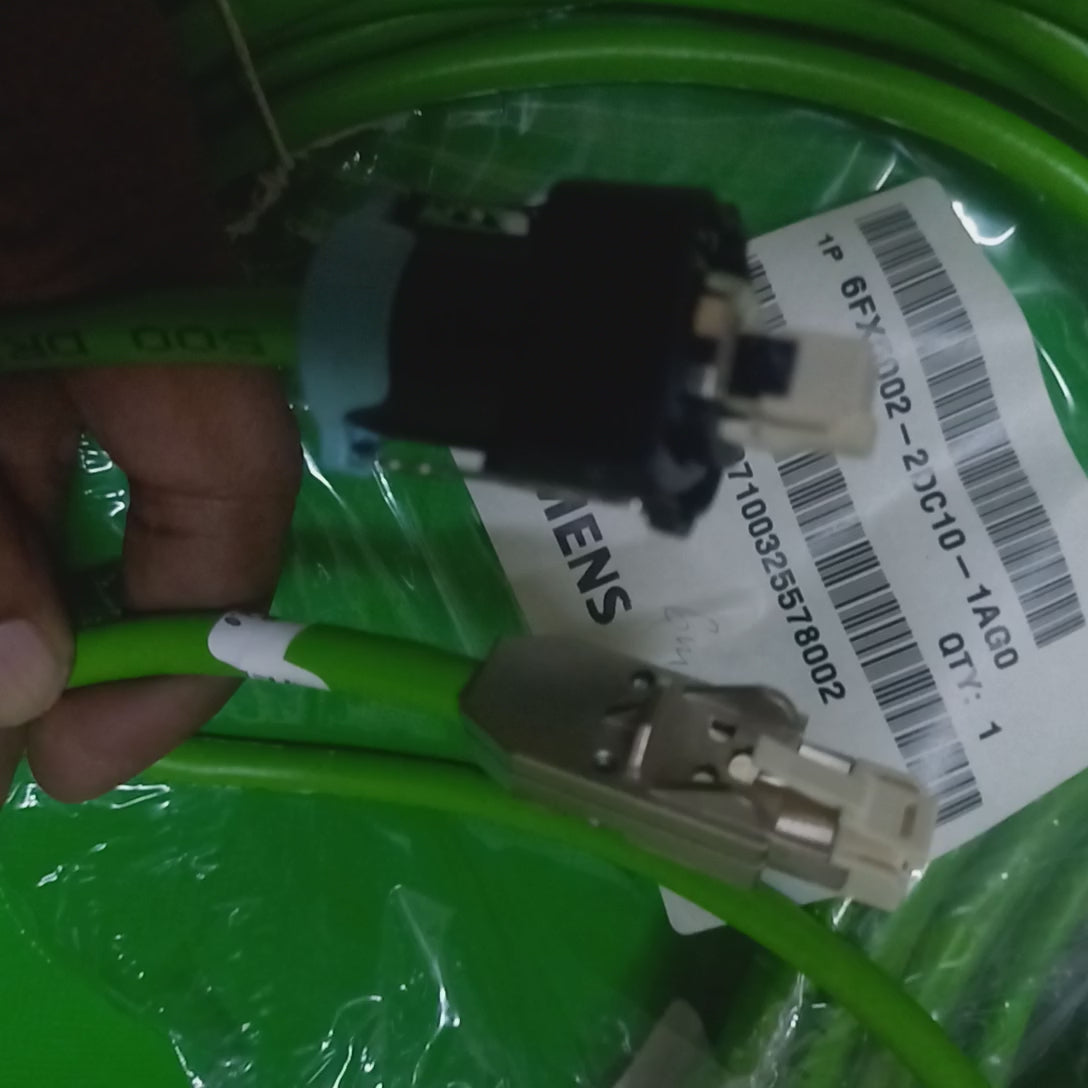

Siemens - 6FX5002 2DC10 1AG0 SIGNAL CABLE PRE-ASSEMBLED TYPE: 6FX 5002-2DC10 (SINAMICS DRIVE-CLIQ) PLUG IP20/IP67, WITH 24 V MOTION-CONNECT 500 LENGTH (M)=

Brand: Siemens | MPN: 6FX50022DC101AG0

Electrical data
Design of the sensor Motor encoder DRIVE-CLiQ
Test voltage, rms Signal conductors 500 V
Rated voltage U0/U in accordance with EN 50395 Power conductors 30 V
Mechanical data

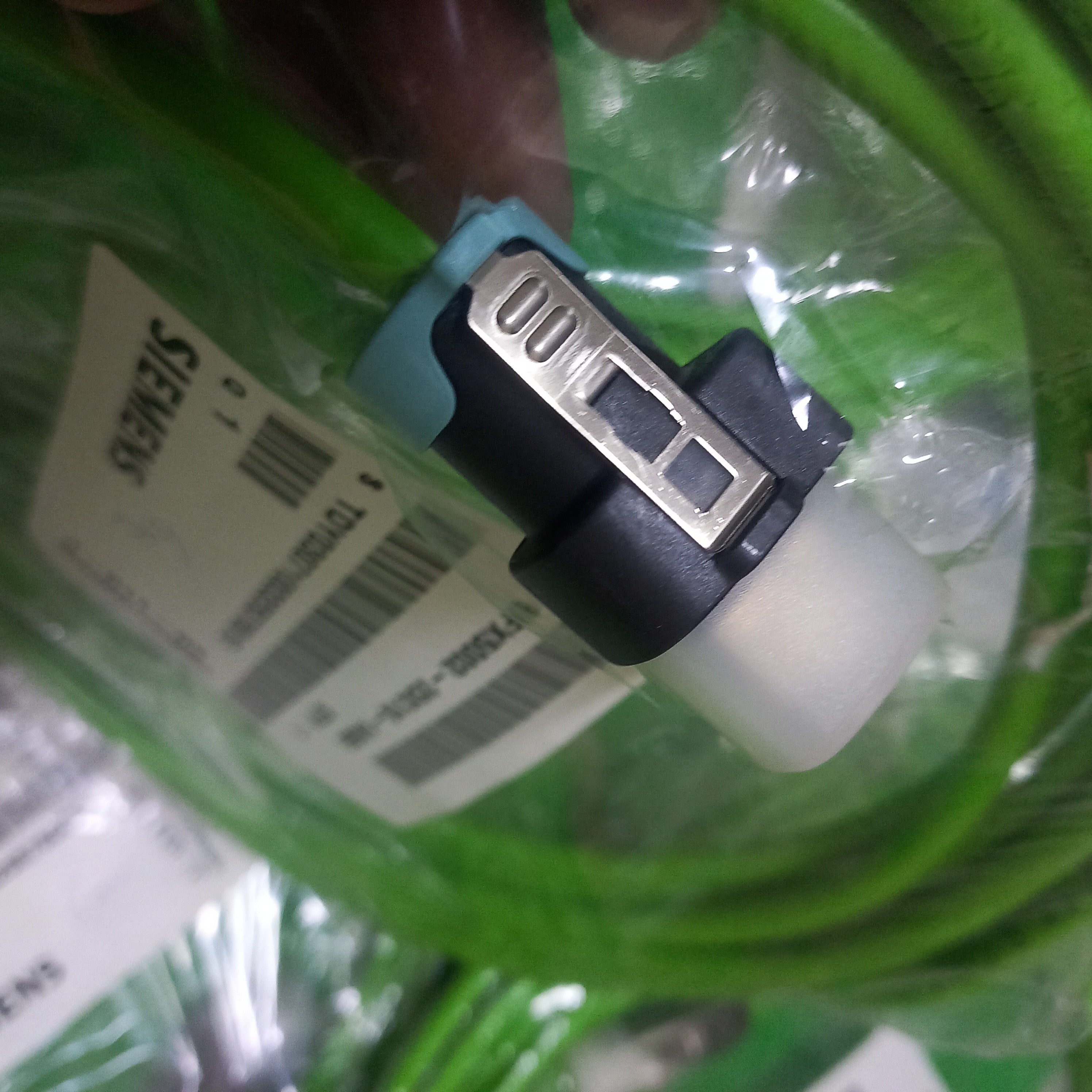

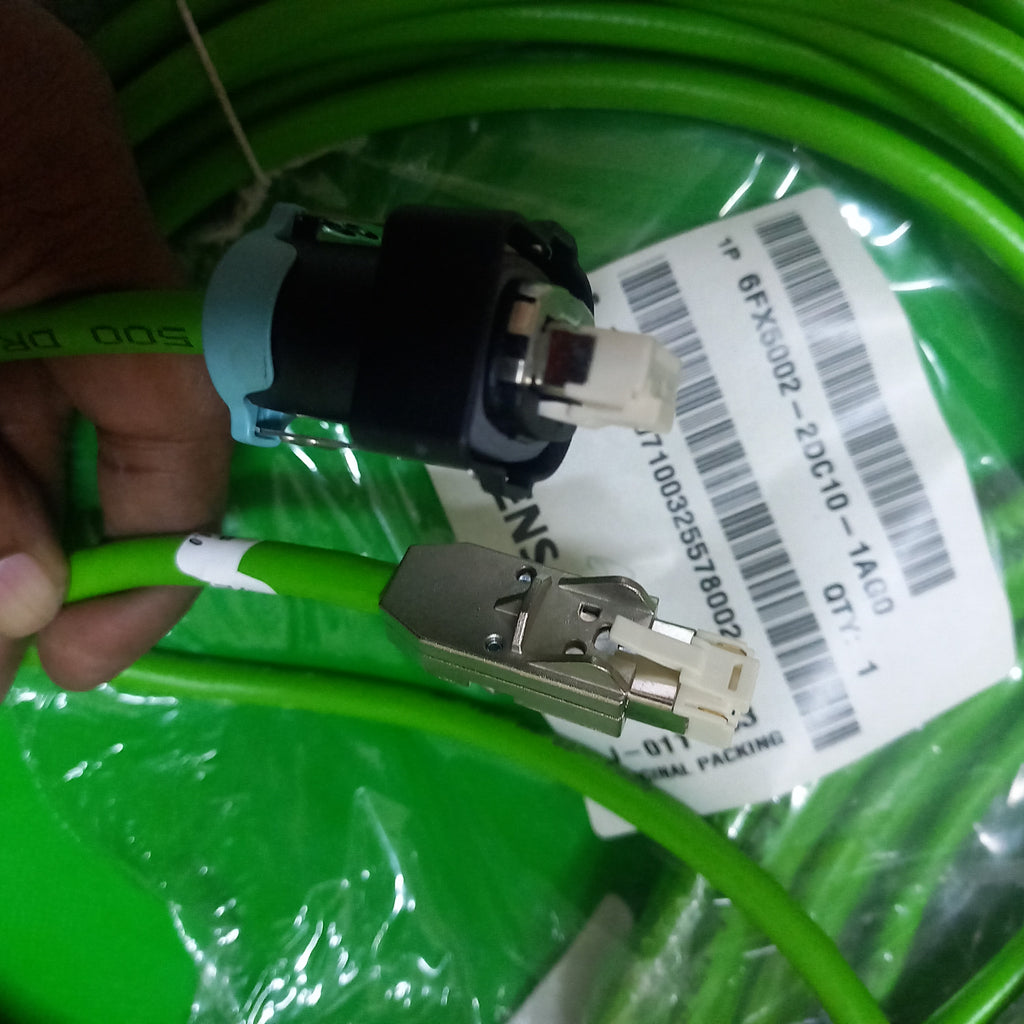

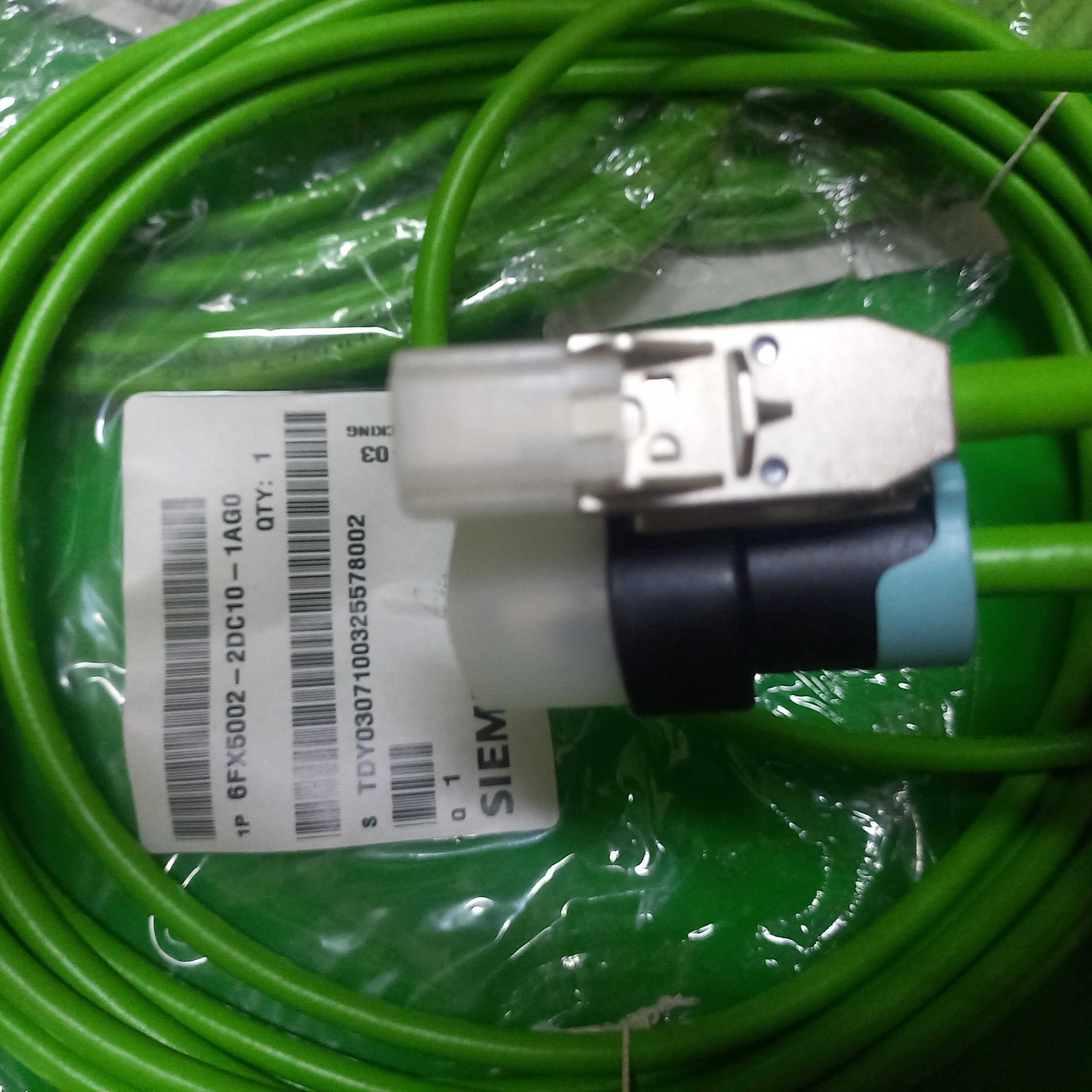

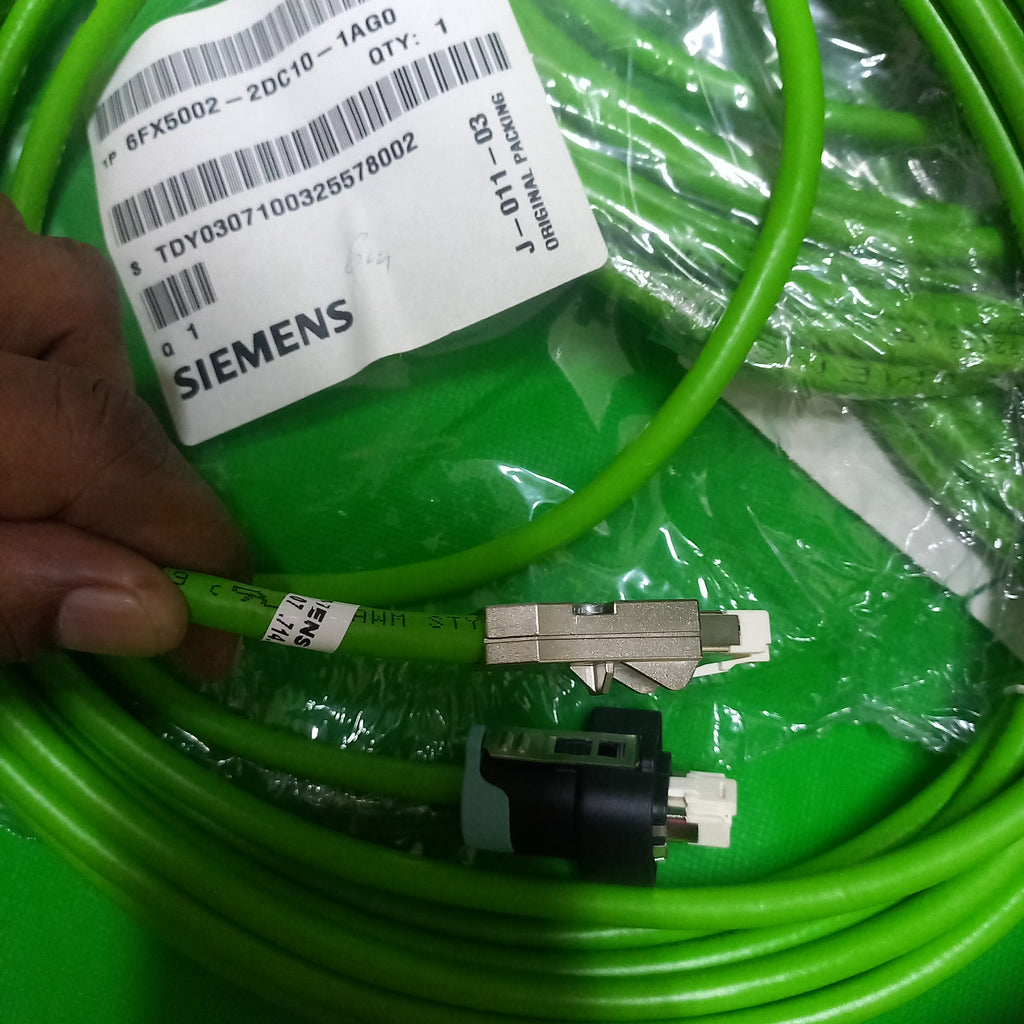

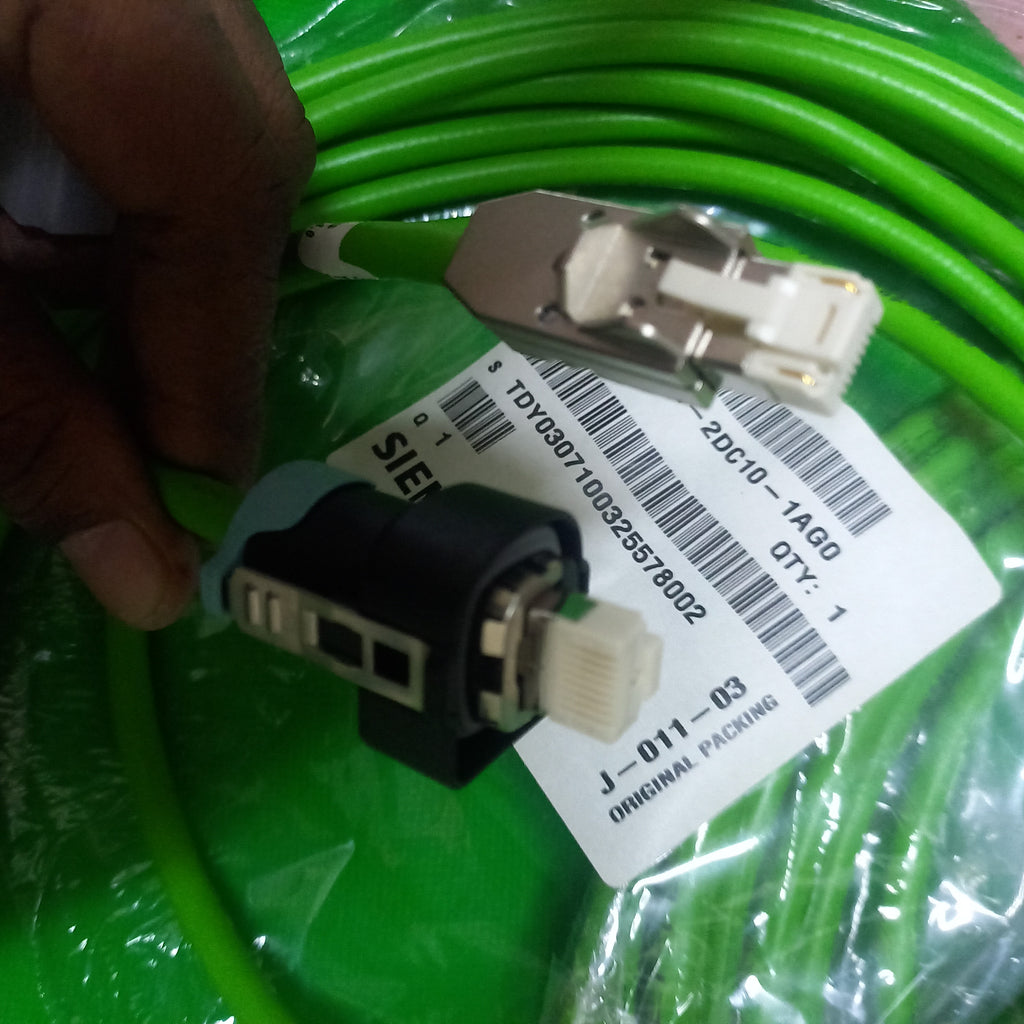

Type of connection cable engine side RJ45 DRIVE-CLiQ

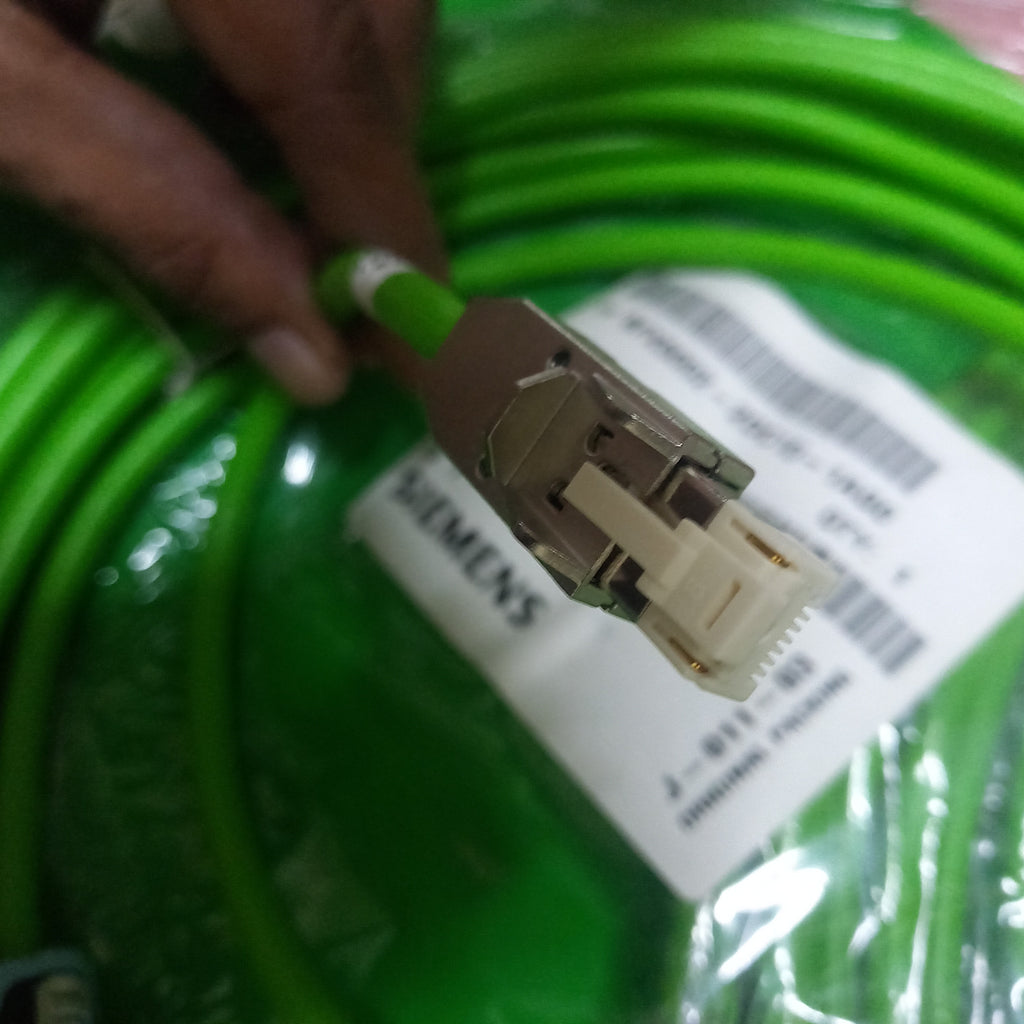

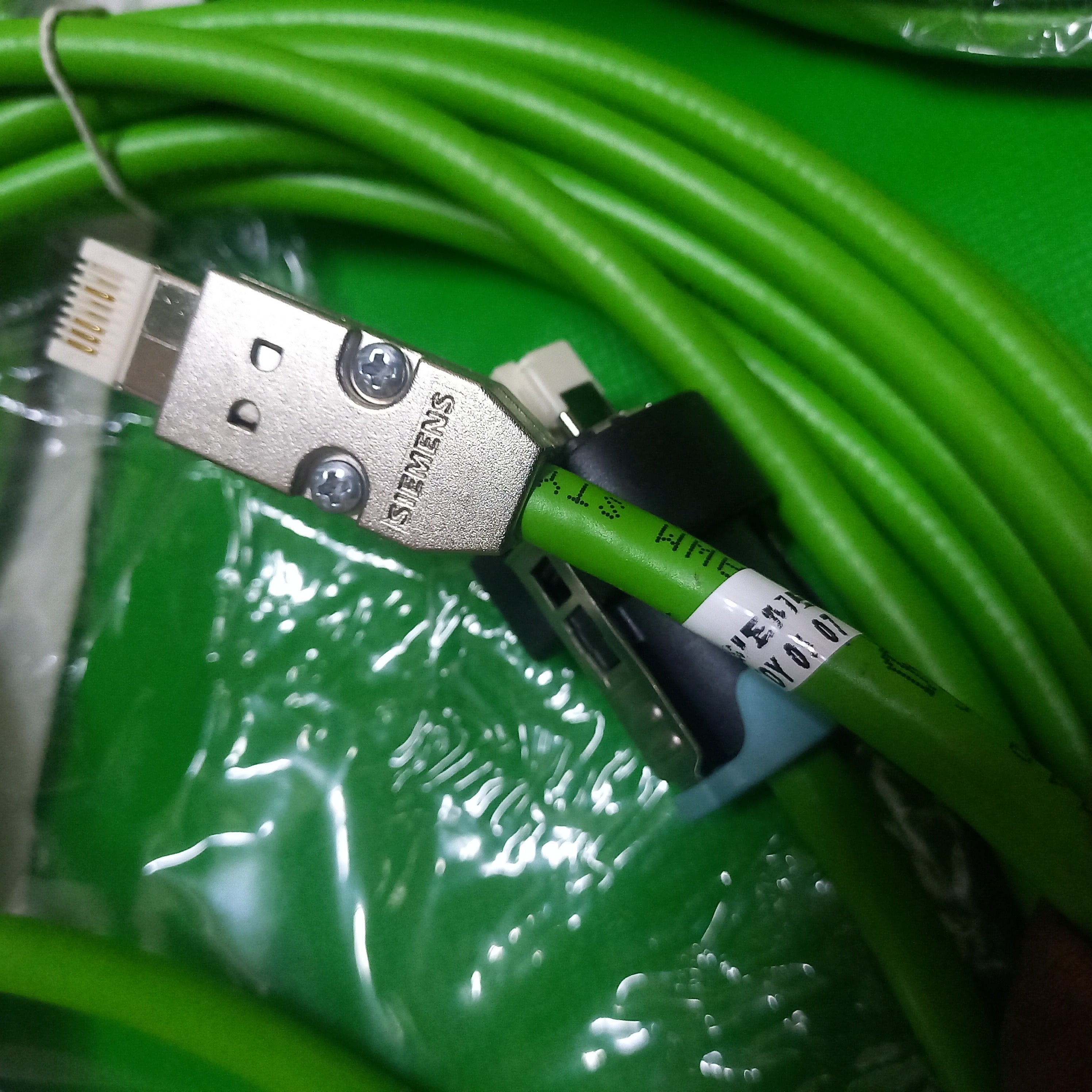

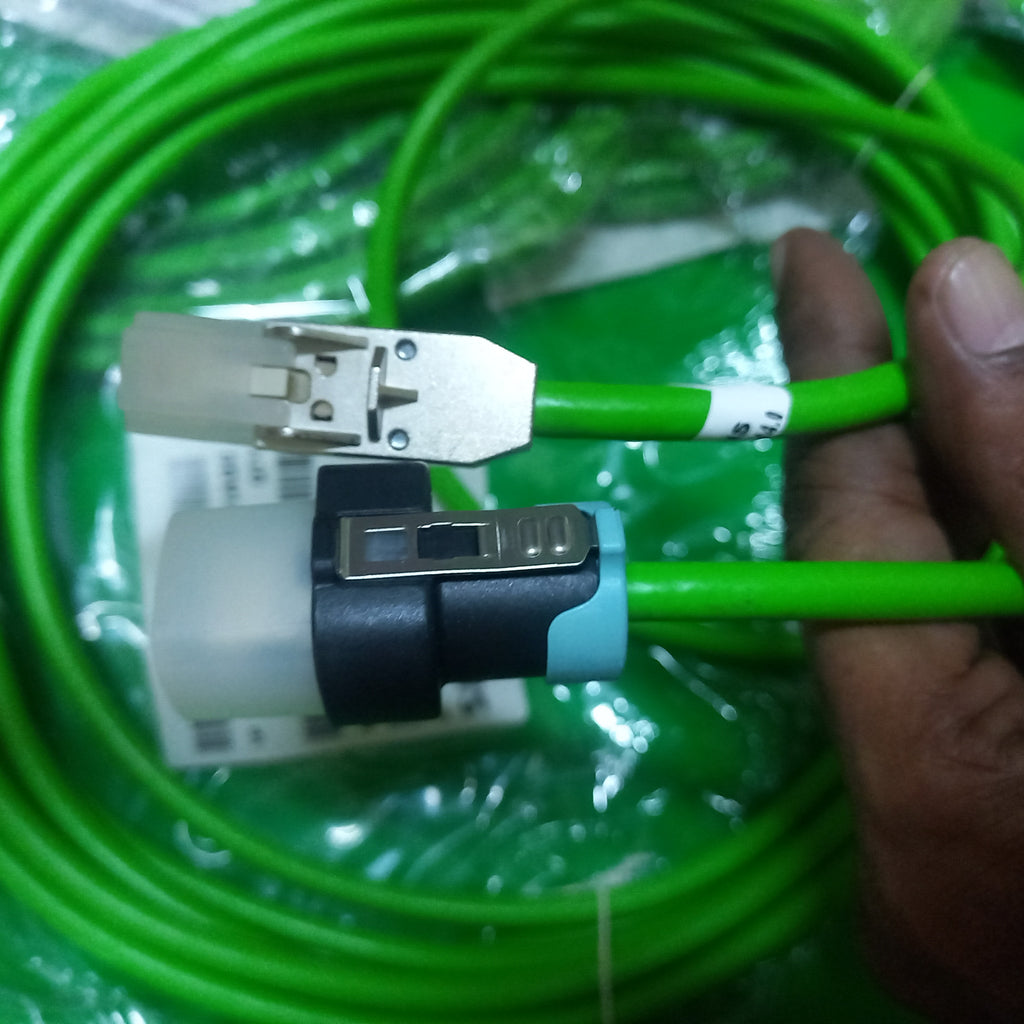

Type of connection cable converter side DRIVE-CLiQ RJ45
Maximum cable outer diameter 7.1 mm
Smallest bending radius (fixed installation) 35 mm
Smallest bending radius (flexible installation) 125 mm
Number of bends, max. 100,000
Maximum traversing velocity 30 m/min
Acceleration horizontal, max 2 m/s²
Tensile stress, max. Fixed installation 80 N/mm²
Tensile stress, max. Flexible installation 30 N/mm²
Torsional stress Absolute 30°/m
Length 6.0 m
Technical data
Ambient temperature
Operation with permanently installed cable -20 … 80 °C
Operation with moving cable 0 … 60 °C
Storage -20 … 80 °C
Kind of connection cable Basis cable

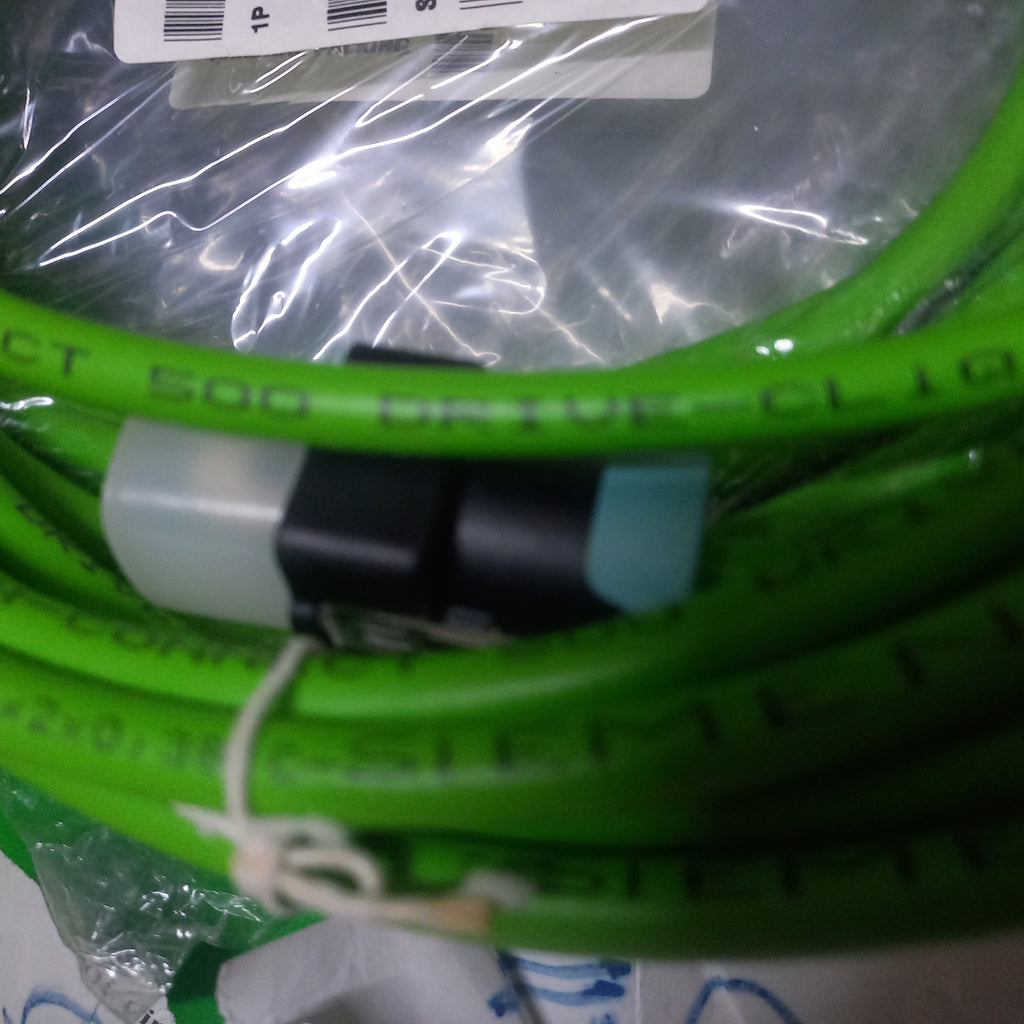

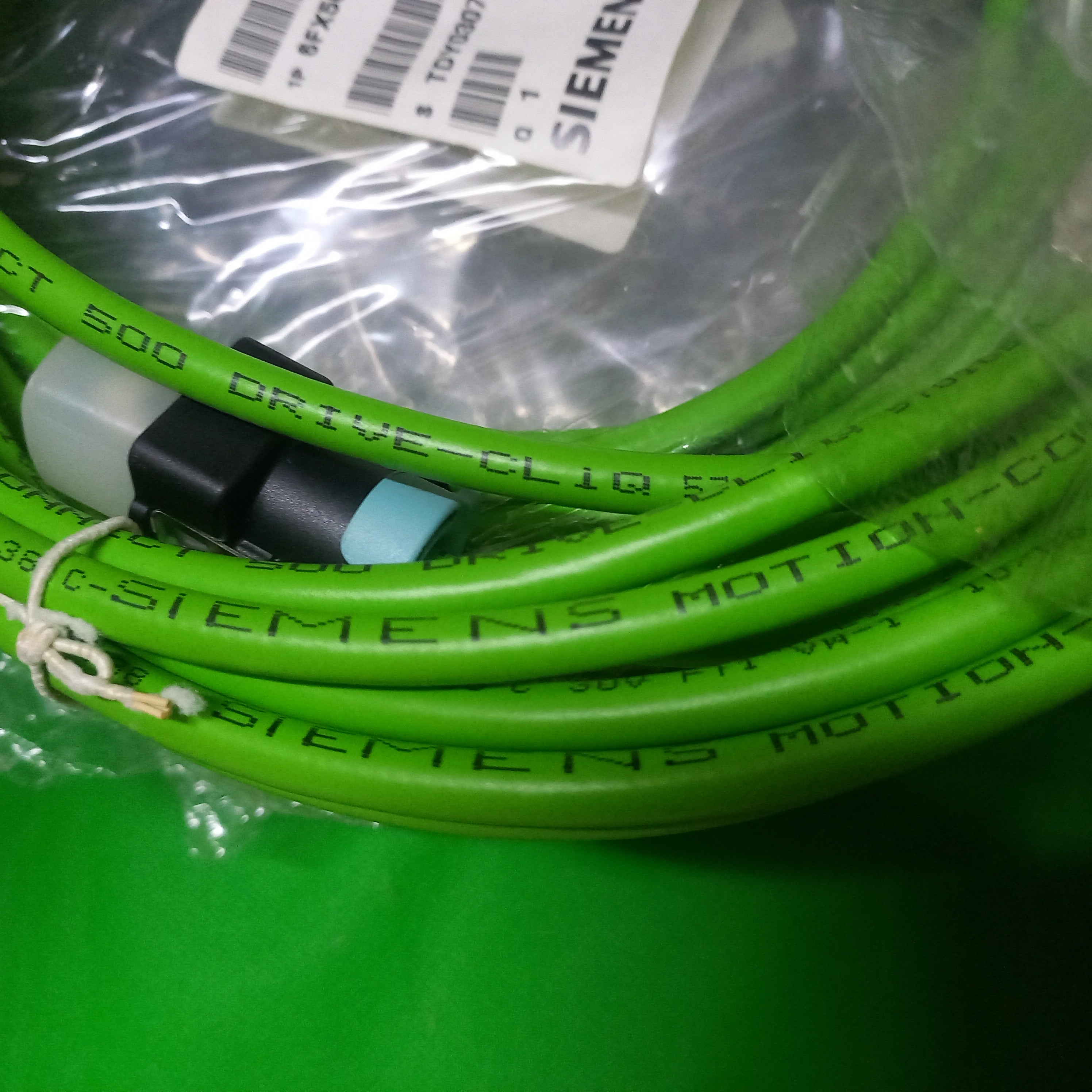

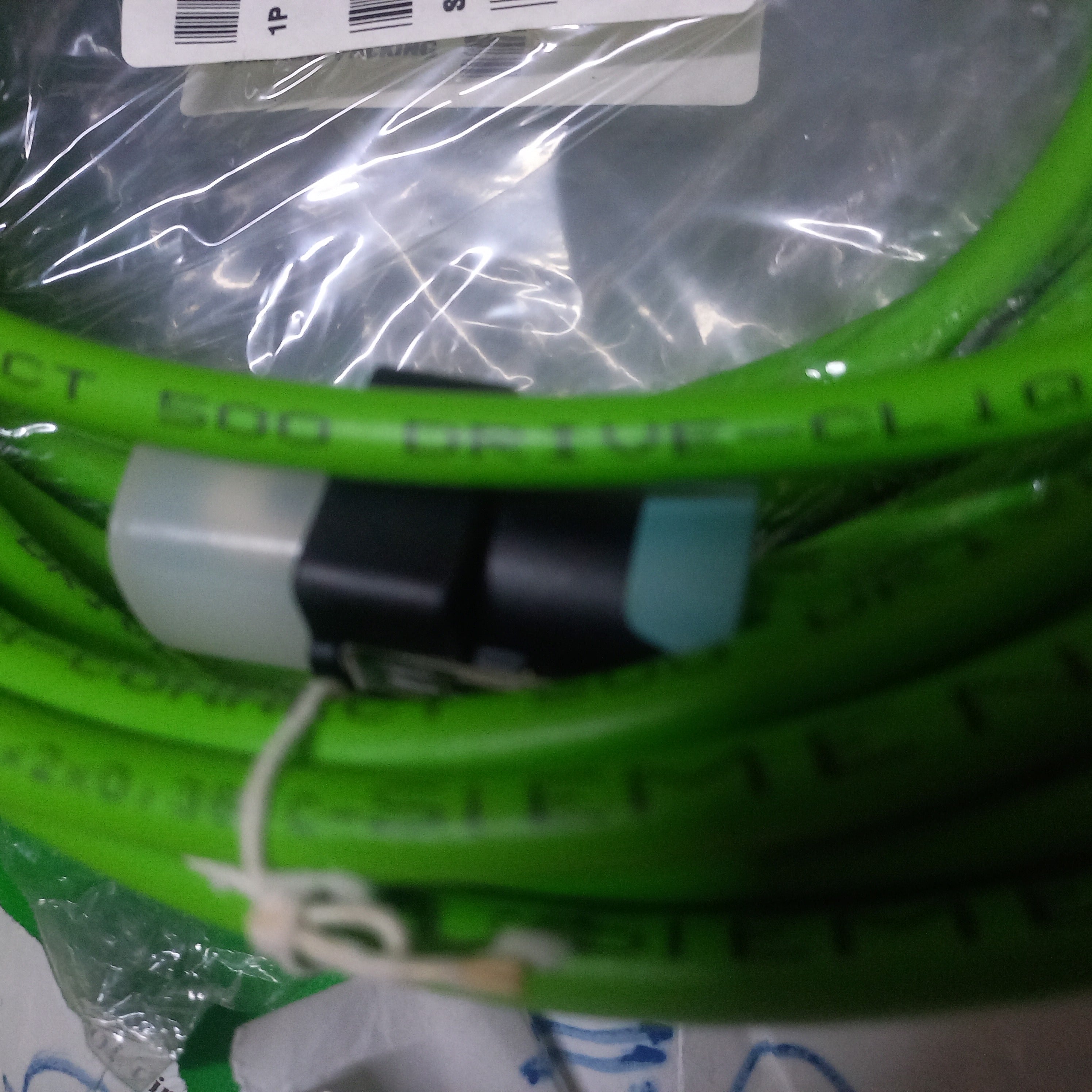

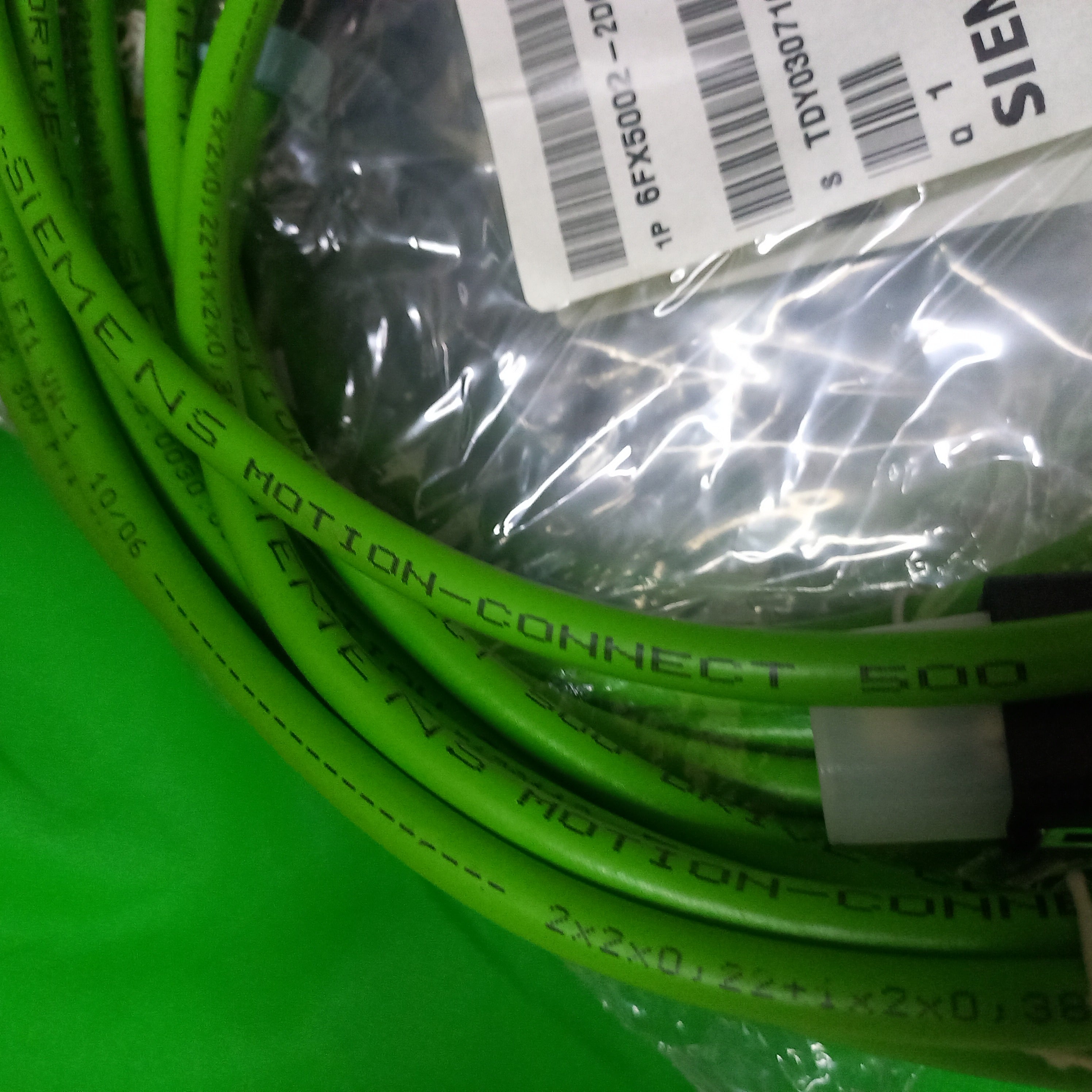

Material of the cable sheath PVC DESINA-Color green RAL 6018
Type of insulation Without CFC and silicone
Standard for behavior in fire: flame resistance EN 60332-1-1 to 1-3
Oil resistance EN 60811-2-1 (mineral oil only)
Verification of suitability as authorisation for USA UL STYLE 2502
Verification of suitability as authorisation for Canada CSA-N.210.2-M90
