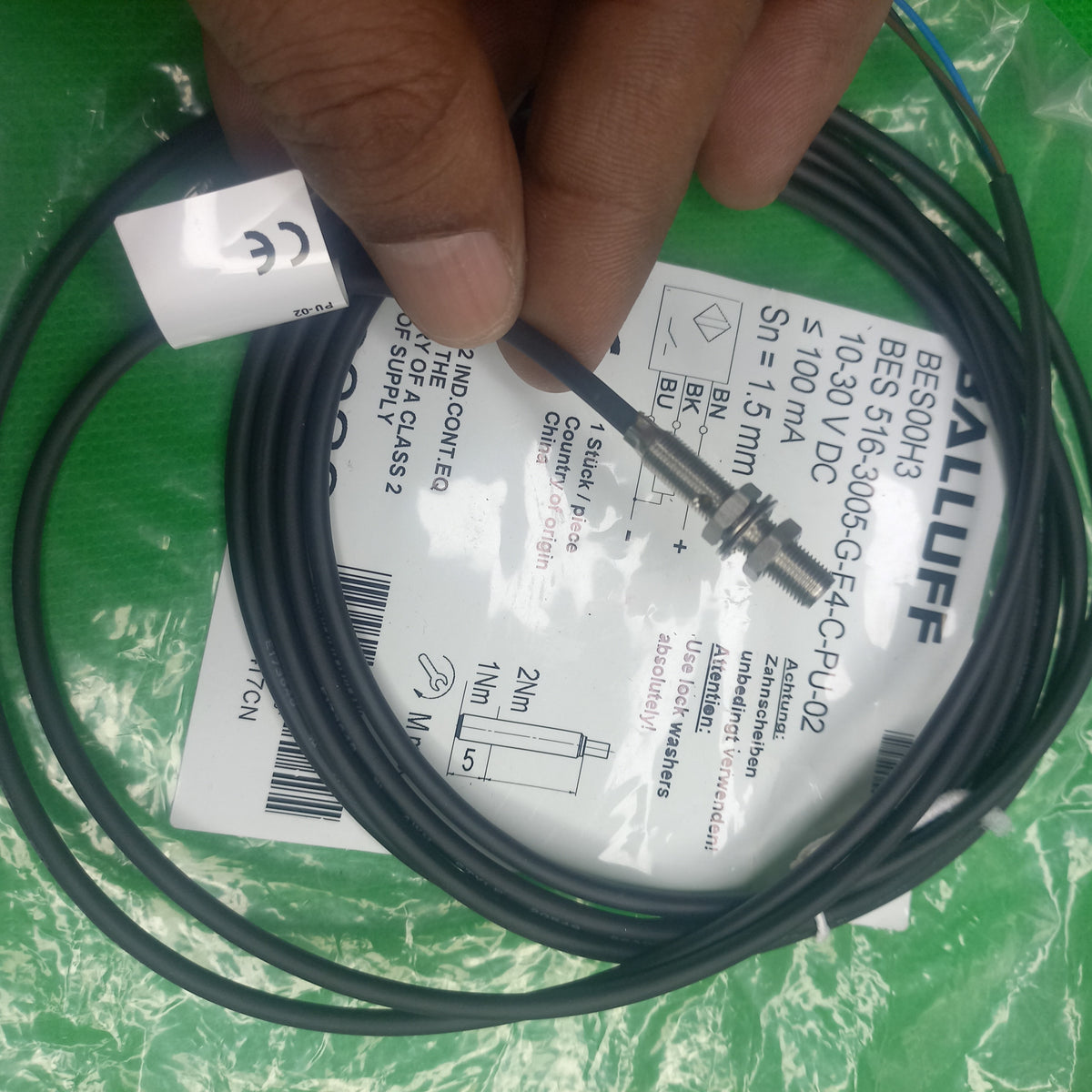

Balluff_BES00H3_BES516-3005-G-E4-C-PU-02, Body Dia 5mm, 1.5mm, Flush, PNP , NO
$180.00
Skip to product information
Balluff BES00H3 Proximity Sensor Bes 516-3005-G-E4-C-Pu-02, 3 wire, 10...30 VDC, PNP, NO< Rated operating distance Sn 1.5 mm, Ø 5 x 27 mm
MFR Part #: BESOOH3 | RS Stock Number: 70684056 | BE500H3
Electrical data
Load capacitance max. at Ue 1 μF
Min. operating current Im 0 mA
No-load current Io max., damped 6 mA
No-load current Io max., undamped 2 mA
Operating voltage Ub 10...30 VDC
Output resistance Ra Open drain
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 100 mA
Rated operating voltage Ue DC 24 V
Rated short circuit current 100 A
Ready delay tv max. 21 ms
Residual current Ir max. 10 μA
Ripple max. (% of Ue) 10 %
Switching frequency 5000 Hz
Utilization category DC -13
Voltage drop static max. 2 V
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Balluff_BES00H3_BES516-3005-G-E4-C-PU-02, Body Dia 5mm, 1.5mm, Flush, PNP , NO
$180.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Balluff
- Sensor Type: Cylinderical Inductive sensor Inductive Sensor
- Sensor Dimensions: Ø 34 / L = 98
- Sensor Interface:
- Sensor Range : Rated operating distance Sn 1.5 mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :

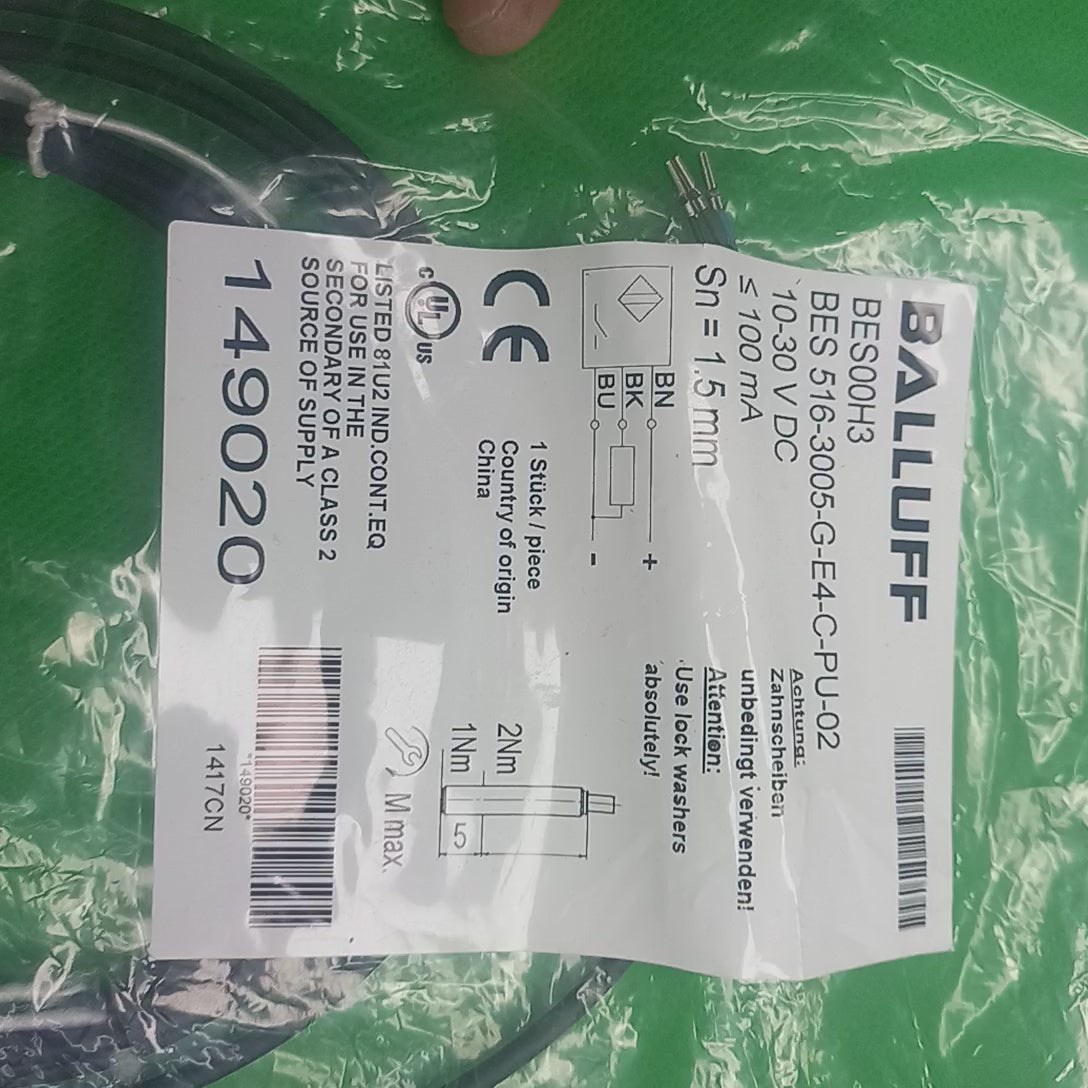

Balluff BES00H3 Proximity Sensor Bes 516-3005-G-E4-C-Pu-02, 3 wire, 10...30 VDC, PNP, NO< Rated operating distance Sn 1.5 mm, Ø 5 x 27 mm
Installation for flush mounting
MFR Part #: BESOOH3 | RS Stock Number: 70684056 | BE500H3BES 516-3005-G-E4-C-PU-02
Display/Operation
Function indicator yes
Power indicator no
Electrical connection
Cable diameter D 3.00 mm
Cable length L 2 m
Conductor cross-section 0.14 mm²
Connection type Cable, 2.00 m, PUR
Number of conductors 3
Polarity reversal protected yes
Protection against device mix-ups yes
Short-circuit protection yes
Function indicator yes
Power indicator no
Electrical connection
Cable diameter D 3.00 mm
Cable length L 2 m
Conductor cross-section 0.14 mm²
Connection type Cable, 2.00 m, PUR
Number of conductors 3
Polarity reversal protected yes
Protection against device mix-ups yes
Short-circuit protection yes
Electrical dataLoad capacitance max. at Ue 1 μF
Min. operating current Im 0 mA
No-load current Io max., damped 6 mA
No-load current Io max., undamped 2 mA
Operating voltage Ub 10...30 VDC
Output resistance Ra Open drain
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 100 mA
Rated operating voltage Ue DC 24 V
Rated short circuit current 100 A
Ready delay tv max. 21 ms
Residual current Ir max. 10 μA
Ripple max. (% of Ue) 10 %
Switching frequency 5000 Hz
Utilization category DC -13
Voltage drop static max. 2 V
Environmental conditions
Ambient temperature -25...70 °C
Contamination scale 3
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
IP rating IP67
Ambient temperature -25...70 °C
Contamination scale 3
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
IP rating IP67
Interface
Switching output PNP normally open (NO)
Material
Housing material Stainless steel
Material jacket PUR
Material sensing surface PBT
Mechanical data
Dimension Ø 5 x 27 mm
Installation for flush mounting
Mounting length 26.00 mm
Size M5x0.5
Tightening torque 1 Nm
Switching output PNP normally open (NO)
Material
Housing material Stainless steel
Material jacket PUR
Material sensing surface PBT
Mechanical data
Dimension Ø 5 x 27 mm
Installation for flush mounting
Mounting length 26.00 mmSize M5x0.5
Tightening torque 1 Nm
Range/Distance
Assured operating distance Sa 1.21 mm
Hysteresis H max. (% of Sr) 15.0 %
Rated operating distance Sn 1.5 mm
Real switching distance sr 1.5 mm
Repeat accuracy max. (% of Sr) 5.0 %
Switching distance marking ■■
Temperature drift max. (% of Sr) 10 %
Tolerance Sr ±10 %
Assured operating distance Sa 1.21 mm
Hysteresis H max. (% of Sr) 15.0 %
Rated operating distance Sn 1.5 mm
Real switching distance sr 1.5 mm
Repeat accuracy max. (% of Sr) 5.0 %
Switching distance marking ■■
Temperature drift max. (% of Sr) 10 %
Tolerance Sr ±10 %
- MPN : BES00H3
- Manufacturer indent Nr. : BES00H3BES5163005-G-E4-C-PU-02
- Manufacturer Product number : BES516-3005-G-E4-C-PU-02
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
