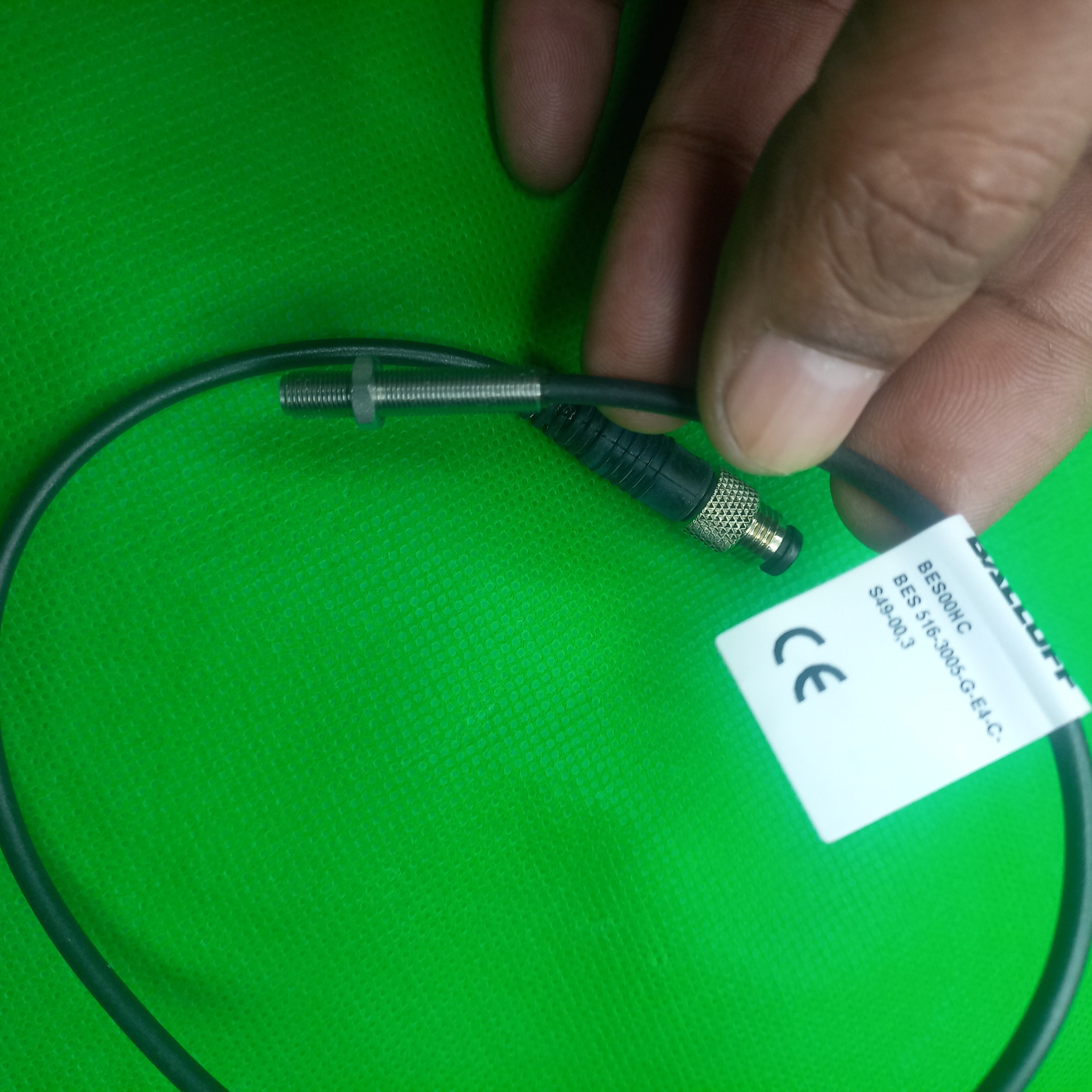

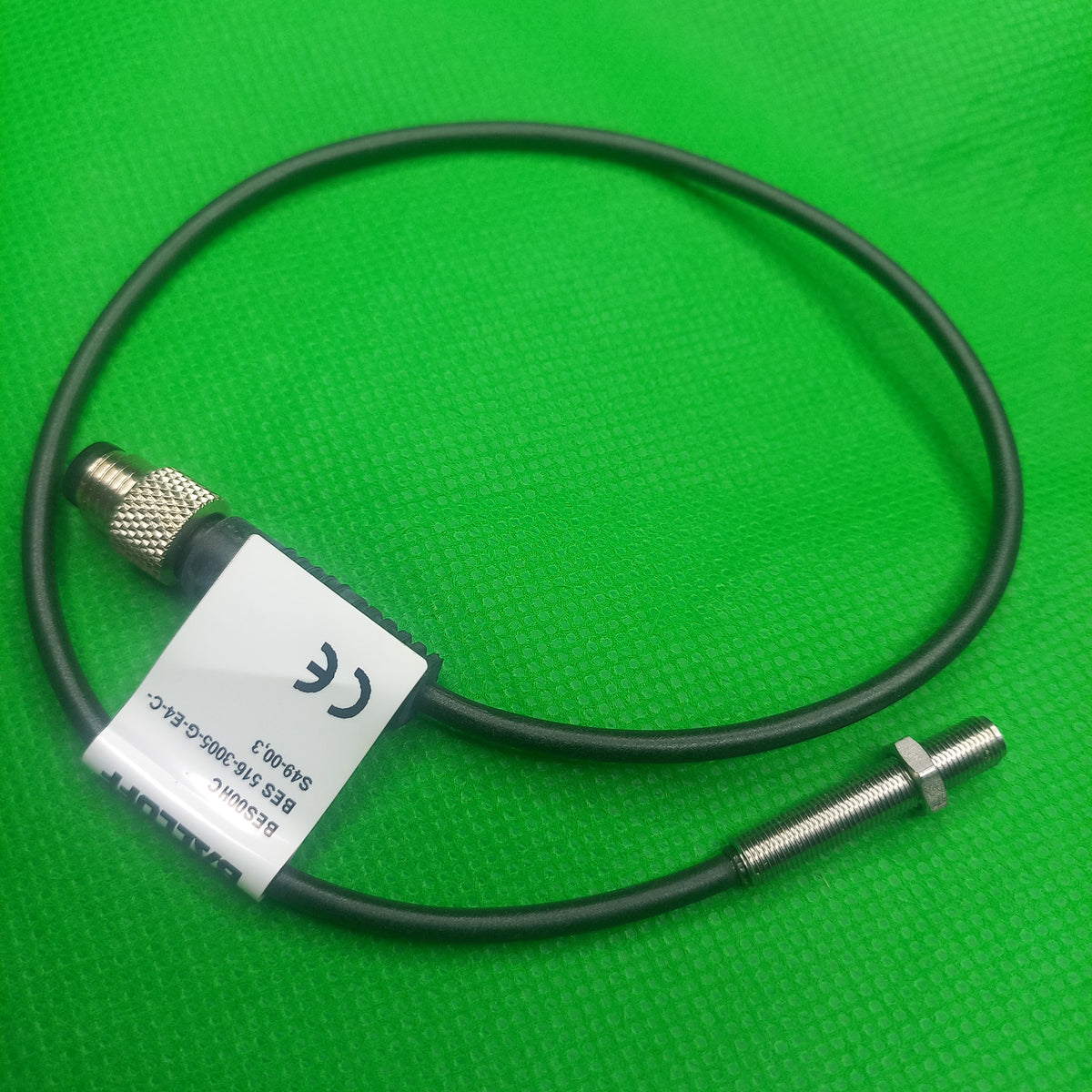

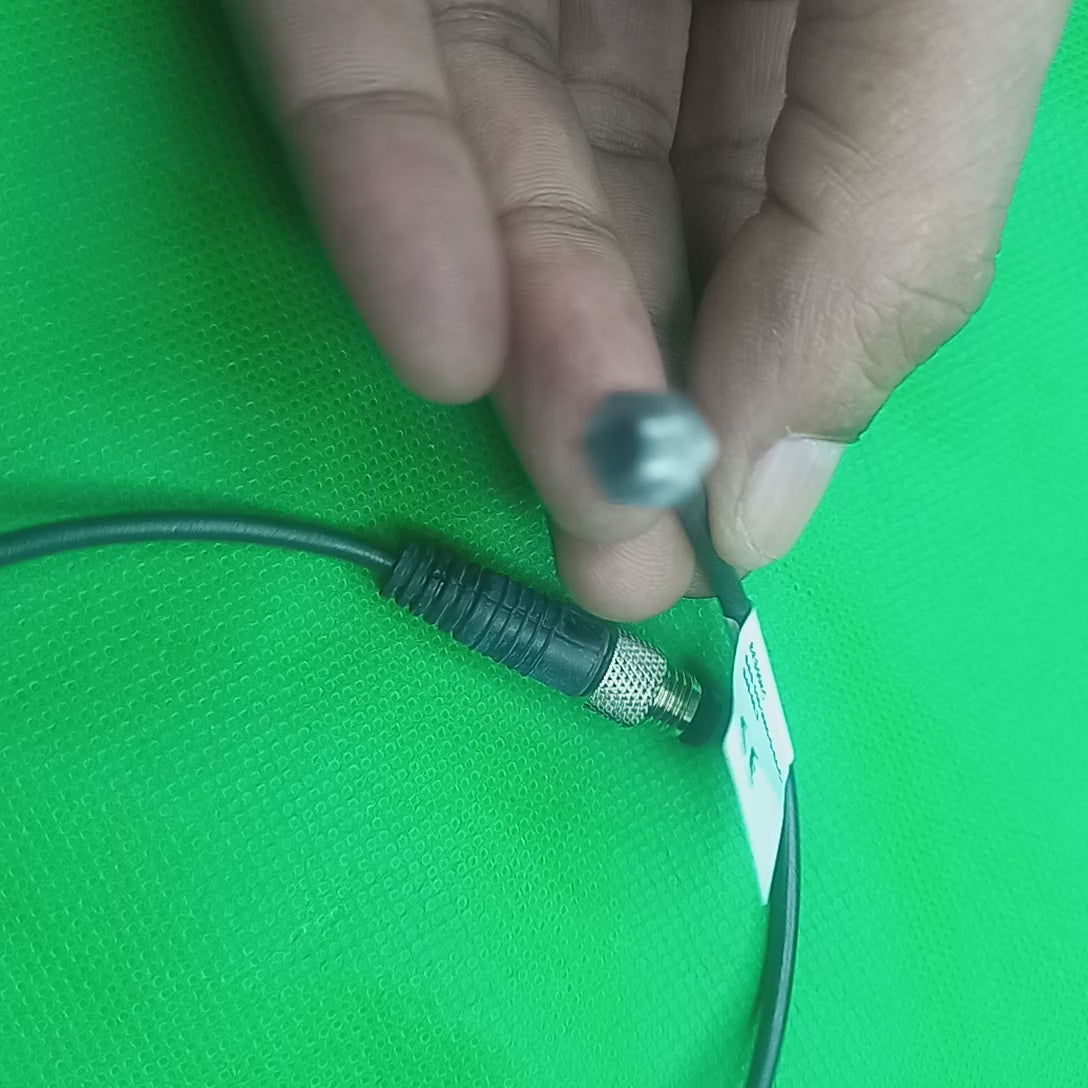

Cylindrical miniature _BES00HC_BES 516-3005-G-E4-C-S49-00,3

Body :Ø 5 x 27 mm, for flush mounting, Range 1.5 mm, PNP Normally open (NO)

Display/Operation
Function indicator yes
Power indicator no
Electrical connection
Cable diameter D 3.00 mm
Cable length L 0.3 m

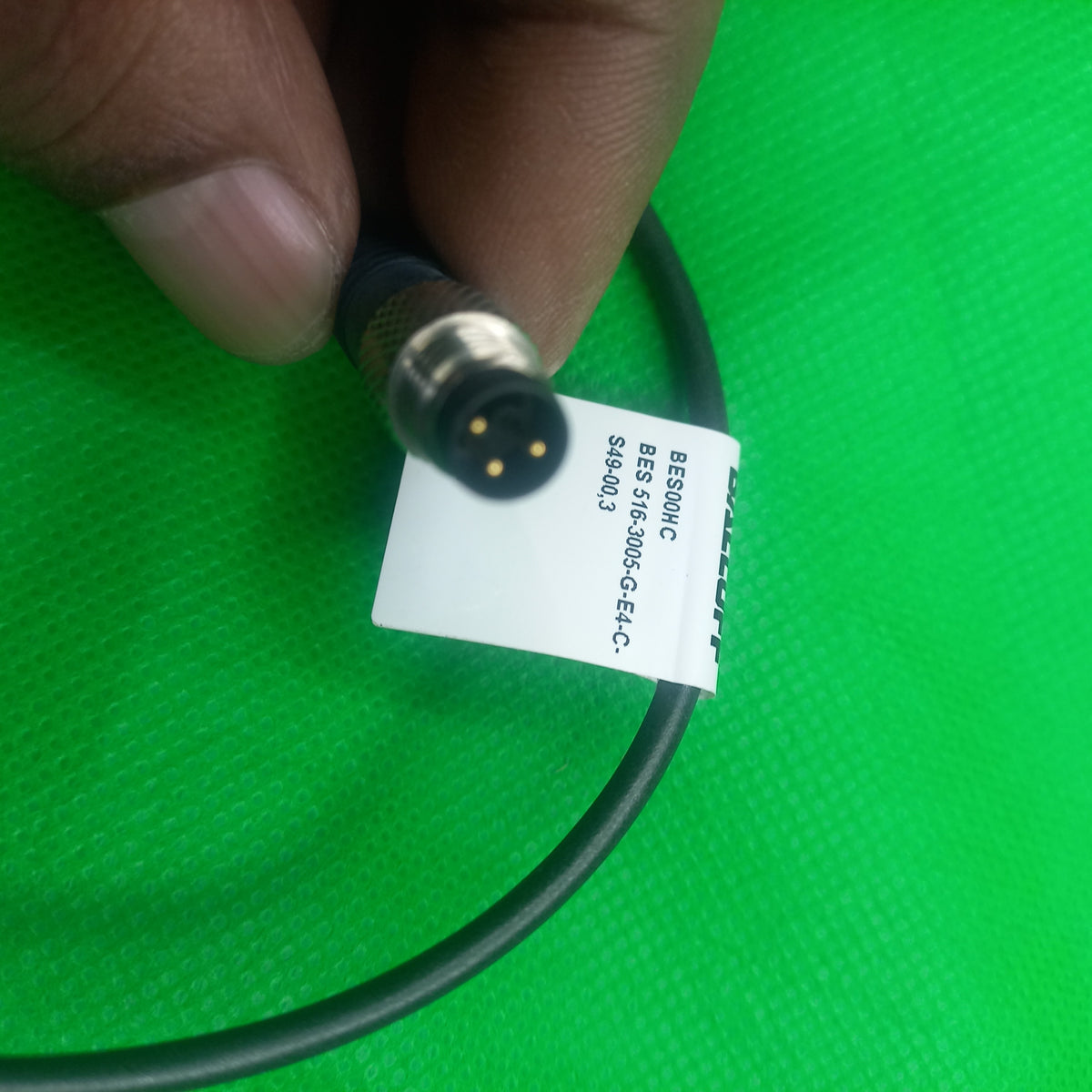

Connection M8x1-Male, 3-pin
Connection type Cable with connector, 0.30 m, PUR
Polarity reversal protected yes
Protection against device mix-ups yes
Short-circuit protection yes

Electrical data
Load capacitance max. at Ue 1 µF
Min. operating current Im 0 mA
No-load current Io max., damped 6 mA
No-load current Io max., undamped 2 mA
Operating voltage Ub 10...30 VDC
Output resistance Ra Open drain
Rated insulation voltage Ui 75 V DC
Rated operating current Ie 100 mA
Rated operating voltage Ue DC 24 V
Rated short circuit current 100 A
Ready delay tv max. 21 ms
Residual current Ir max. 10 µA
Ripple max. (% of Ue) 10 %
Switching frequency 5000 Hz
Utilization category DC -13
Voltage drop static max. 2 V
Environmental conditions
Ambient temperature -25...70 °C
Contamination scale 3
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
IP rating IP67
Functional safety
MTTF (40 °C) 305 a

Interface
Switching output PNP normally open (NO)
Material
Housing material Stainless steel
Material jacket PUR
Material sensing surface PBT

Mechanical data
Dimension Ø 5 x 27 mm
Installation for flush mounting
Mounting length 26.00 mm
Size M5x0.5
Tightening torque 1 Nm

Range/Distance
Assured operating distance Sa 1.21 mm
Hysteresis H max. (% of Sr) 15.0 %
Rated operating distance Sn 1.5 mm
Real switching distance sr 1.5 mm
Repeat accuracy max. (% of Sr) 5.0 %
Switching distance marking ■■
Temperature drift max. (% of Sr) 10 %
Tolerance Sr ±10 %
