Balluff_BOS6K-PU-1HA-S75-C_BOS009Y Diffuse Sensor 100mm Operating dist.= 100mm
Sale price
$250.00
Regular price $300.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Balluff_BOS6K-PU-1HA-S75-C_BOS009Y Diffuse Sensor 100mm Operating dist.= 100mm
Sale price
$250.00
Regular price $300.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Balluff
- Sensor Type: Diffuse sensors with background suppressionDiffuse sensor with background suppression
- Sensor Dimensions: 32x20x12mm
- Sensor Interface:
- Sensor Range : Operating distance= 100mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Balluff BOS6K-PU-1HA-S75-C (BOS009Y), Series 6 K, 100mm Operating distance= 100mm, 32x20x12mm, M8,4pin connector, PNP- NO/NC
Diffuse, Background suppression
BOS 6K-PU-1HA-S 75-C | BOS6K-PU-1HA-S75-C
Series 6K
Sensortype Diffuse, Background suppression
Switching frequency 800 Hz
Rated operating distance Sn in mm 100
asured operating distance Sa adjustable
Indication Supply Voltage yes, green LED
Indication Switching element on yes, yellow LED
Indication Special funktion yes, green LED
Ambient temperature -20...+60°C
On-delay <1ms
Off-delay <0,5ms
Light Red light
Sensitivity Adjustment Teach in
Special function Background suppression
Permissable ambient light 5000 Lux
Output function light-on or dark-on
Mechanical Data
Measurements 32x20x12
Shock Halfsinus, 30gn, 11ms
Vibration 10...55Hz, 1,5mm Amplitude 3x2h
Housing material ABS impact resistant
Material of sensing face PMMA
Degree of protection IP67

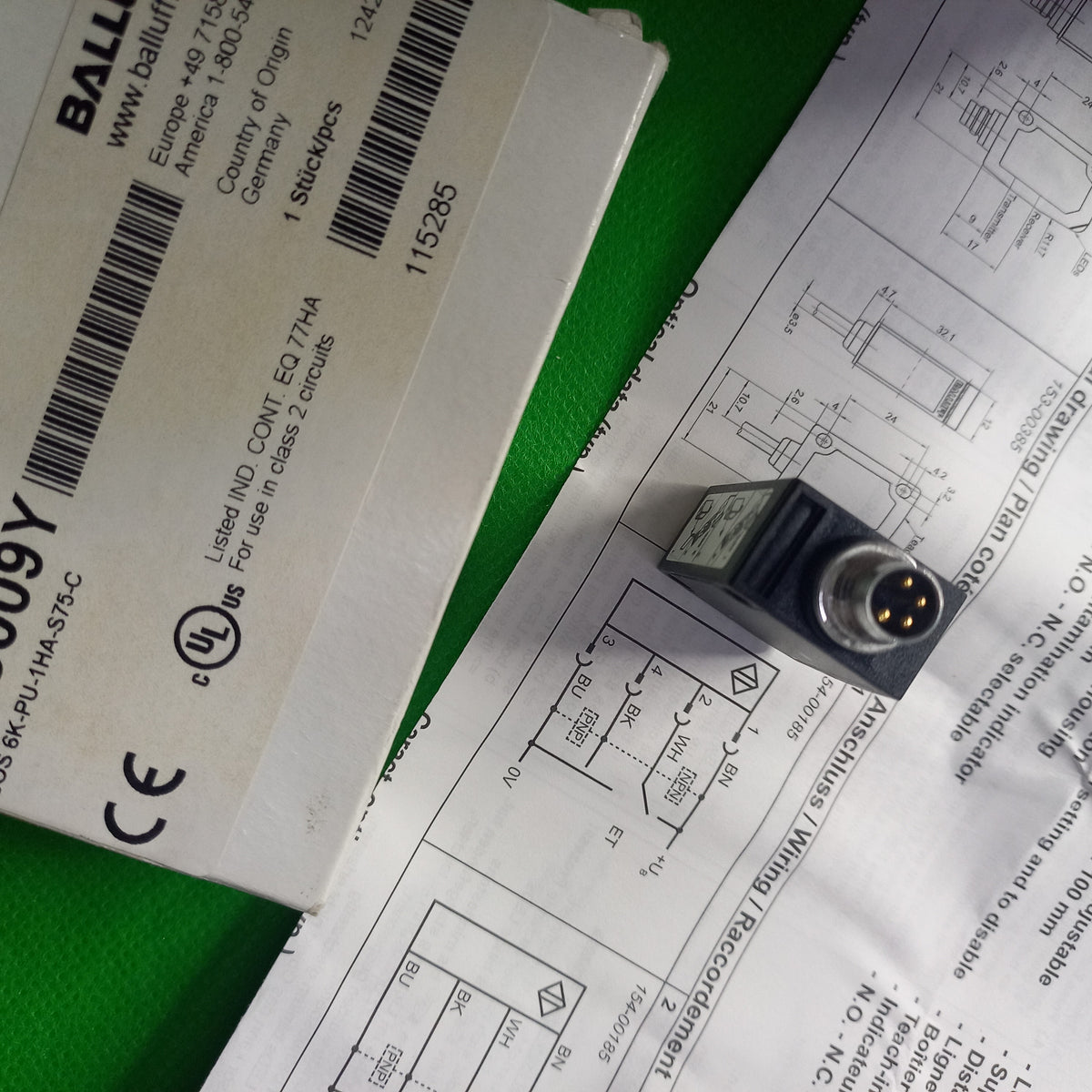

Connection Connector S75 (M8,4-pin)
Weigth 40g
Recommended connector BKS-S75
Electrical Data
Current DC
Switching function NO/NC
Output PNP
Rated operational voltage Ue 24V DC
Rated operational current Ie 100mA
Supply Voltage 10...30V DC
Ripple < 10% from UB
Frequency of Supply Voltage DC
No-load supply current <35mA
Voltage drop <2,4V
Short protection yes
Protected against polarity reversal yes
Rated insulation voltage 250V AC
max. Load capacity 0,33µF
- MPN : BOS 6K-PU-1HA-S 75-C
- Manufacturer indent Nr. : BOS 6K-PU-1HA-S 75-CBOS6K-PU-1HA-S75-C
- Manufacturer Product number : BOS 6K-PU-1HA-S75-C
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
