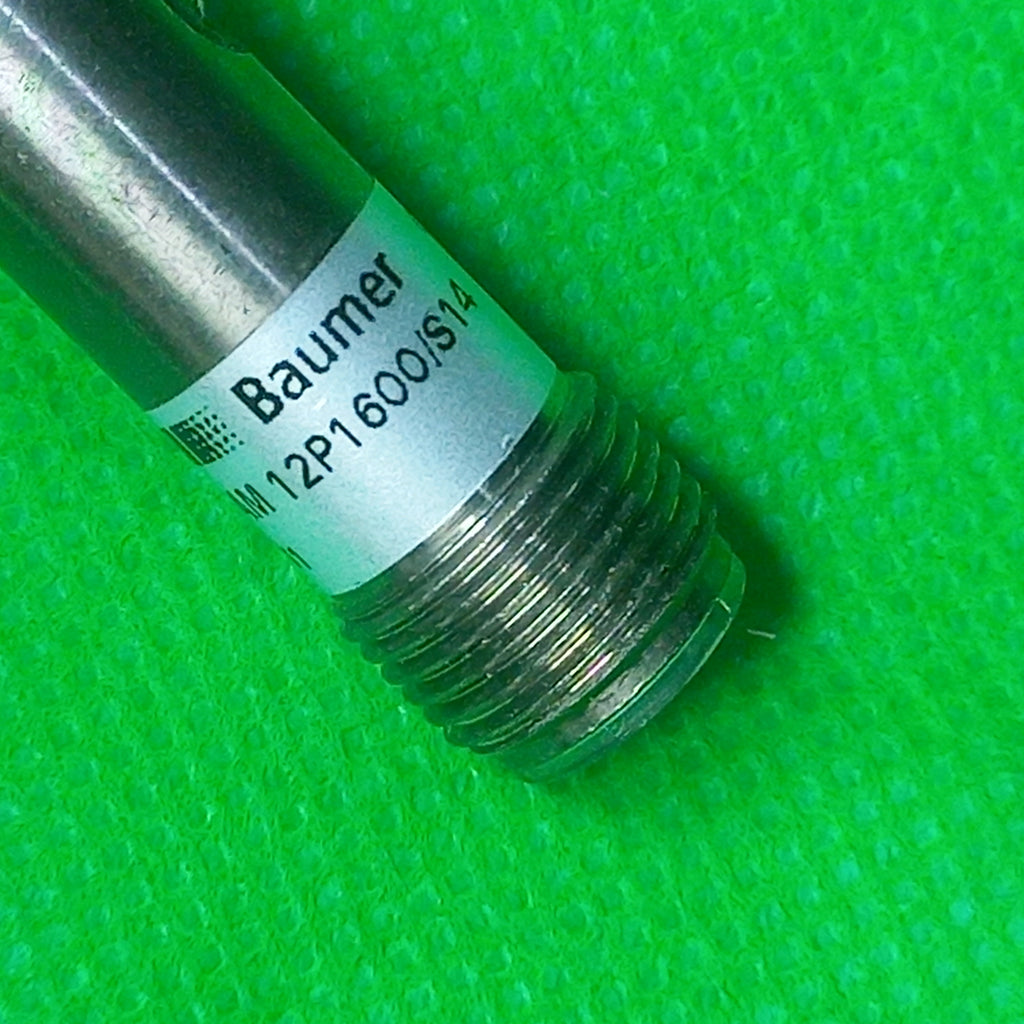

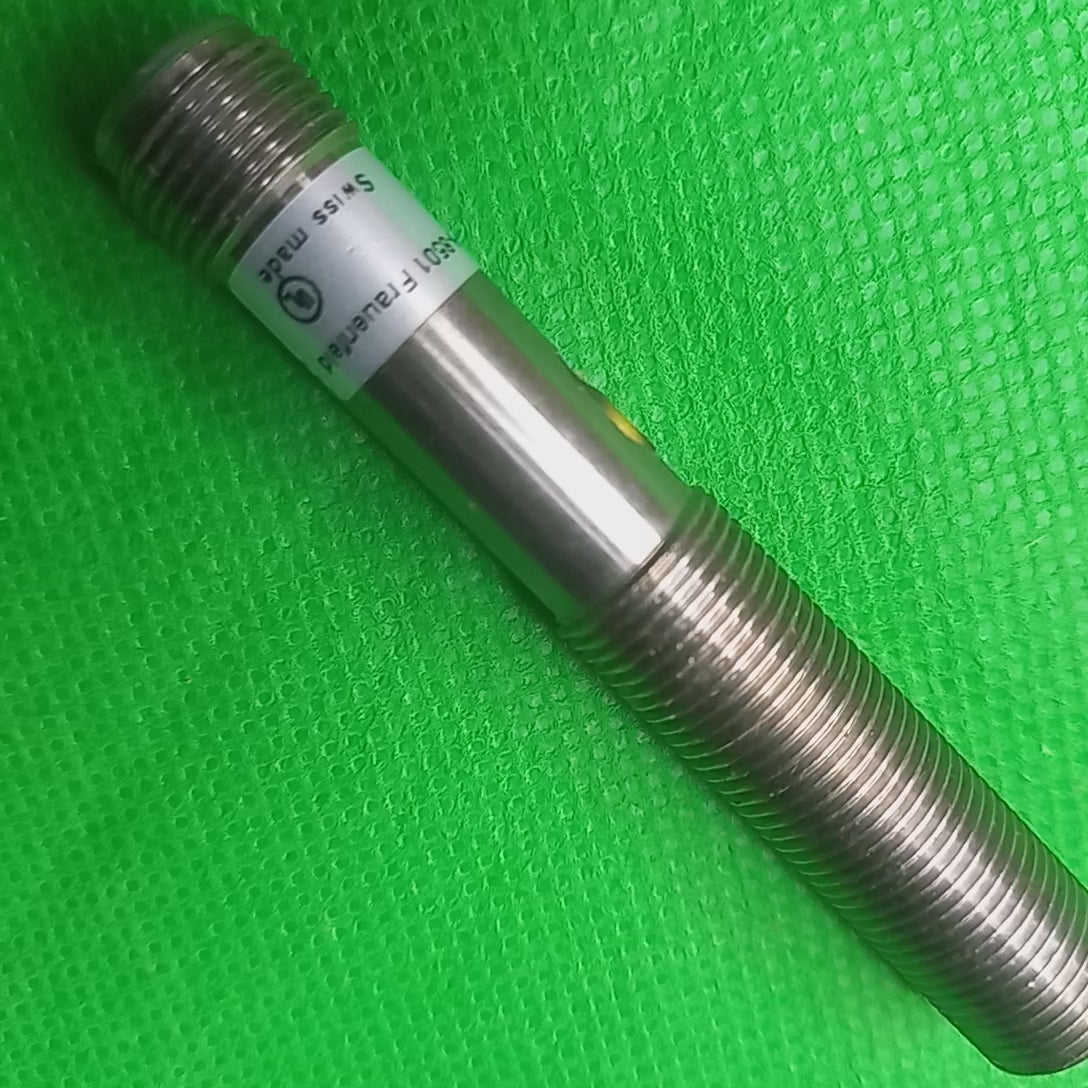

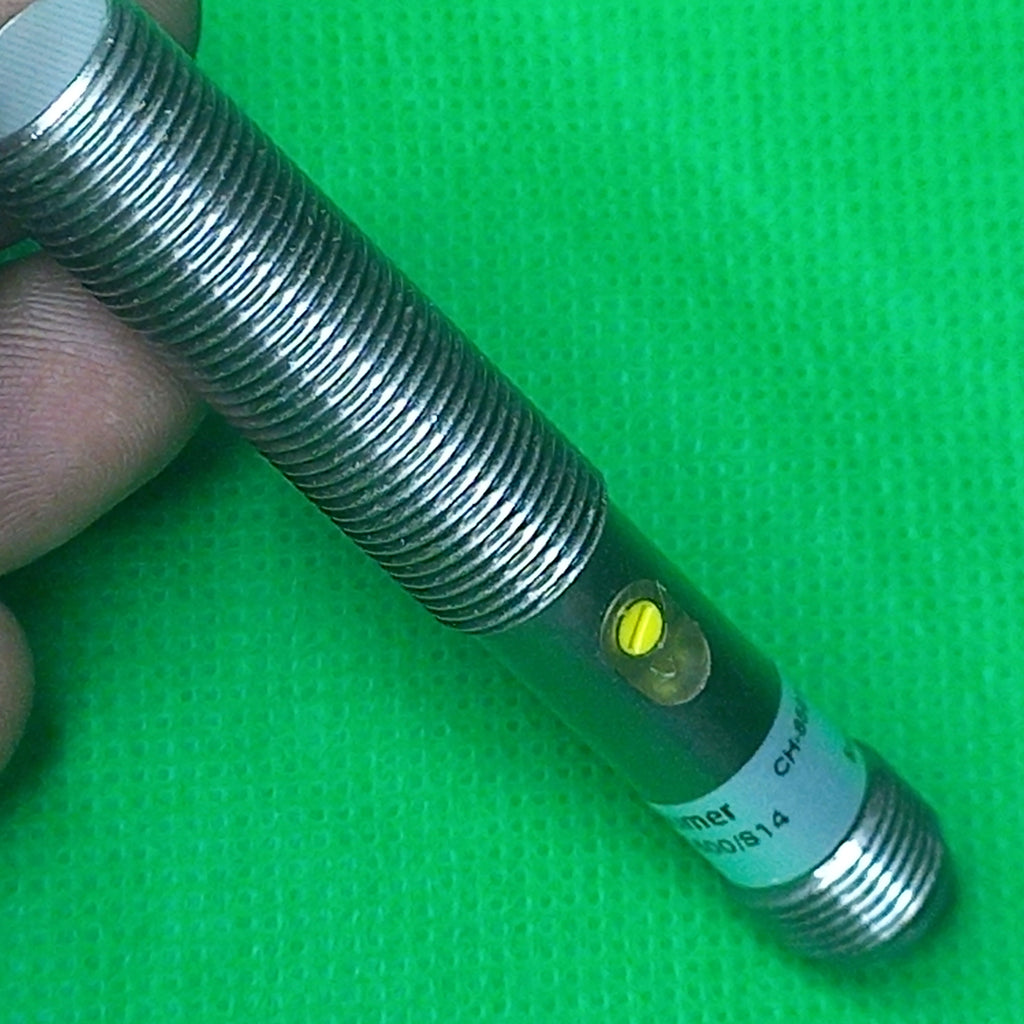

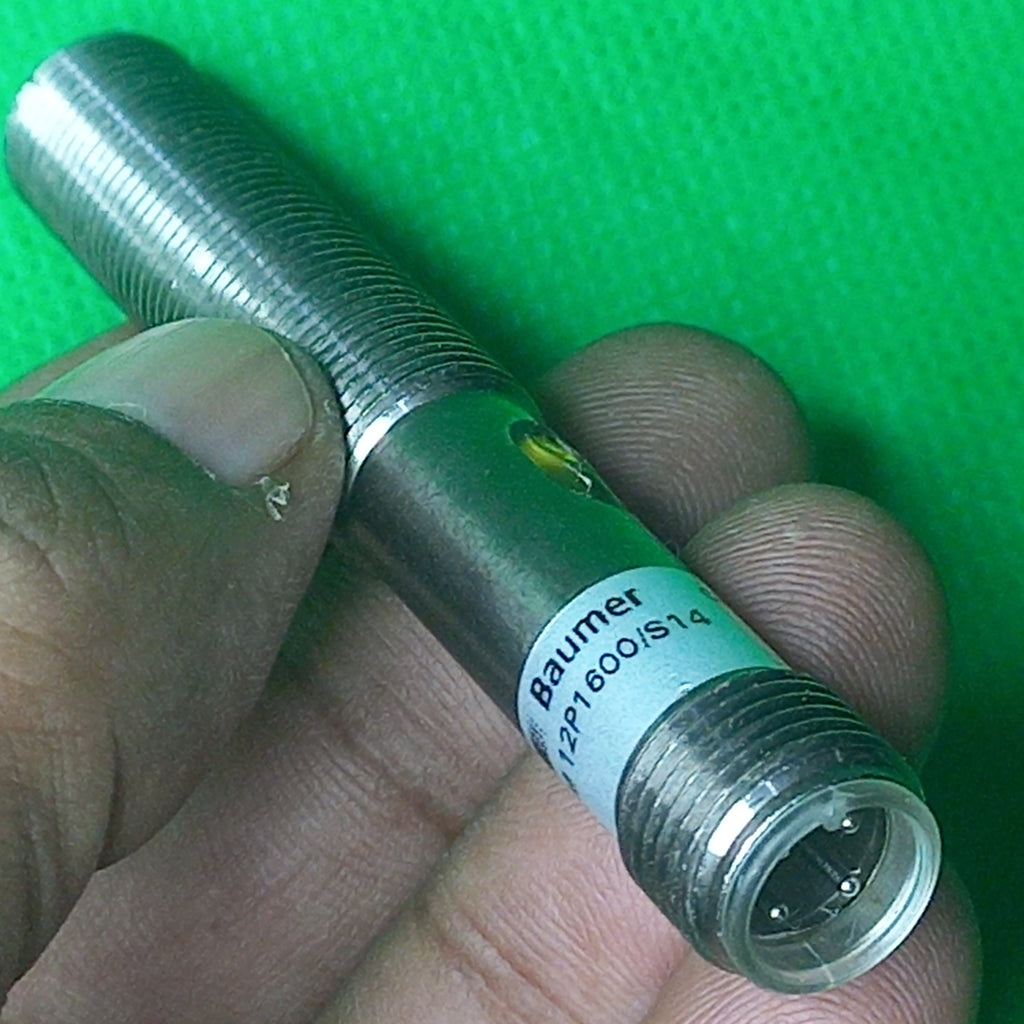

Capacitive proximity sensor CFAM 12P1600/S14 Article no.: 10236345 12mmx76L, PNP make function (NO)
$180.00
Skip to product information
Capacitive proximity sensor CFAM 12P1600/S14 Article no.: 10236345 | 4 mm | PNP make function (NO) | potentiometer, 240° | connector M12 | -25 … 75 °C | IP 65
- Same day service is possible if we recieve motor by 7 AM,
Capacitive proximity sensor CFAM 12P1600/S14 Article no.: 10236345 12mmx76L, PNP make function (NO)
$180.00
Taxes included.
Shipping calculated at checkout.
- Capacitive Sensor Baumer
- CFAM 12P1600/S14
- Article no.: 10236345
- CFAM12P1600S14
- CFAM12P1600/S14
Capacitive proximity sensor CFAM 12P1600/S14 Article no.: 10236345 | 4 mm | PNP make function (NO) | potentiometer, 240° | connector M12 | -25 … 75 °C | IP 65
Nominal sensing distance Sn = 4 mm
Nominal sensing distance Sn adjustable= 0.5 … 4 mm
Mounting type= Flush
GND electrode= Yes
Temperature drift= ± 15 % (+10 ... +70 °C)
Sensitivity adjustment= Potentiometer, 240°
Output indicator= LED yellow
Measurement type= Contactless
Detection of non-conductive media=Yes
Fill level detection through container=Yes
Liquids in direct contact=No
Object detection / bulk goods=Yes

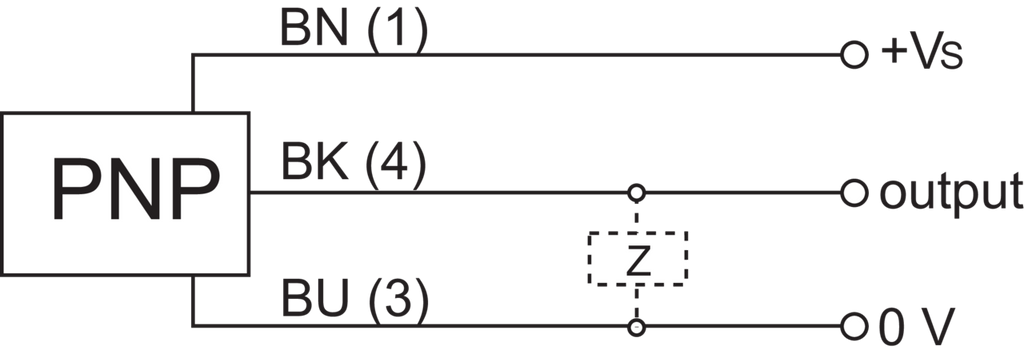

Electrical data
Voltage supply range +Vs=10 … 30 VDC
Current consumption max. (no load)=20 mA
Output circuit=PNP make function (NO)
Output current=200 mA
Voltage drop Vd=;1.5 VDC
Switching frequency=50 Hz
Short circuit protection=Yes
Reverse polarity protection=Yes
Mechanical data
Design=Cylindrical threaded
Housing material=Brass nickel plated
Dimension=12 mm
Housing length 76 mm
Connection types
Connector M12
Ambient conditions
Operating temperature -25 ;+75 °C
Protection class IP 65
