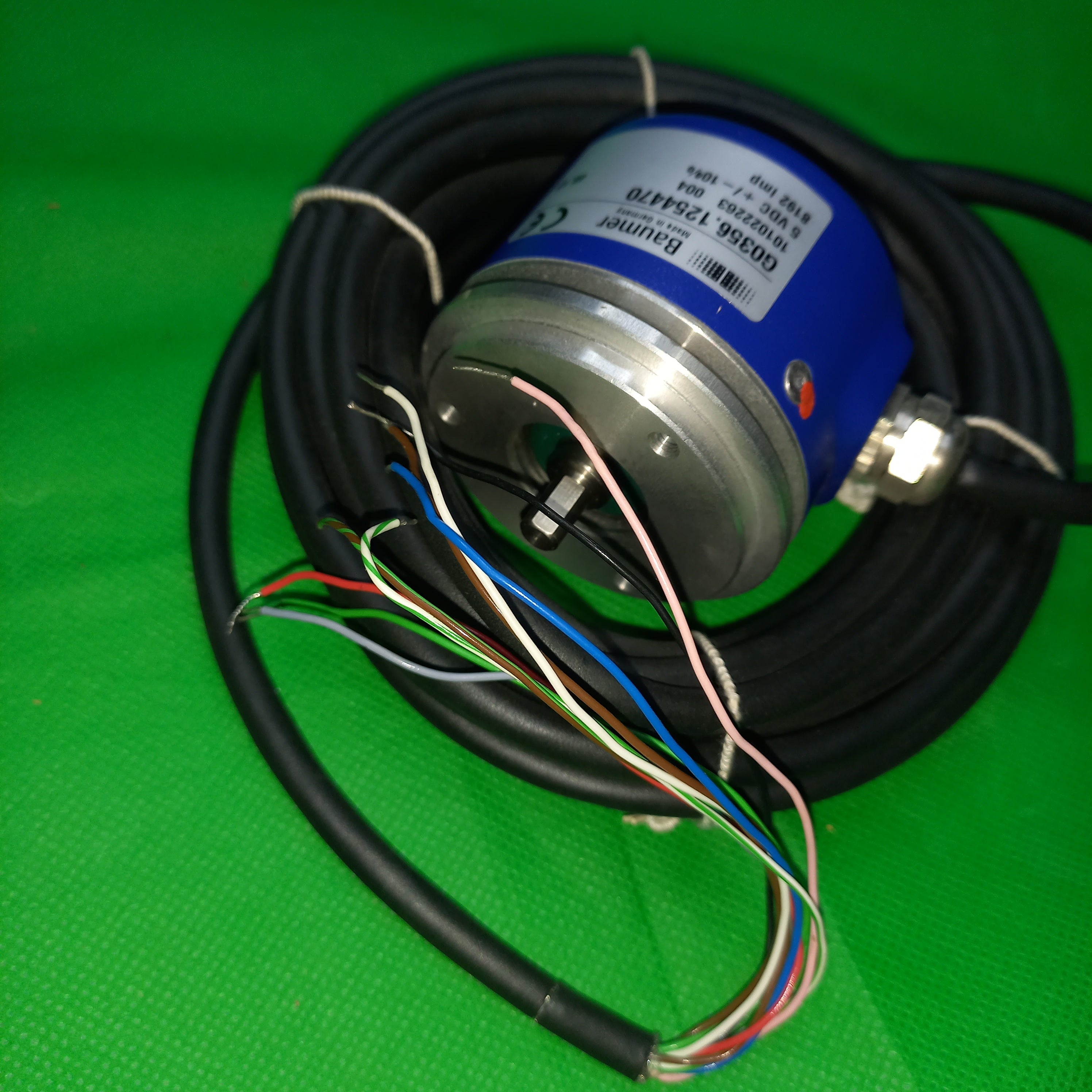

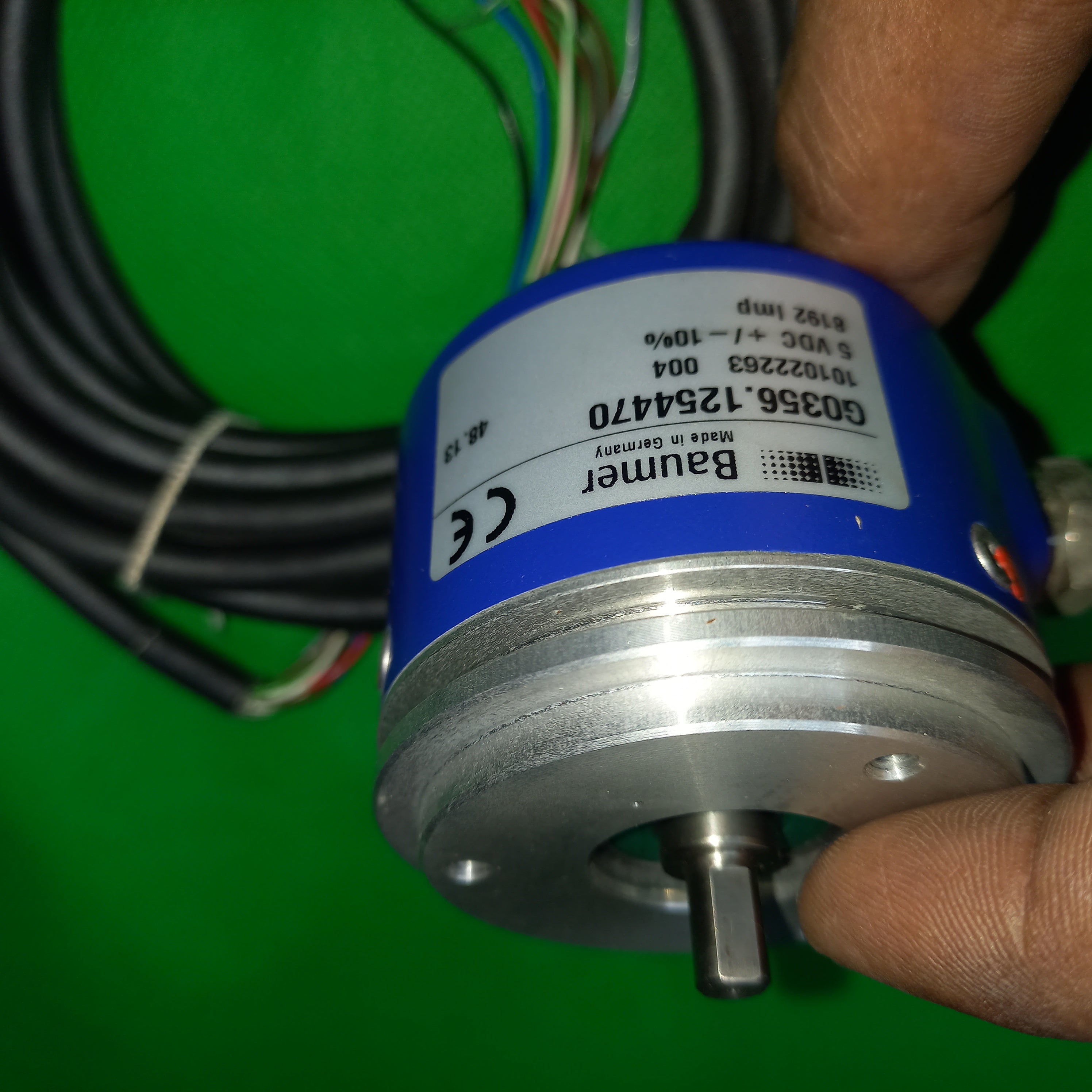

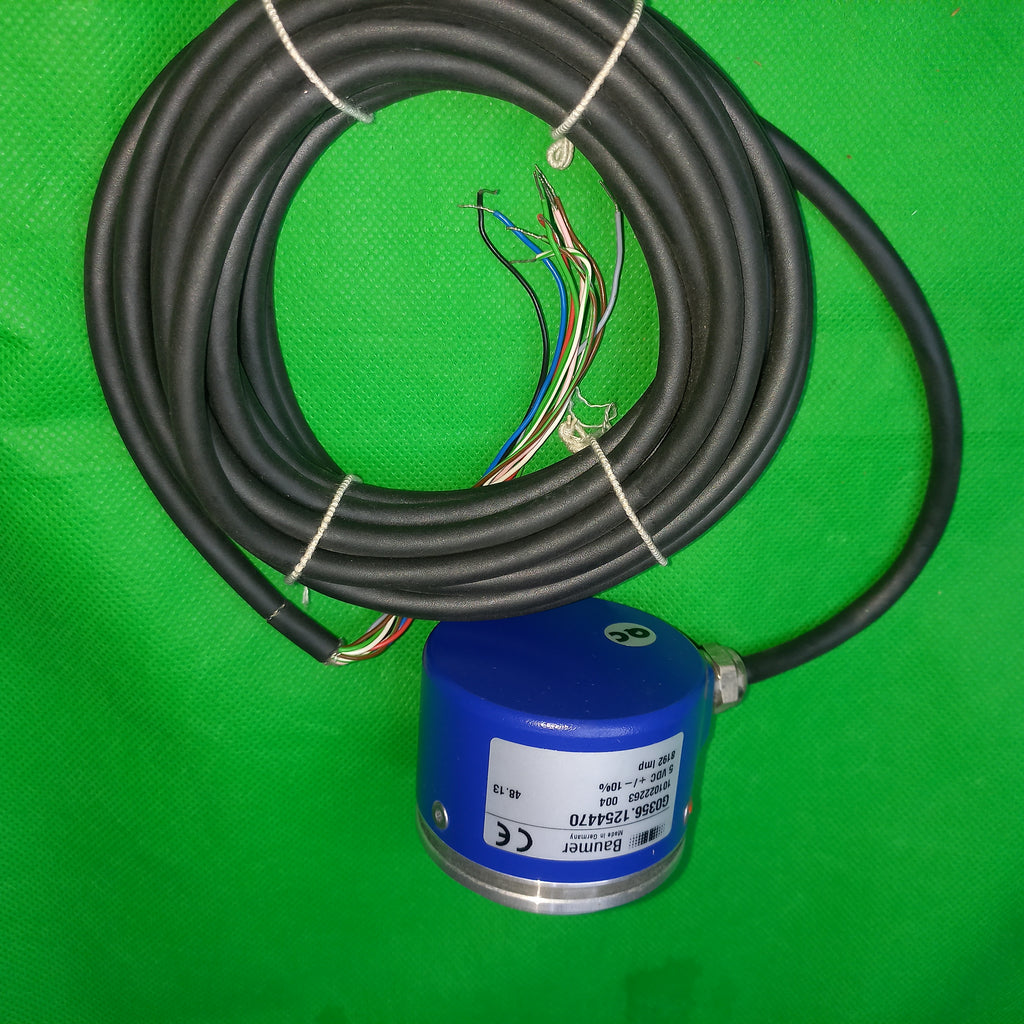

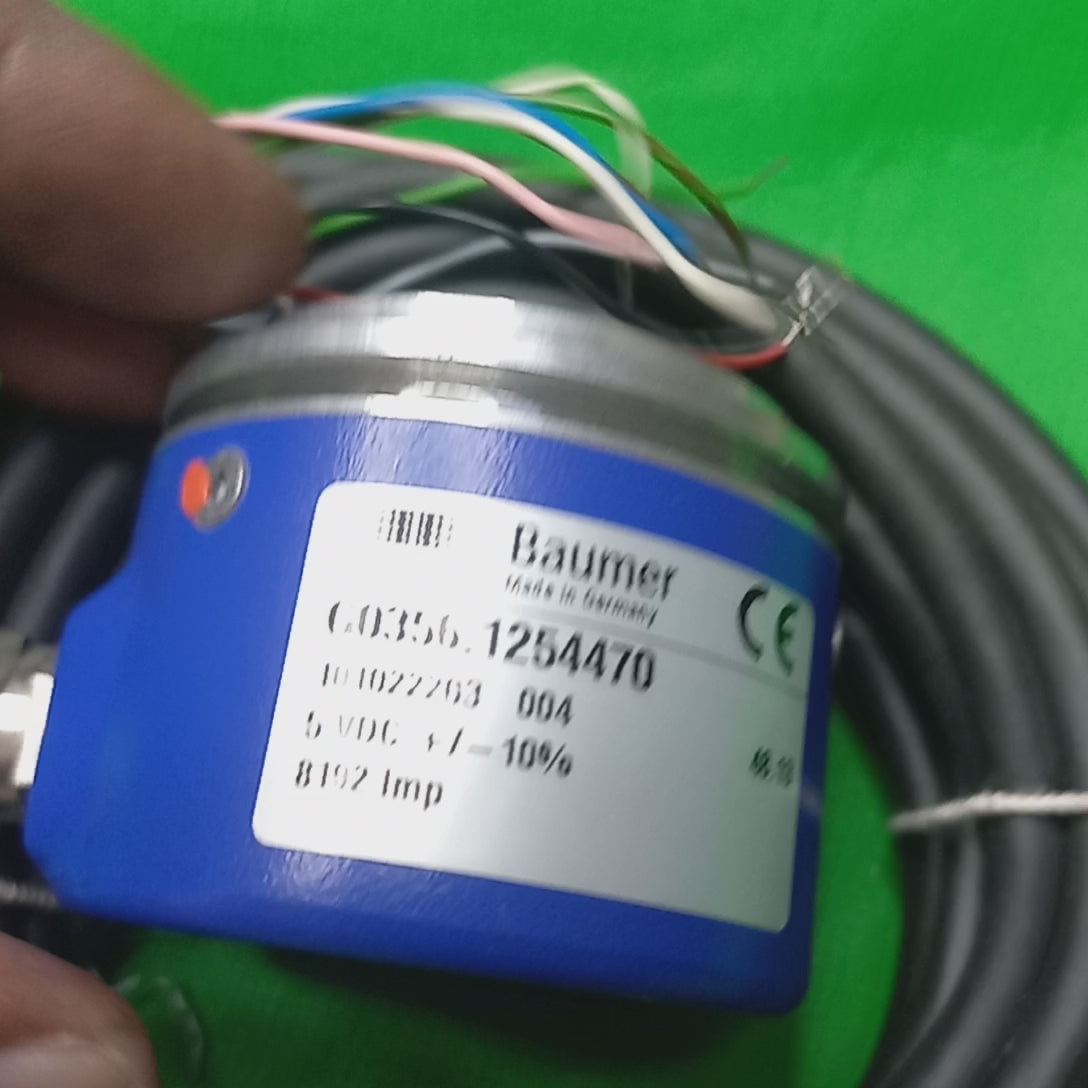

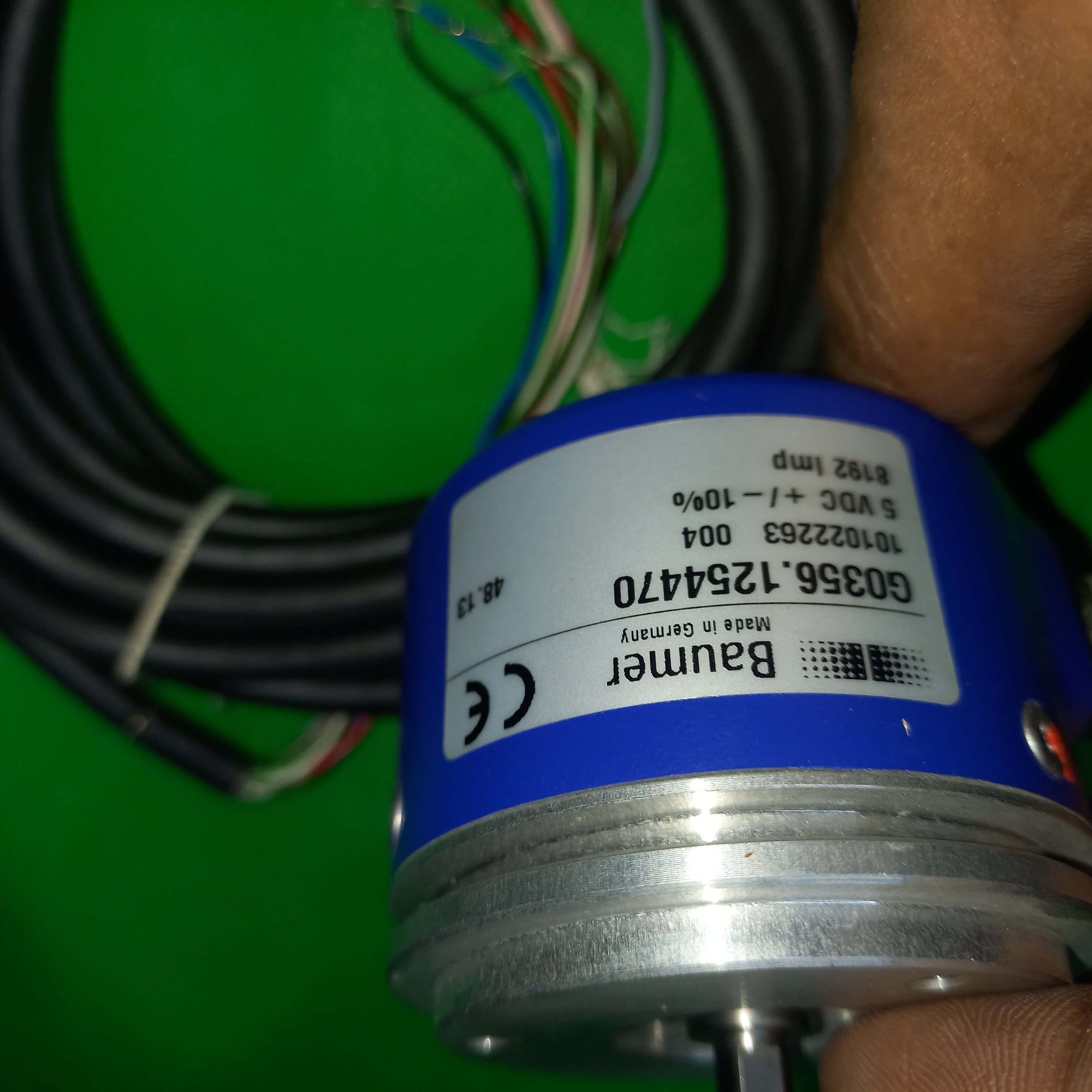

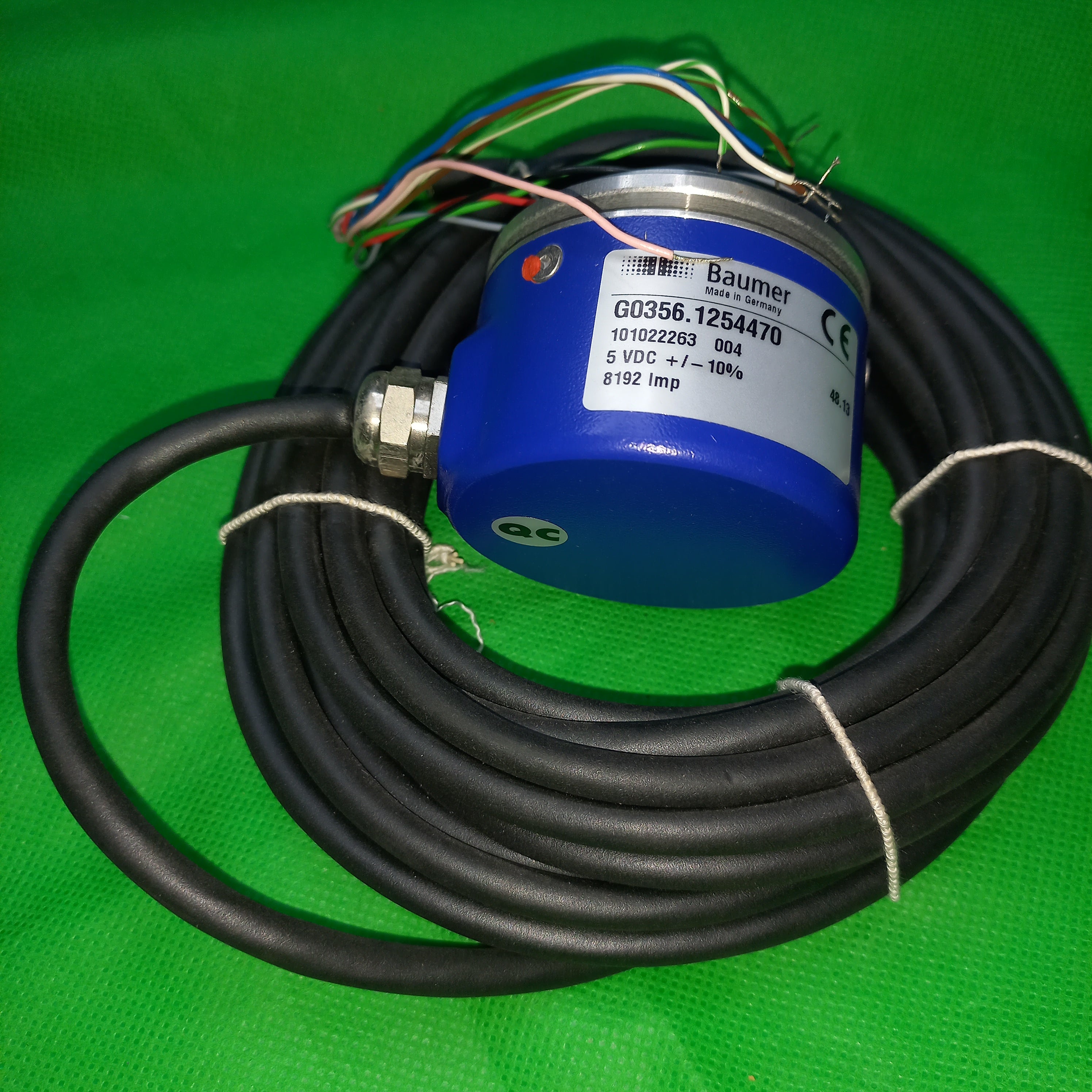

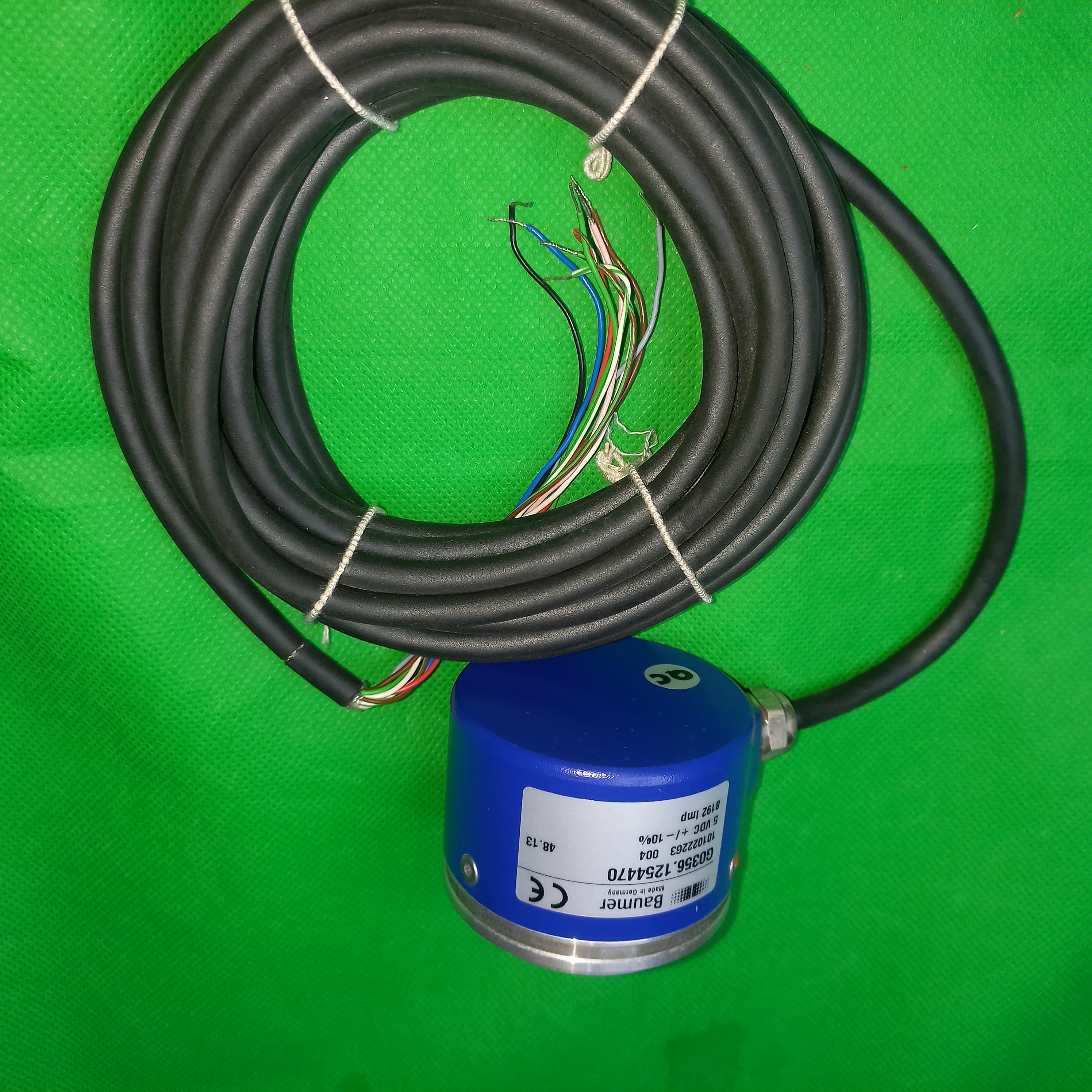

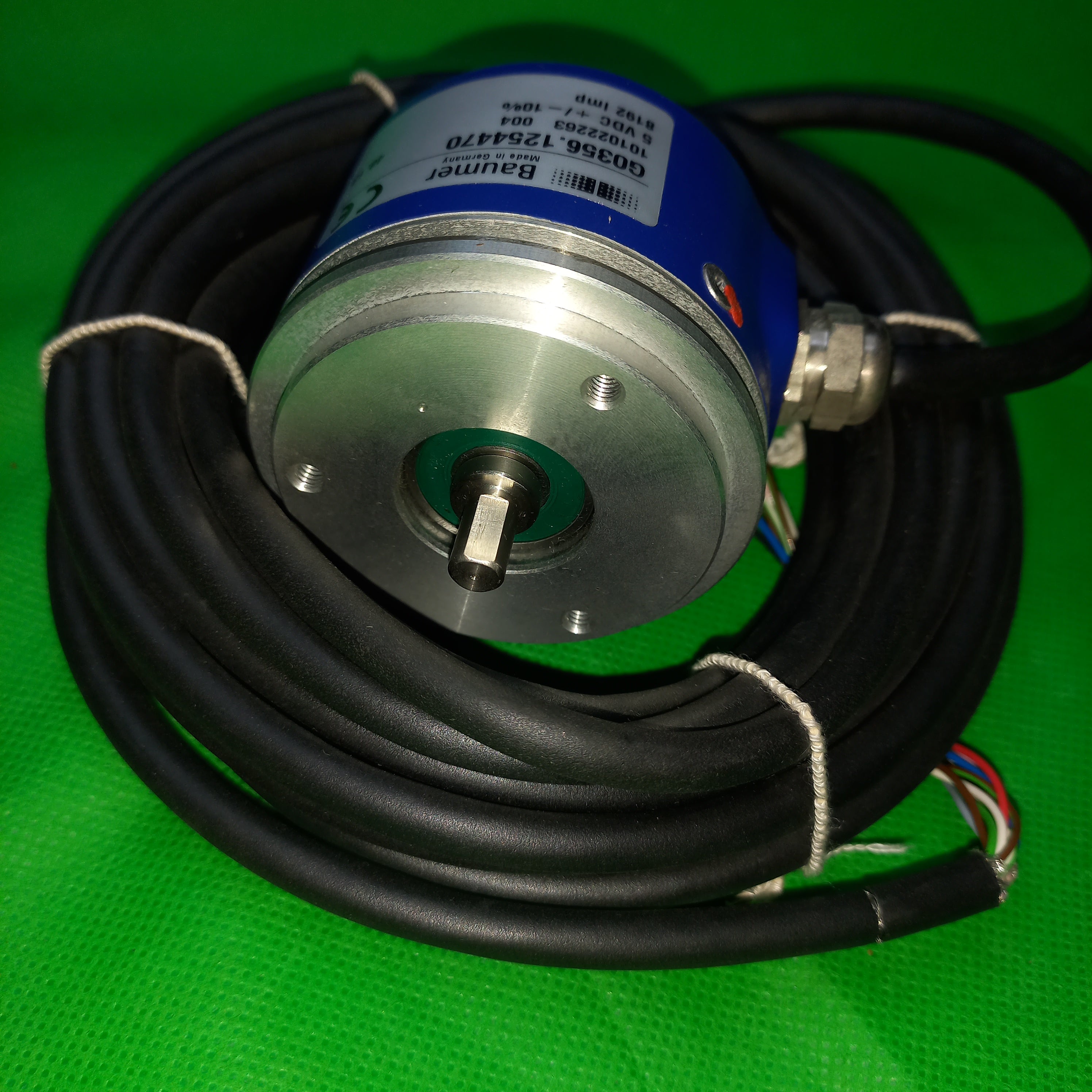

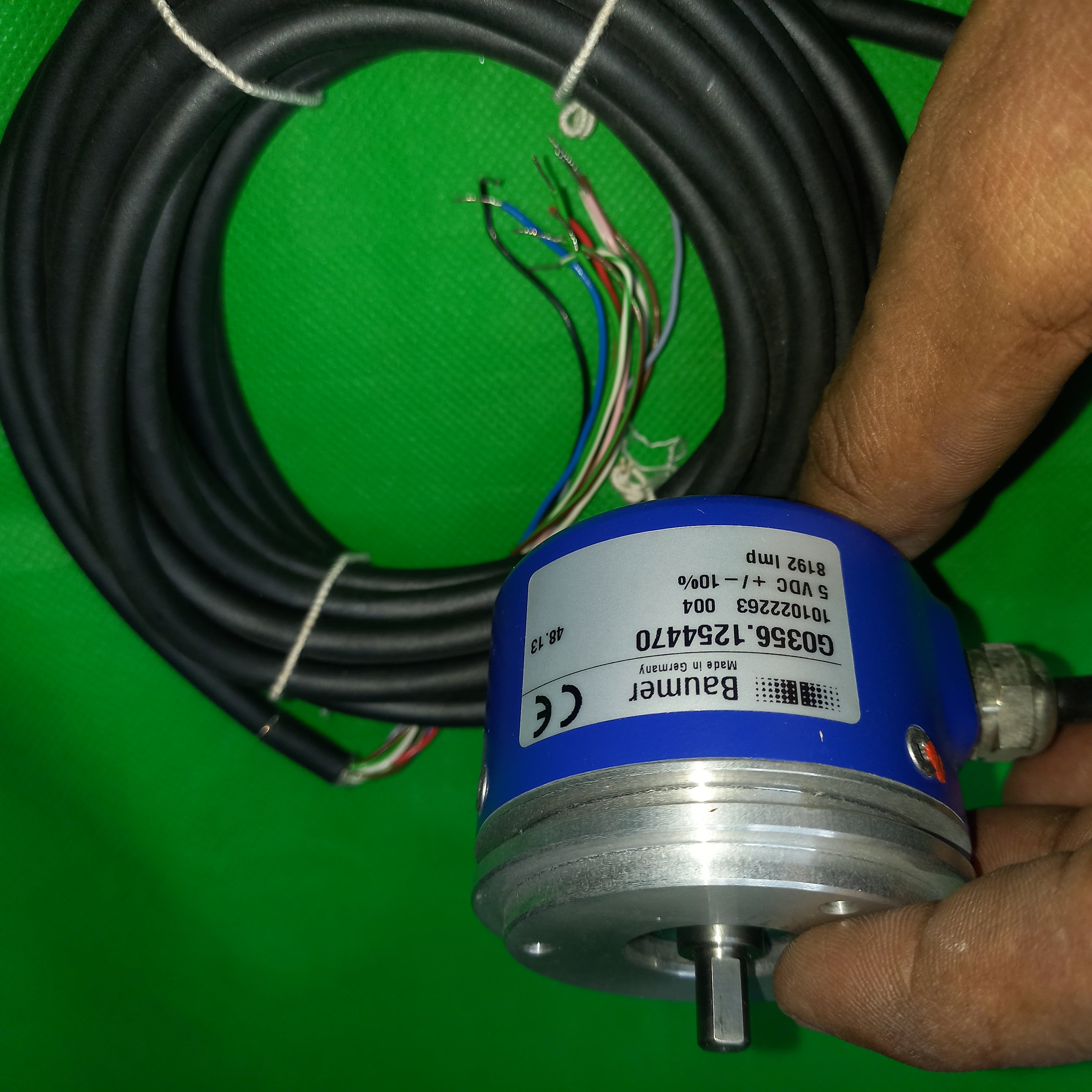

G0356 | G0356.1254470 | 8192 Imp | 5VDC/ linedriver RS422, TTL, Synchro 6mm Shaft, Cable
$2,380.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
G0356 | G0356.1254470 | 8192 Imp | 5VDC/ linedriver RS422, TTL, Synchro 6mm Shaft, Cable
$2,380.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: G356.1254470
- Encoder Type: Incremental encoder
- 2 Supply voltage 5vDC
- Encoder ID. NR.101022263
- Encoder SIgnal | 8192 | TTL, RS422 compatible, inv. | Ø 58 mm | cable, 9-wire
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Solid shaft, Servo flange
- Incremental Encoder Construction size (flange) Ø 58 mm
- Incremental Encoder Shaft diameter 6 mm
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail TTL, RS422 compatible, inv.
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution8192
- incremental Encoder Range of pulses per revolution5001 ... 8192
- Signal Details:
Connection Details of encoder
- Connection type (Detail)cable, 9-wire
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNG0356.1254470
- Manufacturer indent Nr.G03561254470 | 101 022 263
- 1 Manufacturer Part Number (MPN) G356.1254470
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
Ready stock Baumer G0356 | Incremental encoder G0356.1254470;101022263;8192 Imp - Use it to replacee short cable versions ; G0356.12541.8192 or G0356.12531.8192
- Pulses per revolution : 8192
- Reference signal: Zero pulse, width 90°
- Sensing method: Optical
- Output frequency : ≤300 kHz
- Output signals: A 90° B, N + inverted
- Output stages : Linedriver/RS422
If you wish we can supply this with M23 connector fitted ( charged exta) or any other connector e.g. DBtype
Part number description:
G0356.1254470
1: Flange: Solid Shaft
25; 5VDC/ linedriver RS422
41: Cable 1m, Radial \31; cable 1m axial
- Dimension:
- Solid shaft with synchro flange | High resistance to shock and vibrations
- Signals Trigger level cable color
