Hubner POG9G DN 1024 I / DN 1024 I | Baumer Twin Encoder | HTL | POG9GDN1024I
$2,800.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Article number: 11085379
- Encoder Type: Incremental encoder
- 2 Supply voltage 9...30 VDC
- Encoder ID. NR. 11085379
- Encoder SIgnal | 1024 | HTL | Ø 110 mm | Terminal boxes, turn by 180°
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
Dispatch Lead | Processing time
Same day ship if paid before 2 PM Local time
Shipping Time (Transit) :
Question about Return | Payment or After sales support . Call us
Encoder Type:
- Incremental or Absolute
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design solid shaft with EURO flange B10
- Incremental Encoder Construction size (flange) Ø 110 mm
- Incremental Encoder Shaft diameter 11 mm
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail HTL
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution1024
- Incremental Encoder Resolution
- incremental Encoder Range of pulses per revolution1 ... 1024
- Signal Details:
Connection Details of encoder
- Connection
- Connection type (Detail)Terminal boxes, turn by 180°
- Direction of connection Radial
- Length of cable
Mounting Arrangement for Encoder Body
- PCD - Pitch circle diameter
- Face clamping Diameter
- Manufacturer Alternative MPNPOG9G DN 1024 I / DN 1024 I
- Manufacturer indent Nr.POG 9 G DN 1024 I
- 1 Manufacturer Part Number (MPN) Article number: 11085379
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as

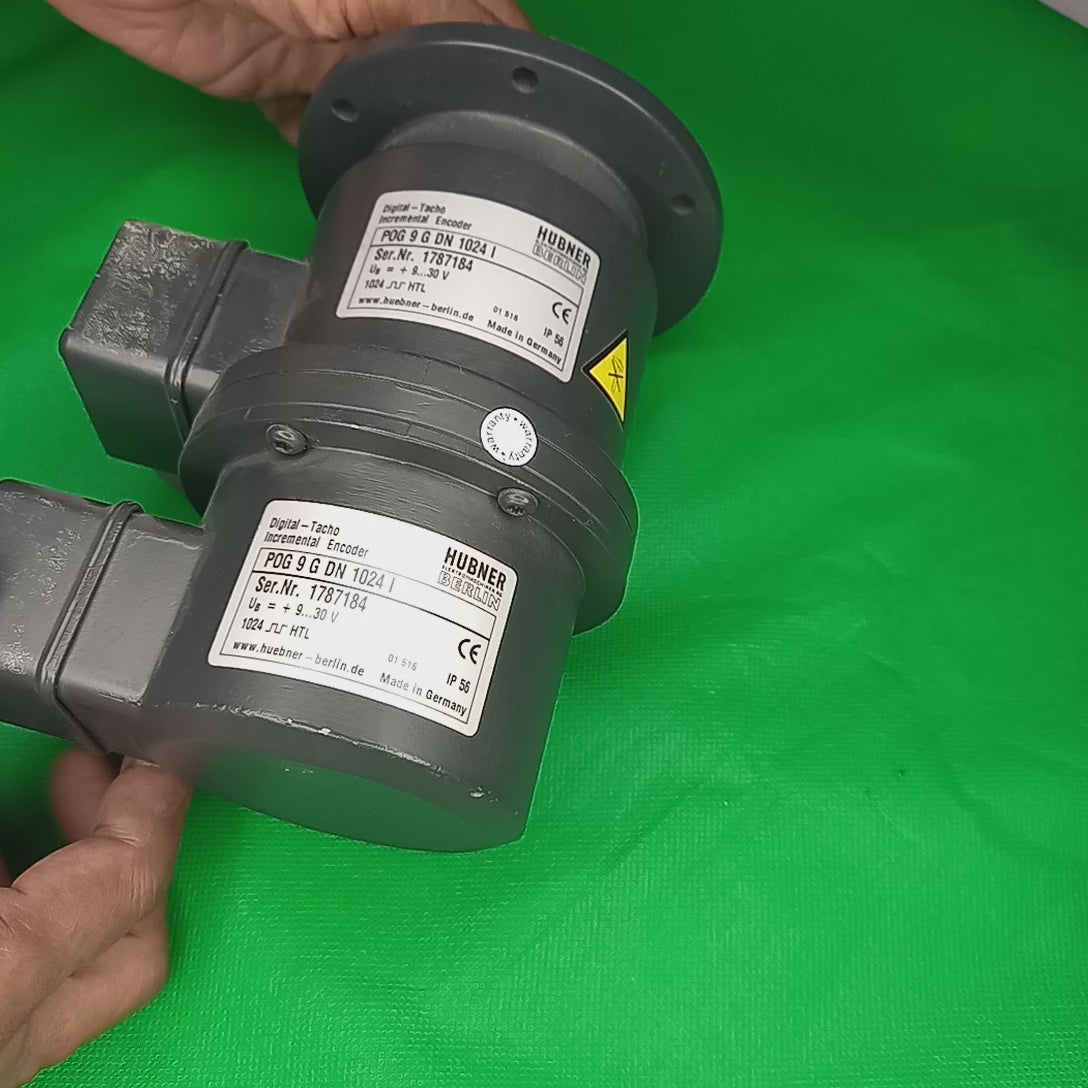

Ready Stock | Collect from our Store Today : Hubner Berlin POG9G DN 1024 I / DN 1024 I | Twin Encoder | HTL POG9GDN1024I

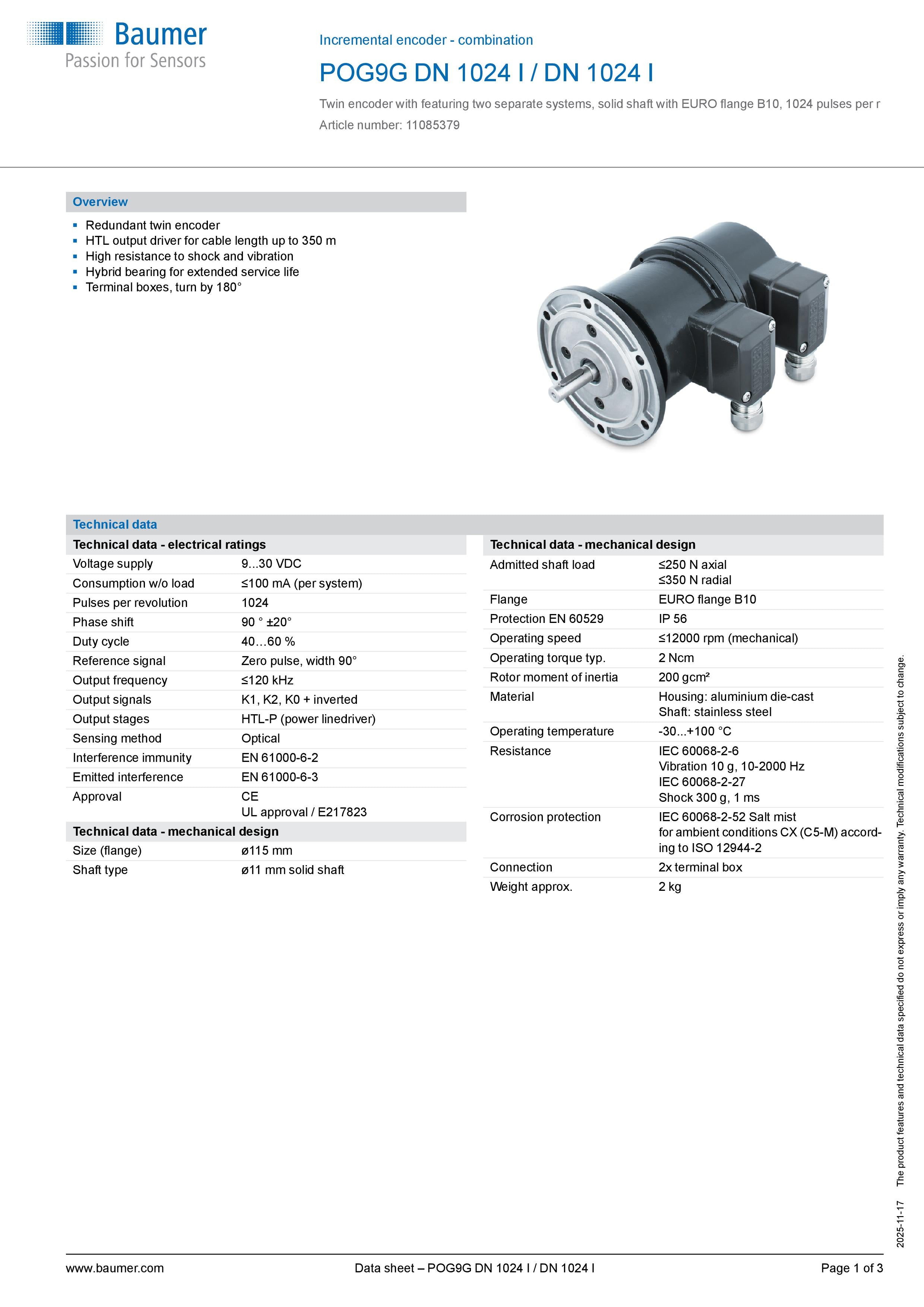

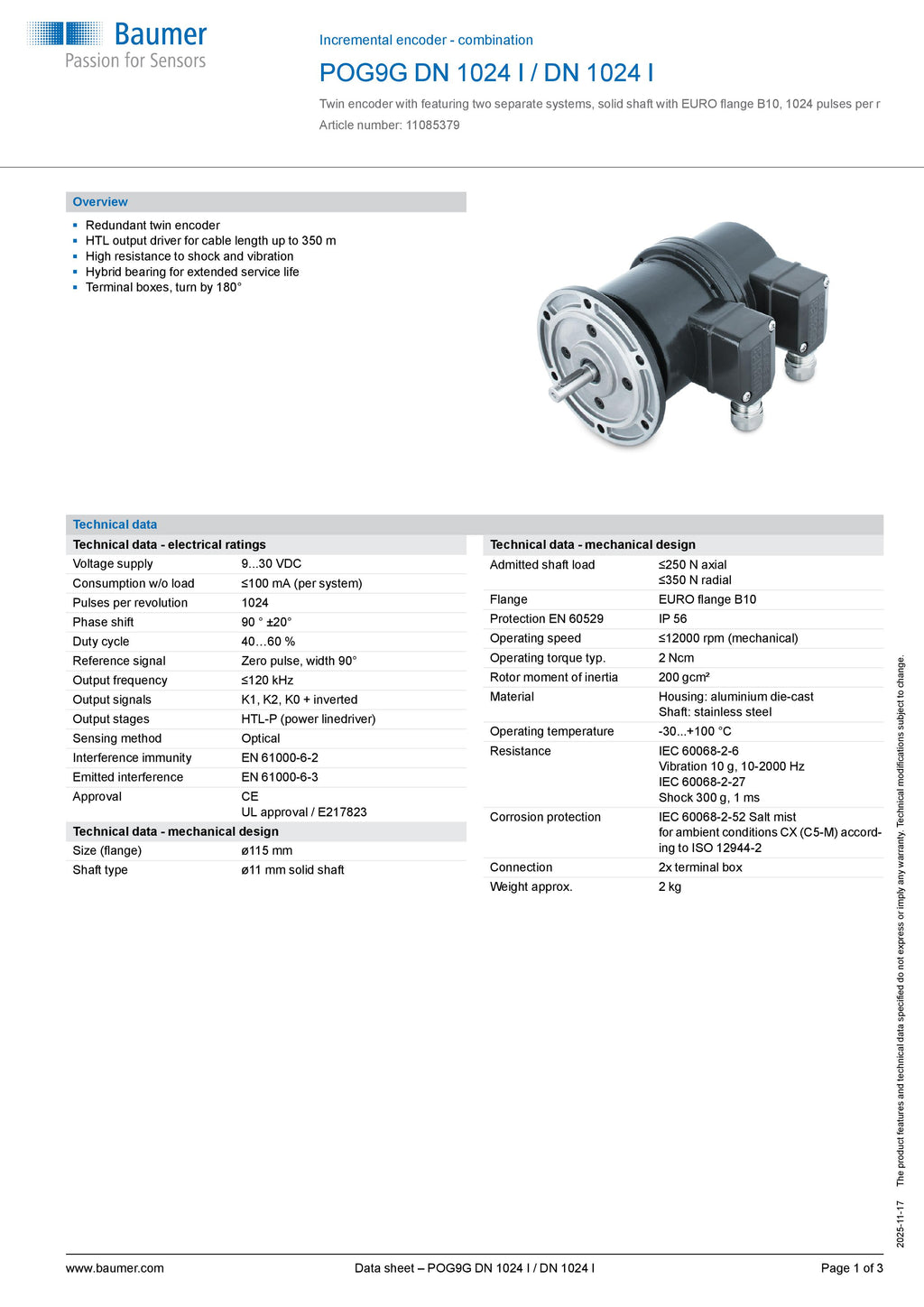

- Incremental encoder - combination
- POG9G DN 1024 I / DN 1024 I

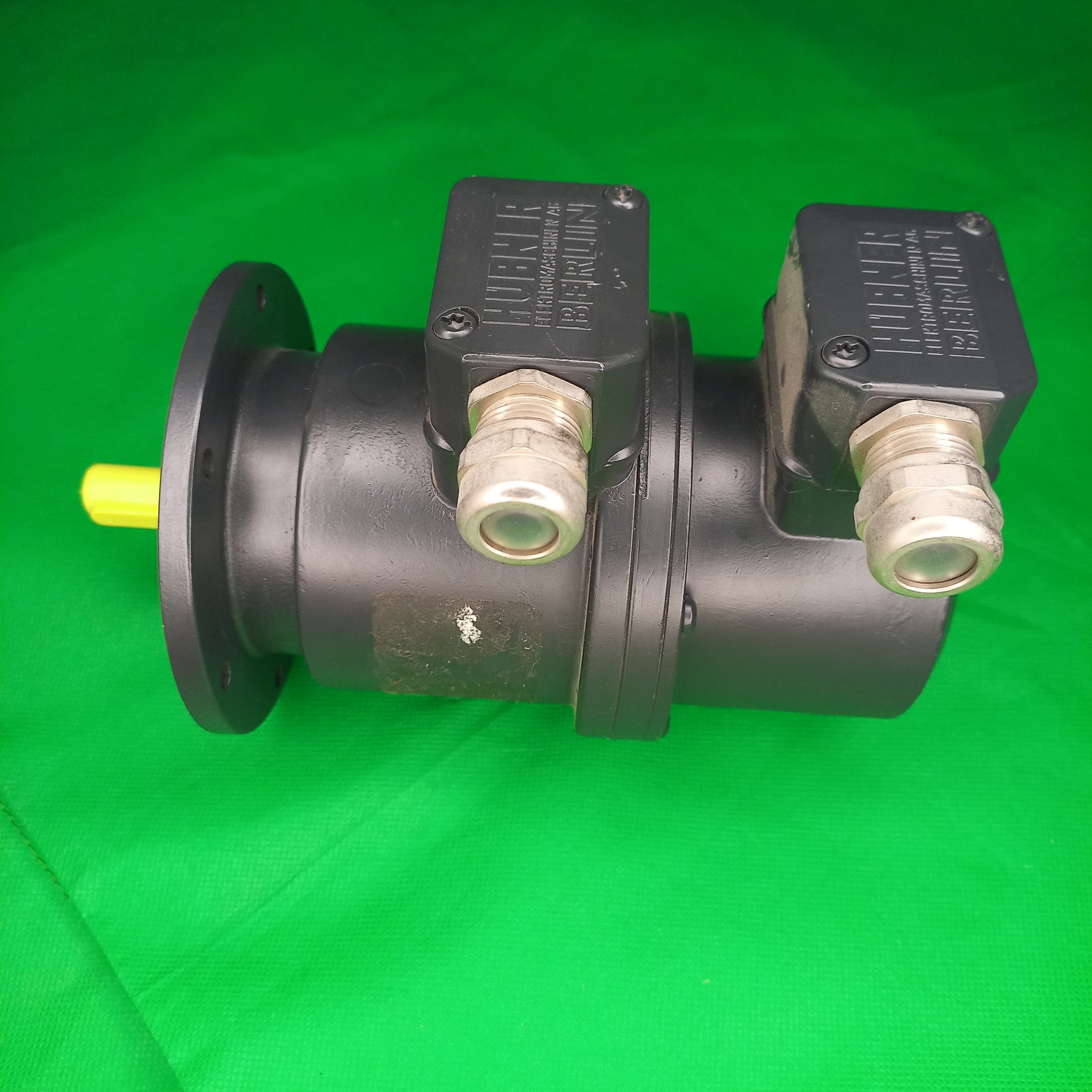

- Twin encoder with featuring two separate systems, solid shaft with EURO flange B10,
- 1024 pulses per rev. | Output stages: HTL-P (power linedriver)
- Article number: 11085379
- Voltage supply : 9...30 VDC
- Consumption w/o load : ≤100 mA (per system)
- Pulses per revolution : 1024
- Phase shift: 90 ° ±20°
- Duty cycle : 40…60 %

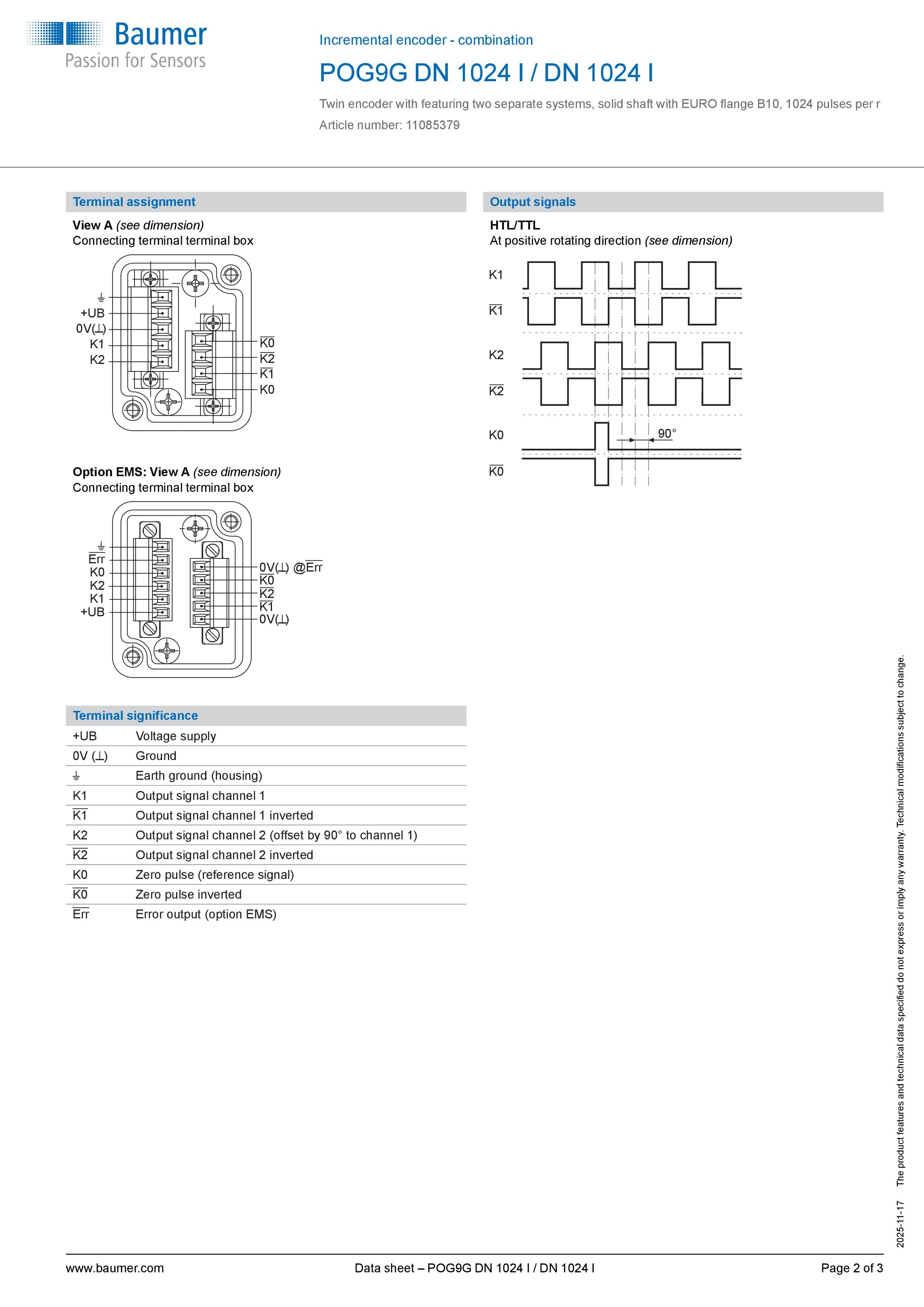

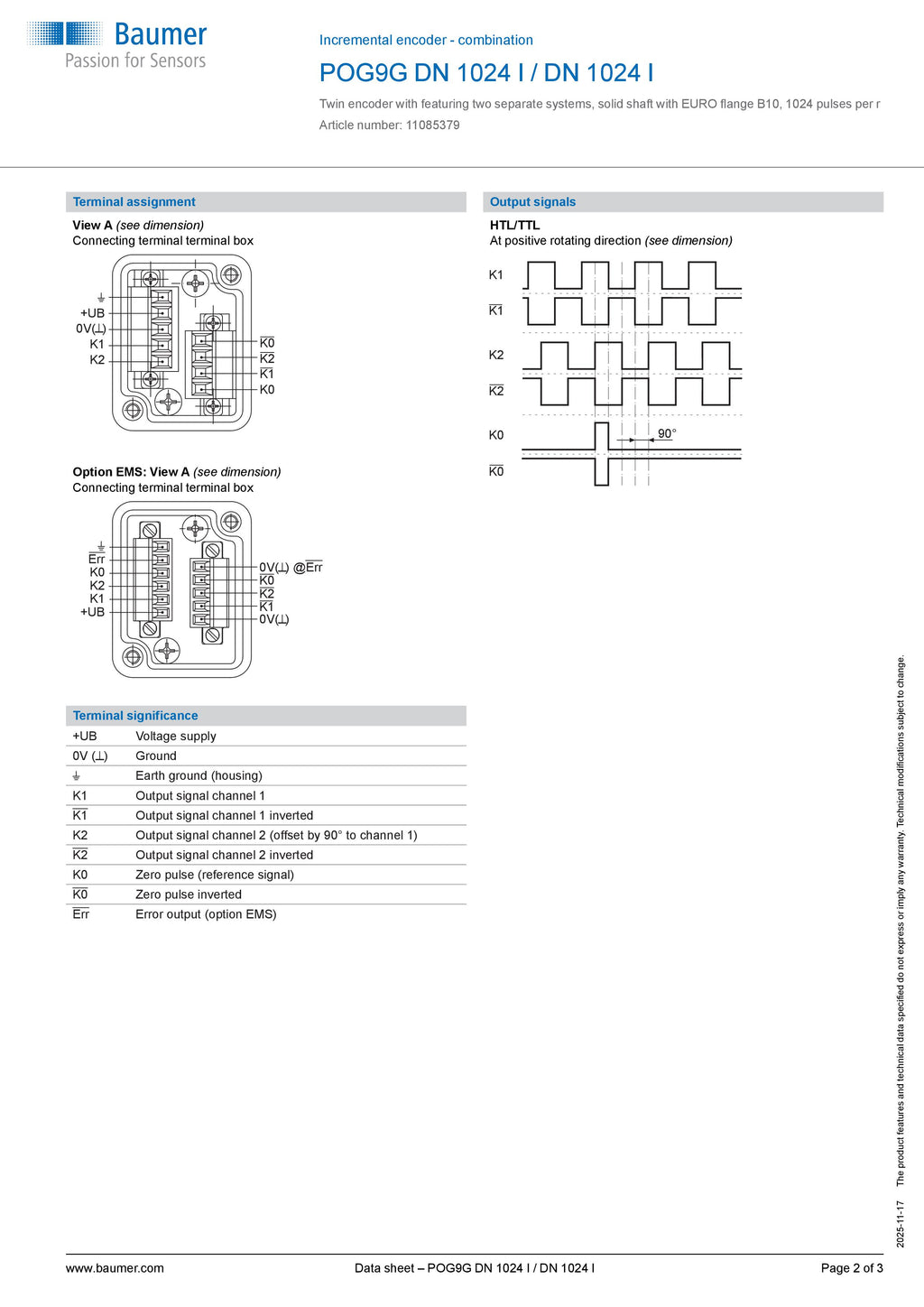

- Reference signal: Zero pulse, width 90°
- Output frequency: ≤120 kHz
- Output signals: K1, K2, K0 + inverted
- Output stages: HTL-P (power linedriver)
- Sensing method : Optical
- Interference immunity: EN 61000-6-2
- Emitted interference: EN 61000-6-3
- Approval
-
- CE
- UL approval / E217823

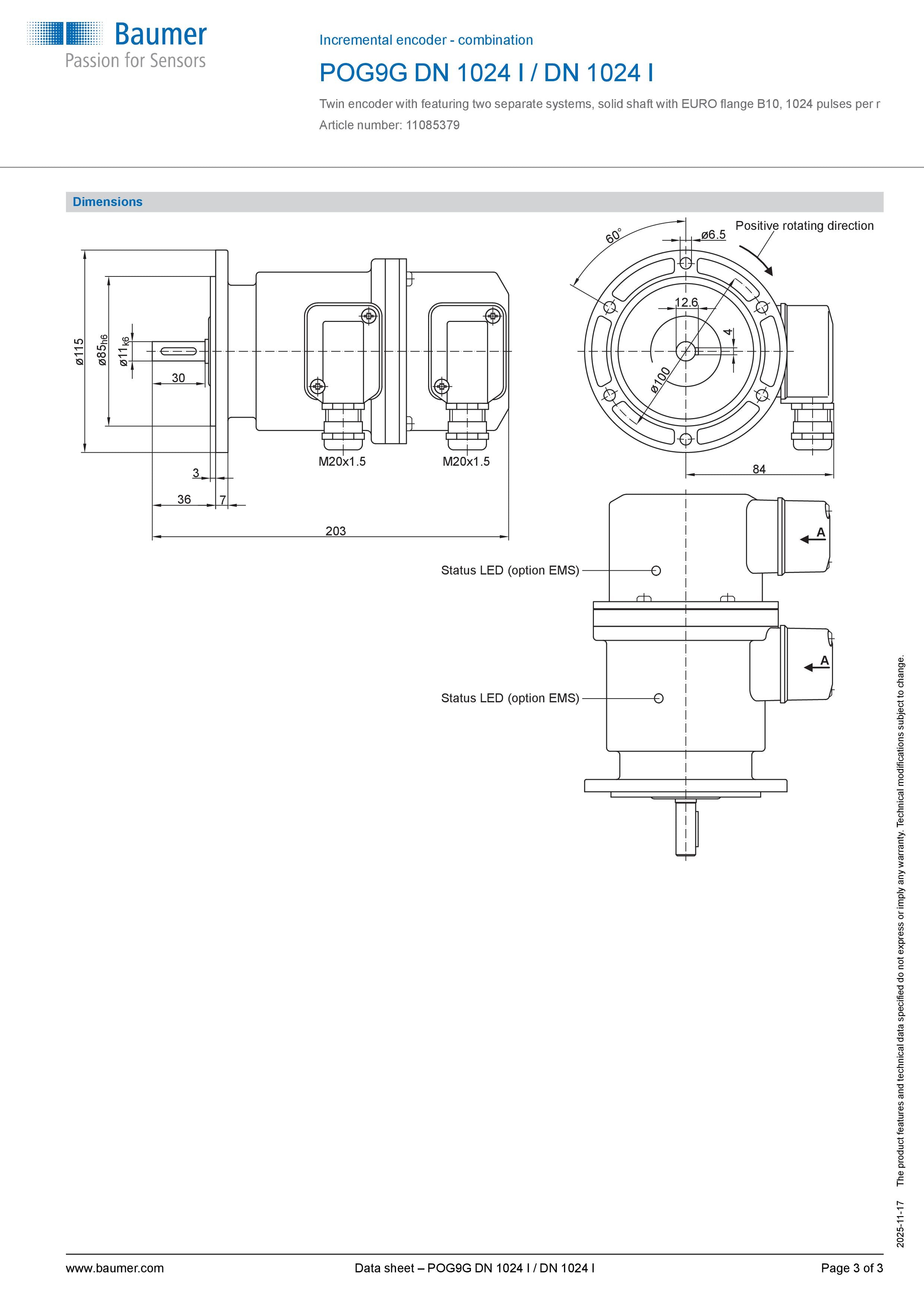

Size (flange) : ø115 mm
Shaft type : ø11 mm solid shaft
Admitted shaft load : ≤250 N axial | ≤350 N radial

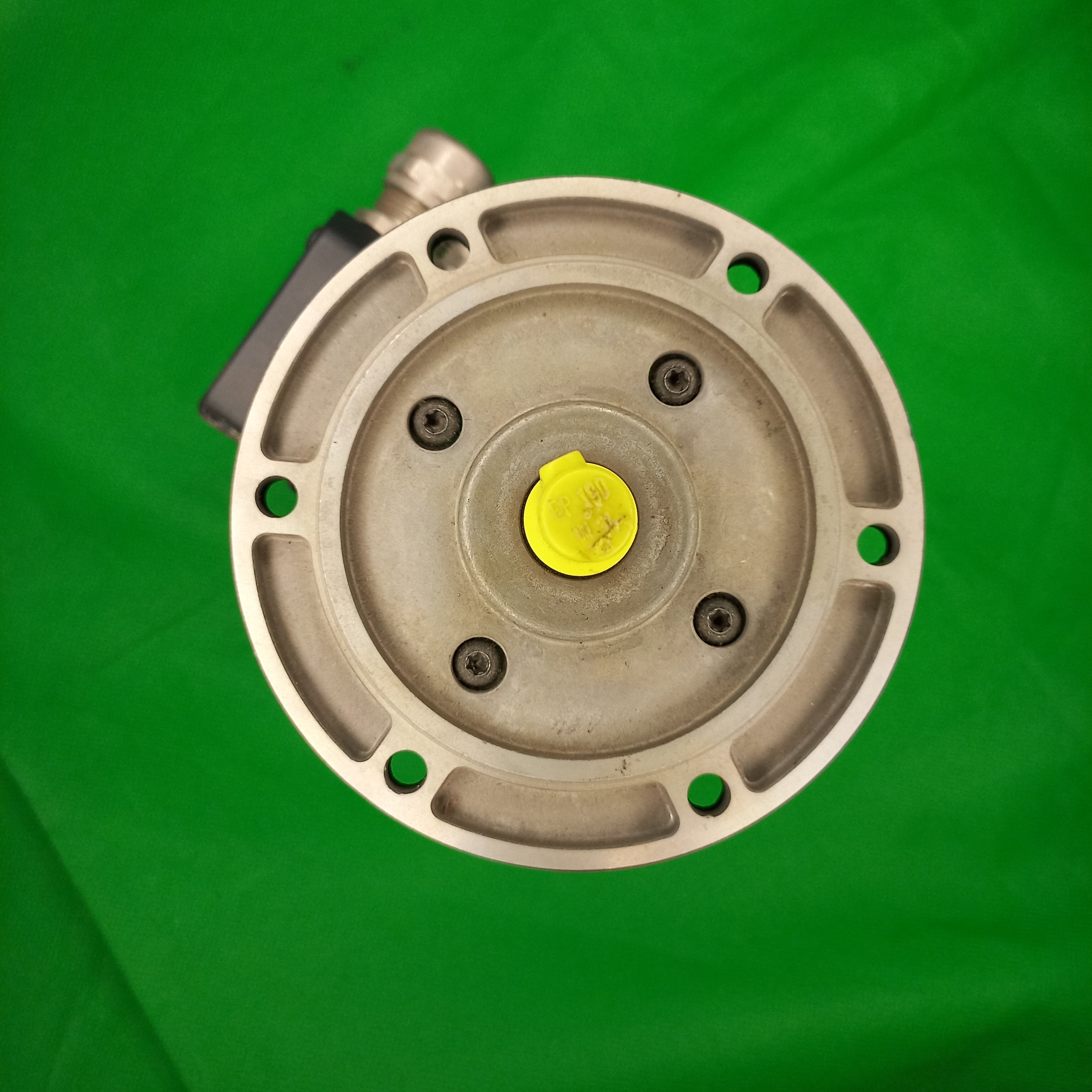

Flange : EURO flange B10
Protection EN 60529 : IP 56
Operating speed : ≤12000 rpm (mechanical)
Operating torque typ. : 2 Ncm
Rotor moment of inertia : 200 gcm²
Material : Housing: aluminium die-cast | Shaft: stainless steel :
Operating temperature : -30...+100 °C
Resistance : IEC 60068-2-6
Vibration 10 g, 10-2000 Hz | IEC 60068-2-27
Shock 300 g, 1 ms
Corrosion protection : IEC 60068-2-52 Salt mist
for ambient conditions CX (C5-M) according to ISO 12944-2

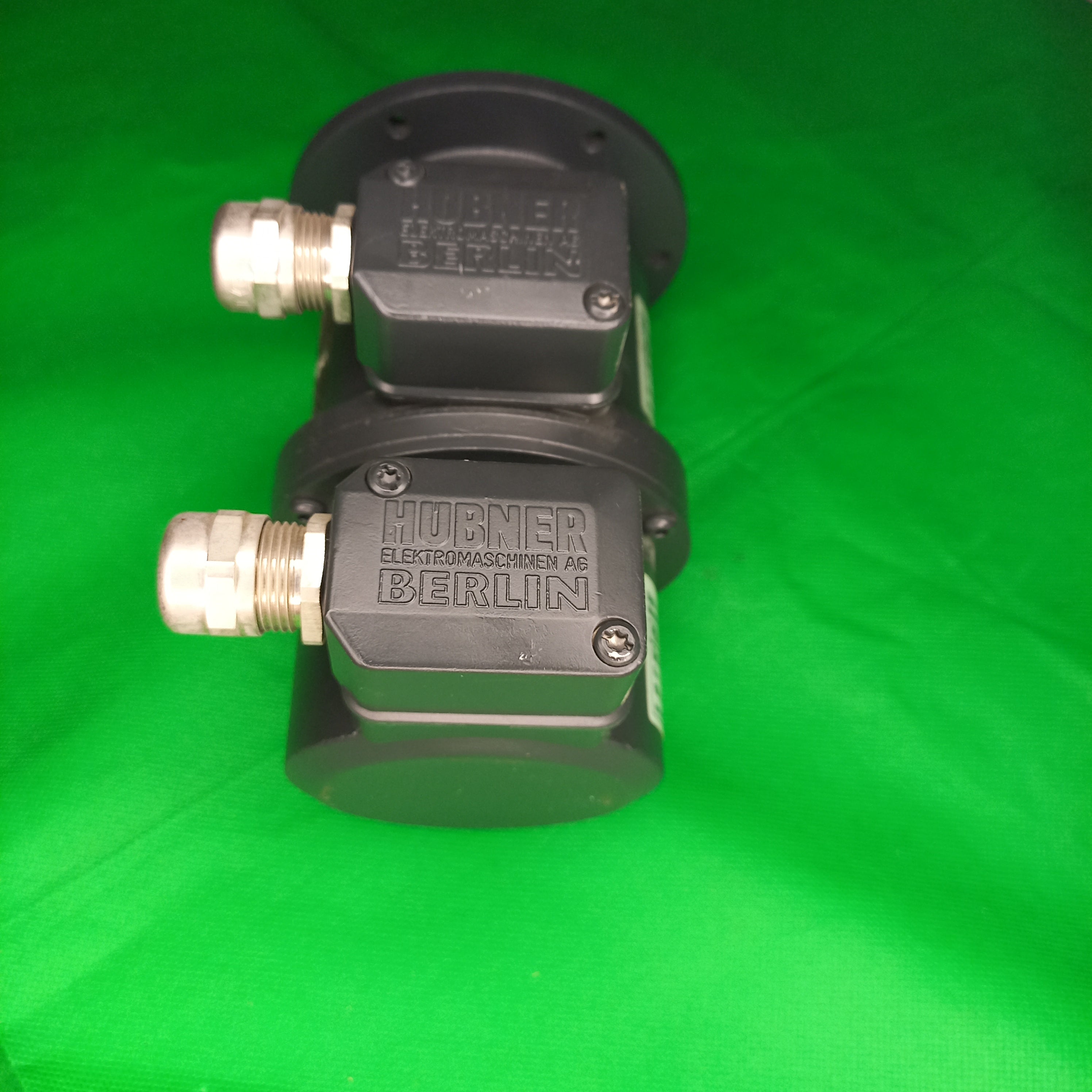

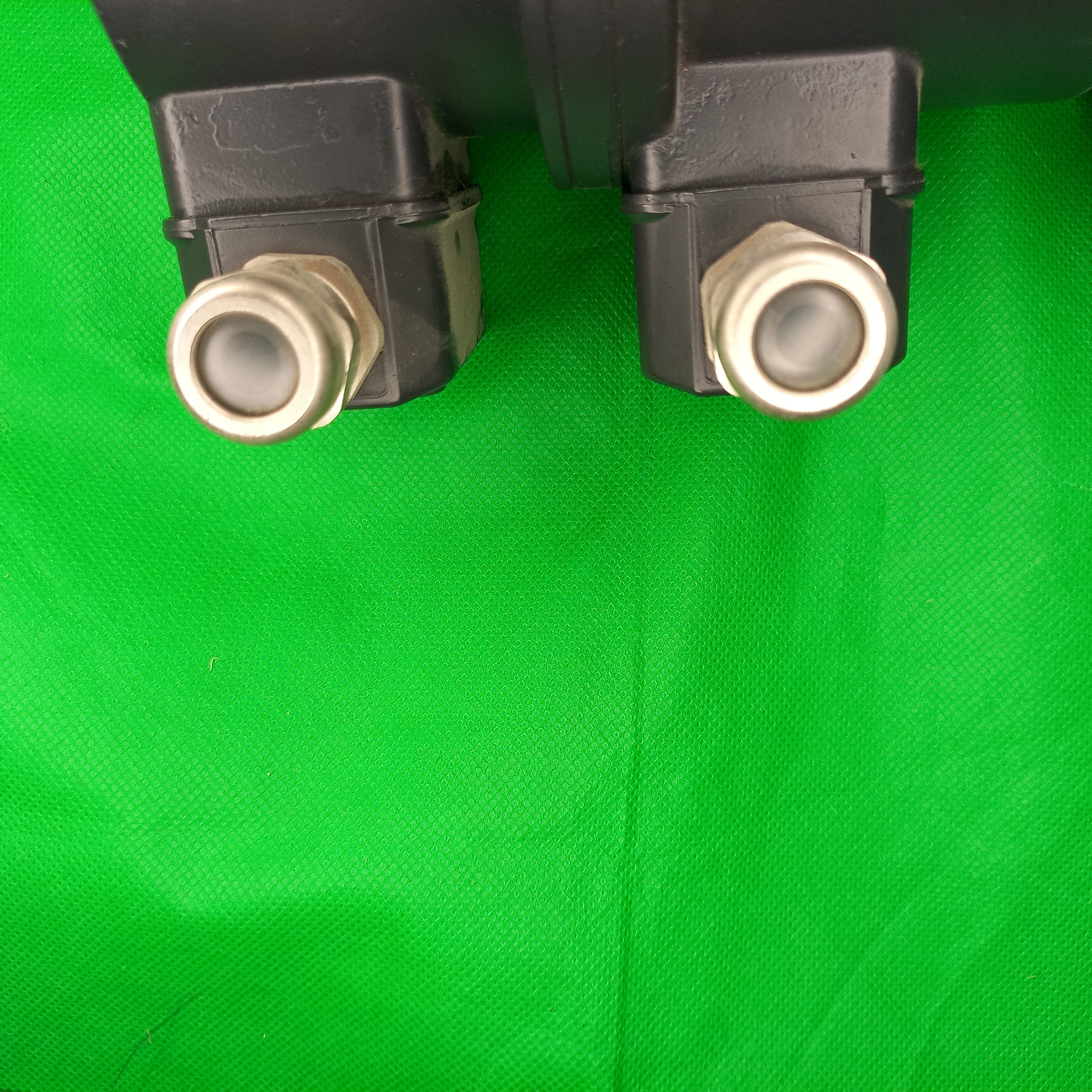

Connection : 2x terminal box
Weight approx. : 2 kg
