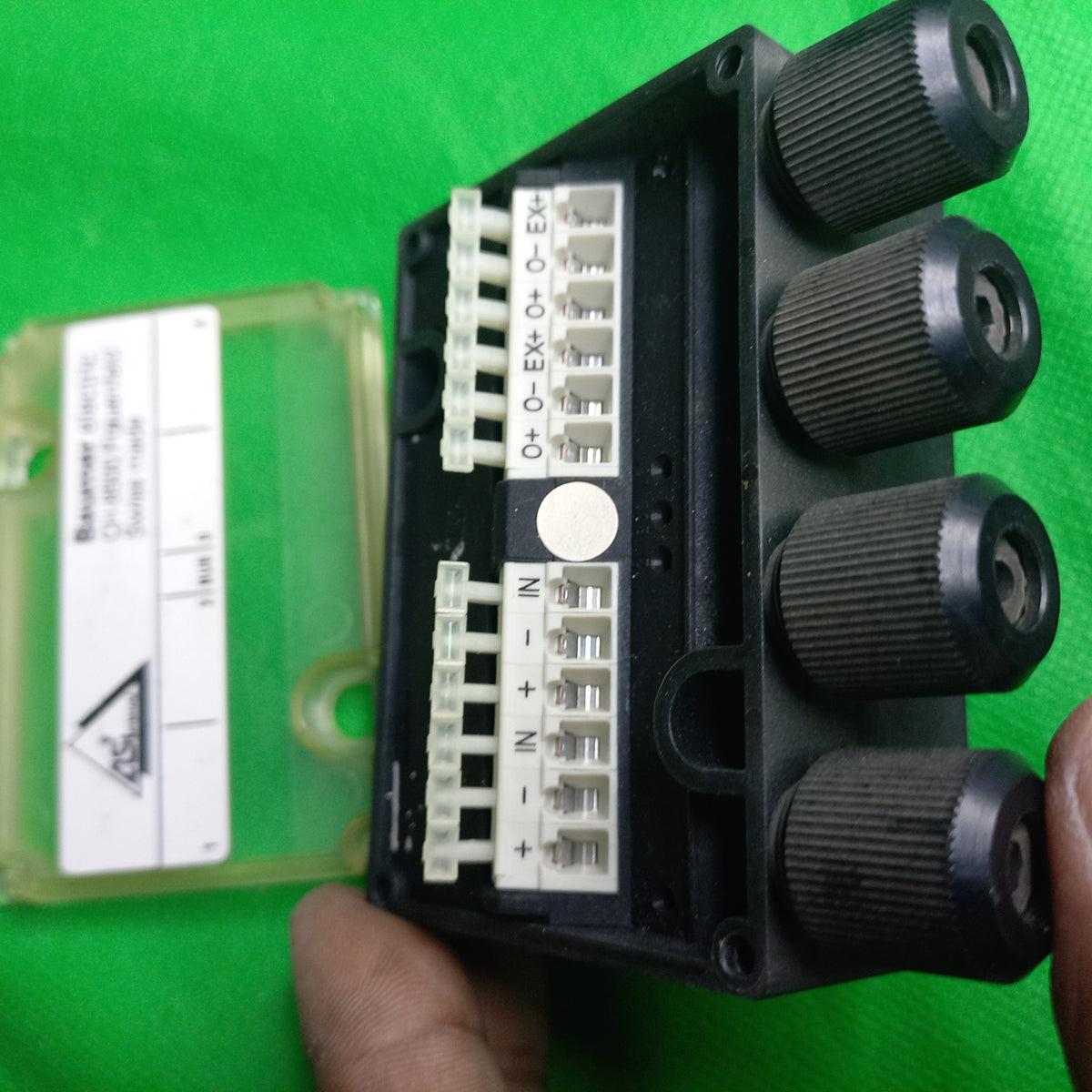

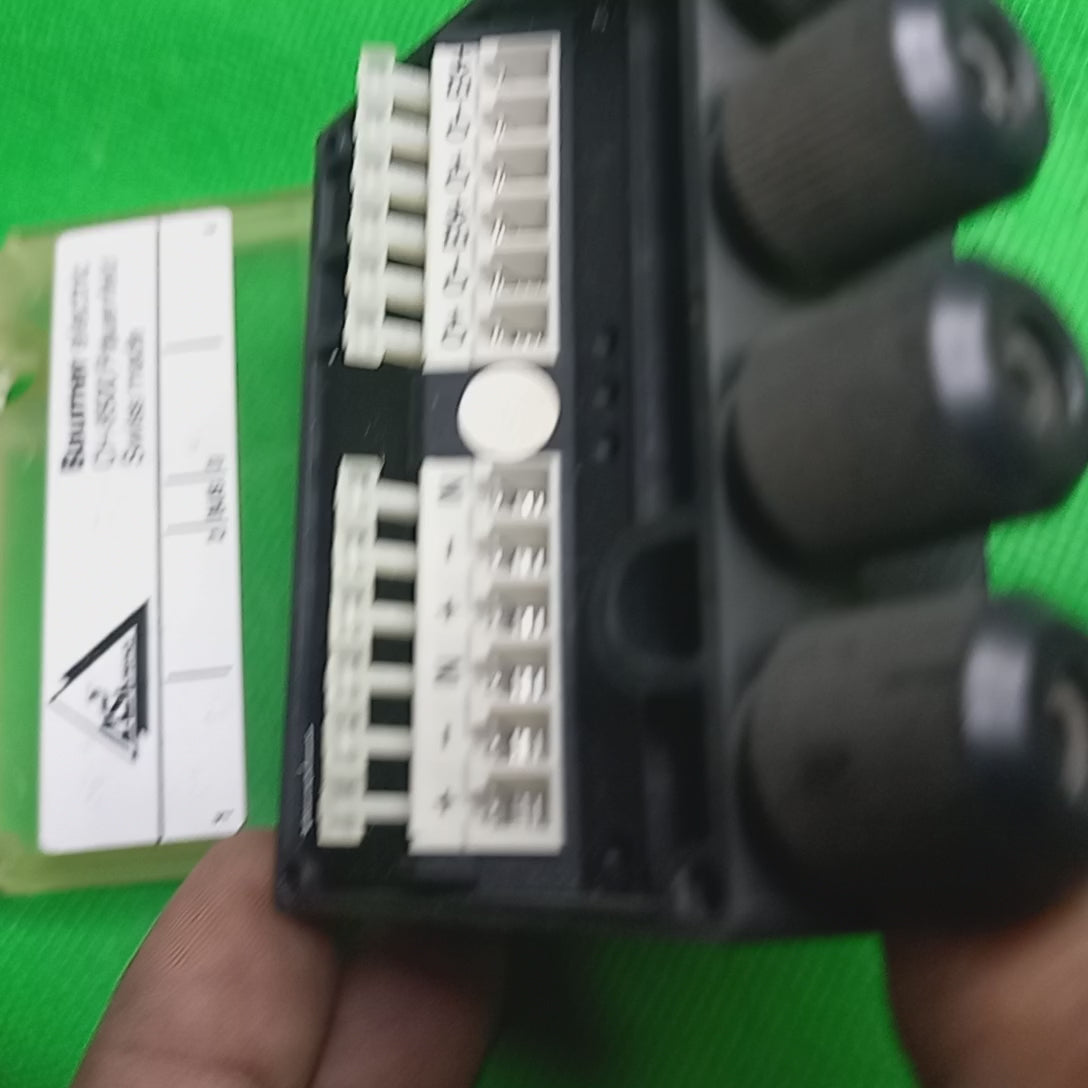

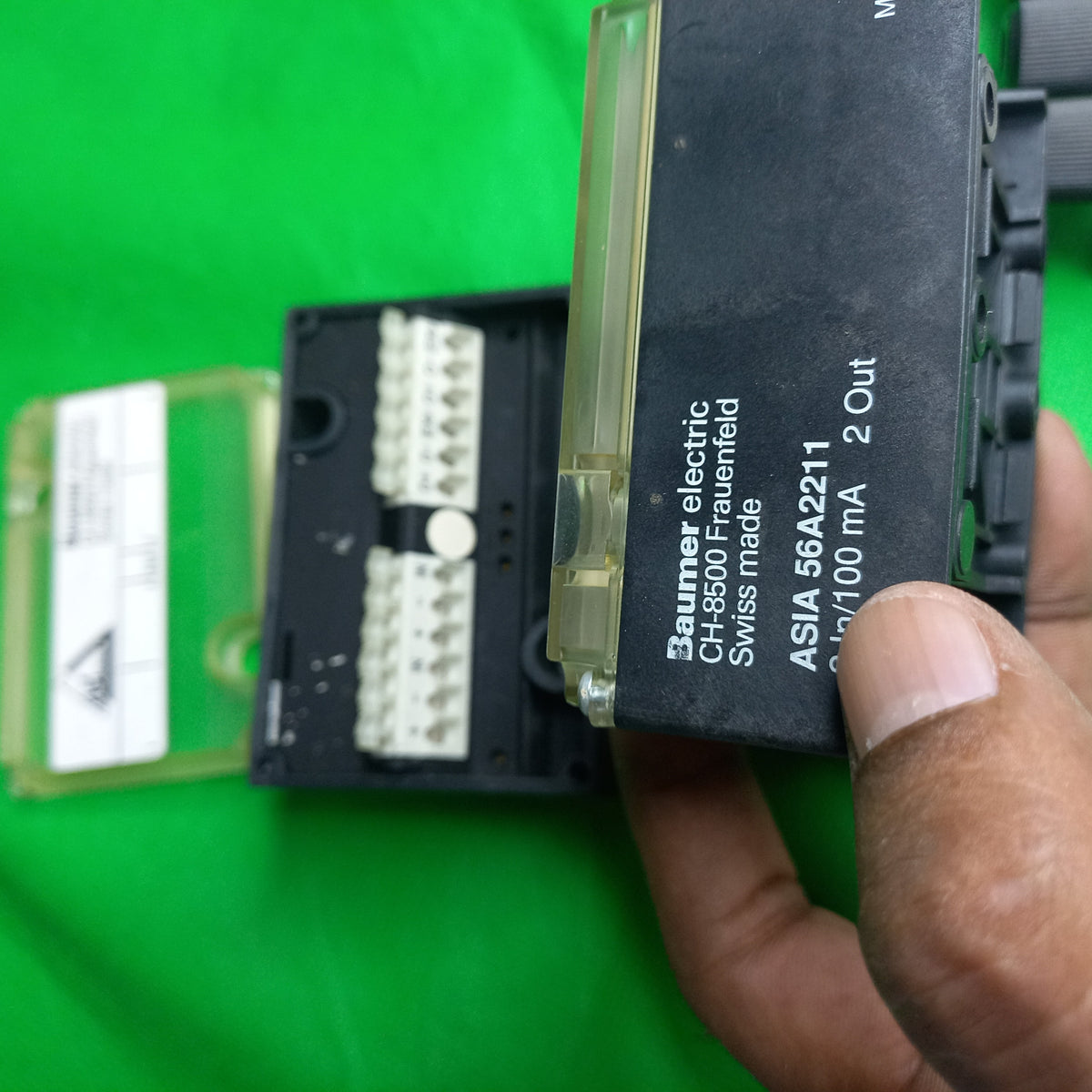

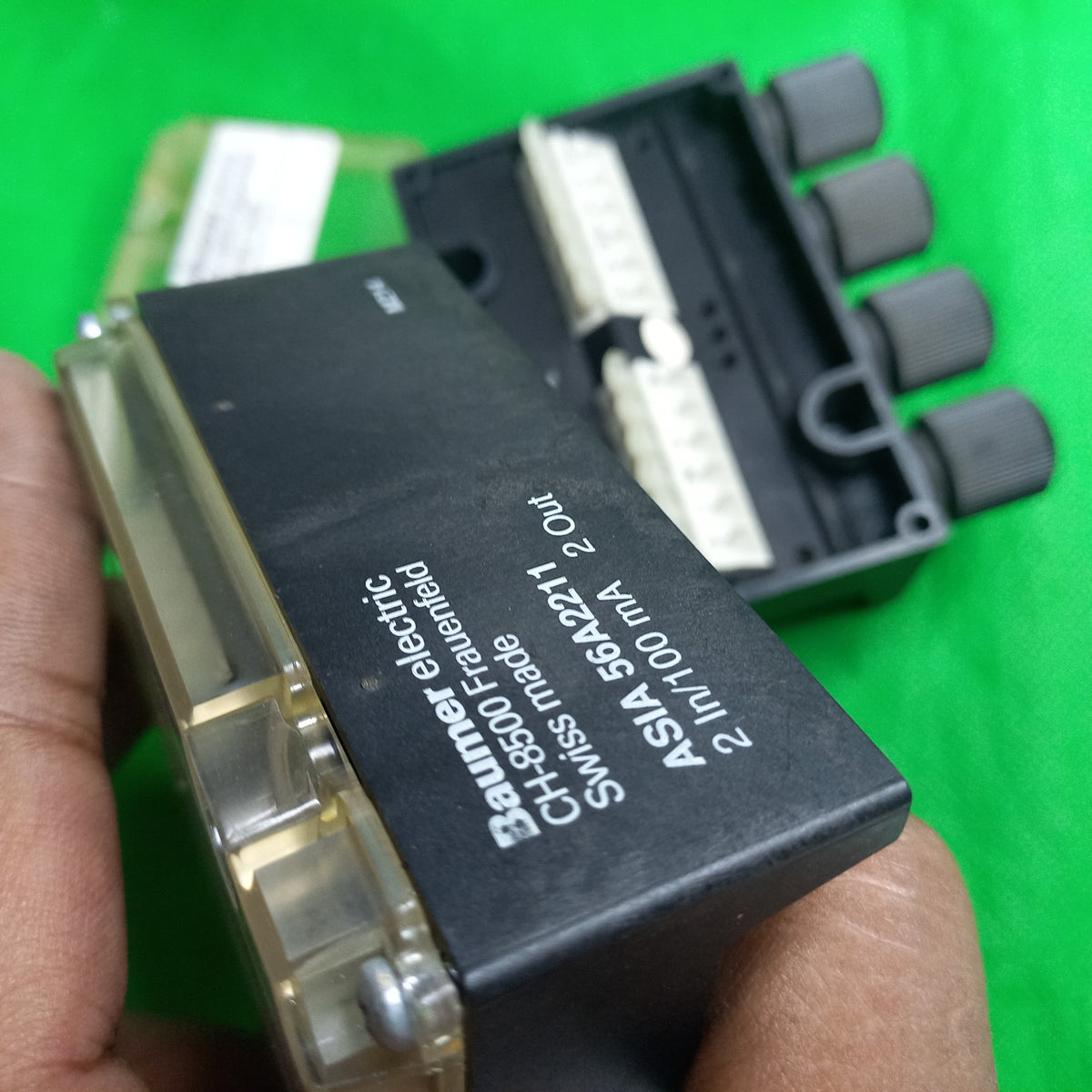

Baumer ASIA56A2211 | 2In/100mA 2Out | As-I Module ASIA 56A2211 Aktuator-Sensor-Interface module
$170.00
Skip to product information
Baumer electric ASIA 56A2211 2In/100mA 2Out
- Same day service is possible if we recieve motor by 7 AM,
Baumer ASIA56A2211 | 2In/100mA 2Out | As-I Module ASIA 56A2211 Aktuator-Sensor-Interface module
$170.00
Taxes included.
Shipping calculated at checkout.
- Aktuator-Sensor-Interface | AS-Interface module
- ASIA 56A2211
- ASIA56A2211
- AS1A56A2211
- AS1A 56A2211
Baumer electric ASIA 56A2211 2In/100mA 2Out
Baumer user module active ASIA 56A2211 AS-i user module active 2In/100mA 2 Out
Aktuator-Sensor-Interface | AS-Interface module
| bus data | |
| voltage supply range | 26,5 - 33,1 VDC |
| supply current | ≤ 200 mA |
| reverse polarity protection | yes |
| E/A configuration | 7 HEX |
| ID-code / ID-2 code | F HEX / F HEX |
| AS-i voltage indicator / error indicator | green LED / red LED |
| inputs | |
| supply voltage for sensors | 18 - 30 VDC |
| short-circuit protection with feedback | yes |
| total current for sensors -25...+40 °C | ≤ 170 mA |
| total current for sensors +40...+70 °C | ≤ 130 mA |
| polarity of the inputs | PNP |
| input current high / low | ≥ 1,5 mA / ≤ 0,5 mA |
| input voltage high / low | > 10 VDC / < 5 VDC |
| input indicator | yellow LED |
| outputs | |
| switching element / polarity | FET / H-bridges |
| galvanic separation AS-i <>load circuit | 2000 VDC |
| switching current per output Imax | 1,7 A |
| total current for outputs | 4:00 AM |
| short-circuit protection / with feedback | yes / peripheral error diagnosis LED |
| watchdog for bus monitoring | yes |
| external power supply for outputs | via separate AS-i flat cable, black |
| voltage range external feed | 10 - 30 VDC |
| general | |
| protection class | IP 65 (with EPDM-cable) |
| temperature range / storage temperature | -25...+70 °C / -25...+85 °C |
| housing material | PBT / PC (UL 94 V-0) |
| specification power supply unit for external feed | according to PELV |
| mounting | DIN rail / screws |
| EMC | refer to the AS-i brochure |
