Bosch K-CAN16DI/16DO BIOKCAN16DI16O | B-IO K-CAN 16DI/16O | 1070079749
$370.00
Skip to product information
- Same day service is possible if we recieve motor by 7 AM,
Bosch K-CAN16DI/16DO BIOKCAN16DI16O | B-IO K-CAN 16DI/16O | 1070079749
$370.00
Taxes included.
Shipping calculated at checkout.
- Bosch B-IO K-CAN16DO
- B-IO K-CAN 16DI/16O
- 1070079749-109
- B~IO K-CAN 16DI/16O
- 1070079749
B~IO K-CAN 16DI/16O, 1070079749

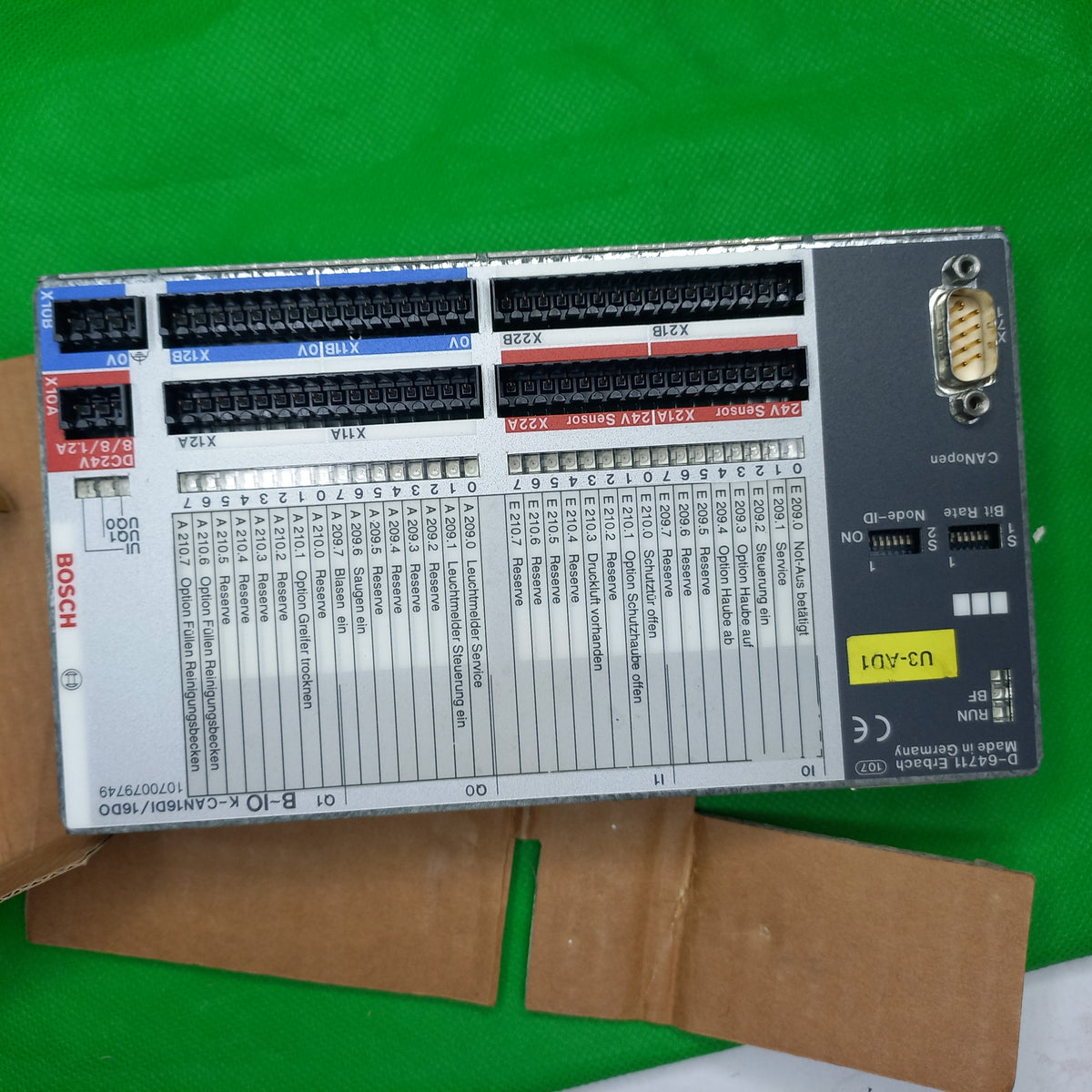

Configuration There are 16 inputs for sensors (switches, light barriers, inductive sensors, etc.) and 16 outputs for actuators (small loads such as valves, lamps, contactors) available. If the UI power supply to the bus interface fails, bus functionality is completely interrupted.
- 4 x 1 A
- 4 x 2 A
Inputs
The bus interface unit receives switching signals from the solid-state inputs
and transmits them via the bus to the higher-level controller for processing.

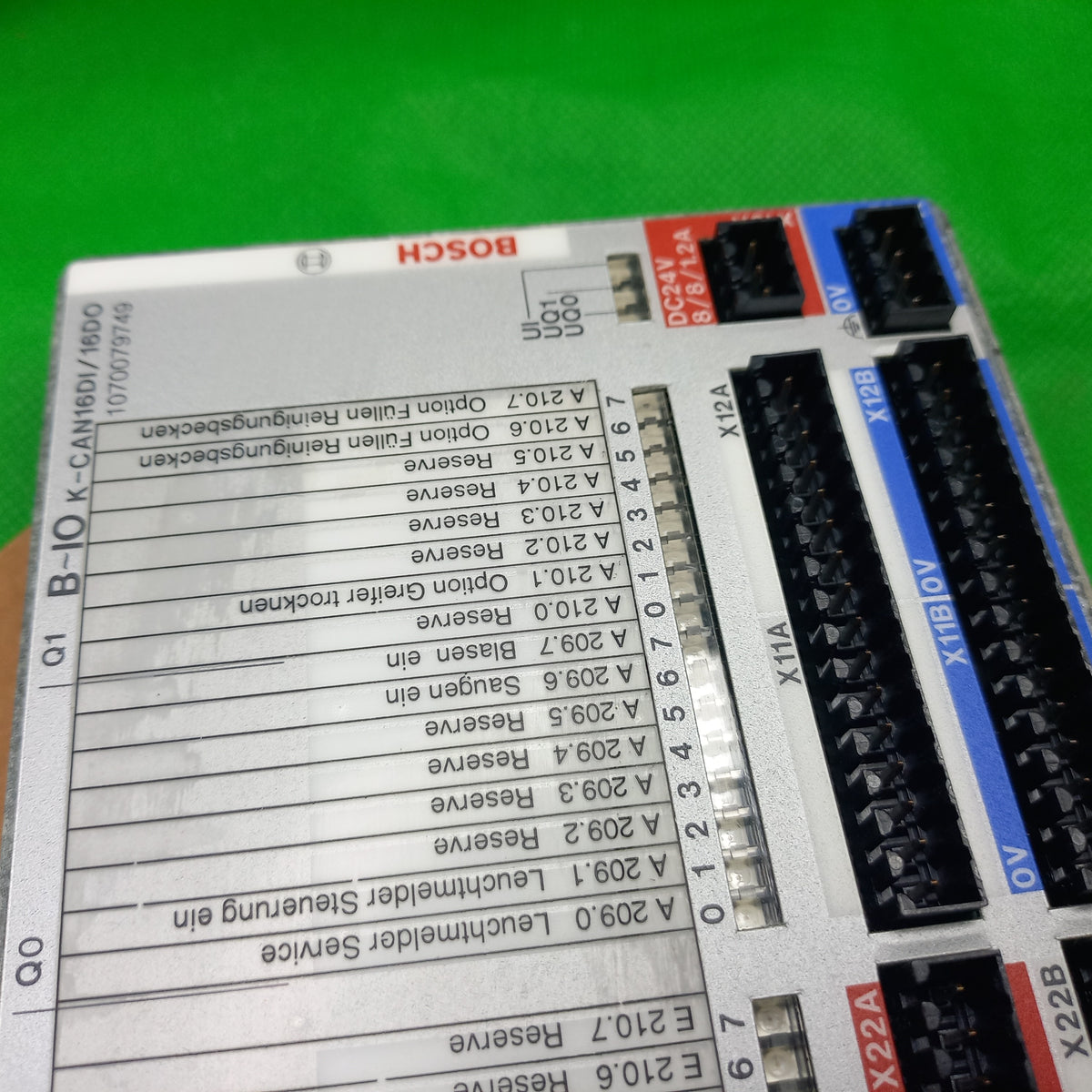

Outputs
The bus interface unit controls the 16 digital solid-state outputs. These
24-volt outputs are non-latching.
If the power supply (UQ0 or UQ1) for the output bytes fails, the output
signal is reset; the bus master does not receive an error message. Upon
restart, the outputs are automatically switched again based on signals
from the controller.
The following outputs are available:
8 x 0.5 A
4 x 1 A
4 x 2 A
