C016P 0.25"x0.25" | CO16P 1/4"x1/4" | ZeroMax Single Disc Control Flex Coupling
$165.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: C016P 1/4"x1/4"
- Manufacturer Alternative MPN ; C016P 0.25"x0.25"
- Manufacturer Id Nr. C016P 0.25"x0.25"x

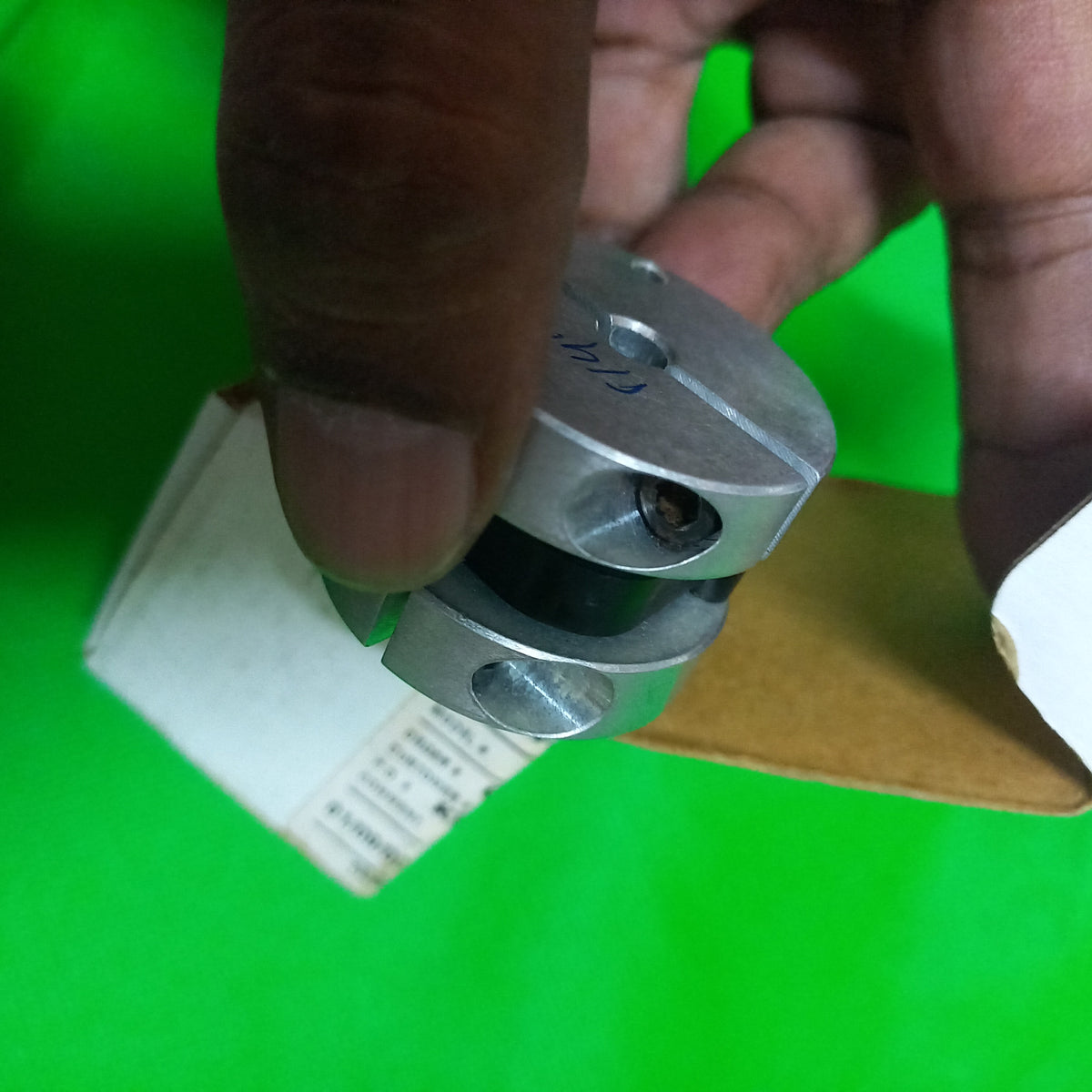

C016P ZeroMax Single Disc Control Flex Coupling [ 0.25 inch x 0.25 inch ] L=29.7mm
C16P Single Disc Control Flex Couplings c016p Configuration
|

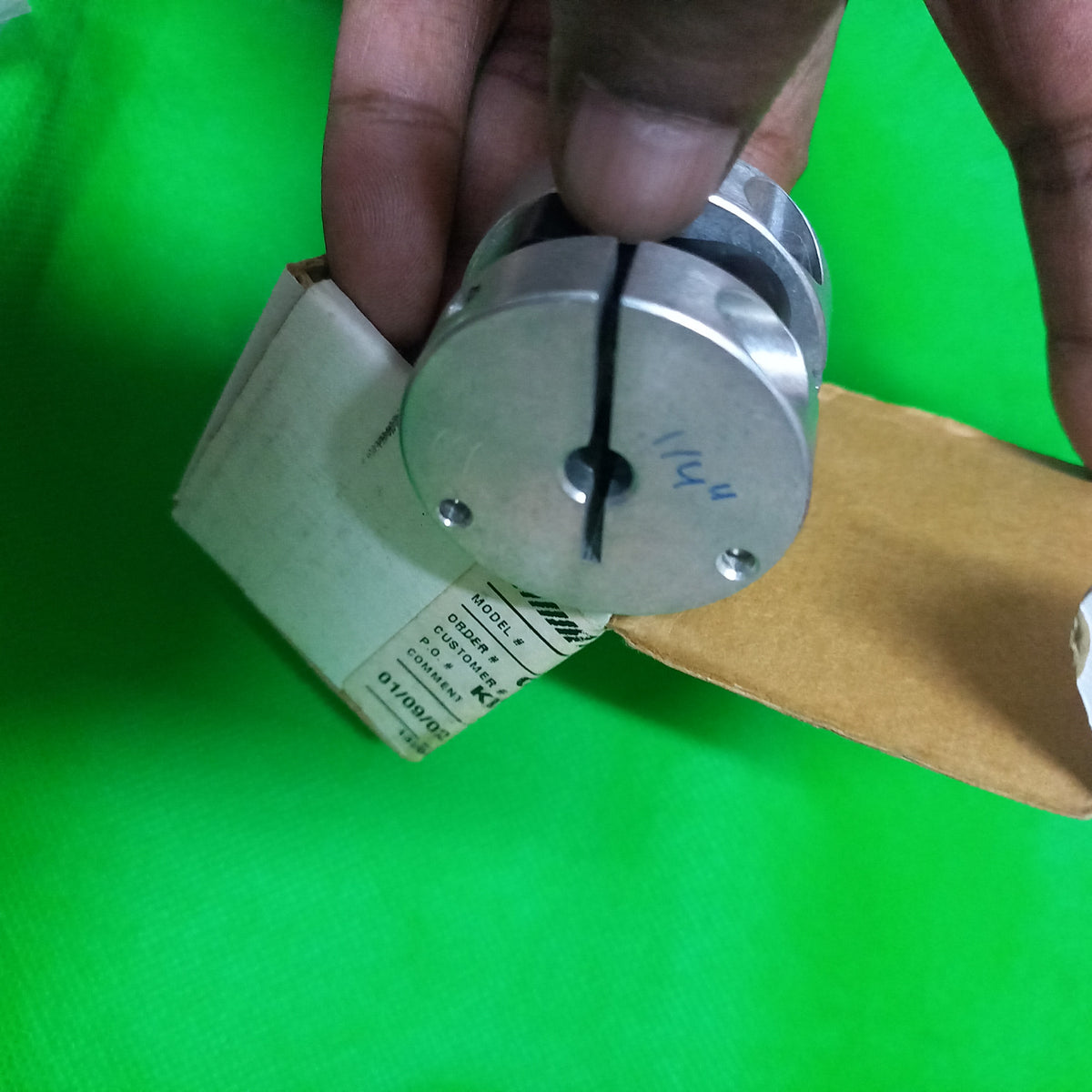

Bore Size D1: 0.25000"( Half Inch) | Bore Size D2: 0.25000" ( Half Inch) Outside Diameter (D2): 37.0 mm | Overall Length (L): 29.7 mm
|
| C016P Specifications | ||
| Part Number | C016P | C016P |
| Max Continuous Torque: | 3.50 Nm | 31 in-lbs |
| Max Peak Torque: | 5.08 Nm | 45 in-lbs |
| Minimum Bore: | 4 mm | 0.125 inches |
| Maximum Bore: | 20 mm | 0.750 inches |
| Maximum Speed: | 8,000 RPM | 8,000 RPM |
| Max Parallel Misalignment: | 0.7 mm | 0.028 inches |
| Max Angular Misalignment: | 1.5° | 1.5° |
| Maximum Axial Misalignment: | 0.5 mm | 0.021 inches |
| Torsional Stiffness: | 106 Nm/rad | 16.3 In-lbs/degree |
| Net Weight: | 0.061 kg | 0.135 lbs |
| Inertia (WK²): | 0.111 kg-cm² | 0.038 lb-in² |
| Outside Diameter (D2): | 37.0 mm | 1.457 inches |
| Overall Length (L): | 29.7 mm | 1.17 inches |
| Hub Length (L1): | 10.0 mm | 0.394 inches |
| Distance Between Shaft Ends (L2): | 9.7 mm | 0.38 inches |
| Inside Diameter of Disc (D4): | 14.2 mm | 0.56 inches |
