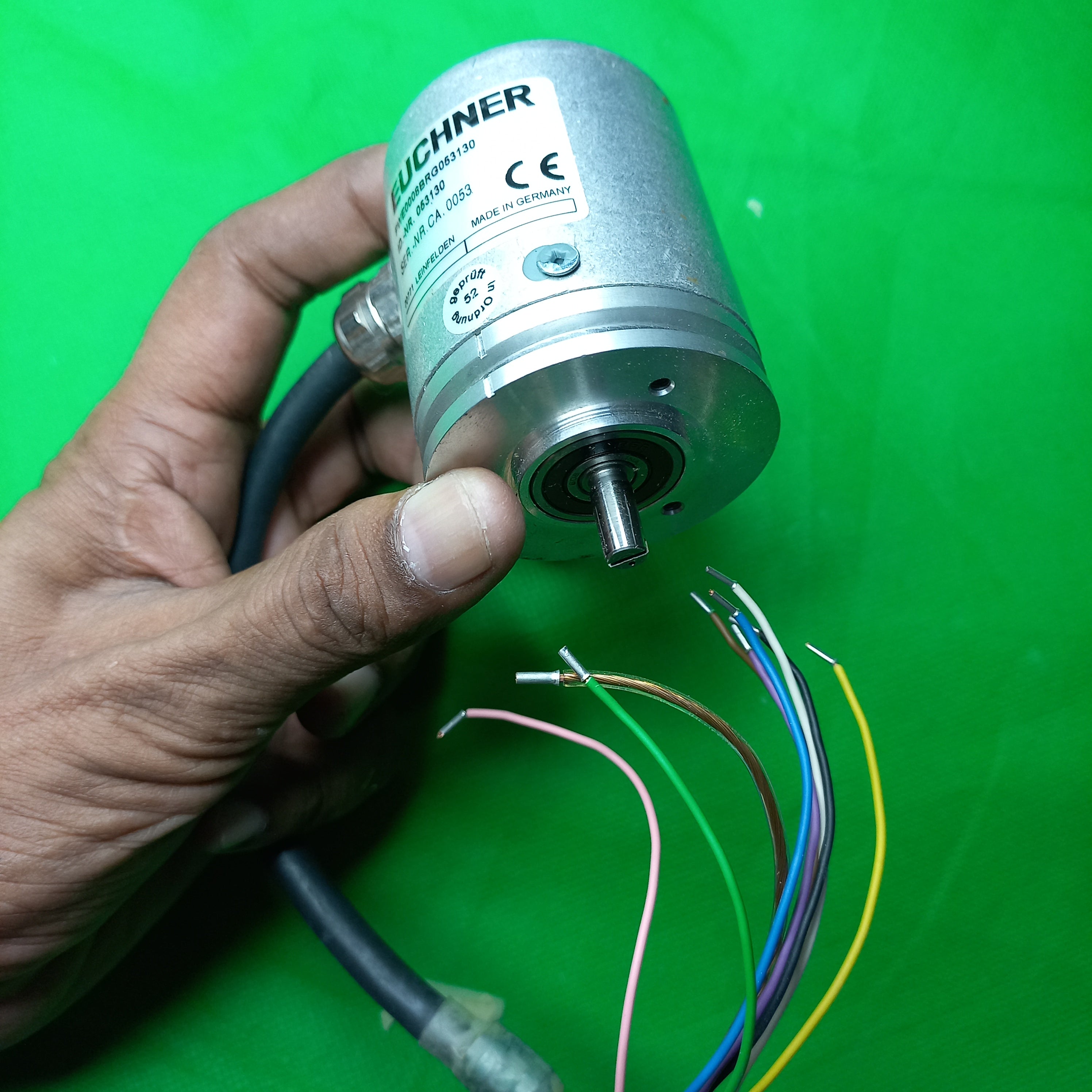

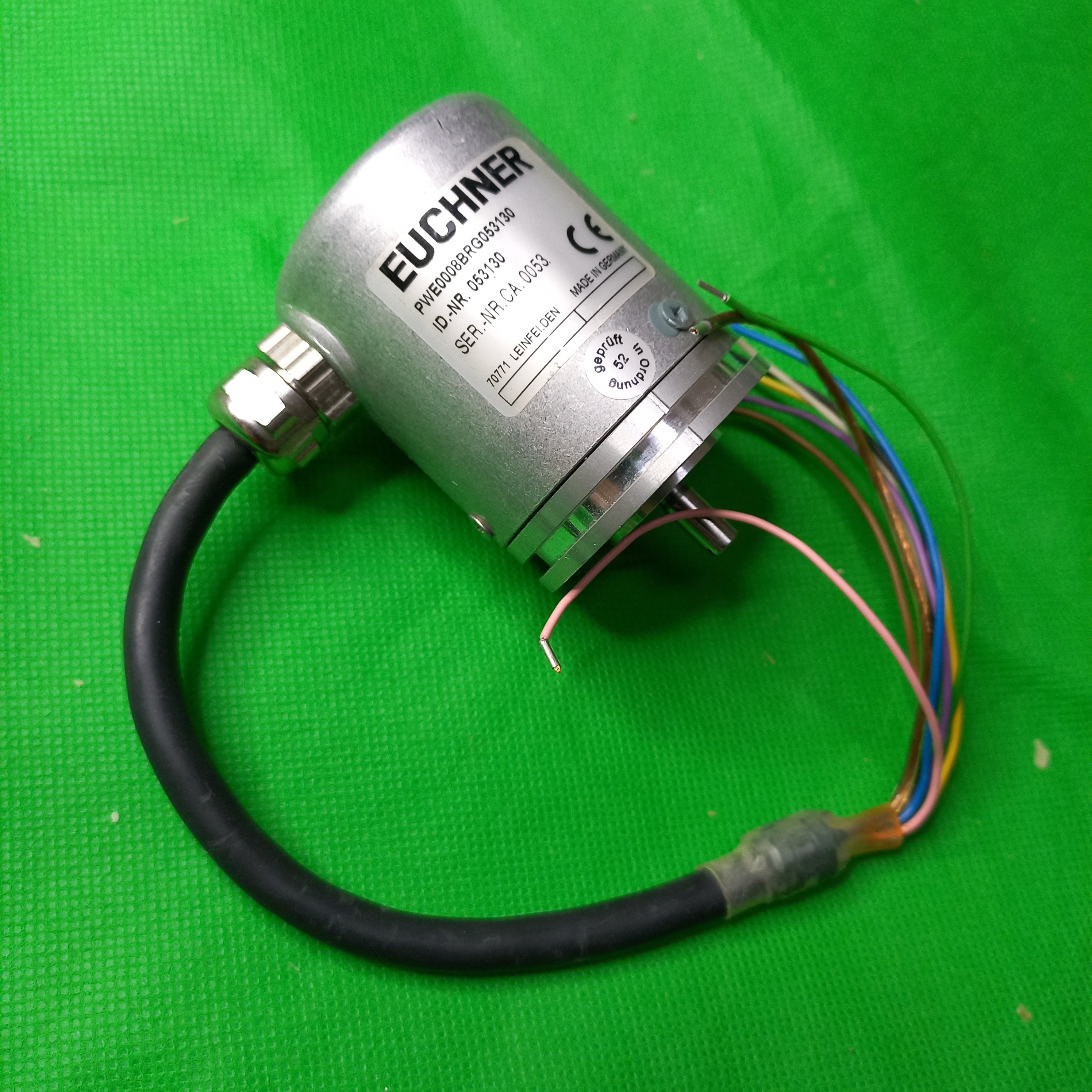

EUCHNER PWE0008BRG053130, ID 053130 Open Wire Ends, 6mm Shaft, 256 Steps/rev.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: PWE8BRG053130
- Encoder Type: Angle Encoder
- Supply voltage
- Encoder ID. NR.ID 053130
- Encoder SIgnal | | | | OEM special connector- Check Photo | Datasheet | Contact us

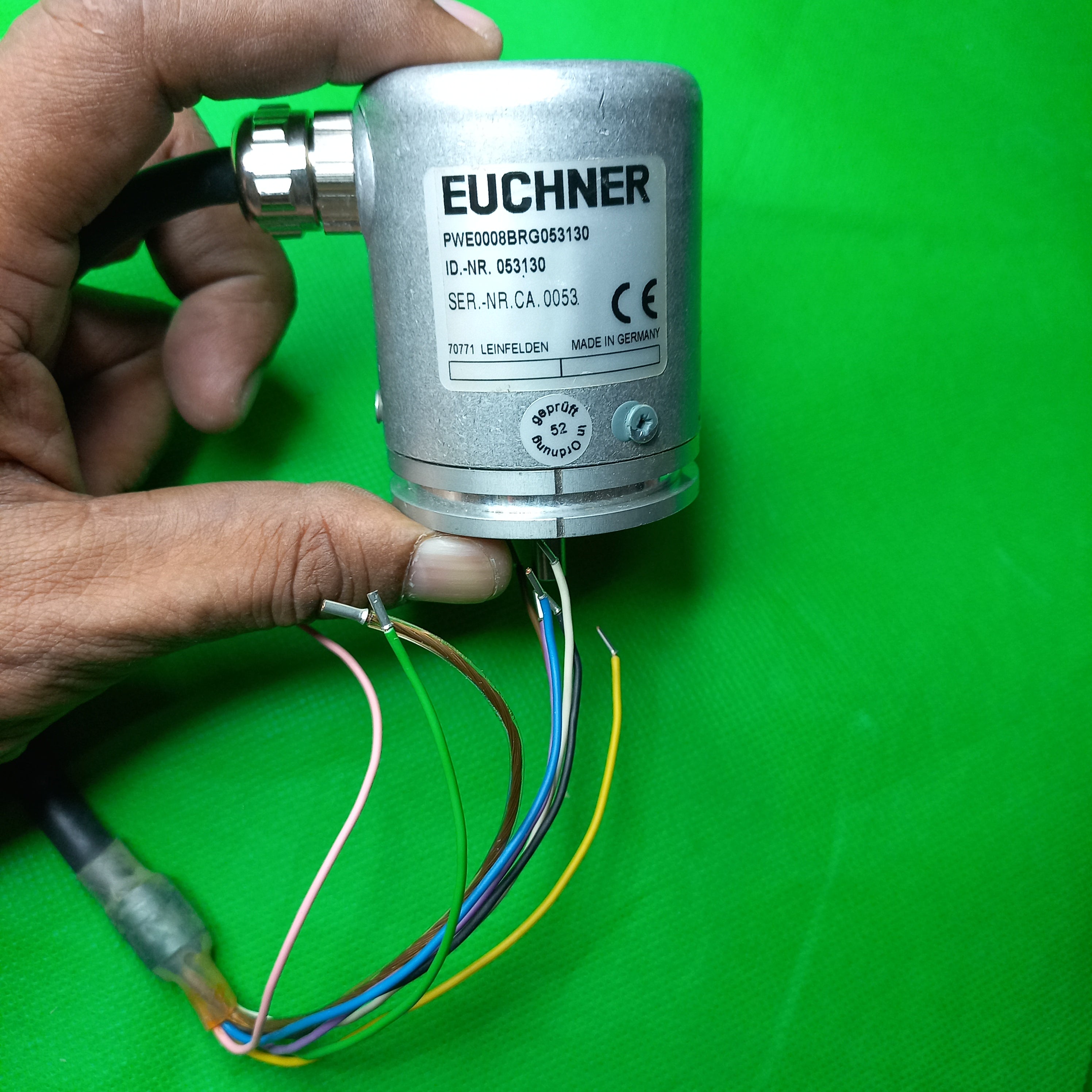

Ready Stock Absolute Encoder EUCHNER PWE0008BRG053130 I.D.-Nr. 053130
Series PWE
Flange ∅ [mm] : 50.8mm
Model / length [mm] : 63mm
max. no. of steps per revolution : 256
No. of outputs : 8
Technical Data - Model PWE Centring boss 40 mm | Absolute Encoders
Number of steps per revolution max. 256
Measuring step (resolution) α min. 1.406 °
Error limit α/2 °
Pitch code Gray, gray excess, binary
Output code Gray, gray excess, binary
Code direction (of rotation) clockwise (cw) or counter-clockwise (ccw)
Mechanical parameters
Housing material aluminium
Weight 0.25 kg
Housing diameter 50.8 mm
Shaft material stainless steel
Shaft diameter 6 mm
Mech. operating speed, max. 3,000 rpm
Starting torque, typical 0.02 Nm
Operating torque at 500 rpm, typical 0.02 Nm
Mass moment of inertia (rotor) 2.5 x 10-6 kg m2
Max. axial shaft load 25 N
Max. radial shaft load 40 N
Bearing service life at max. operating speed and load 4 x 1010 U
Operating temperature range 0 to +50 °C
Storage temperature range -20 to +50 °C
Environmental protection to EN 60529 IP 65
Resistance to vibration
Oscillation DIN / IEC 68-2-6 (3 axes) 10 - 55 Hz, amplitude 1 mm, 6 cycles of 5 min
Shock DIN / IEC 68-2-27 (3 axes) 6 shocks semi-sine, 18 ms, 30 g
Electrical parameters
Output circuit push-pull
Operating voltage range UB 15 to 30 V DC
Operating current (without load) < 50 mA
Output voltage UA at max. output current
UA (HIGH; 1), min. UB - 3 V
UA (LOW; 0), max. 3 V
Output current per output max. 30 mA
Overload/short-circuit protection non-latching thermal cutout
EMC protection requirements to met
Output frequency max. 300,000 Hz
Dimensions
Wiring:

Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Solid shaft, Servo flange
- Incremental Encoder Construction size (flange)
- Incremental Encoder Shaft diameter
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution
- incremental Encoder Range of pulses per revolution
- Signal Details:
Connection Details of encoder
- Connection type (Detail)OEM special connector- Check Photo | Datasheet | Contact us
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNPWE0008BRG053130
- Manufacturer indent Nr.ID 53130
- 1 Manufacturer Part Number (MPN) PWE8BRG053130
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
