Euchner PWF-A2-0720B-G Absolute Encoder Id.-Nr. 070498, 10mm Shaft, 4096Steps/Rev.
$2,380.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays

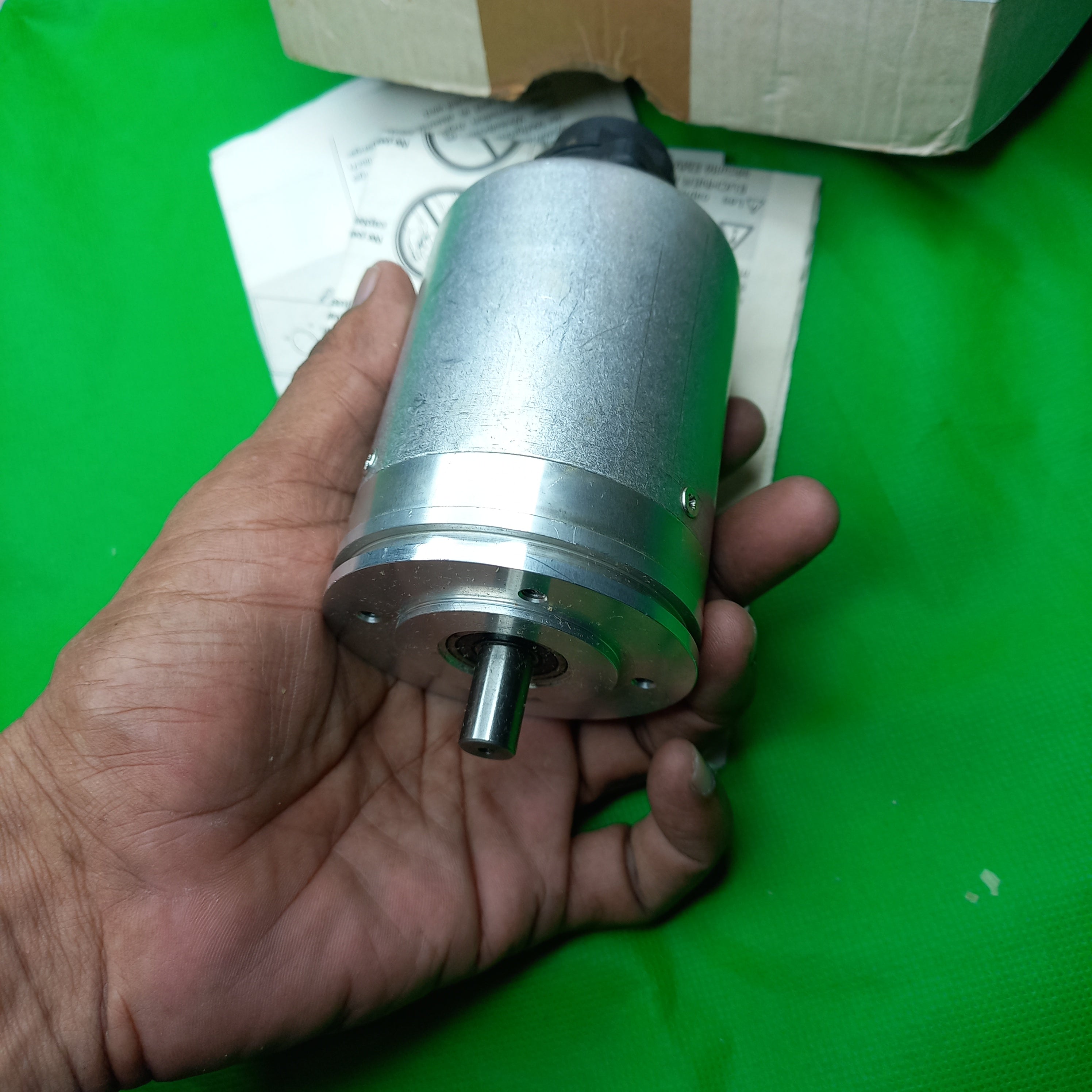

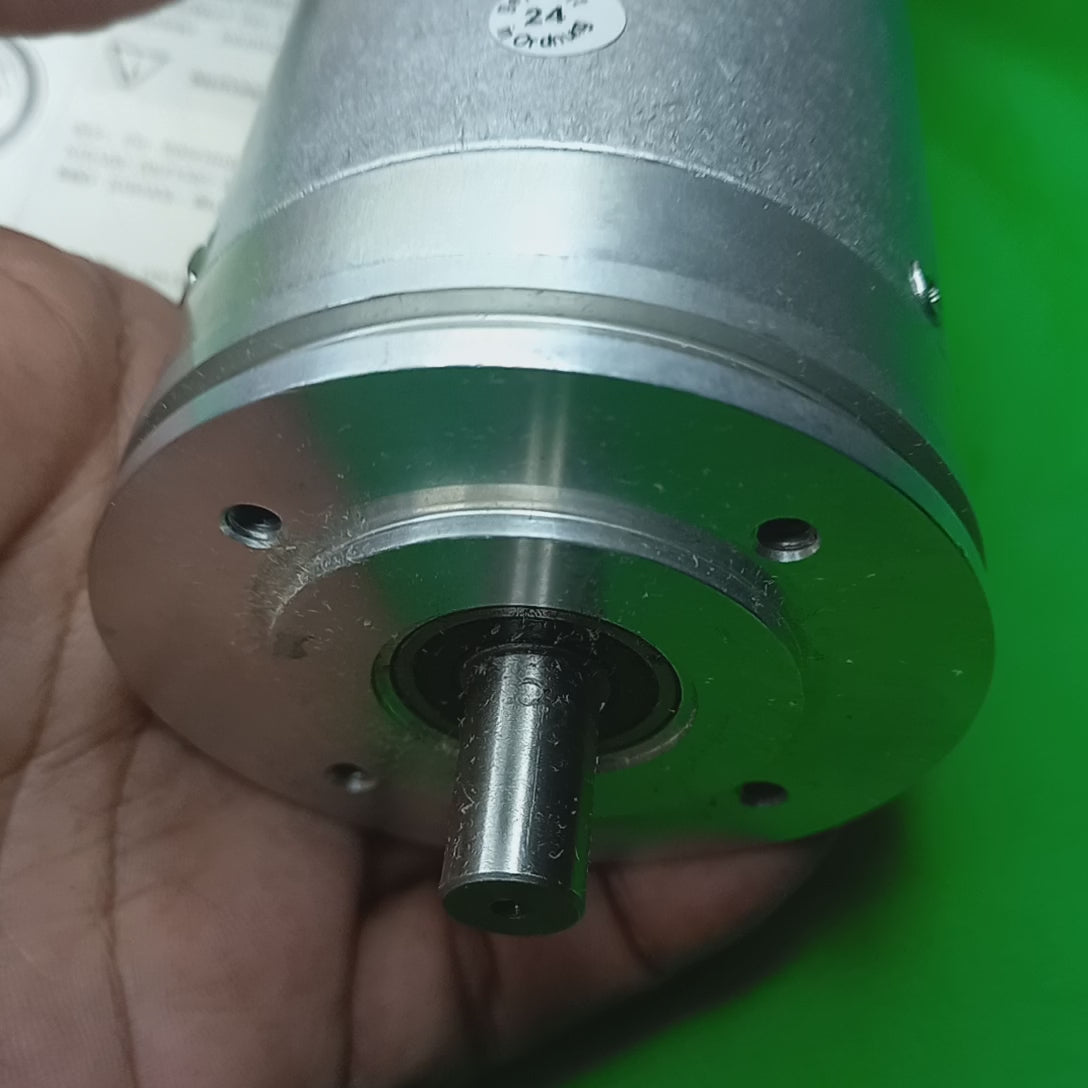

Euchner PWF-A2-0720B-G Absolute Encoder Id.-Nr. 070498, 10mm Shaft, 4096Steps/Rev.
$2,380.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: PWFA20720B-G
- Encoder Type: Angle Encoder
- Supply voltage

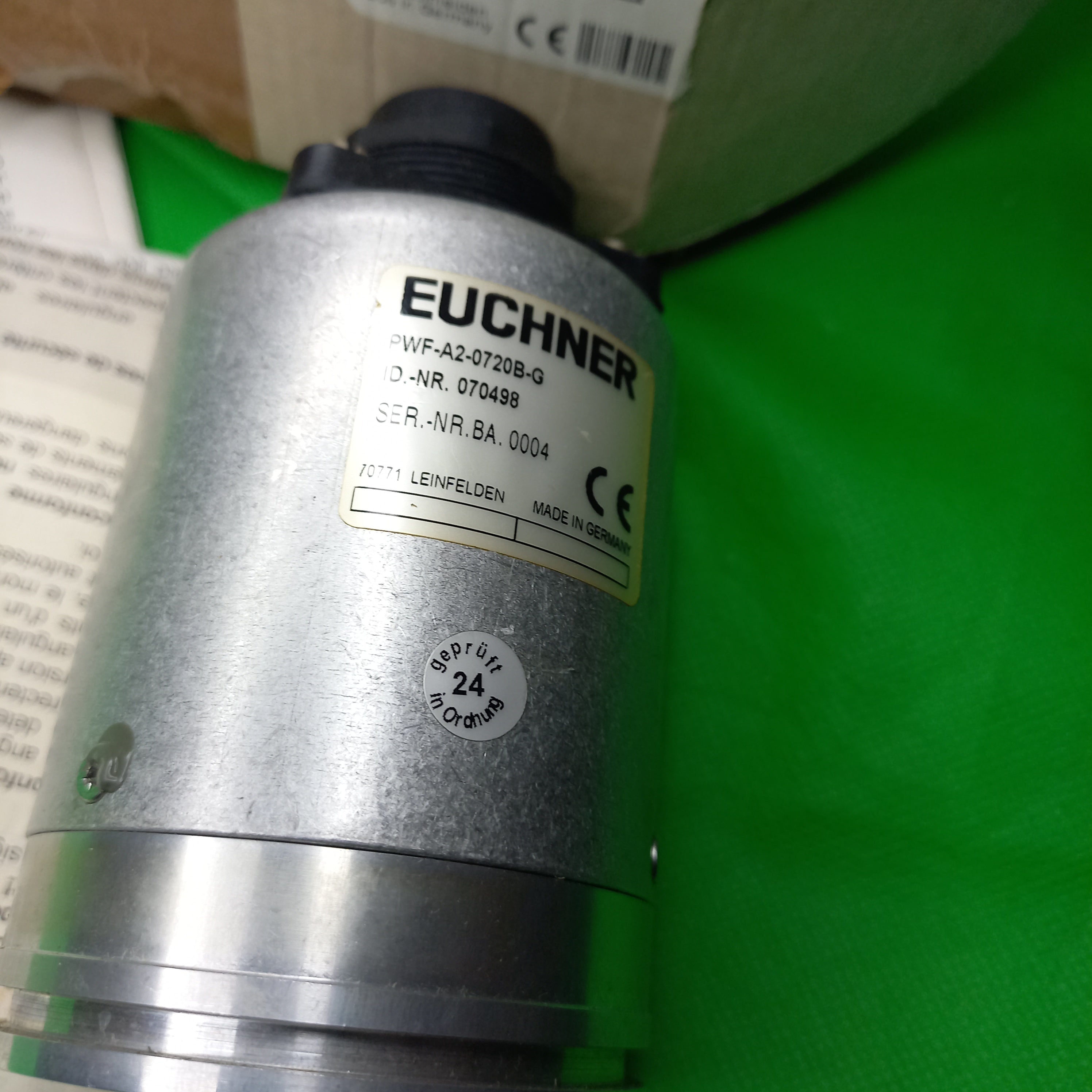

- Encoder ID. NR.PWFA2-0720B-G, Id.-Nr. 70498
- Encoder SIgnal | | | Ø 67 mm | OEM special connector- Check Photo | Datasheet | Contact us
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear
Ready Stock Absolute Encoder Model PWF-A2 Euchner PWFA2-0720B-G , Id.-Nr. 70498
Model PWF-A12 Absolute Encoders
Subject to technical modifications 09/99
● Synchro flange ∅ 58 mm
● Number of steps per revolution max. 4096
● Custom EPROM
● Up to 8 code tables accessible
● EMC compatible push-pull output circuit overload protected
●Centring boss 40 mm
Measuring parameters Value Unit
- Number of steps per revolution max. 4 096
- Measuring step (resolution) α min. 0.088 °
- Error limit α/2 °
- Pitch code gray
- Output code binary, BCD, custom
Code direction (of rotation) clockwise (cw) / custom
Mechanical parameters
- Housing material aluminium
- Weight 0.5 kg
- Housing diameter 67 mm
- Shaft material stainless steel
- Shaft diameter 10 mm
- Mech. operating speed, max. 3,000 rpm
- Starting torque, typical 0.02 Nm
- Operating torque at 500 rpm, typical 0.02 Nm
- Mass moment of inertia (rotor) 2.5 x 10-6 kg m2
- Max. axial shaft load 25 N
- Max. radial shaft load 40 N
- Bearing service life at max. operating speed and load 4 x 1010 U
- Operating temperature range 0 to +70 °C
- Storage temperature range -25 to +50 °C
- Environmental protection to EN 60529 IP 65
- Resistance to vibration
- Oscillation DIN / IEC 68-2-6 (3 axes) 10 - 55 Hz, amplitude 1 mm, 6 cycles of 5 min
- Shock DIN / IEC 68-2-27 (3 axes) 6 shocks semi-sine, 18 ms, 30 g
Electrical parameters
- Output circuit push-pull
- Operating voltage range UB 15 to 30 V DC
- Operating current (without load) < 50 mA
- Output voltage UA at max. output current
- UA (HIGH; 1), min. UB - 3 V
- UA (LOW; 0), max. 3 V
- Output current per output max. 30 mA
- Overload/short-circuit protection non-latching thermal cutout
- EMC protection requirements to met
- Output frequency max. 300,000 Hz
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Solid shaft, Servo flange
- Incremental Encoder Construction size (flange) Ø 67 mm
- Incremental Encoder Shaft diameter
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution
- incremental Encoder Range of pulses per revolution
- Signal Details:
Connection Details of encoder

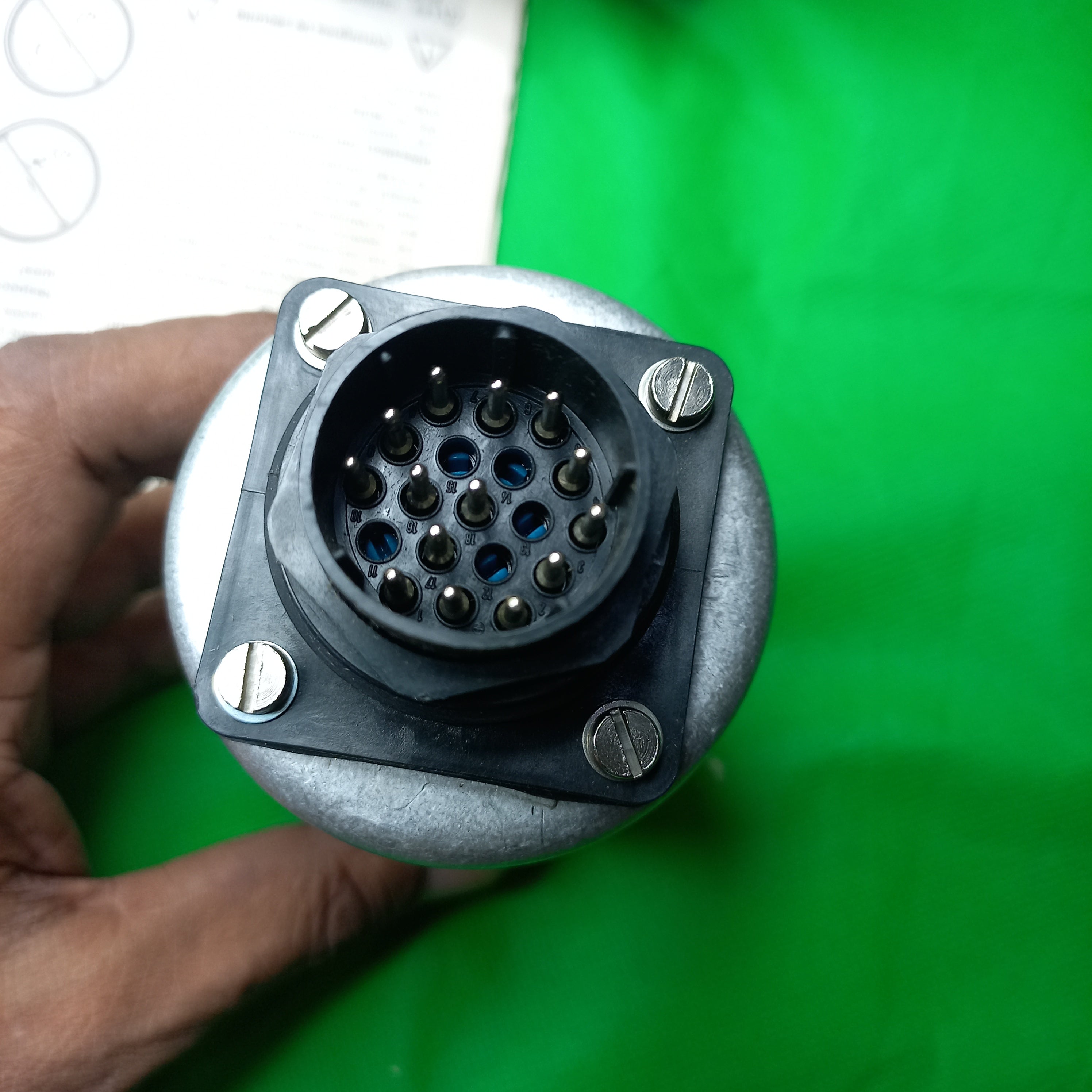

- Connection type (Detail)OEM special connector- Check Photo | Datasheet | Contact us
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNPWF-A2-0720B-G, Id.-Nr. 070498
- Manufacturer indent Nr.PWFA20720BG
- 1 Manufacturer Part Number (MPN) PWFA20720B-G
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
Brand, Condition & Warranty Disclosure
We are Independent Reseller for this Brand - Not Authorised by manufacturer
EMERGENCY BREAKDOWN ? Need it Right away ( After Office hours?) .. No Problem | Can be arranged. Send us a Message.
