HEIDENHAIN ECN 1313 2048 62S12-78, ID 768295-03, EnDat01
$1,280.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
HEIDENHAIN ECN 1313 2048 62S12-78, ID 768295-03, EnDat01
$1,280.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = ECN1313 2048 62S12-78
- Manufacturer MPN = ECN 1313 2048 62S12-78
- Encoder Type = Absolute Encoder
- Supply voltage = 3.6 V to 14 V
- ID. NR. = 768295-03
- indent Nr. = ECN1313204862S12-78
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = ECN1313 2048 62S12-78
Ready Stock | Collect from our Store Today | HEIDENHAIN ECN 1313 2048 62S12-78, ID 768295-03, EnDat01

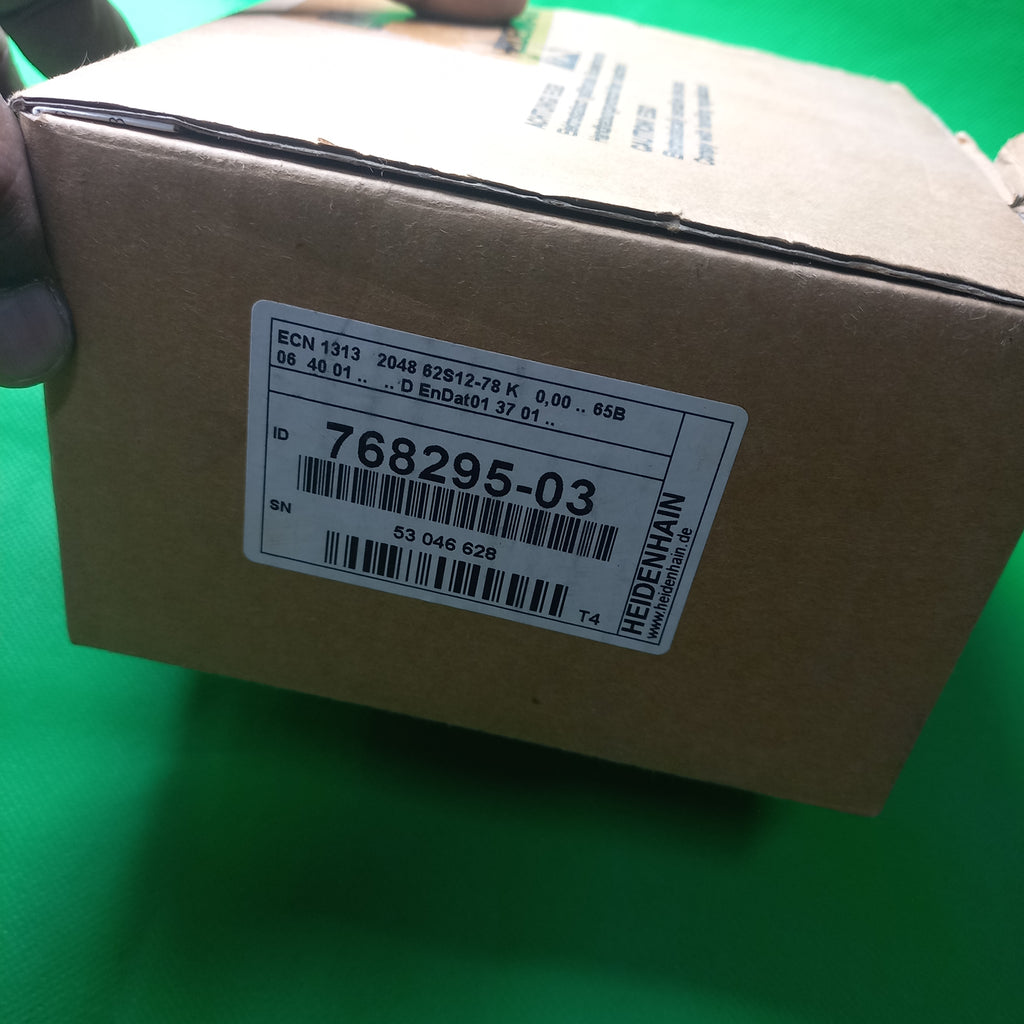

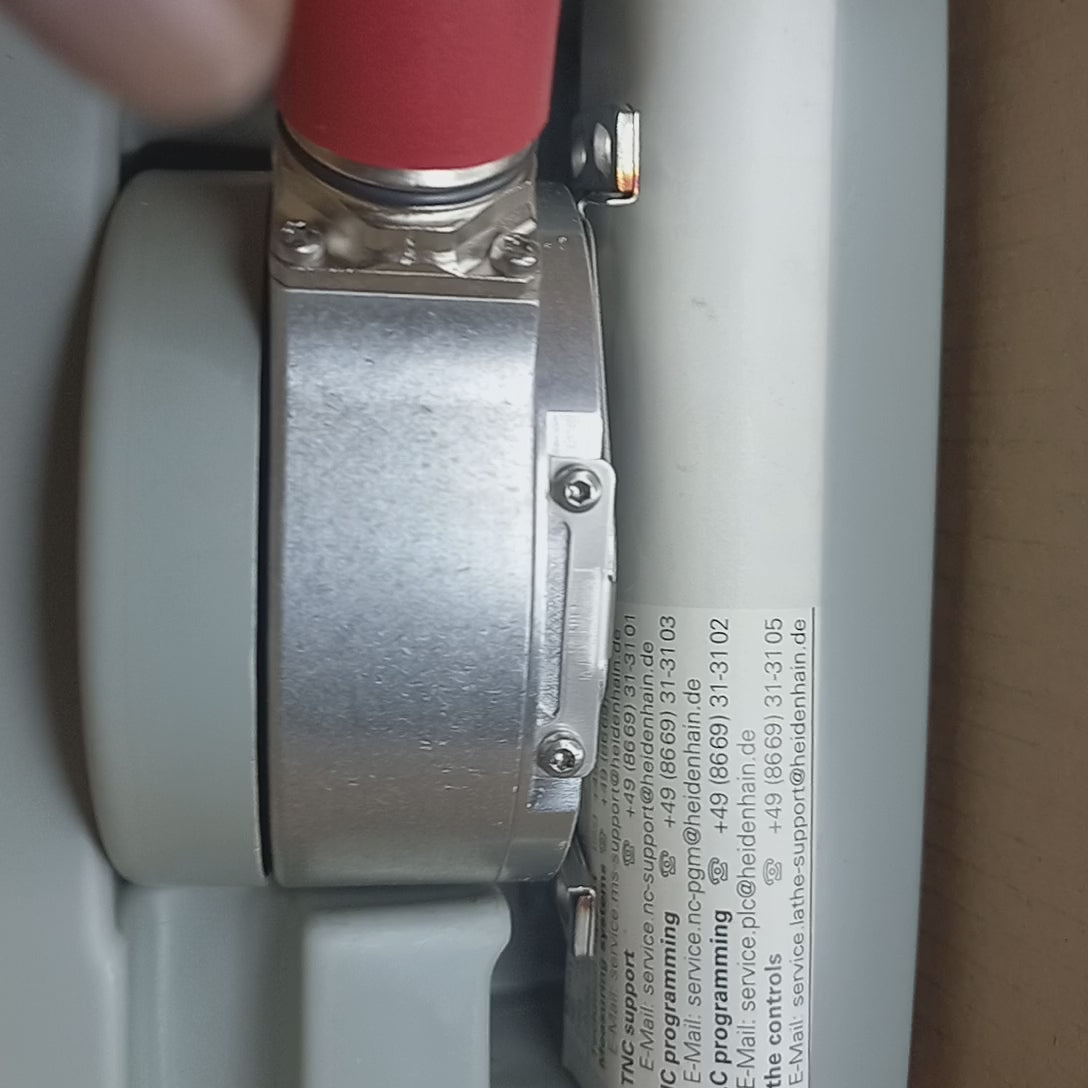

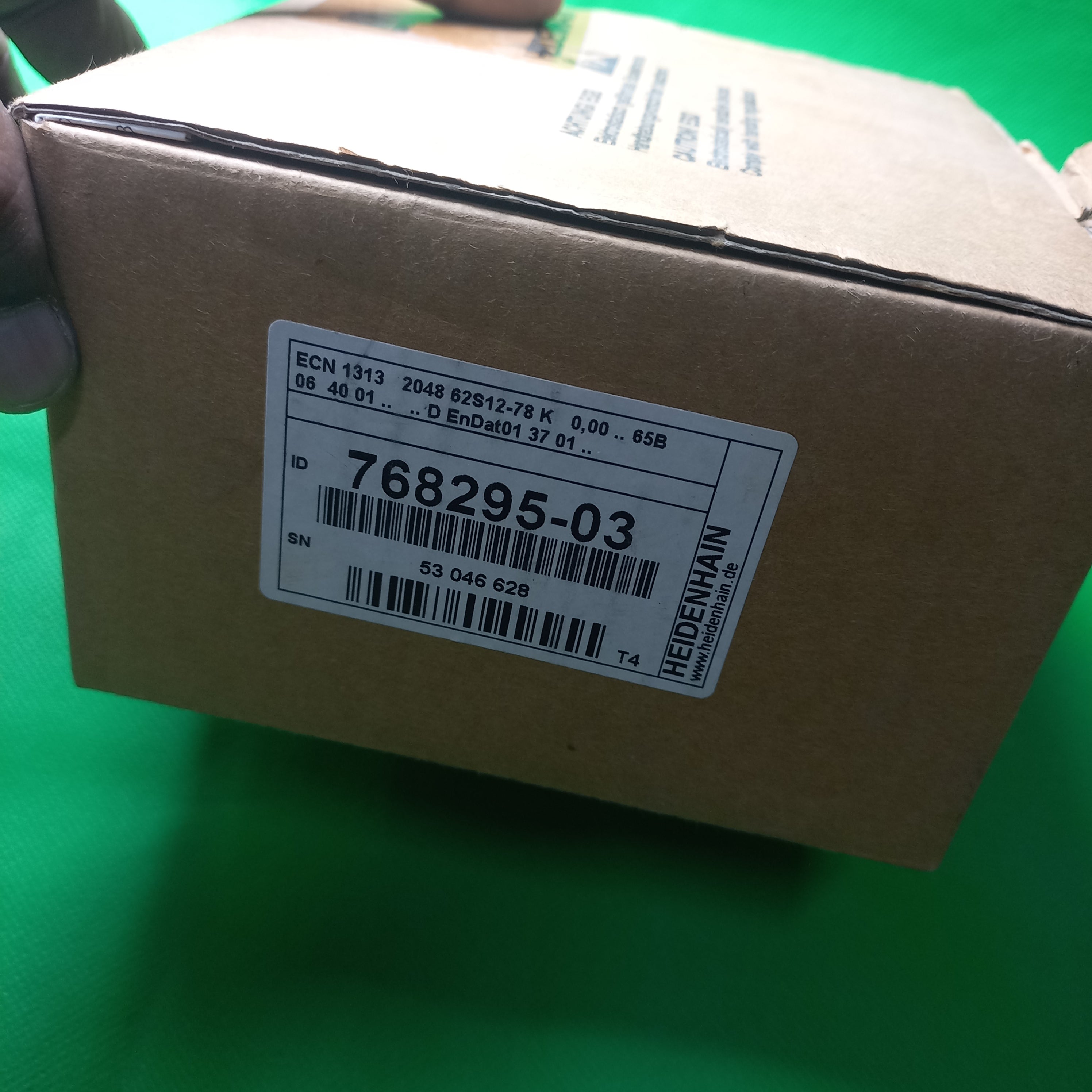

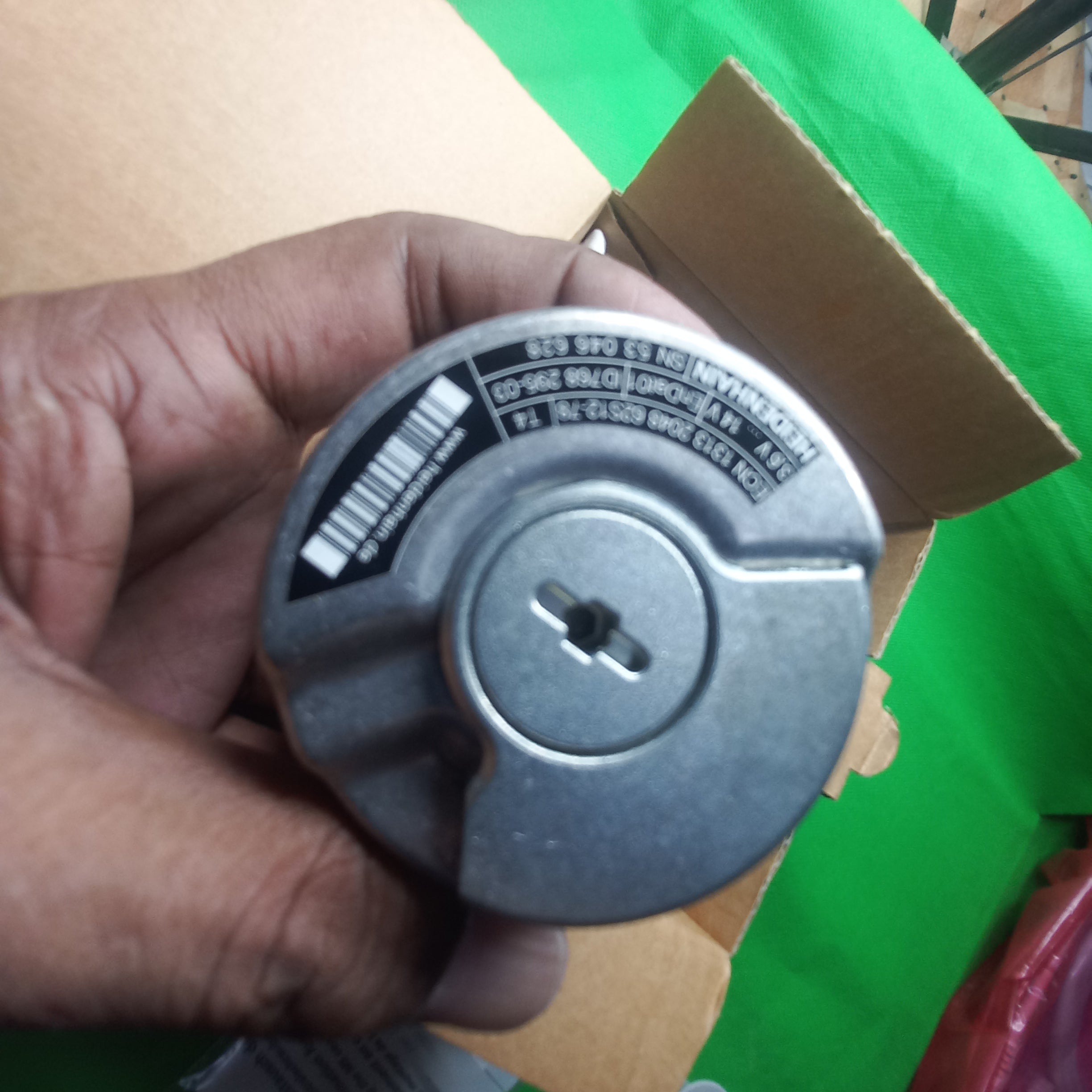

ECN 1313 2048 62S12-78 K 0.00 .. 65B06 40 01 .. .. D EnDat01 37 01 ..
IP40 (EN60529) IDent nr; 768 295-03
EnDat01 Synchronous serial EnDat 2.1 with incremental signals, mode commands, EnDat 2.1 or 2.2 command set
Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
Absolute Encoder Number of revolutions = 4096 (12 bit)
Details of PCB Connector PIN OUT of Connection :
Interface :EnDat 2.2
Ordering designation : EnDat01
Position values per revolution : 8192 (13 bits)
Revolutions – 4096 (12 bits)
Electrically permissible speed/error2) : 512 lines: | 5000 rpm/±1 LSB | 12000 rpm/±100 LS
Calculation time tcal | Clock Frequency: 9 µs 2 MHz
Incremental signals » 1 VPP1)
Line count* 512
Cutoff frequency –3 dB : 512 lines: 130 kHz
System accuracy 512 lines: ±60”; 2048 lines: ±20”
Electrical connection 12-pin PCB connector
Supply voltage DC 3.6 V to 14 V
Power consumption (max.) 3.6 V: 0.7 W \ 14 V: 0.8 W
Current consumption (typical) 5 V: 5 V: 105 mA (without load)

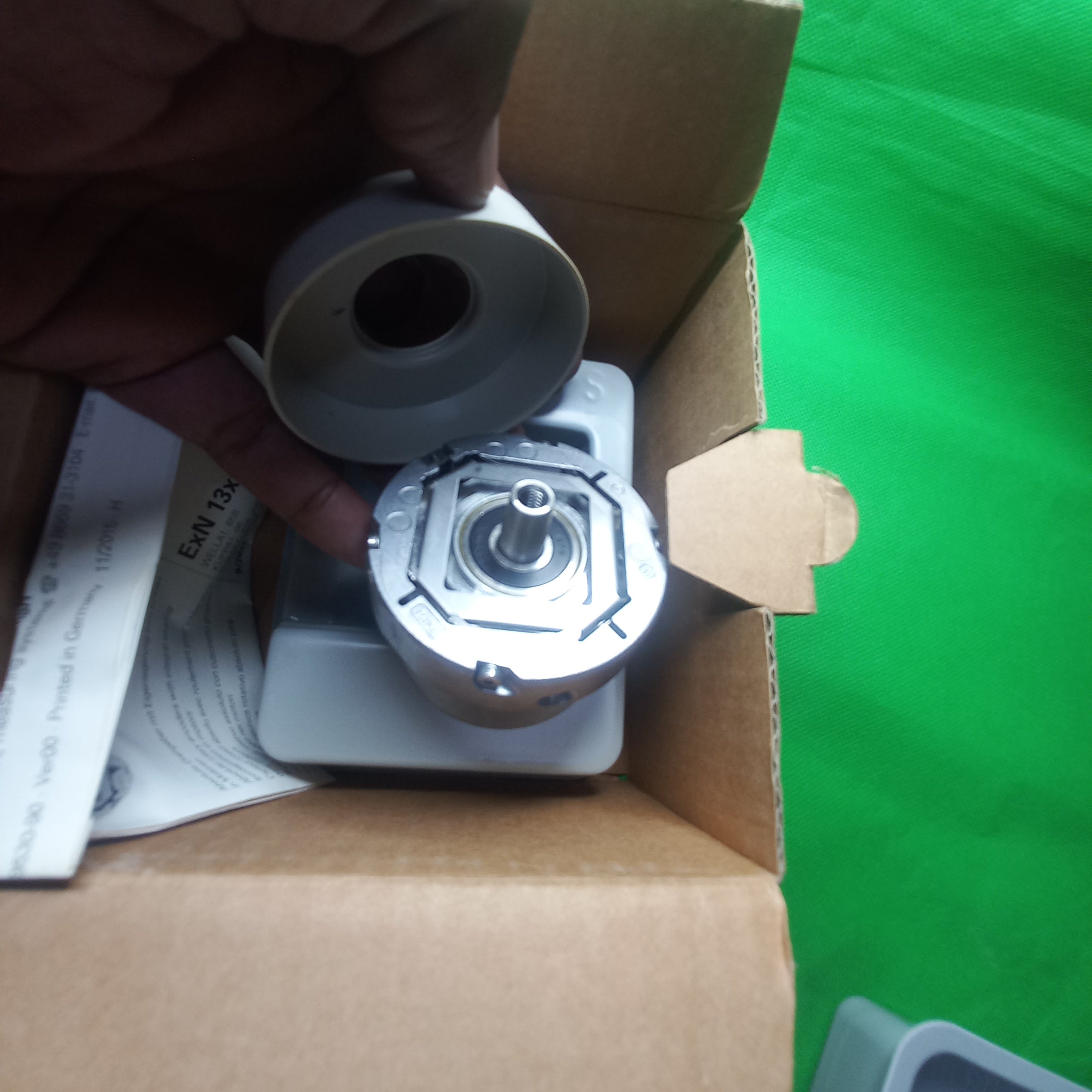

Shaft Tapered shaft ¬Tapered shaft ¬ (9.25 mm); taper: 1:10
Mech. permiss. shaft speed n 12000 rpm
Starting torque (typical) 0.01 Nm (at 20 °C)
Moment of inertia of rotor 2.6 · 10–6 kgm2
Natural frequency fN (typical) 1800 Hz
Permissible axial motion of measured shaft ±0.5 mm
Vibration 55 Hz to 2000 Hz | Shock 6 ms : 300 m/s2 3) (EN 60068-2-6); 10 Hz to 55 Hz constant over 4.9 mm peak to peak
2000 m/s2 (EN 60068-2-27)
Operating temperature –40 °C to 115 °C
Relative humidity 93% (40 °C/21 d as per EN 60068-2-78); condensation excluded
Protection rating EN 60529 IP40 when mounted
Mass 0.25 kg
Pin out of 12 Pin connector on Encoder body : Enda01 on EQN1325512 62S12-78K ID. 586 654-05
Dimensions of encoder:
Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = 06 stator coupling for axial mounting (heidenhain)
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 65B tapered shaft (heidenhain)
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = Endat01
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
Absolute Encoder Programmable/configurable = NOT : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Universal
- Connection Type Detail = PCB Connector 12 PIn
How Encoder body is Mouted ? Mouting Flange Design Data:
