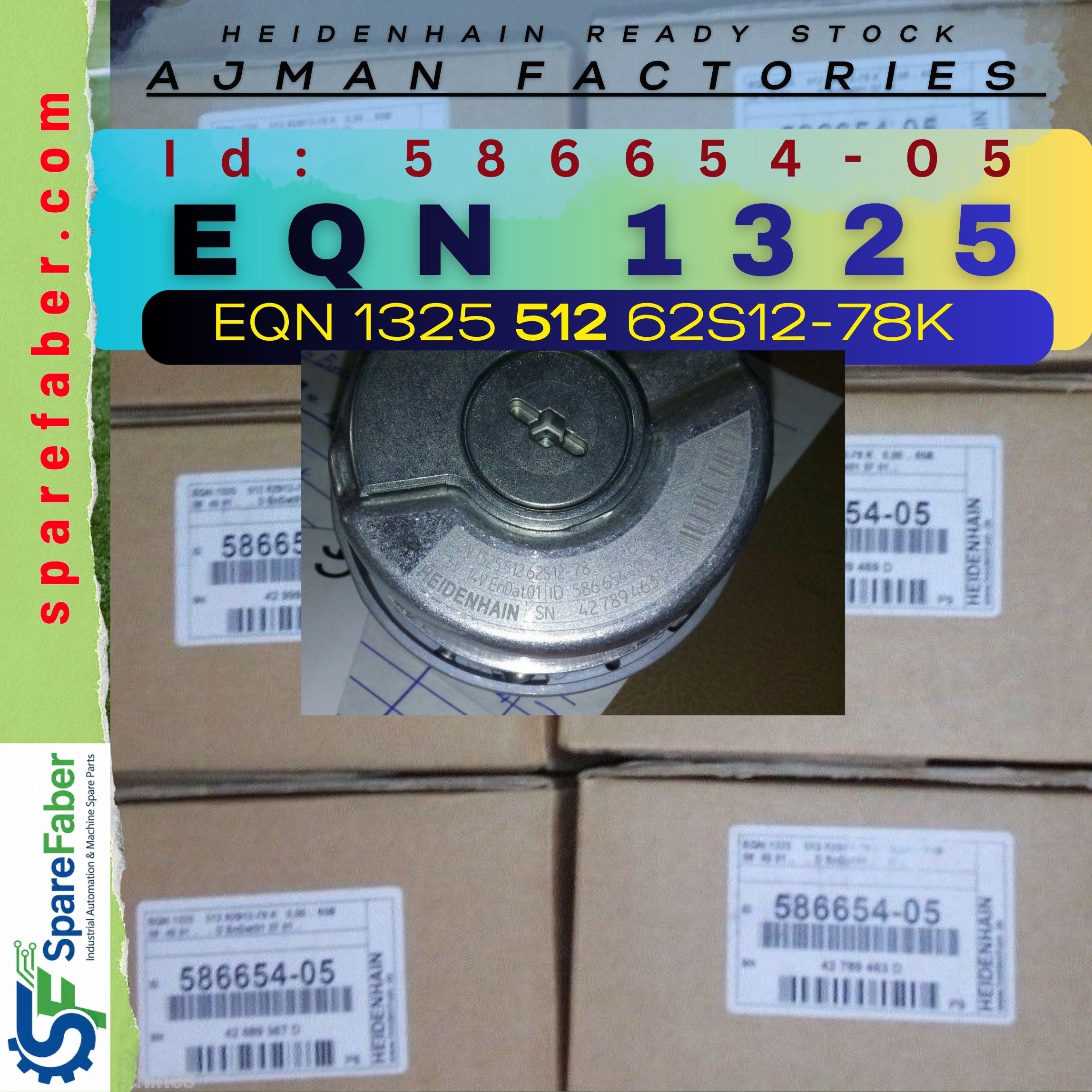

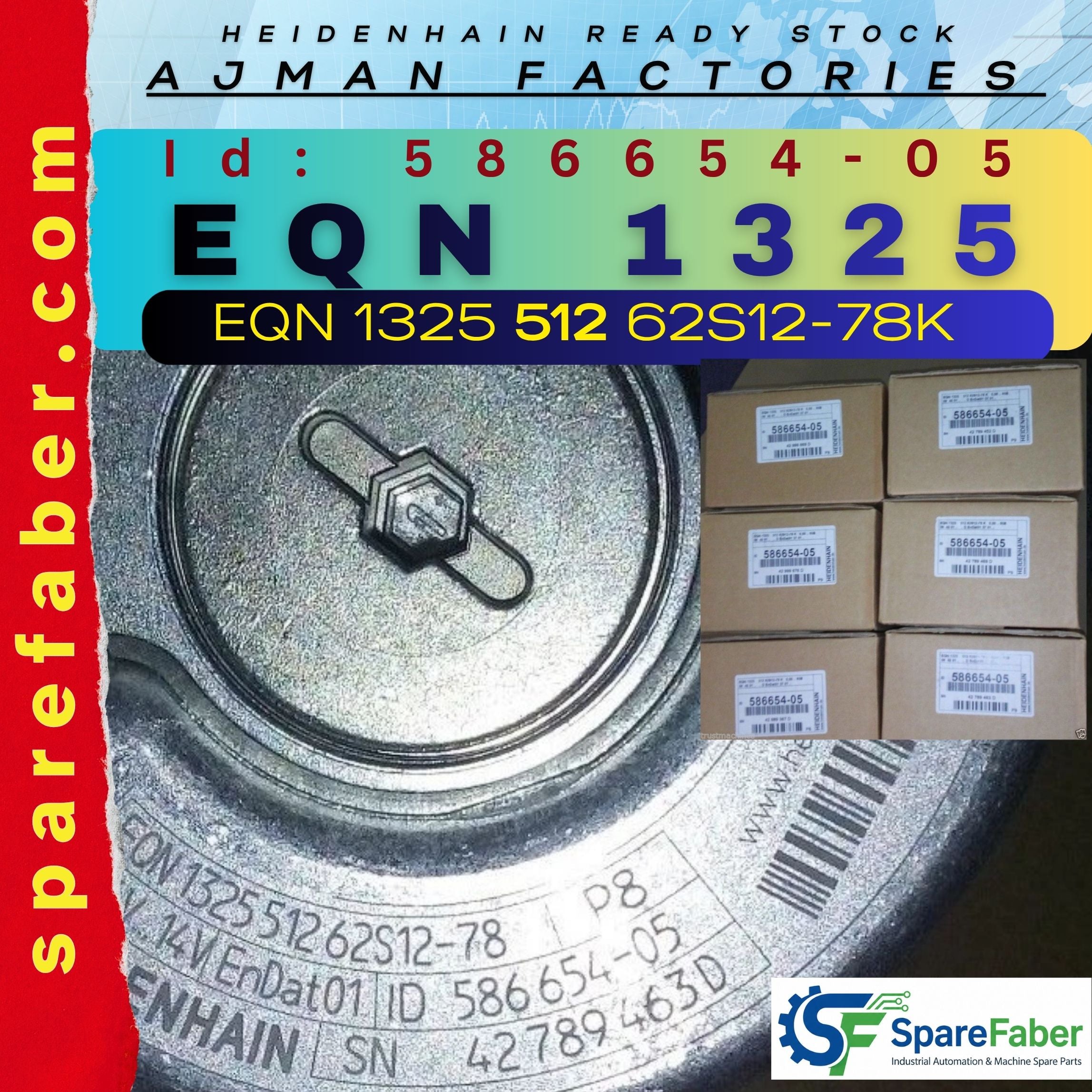

Heidenhain MultiTurn EnDat01 | 512 lines | Encoder EQN 1325 512 62S12-78K Id: 586654-05

Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days

Heidenhain MultiTurn EnDat01 | 512 lines | Encoder EQN 1325 512 62S12-78K Id: 586654-05

$1,980.00

Taxes included. Shipping calculated at checkout.

Dispatch Lead time = Same day ship if paid before 2 PM Local time
Warranty = One-year limited seller warranty

Manufacturer Part Number = EQN1325-512-62S12-78K
Manufacturer MPN = EQN 1325 512 62S12-78K
Encoder Type = Absolute Encoder
Supply voltage = 3.6 V to 14 V

ID. NR. = ID. 586654-05
indent Nr. = EQN132551262S1278K

Alternative Part Numbers | Compatible Parts = 827039-04, 827039-06, 827039-515, 827039-555
Typographic Errors in MPN | Mistakenly Known as = 586 654-05, EON1325 512 62S12-78K ,EON132551262S12-78K
Manufacturer Part Number (MPN) = EQN1325-512-62S12-78K

View Manufacturer Product Page

Mechanical Design Features of this Encoder:

Absolute Encoder Mechanical Design = 06 stator coupling for axial mounting (heidenhain)
Absolute Encoder Construction size (flange) = Ø 58 mm

Design data for Selection | design of Shaft Coupling for this encoder

Absolute Encoder Shaft diameter = 65B tapered shaft (heidenhain)

Encoder Communication Protocall & interface

Absolute Encoder Communication interface = Endat01

Encoder Performance Parameters

Absolute Encoder - Singleturn or multiturn version = Multiturn
Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
Absolute Encoder Number of revolutions = 4096 (12 bit)
Absolute Encoder Resolution (Bits) =

Absolute Encoder Programmable/configurable = NOT : Programmable/configurable

Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE

Direction of Connection = Universal
Connection =
Connection Type Detail = PCB Connector 12 PIn
ABS- INC Length of cable =

How Encoder body is Mouted ? Mouting Flange Design Data:

Ready Stock | Collect from our Store Today | EnDat01 Heidenhain EQN 1325 512 62S12-78K ID. 586654-05

Can be used to Replace:
heidenhain ID Nr. : 827039-04 | heidenhain ID Nr. :827039-06
heidenhain ID Nr. :827039-515 | heidenhain ID Nr. :827039-555

Absolute Encoder - Number of steps per revolution = 8192 (13 bit)

Absolute Encoder Number of revolutions = 4096 (12 bit)

Details of PCB Connector PIN OUT of Connection :

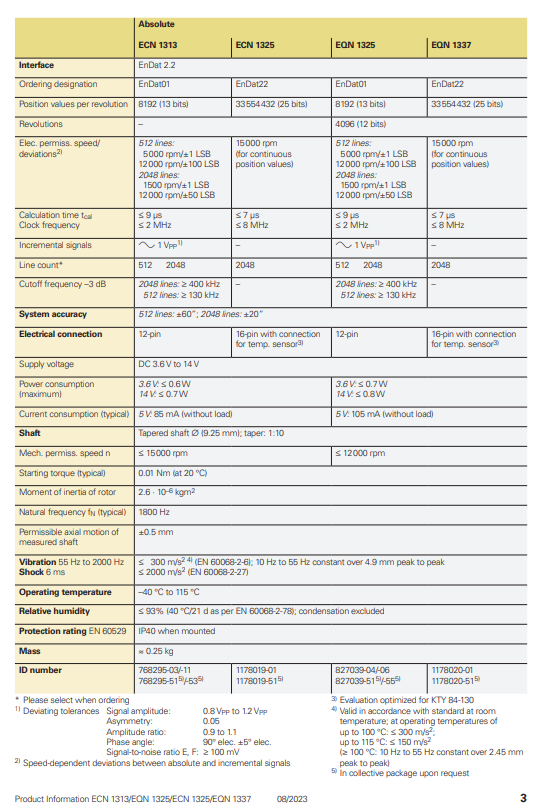

Interface :EnDat 2.2
Ordering designation : EnDat01
Position values per revolution : 8192 (13 bits)
Revolutions – 4096 (12 bits)
Electrically permissible speed/error2) : 512 lines: | 5000 rpm/±1 LSB | 12000 rpm/±100 LS
Calculation time tcal | Clock Frequency:  9 µs  2 MHz
Incremental signals » 1 VPP1)
Line count* 512
Cutoff frequency –3 dB : 512 lines:  130 kHz
System accuracy 512 lines: ±60”; 2048 lines: ±20”
Electrical connection 12-pin PCB connector
Supply voltage DC 3.6 V to 14 V
Power consumption (max.) 3.6 V:  0.7 W \ 14 V:  0.8 W
Current consumption (typical) 5 V: 5 V: 105 mA (without load)
Shaft Tapered shaft ¬Tapered shaft ¬ (9.25 mm); taper: 1:10
Mech. permiss. shaft speed n  12000 rpm
Starting torque (typical) 0.01 Nm (at 20 °C)
Moment of inertia of rotor 2.6 · 10–6 kgm2
Natural frequency fN (typical) 1800 Hz
Permissible axial motion of measured shaft ±0.5 mm
Vibration 55 Hz to 2000 Hz | Shock 6 ms :  300 m/s2 3) (EN 60068-2-6); 10 Hz to 55 Hz constant over 4.9 mm peak to peak
 2000 m/s2 (EN 60068-2-27)

Operating temperature –40 °C to 115 °C

Relative humidity  93% (40 °C/21 d as per EN 60068-2-78); condensation excluded
Protection rating EN 60529 IP40 when mounted

Mass 0.25 kg

Pin out of 12 Pin connector on Encoder body : Enda01 on EQN1325512 62S12-78K ID. 586 654-05

Dimensions of encoder:
