Heidenhain HTL ROD 431.025-1024_ID735117-02 | ERN 1331 1024 62S12-30
$1,880.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: ROD4310251024
- Encoder Type: Incremental encoder
- Supply voltage 10V to 30 V
- Encoder ID. NR.id 735117-02
- Encoder SIgnal | 1024 | HTL, inv. | Ø 58 mm | PCB Connector 12 PIn
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition : Original packaging with shelf wear

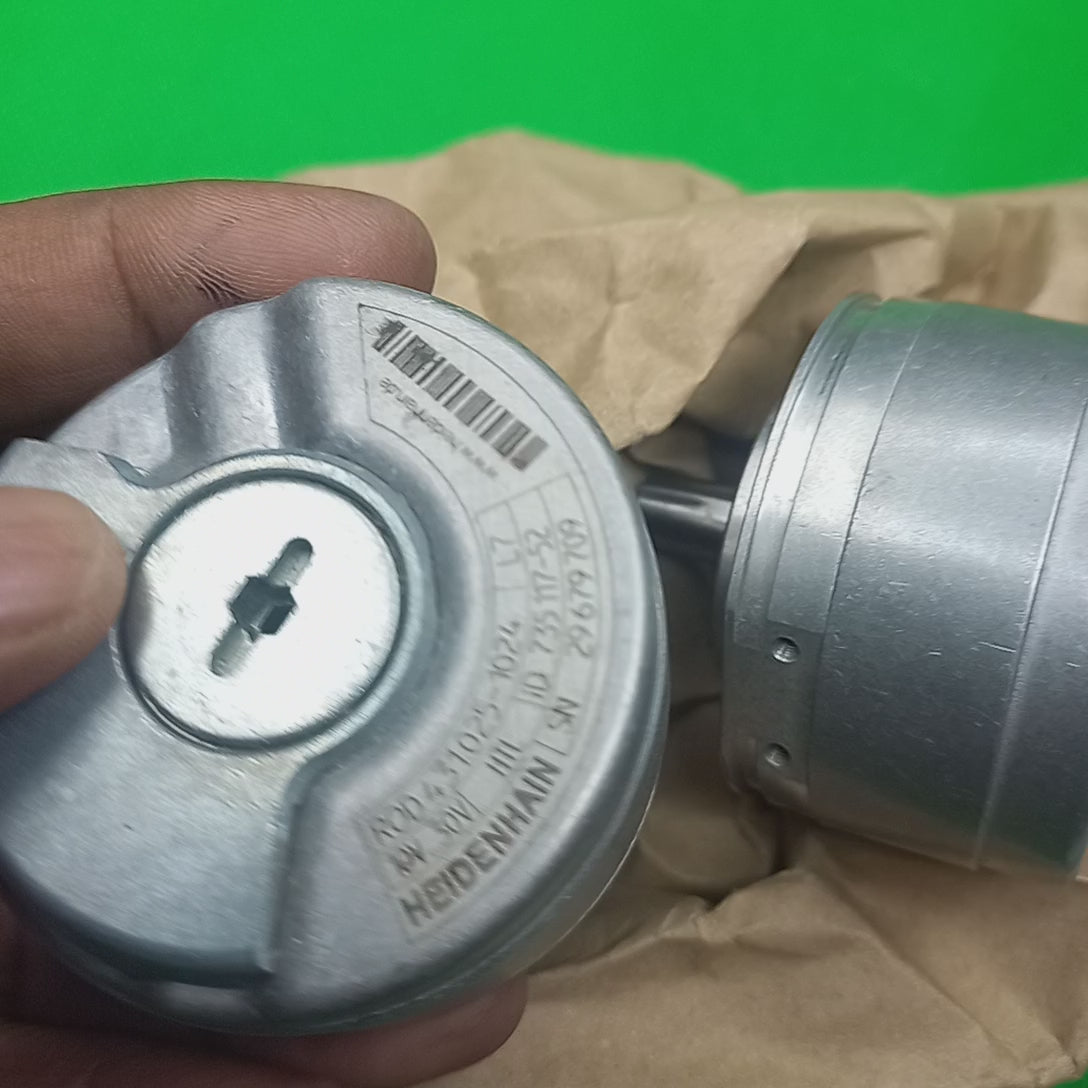

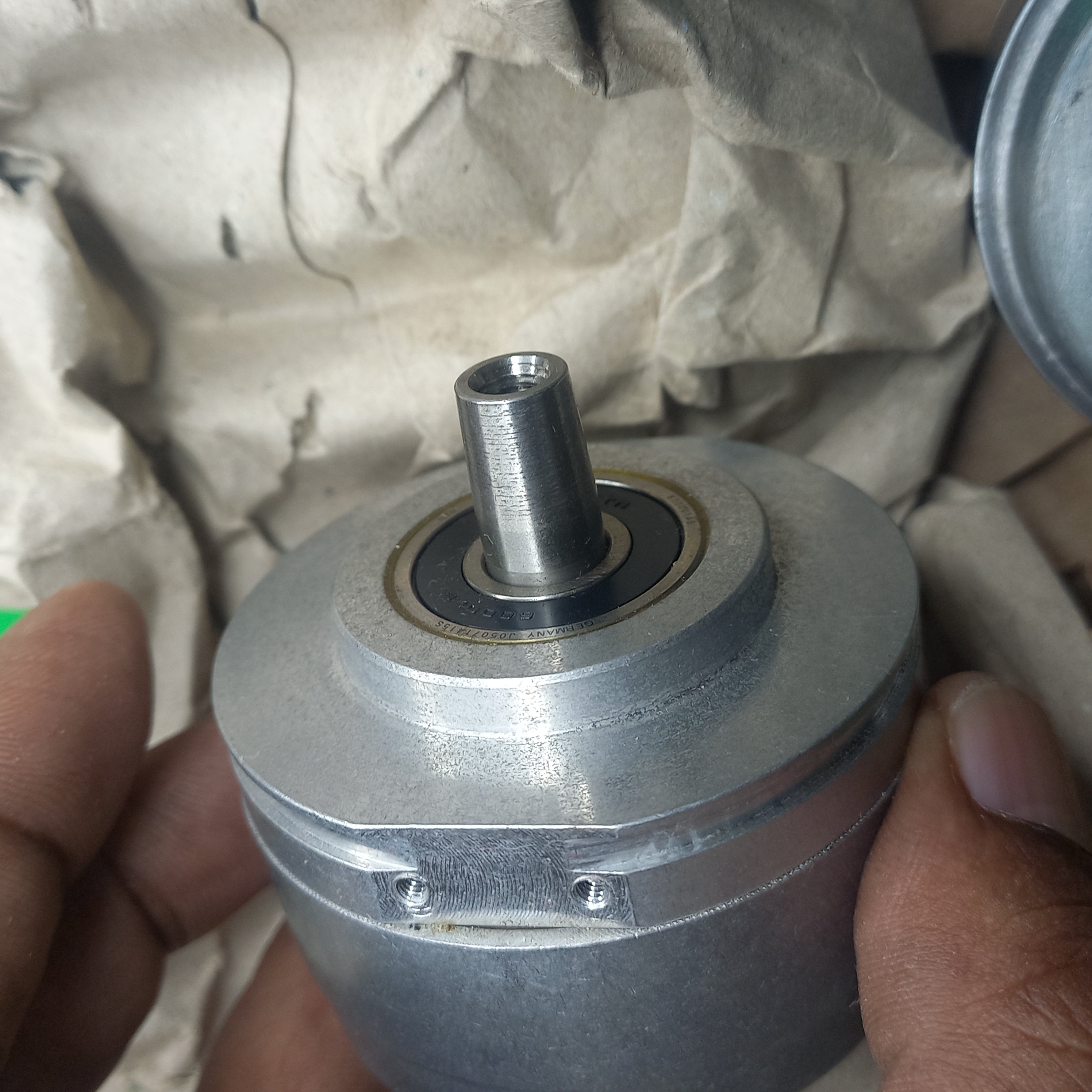

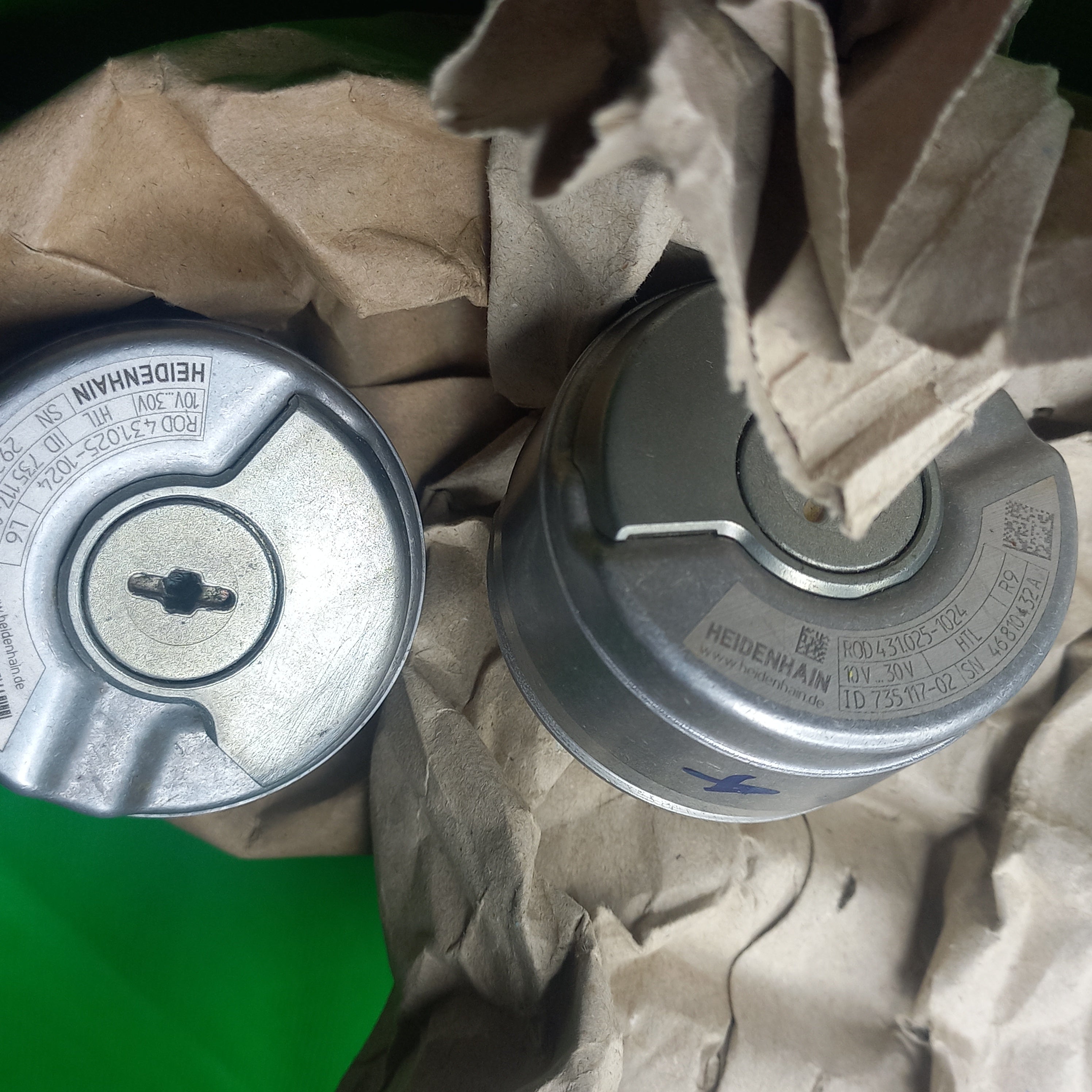

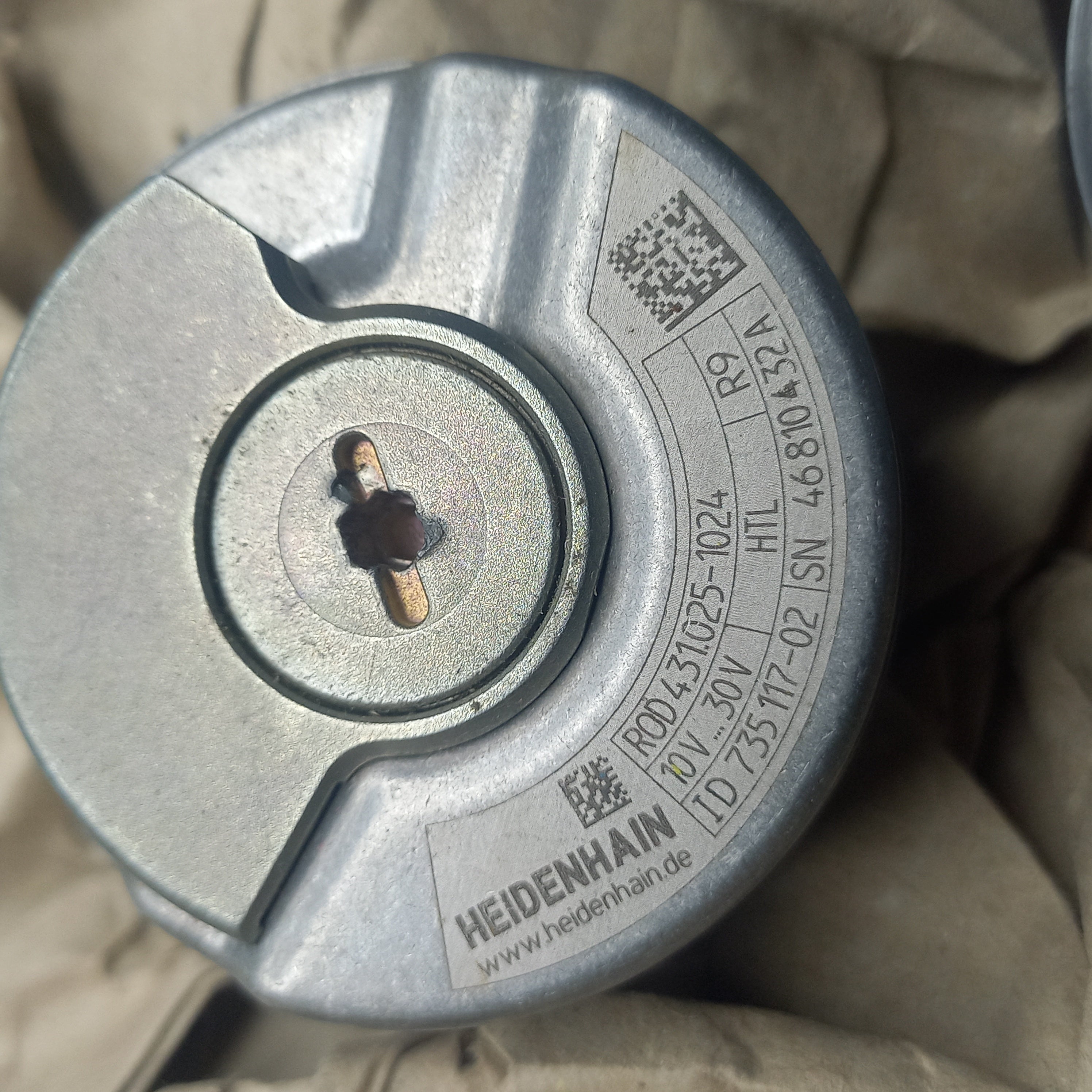

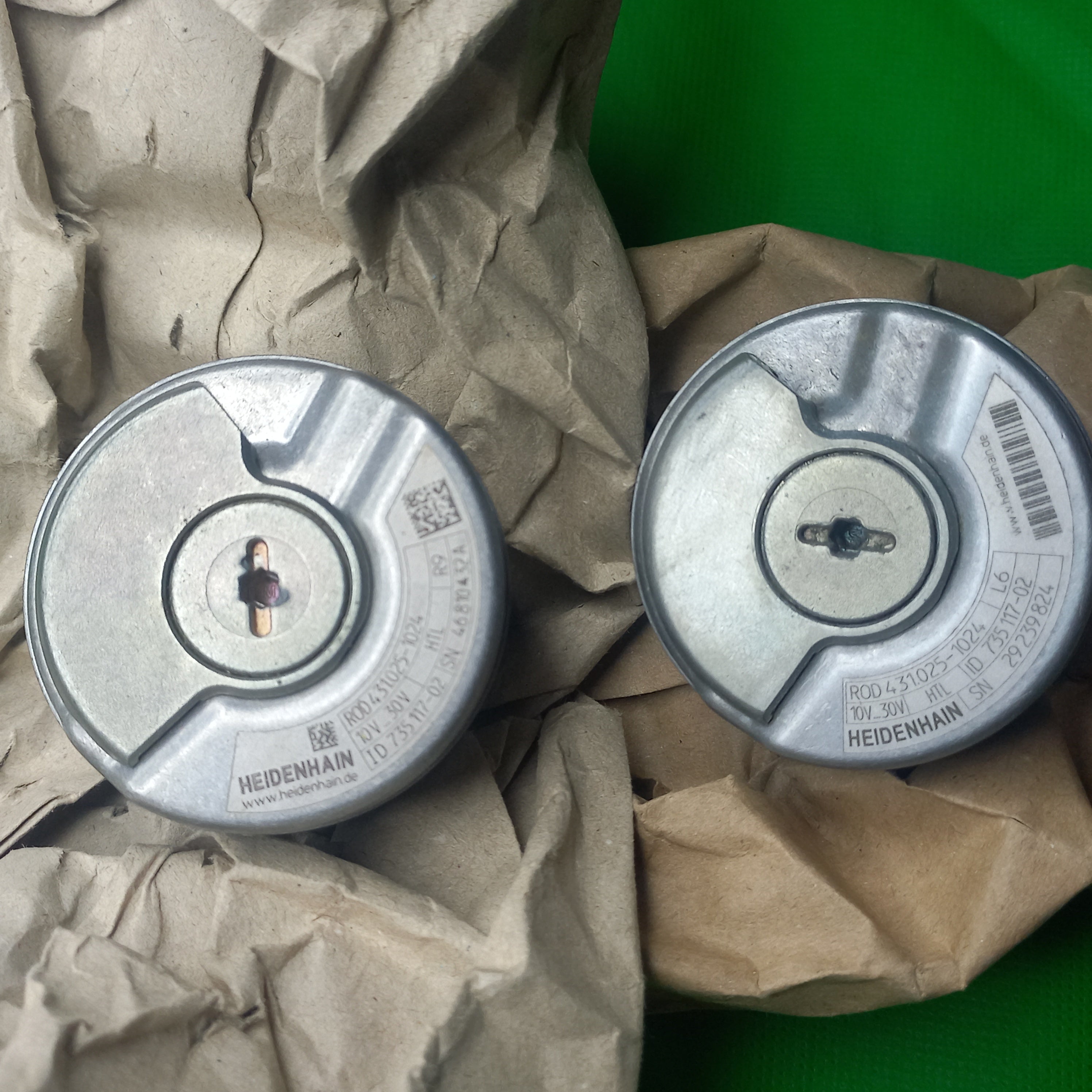

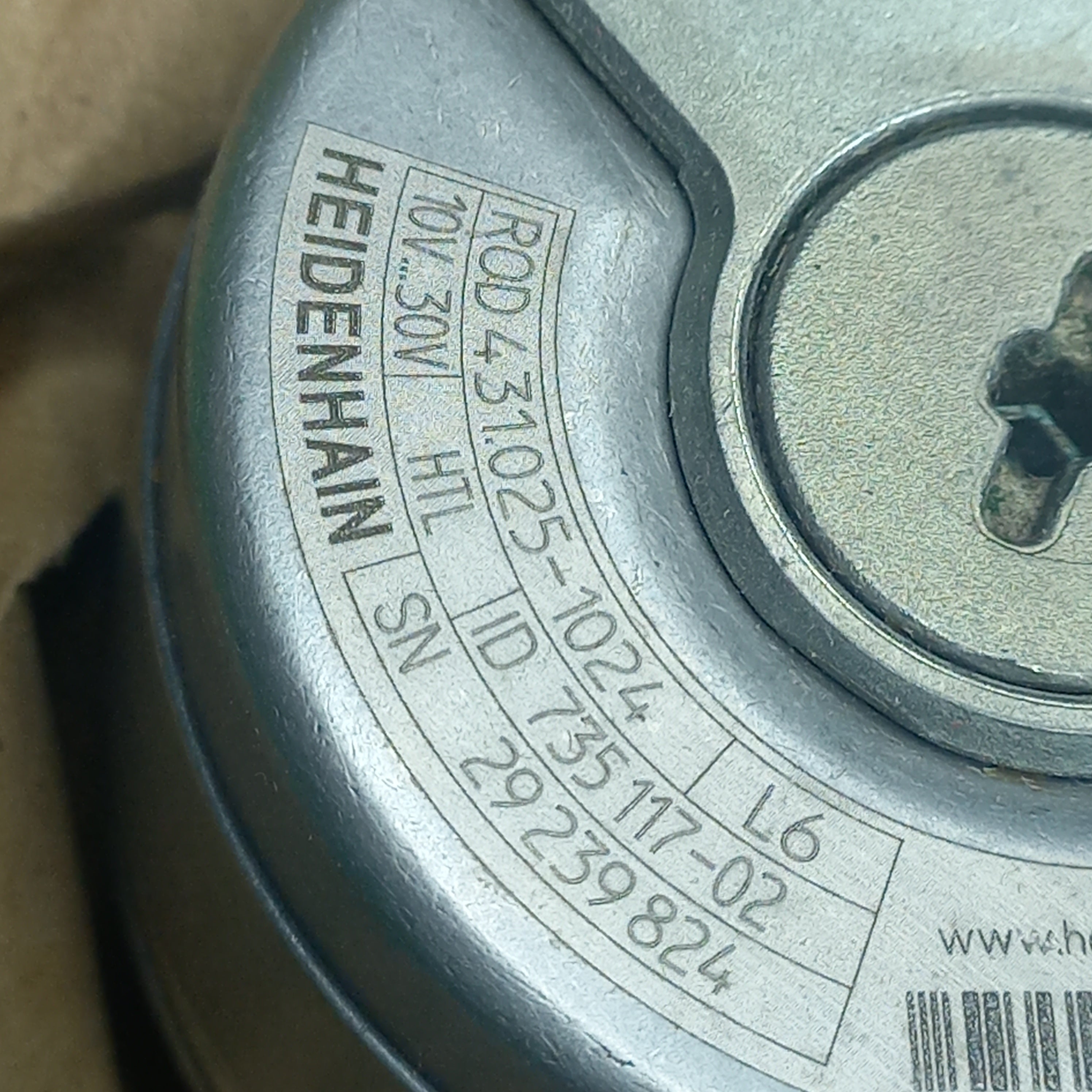

Ready Stock | Collect from our Store Today | ROD 431025-1024 HTL id 735 117-02

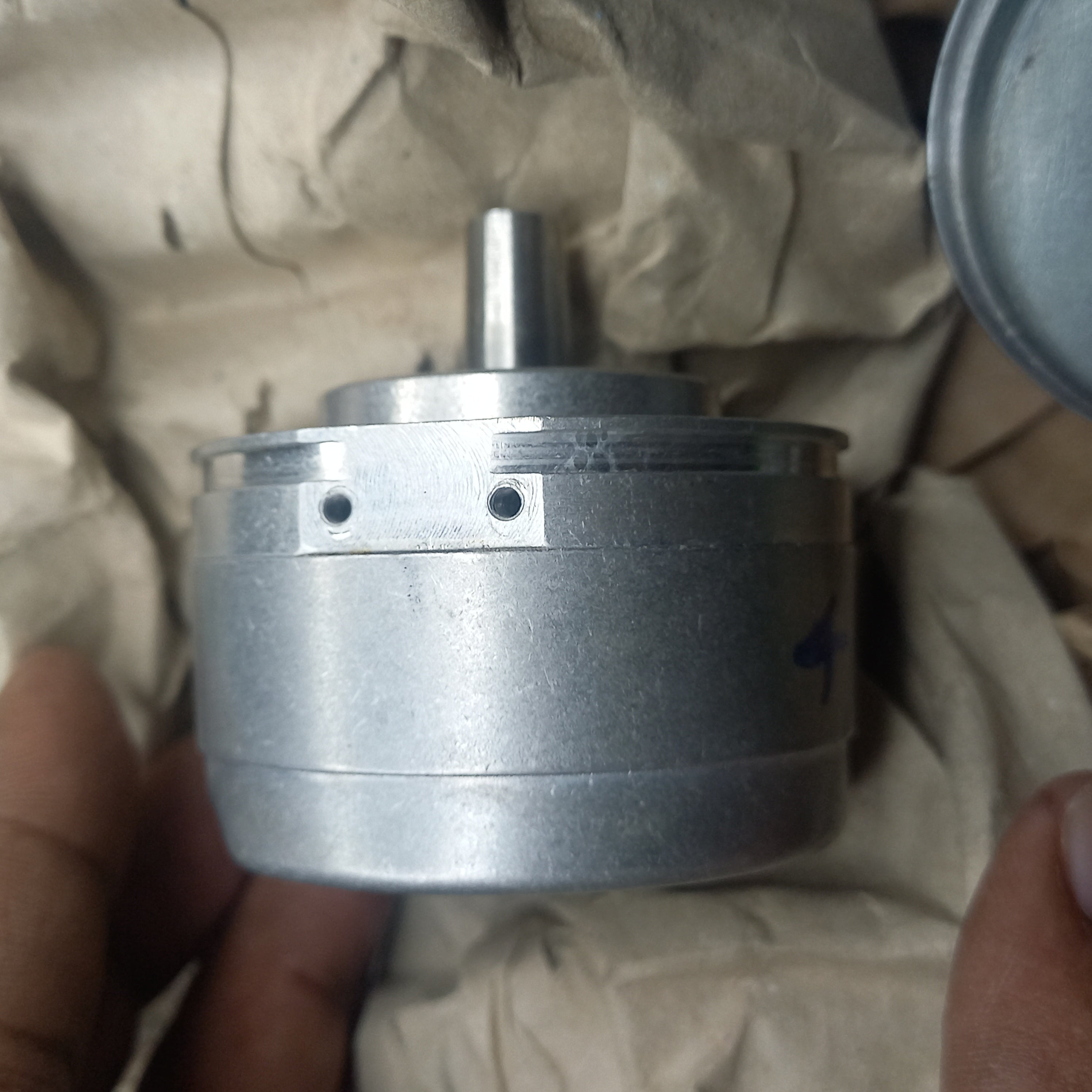

ROD 431-025-1024 HTL id 735 117-02
10v..30v,
this can be used to replace:

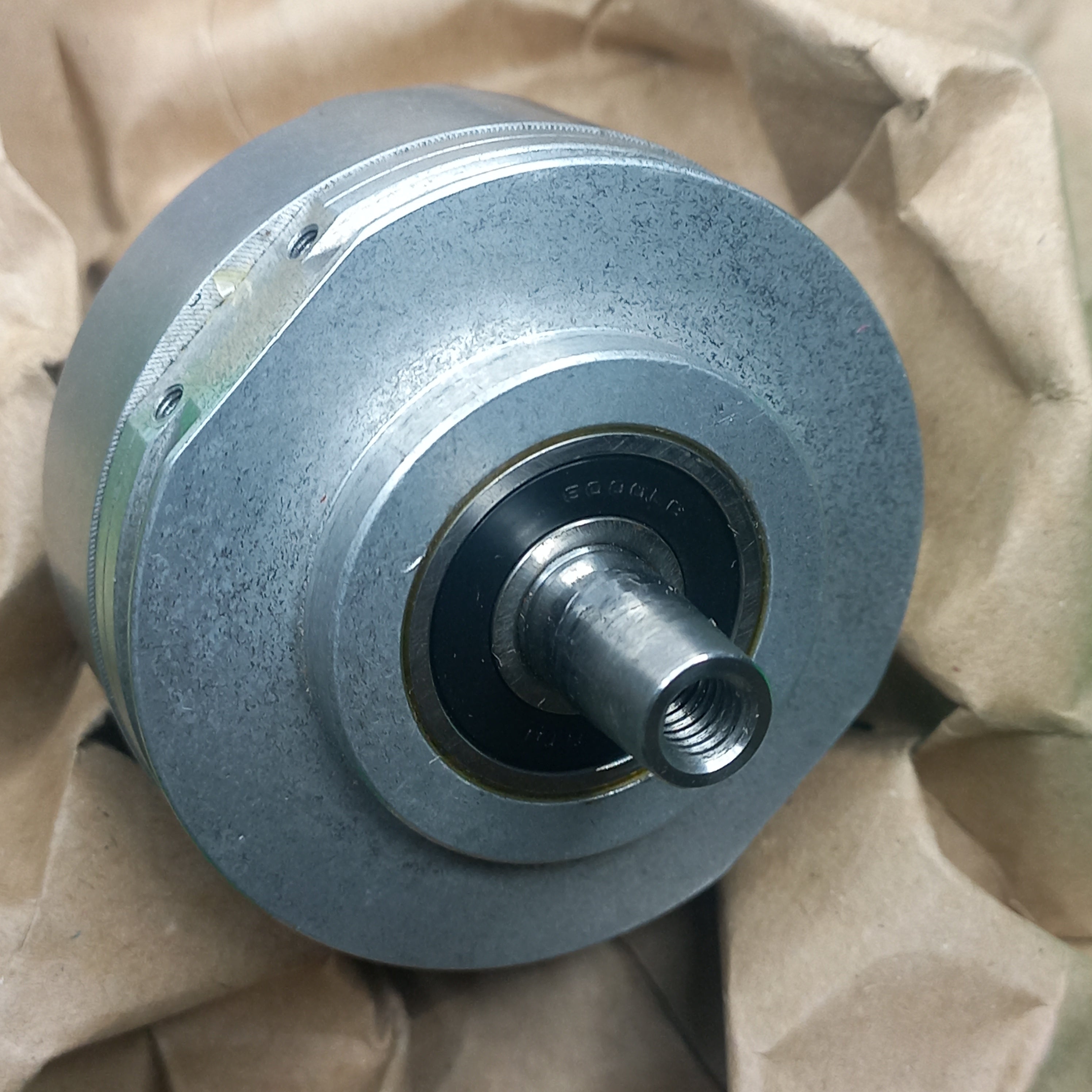

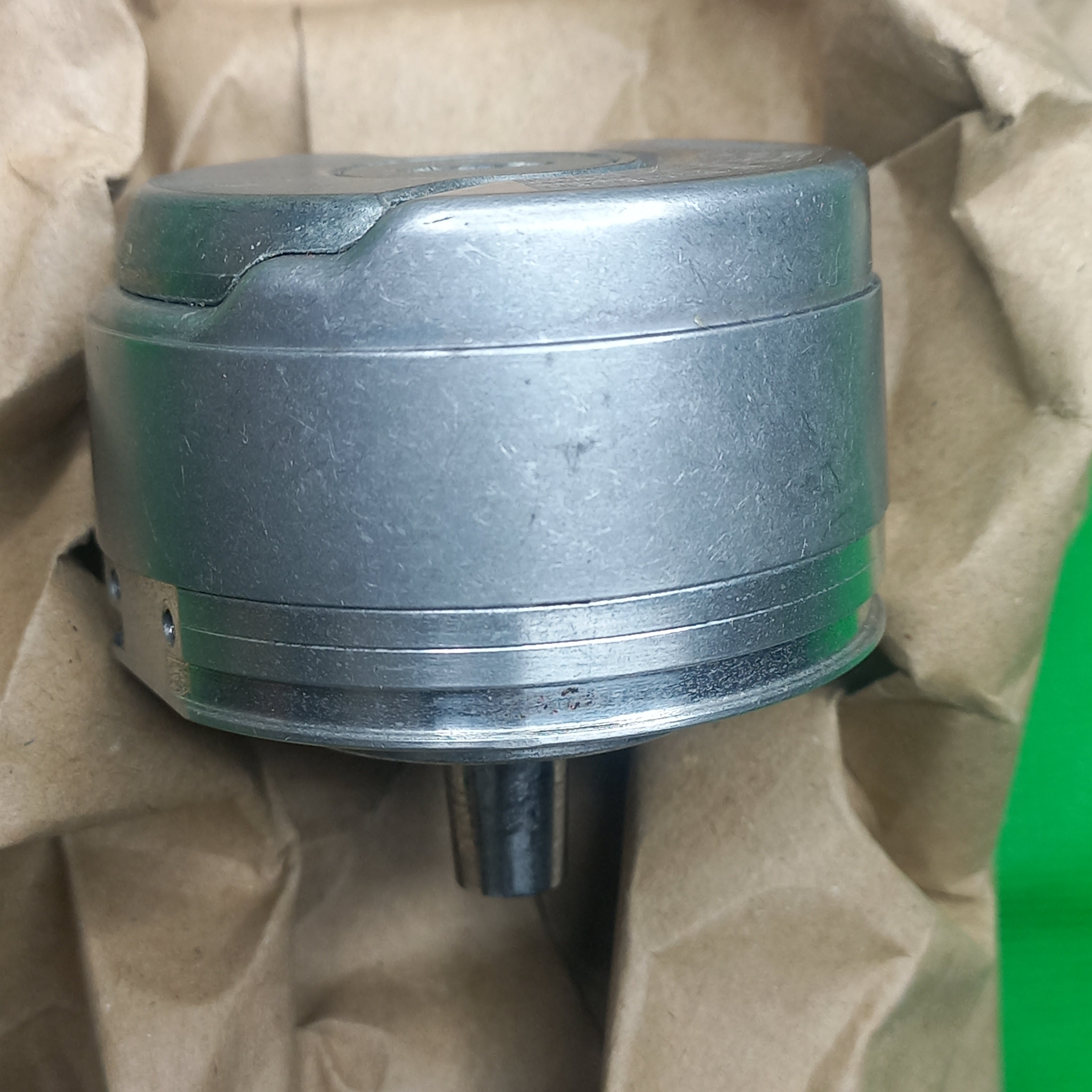

Heidenhain ERN 1331 1024 62S12-30 K 0.00 .. 65B.. 40 09 .. HT RV HTL 20 01 ..

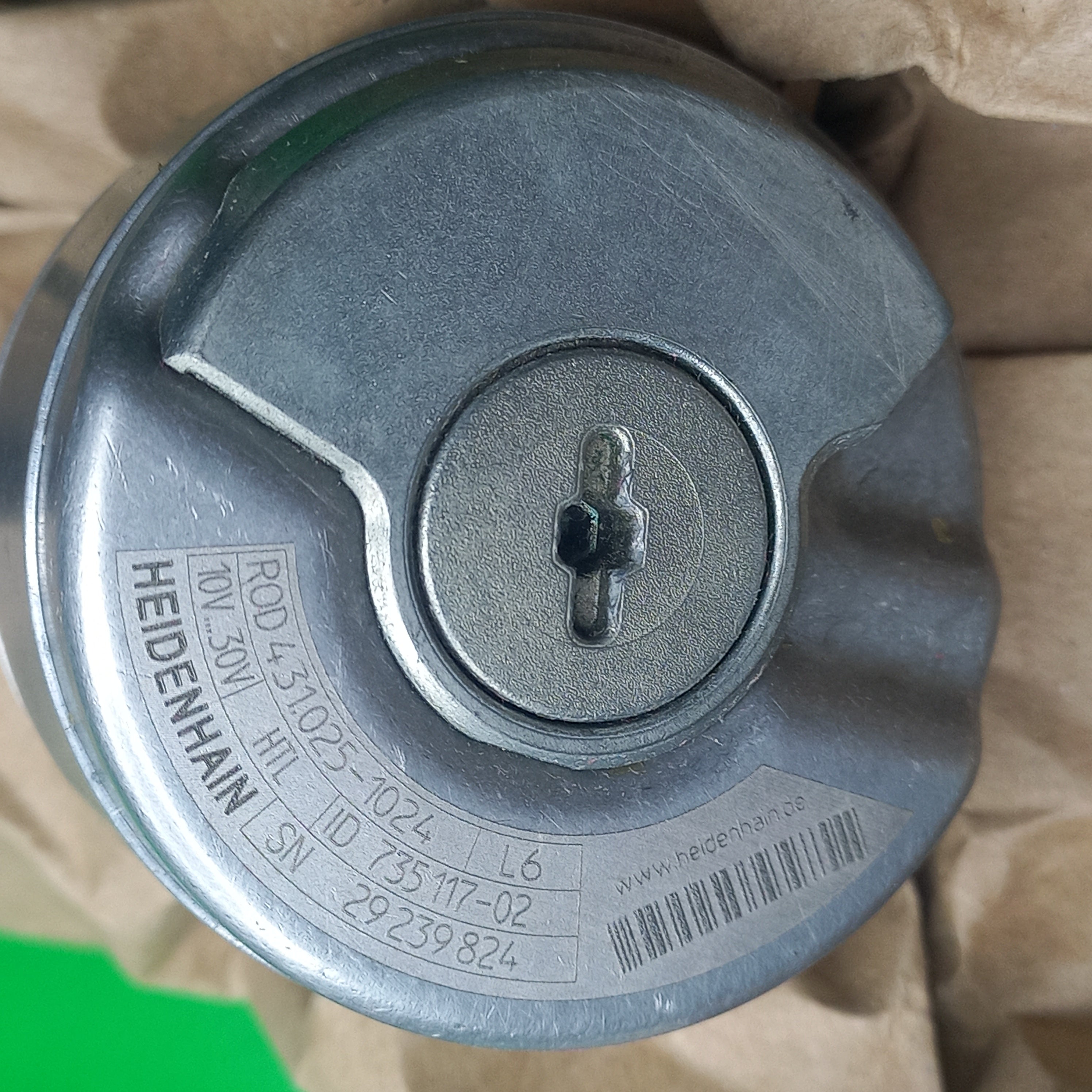

Incremental rotary encoder with self-bearing for mounting via stator coupling.
Number of lines: 1024.
Output signal: HTL
. Max. sampling frequency: 300.00 kHz.
Power supply: 10 V … 30 V.
Coupling type: without coupling.

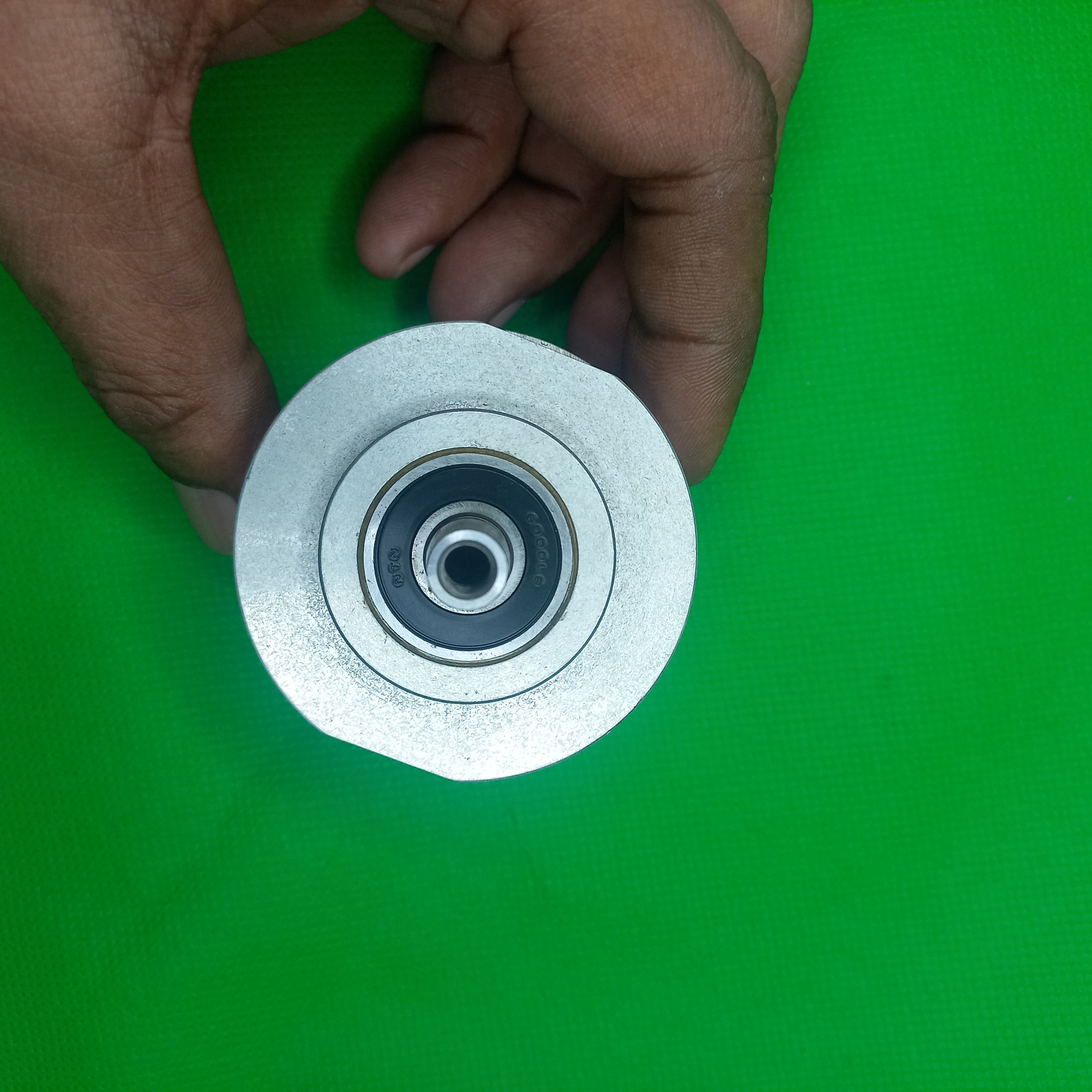

Shaft: 1:10 tapered shaft, functional diameter 9.25 mm, pull-out threads M10 and M6.
Protection class: IP 40 (EN 60529).
Operating temperature: -40/+100 °C.
Electrical connection: 12-pin, straight, 2-row, with locking mechanism and side plates.
Connection assignment: D297243.
Connection direction: Cable exit usable axially and radially.
Included: Mounting kit with intermediate plates and central screw.
Please note: The coupling is not included in the scope of delivery. This is taken from the old rotary encoder.

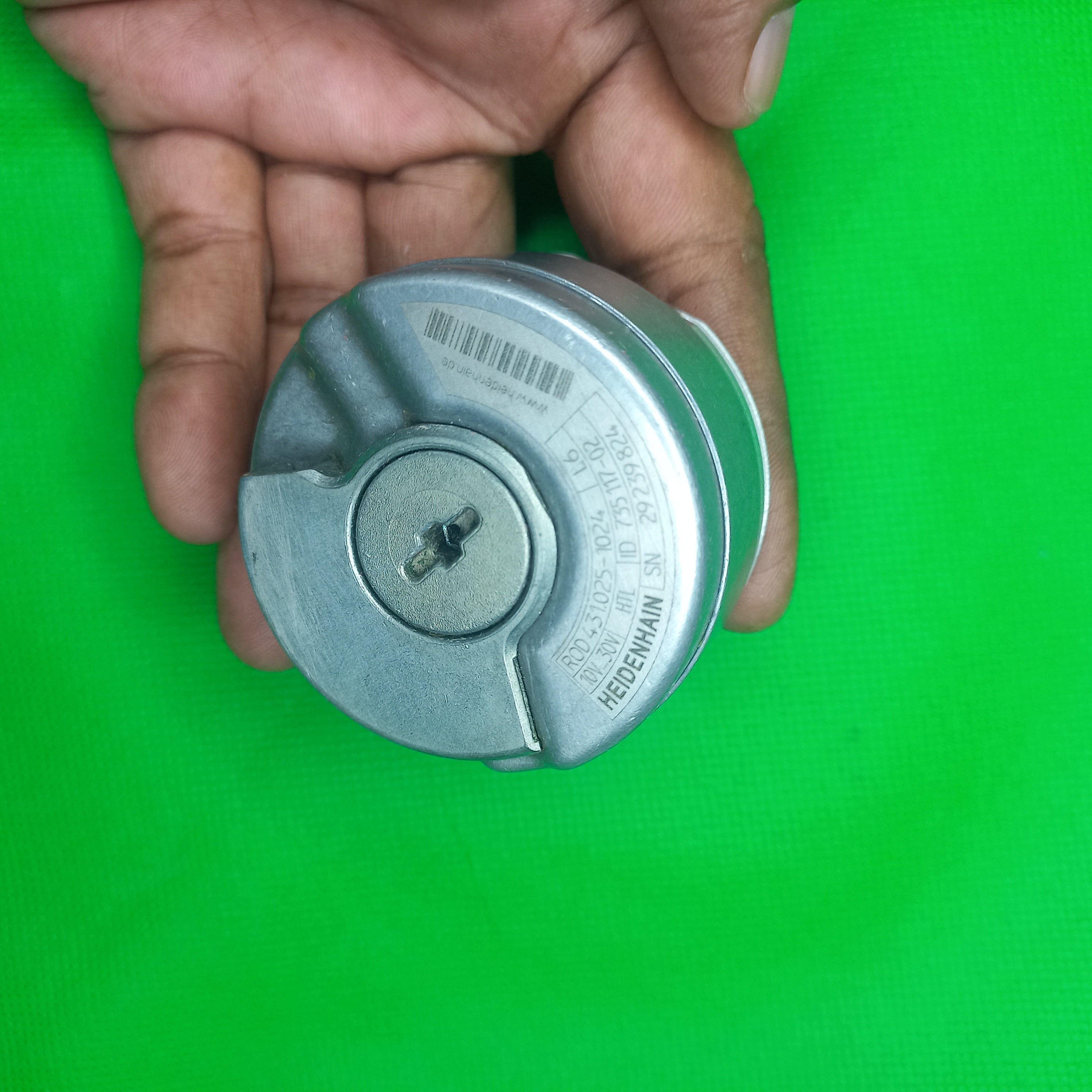

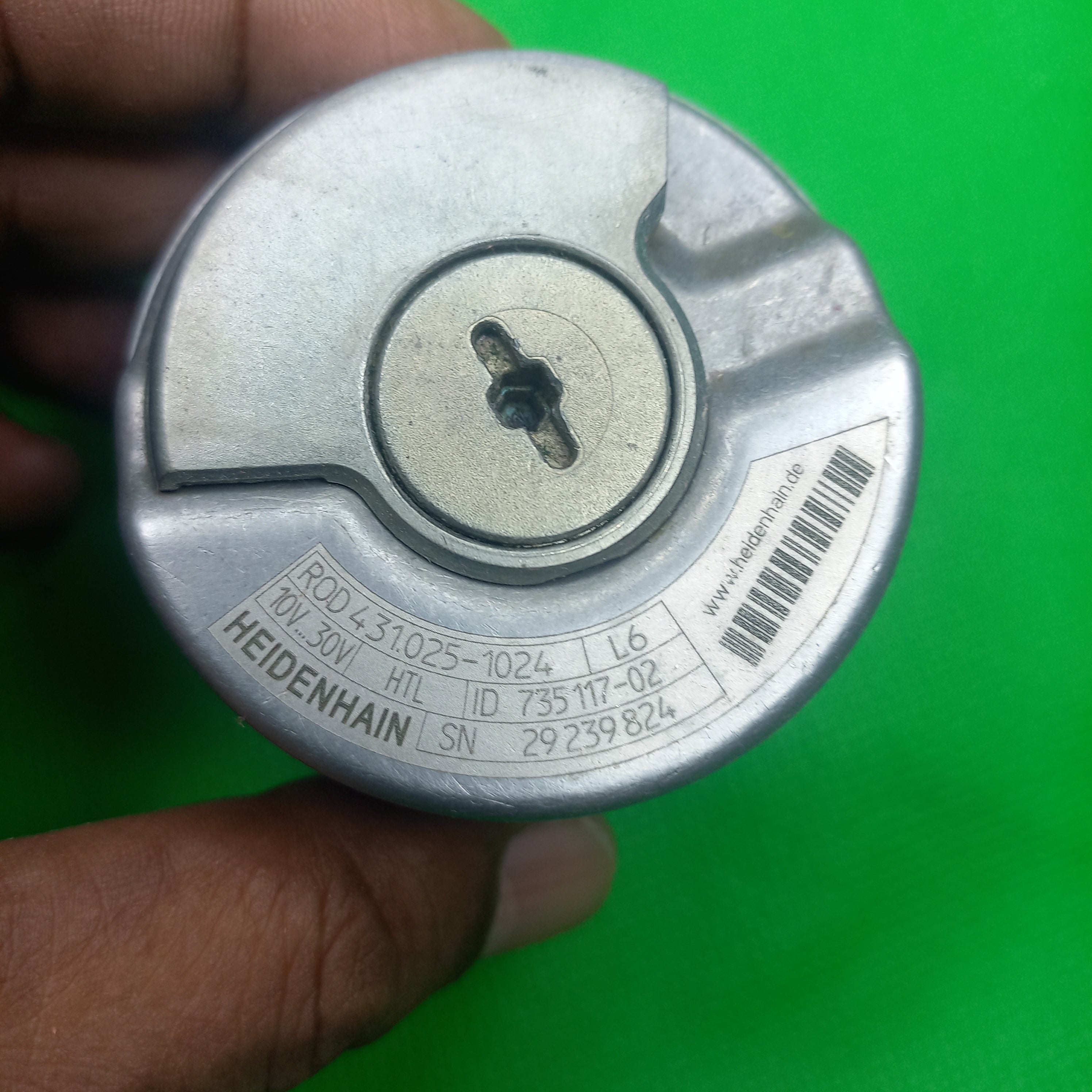

Manufacturer: Heidehain
Manufacturer ID: 735117-02
Alternative Manufacturer ID: 73511752,735117-02

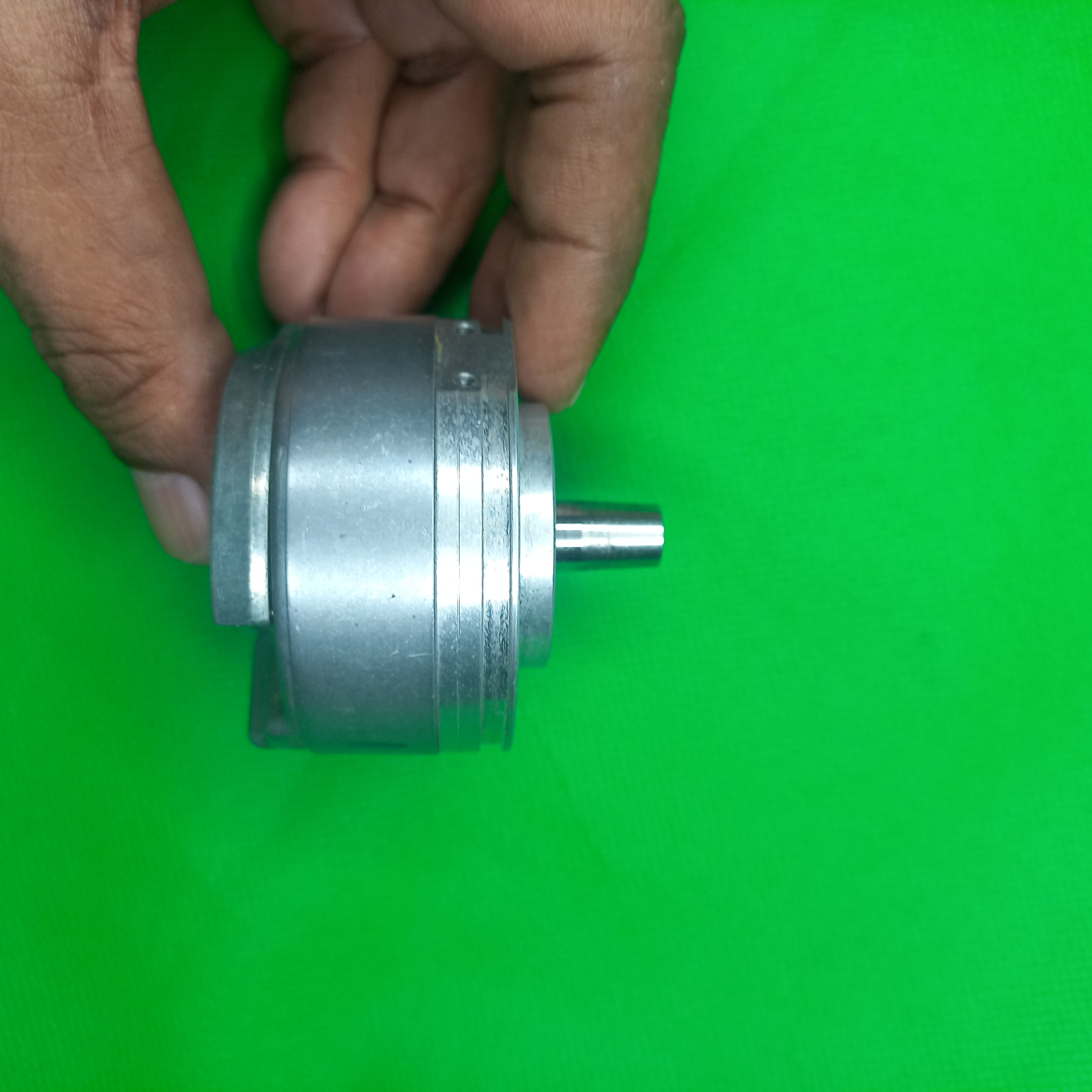

Product name: ERN 1331 1024 62S12-30 K 0.00 .. 65B.. 40 09 .. HT RV HTL 20 01 ..
Product family: ERN 1331
Product family group: Incremental rotary encoders
Product range: Measurement technology
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Taper Shaft Heidenhain
- Incremental Encoder Construction size (flange) Ø 58 mm
- Incremental Encoder Shaft diameter Shaft: 1:10 tapered shaft, functional diameter 9.25 mm, pull-out threads M10 and M6.
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail HTL, inv.
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution1024
- incremental Encoder Range of pulses per revolution1 ... 1024
- Signal Details:
Connection Details of encoder
- Connection type (Detail)PCB Connector 12 PIn
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNROD 431.025-1024
- Manufacturer indent Nr.ROD 1331.025-1024 id 735117-02
- 1 Manufacturer Part Number (MPN) ROD4310251024
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
