Heidenhain ROD 480 2048 03S12-03, ID 376 880-63 5V~1Vss, 10mmShaft, Claming M23
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IdNr. 376-880-63
- Encoder Type: Incremental encoder
- Supply voltage 5VDC
- Encoder ID. NR. IdNr. 376 880-63
- Encoder SIgnal | 2048 | 1 Vpp sin/cos | Ø 58 mm | M23 , 12-pin with Cable
Ready Stock ROD480 2048 03S12-03
IdNr. 376880-63 5V+-10%, ~1Vss, 1Vss, M23 Connector at Cable, 10mm Shaft, Clamping Flange

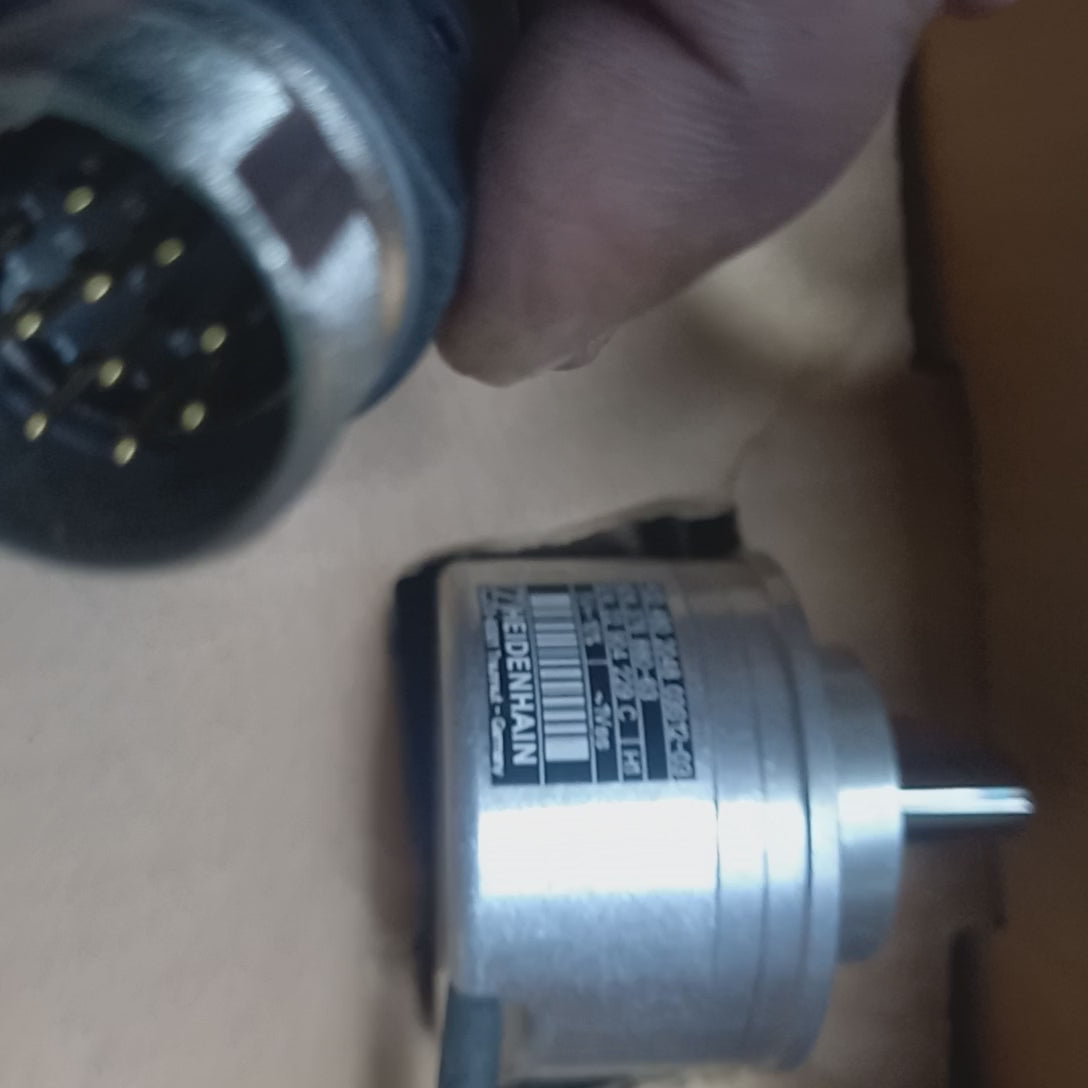

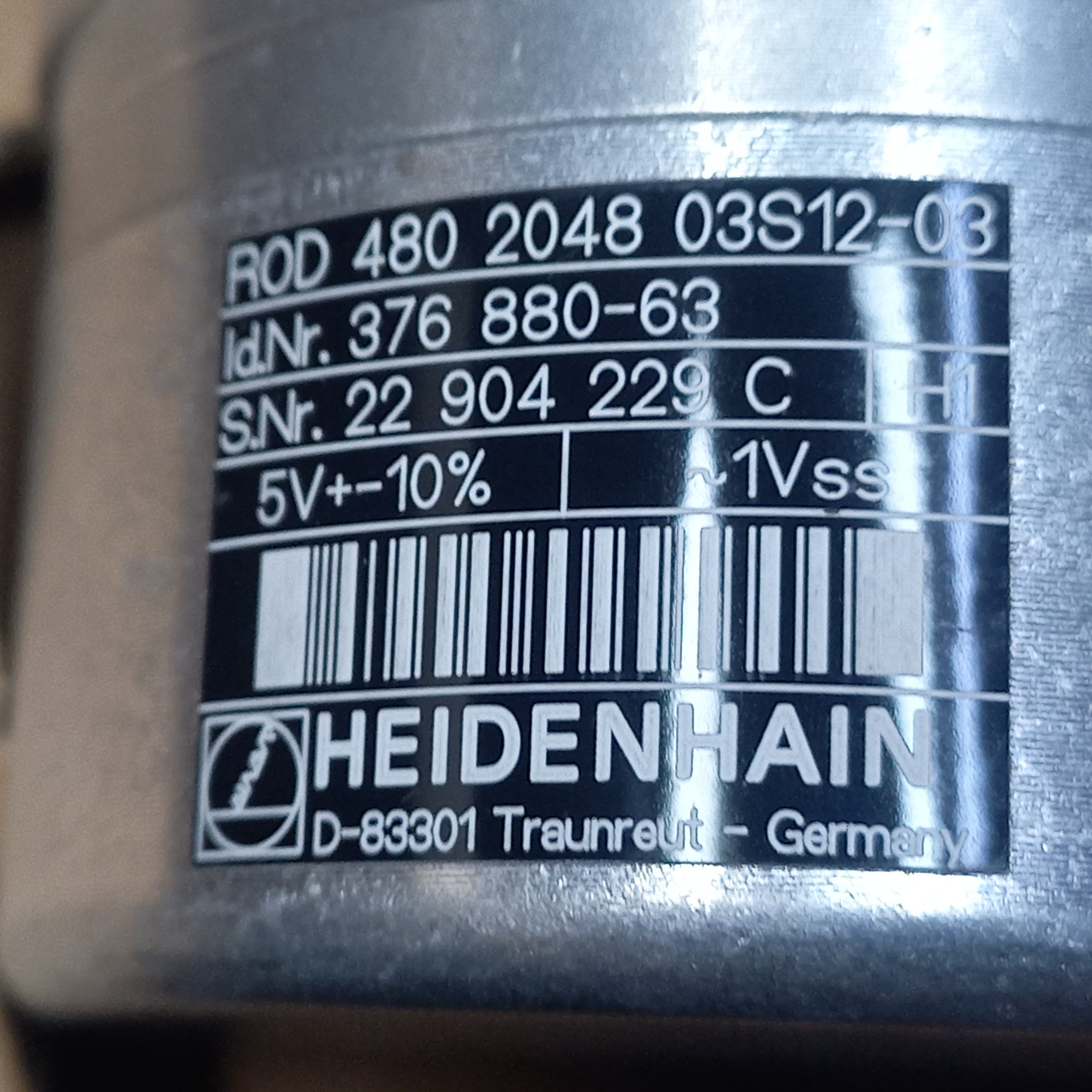

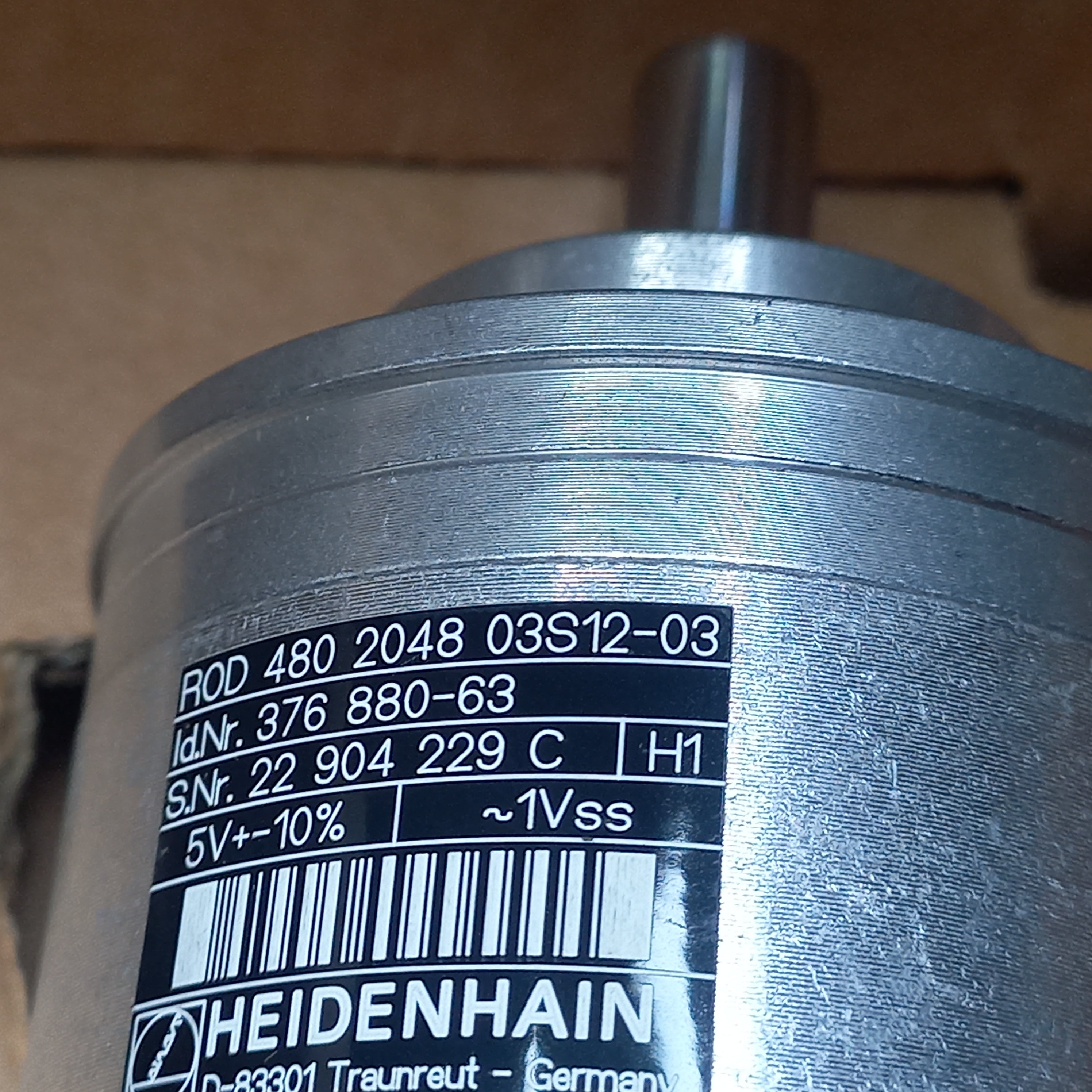

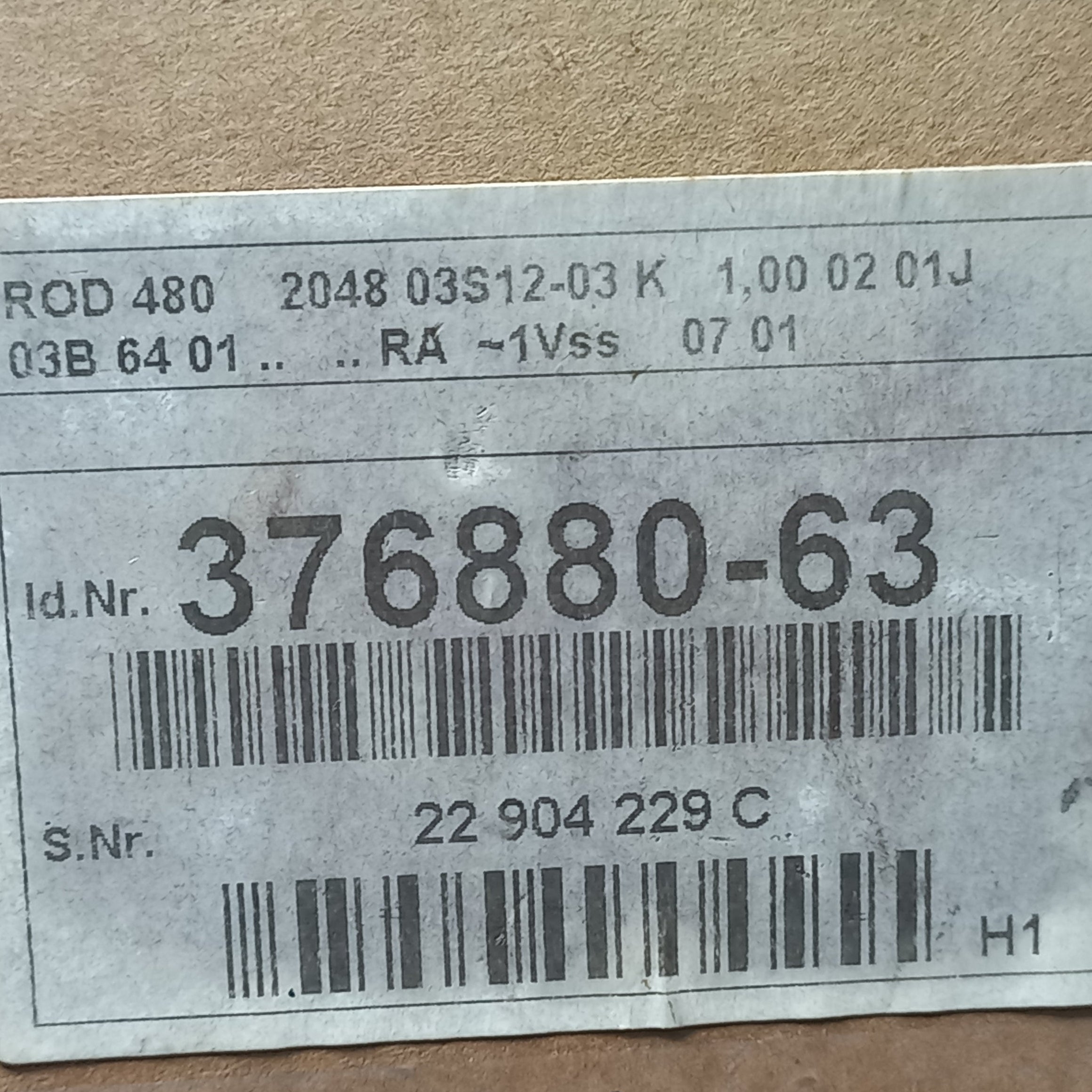

specification Sticker :
ROD 480 2048 03S12-03
IdNr. 376 880-63
S.Nr. xx xxx xxx x
5V+-10%
~1Vss
HEIDENHAIN
0-83301 Traunreut-Germany
Connections & Pin pouts (refer to 1Vss Section below)

Sin Cos REf : A, B, R Signals.
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design

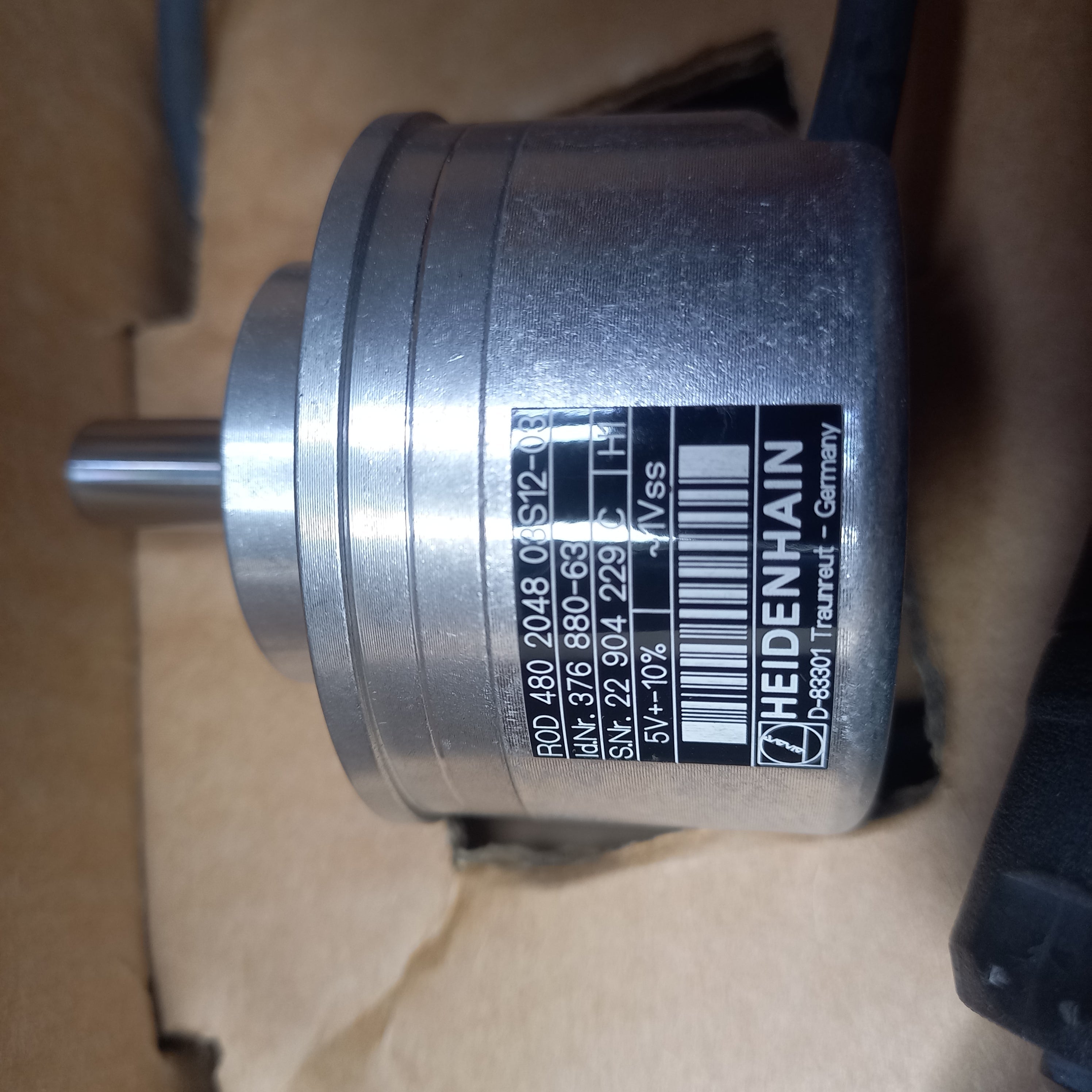

- Increental Encoder Mechanical Design Solid shaft, face mount flange
- Incremental Encoder Construction size (flange) Ø 58 mm

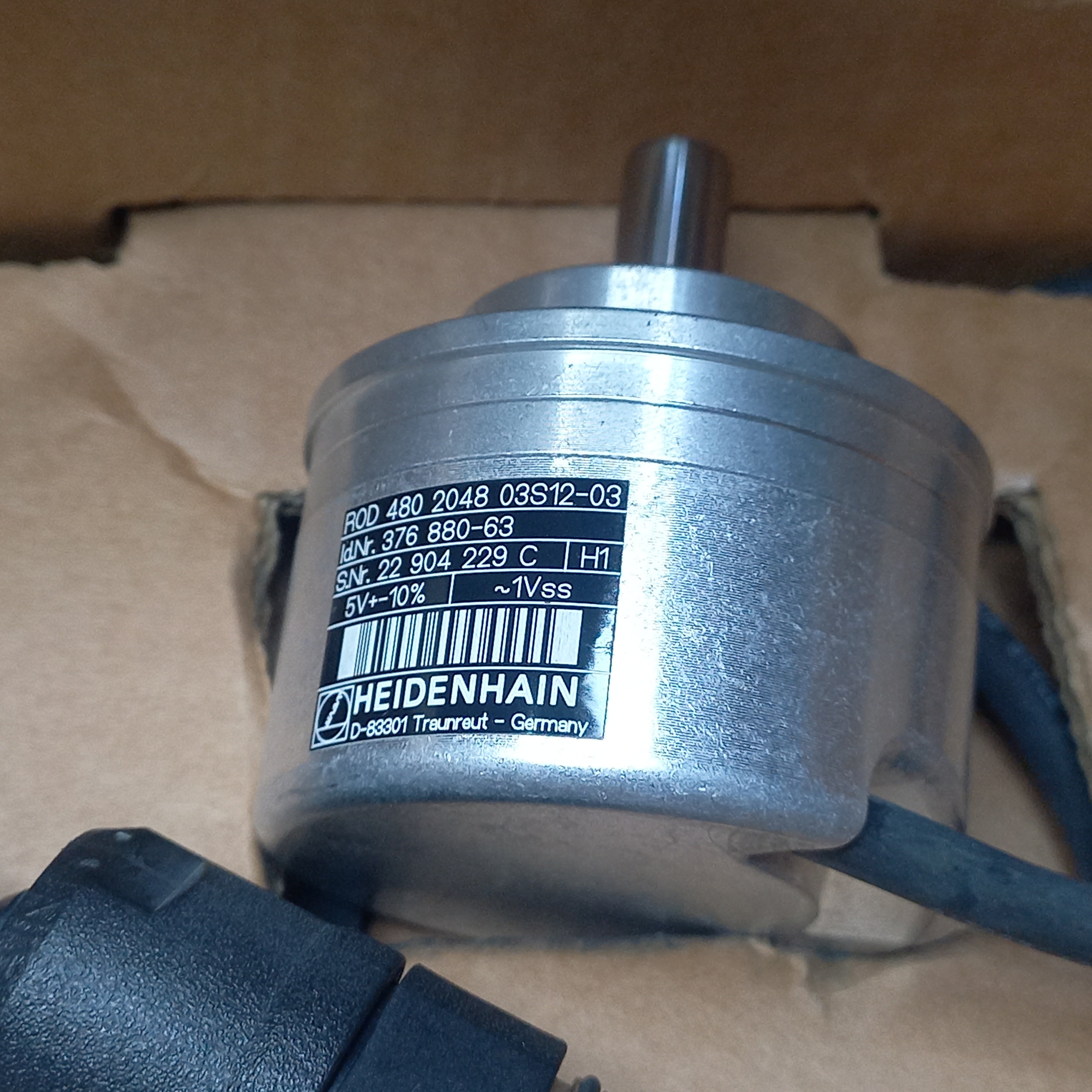

- Incremental Encoder Shaft diameter 10 mm
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail 1 Vpp sin/cos
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution2048
- incremental Encoder Range of pulses per revolution2501 ... 5.000
- Signal Details:
Connection Details of encoder

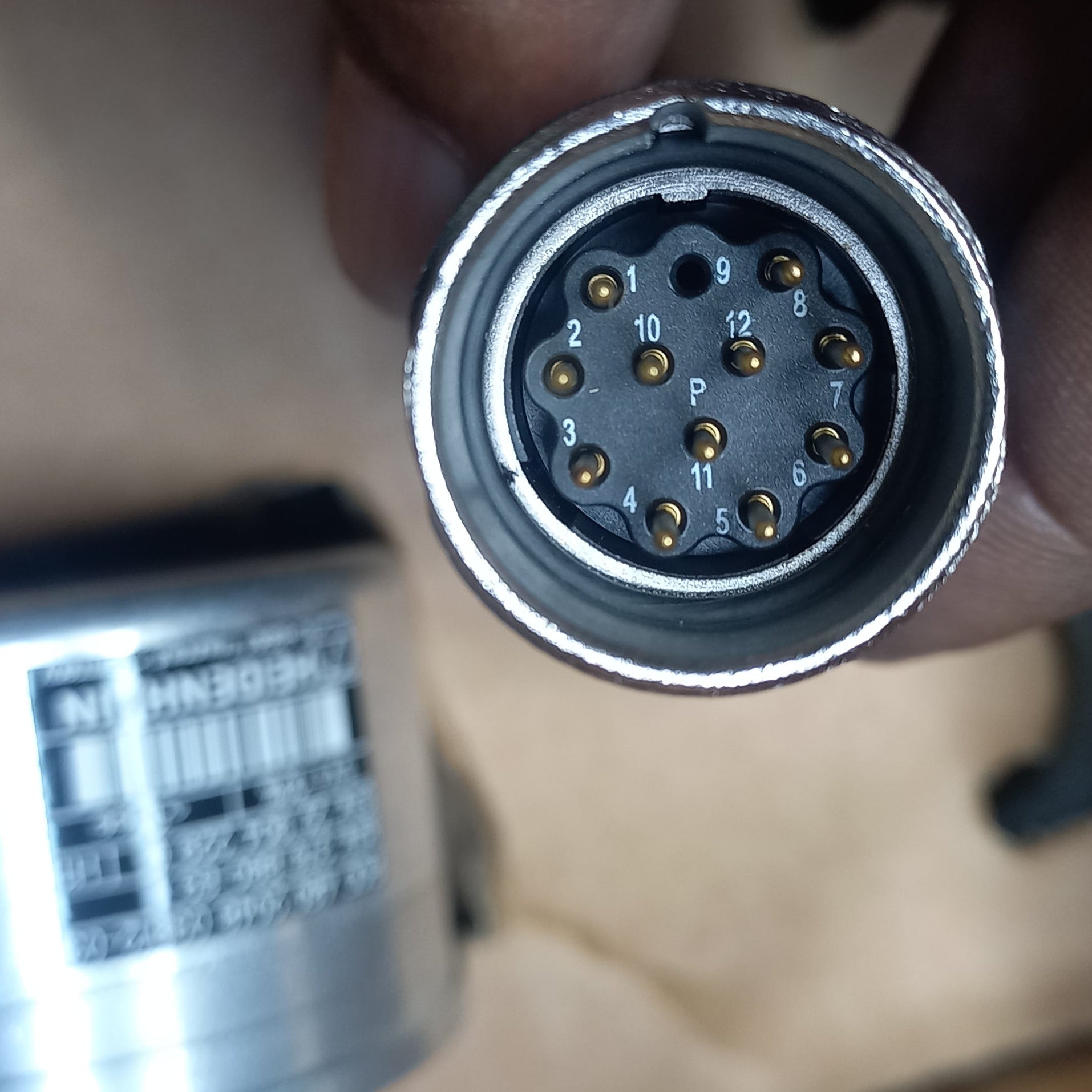

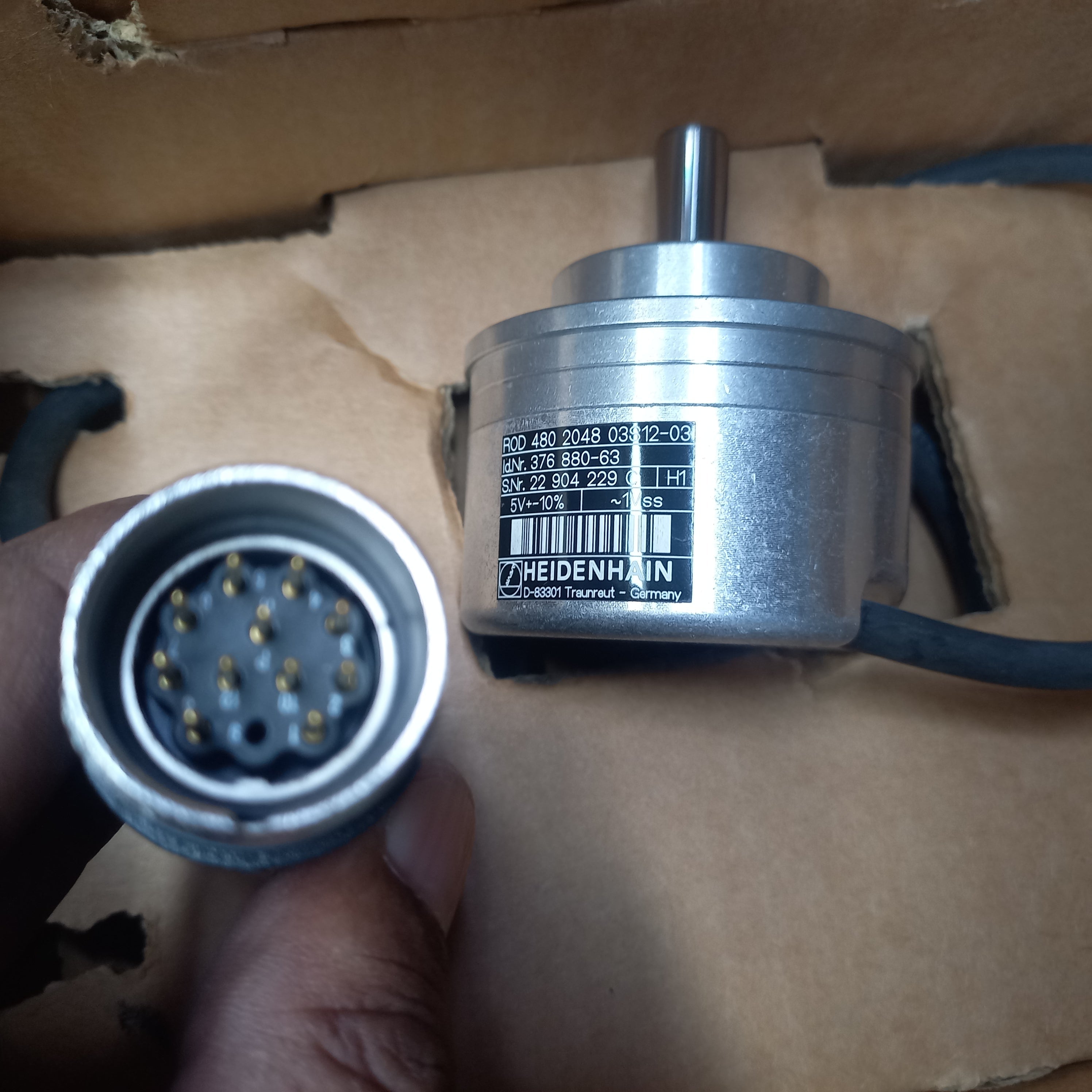

- Connection type (Detail)M23 , 12-pin with Cable
- Direction of connection Radial
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNROD 480 2048 03S12-03
- Manufacturer indent Nr.376880-63
- 1 Manufacturer Part Number (MPN) IdNr. 376-880-63
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
