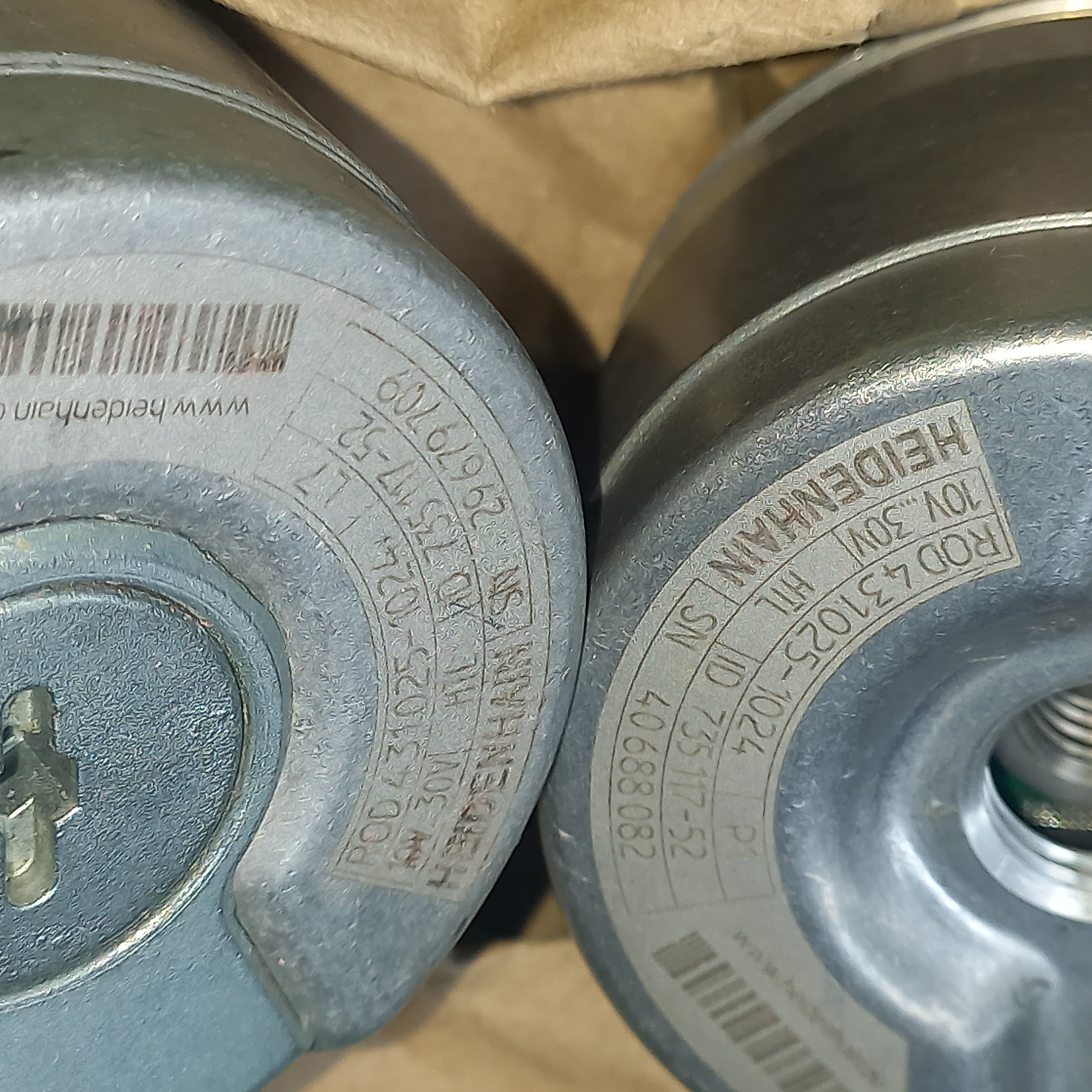

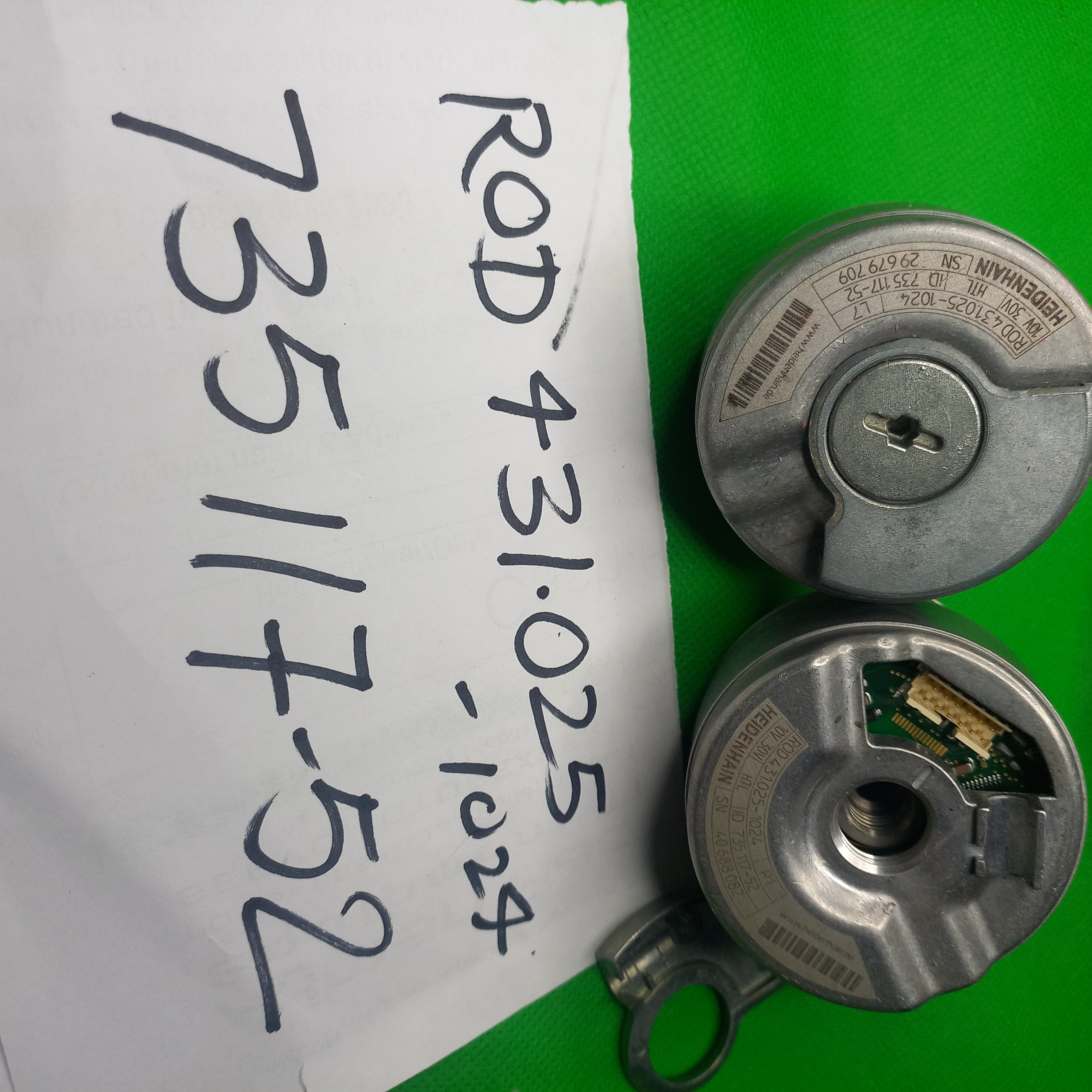

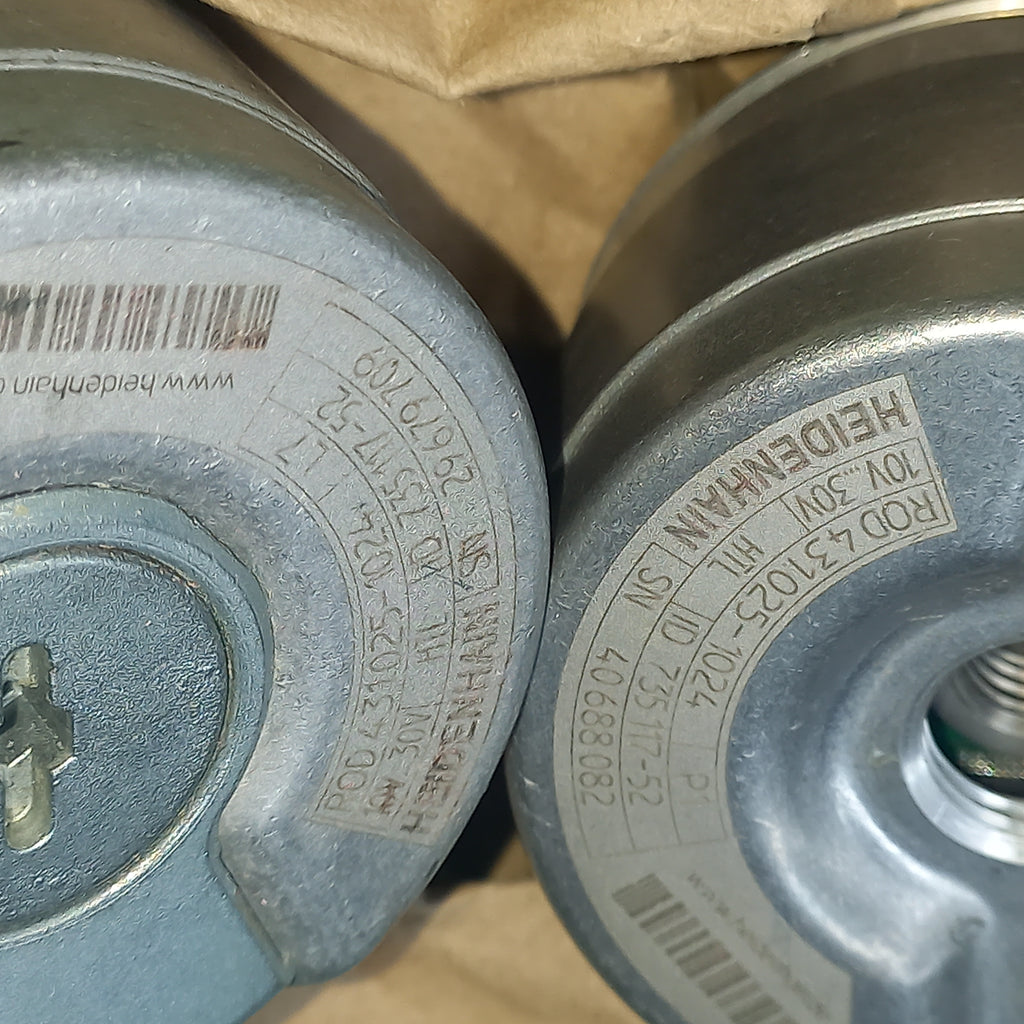

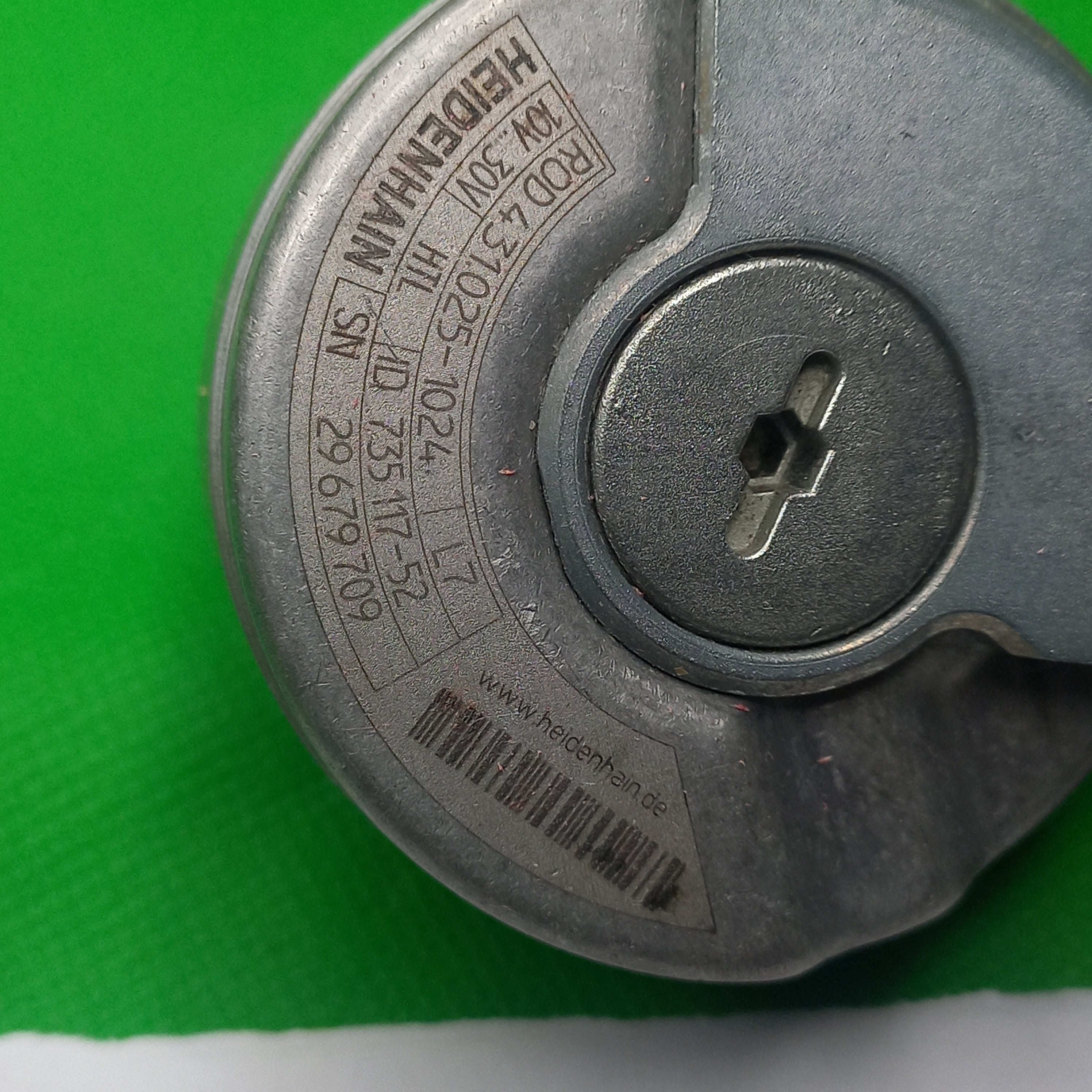

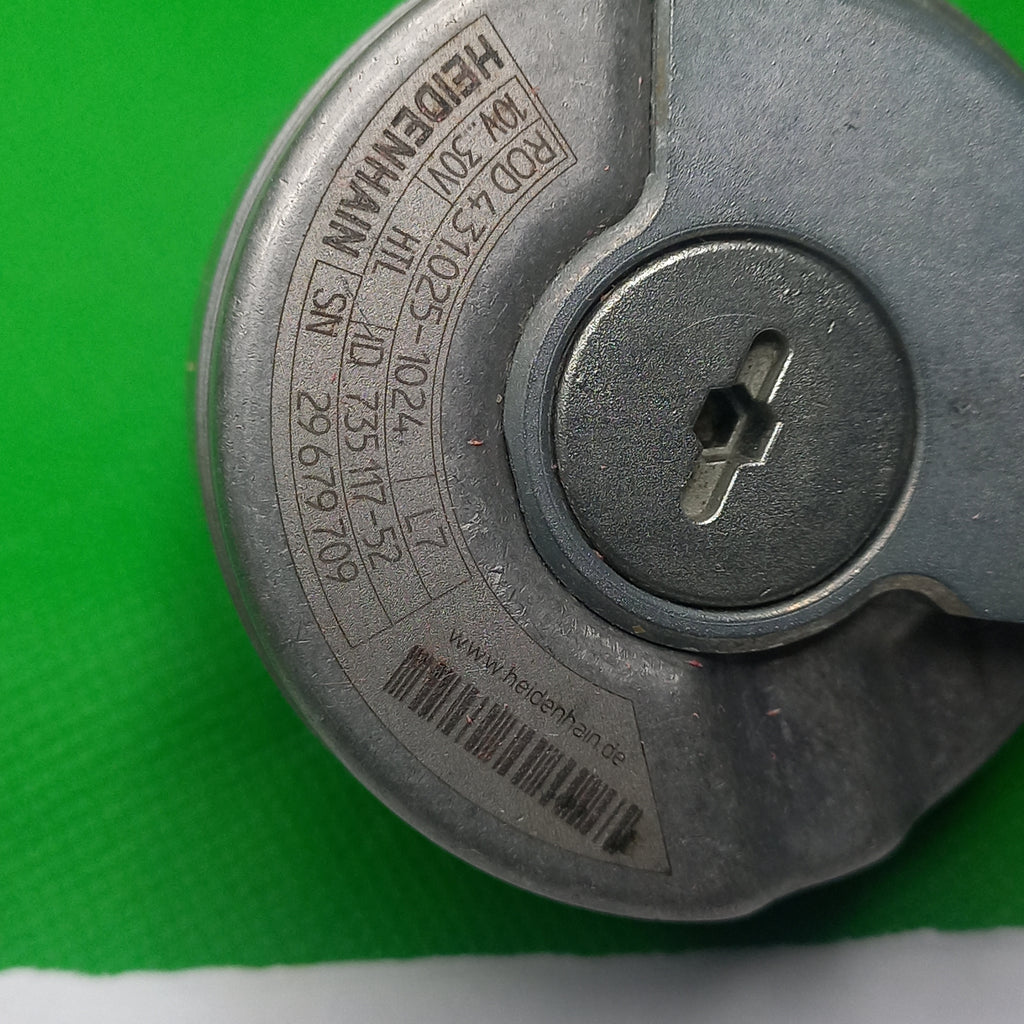

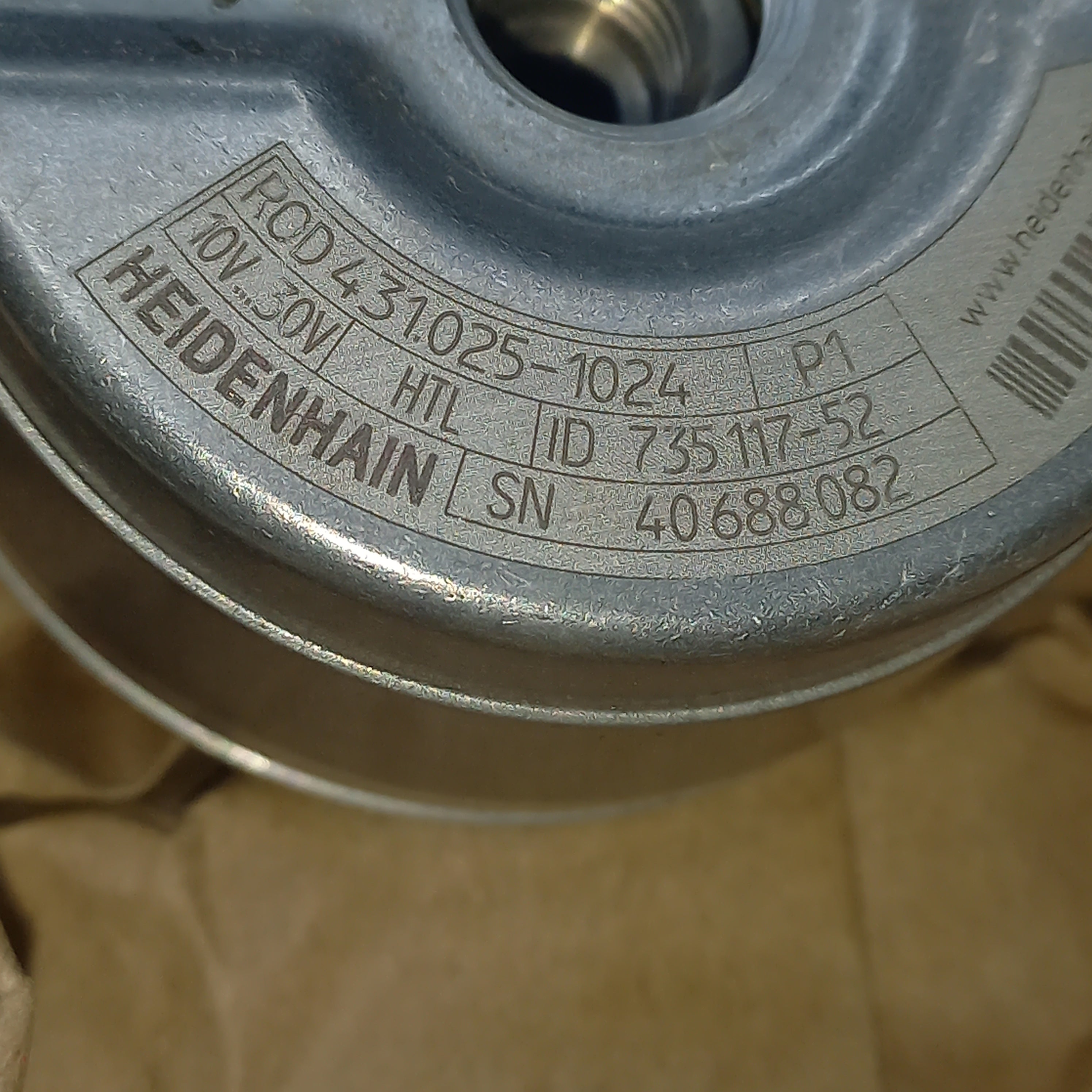

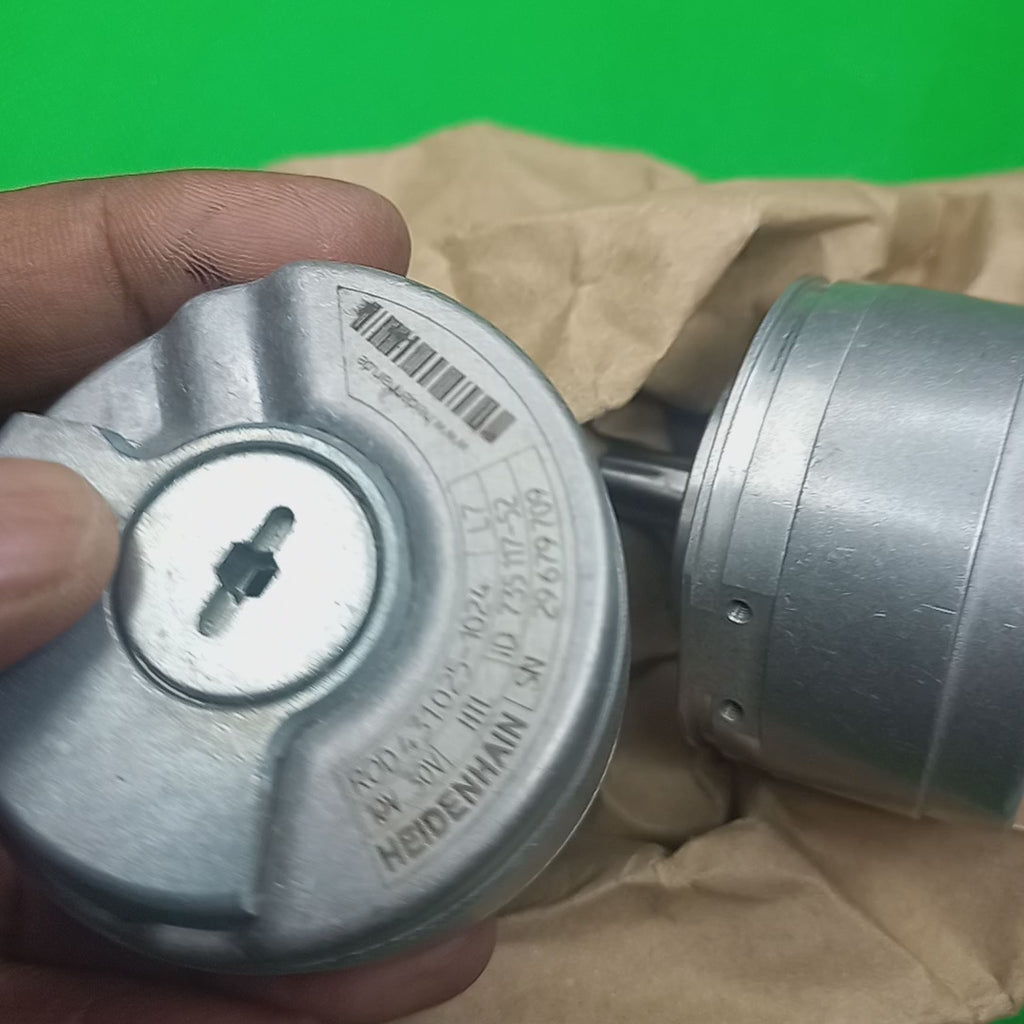

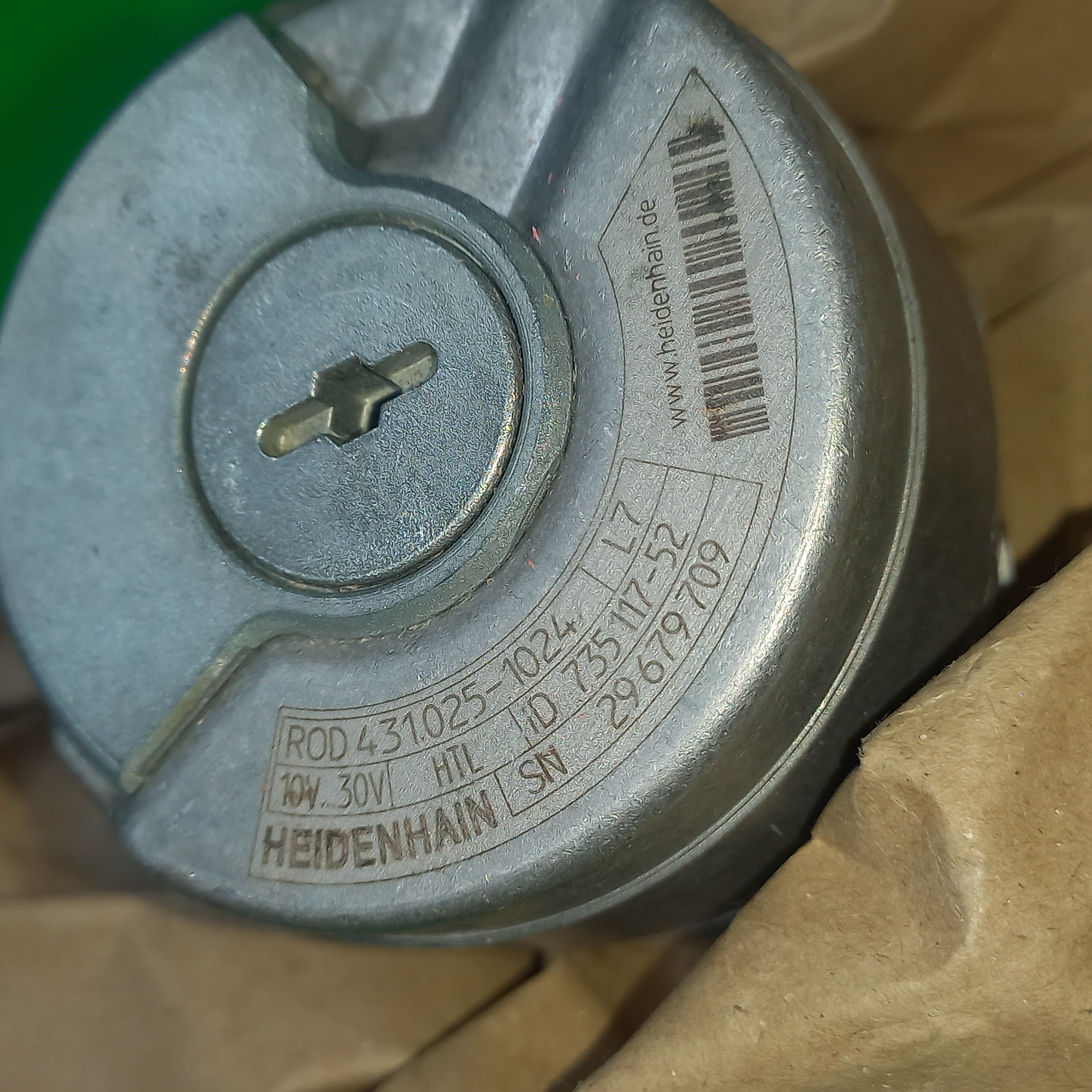

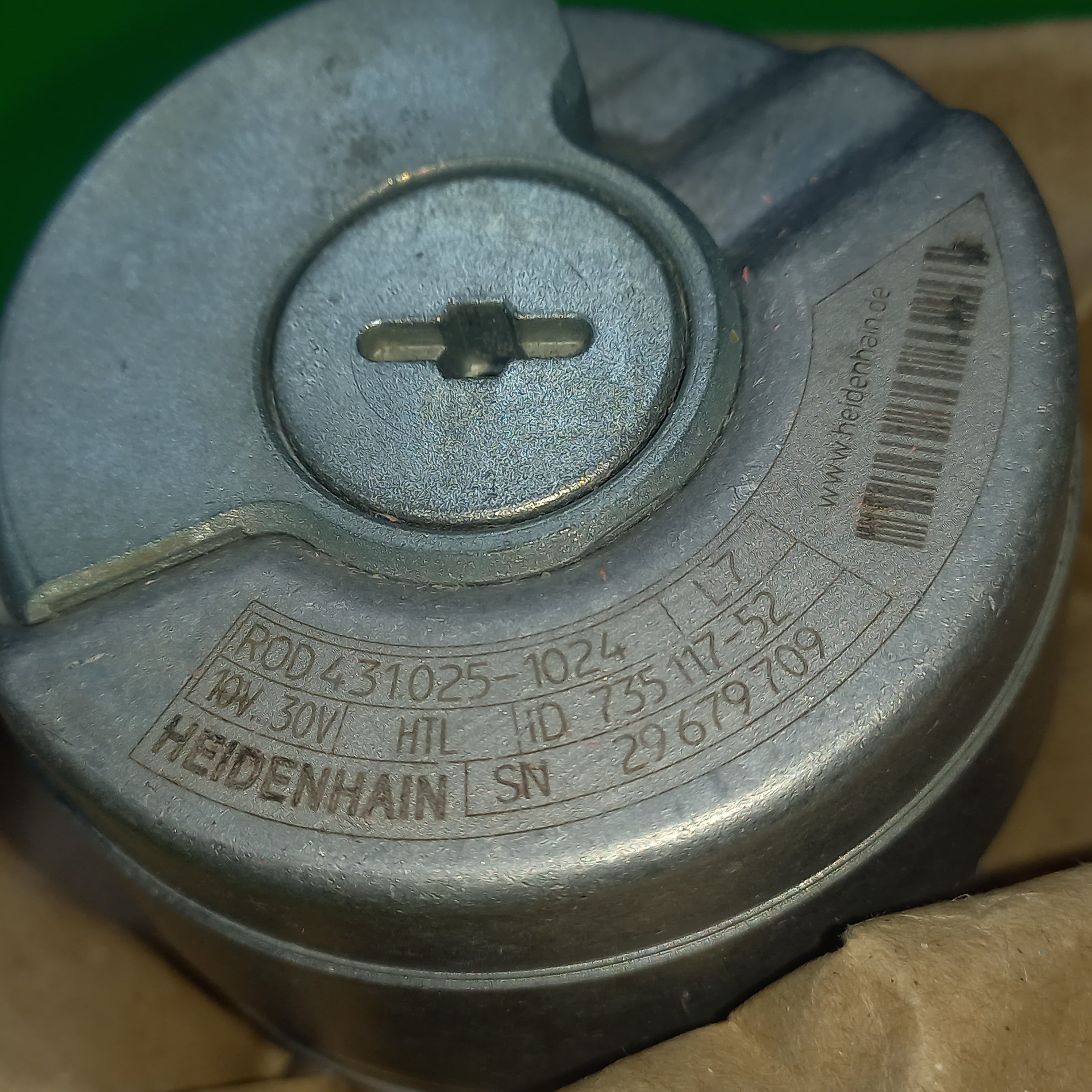

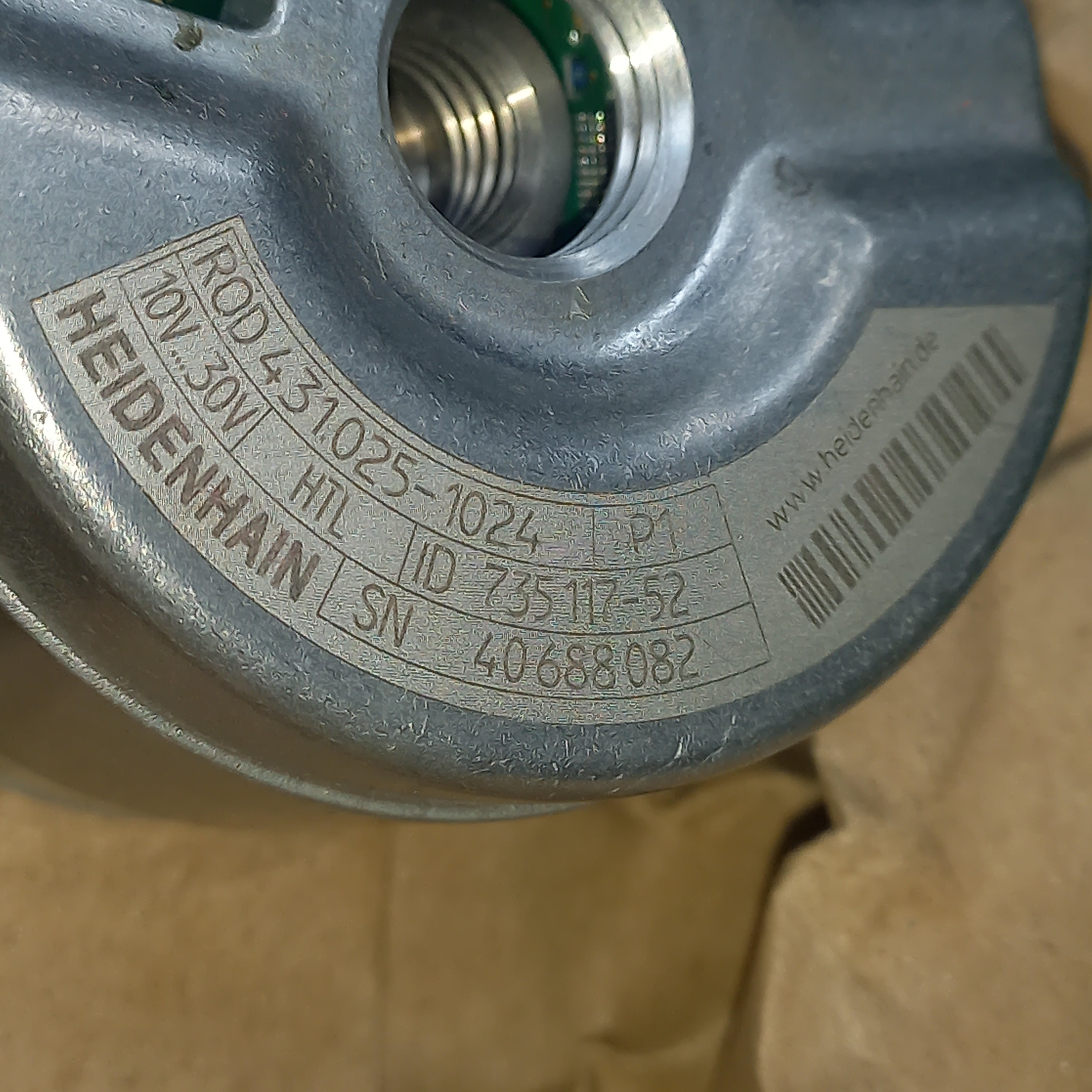

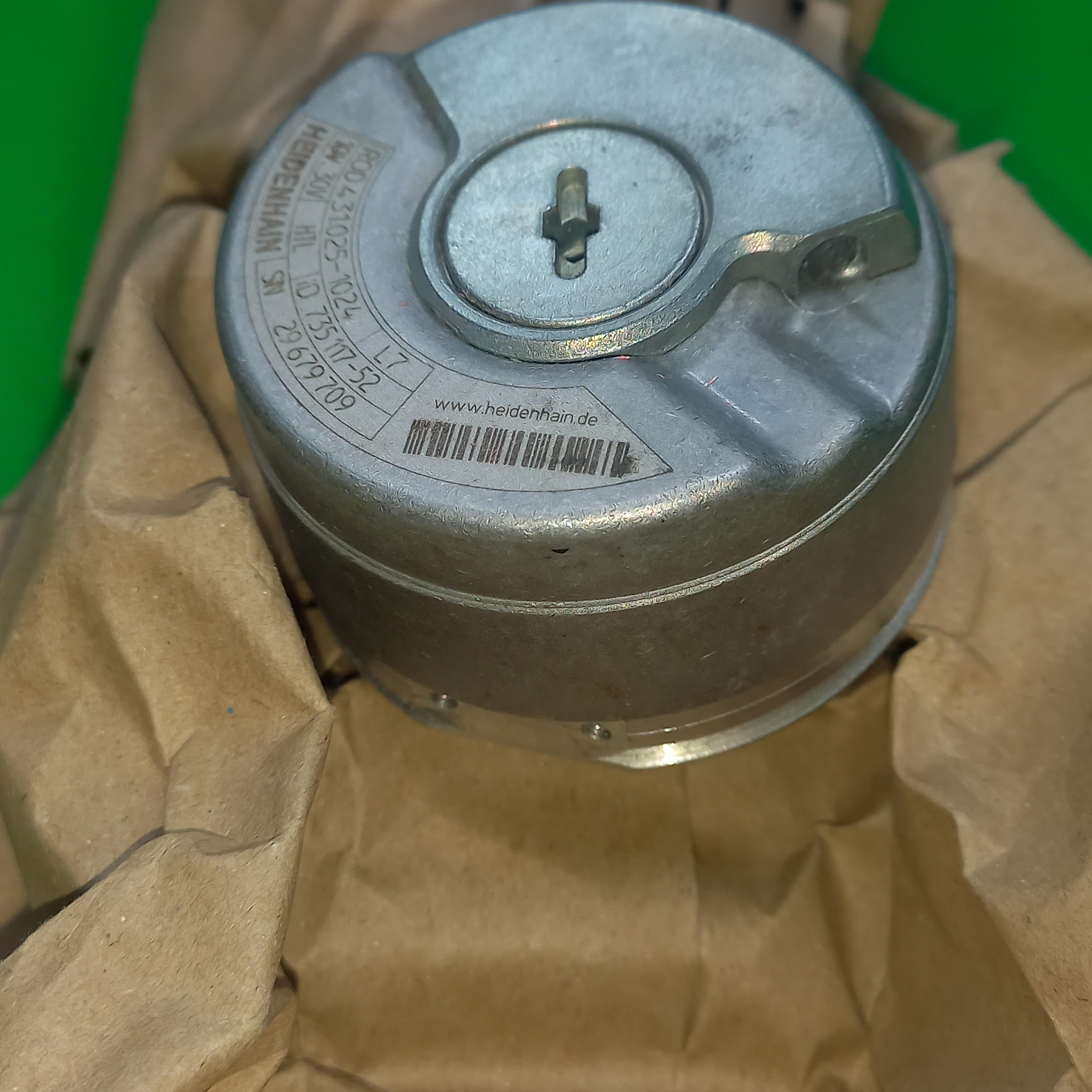

Heidenhain HTL ERN 1331 | ROD 431.025-1024 ID 735117-52 | Taper Shaft | 10v-30VDc|
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: ROD4310251024
- Encoder Type: Incremental encoder
- Supply voltage 10V to 30 V
- Encoder ID. NR.id 735117-52
- Encoder SIgnal | 1024 | HTL, inv. | Ø 58 mm | PCB Connector 12 PIn
Ready Stock | Collect from our Store Today | ROD 431025-1024 HTL id 735 117-52
ROD 431.025-1024 HTL id 735117-52
10v..30v,
this can be used to replace:
Heidenhain ERN 1331 1024 62S12-30 K 0.00 .. 65B.. 40 09 .. HT RV HTL 20 01 ..
Incremental rotary encoder with self-bearing for mounting via stator coupling.
Number of lines: 1024.
Output signal: HTL
. Max. sampling frequency: 300.00 kHz.
Power supply: 10 V … 30 V.
Coupling type: without coupling.

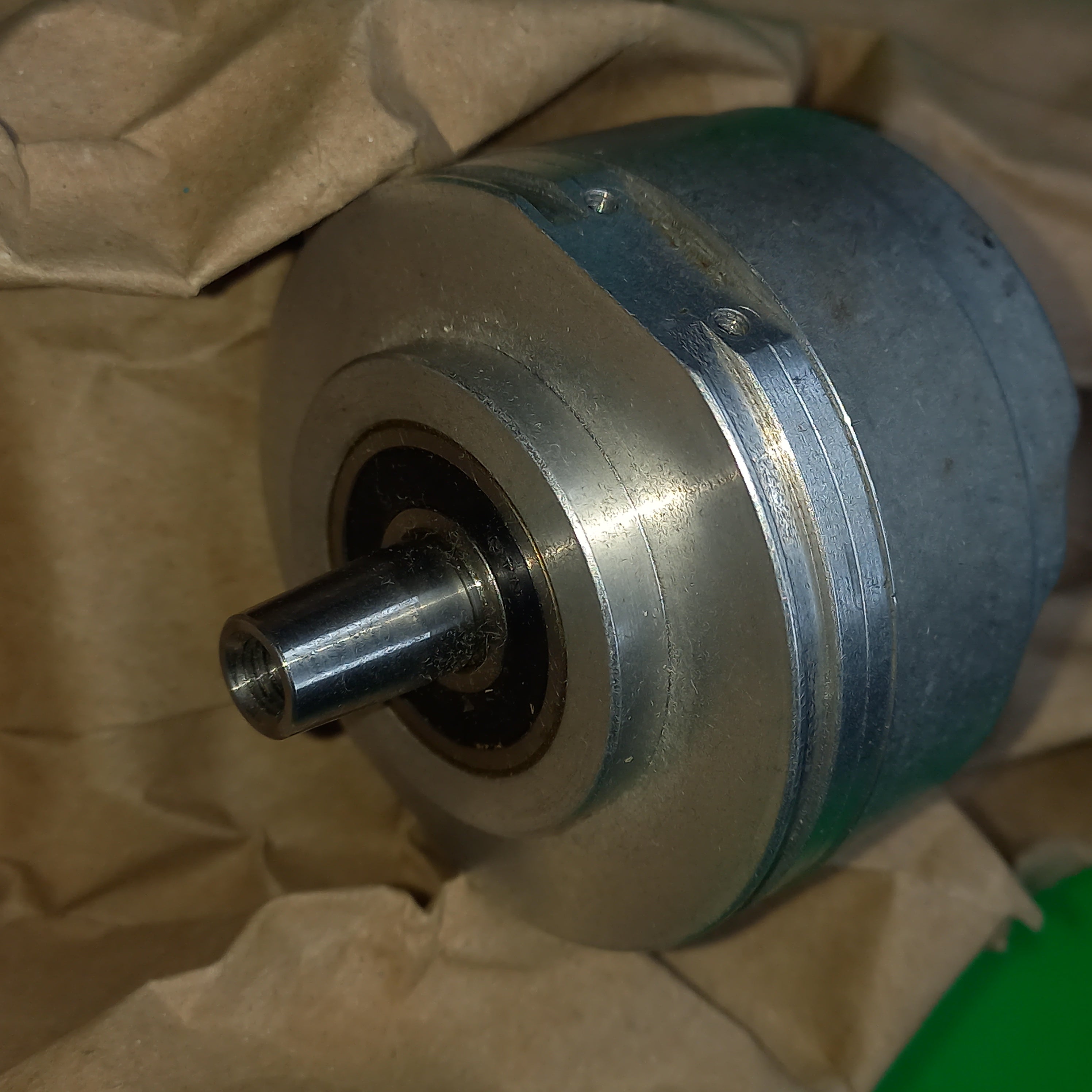

Shaft: 1:10 tapered shaft, functional diameter 9.25 mm, pull-out threads M10 and M6.
Protection class: IP 40 (EN 60529).
Operating temperature: -40/+100 °C.

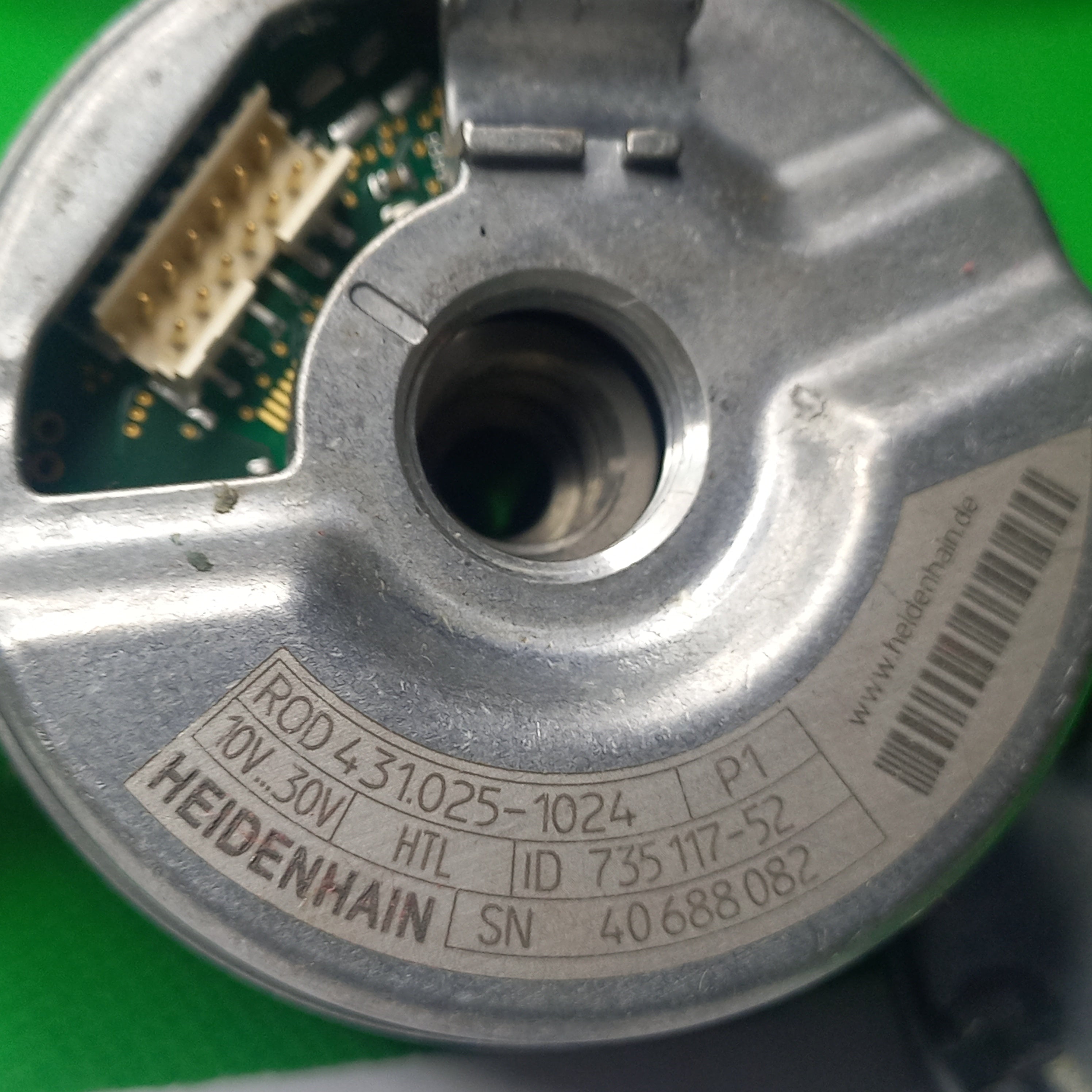

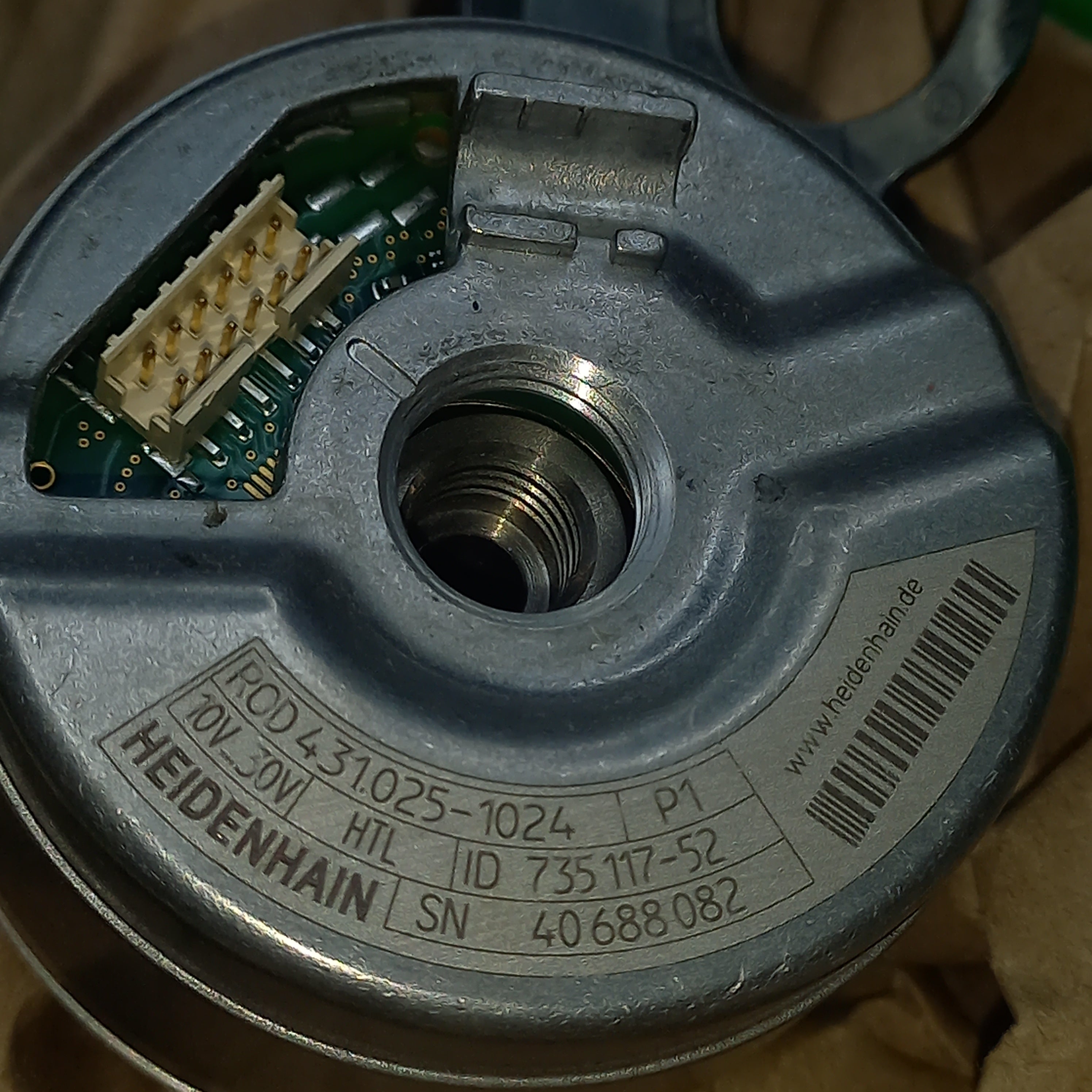

Electrical connection: 12-pin, straight, 2-row, with locking mechanism and side plates.
Connection assignment: D297243.
Connection direction: Cable exit usable axially and radially.

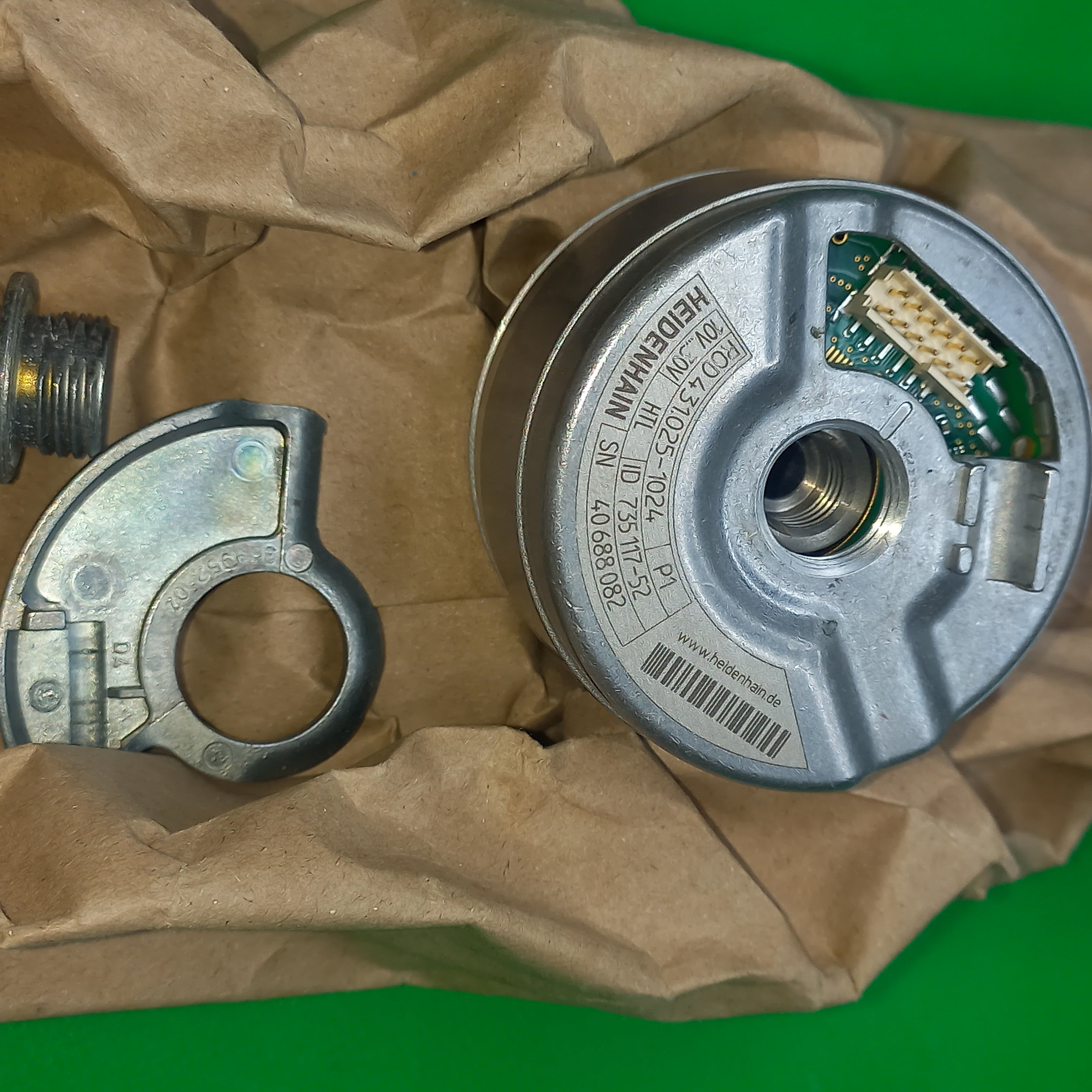

Included: Mounting kit with intermediate plates and central screw.
Please note: The coupling is not included in the scope of delivery. This is taken from the old rotary encoder.
| Manufacturer: | Heidehain |
| Manufacturer ID: | 735117-52 |
| Alternative Manufacturer ID: | 73511752,735117-52 |
| Product name: | ERN 1331 1024 62S12-30 K 0.00 .. 65B.. 40 09 .. HT RV HTL 20 01 .. |
| Product family: | ERN 1331 |
| Product family group: | Incremental rotary encoders |
| Product range: | Measurement technology |
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Taper Shaft Heidenhain
- Incremental Encoder Construction size (flange) Ø 58 mm
- Incremental Encoder Shaft diameter Shaft: 1:10 tapered shaft, functional diameter 9.25 mm, pull-out threads M10 and M6.
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail HTL, inv.
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution1024
- incremental Encoder Range of pulses per revolution1 ... 1024
- Signal Details:
Connection Details of encoder
- Connection type (Detail)PCB Connector 12 PIn
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNROD 431.025-1024
- Manufacturer indent Nr.ROD 1331.025-1024 id 735117-52
- 1 Manufacturer Part Number (MPN) ROD4310251024
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
