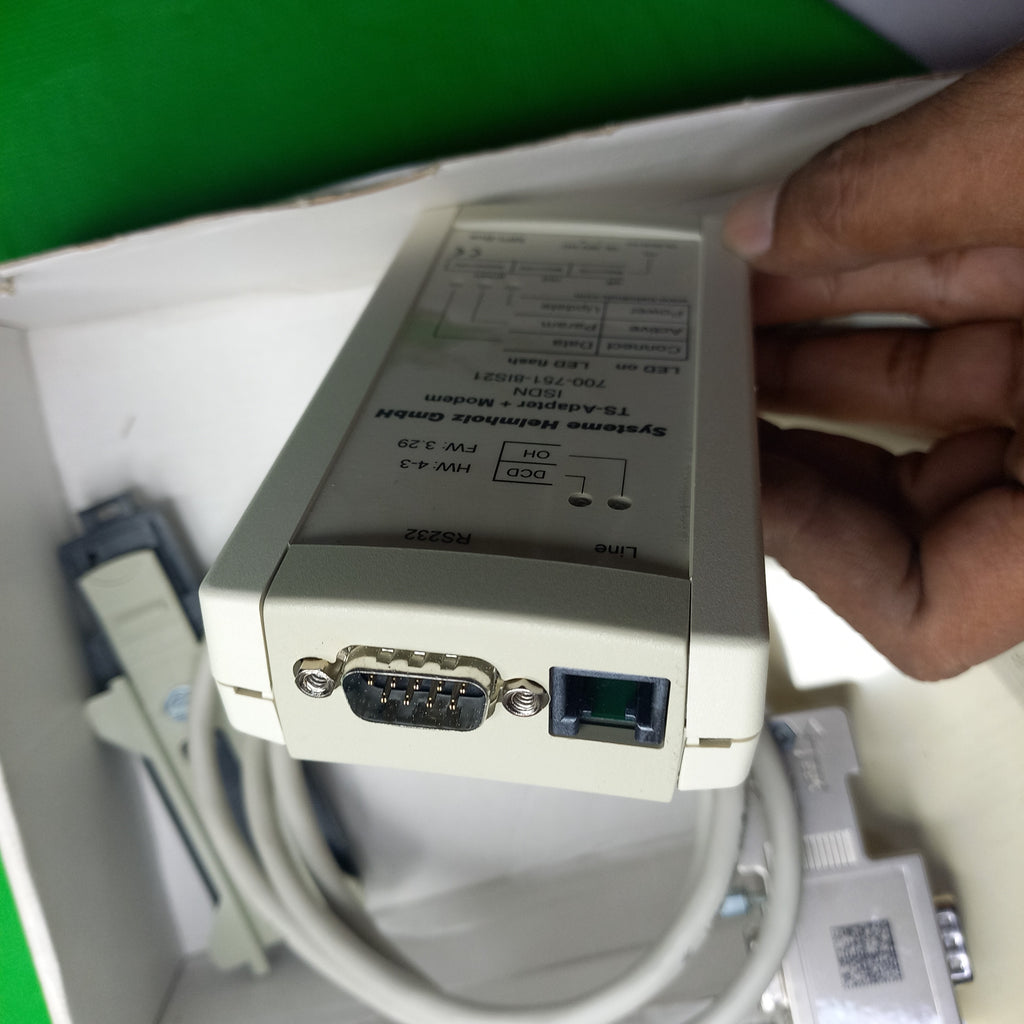

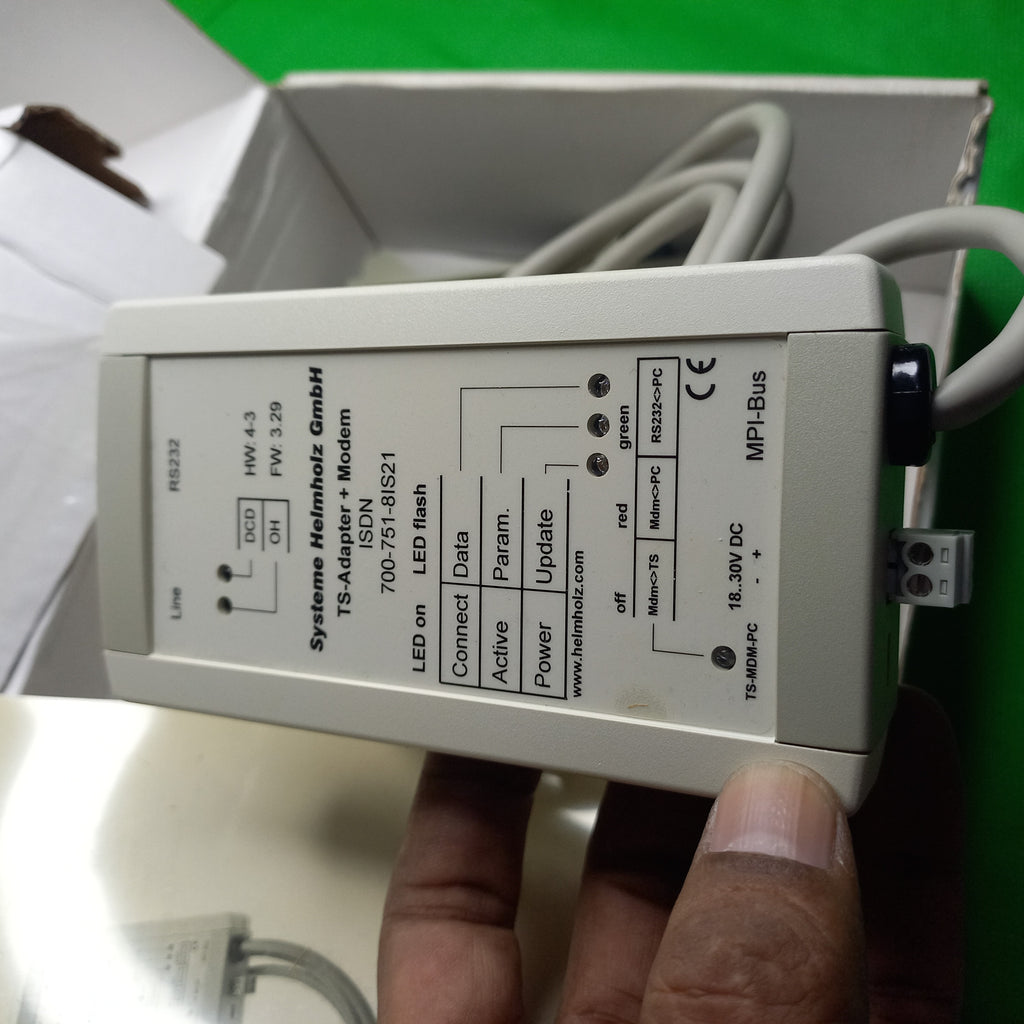

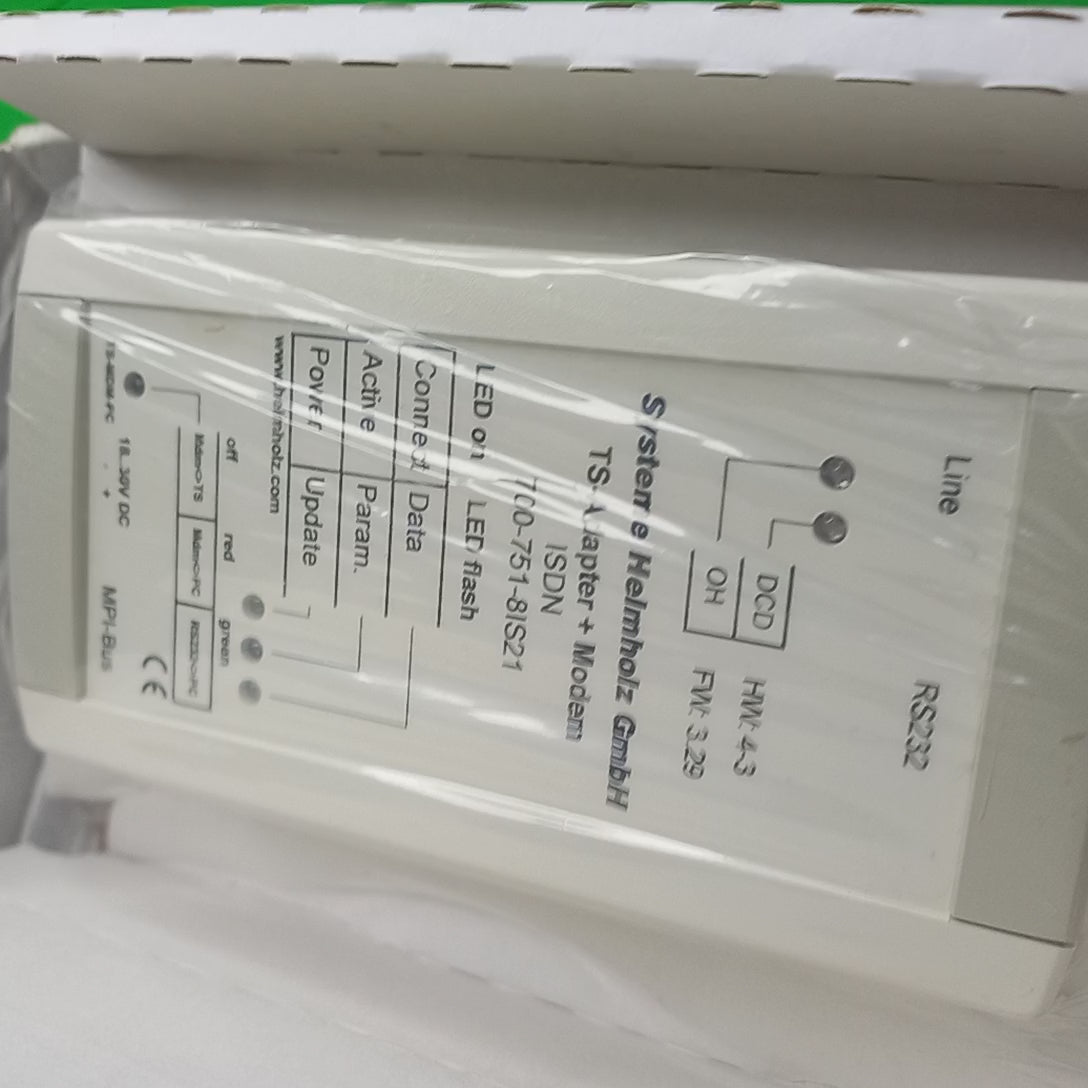

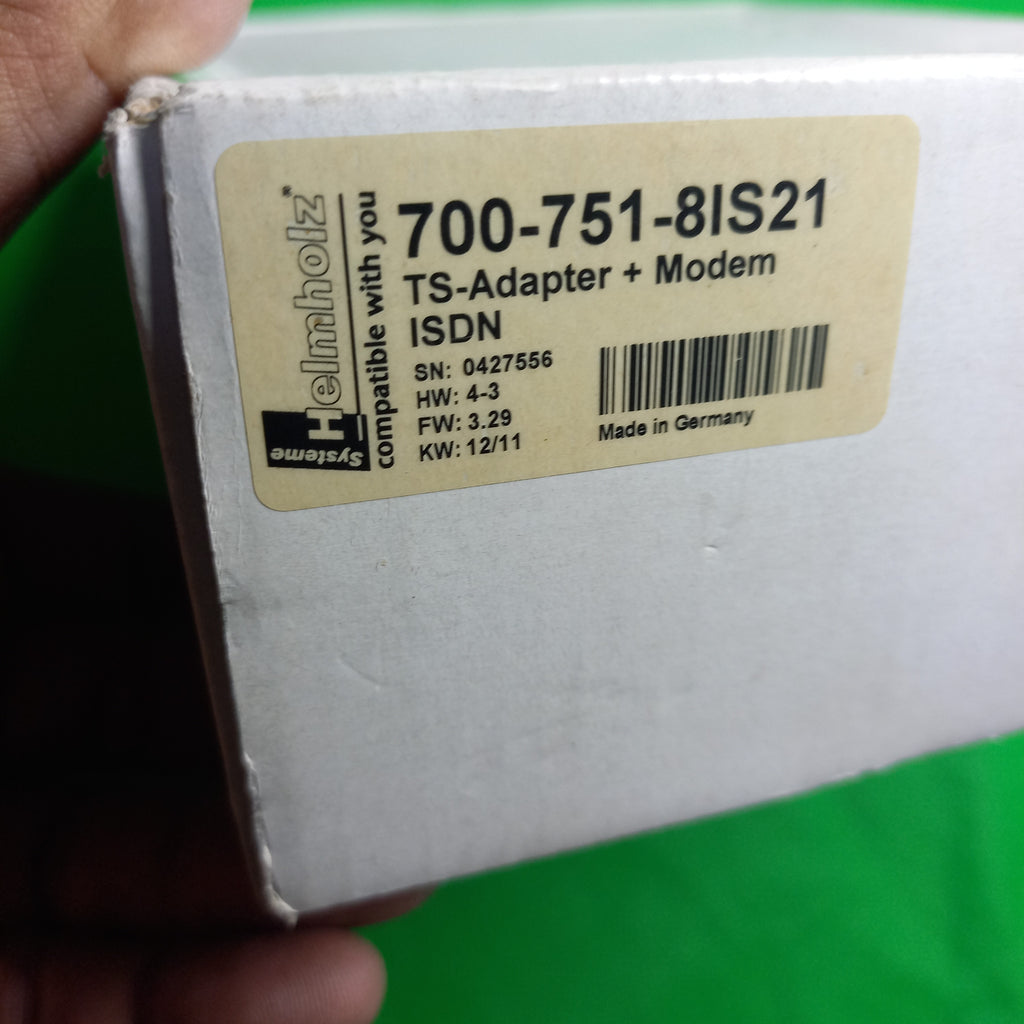

Hemholz 700-751-8IS21, SSW7-TS with modem ISDN

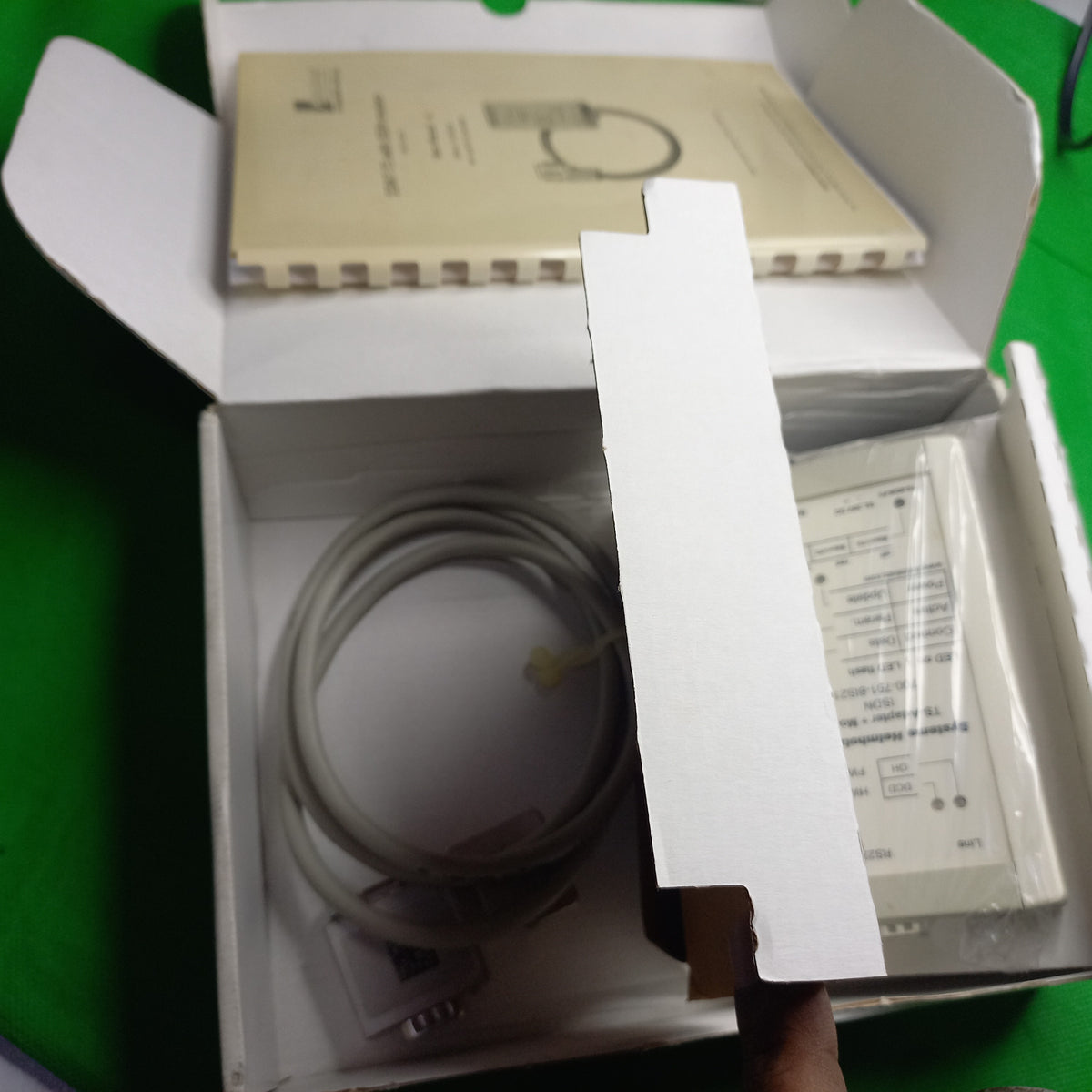

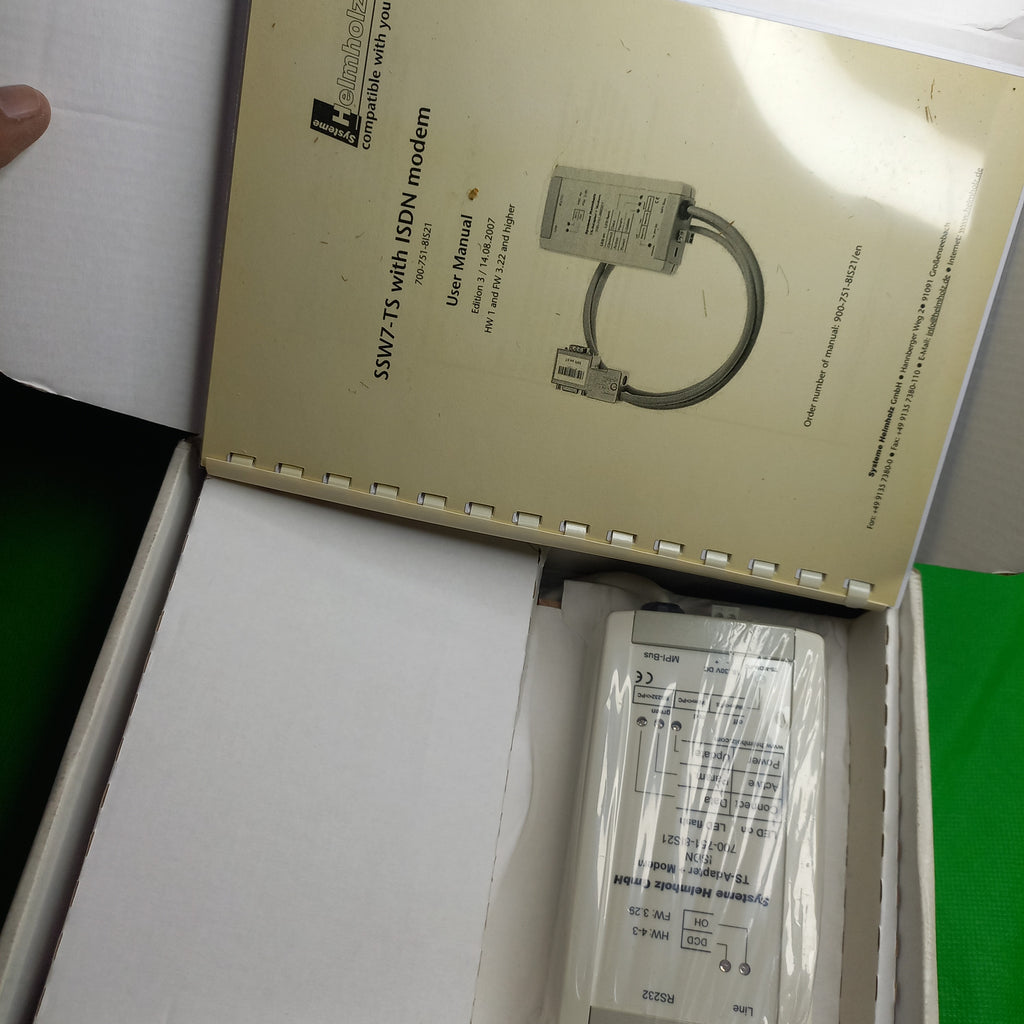

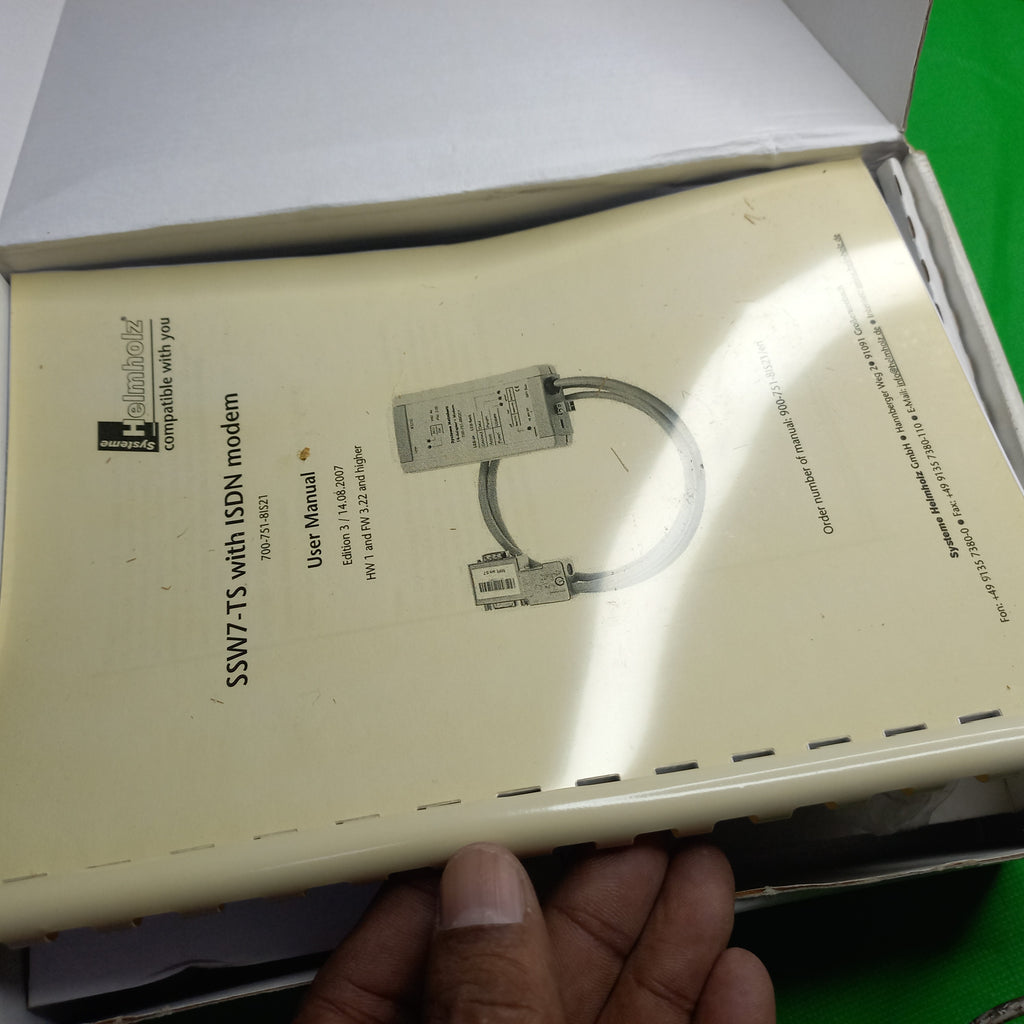

(incl. DIN rail adapter, RJ11 telephone cable 3 m; 3 m programming cable, manual, CD with software), Systeme Helmholz GmbH

Features

• MPI up to 187.5 kbps

• Teleservice and in-situ use

• Password protection and call-back function

• RS232-interface

• Online update function

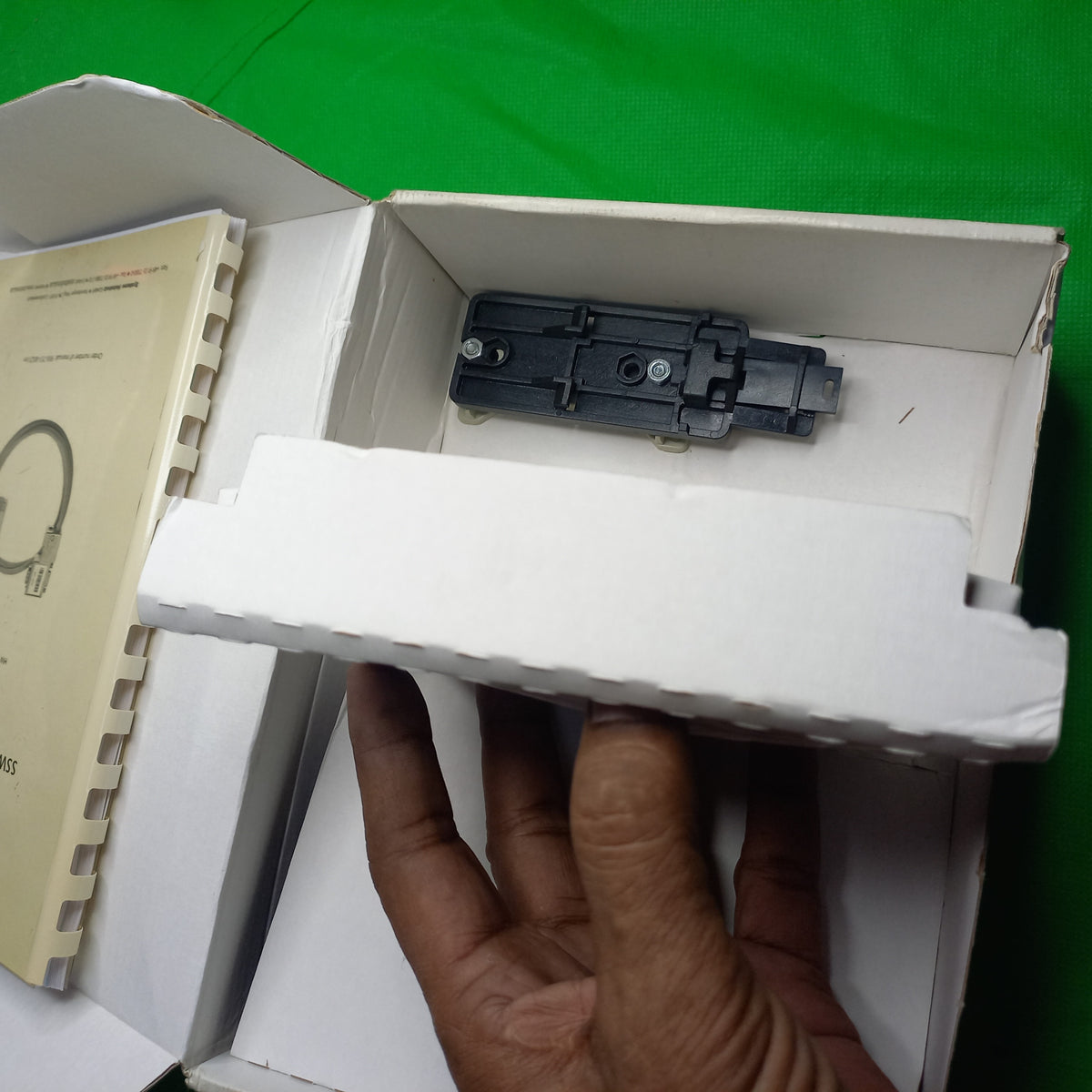

• DIN rail adapter for mounting included in scope of supply

The SSW7-TS with integrated modem is a low-cost alternative for teleservicing a programmable controller via the MPI bus.
Depending on the version, an analog, ISDN, or GSM modem is integrated in the housing of the SSW7-TS. The analog modem
can be configured for worldwide use. The ISDN variant supports the DSS1 protocol that is used in many countries. All connecting cables required for operation are included. The SSW7-TS with a GSM modem (quadband) is the right choice for mobile use or if a
telephone connection is not available.
Via the serial interface, the SSW7-TS with modem can also be used as a PC adapter for local use. The modem can be used for teleservicing a VISU/SCADA application even without a TS adapter
function. Settings are made using microswitches on the adapter housing. The SSW7-TS with modem receives its power supply from the CPU via the MPI cable. If no 24 V supply is available at the connection point, it is possible to feed in an external 24 V power
supply.
The SSW7-TS with modem can also be updated with new firmware via a modem link. That enables functional expansion of an adapter already installed in the system.

Dimensions (DxWxH mm) 135 x 67 x 30
Weight Approx. 240 g
Supply voltage +24 V ±25 % from PLC or extern
Current consumption Analog/ISDN approx. 100 mA,
GSM approx. 150 mA
MPI interface
Type RS485
Transmission rate 19.2 or 187.5 kbps
Cable connector SUB-D, 9-way with PG interface and terminating resistor
Communication interface
Type RS232; 2-wire dial-up (analog); ISDN SO
GSM-Frequency Quadband: GSM850,
EGSM900, DCS1800, PCS1900
Transmission type Serial asynchronous
Transmission rate 9.6 ... 115.2 kbps
Protocols PC <-> S7  via modem or local
Connection Connector, SUB-D, 9-way RJ11
or SIM card slot
Degree of protection IP 20
