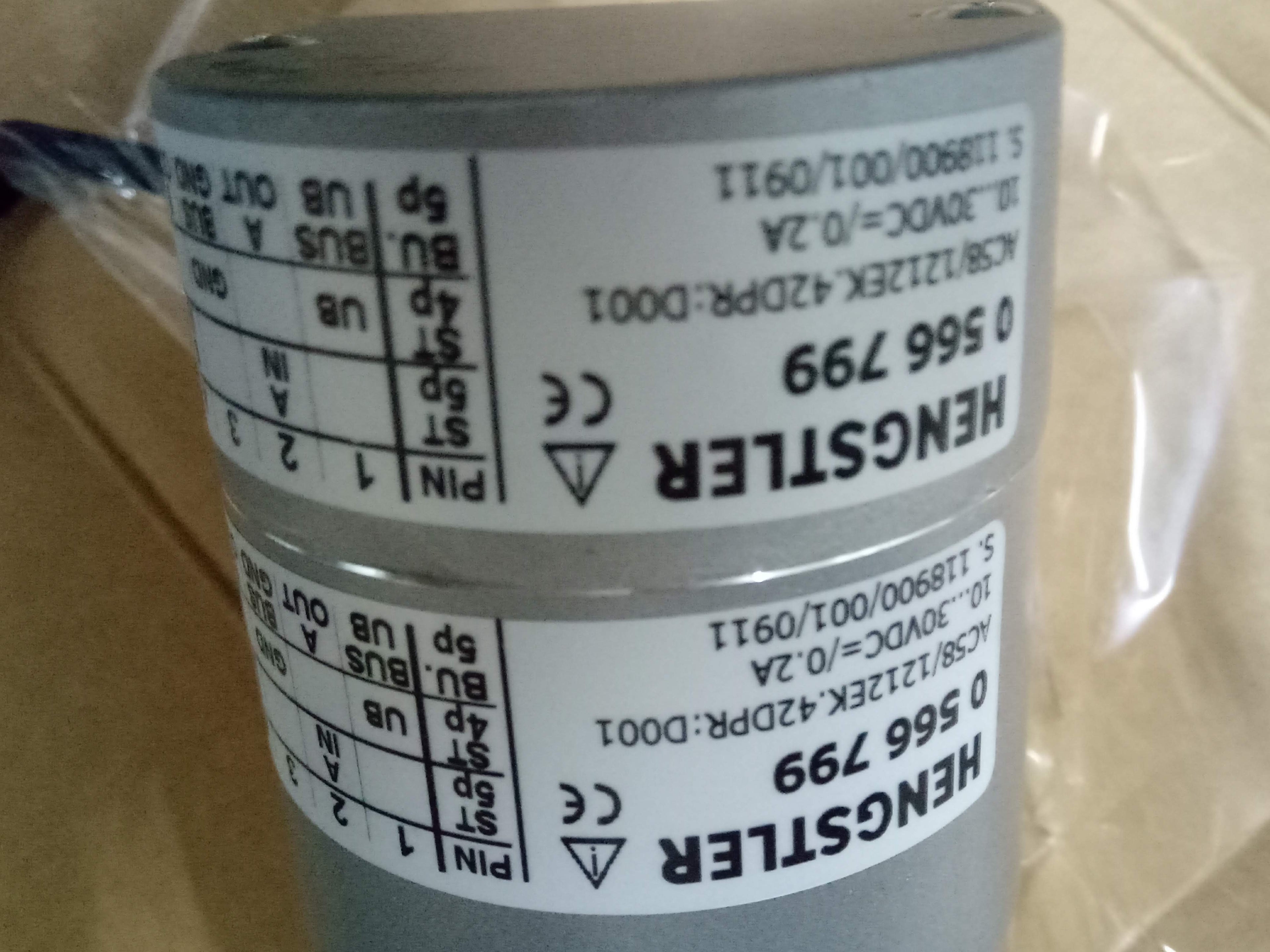

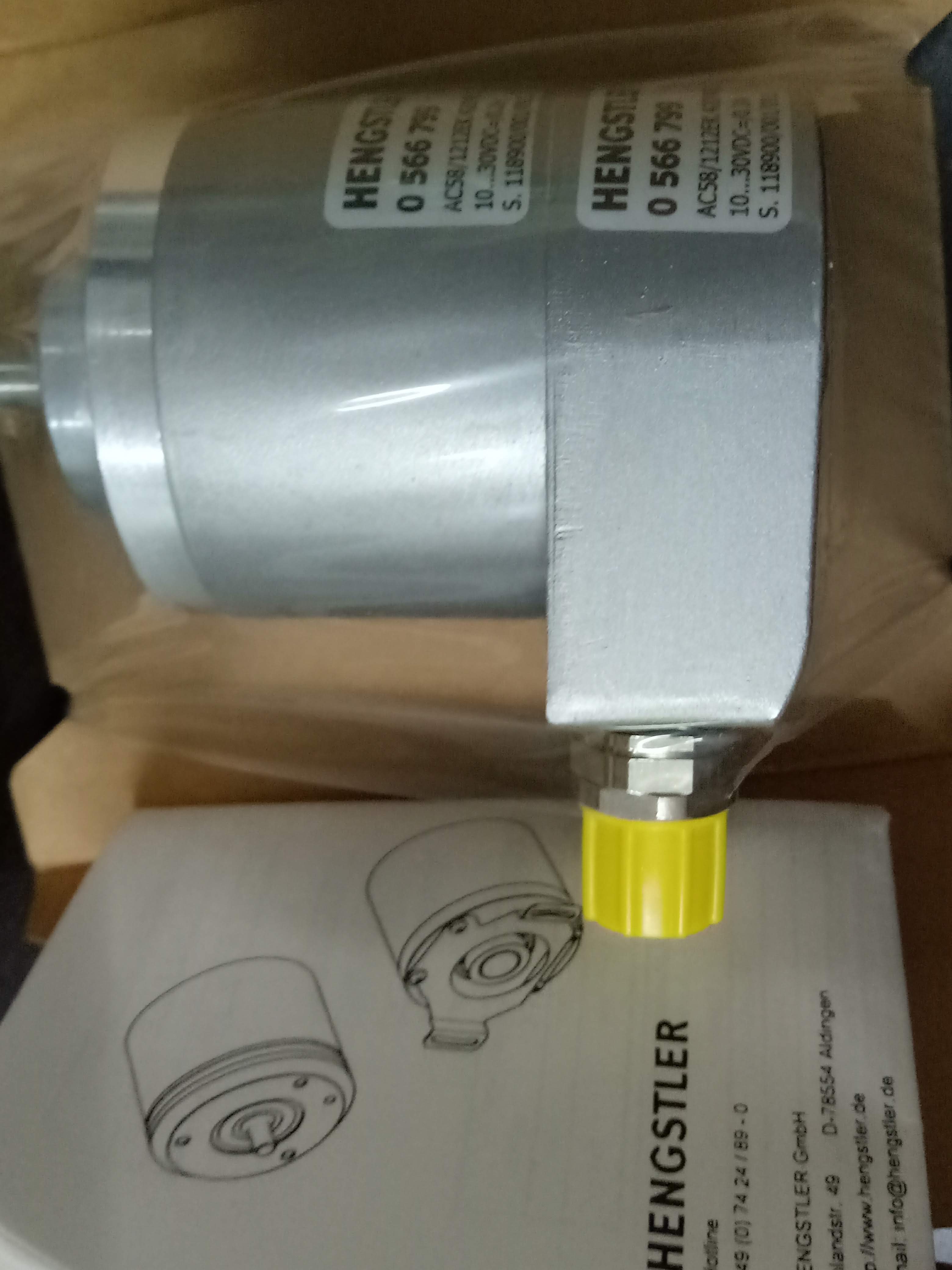

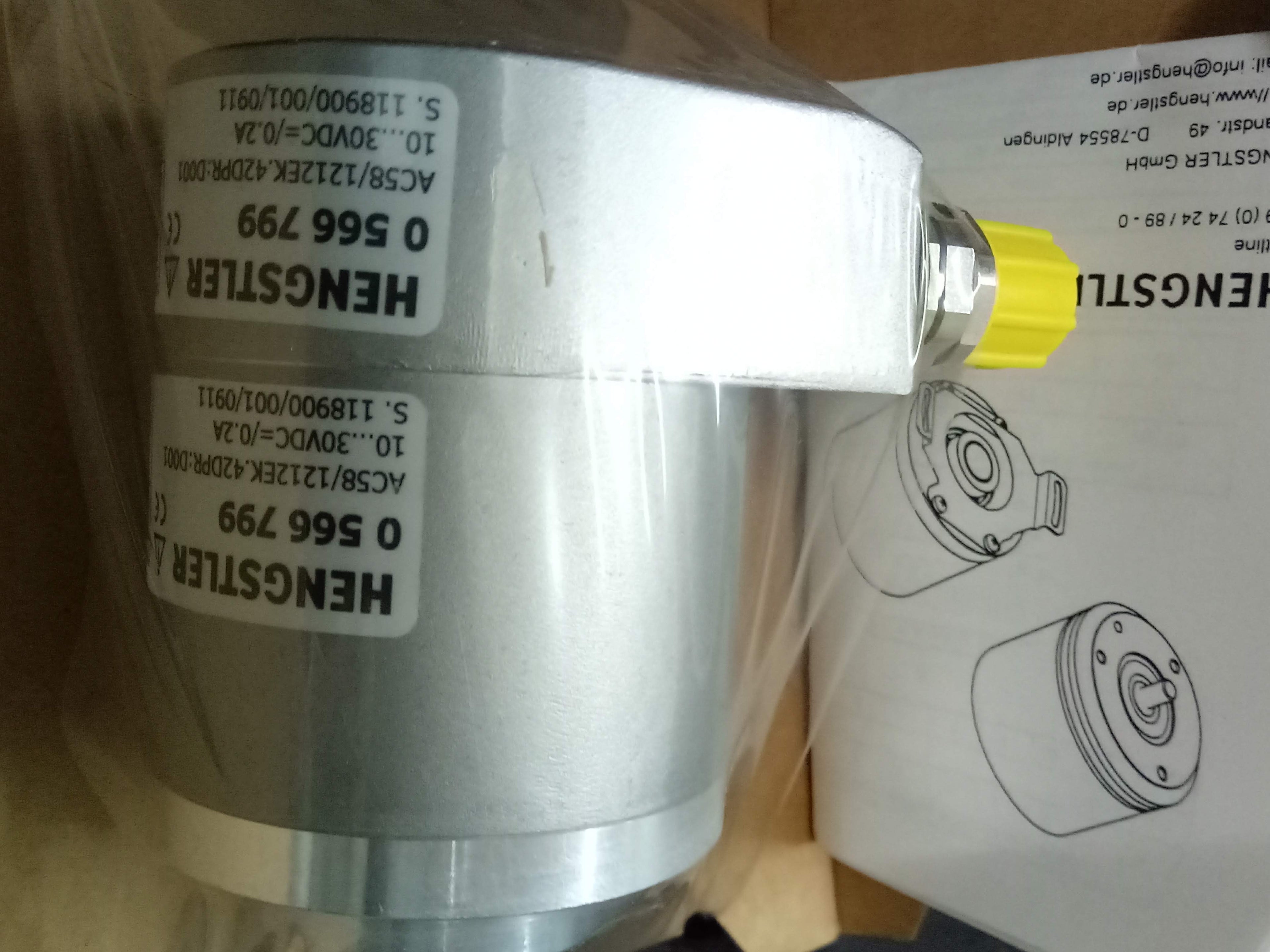

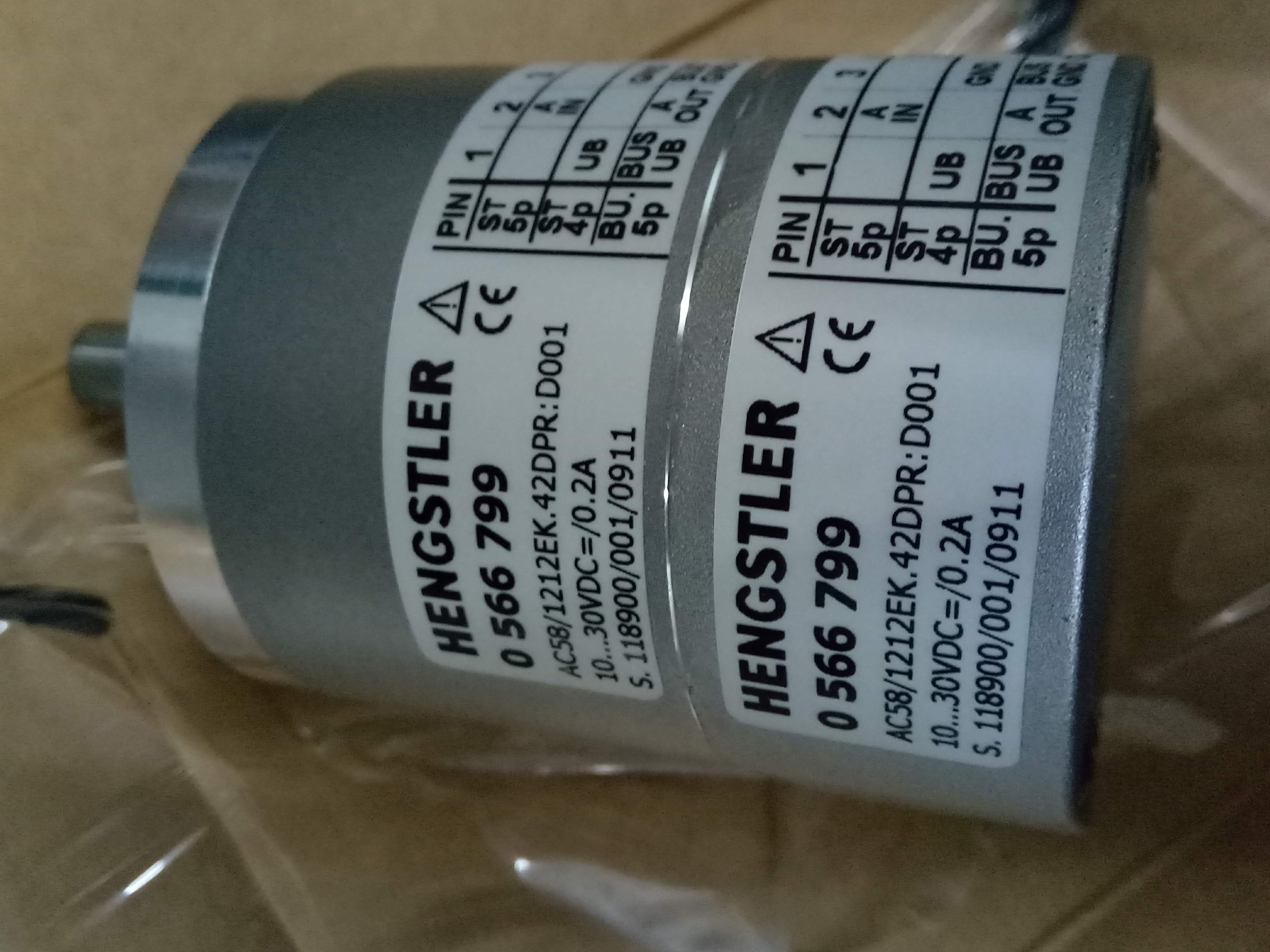

HENGSTLER 0 566 799 | 10mm Shaft,Profibus 12bit MT+12Bit ST Absolulte Encoder

Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days

HENGSTLER 0 566 799 | 10mm Shaft,Profibus 12bit MT+12Bit ST Absolulte Encoder

$1,080.00

Taxes included. Shipping calculated at checkout.

Dispatch Lead time = Same day ship if paid before 2 PM Local time
Warranty = One-year limited seller warranty

Manufacturer Part Number = 0566799, 0 566 799
Manufacturer MPN = AC58/1212EK.42DPR:D001
Encoder Type = Absolute Encoder
Supply voltage = 10v...30VDC

ID. NR. = AC58 1212EK.42DPR:D001
indent Nr. = AC58 1212 EK 42 DPR D001

Alternative Part Numbers | Compatible Parts = AC581212EK42
Typographic Errors in MPN | Mistakenly Known as = O566799, O 566 799 ,
Manufacturer Part Number (MPN) = 0566799, 0 566 799

View Manufacturer Product Page

Mechanical Design Features of this Encoder:

Absolute Encoder Mechanical Design = Solid shaft, face mount flange
Absolute Encoder Construction size (flange) = Ø 58 mm

Design data for Selection | design of Shaft Coupling for this encoder

Absolute Encoder Shaft diameter = 10 mm

Encoder Communication Protocall & interface

Absolute Encoder Communication interface = parallel data world

Encoder Performance Parameters

Absolute Encoder - Singleturn or multiturn version = Multiturn
Absolute Encoder - Number of steps per revolution = 4096 (12 bit)
Absolute Encoder Number of revolutions = 4096 (12 bit)
Absolute Encoder Resolution (Bits) =

Absolute Encoder Programmable/configurable =

Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE

Direction of Connection = Radial
Connection =
Connection Type Detail = M23, Male connector on Encoder Body, 17-pin
ABS- INC Length of cable =

How Encoder body is Mouted ? Mouting Flange Design Data:

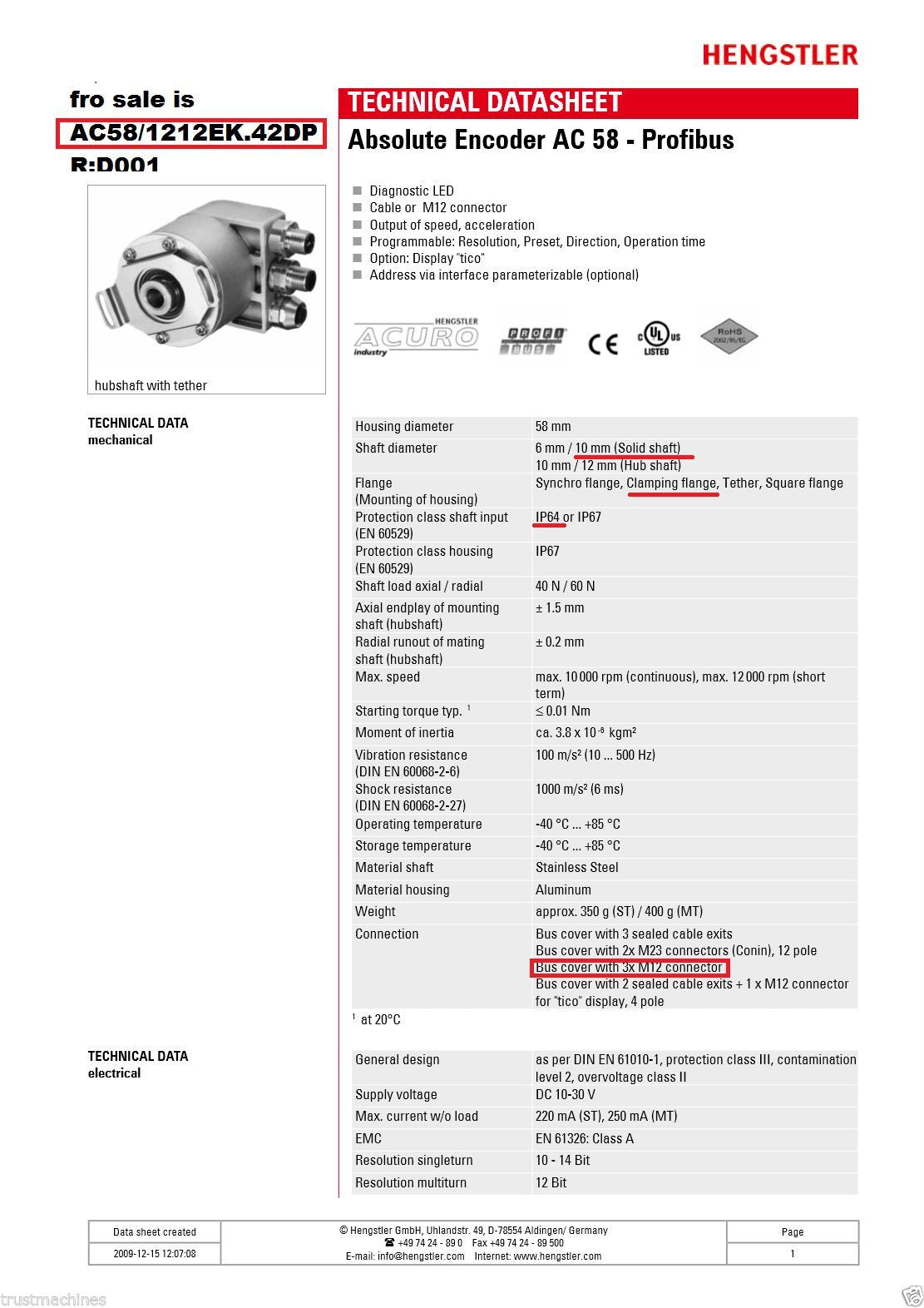

4096 MT x4096 ST Multi Turn Profibus Encoder, Clamping Flange,10mm shaft, IP64, DP Profibus Made by Hengstler Part number AC58/1212EK.42DPR | AC58/ 1212 E K.42 DPR

Ready Stock - Collect from our Store Within 4 Hours of Confirmed Payment |

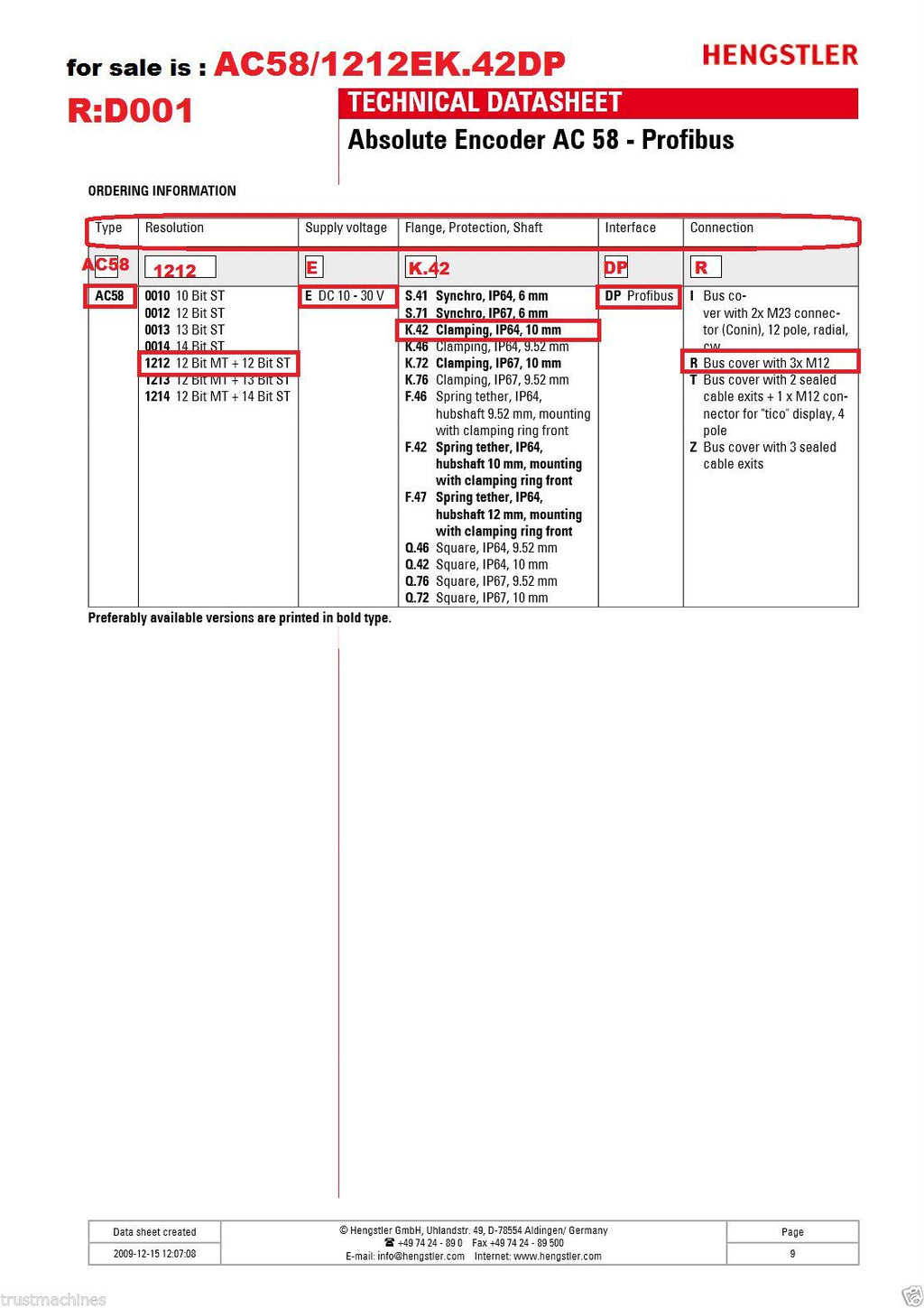

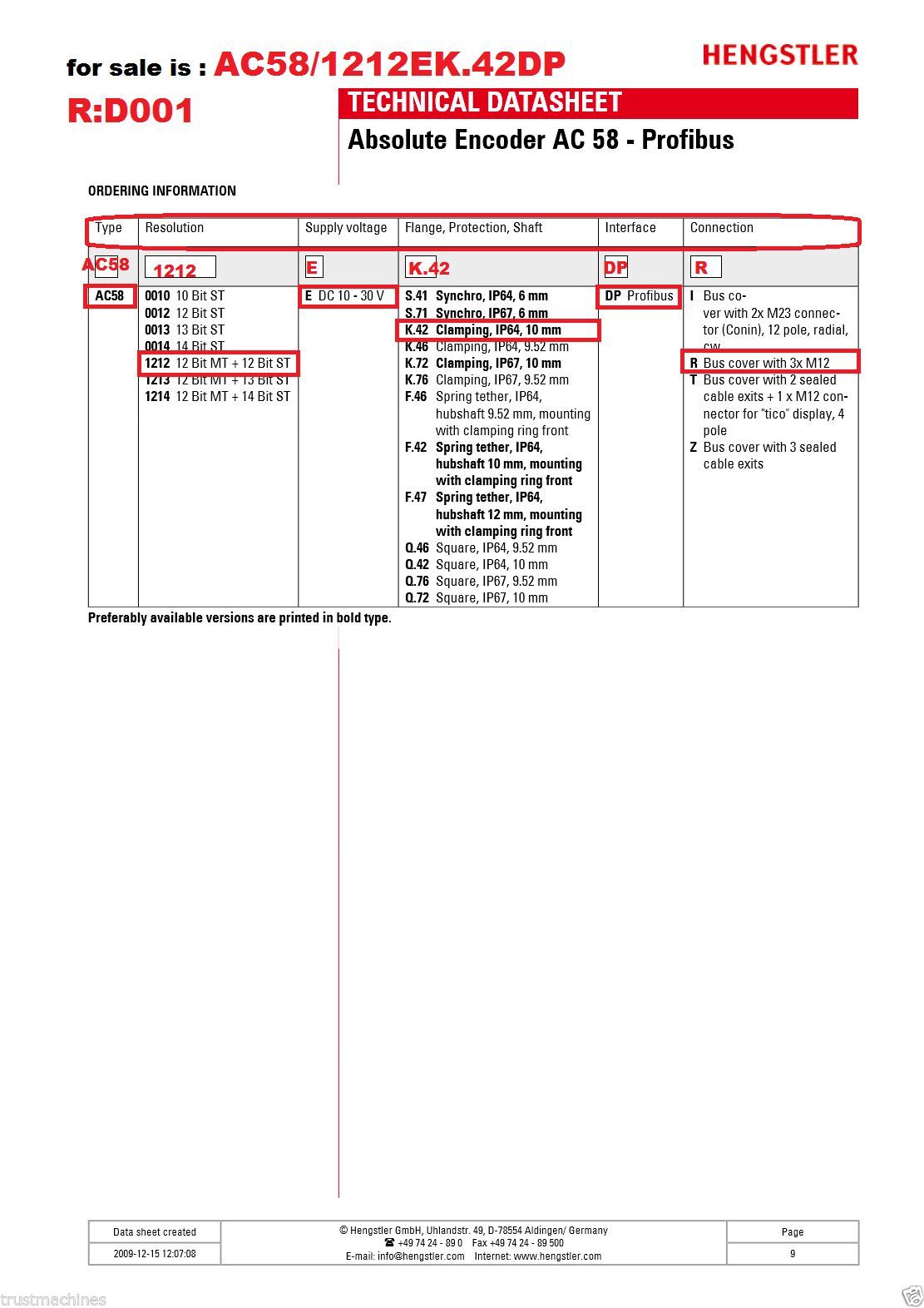

Details of part number | Hengstler key code explainer:

Match Code: AC58/1212EK.42DPR
Item Number: 0566405

Absoluter Drehgeber AC58/1212EK.42DPR:D001
AC58/1212EK.42DP R:D001
10..30VDC=/0.2A
type:AC58
Resolution : 1212: 12 bit MT+12bit ST
Supply Voltage:
E:DC 10-30VDC
Flange, protection, Shaft:
K.42: clamping, IP64, 10mm
Interface: DP Profibus

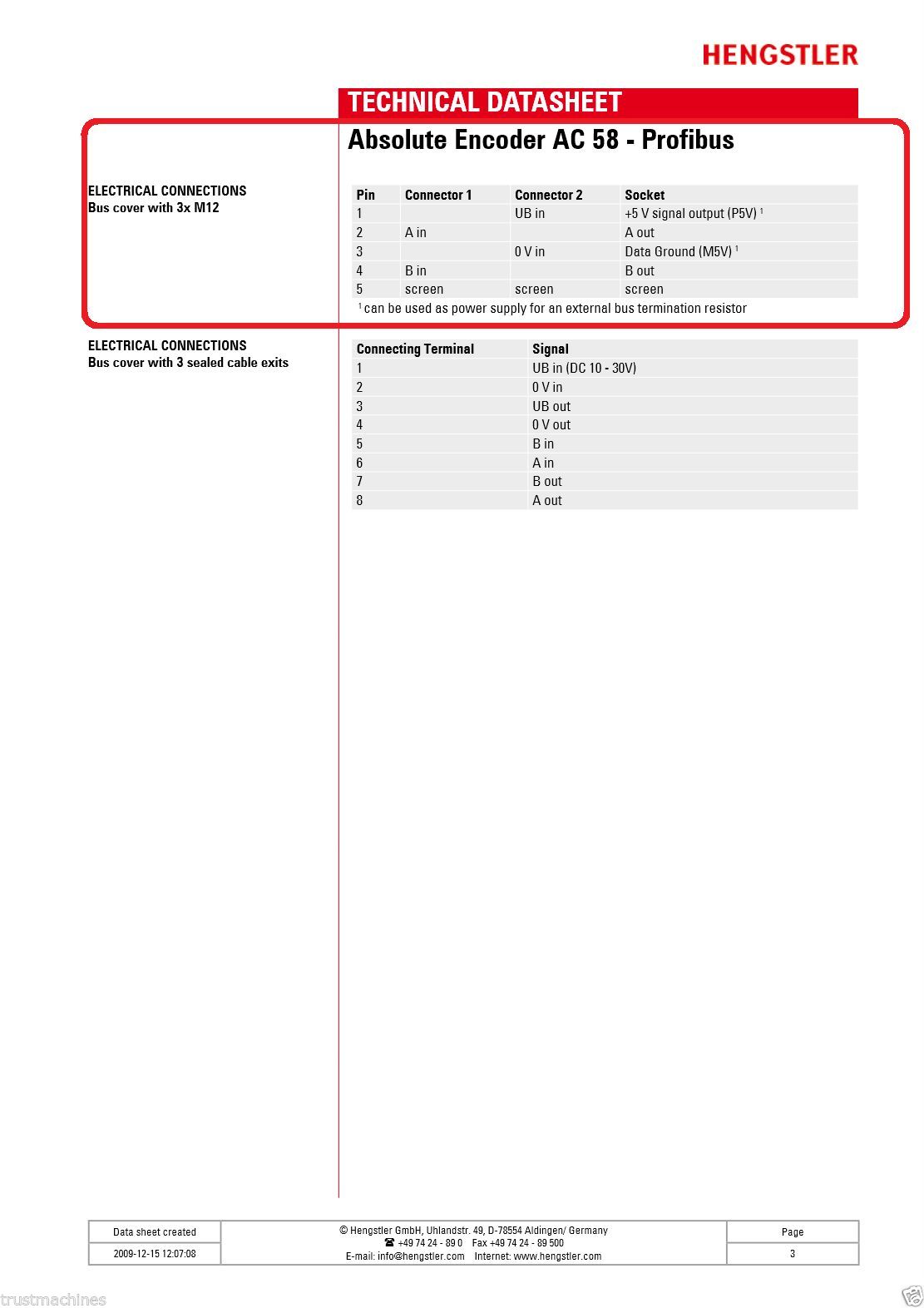

Connection: R: Bus Cover with 3xM12

Type Absolute

MT
Supply Voltage

DC 10 - 30 V
Resolution ST

12 Bit
Resolution MT

12 Bit
Repeatability typ.

±10"
Output Code

Binary
Interface

Profibus DP
Drivers

RS485
Absolute Accuracy typ.

±36"

Ships from DUBAI

Ready Stock - Collect from Ajman store today

Sold by Ajman FET [ Established 2003 ]
