HENGSTLER AC58 Abs Encoder 0 568 285 Ready Stock AC58/1213EK.72SPH
$800.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = 0568285
- Manufacturer MPN = AC58/1213EK.72SPH
- Encoder Type = Incremental encoder
- Supply voltage = 4.75v=30VDC
- ID. NR. = AC581213EK72SPH, 0 568 285 , O568285
- indent Nr. = ACURO AC58/1213EK.72SPH Absolute Encoders
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = 0568285
Mechanical Design Features of this Encoder:

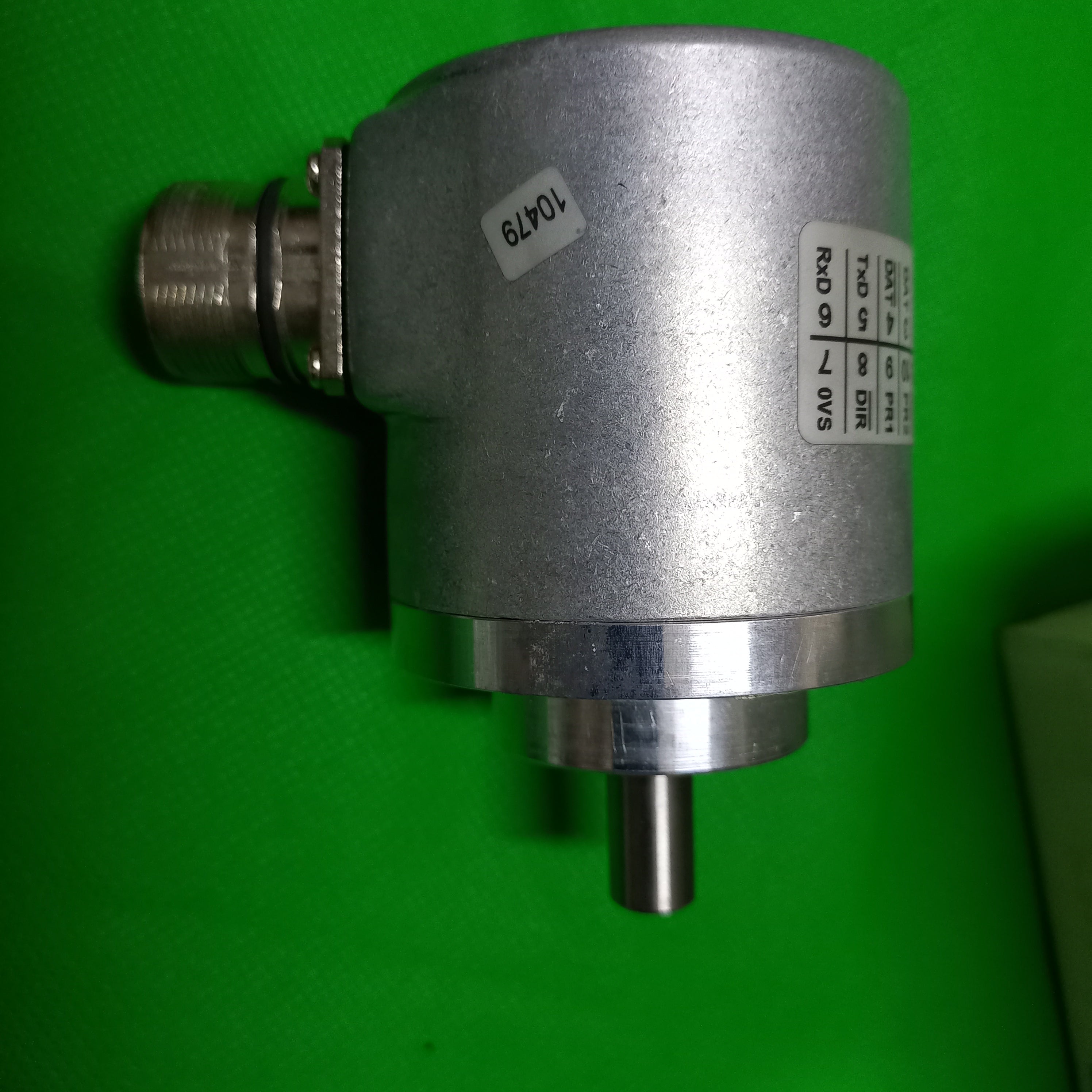

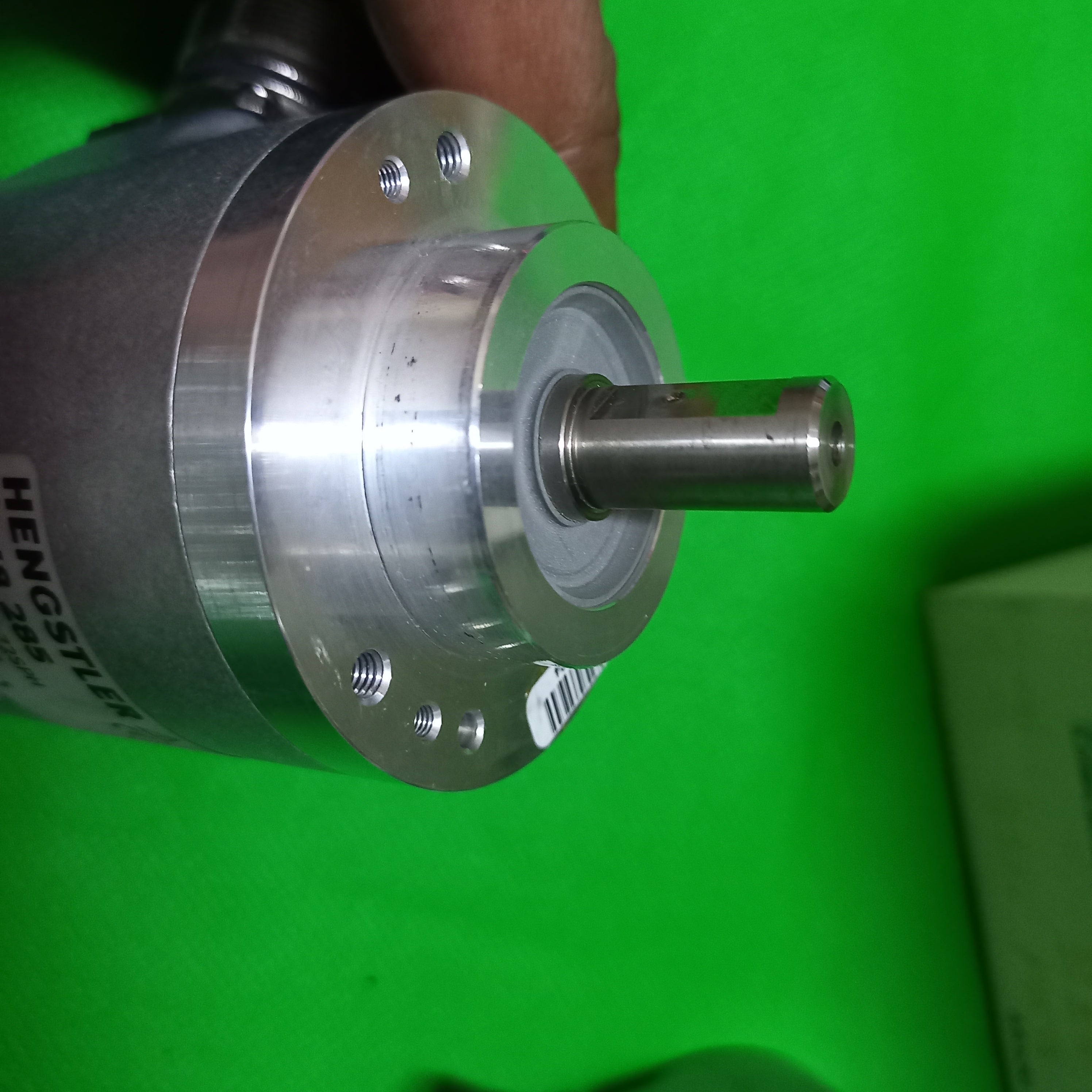

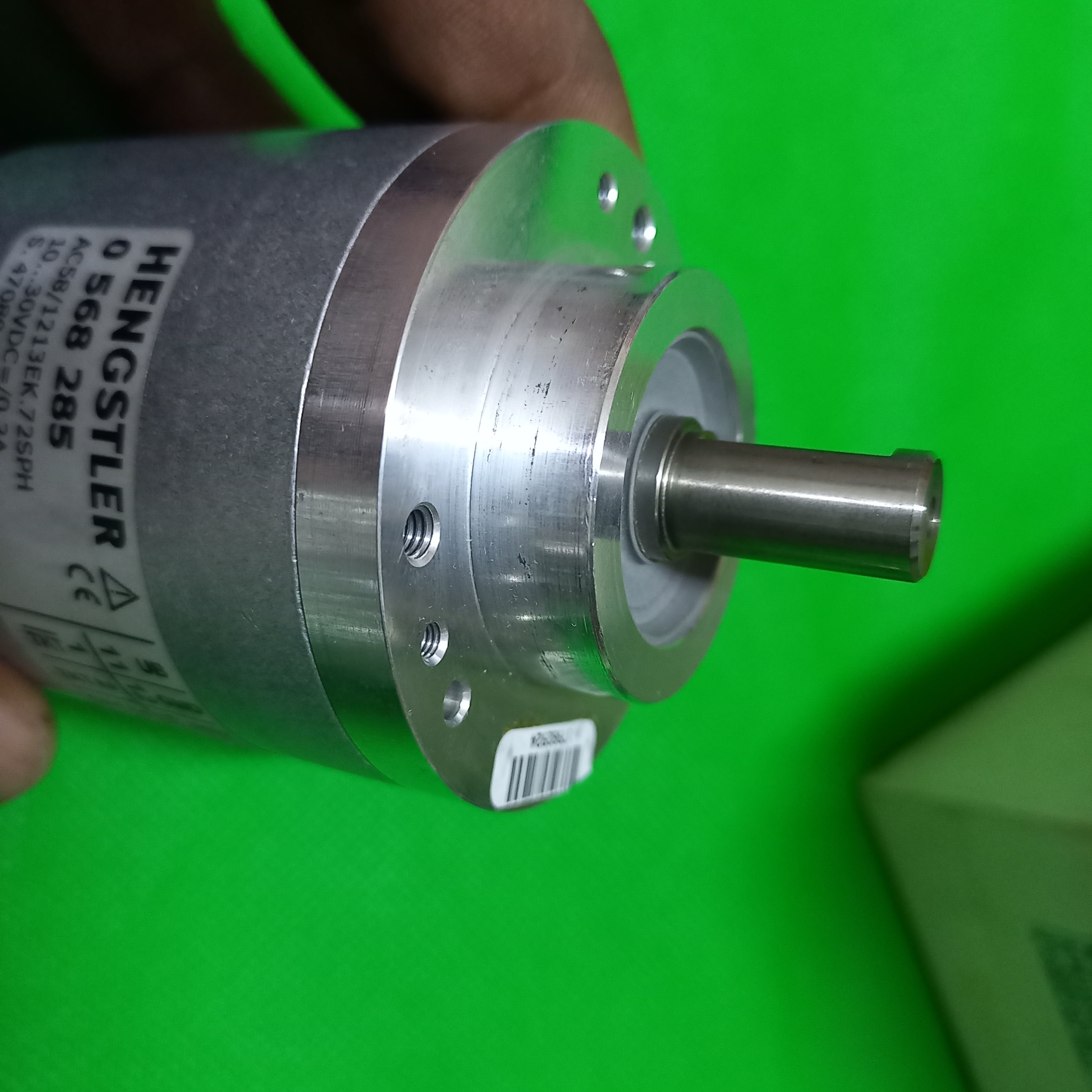

- Absolute Encoder Mechanical Design = Solid shaft, face mount flange
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = SSI
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 4096 (12 bit)
- Absolute Encoder Number of revolutions = 8192 (13 bit)
- Absolute Encoder Resolution (Bits) = 25 bits (12 bits in single-turn, 13 bits in multi-turn, [Resolution code: 1213 ]
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection =

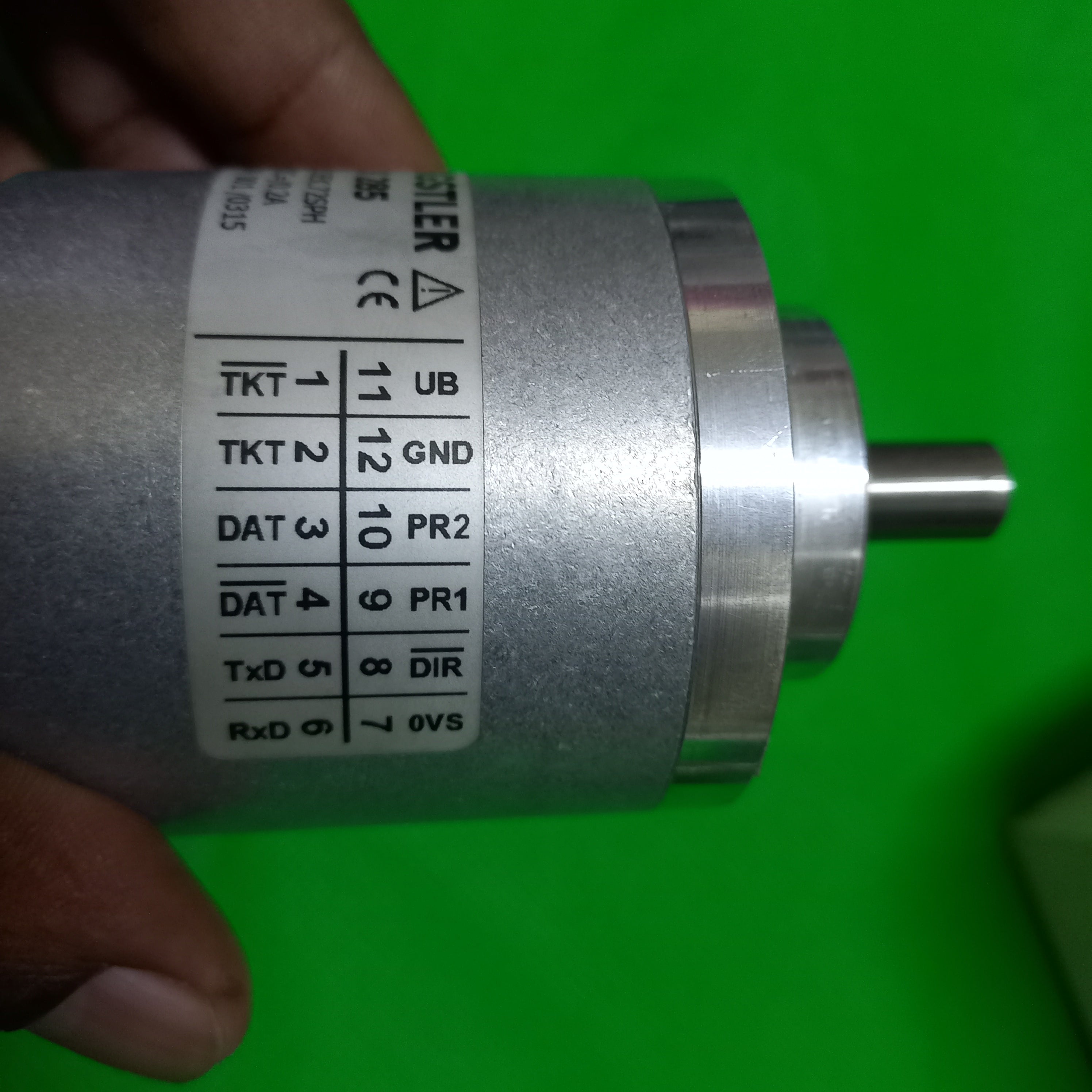

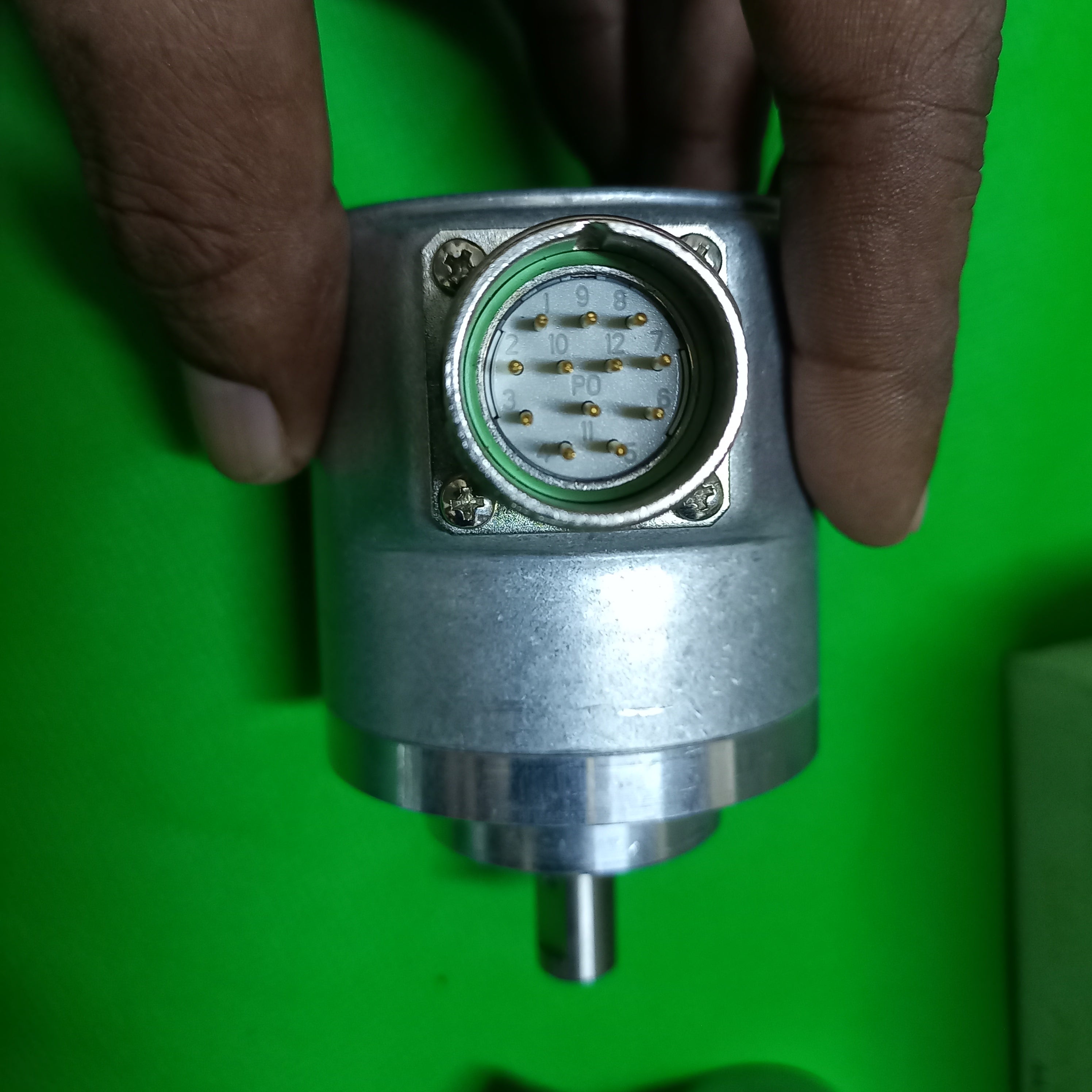

- Connection Type Detail = M23, Male connector on Encoder Body, 12-pin
- ABS- INC Length of cable =
How Encoder body is Mouted ? Mouting Flange Design Data:
ACURO AC58/1213EK.72SPH Absolute Encoders | HENGSTLER 0 568 285 |
ACURO AC581213EK72SPH Absolute Encoders Ready to Ship Today.
Match Code:AC58/1213EK.72SPH | Item Number: 0568285 | Optical | SSI PROG.| AC58 | Absolute
AC58/1213EK.72SPH | 0568285 | AC581213
AC58 Absolute Encoder
1213 : 12 Bit MT + 13 Bit ST
E : DC 10-30VDC
K72: Clamping, IP67, 10x19.5mm
SP: SSI programmable
H : Conin 12 Pole Radial CCW

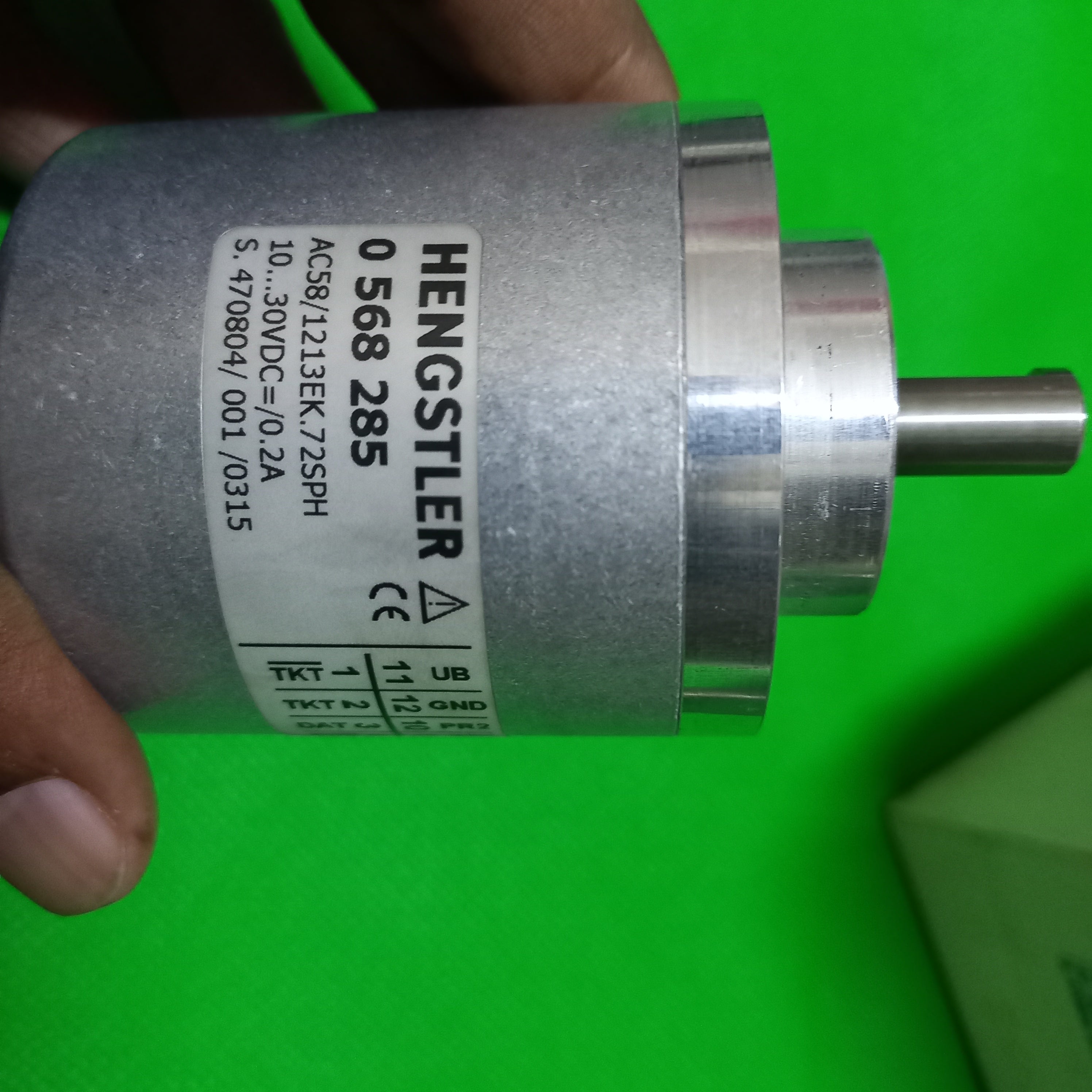

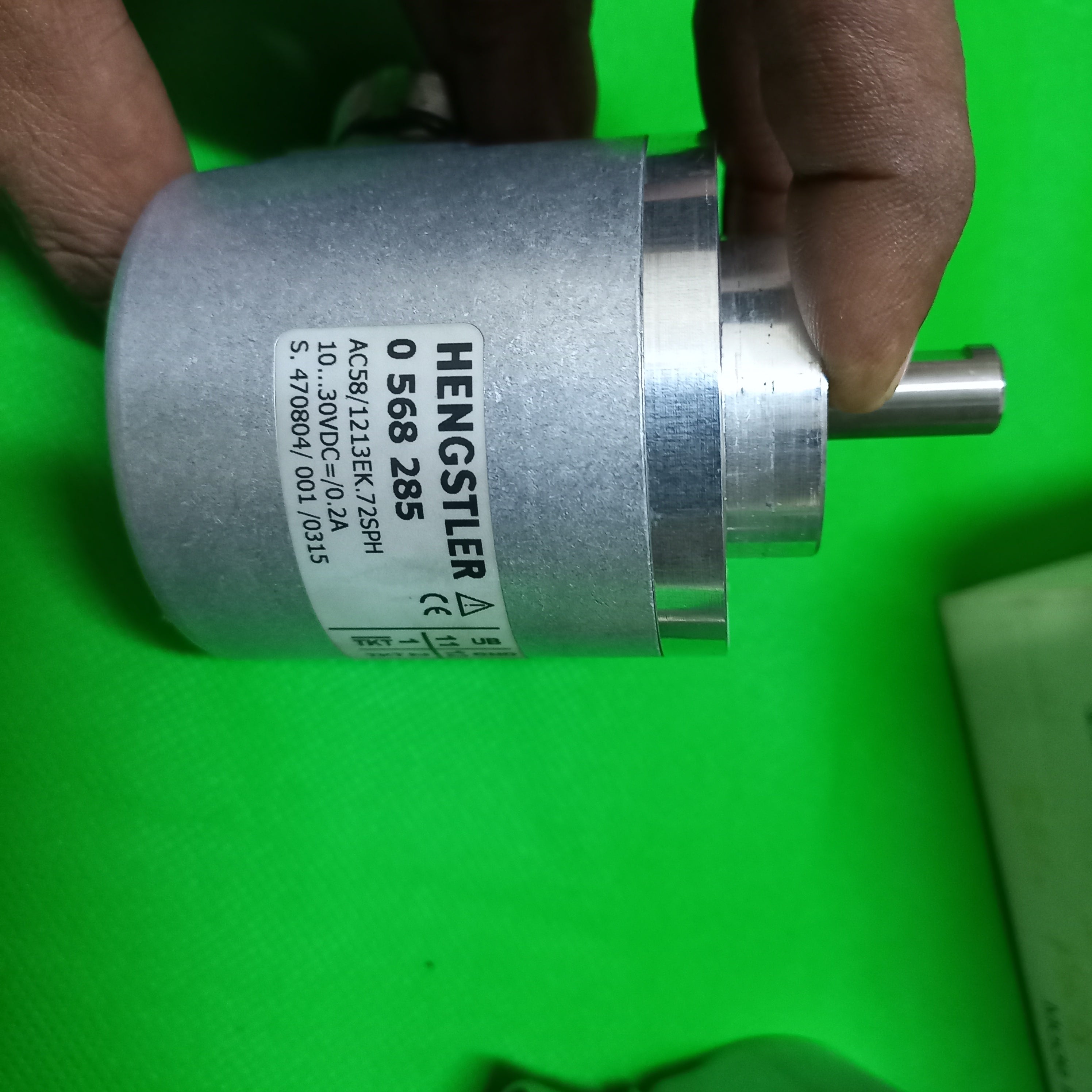

Part Number AC58/1213EK.72SPH
TypebAC58 - Absolute Encoder
Resolutionb1213 - 12 Bit MT + 13 Bit ST
Supply Voltage E - DC 10 - 30V
Flange, Protection, Shaft K.72 - Clamping, IP67, 10 mm
Interface SP - SSI-Programmable
Connection H - M23 12 Pin Radial, CCW
Cable Length Standard m
Connector at Cable EndWithout
