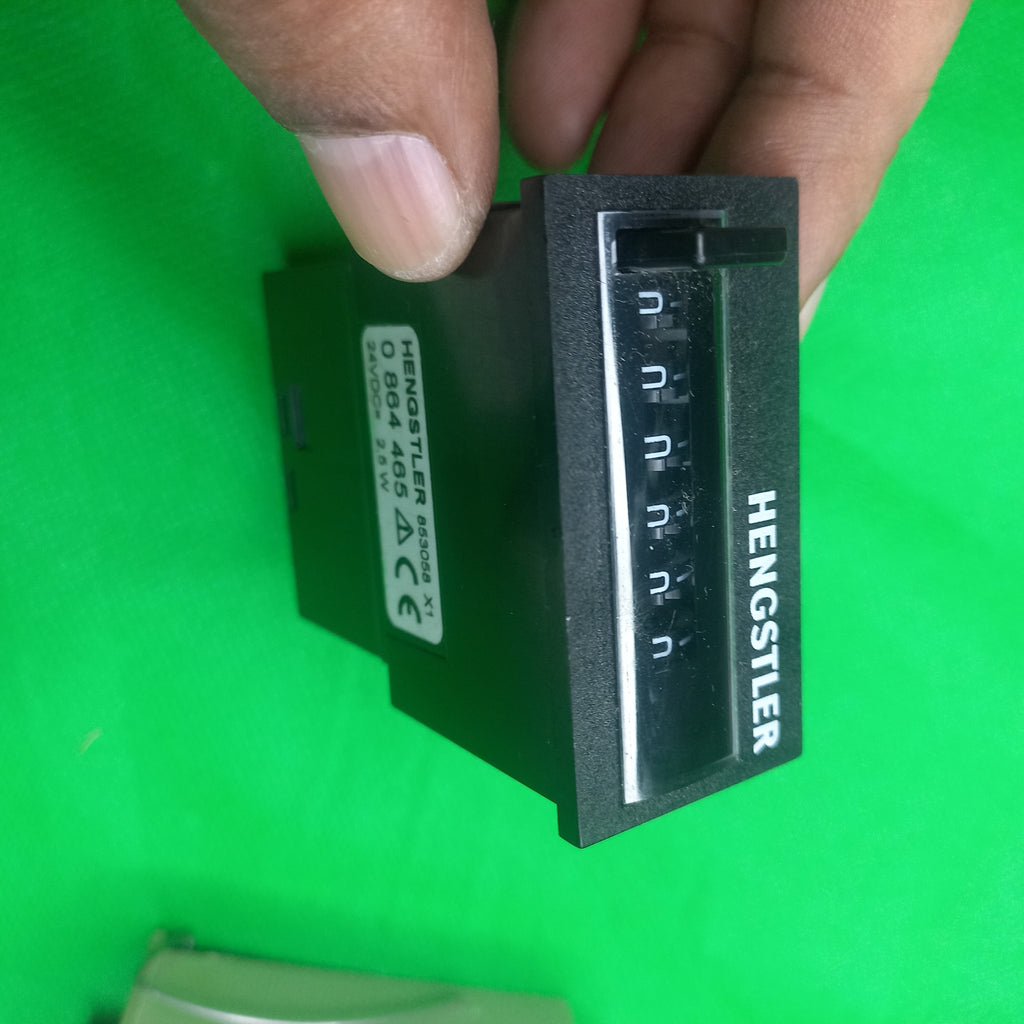

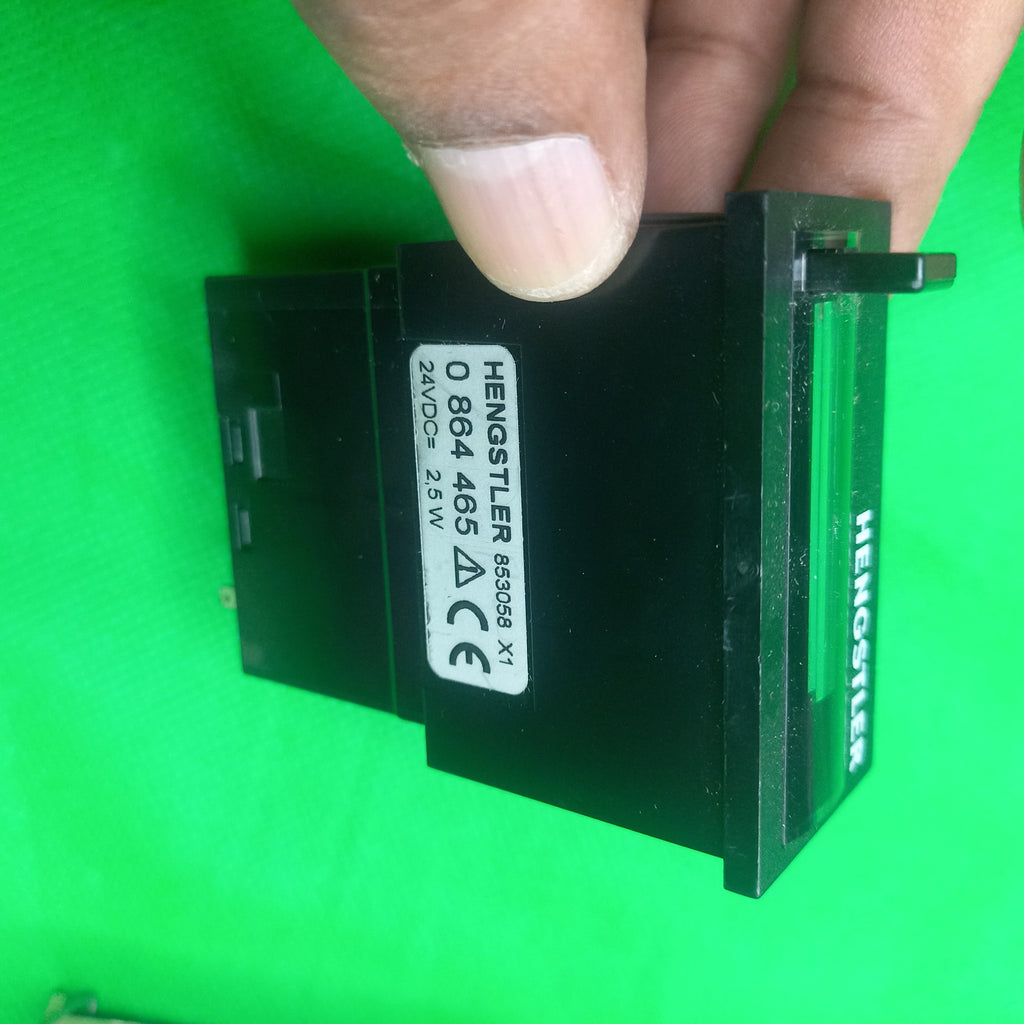

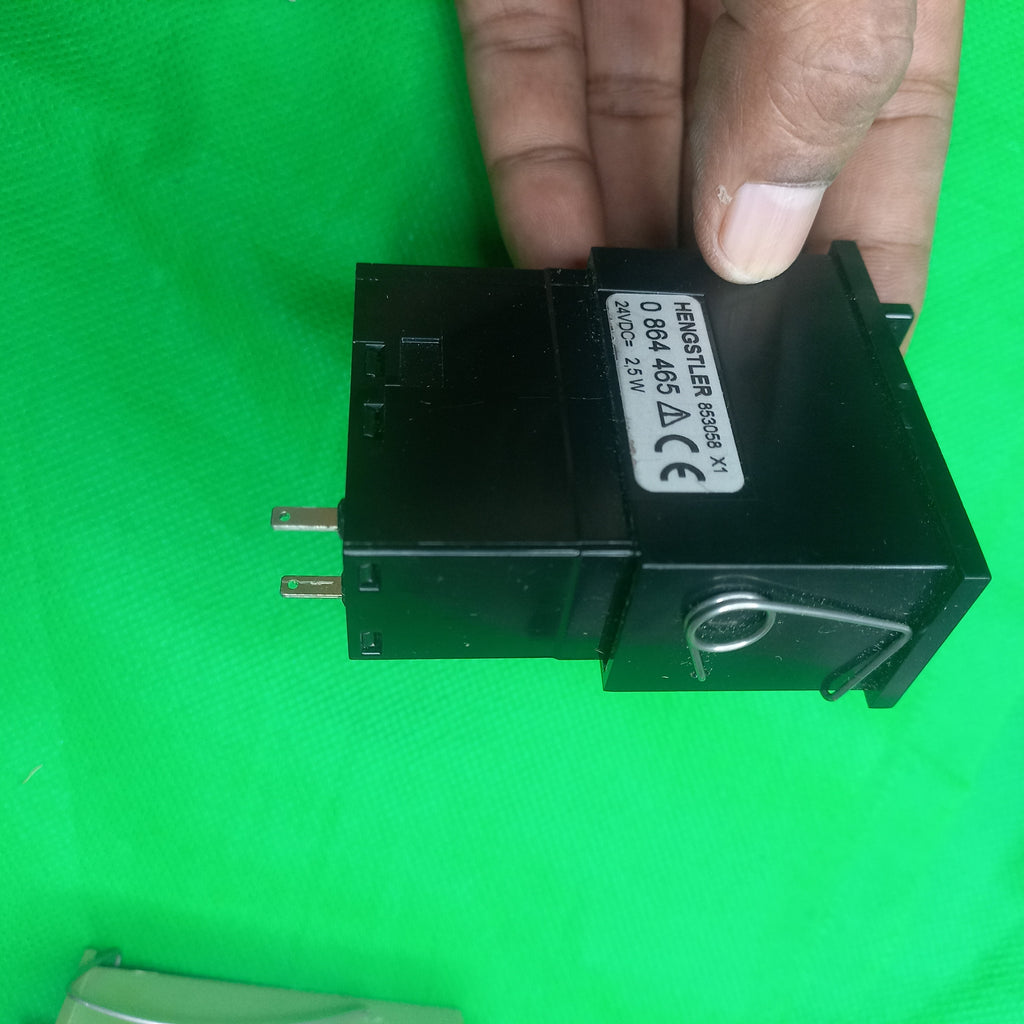

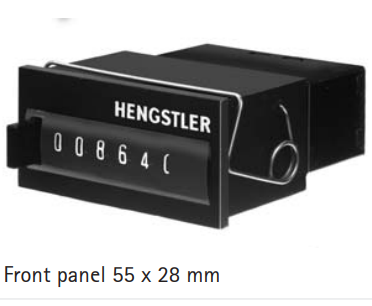

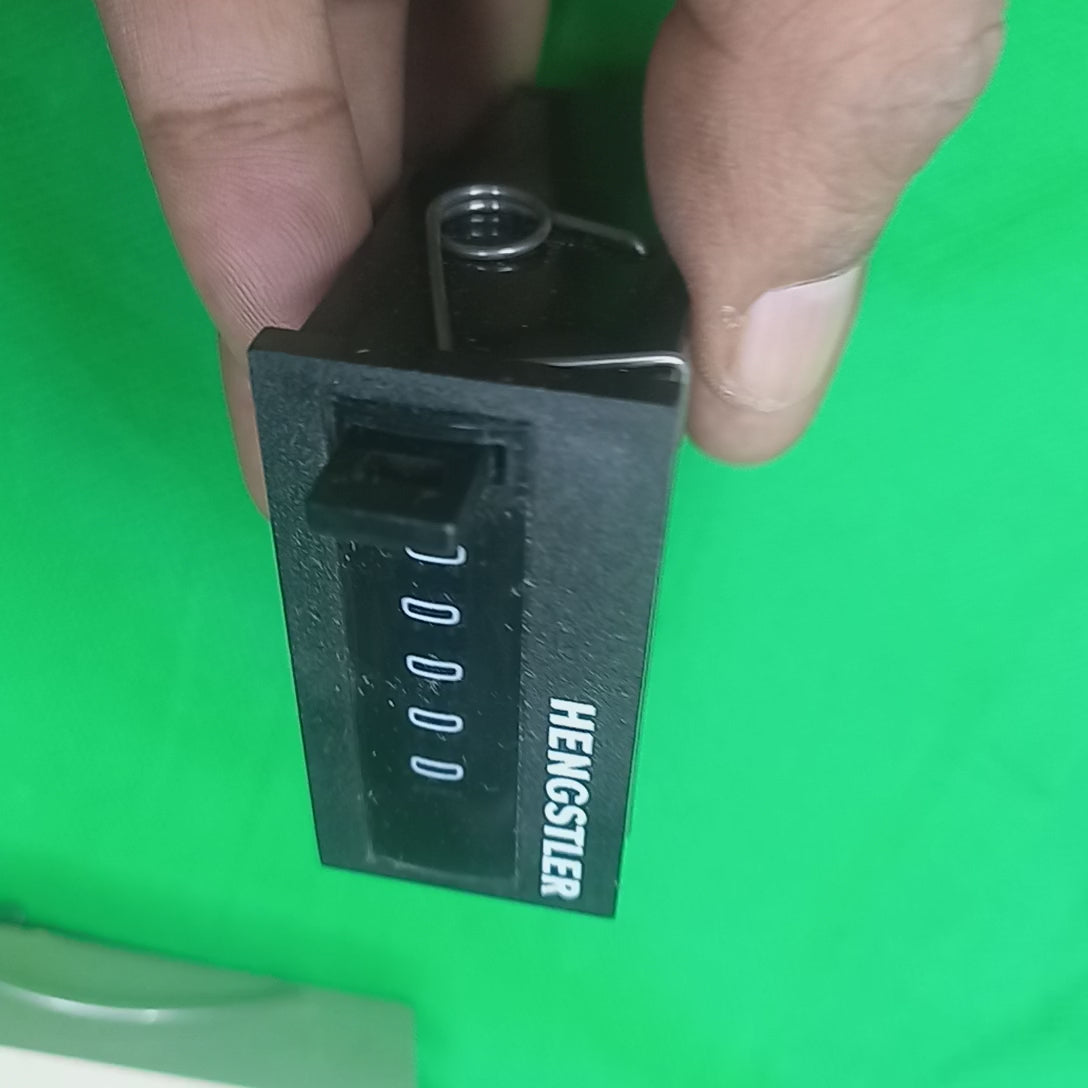

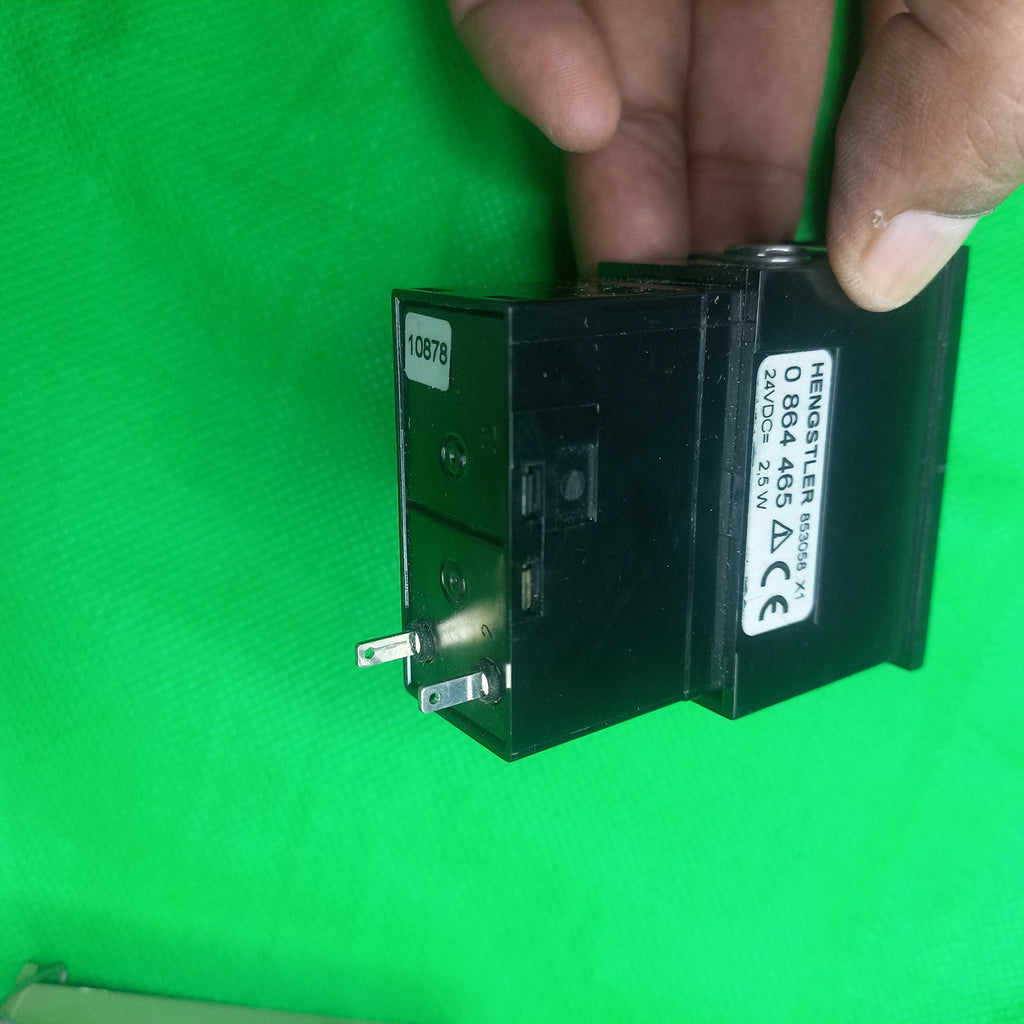

HENGSTLER Type 864-465 | Front panel 55 x 28 mm|  Electromechanical Totalizing Counter 864 Series | Totalizing Counters for Front Panel Mounting | 6  digit display | Simple installation

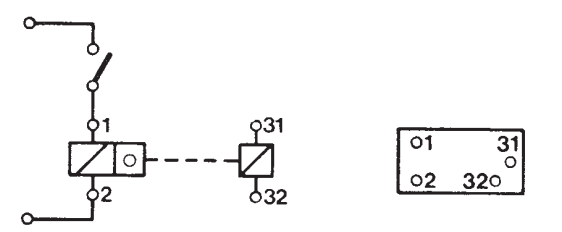

User Manual for Connection / Installation here

General Data about the Digital Displays:

Display 6 or 8-digit, depending on version
Digit height 4 mm
Supply voltage Vop according to order information, tolerance +– 10 %
230 VAC + 6–10 %
Power consumption DC counter: counter 2.5 W/VA, reset magnet 12 W/VA
AC counter: counter 2.75 W/VA, reset magnet 16 W/VA
Operating temperature - 10 . . . + 50 °C
Storage temperature - 20 . . . + 70 °C
Protection class (EN 60529) front IP 40; connections IP 00
Vibrostability 50 m/s2 acc. to IEC 068-2-6
Shock stability 600 m/s2 (6 ms) acc, to IEC 068-2-27
General design EN 61010-1, EN 50178; contamination level 2 VDE 0110
Maintenance-free operation counter 2 x 107, reset magnet 1.5 x 106 pulses
Duty cycle at 25 °C counter 100 %, reset magnet: DC 20 %, max. 2 min.,
AC 10 %, max. 1 min.
Weight approx. 90 g
Count input adding
Pulse length min. DC counter: counter 20 ms, reset magnet 200 ms
AC counter: counter 50 ms, reset magnet 200 ms
Counting frequency max. DC counter 25 Hz, reset magnet 1 per s
AC counter 10 Hz, reset magnet 1 per 2 s
Pulse duty factor counter 1:1, reset magnet: DC 1:5, AC 1:10
Reset depending on version
- manual with button or key
- electric (version with reset magnet)
- without reset
