Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

• Manufacturer Part Number: IFM
• Sensor Type: Cylinderical Inductive sensor Inductive Sensor
• Sensor Dimensions: Ø 34 / L = 98
• Sensor Range : Sensing range[mm] 20mm

• Product Condition New in Factory Sealed Packet:
  Authorization status : Independent reseller
  Manufacturer warranty status : Not represented as included
  SpareFaber warranty : One-year limited seller warranty

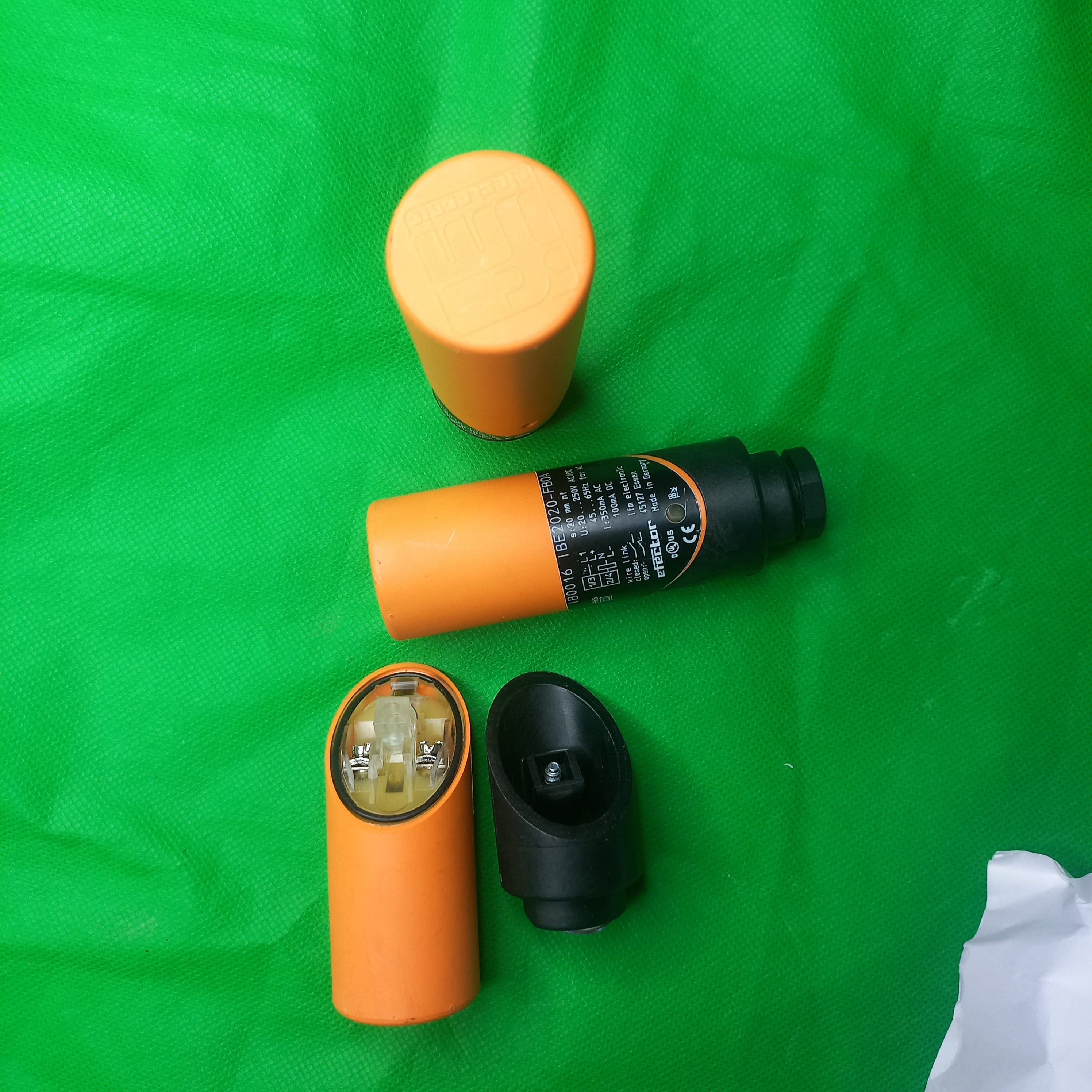

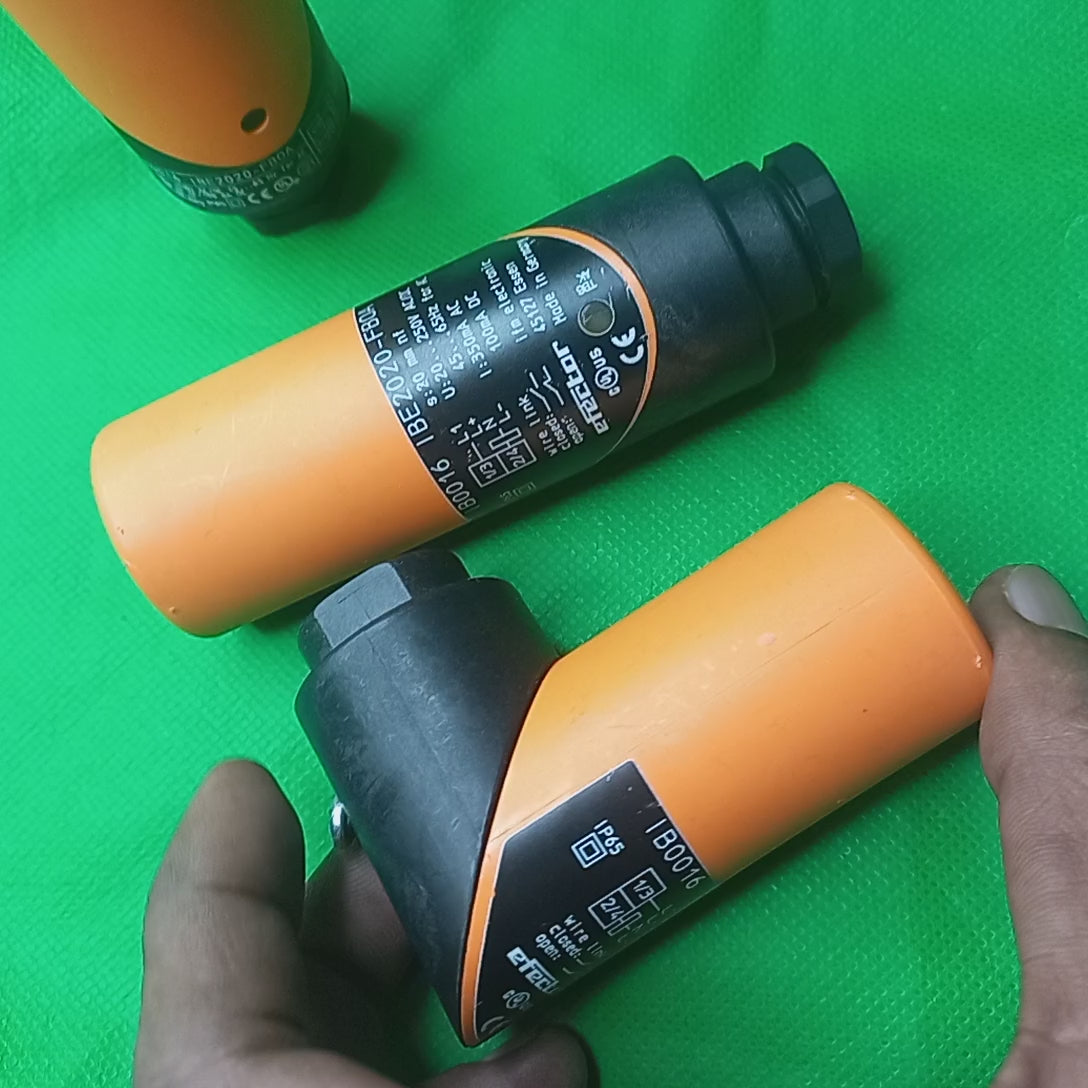

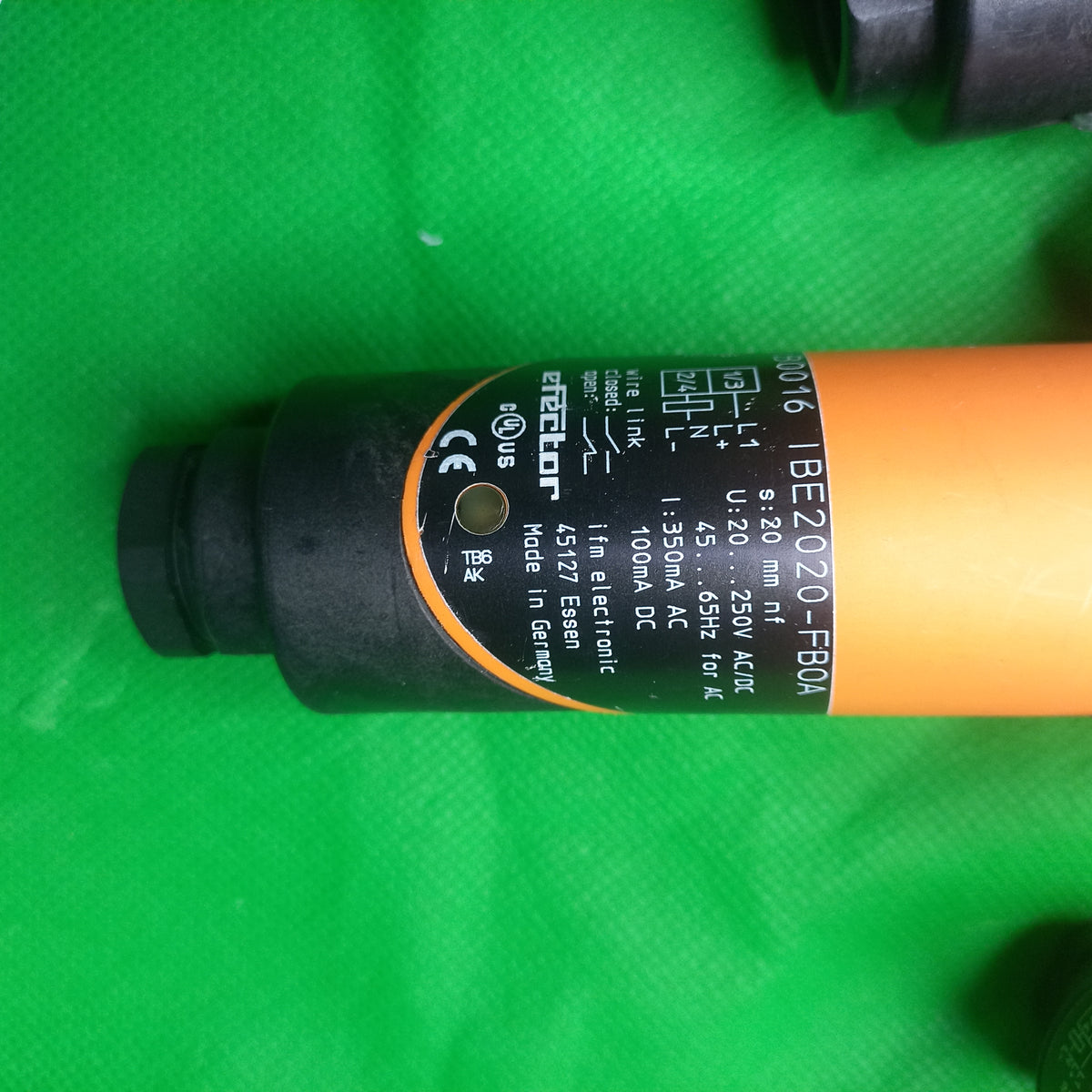

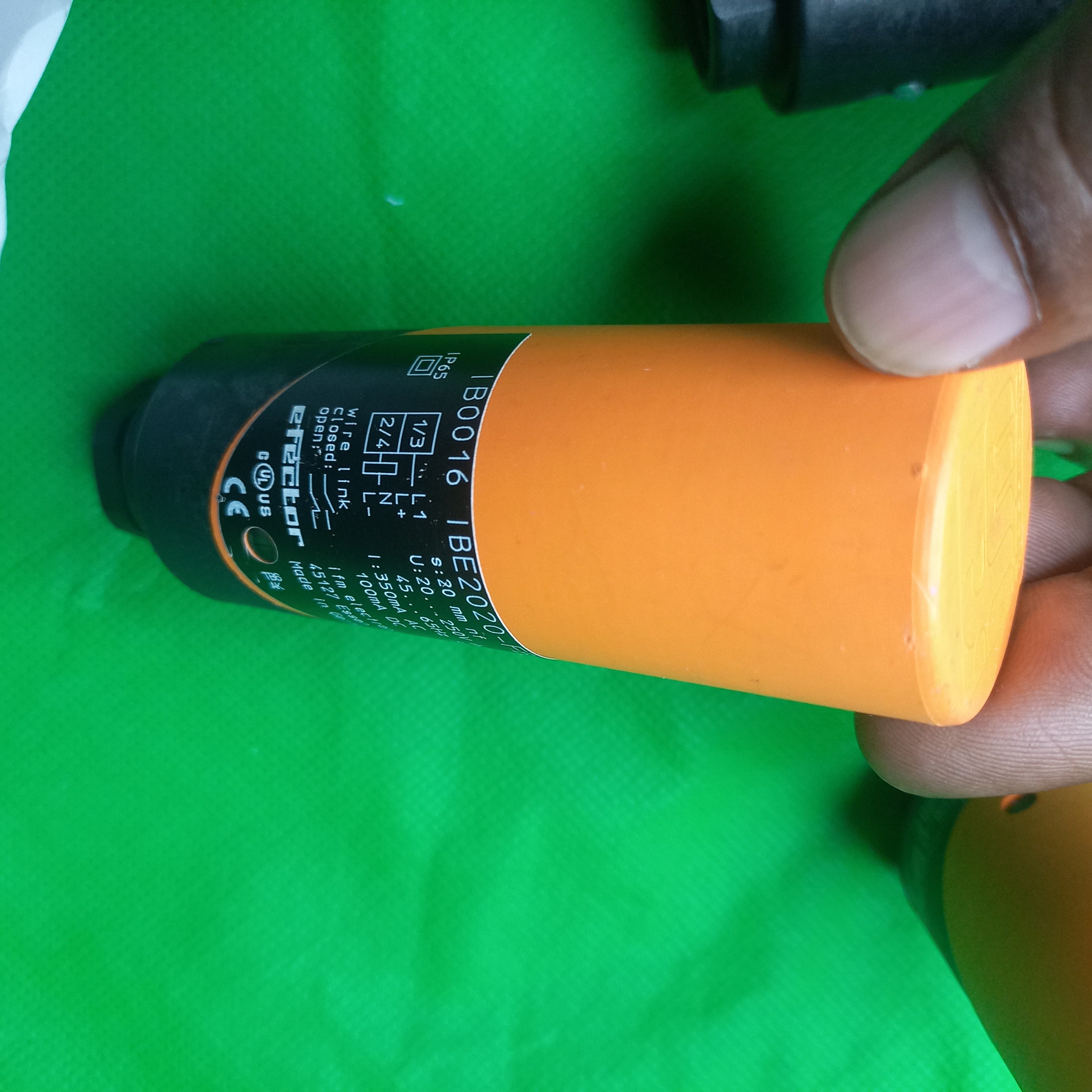

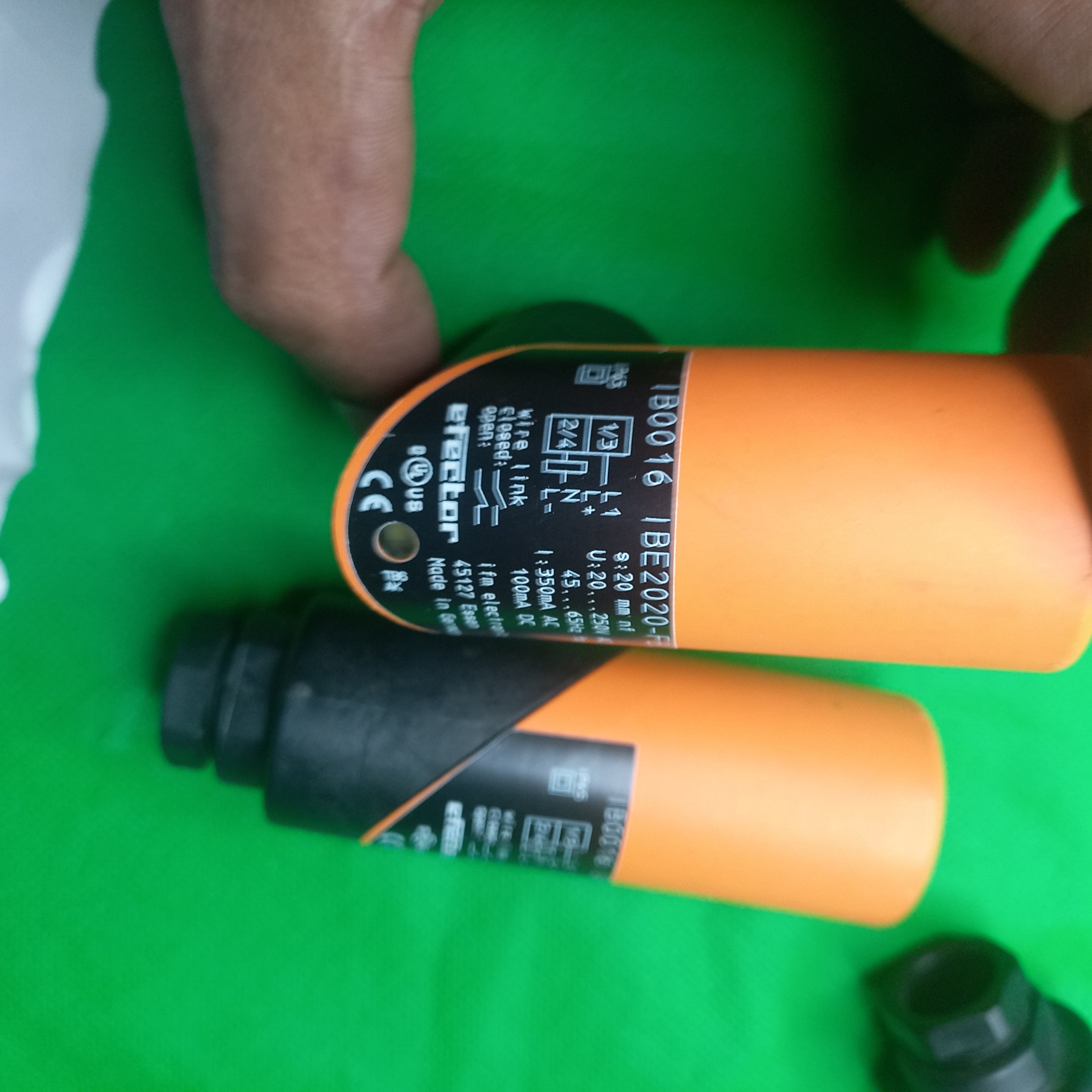

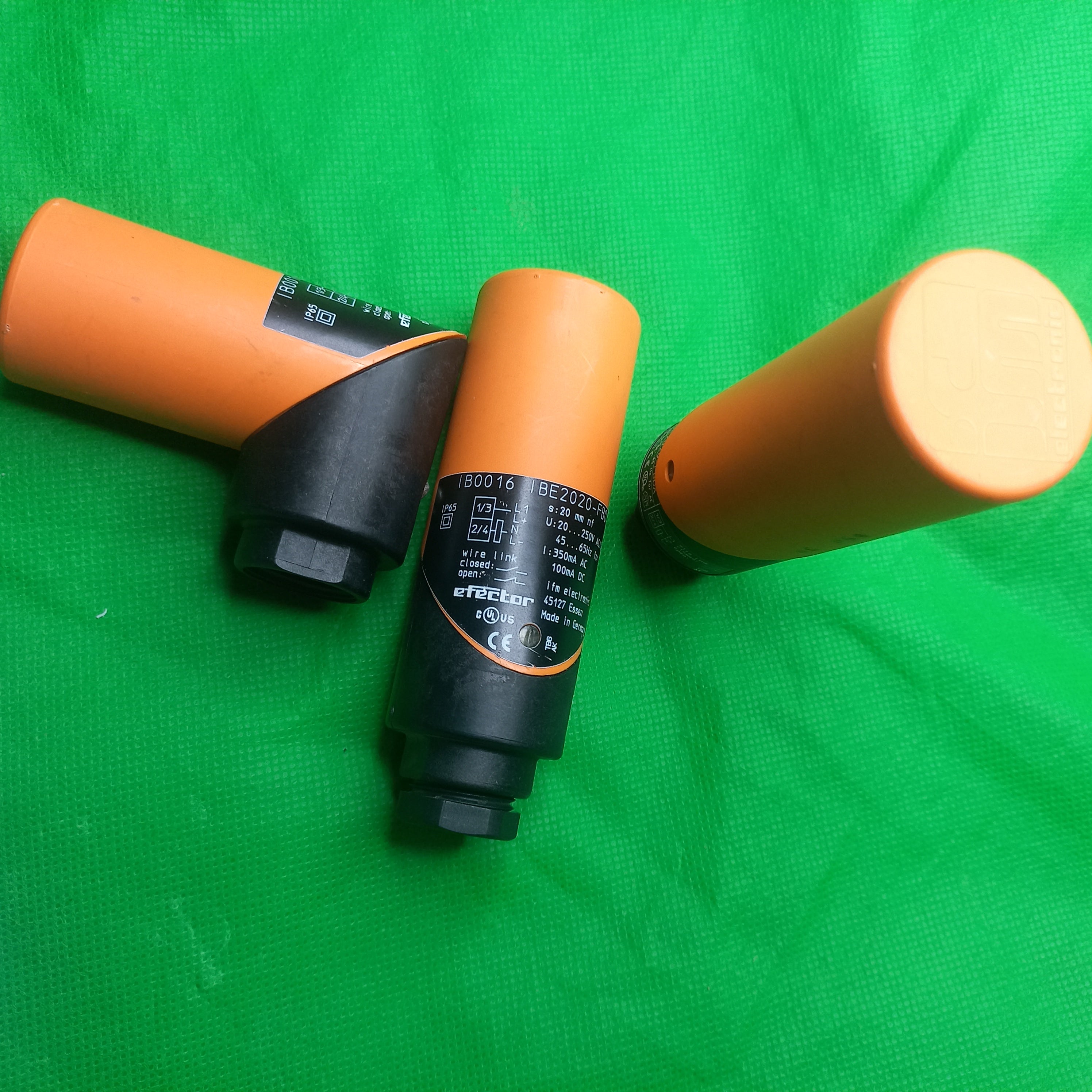

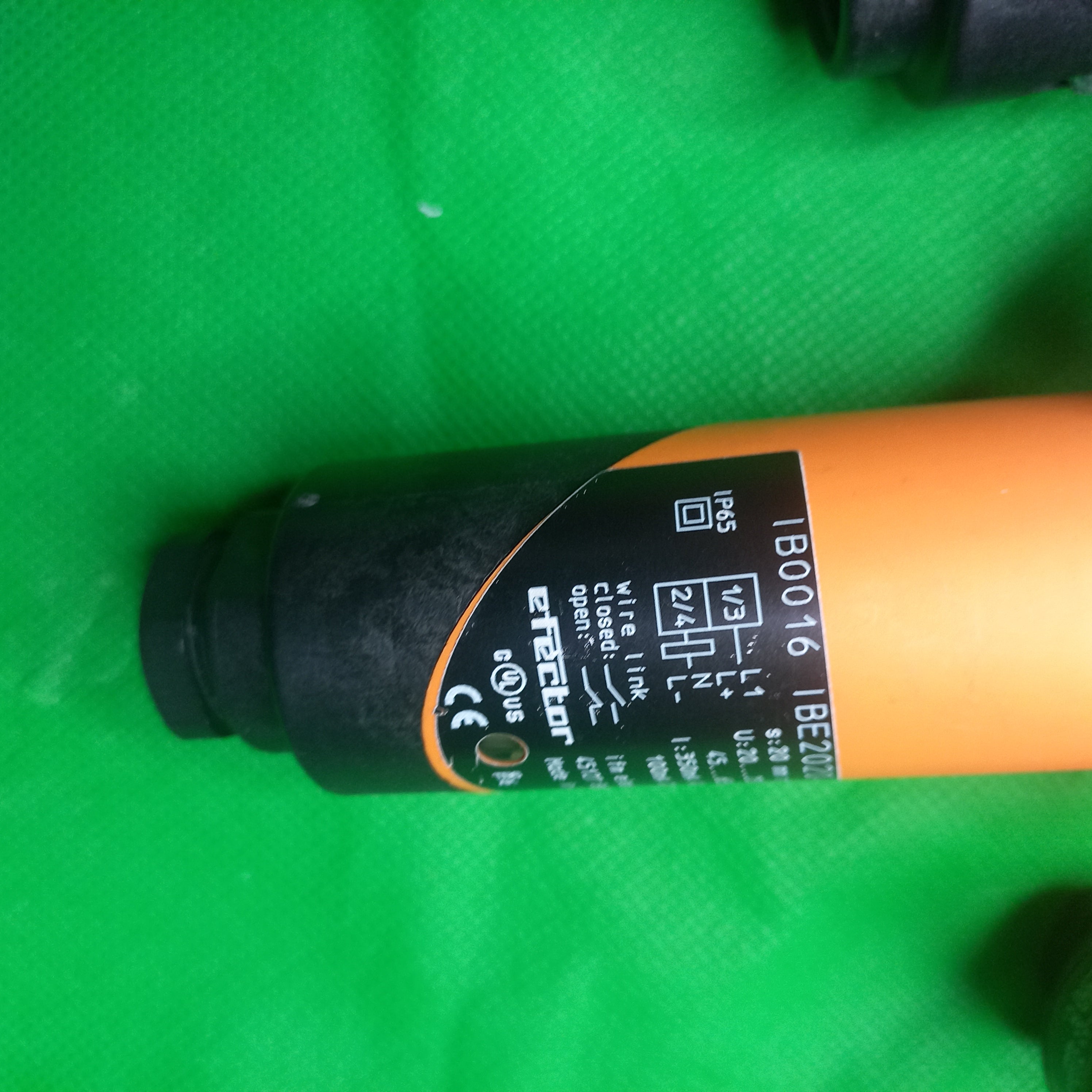

 The inductive sensor 1B0016 - 1BE2020-FBOA from ifm operates as dual voltage design with 20-250 V AC/DC.

The NC or NO output function can be selected via a wire bridge.  2-wire connection and the sensing range of 20 mm with non-flush installation the inductive sensor IB0016

Product characteristics

Output function	normally open / normally closed; (selectable)
Sensing range[mm]	20
Housing	cylindrical
Dimensions[mm]	Ø 34 / L = 98

Application

Application

Industrial applications / factory automation

Electrical data

Operating voltage[V]	20...250 AC/DC
Protection class	II
Reverse polarity protection	no

Outputs

Output function	normally open / normally closed; (selectable)
Max. voltage drop switching output DC[V]	6
Max. voltage drop switching output AC[V]	6.5
Minimum load current[mA]	5
Max. leakage current[mA]	2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC[mA]	250; (350 (...50 °C))
Permanent current rating of switching output DC[mA]	100
Short-time current rating of switching output[mA]	2200; (20 ms / 0,5 Hz)
Switching frequency AC[Hz]	25
Switching frequency DC[Hz]	50
Short-circuit proof	no
Overload protection	no

Detection zone

Sensing range[mm]	20
Real sensing range Sr[mm]	20 ± 10 %
Operating distance[mm]	0...16.2

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr]	3...15
Switch point drift[% of Sr]	-10...10

Operating conditions

Ambient temperature[°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF[years]	610
UL approval	Ta 0...40 °C Enclosure type Type 1 File number UL E174191

Mechanical data

Weight[g]	184.5
Housing	cylindrical
Mounting	non-flush mountable
Dimensions[mm]	Ø 34 / L = 98
Materials	housing: PBT; bevelled housing part: PC

Displays / operating elements

Display

switching status 1 x LED, yellow

Electrical connection

Required protection

miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied

Mounting clamps: 1

Remarks

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection

terminals

...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5

• MPN : IB0016
• Manufacturer indent Nr. : IB0016IBE2020FBOA
• Manufacturer Product number : 1BE2020-FBOA
• Alternative ways of identifying | Part Numbers | Compatible Parts : 1B0016
• Typographic Errors in MPN | Mistakenly Known as : 1BE2020FBOA
