IFM IM5132 IMC4020BCPKGK1US, PNP, Antivalent, 20mm Sensing Flush
$180.00
Skip to product information
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
IFM IM5132 IMC4020BCPKGK1US, PNP, Antivalent, 20mm Sensing Flush
$180.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IFM
- Sensor Type: Block | Cube Housing - Rectangular Square- Inductive Sensor ( Limit Switch Style)Inductive Sensor
- Sensor Dimensions: 40x40x54mm
- Sensor Range : 20 mm Rated Operating distance| Flush Mounting
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty

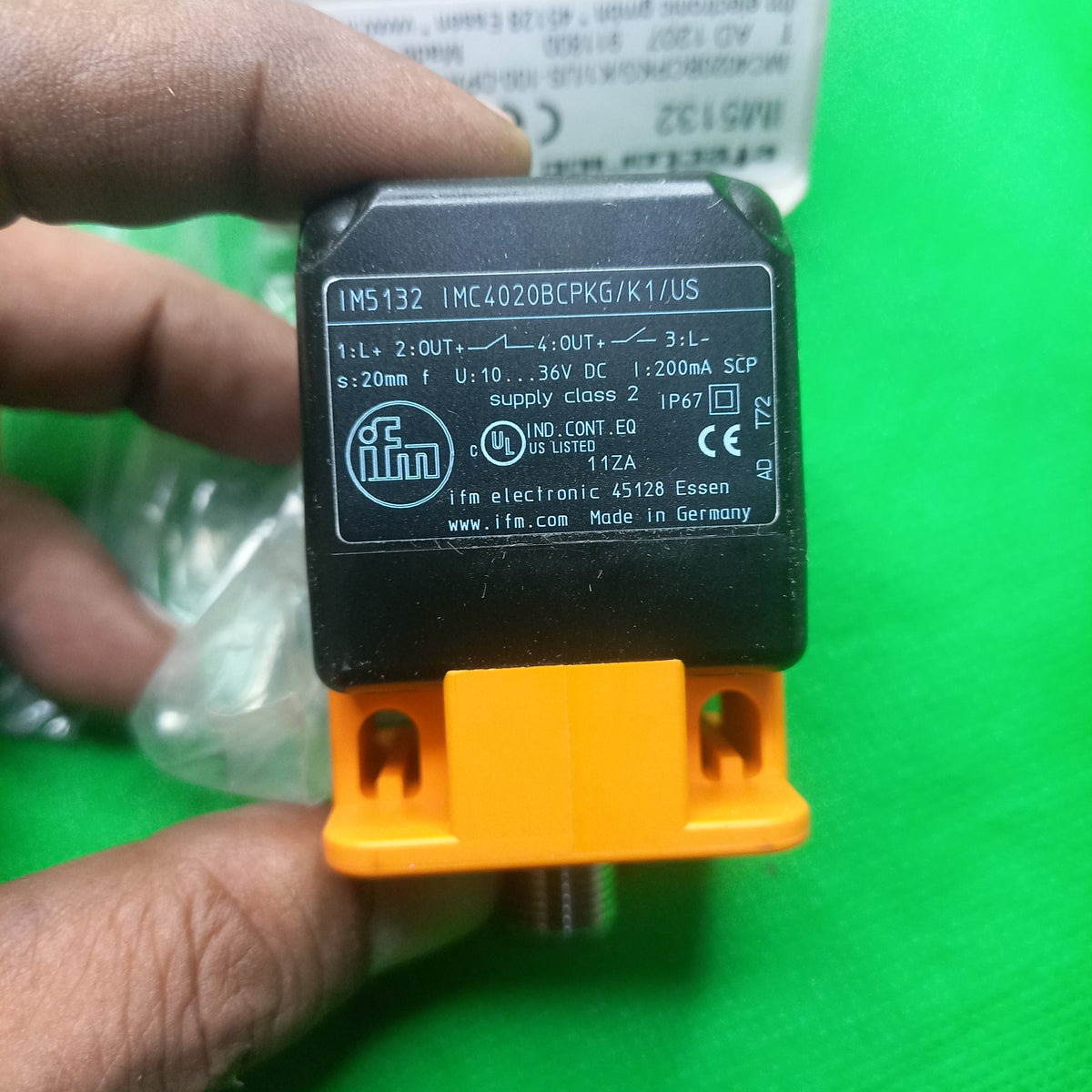

Inductive sensor IM5132 | IMC4020BCPKG/K1/US | Opposite output function: Normally closed / Normally open, Sensing distance: 20mm, Cuboid Shape, 40x40x54mm,
IM5132, IMC4020BCPKG/K1/US , PNP, Antivalent,
IMS132, IMC4020BCPKG/K1/US
- Correction factor 1: Same switching distance for all metals
- High switching distance for use in conveyor technology
- Opposite output function: Normally closed / Normally open
- Active area adjustable to five positions
- Corner LEDs clearly visible from any adjustment position
Product features
| Electrical version | PNP |
| Initial function | antivalent |
| Switching distance [mm] | 20 |
| Housing | cuboid shape |
| Dimensions [mm] | 40 x 40 x 54 |
Area of application
| Special characteristic | Correction factor K=1; Magnetic field resistant |
| Magnetic field resistant | Yes |
| Max. magnetic field strength [mT] | 300 |
Electrical data
| Operating voltage [V] | 10...36 DC |
| Current consumption [mA] | < 20 |
| Protection class | II |
| Reverse polarity protection | Yes |
Exits
| Electrical version | PNP |
| Initial function | antivalent |
| Max. voltage drop switching output DC [V] | 2.5 |
| Max. residual current [mA] | 0.1 |
| Continuous current carrying capacity of the switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 200 |
| Short-circuit protection | Yes |
| Short-circuit protection design | timed |
| Overload resistant | Yes |
Detection area
| Switching distance [mm] | 20 |
| Real switching distance Sr [mm] | 20 ± 10 % |
| Working distance [mm] | 0...16.2 |
Accuracy / Deviations
| Correction factor | Steel: 1 / Stainless steel: 1 / Brass: 1 / Aluminum: 1 / Copper: 1 |
| Hysteresis [% of Sr] | 1...20 |
| Shift point drift [% of Sr] | -10...10 |
| Correction factor K=1 | Yes |
Environmental conditions
| Ambient temperature [°C] | -25...70 |
| Protection class |
IP 67; IP 69K
|
- MPN : IM5132
- Manufacturer indent Nr. : IM5132IMC4020BCPKGK1US
- Manufacturer Product number : IMS132
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
