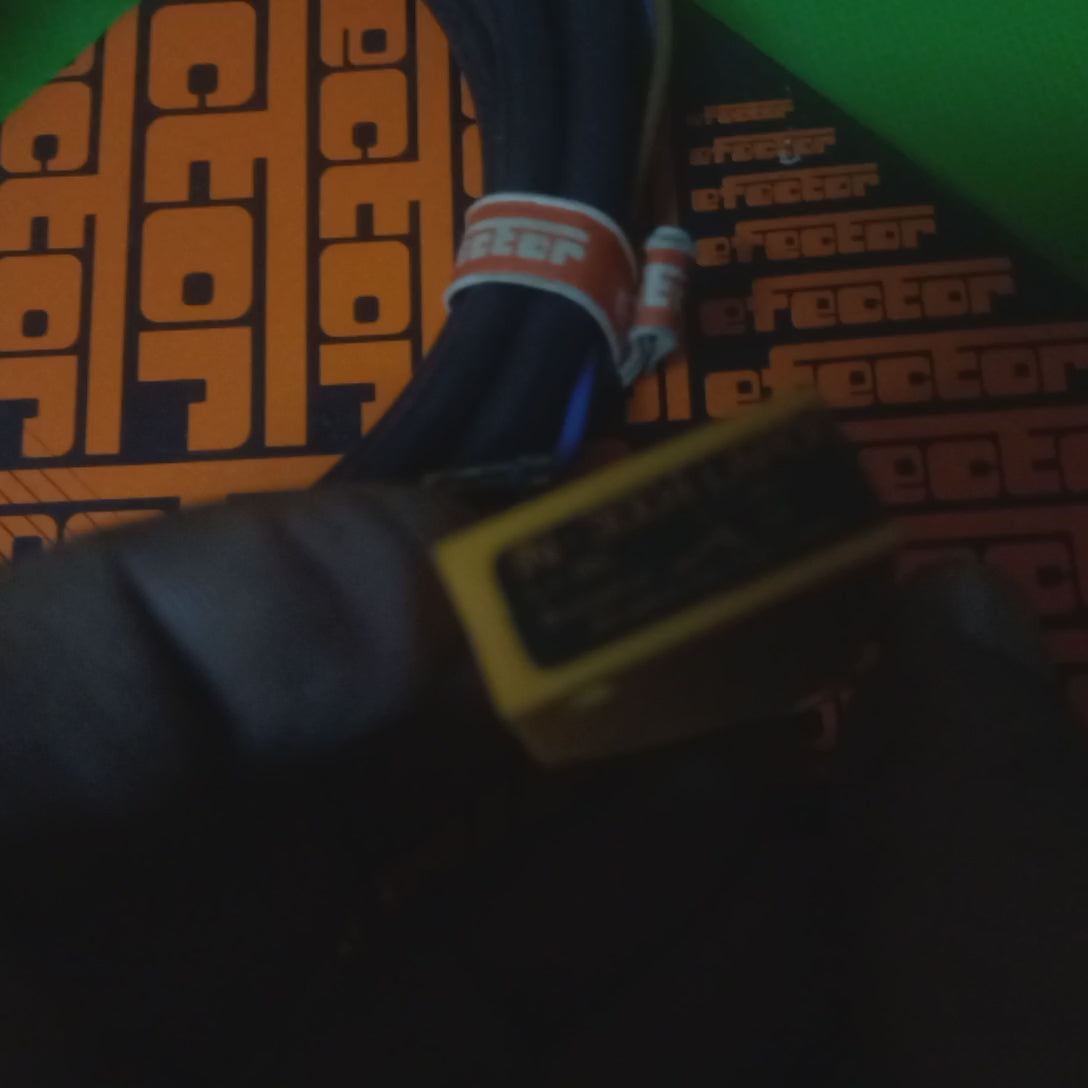

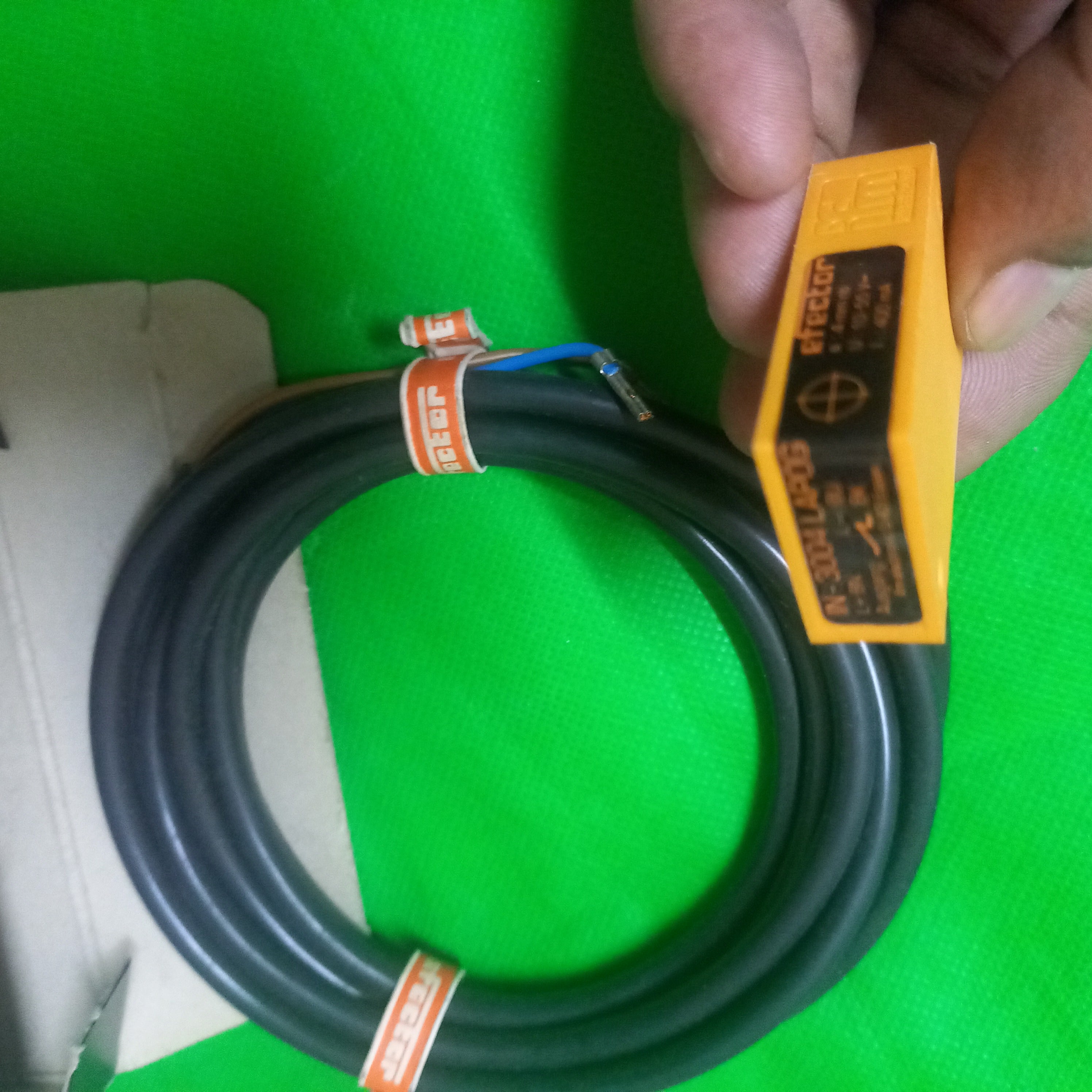

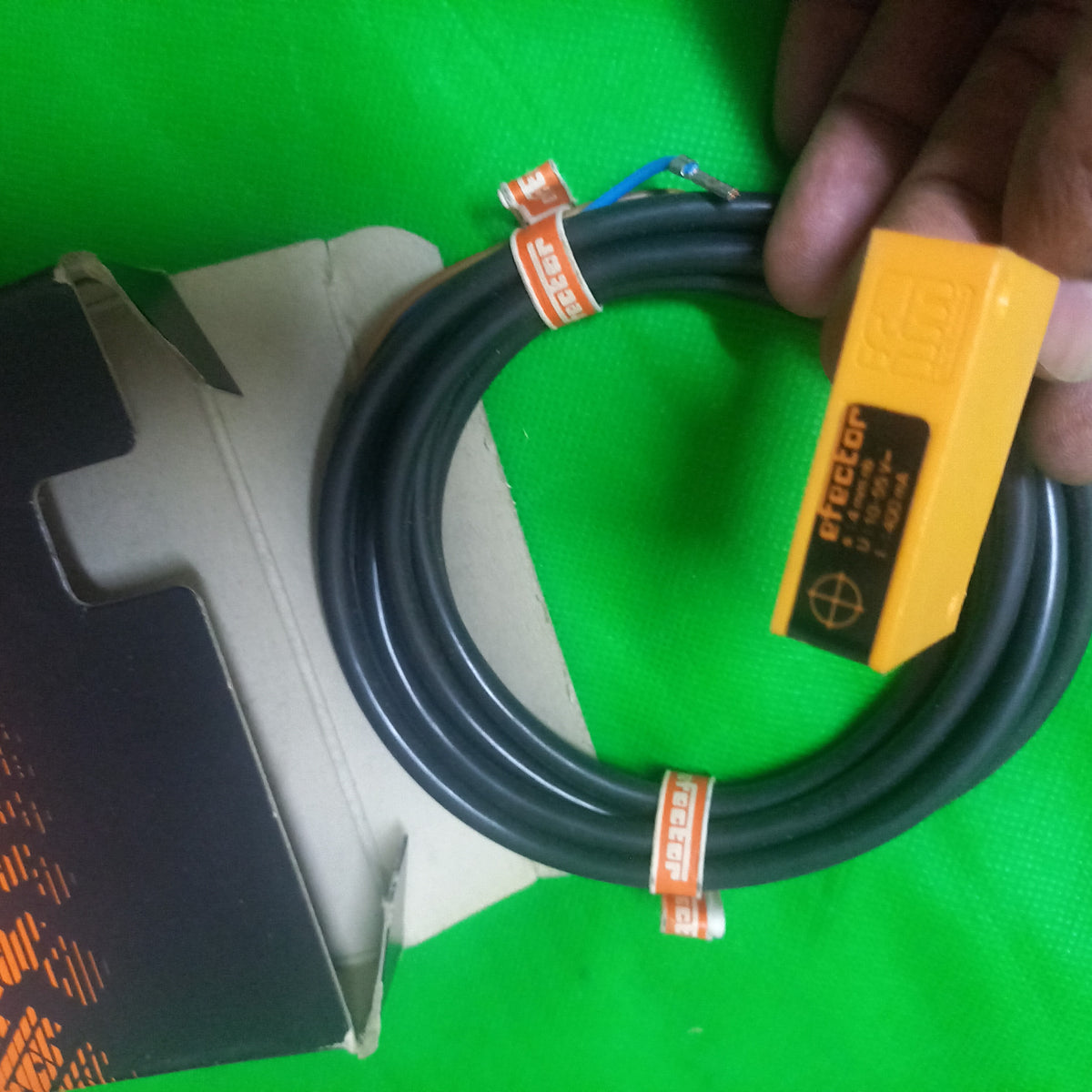

Inductive sensor IN5014, IN-3004LAPOG, PNP Range_4mm, Rectangular, non-flush
$120.00
Skip to product information
IN-3004 LAPOG Drei-Leiter-System DC Ausgang: PNP+ NC
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Inductive sensor IN5014, IN-3004LAPOG, PNP Range_4mm, Rectangular, non-flush
$120.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IFM
- Sensor Type: Inductive Proximity SensorInductive Sensor
- Sensor Dimensions: Rectangular 40 x 12 x 26 mm
- Sensor Interface:
- Sensor Range : 4mm
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
IN-3004 LAPOG Drei-Leiter-System DC Ausgang: PNP+ NC

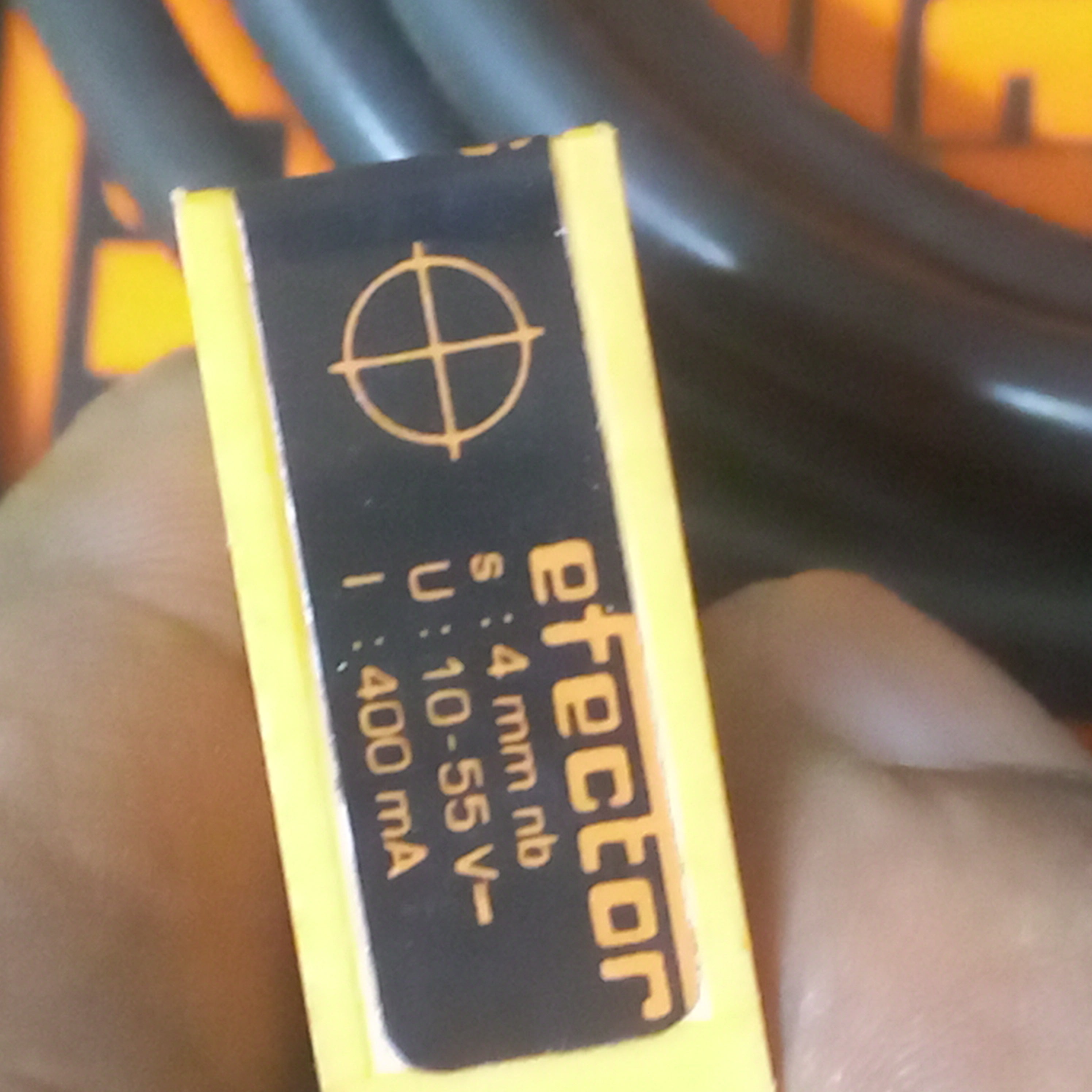

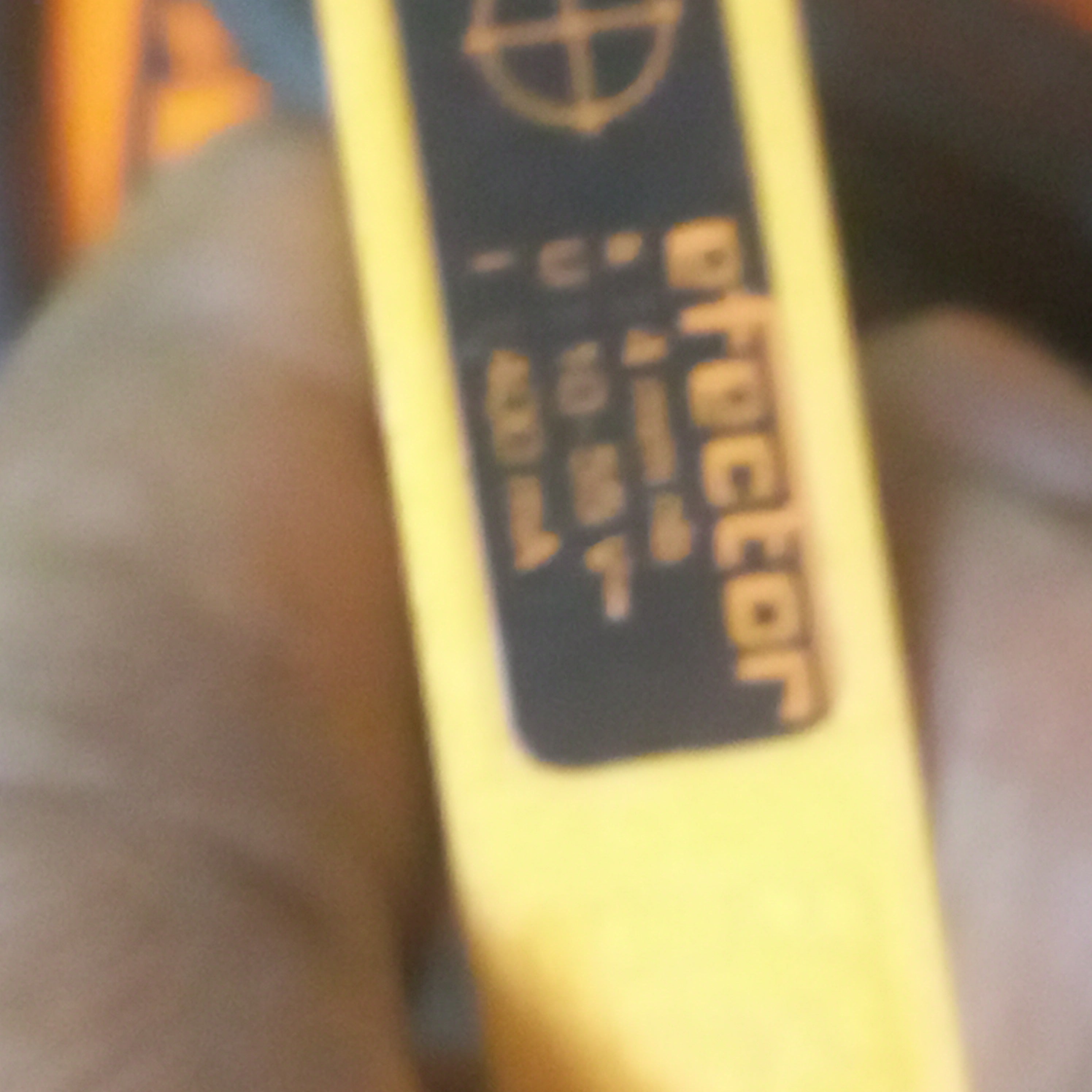

Range: s: 4mm nb (nicht bundig in Metall Einbaubar), U: 10-55V DC, I : 400mA; Schutzart IP 65
IN-3004 LAPOG 3-wire system, DC output: PNP + NC
Range: s = 4 mm non-flush (cannot be flush-mounted in metal), U = 10–55 V DC, I = 400 mA; protection rating IP 65
Inductive sensor, IN5014, IN-3004LAPOG, PNP,Range_4mm,Rectangular,40 x 12 x 26,non-flush mountable
Product characteristics
Electrical design PNP
Output function normally closed
Sensing range[mm] 4
Housing rectangular
Dimensions[mm] 40 x 12 x 26
Electrical data
Operating voltage[V] 10...55 DC
Current consumption[mA] 7; (24 V)
Reverse polarity protection no
Outputs
Electrical design PNP
Output function normally closed
Max. voltage drop switching output DC[V] 1
Permanent current rating of switching output DC[mA] 400
Switching frequency DC[Hz] 250
Short-circuit protection no
Overload protection no
Detection zone
Sensing range[mm] 4
Real sensing range Sr[mm] 4 ± 10 %
Operating distance[mm] 0...3.25
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.85 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr] 3...15
Switch point drift[% of Sr] -10...10
Operating conditions
Ambient temperature[°C] -25...80
Protection IP 65
Mechanical data
Housing rectangular
Mounting non-flush mountable
Dimensions[mm] 40 x 12 x 26
Materials housing: PBT
Displays / operating elements
Display
switching status 1 x LED, yellow
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable 2 m, PUR; 3 x 0.5 mm²
- MPN : IN5014
- Manufacturer indent Nr. : IN5014IN 5014
- Manufacturer Product number : IN3004LAPOG
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
