IFT203,IFB3004BBPKG/M/V4A/US-104DPS | Ø 12x45L | M12 Connector | PNP NO | Sn: 4mm
$190.00
Skip to product information

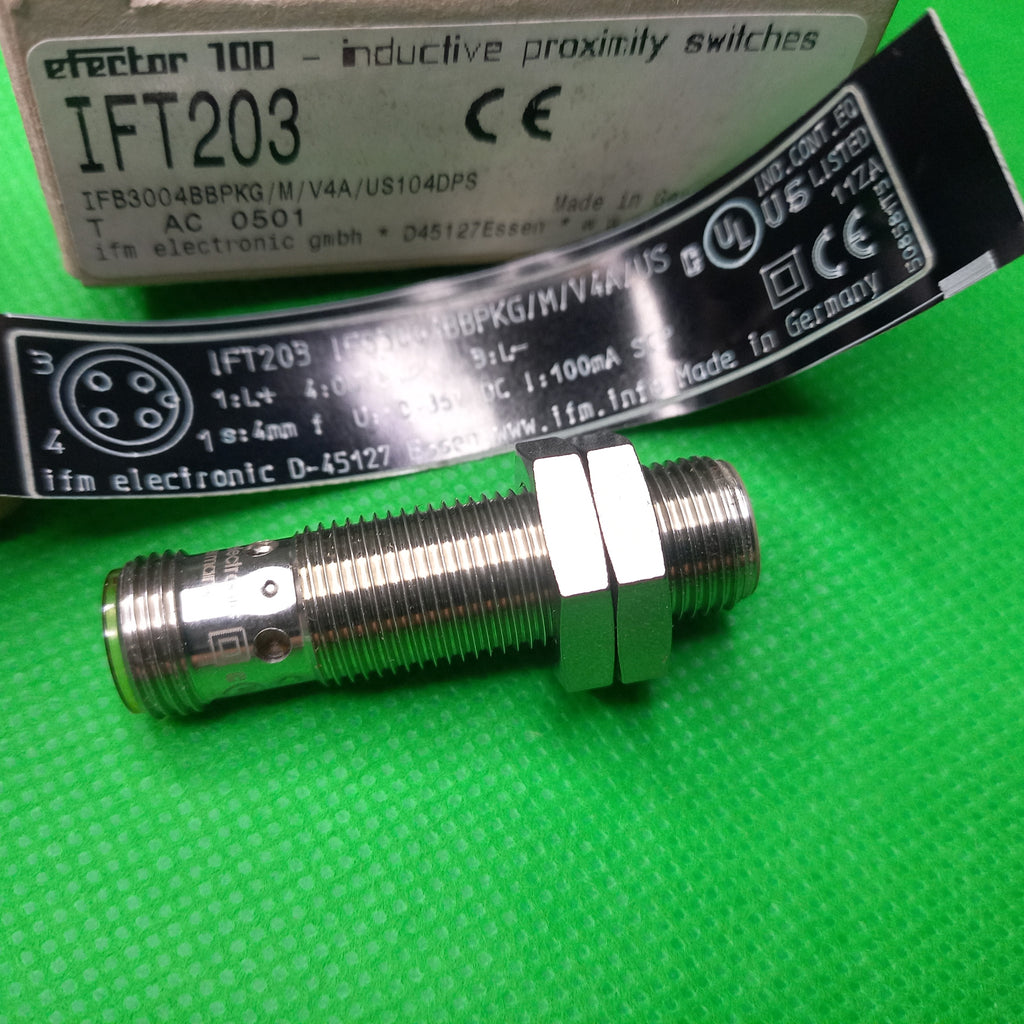

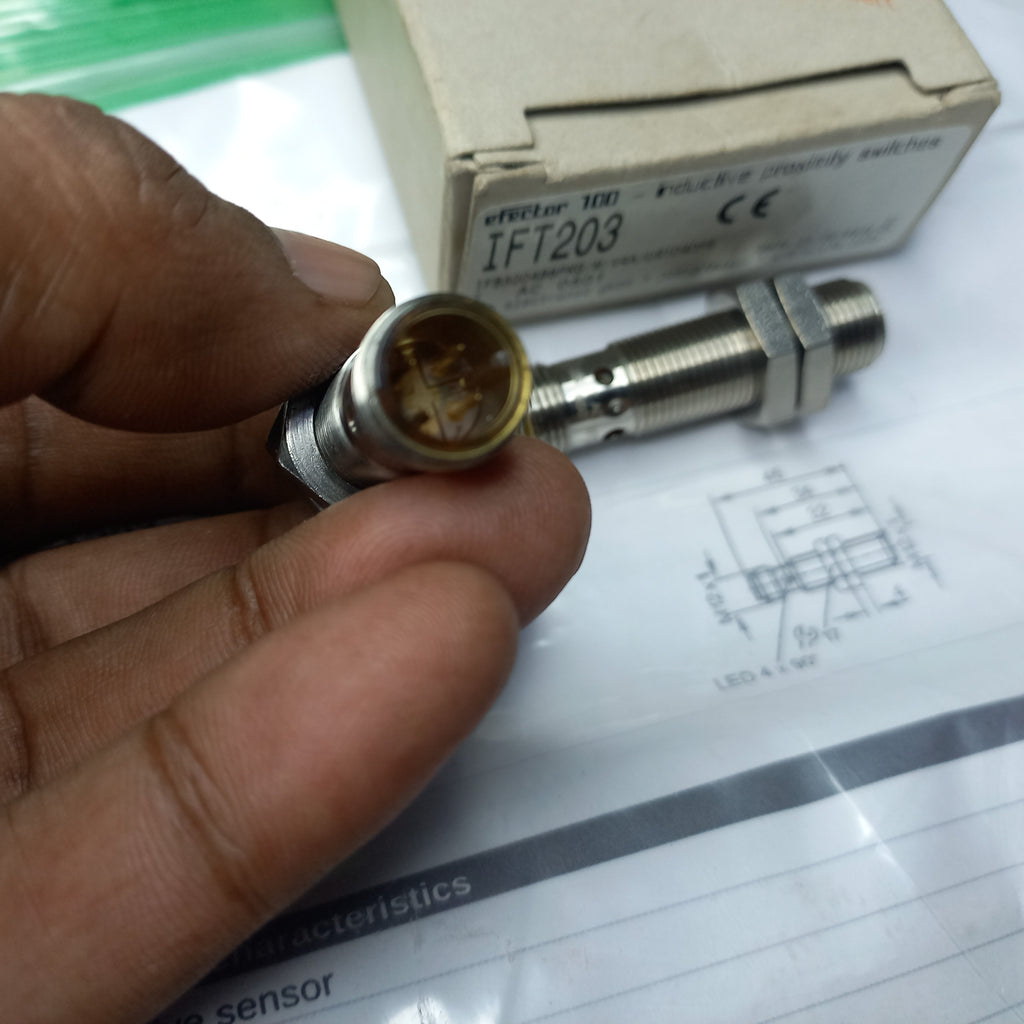

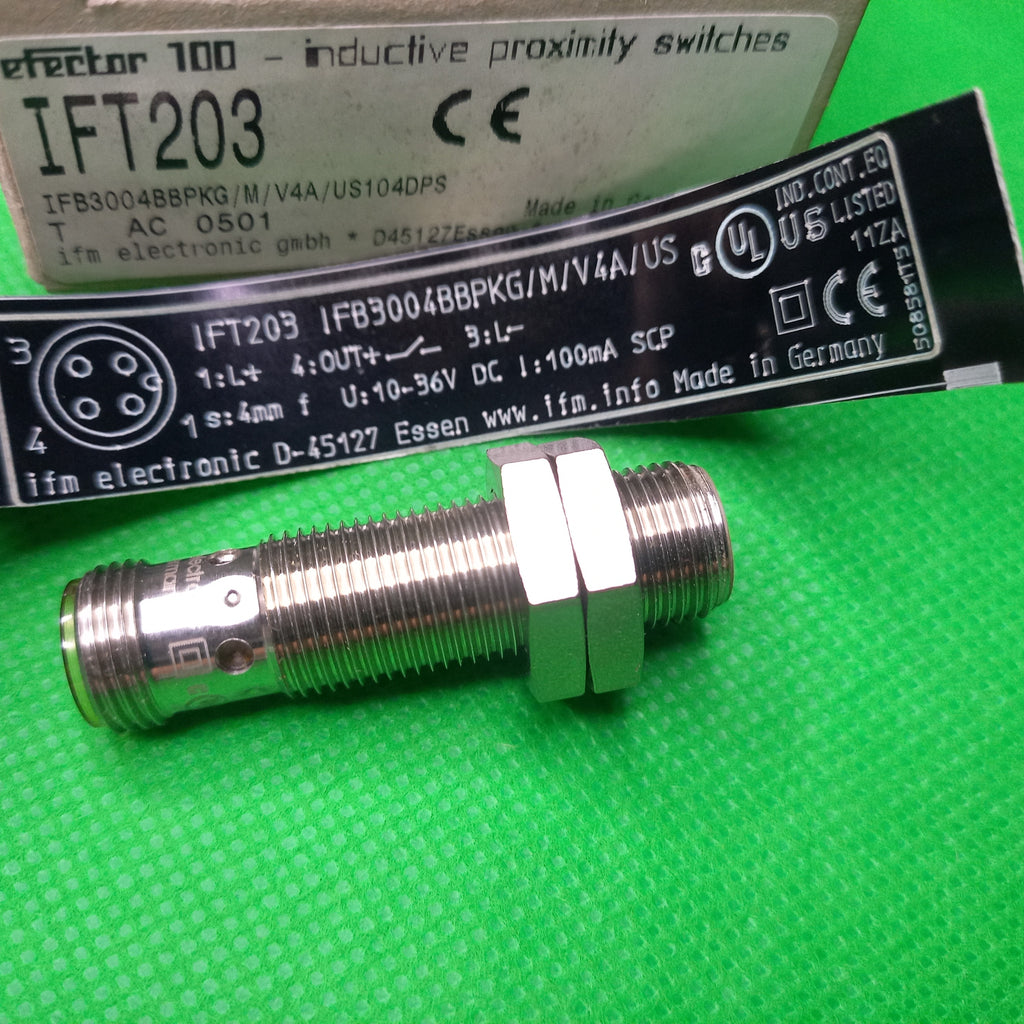

Inductive sensor IFT203,IFB3004BBPKG/M/V4A/US-104DPS
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
IFT203,IFB3004BBPKG/M/V4A/US-104DPS | Ø 12x45L | M12 Connector | PNP NO | Sn: 4mm
$190.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: IFM
- Sensor Type: Cylinderical Inductive Proximity SensorInductive Sensor
- Sensor Dimensions: Ø 12 x 79 mm(L) | M12 x 1
- Sensor Range : Range 4 mm | Flush
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Inductive sensor IFT203,IFB3004BBPKG/M/V4A/US-104DPS
10-36VDC, 100mA, PNP NO sn: 4mm, Flush, M12 x 1 / L = 45, Connector M12
- Wide operating temperature range
- High protection rating for the requirements of harsh industrial environments
- Resistant to high-pressure cleaning with aggressive cleaning agents
- Robust stainless steel housing for use in the food industry
- Temperature shock resistant even in case of frequent temperature fluctuations
Product characteristics
| Electrical design | PNP |
| Output function | normally open |
| Sensing range[mm] | 4 |
| Housing | threaded type |
| Dimensions[mm] | M12 x 1 / L = 45 |
Application
| Special feature | Gold-plated contacts; Increased sensing range |
| Application | Use in hygienic areas / regular cleaning processes |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 10 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
| Output function | normally open |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | 800 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] | 4 |
| Real sensing range Sr[mm] | 4 ± 10 % |
| Operating distance[mm] | 0...3.24 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
| Hysteresis[% of Sr] | 1...20 |
| Switch point drift[% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] | 0...100 |
| Protection | IP 68; IP 69K; ("COP") |
- MPN : IFT203
- Manufacturer indent Nr. : IFT2031FT203
- Manufacturer Product number : IFB3004BBPKGMV4AUS104DPS
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
