Inmet | Aeroflex | Spectrum control 18AH-03 | 18AH-3db -Attenuator, 3 dB, SMA (M/F)
$96.00
Skip to product information
- Same day service is possible if we recieve motor by 7 AM,
Inmet | Aeroflex | Spectrum control 18AH-03 | 18AH-3db -Attenuator, 3 dB, SMA (M/F)
$96.00
Taxes included.
Shipping calculated at checkout.
- 18AH-03 | 18AH-3db
- Aeroflex 18AH03 | 18AH3db
- Inmet 18AH-03 SMA
- Inmet 18AH-03Db SMA 3dB 18 GHZ
- Spectrum 18AH-03 SMA 03dB

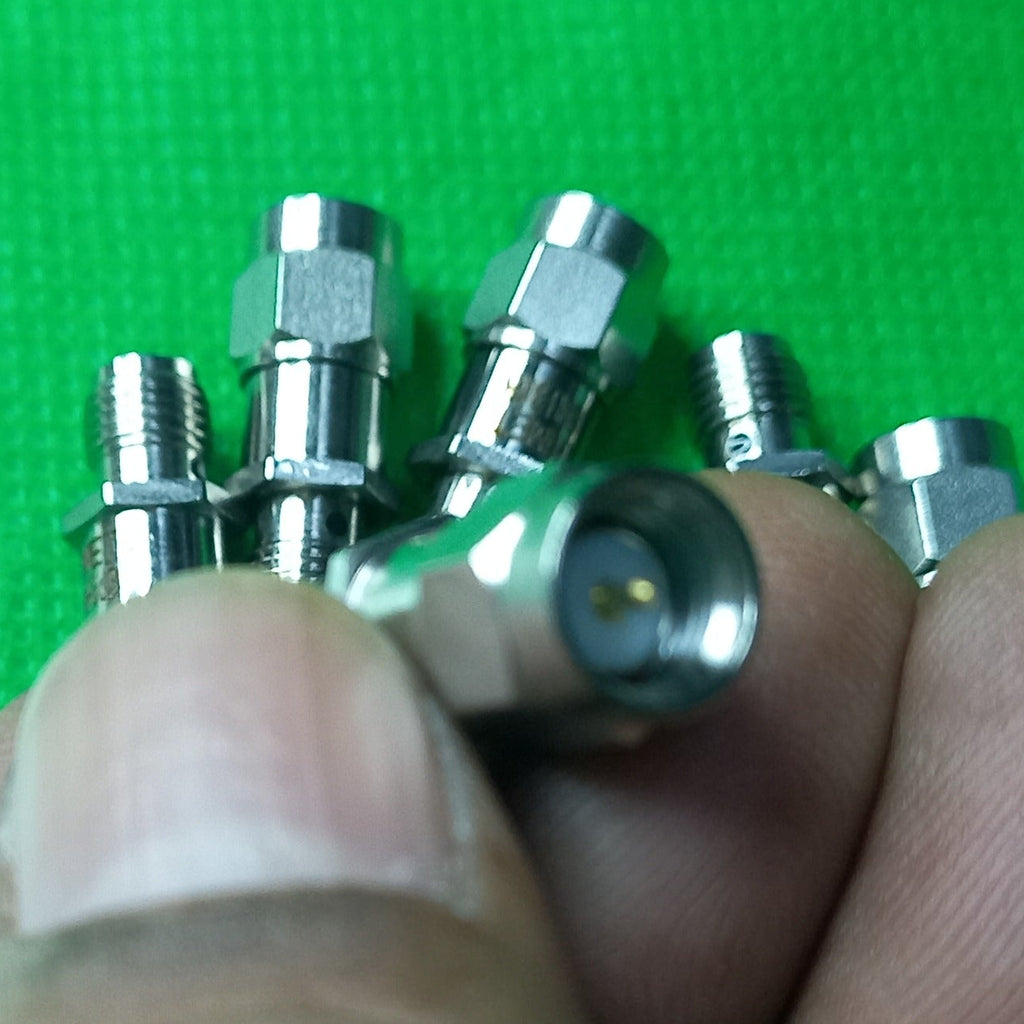

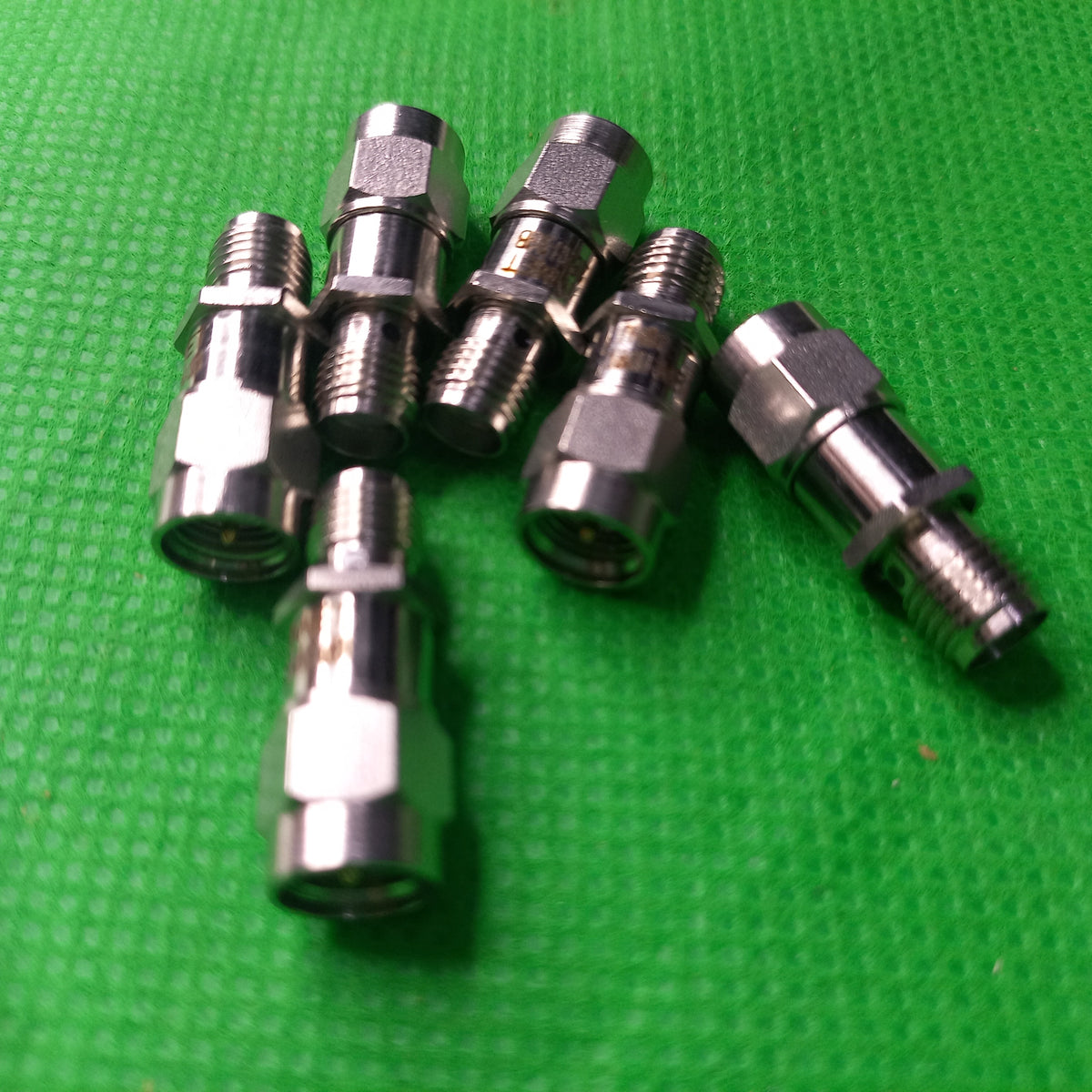

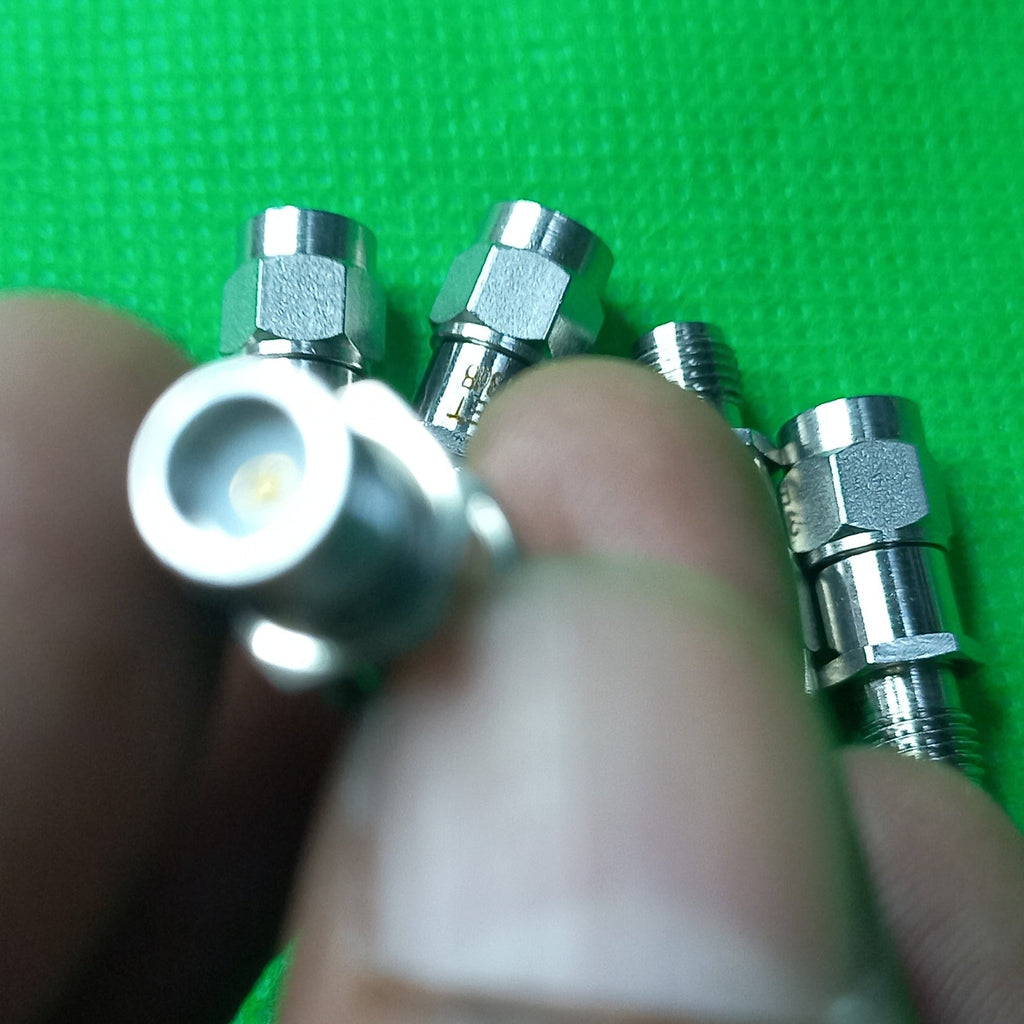

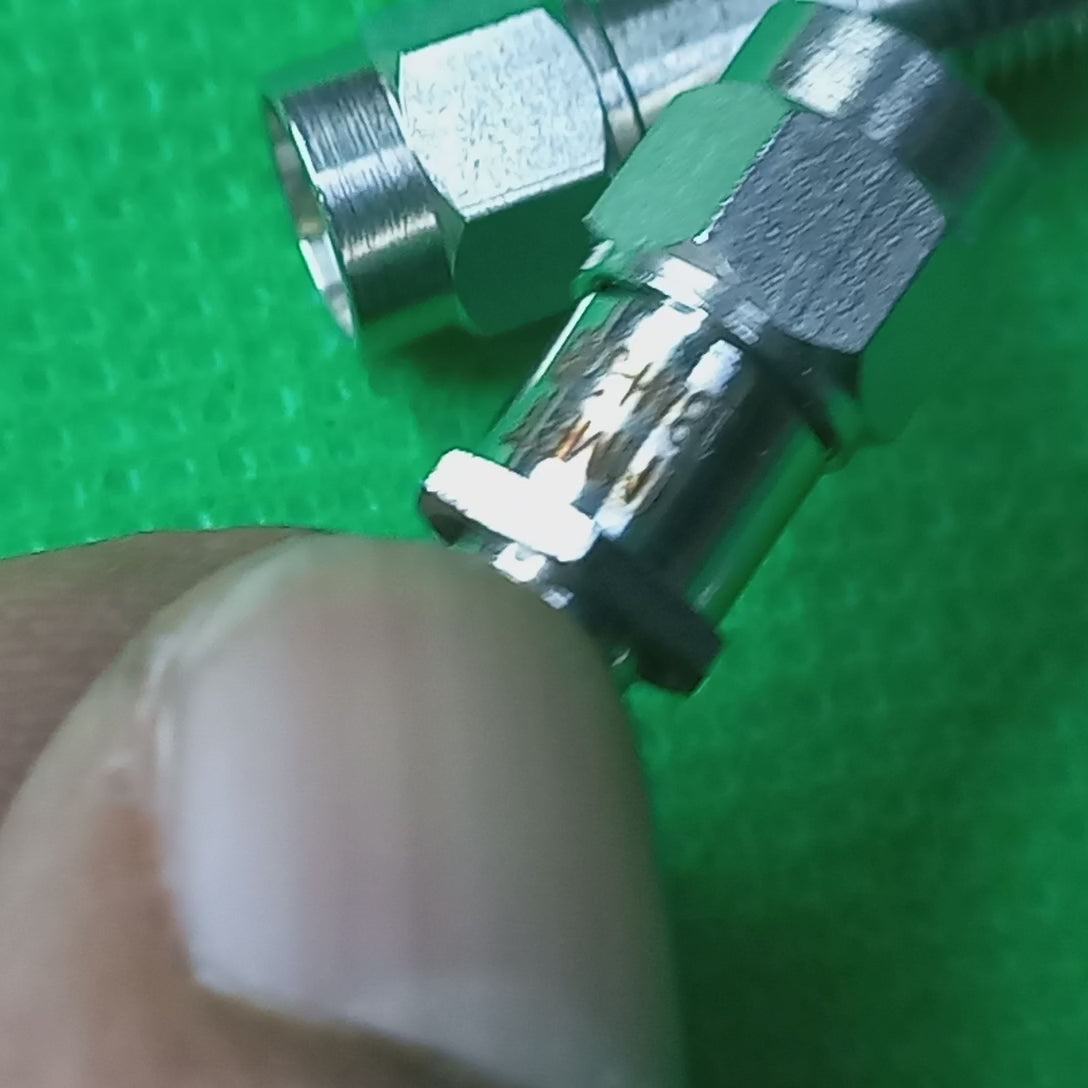

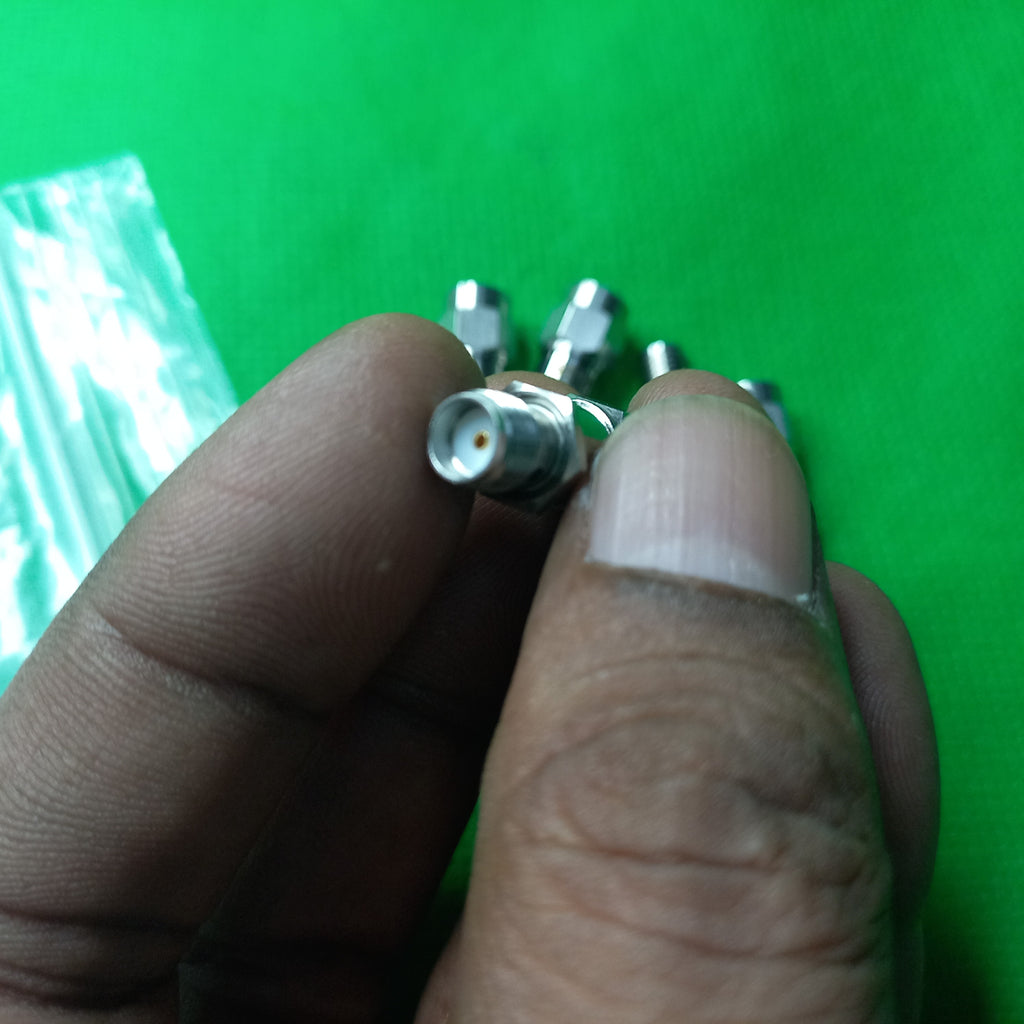

18AH-03 (commonly referred to as 18AH-3db) is an Inmet brand fixed coaxial RF attenuator manufactured by Spectrum Control, featuring a 3 dB attenuation value and operating up to an 18 GHz frequency.
- The 18AH series SMA Connectorized RF Coaxial Attenuators from API Inmet operate from DC-18 GHz up to 2 Watts, 50 Ohms.
- The SMA Male to SMA Female RF Coaxial Attenuators are available in 0-30 dB increments.
- The temperature range is from -65c to +125c. VSWR from 1.05 to 1.35:1 depending on frequency.

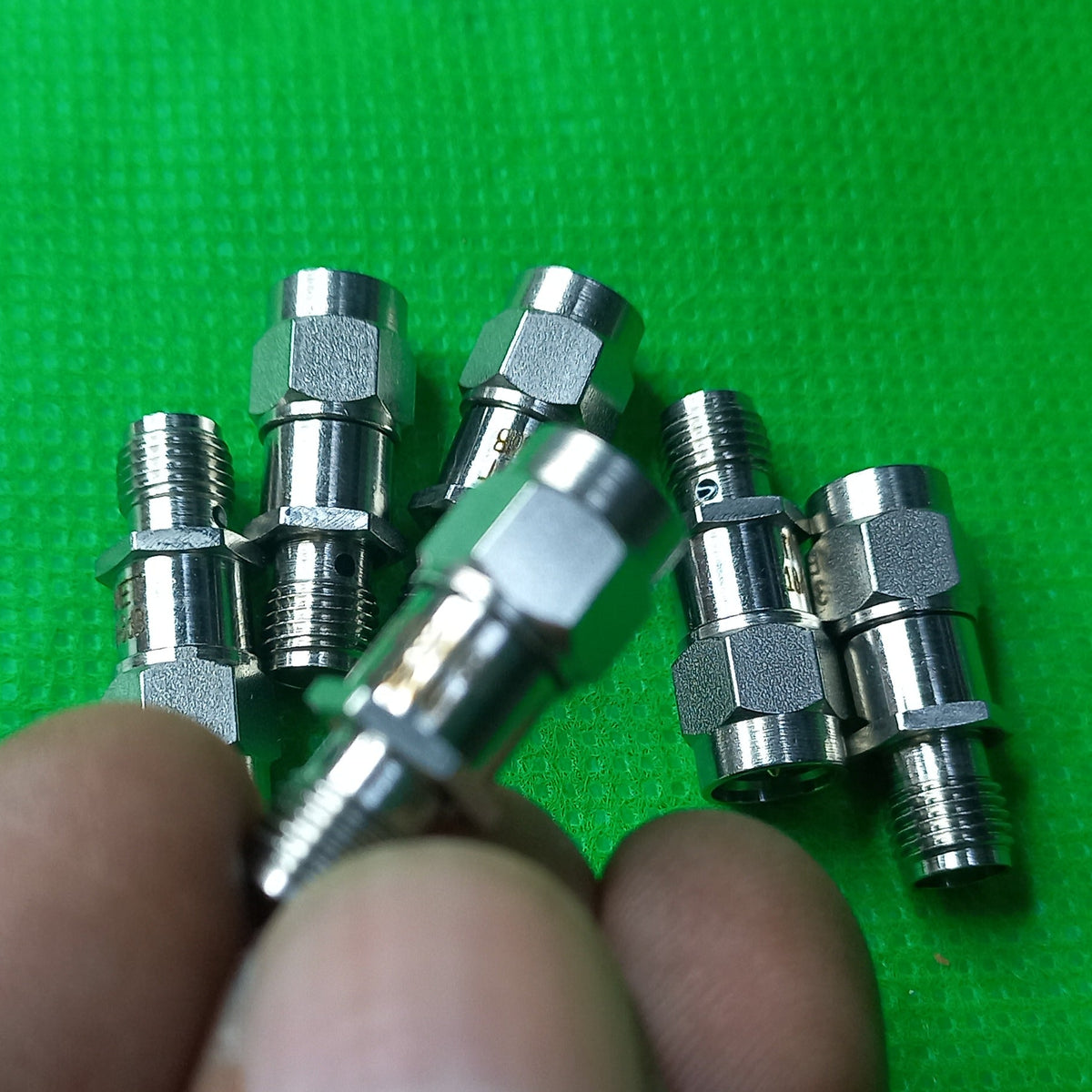

- The SMA connector body is made of durable Passivated Stainless Steel which allows for many mating and de-mating’s.
- The SMA Male to Female RF Coaxial Attenuator length is .86 inches for 0-12 dB and .99 inches for 13-30 dB.
- The SMA Connector hex nut body makes it easy to securely connect the attenuator to a panel, instrument or cable assembly quickly.
Applications for RF Coaxial Attenuators include (but are not limited to), Metrology, Wireless Systems, Broadband System Applications, Mobile Communication Systems, RF Electronic Surveillance Systems, GPS and Navigation Systems, Broadband Multichannel Communications, And RF Environmental Monitoring Systems.
|
Part Number:18AH-03
|
|
Manufacturer: Spectrum Control Inc — Inmet
|
|
Frequency Min: 0 GHz
|
|
Frequency Max: 18 GHz
|
|
dB Value: 3 dB
|
|
Avg. Power: 2 W
|
|
Connector 1: SMA Male
|
|
Connector 2: SMA Female
|
|
Max VSWR: 1.35:1
|
|
Accuracy: 0.3 ±dB
|
