K14 diaphragm coupling 6/6 mm Heidenhain 293328-01 (Overall Dia-30mmx L=30mm)
$195.00
Skip to product information
K14 Diaphragm coupling
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
K14 diaphragm coupling 6/6 mm Heidenhain 293328-01 (Overall Dia-30mmx L=30mm)
$195.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 293328-01
- Manufacturer Alternative MPN ; 293 328-01
- Manufacturer Id Nr. K14/01 293-328-01

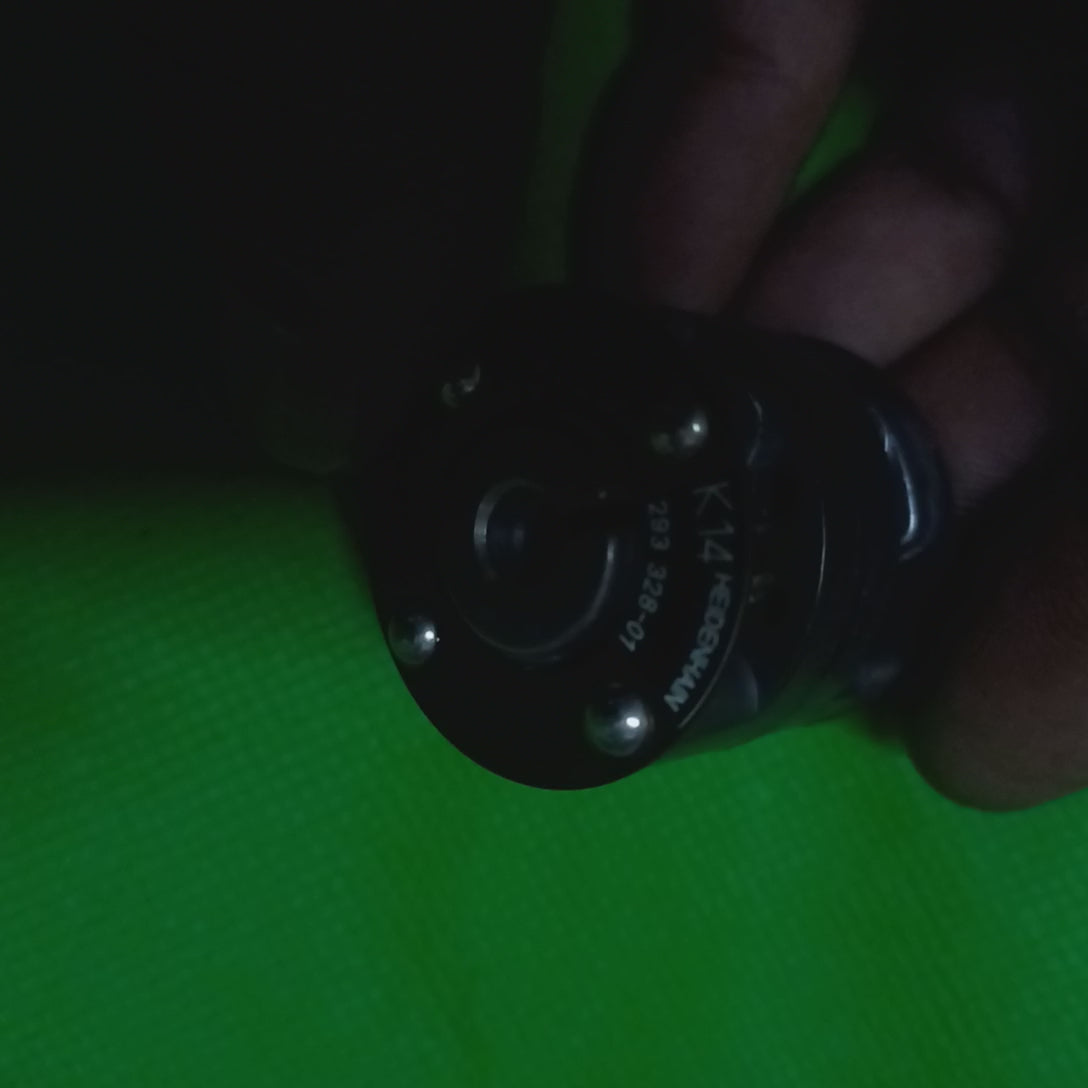

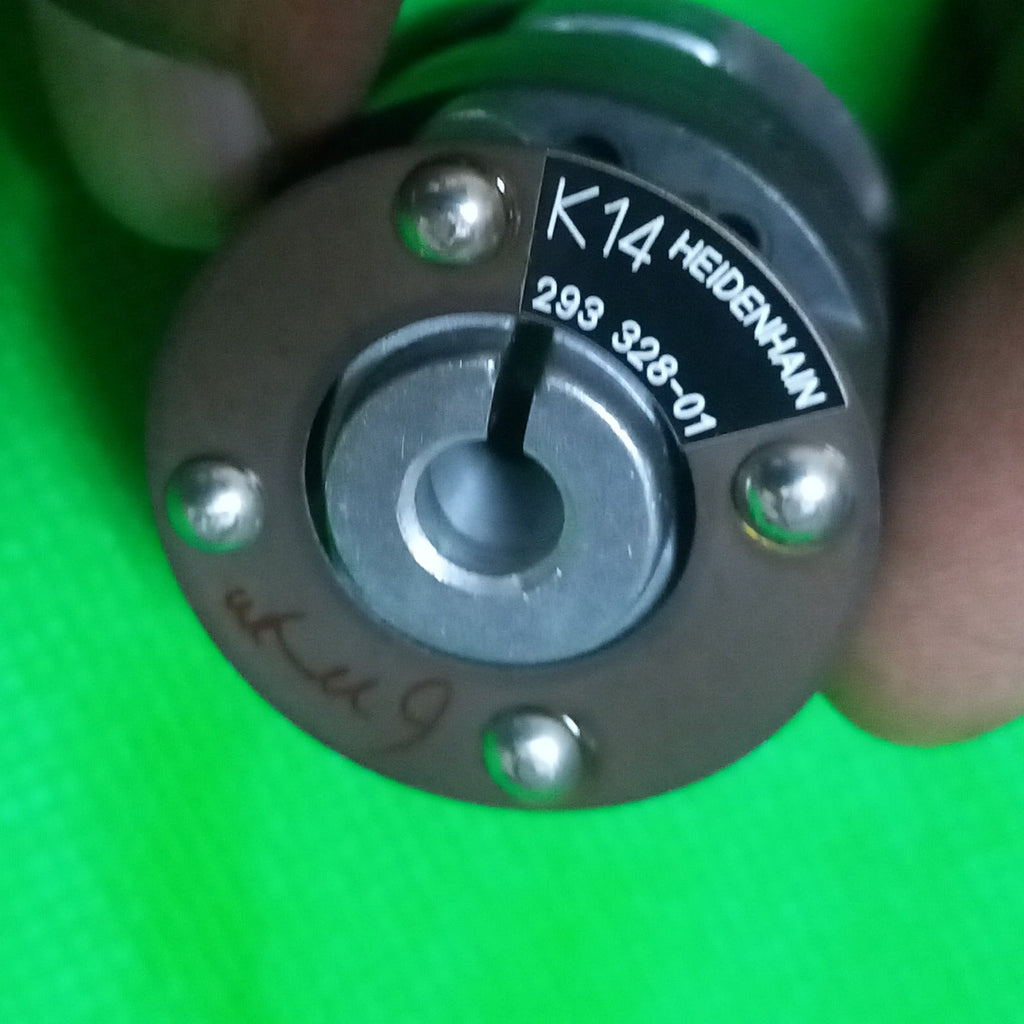

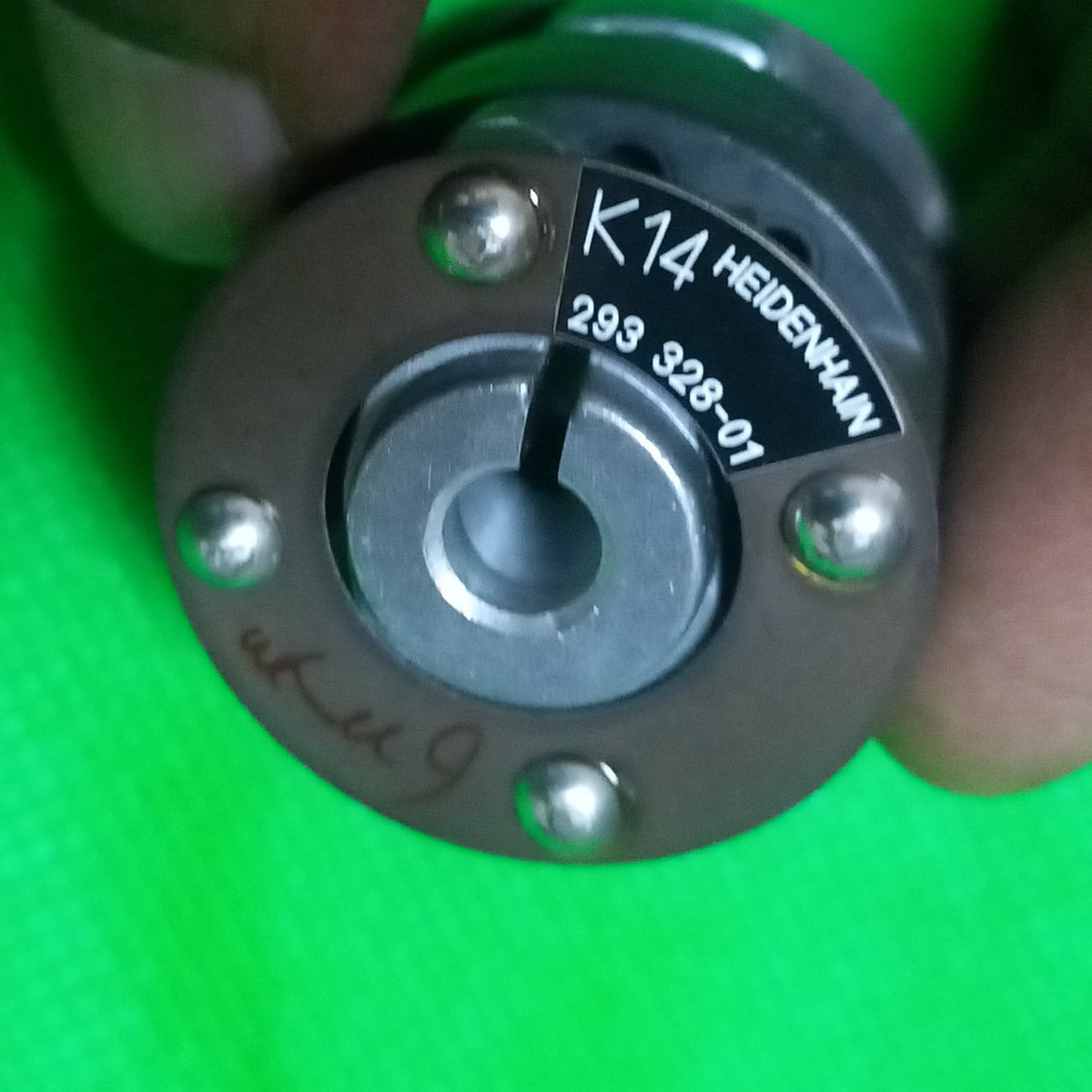

K 14 diaphragm coupling For the ROC/ROQ/ROD 400 with 6 mm shaft diameter
ID 293328-01

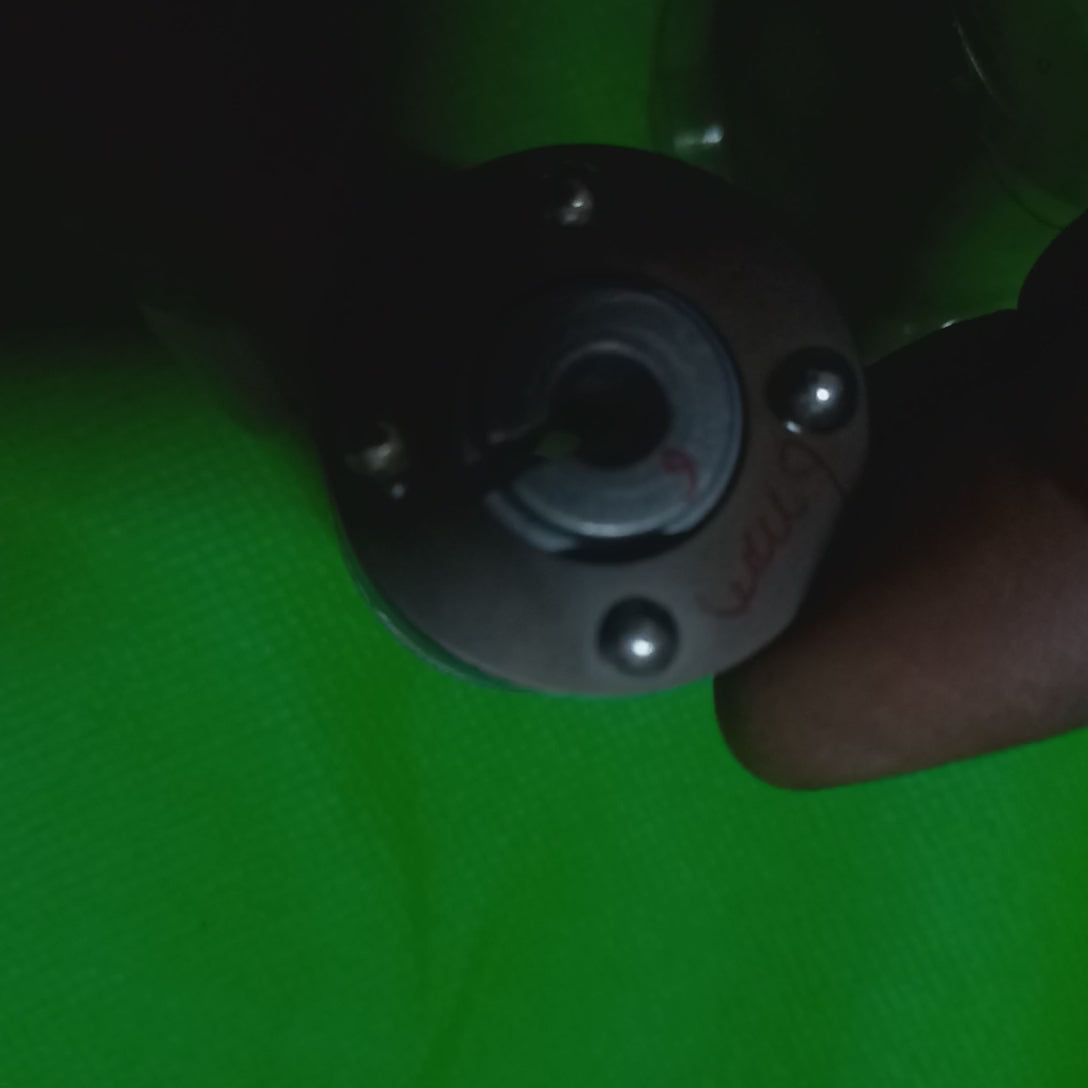

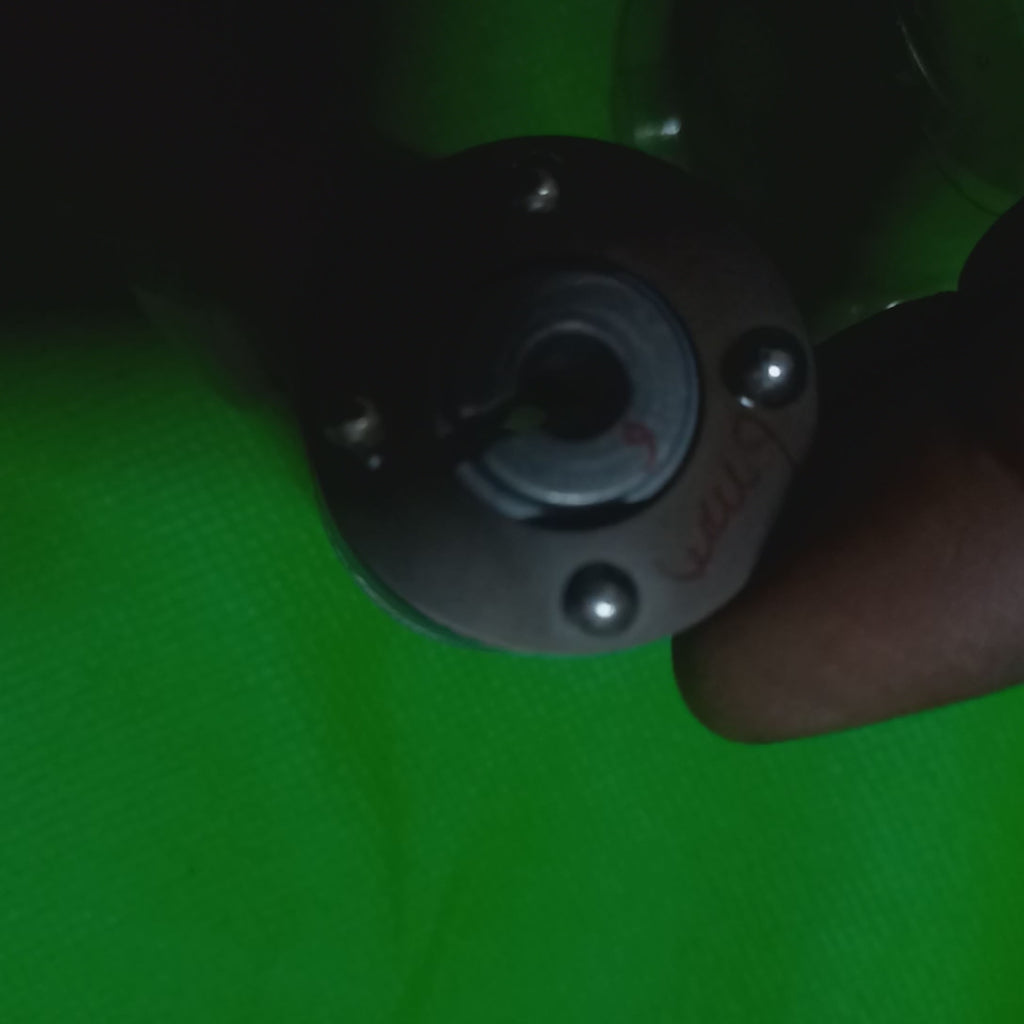

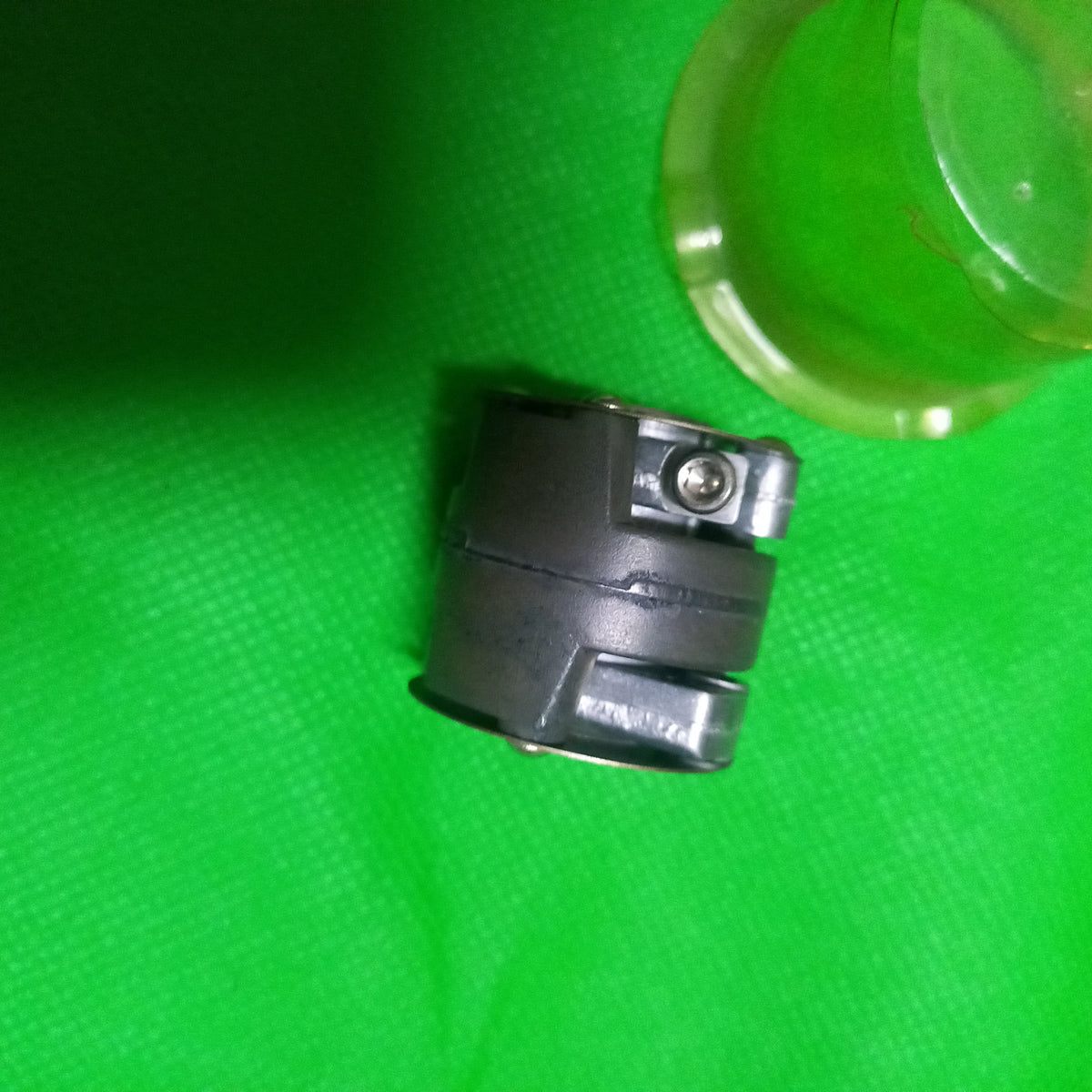

Membrane coupling Heidenhain - 293-328-01 DIAPHRAGM COUPLING K14, HUB SHAFT DIAMETER 6/6MM, LENGTH 30MM

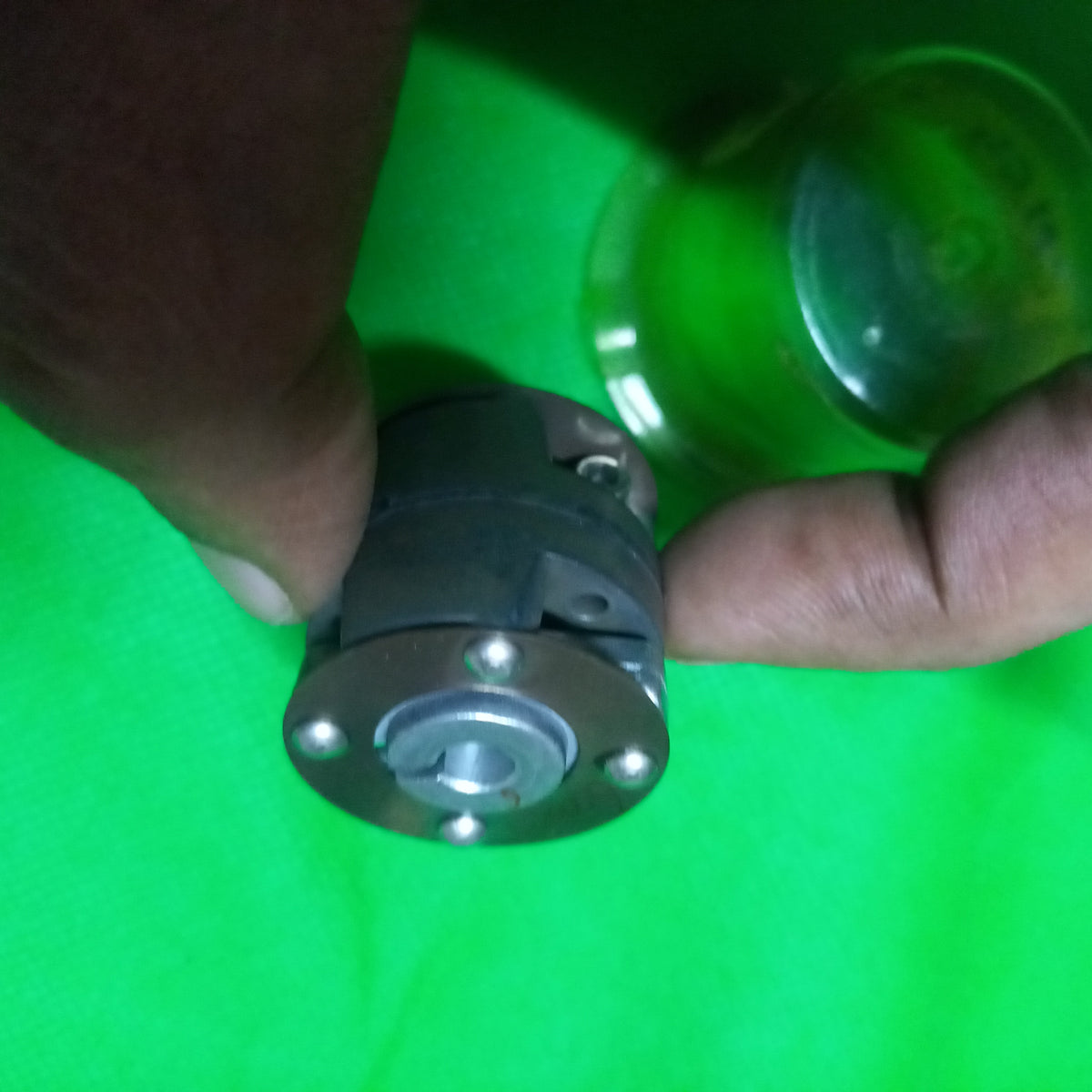

Brand: Heidenhain | MPN: 293 328-01
226525-01 bore=6mmx6mm (Overall Dia-30mmx L=22mm)
Bore Size d1: 6mm | Bore Size d2: 6mm
Outside Diameter (D2): 30 mm | Overall Length (L): 30 mm
K14 Coupling Benefits
- Ideal for encoder applications
- Easy Installation
- Space Saving
- Electrically Isolating Flex Element
- Large bore range, small to large shaft diameters available in any given size
- Ultra-low reaction loads, with a moderate misalignment capacity
- Zero Backlash Design
- Maintenance Free
K14 Diaphragm coupling
Specifications
Hub bore = 6/6 mm
Kinematic transfer error*= ±6"
Torsional rigidity= 500 Nm/rad
Torque= ≤0.2 Nm
Radial offset λ ≤0.2 mm
Angular error α <0.5°
Axial offset &
Moment of inertia ≤ 0.3 mm(approx.) | 6.10 kgm2 3.10 kgm²
Permiss. shaft speed = 16000 rpm
Tightening torque of clamping screws= 1.2 Nm(approx.)
Mass = 35 g
- Manufacturer indent Nr.293.328.01
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
