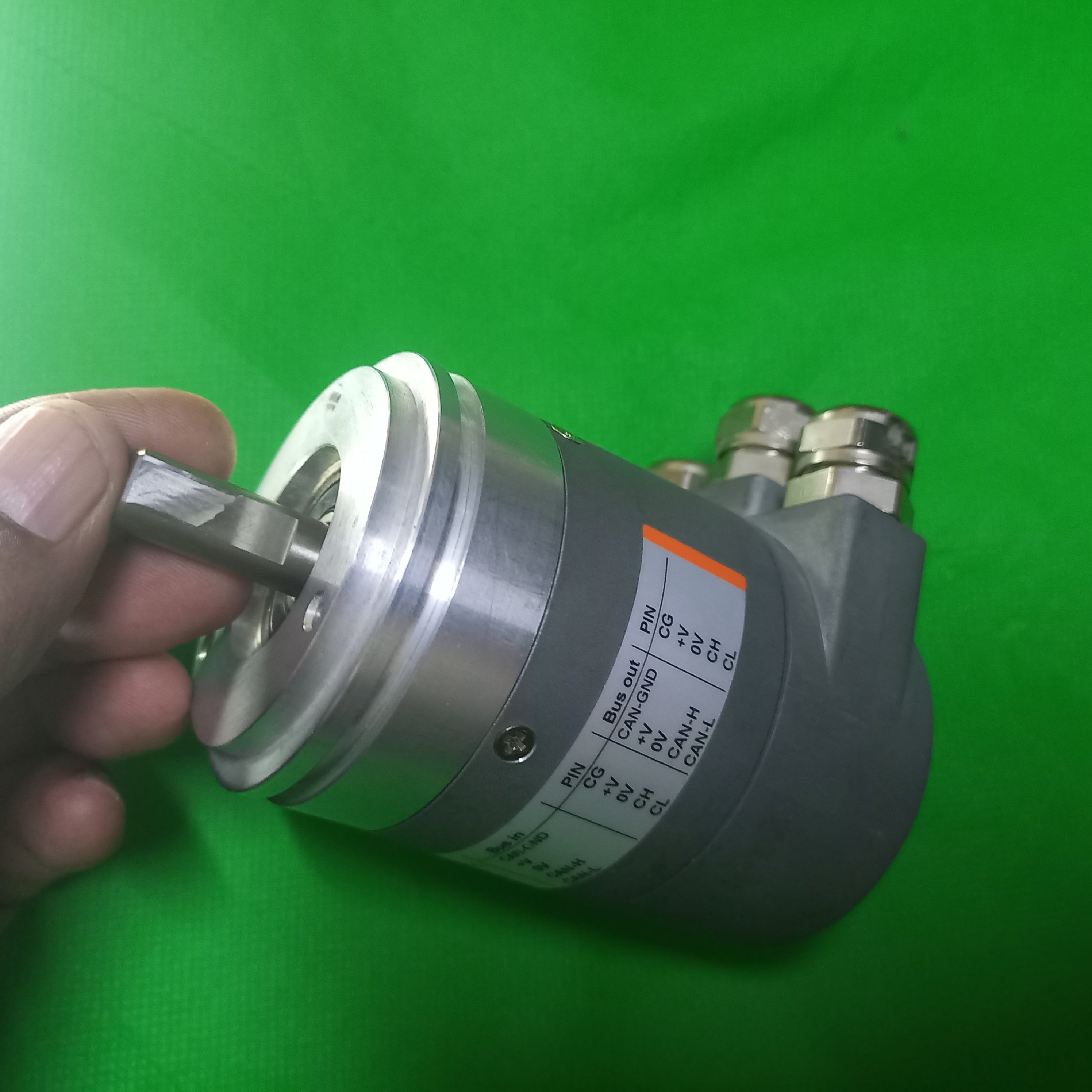

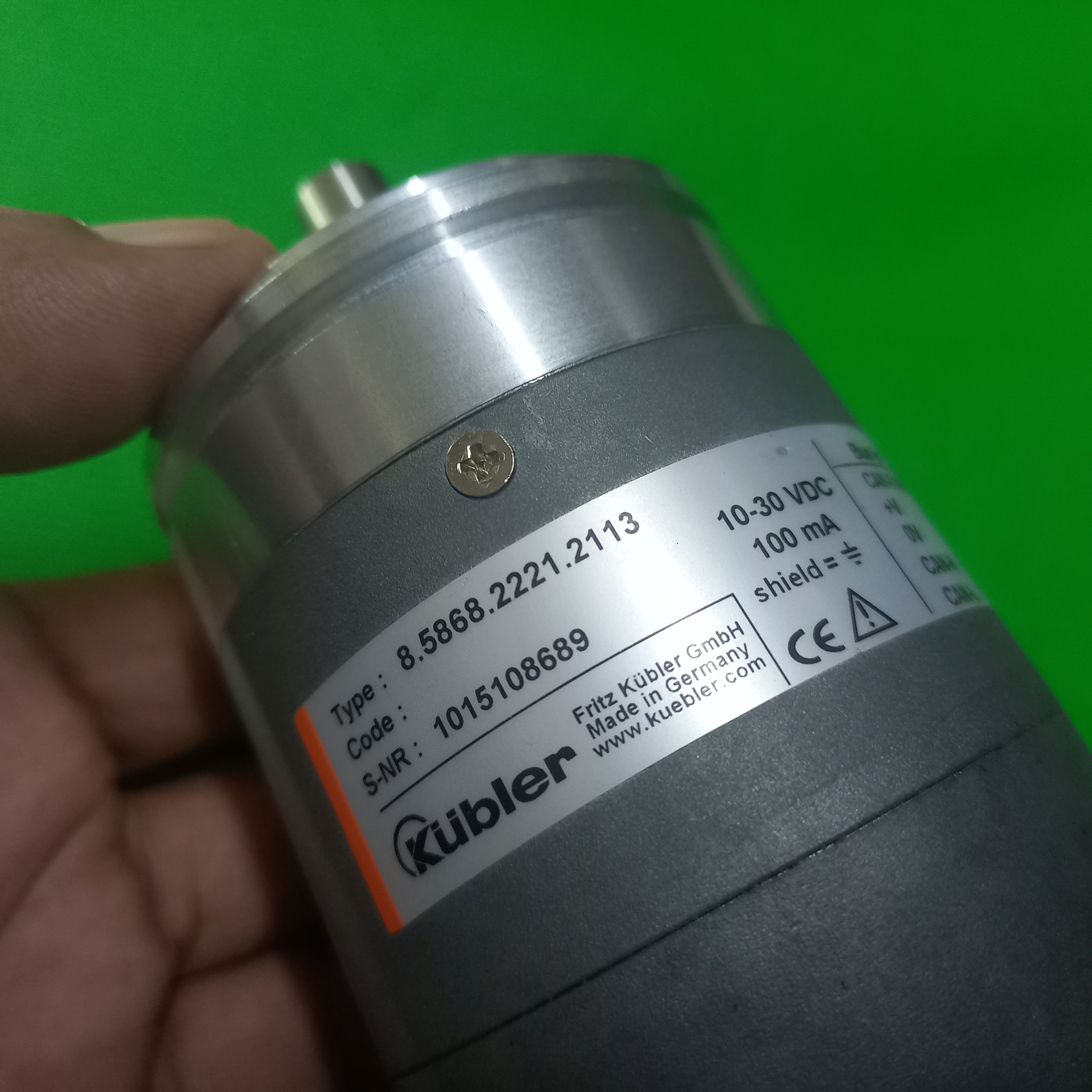

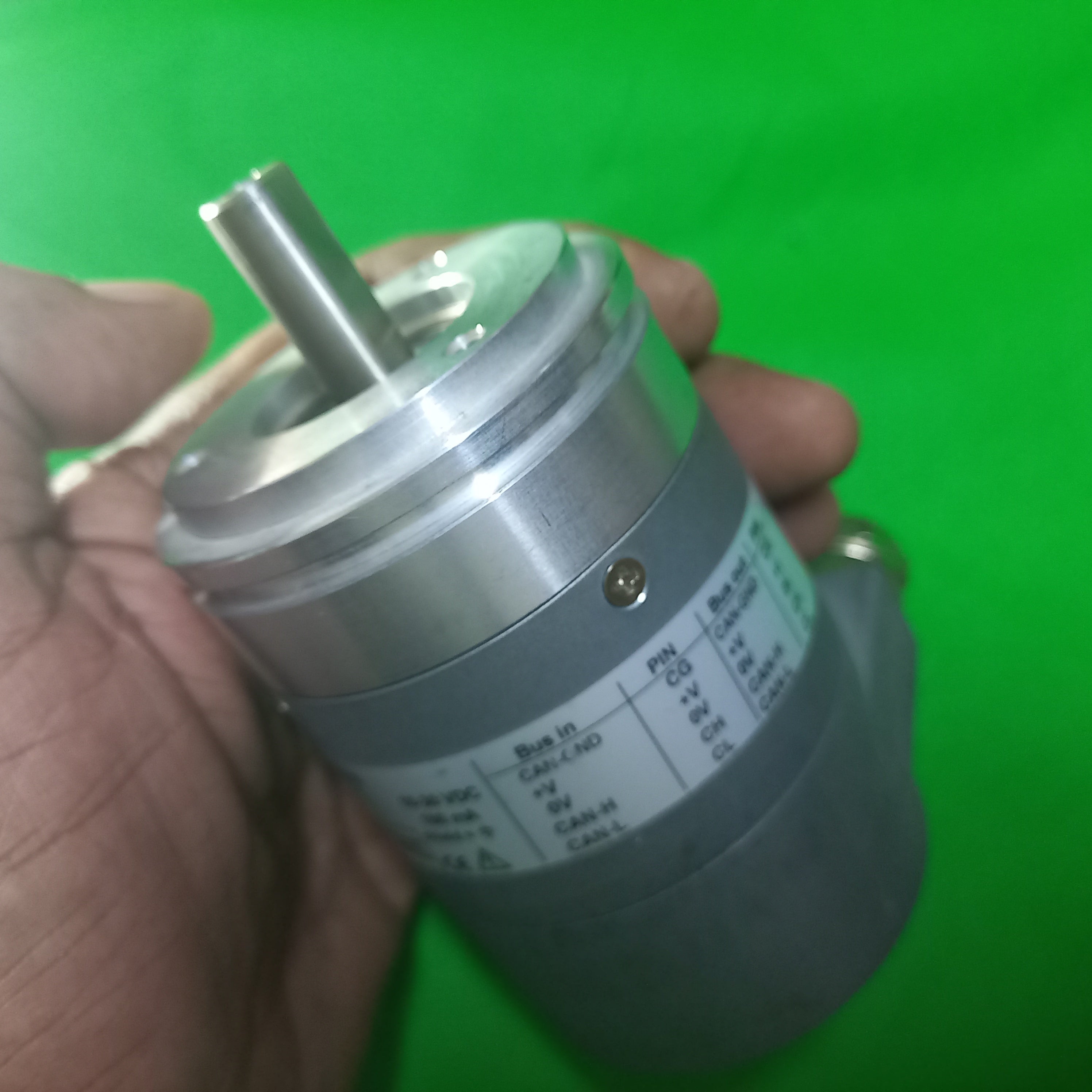

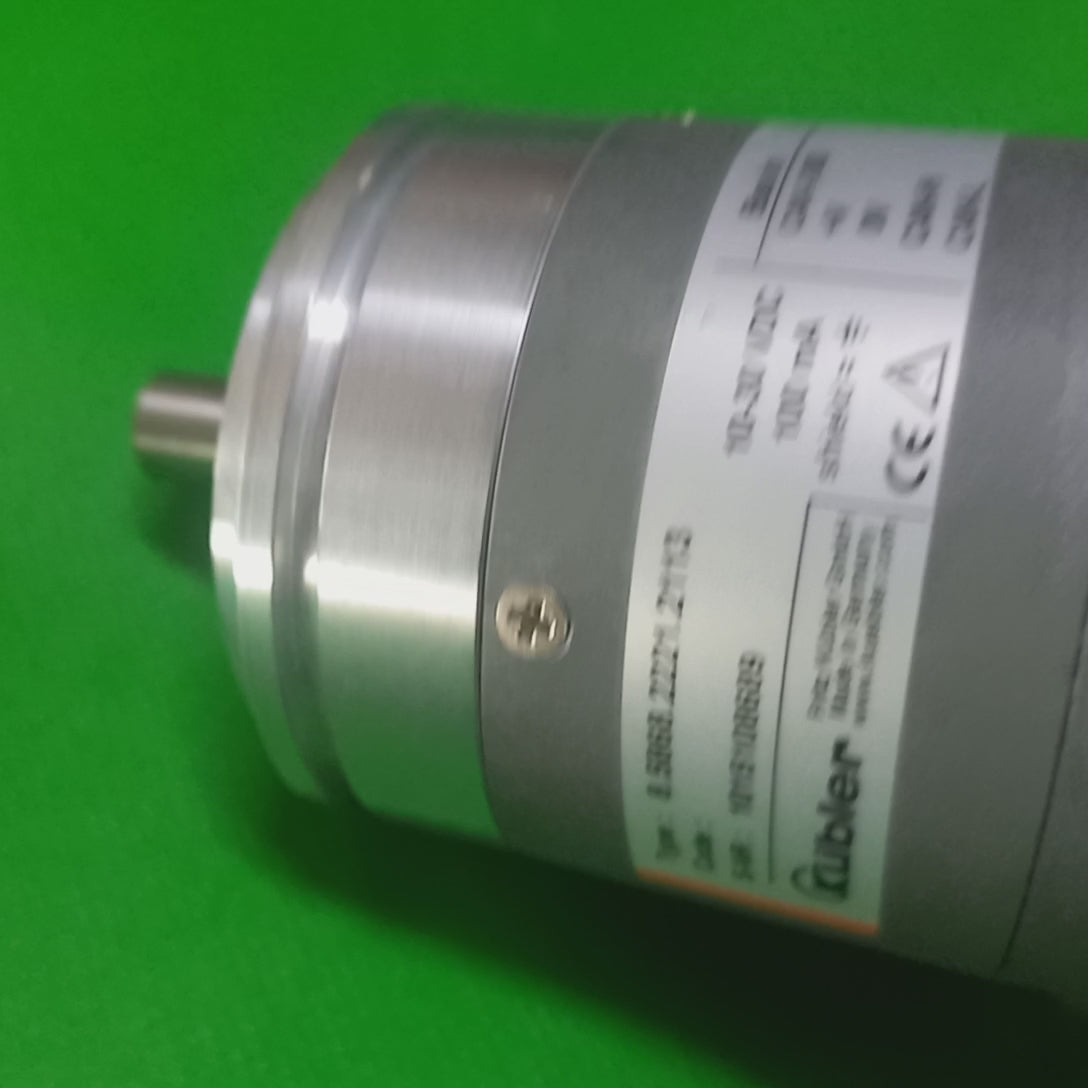

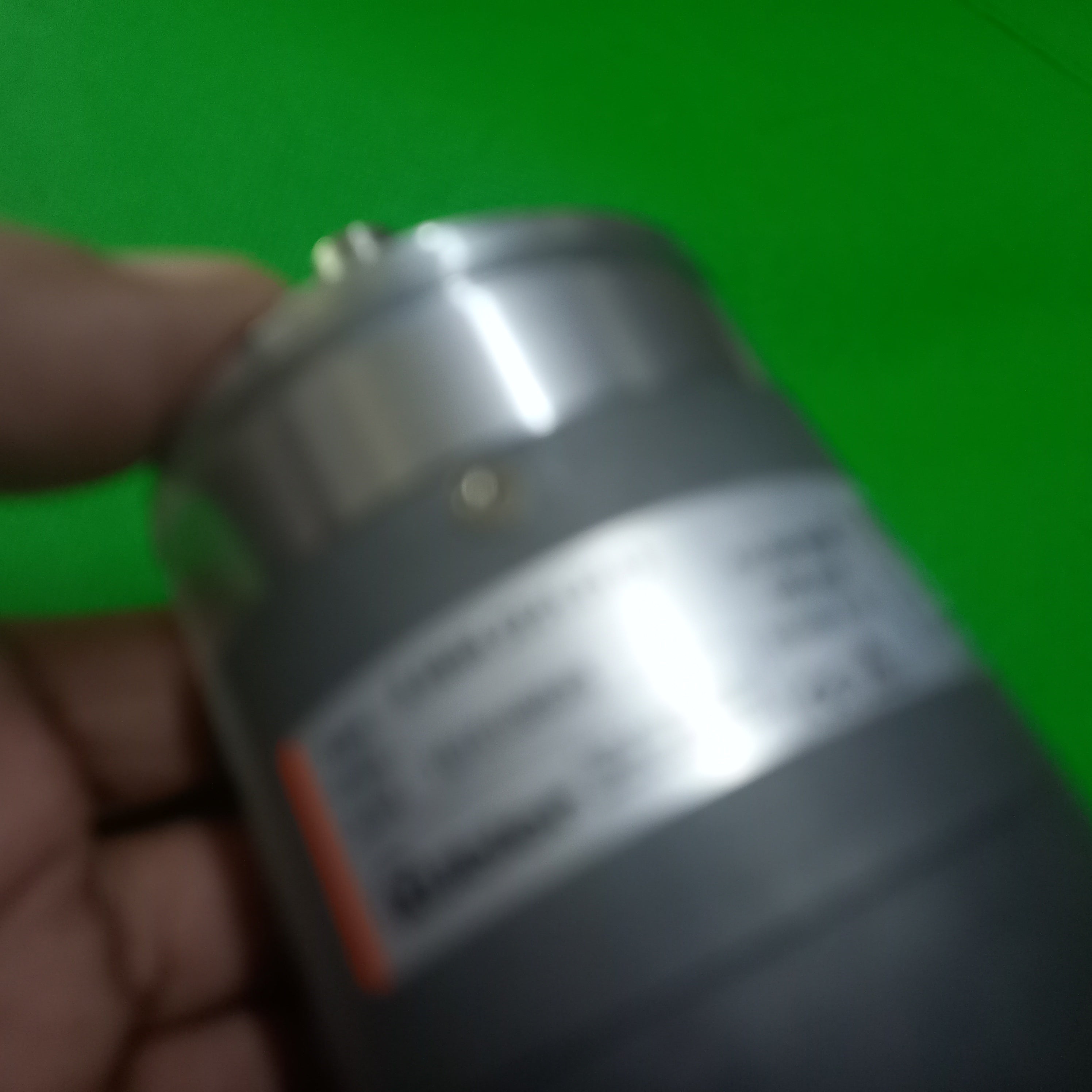

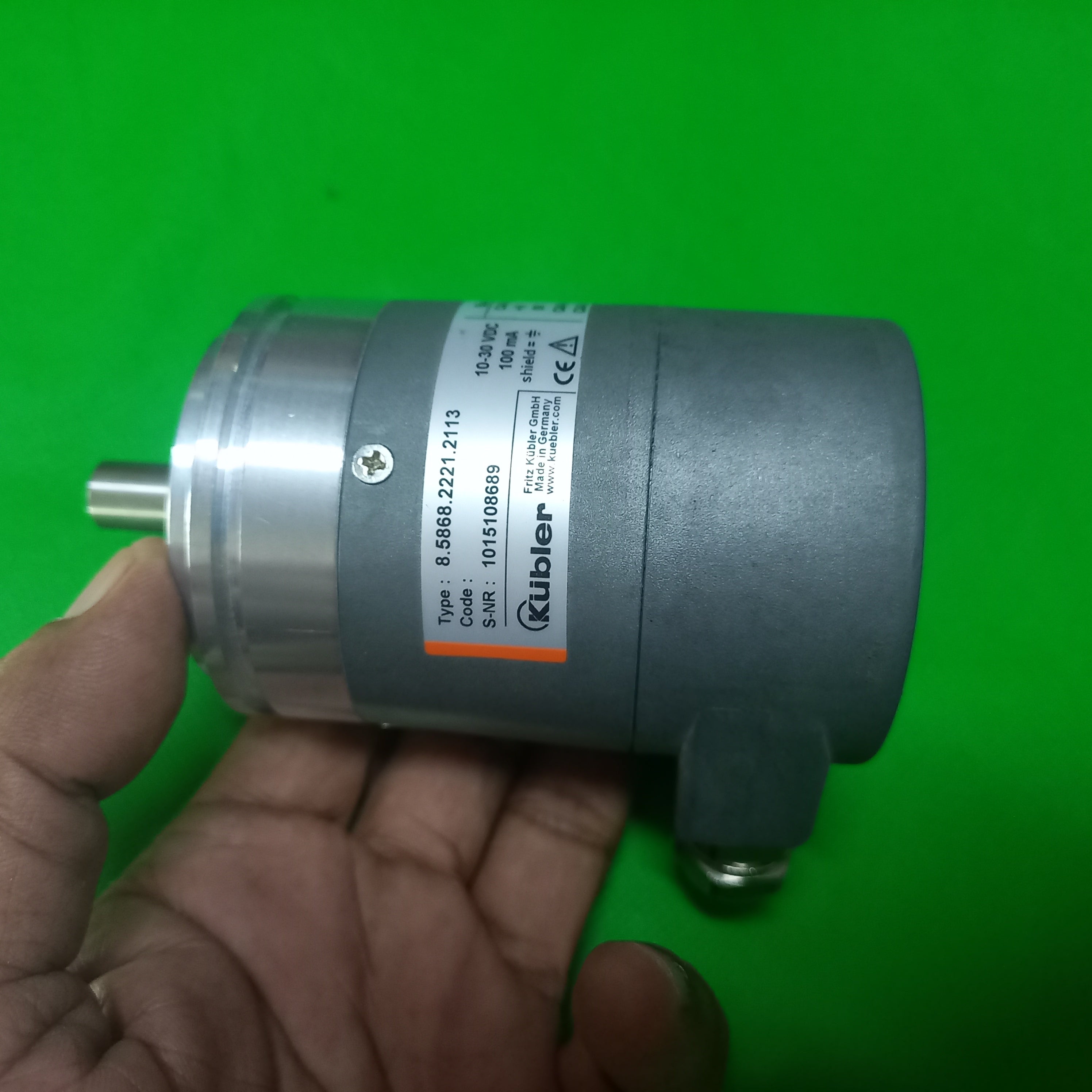

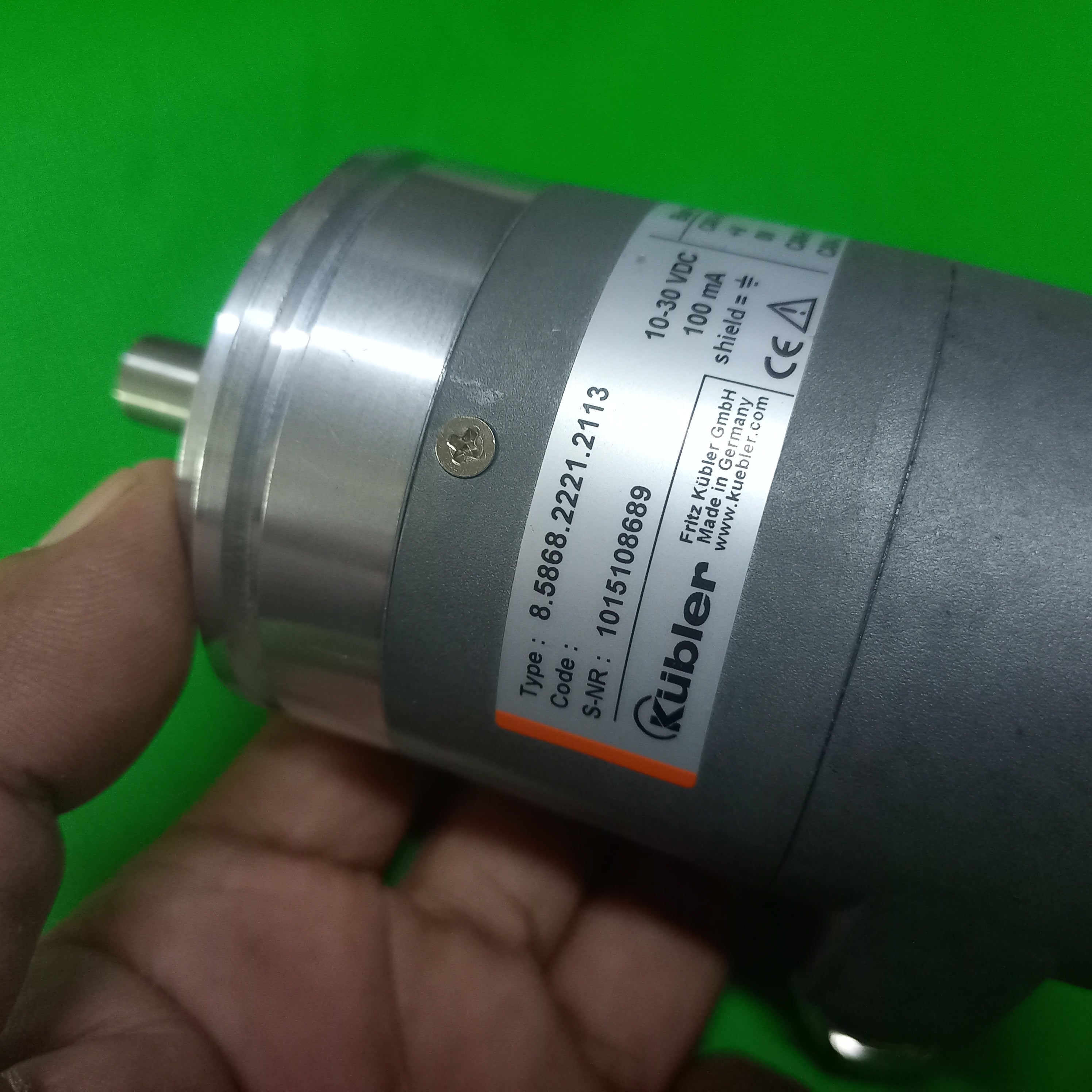

Kubler 8.5868.2221.2113 | 16bits(1..65536)scalable / Multiturn Rev. Max.4096*12Bits)
$1,380.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Kubler 8.5868.2221.2113 | 16bits(1..65536)scalable / Multiturn Rev. Max.4096*12Bits)
$1,380.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = 5868 series Shaft 10mm
- Manufacturer MPN = 8.5868.2221.2113
- Encoder Type = Absolute Encoder
- Supply voltage = 10-30vDC
- ID. NR. = 8586822212113
- indent Nr. = 8 5868 2221 2113
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = 5868 series Shaft 10mm
Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = Solid shaft, face mount flange
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = CANopen
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 65536 (16 bit)
- Absolute Encoder Number of revolutions = 2048 (12 bit)
Absolute Encoder Programmable/configurable = YES : Programmable/configurable

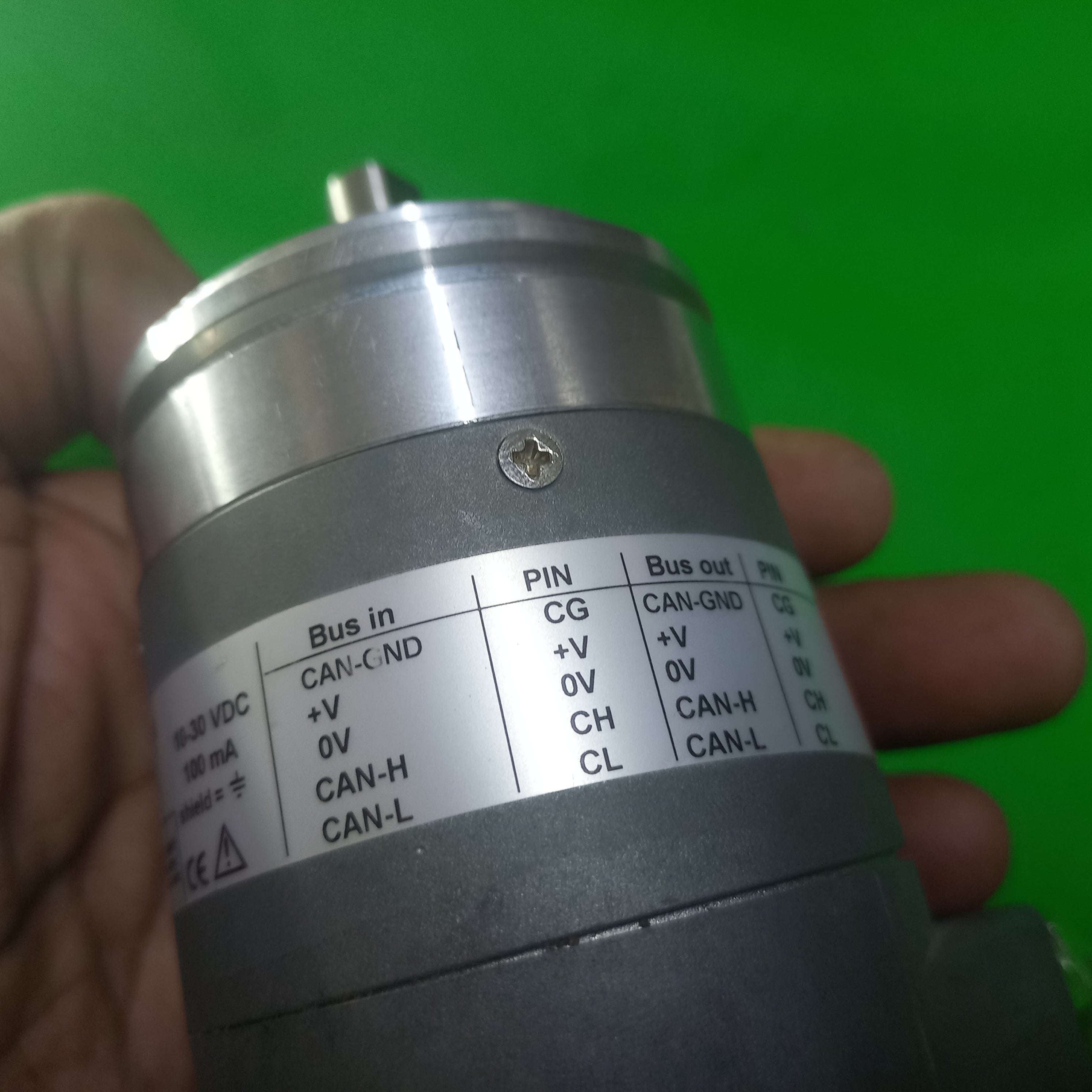

Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection Type Detail = Bus Cover
How Encoder body is Mouted ? Mouting Flange Design Data:
Ready Stock Kubler Encoders, Sendix 5868 Series 8.5868.2121.2113
Type: 8.5868
- a(Flange)=2= synchro flange, IP65 ø 58 mm [2.28“]
- b(Shaft (ø x L), with flat) =2=10 x 20 mm [0.39 x 0.79“]
- c(interface/powersupply)=2 = CANopen DS301 V4.02, 10 ... 30 V DC
- d(Type of connection removable bus terminal cover
- 1 = cable gland radial
- e(Fieldbus profile)=21 = CANopen Encoder-Profile DS406 V3.21
- f=3 Option= 3 = SET button
- Multiturn
- ST 16bits(1..65536)scalable/Multiturn Rev. Max.4096*12Bits) scalable
Encoders Absolute multiturn Sendix 5868
|
|
Power supply 10-30 VDC
Interface characteristics CANopen/CANopenLift
Resolution singleturn (MUR)
scalable 1 ... 65 536 (16 bit) | default 8 192 (13 bit)
Number of revolutions (NDR) 1 ... 4 096 (12 bit) scalable only via the total resolution
Total resolution (TMR) = scalable 1 ... 268 435 456 (28 bit) | default 33 554 432 (25 bit)
