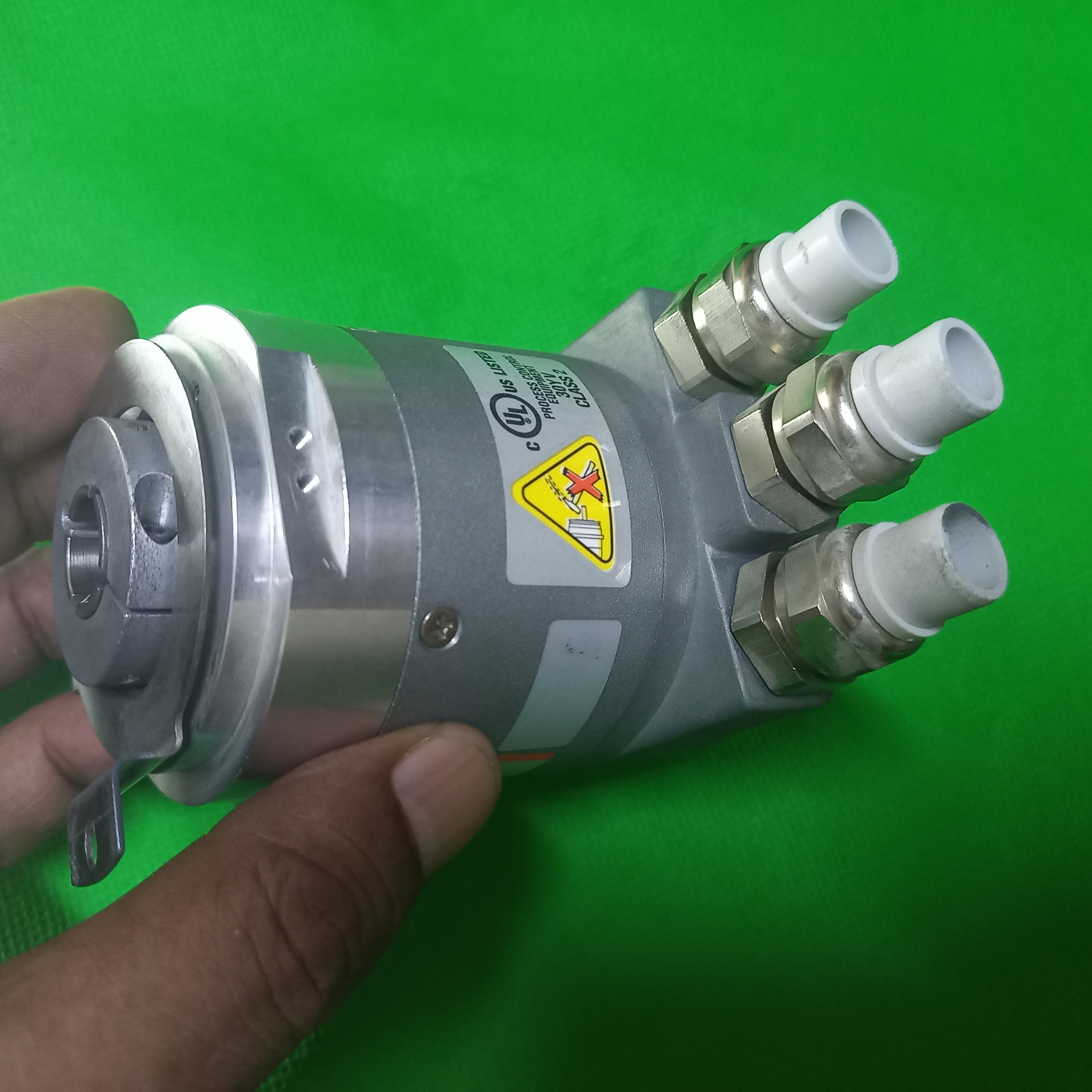

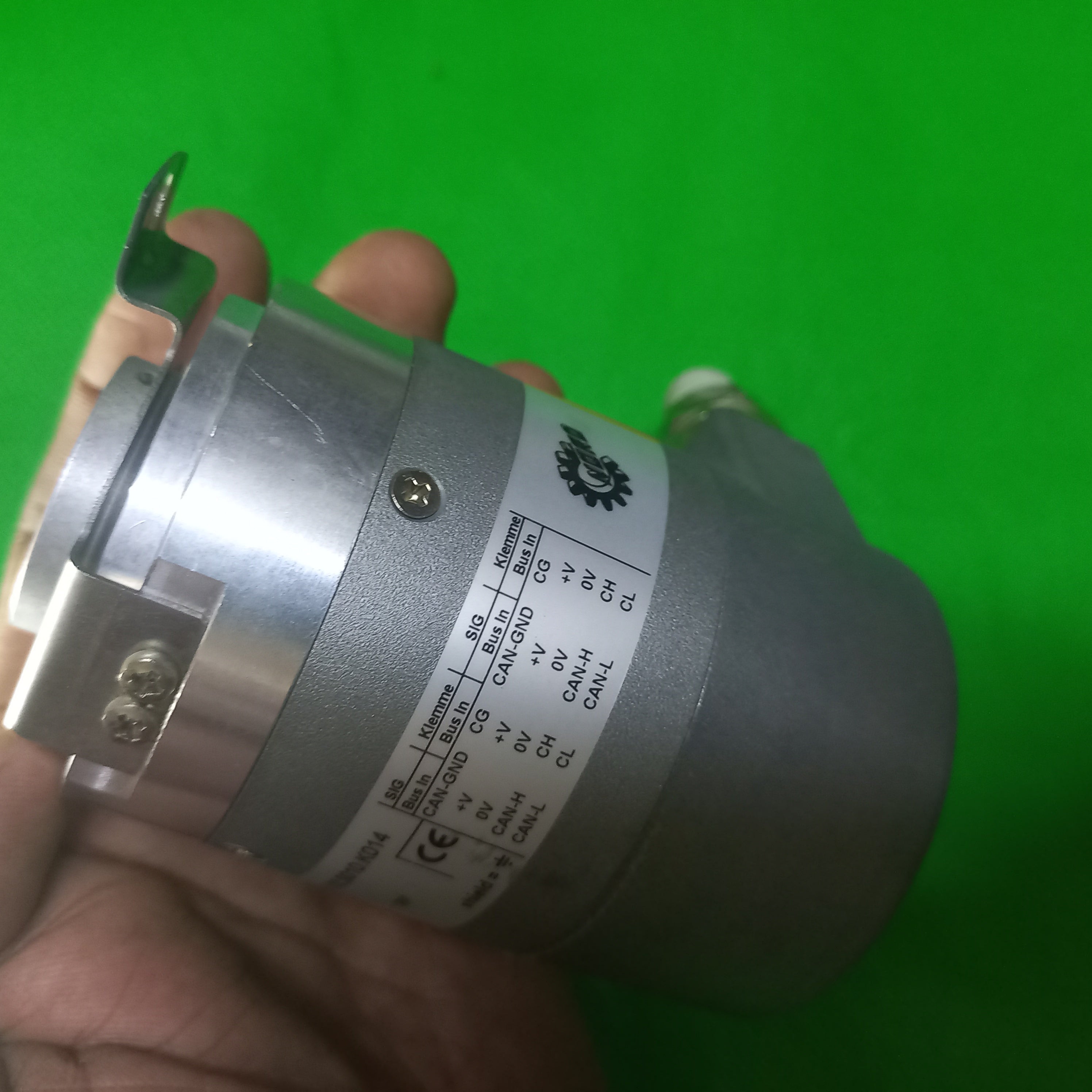

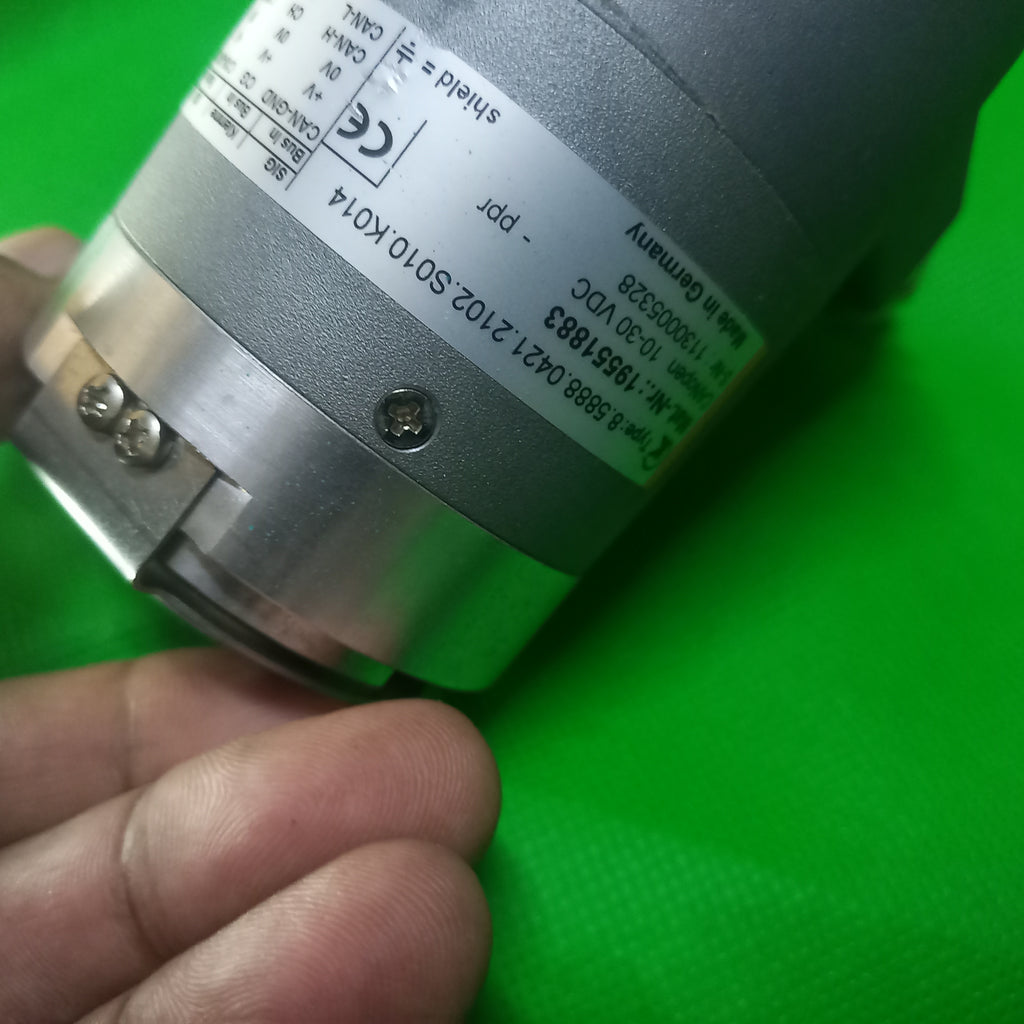

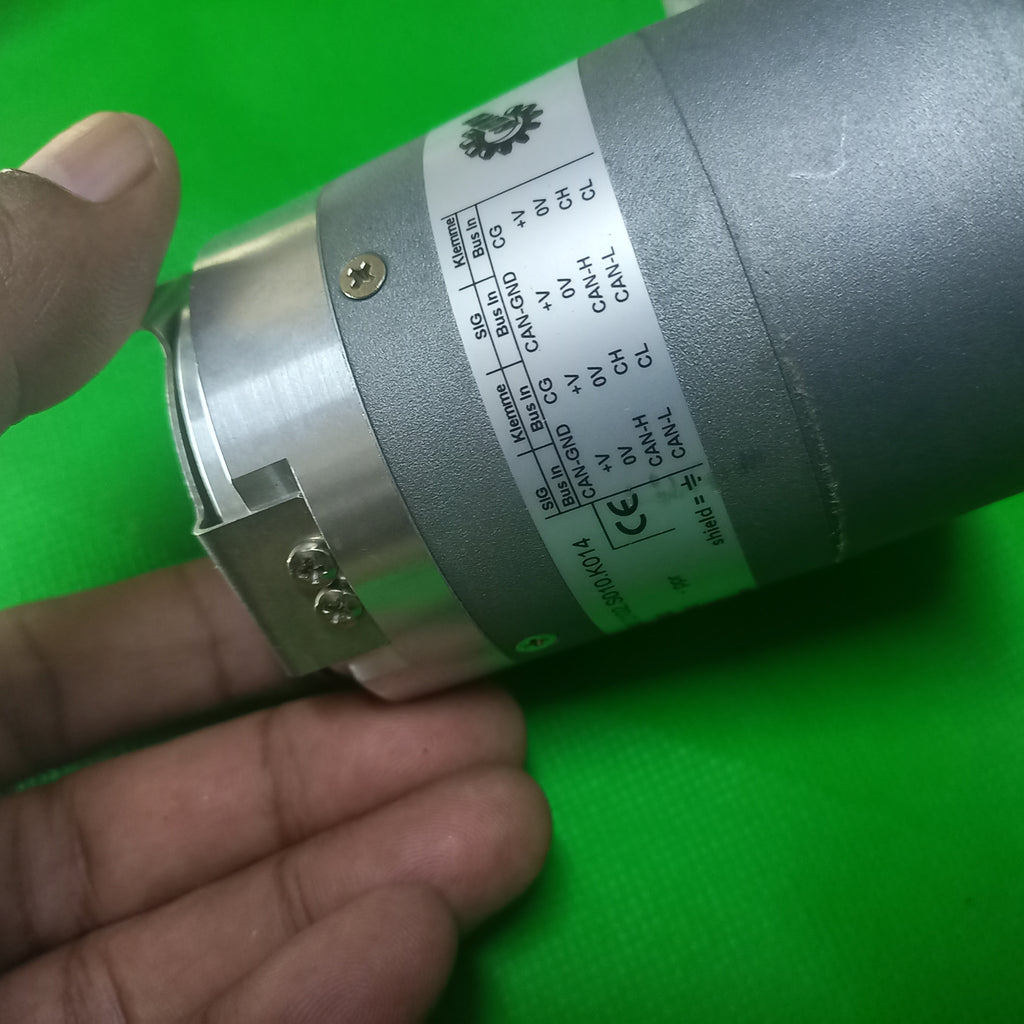

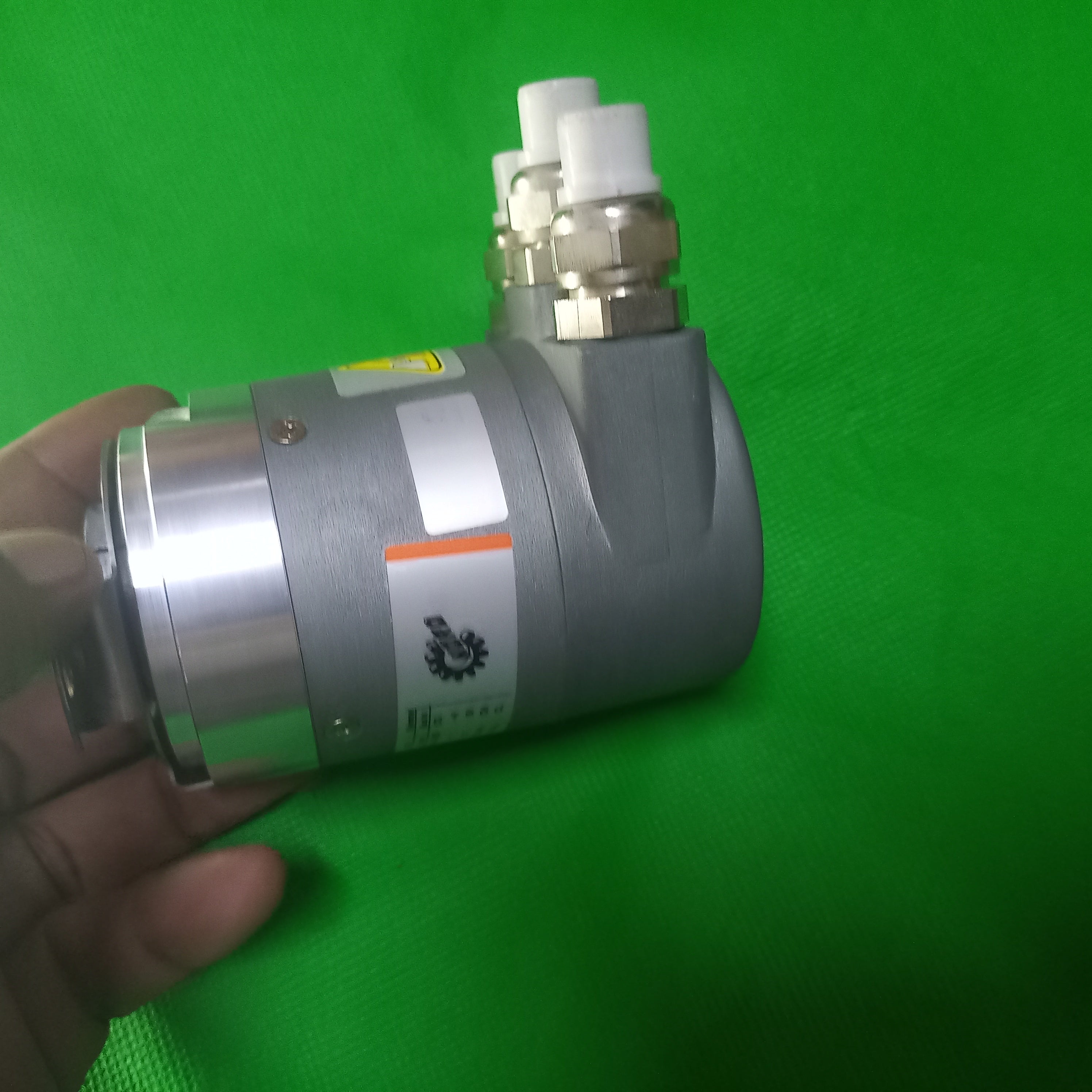

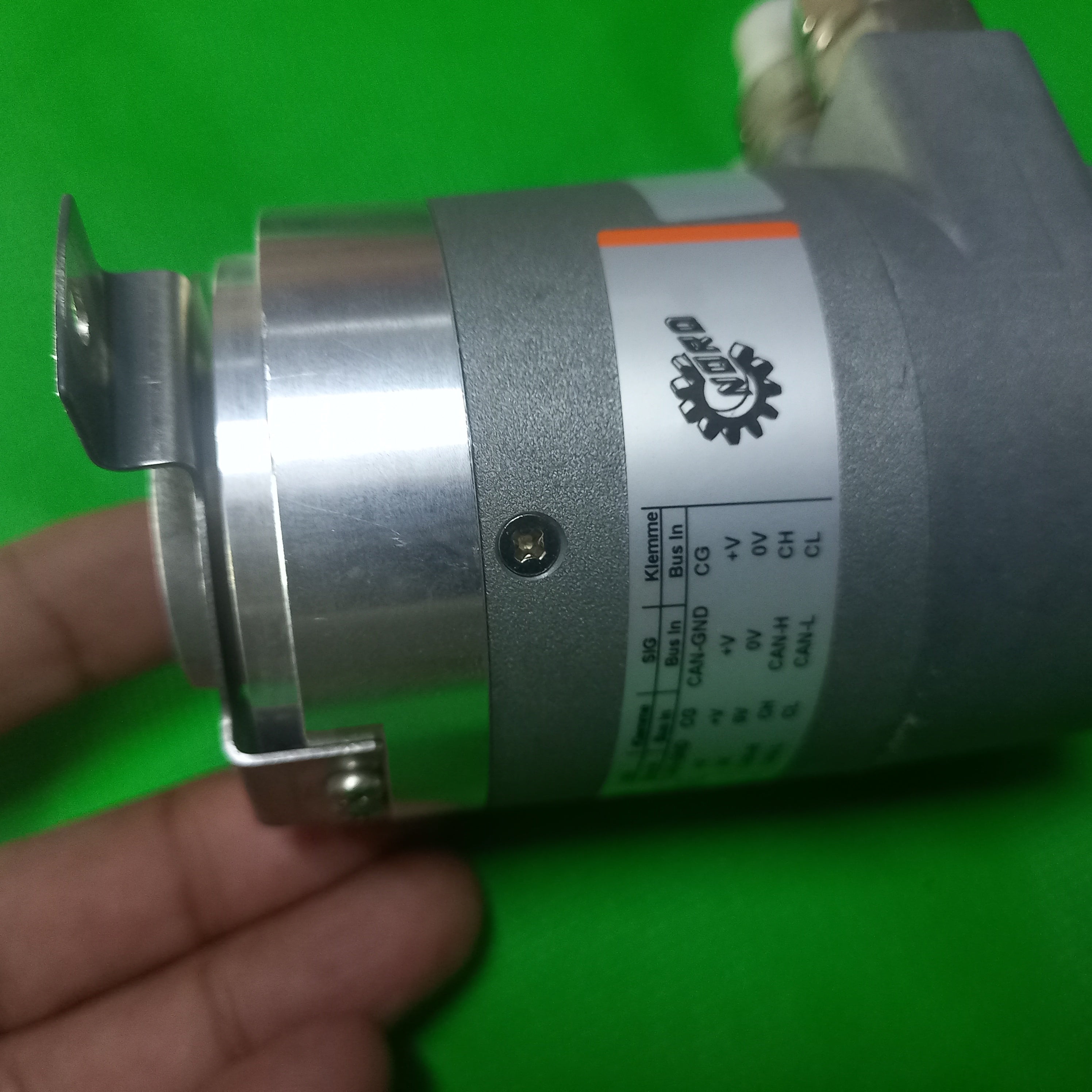

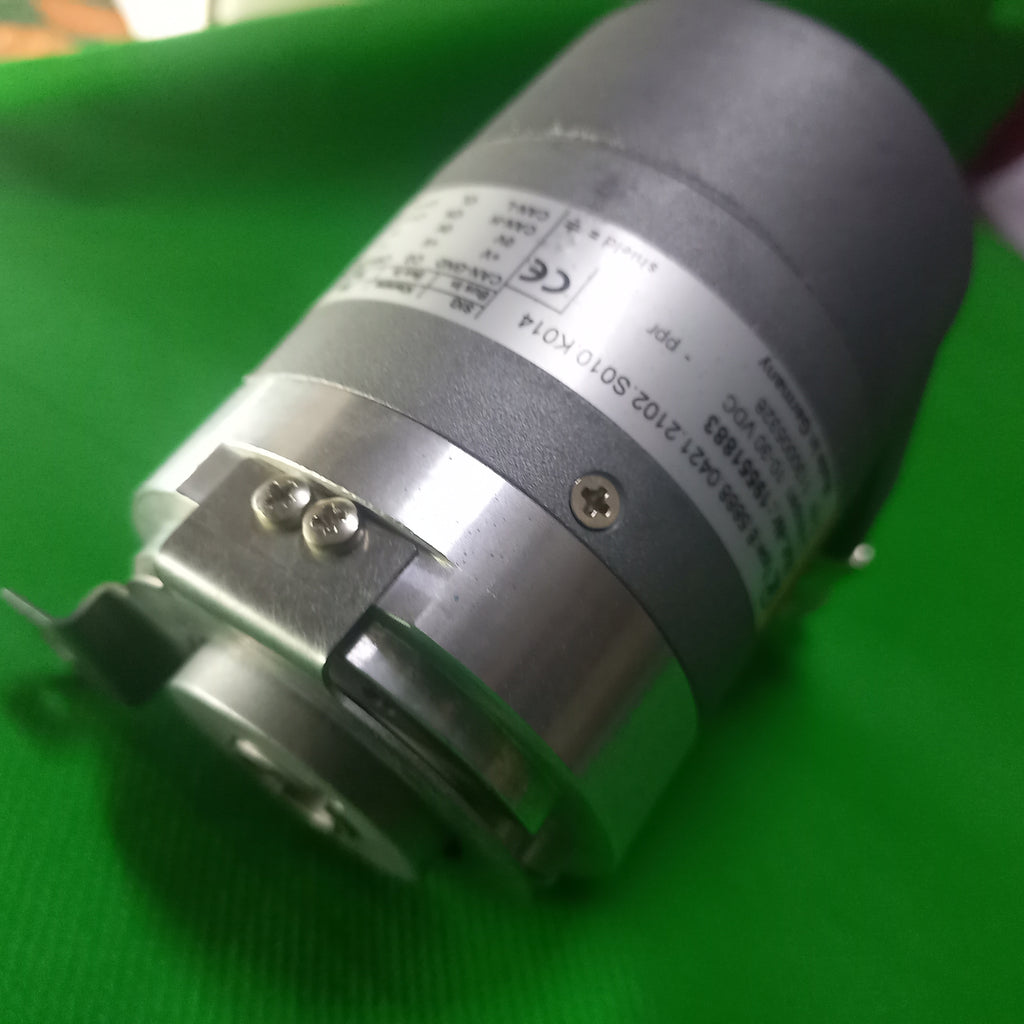

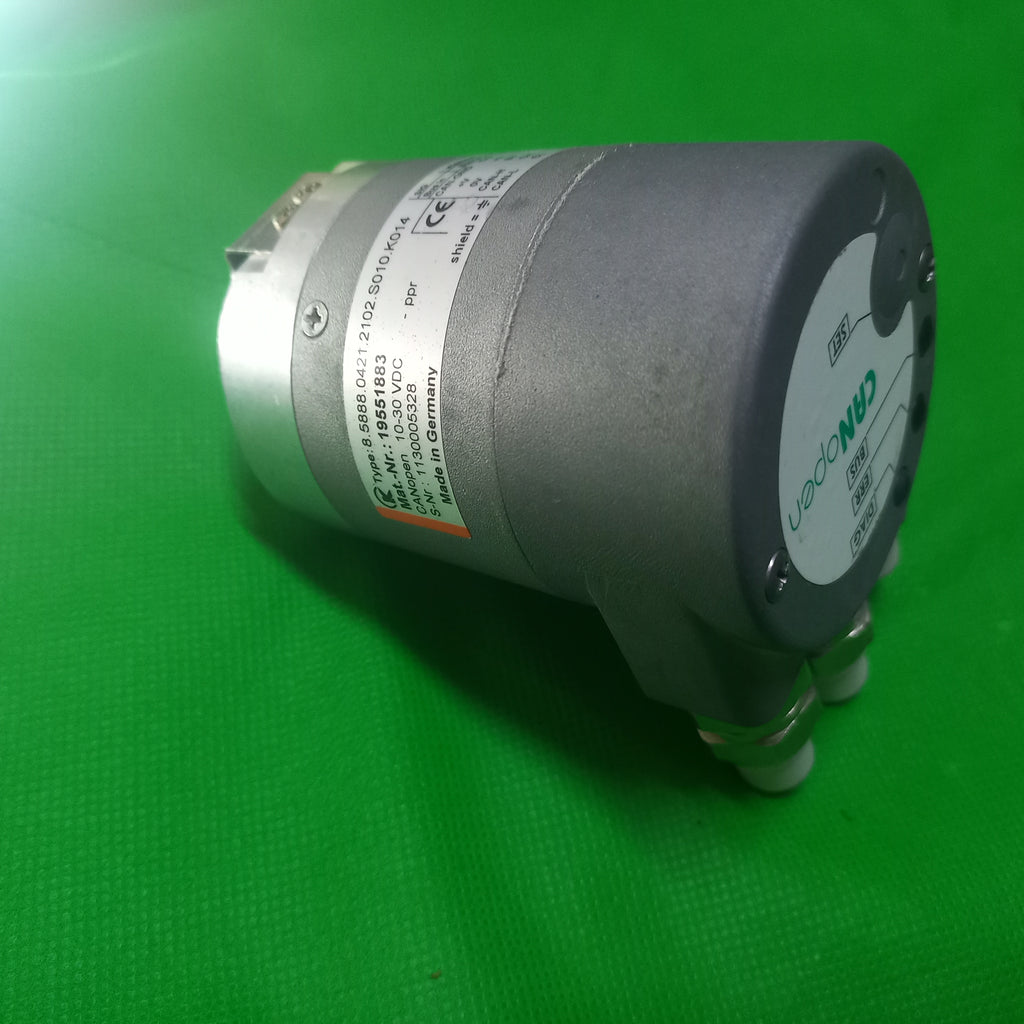

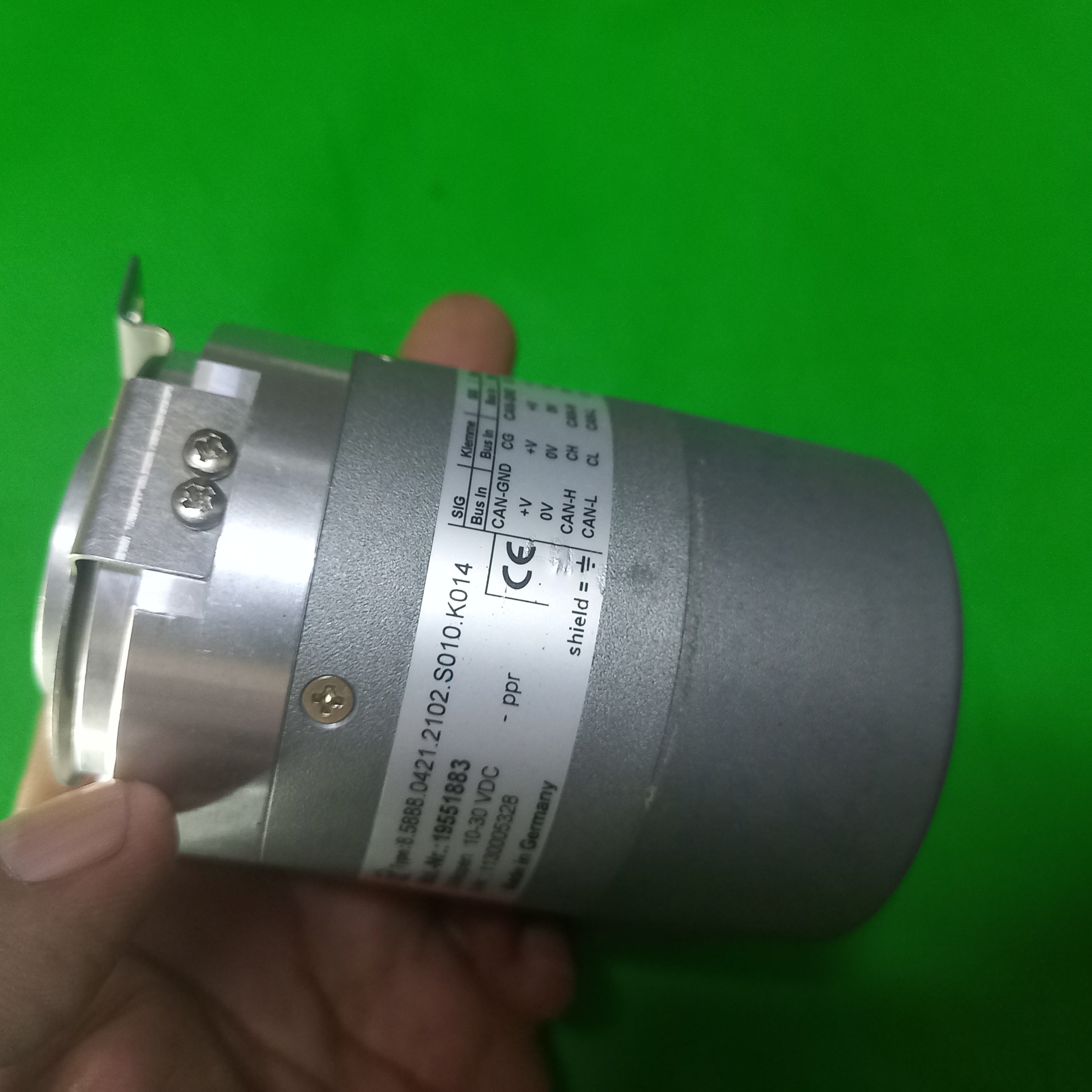

Absolute Encoder (AG) -For NORD AC Vector Drives Mat. Nr. 19551883 | 8.5888.0421.2102.S010.K014
$1,980.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Absolute Encoder (AG) -For NORD AC Vector Drives Mat. Nr. 19551883 | 8.5888.0421.2102.S010.K014
$1,980.00
Taxes included.
Shipping calculated at checkout.
- Dispatch Lead time = Same day ship if paid before 2 PM Local time
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = 8.5888 Dia 12mm Hollow CAN OPEN
- Manufacturer MPN = 8.5888.0421.2102.S010.K014
- Encoder Type = Absolute Encoder
- Supply voltage = 10-30vDC
- ID. NR. = NORD Mat. Nr. 19551883
- indent Nr. = 85888.0421.2102
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = 8.5888 Dia 12mm Hollow CAN OPEN
Mechanical Design Features of this Encoder:

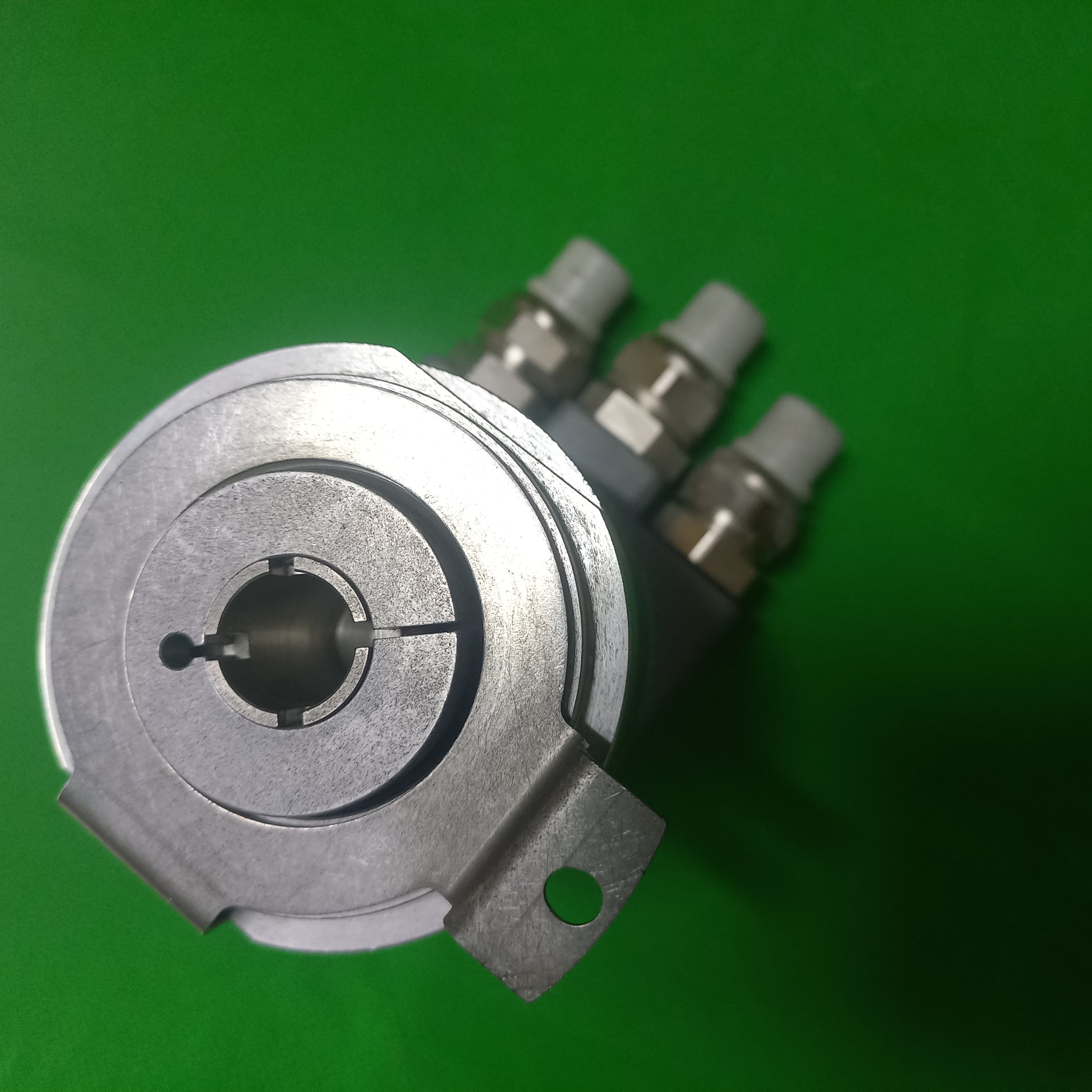

- Absolute Encoder Mechanical Design = blind hollow shaft
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 12mm Hollow ( Through)
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = CANopen
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 65536 (16 bit)
- Absolute Encoder Number of revolutions = 2048 (12 bit)
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection Type Detail = Bus Cover
How Encoder body is Mouted ? Mouting Flange Design Data:

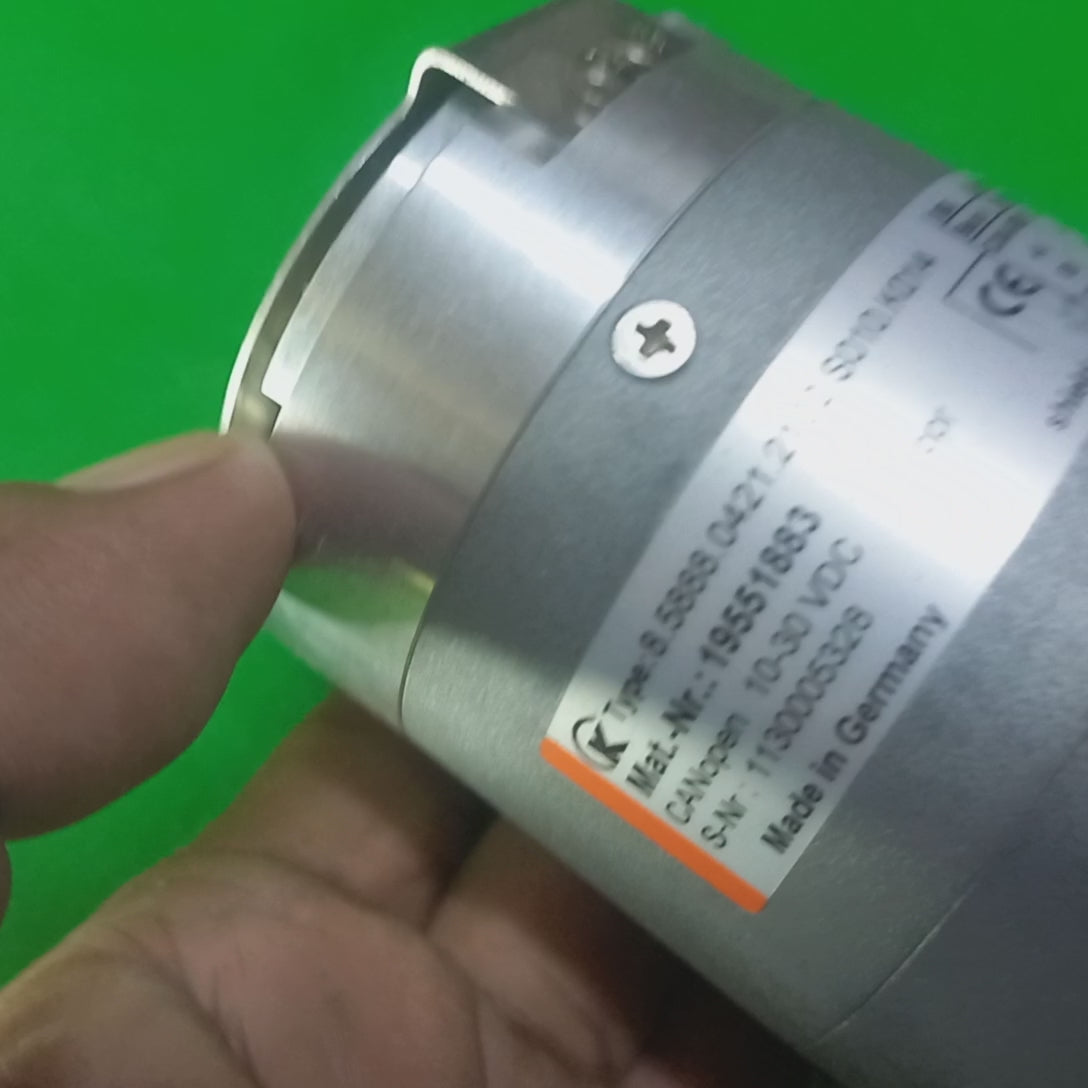

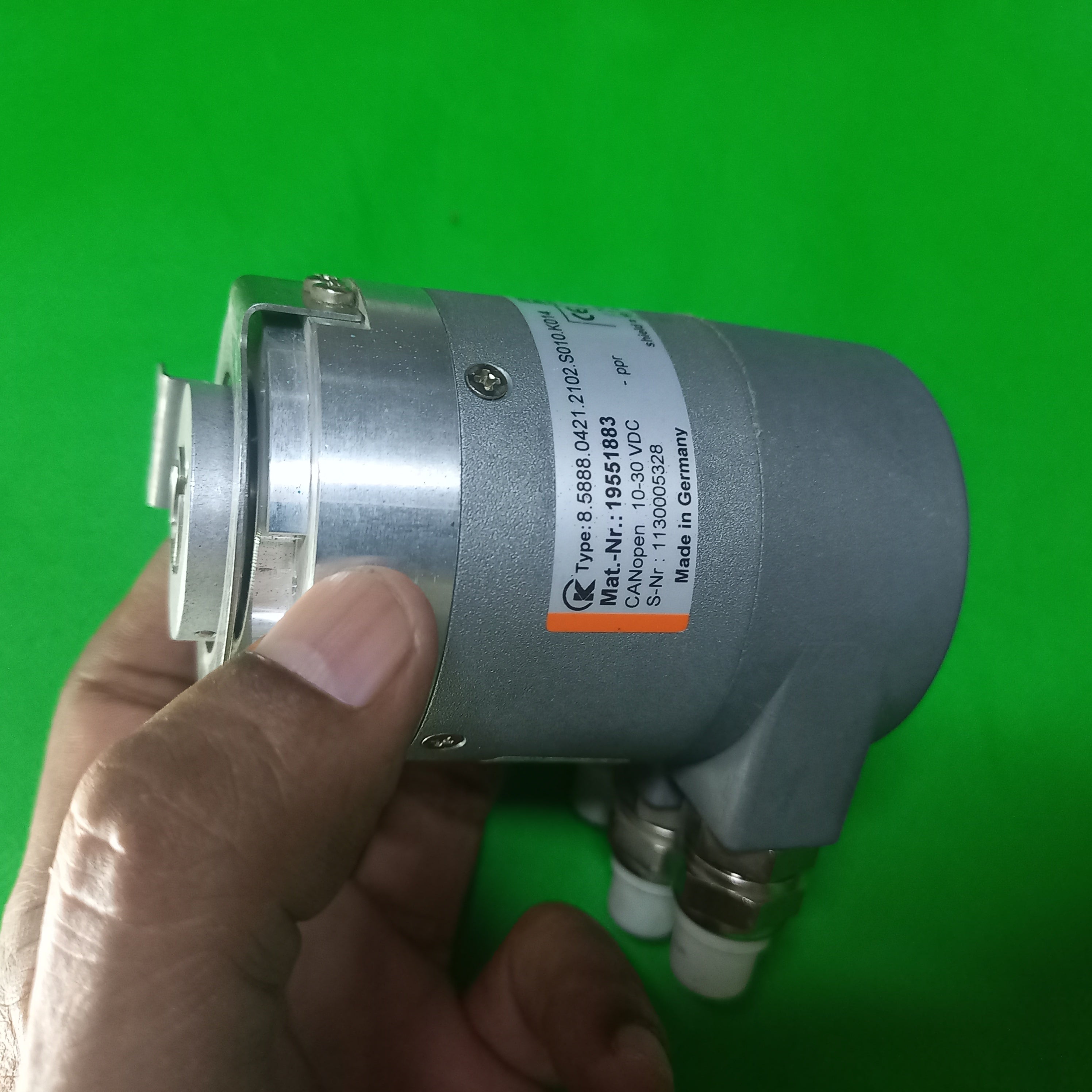

Ready Stock Kübler 8.5888 (Nord Part number : 19551883)
Absolute Encoder (AG) - For NORD AC Vector Drives
Many NORD AC variable frequency drives have an on-board CANopen® interface allowing the user to implement vector-drive position control.
| Kübler Type (NORD P/N) |
Kübler 8.5888 |
| NORD AC VFD Type | SK2xxE, SK53xE |
| Interface | CANopen® profile DS406 V3.2 |
| Supply Voltage | 10-30VDC |
| Single Turn Resolution | 13bit (8192) |
| Multi Turn Resolution | 12 bit ( 4096) |
| Node Address/ Baud Rate ( Kbits/s) | 51 / 125 (fixed/fixed) |
| Incremental output | None |
| Shaft Version | Ø 12 x 30 mm blind hollow shaf |
| Temperature range |
-40 to +176 °F (-40 to +80 °C) |
| Ip Rating | IP 67 |
| Electrical Connection | Removable Bus Cover with Cable Glands |
Kubler Nord Special 8.5888.0421.2102.S010.K014 | 8588804212102S010K014
Absolute Encoders MultiTurn Kubler Sendix 5888; 12mm Hollow Shaft; CanOpen: 8.5888.0421.2102.S010.K014
Mechanical : Dia 12mm Blind Hollow Shaft
Interface: CANopen DS301 V4.02
21 = CANopen Encoder-Profile DS406 V3.2
Power supply 10-30 VDC
Interface characteristics CANopen/CANopenLift
Resolution singleturn (MUR)
scalable 1 ... 65 536 (16 bit) | default 8 192 (13 bit)
Number of revolutions (NDR) 1 ... 4 096 (12 bit) scalable only via the total resolution
Total resolution (TMR) = scalable 1 ... 268 435 456 (28 bit) | default 33 554 432 (25 bit)
