Leine & Linde RSA 608, 577838-01 ; 10mm Shaft, 25 bit (13 bit singleturn + 12 bit multiturn)
Sale price
$1,683.00
Regular price
$1,980.00
Skip to product information
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
Leine & Linde RSA 608, 577838-01 ; 10mm Shaft, 25 bit (13 bit singleturn + 12 bit multiturn)
Sale price
$1,683.00
Regular price
$1,980.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
- Dispatch Lead time = Ready Stock - Collect (In-person pickup) From Store Same day - 3~4 Hours After Cleared Payment.
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = RSA608, 577 838-01
- Manufacturer MPN = RSA 608 | 577838-01
- Encoder Type = Absolute Encoder
- Supply voltage = 10-30vDC
- ID. NR. = 577-838-01
- indent Nr. = RSA-608
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = RSA608, 577 838-01
Ready Stock Leine & Linde Encoder model : RSA 608 | Part number : 577838-01
Leine & Linde RSA 6O8 Ready Stock 57783801 ; 225 bit (13 bit singleturn + 12 bit multiturn) ; RSA608 ; 577 83 801 CAN OPEN

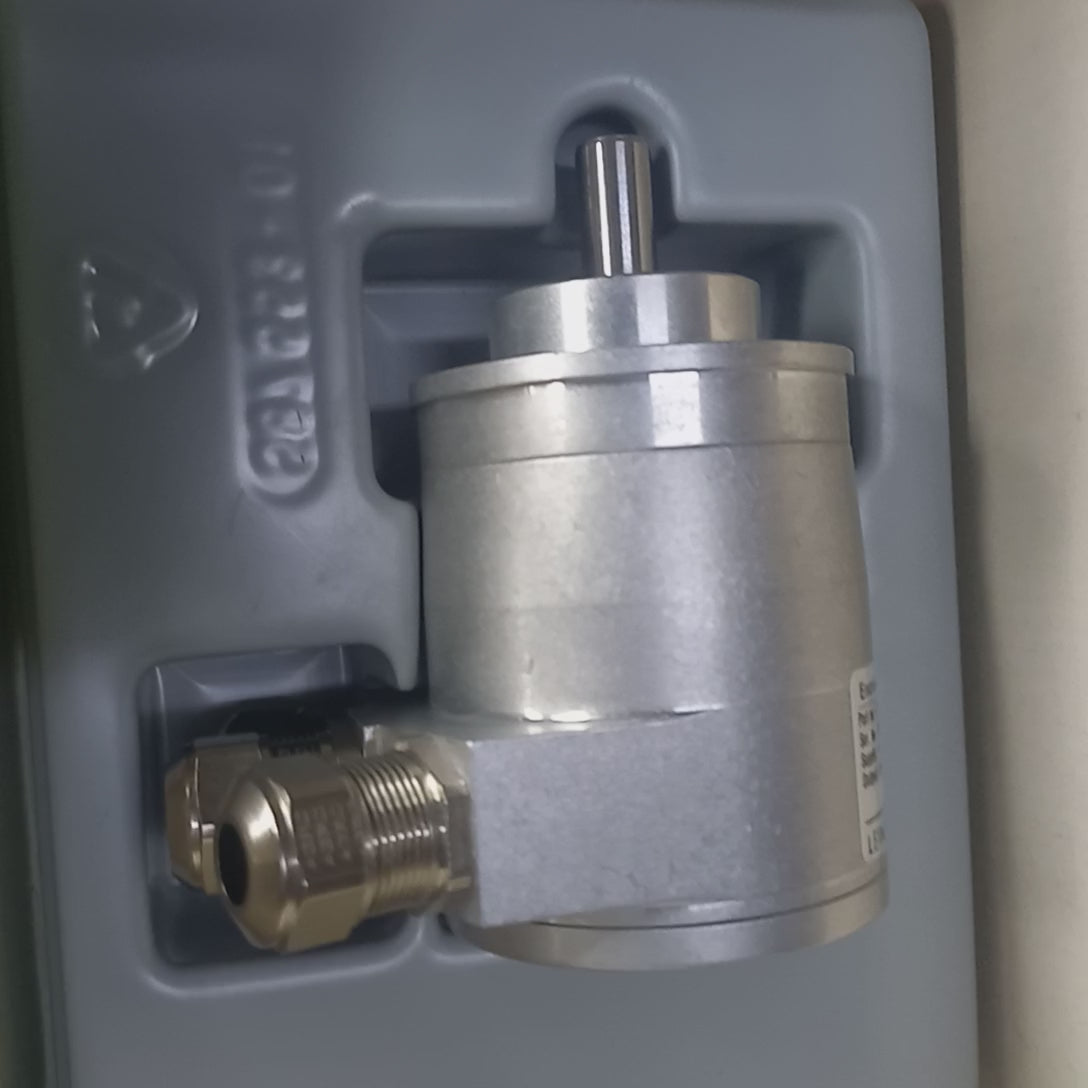

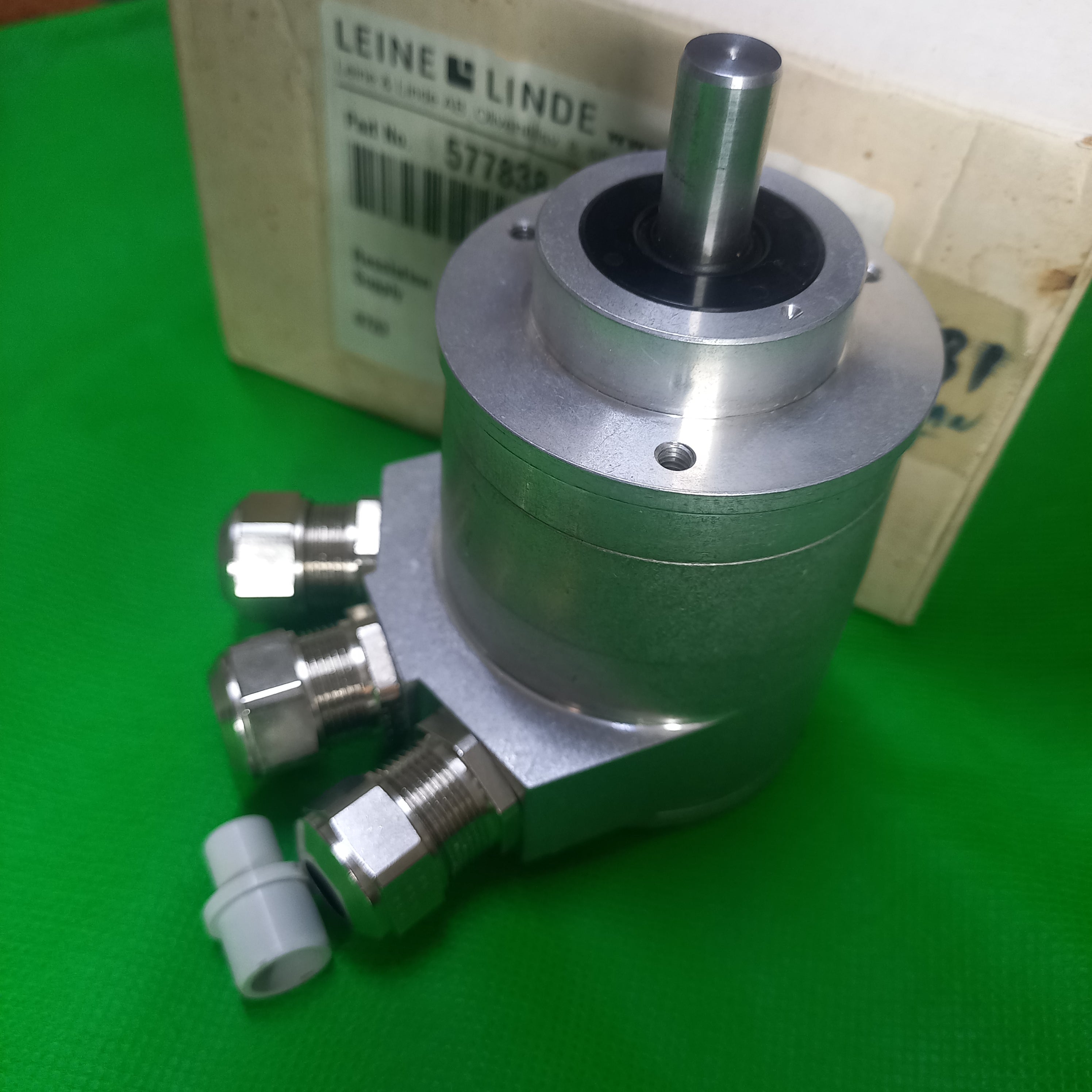

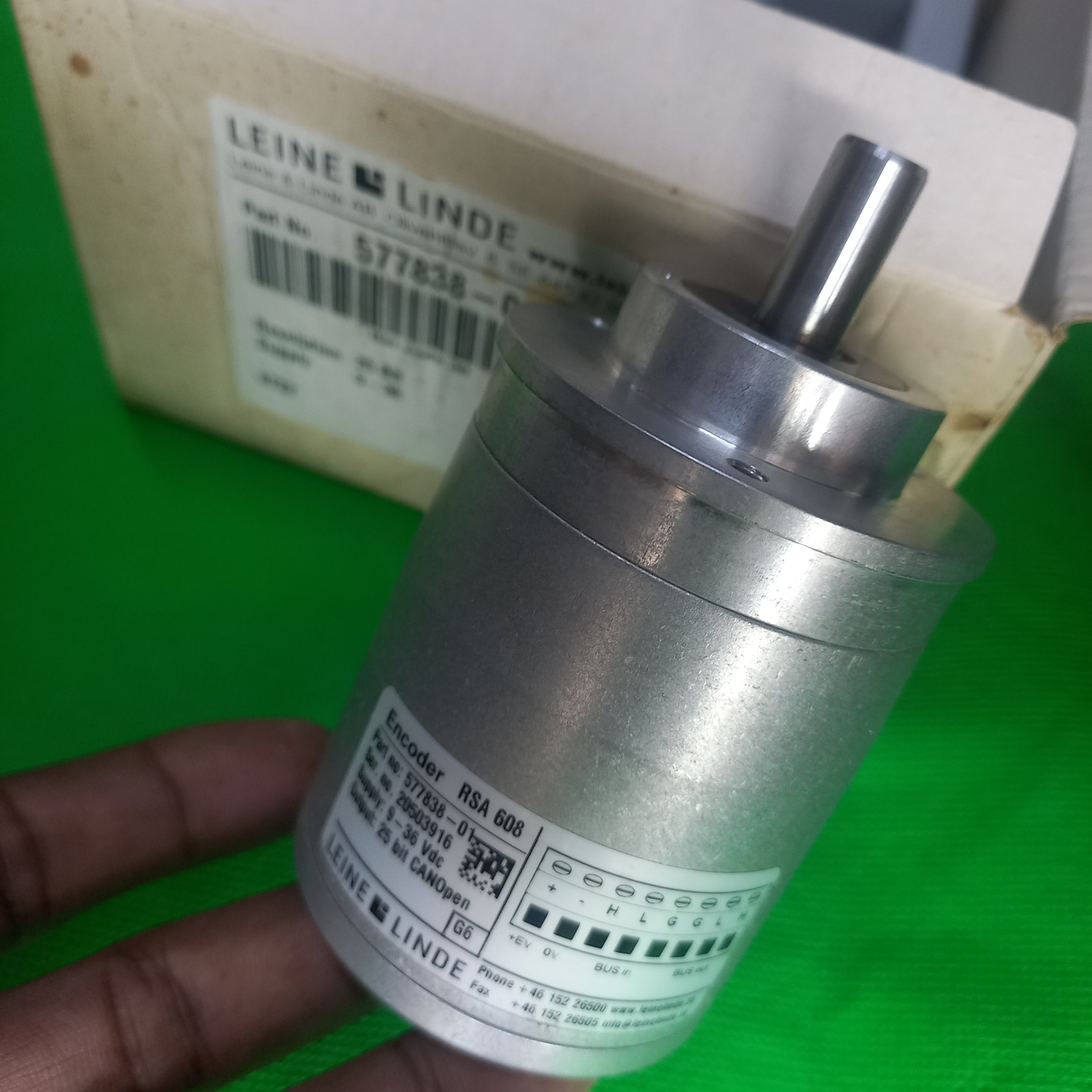

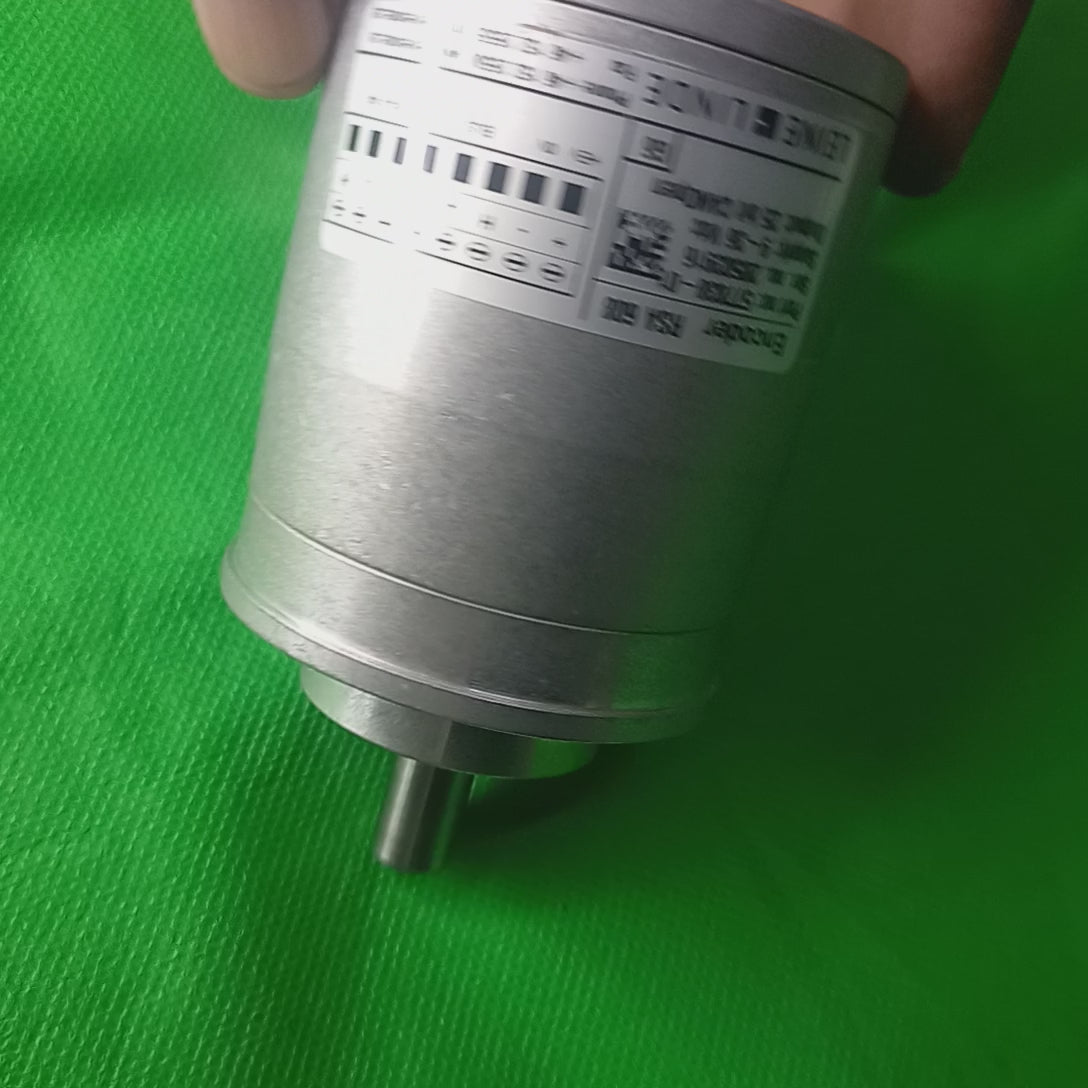

Leine & Linde Encoder model : RSA 608 | Part number : 577838-01
Ruggedized Shaft encoder, Absolute
• 58mm diameter
• Singleturn resolution 13 bit
• Multiturn resolution 12 bit
• Robust design
• Shock and vibration protected
Ingress protection class [IEC 60529] IP67/IP66 (Encoder body/Shaft inlet)
Vibration [IEC 60068-2-64] ≤ 100 m/s²
Shock [IEC 60068-2-27] ≤ 1000 m/s²
Shaft load max (axial/radial) 50 / 60 N
Rotational speed max 12000 rpm
Shaft material Stainless steel
Cover material Aluminium (Anodized)
Weight Appr. 400 g
Encoder configuration
Type RSA
Model 608 Multiturn
Shaft type Ø10 mm round
Flange type Clamping flange (61sp-type)
Power supply 9-36 Vdc
Output interface CANopen
Absolute resolution 25 bit (13 bit singleturn + 12 bit multiturn)
Connection type Cable gland
Connecting direction Radial
Electrical data
Polarity protected Yes
Current consumption (No load) 90 mA at 24 Vdc (Max. 150 mA)
Absolute accuracy ± 158 arcsec
Supported profile Encoder profile DS406 v.3,2
Node adress Settable via DIP switches, 0...99
Baud rate Settable via switch, max. 1 Mbit/s
Mechanical Design Features of this Encoder:
- Absolute Encoder Mechanical Design = Solid shaft, face mount flange
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 10 mm
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = CANopen
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
- Absolute Encoder Number of revolutions = 2048 (12 bit)
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection Type Detail = Bus Cover
How Encoder body is Mouted ? Mouting Flange Design Data:
