Leuze_RK 93/4-150 L_50025513, PNP, M12, Range: 5 … 170mm | RK934 Diffuse Sensor
$780.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Leuze_RK 93/4-150 L_50025513, PNP, M12, Range: 5 … 170mm | RK934 Diffuse Sensor
$780.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Leuze Electronic
- Sensor Type: Diffuse sensor, energeticSwitching principle Light switching

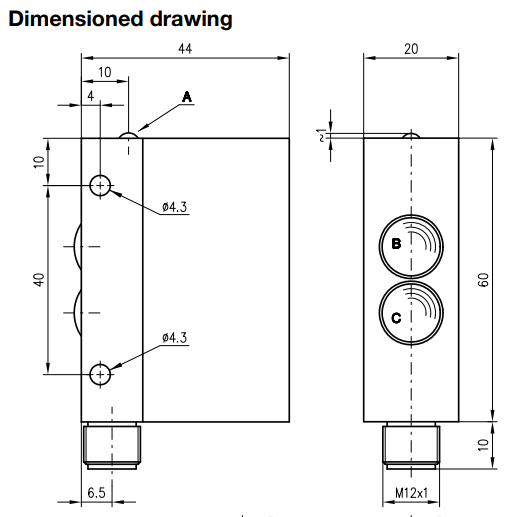

- Sensor Dimensions: 20 mm x 60 mm x 44 mm
- Sensor Interface:
- Sensor Range : 0.005 ... 0.17 m | 5 … 170mm
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Leuze RK 93 Energetic diffuse reflection light scanner | RK93/4-150L 50025513
Infrared light
Background suppression through appropriate optical geometry
Mounting holes for fast installation

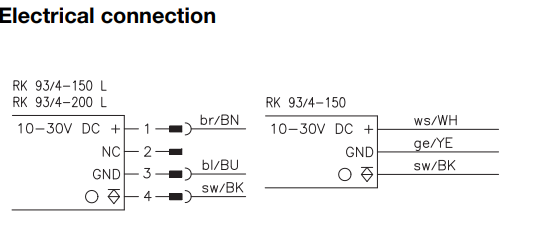

Connection via M12 connector,
| Series | 93 |
| Operating principle | Diffuse reflection principle |
| Special version | V-optics |
| Operating range | Guaranteed operating range |

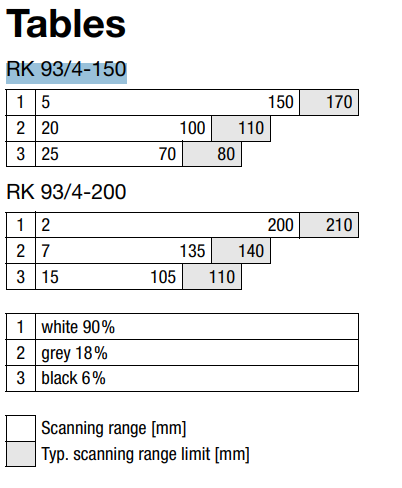

| Operating range, white 90% | 0.005 ... 0.15 m |
| Operating range, gray 18% | 0.02 ... 0.1 m |
| Operating range, black 6% | 0.025 ... 0.07 m |
| Operating range limit, white 90% | 0.005 ... 0.17 m |
| Operating range limit, gray 18% | 0.02 ... 0.11 m |
| Operating range limit, black 6% | 0.025 ... 0.08 m |
| Operating range limit | Typical operating range |
 Light source |
LED, Infrared |
| Type of light spot geometry | Round |
Supply voltage UB
|
10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
| Switching frequency | 250 Hz |
| Number of connections | 1 Piece(s) |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 4 -pin |
|
Dimension (W x H x L) |
20 mm x 60 mm x 44 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc |
| Lens cover material | Glass |
| Net weight |
170 g |
| Ambient temperature, operation | -20 ... 60 °C |
| Degree of protection | IP 65 |
| Protection class | III |
| Approvals | c UL US |
| Standards applied | EN 60947-5-2 (German version) |

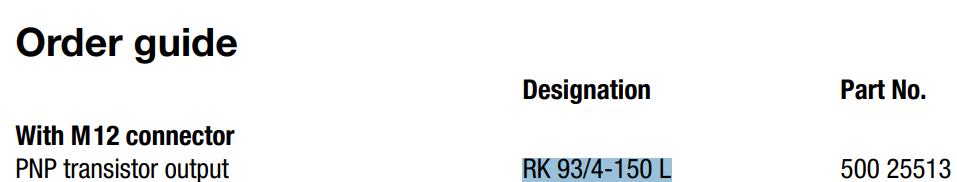

- MPN : RK 93/4-150 L
- Manufacturer indent Nr. : RK 93/4-150 LRK93450L
- Manufacturer Product number : RK934-50L
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
