Pepperl + Fuchs - ML8-8-HGU-210-IR-3647 PHOTOELETRIC - CONVERGENT BEAM

Brand: Pepperl + Fuchs | MPN: ML8-8-HGU-210-IR-3647 | 195671

Model Number  ML8-8-HGU-210-IR-3647
Convergent mode sensor

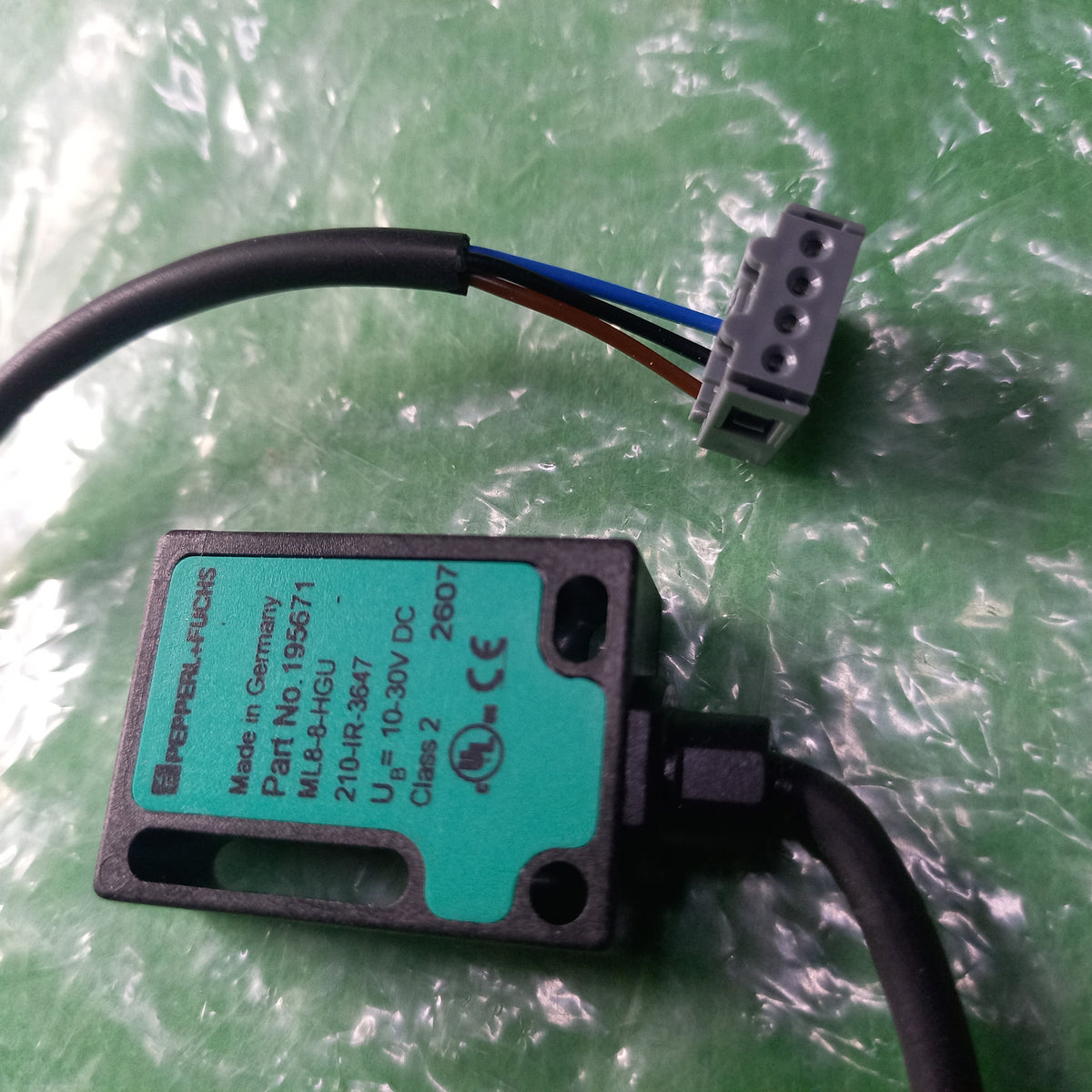

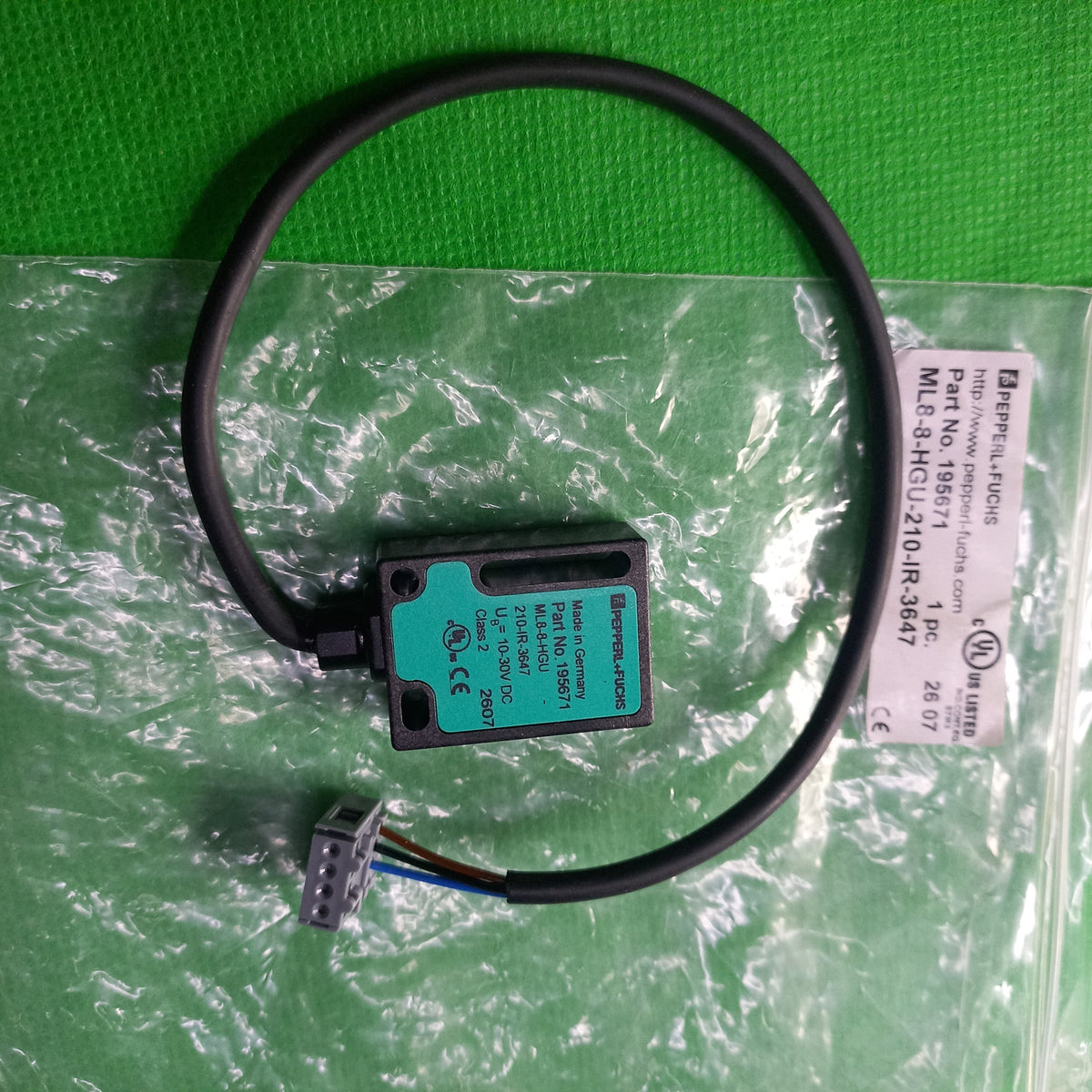

with fixed cable and Stocko plug, 4-pin
Features
• Background interference suppression
• Flexible mounting possibilities due to
slotted hole
• Not sensitive to ambient light, even
with switched energy saving lamps
• Miniature desig

Technical data
General specifications
Detection range 10 ... 210 mm
Reference target standard white, 100 mm x 100 mm
Light source IRED
Light type modulated infrared light
Diameter of the light spot approx. 10 mm at detection range 200 mm
Ambient light limit 30000 Lux
Indicators/operating means
Function display LED yellow: lights when object is detected
Electrical specifications
Operating voltage UB 10 ... 30 V DC , class 2
Ripple max. 10 %
No-load supply current I0 < 20 mA
Output
Switching type dark on
Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA
Switching frequency f 200 Hz
Response time 2.5 ms
Ambient conditions
Ambient temperature -30 ... 60 °C (-22 ... 140 °F)
Storage temperature -40 ... 75 °C (-40 ... 167 °F)
Mechanical specifications
Protection degree IP65
Connection fixed cable with Stocko plug , 4-pin 3.6 mm cable diameter
Cable strand cross-section 3 x 0.2 mm2
Material
Housing PC (glass-fiber-reinforced Makrolon)
Optical face PMMA
Sheathing PUR
Core insolation PVC
Mass approx. 10 g
Tightening torque, fastening screws ≤ 0.4 Nm
Compliance with standards and directives
Directive conformity EMC Directive 2004/108/EC
Standard conformity
Product standard EN 60947-5-2:2007
Protection degree EN 60529
Standards EN 50178, UL 508
Approvals and certificates
UL approval cULus Listed, Class 2 Power Source, Type 1 enclosure
CCC approval Products with a maximum operating voltage of ≤36 V do not
bear a CCC marking because they do not require approval.
