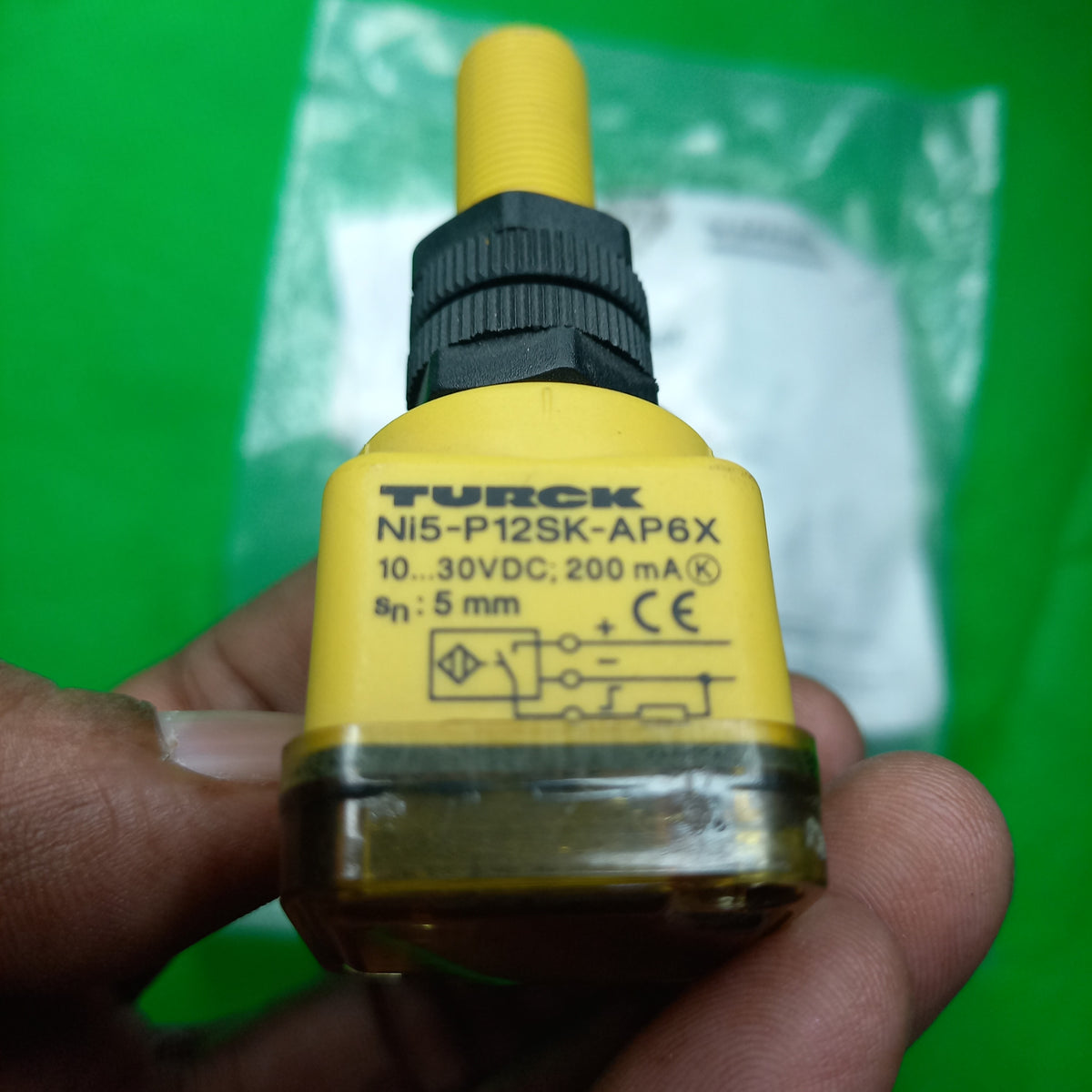

Ni5-P12SK-AP6X, ident-No. 46537, 3 wire, NO,  PNP, Non-flush, 5mm RAted switching distance,erminal chamber,Threaded barrel, M12 x 1

Features
■Threaded barrel, M12 x 1
■Plastic, PA12‐GF30
■DC 3-wire, 10…30 VDC
■NO contact, PNP output
■Terminal chamber

Technical data
Type N15-P12SK-AP6X ID 46 5 37
Rated switching distance 5 mm
Mounting conditions Non-flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7;Ms = 0.4
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ±10 %
Hysteresis 3…15 %
Electrical data
Operating voltage 10…30 VDC
Residual ripple ≤ 10 % Uss
DC rated operational current ≤ 200 mA
No-load current 15 mA
Residual current ≤ 0.1 mA
Isolation test voltage ≤ 0.5 kV
Short-circuit protection yes / Cyclic
Voltage drop at Ie ≤ 1.8 V
Wire breakage/Reverse polarity protection
yes / Complete
Output function 3-wire, NO contact, PNP
Switching frequency 1.5 kHz
Mechanical data

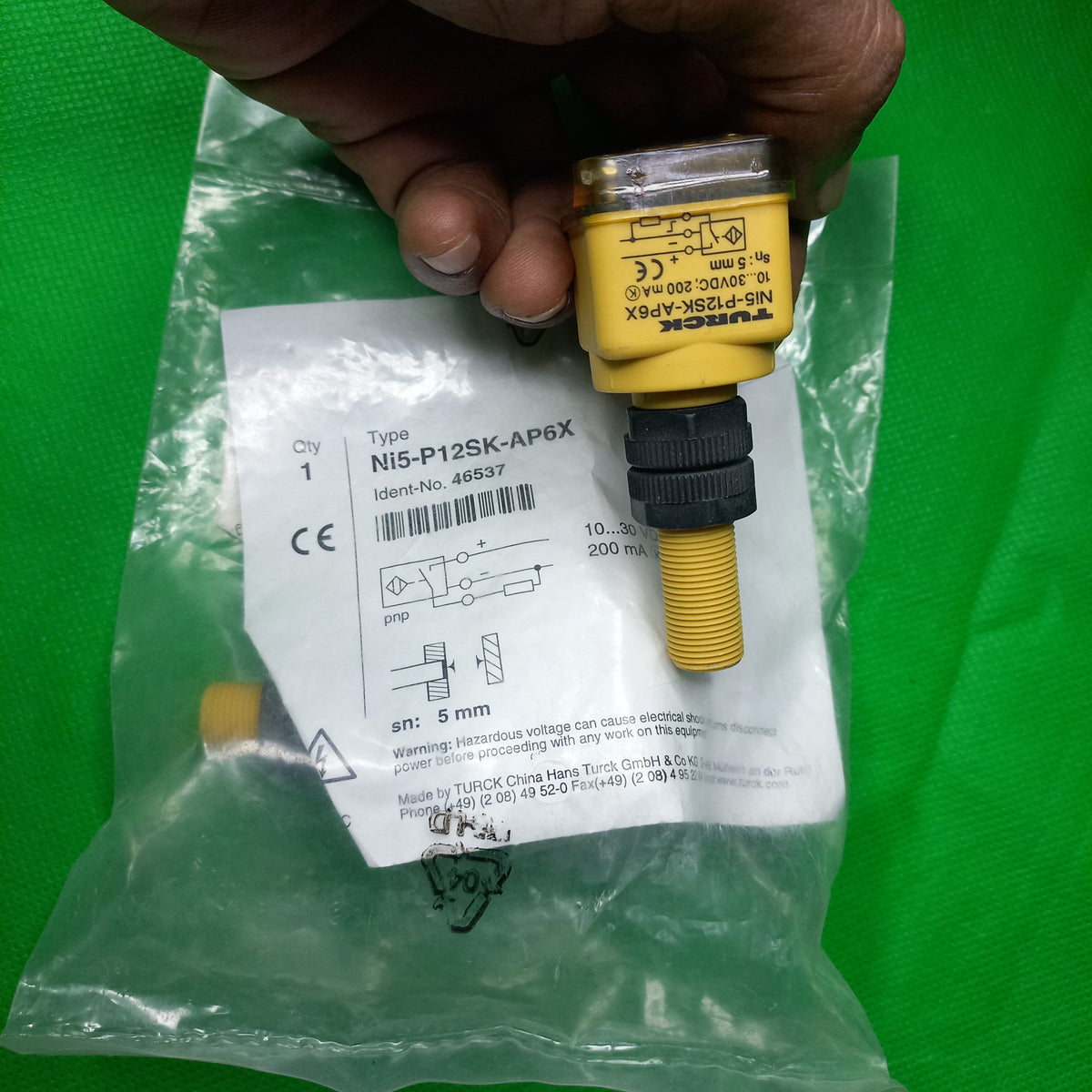

Design Threaded barrel, M12 x 1
Dimensions 75 mm
Housing material Plastic, PA12-GF30
Terminal chamber cover material plastic, Ultem
Terminal chamber housing material plastic, PA12-GF30
Active area material Plastic, PA12-GF30
Max. tightening torque of housing nut 1 Nm
Electrical connection Terminal chamber
Clamping ability ≤ 2.5 mm²
Cable external diameter 4.5…8 mm
Environmental conditions
Ambient temperature -25…+70 °C
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C
Switching state LED, Yellow

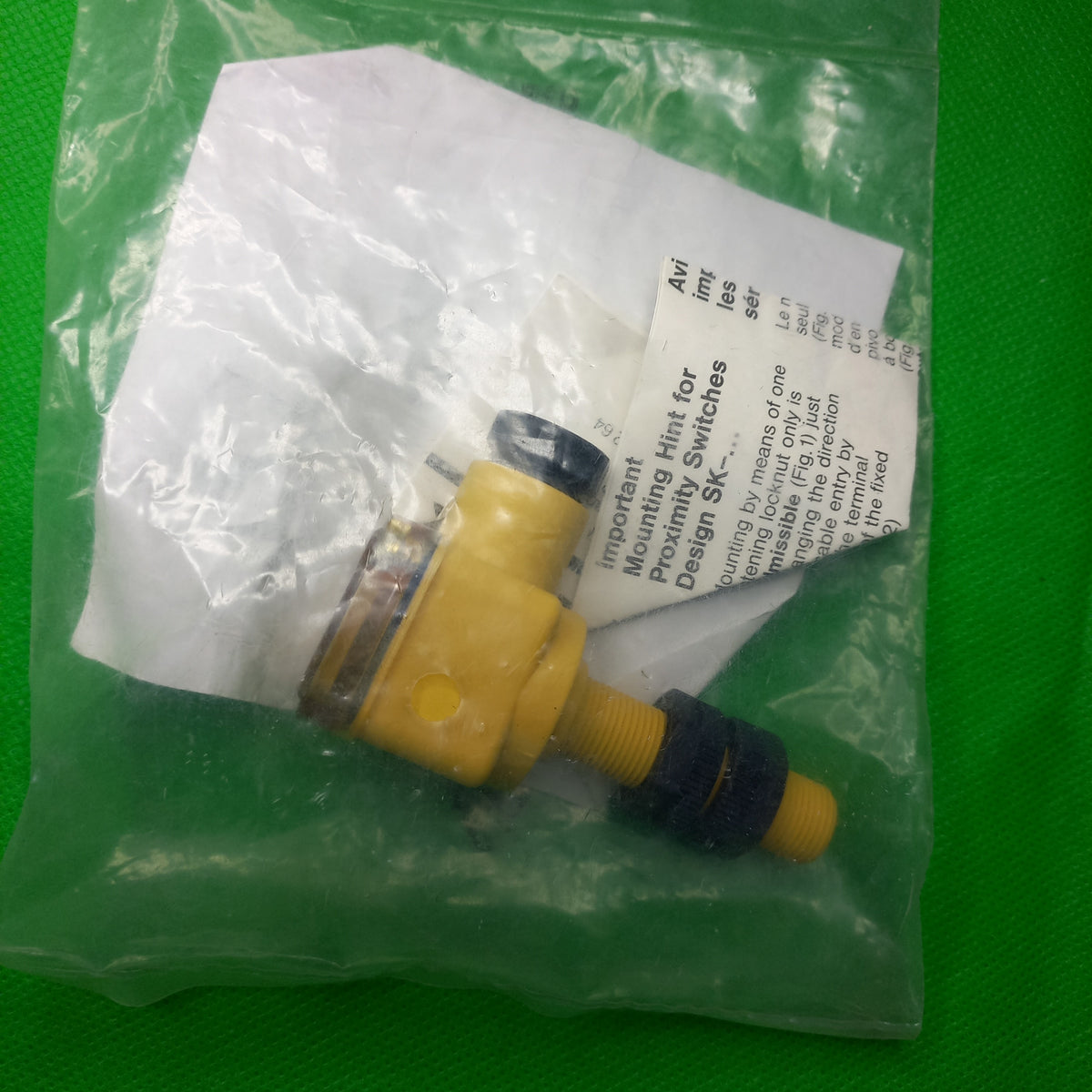

Included in delivery cable gland; 2x plastic seals
