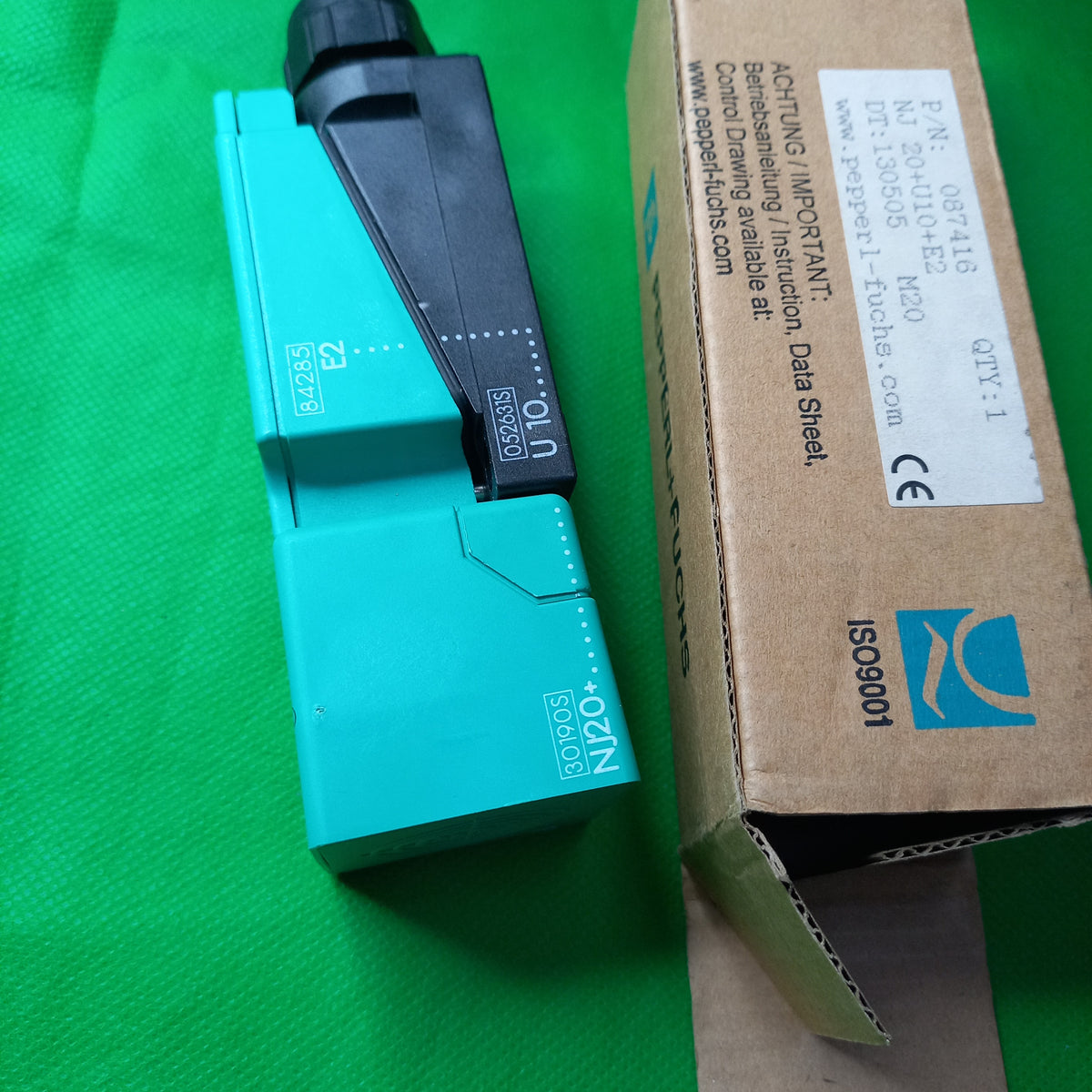

Pepperl+Fuchs NJ20U10E2 | NJ20+U10+E2; 087416, PNP, NO, sn=20mm, flush
$180.00
Skip to product information
Technical Data
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance sn 20 mm
Installation flush
Output polarity DC
Assured operating distance sa 0 ... 16.2 mm
Actual operating distance sr 18 ... 22 mm typ. 20 mm
Reduction factor rAl 0.35
Reduction factor rCu 0.35
Reduction factor r304 0.8
Output type 3-wire
Nominal ratings
Operating voltage UB 10 ... 60 V
Switching frequency f 0 ... 150 Hz
Hysteresis H 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud ≤ 2.8 V
Voltage drop at IL
Voltage drop IL = 1 mA, switching element
on
Ud 0.5 ... 2.3 V typ. 0.9 V
Voltage drop IL = 10 mA, switching element
on
Ud 0.8 ... 2.2 V typ. 1.4 V
Voltage drop IL = 20 mA, switching element
on
Ud 0.9 ... 2.3 V typ. 1.5 V
Voltage drop IL = 50 mA, switching element
on
Ud 0.9 ... 2.5 V typ. 1.6 V
Voltage drop IL = 100 mA, switching
element on
Ud 1 ... 2.6 V typ. 1.8 V
Voltage drop IL = 200 mA, switching
element on
Ud 1.2 ... 2.8 V typ. 2 V
Operating current IL 0 ... 200 mA
Off-state current Ir 0 ... 0.5 mA typ. 0.01 mA
Off-state current TU =40 °C, switching
element off
≤ 100 µA
No-load supply current I0 ≤ 10 mA
Time delay before availability tv ≤ 50 ms
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type screw terminals
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Degree of protection IP68
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
Pepperl+Fuchs NJ20U10E2 | NJ20+U10+E2; 087416, PNP, NO, sn=20mm, flush
$180.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Turck | IFM
- Sensor Type: Block | Cube Housing - Rectangular Square- Inductive Sensor ( Limit Switch Style)Inductive Sensor
- Sensor Dimensions: 40 x 40 x 120mm
- Sensor Range : Sensing range [mm] 20
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Pepperl-Fuchs, Inductive sensor_NJ20+U10+E2; 087416, PNP, NO, sn=20mm, flush
Technical Data
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance sn 20 mm
Installation flush
Output polarity DCAssured operating distance sa 0 ... 16.2 mm
Actual operating distance sr 18 ... 22 mm typ. 20 mm
Reduction factor rAl 0.35
Reduction factor rCu 0.35
Reduction factor r304 0.8
Output type 3-wire
Nominal ratings
Operating voltage UB 10 ... 60 VSwitching frequency f 0 ... 150 Hz
Hysteresis H 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud ≤ 2.8 V
Voltage drop at IL
Voltage drop IL = 1 mA, switching element
on
Ud 0.5 ... 2.3 V typ. 0.9 V
Voltage drop IL = 10 mA, switching element
on
Ud 0.8 ... 2.2 V typ. 1.4 V
Voltage drop IL = 20 mA, switching element
on
Ud 0.9 ... 2.3 V typ. 1.5 V
Voltage drop IL = 50 mA, switching element
on
Ud 0.9 ... 2.5 V typ. 1.6 V
Voltage drop IL = 100 mA, switching
element on
Ud 1 ... 2.6 V typ. 1.8 V
Voltage drop IL = 200 mA, switching
element on
Ud 1.2 ... 2.8 V typ. 2 V
Operating current IL 0 ... 200 mA
Off-state current Ir 0 ... 0.5 mA typ. 0.01 mA
Off-state current TU =40 °C, switching
element off
≤ 100 µA
No-load supply current I0 ≤ 10 mA
Time delay before availability tv ≤ 50 ms
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Compliance with standards and directives
Standard conformity
Standards EN 60947-5-2:2007
IEC 60947-5-2:2007
Approvals and certificates
UL approval cULus Listed, General Purpose
CSA approval cCSAus Listed, General Purpose
CCC approval Certified by China Compulsory Certification (CCC)
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type screw terminals
Core cross-section up to 2.5 mm2
Housing material PBT
Sensing face PBT
Degree of protection IP68
- MPN : NJ20+U10+E2
- Manufacturer indent Nr. : NJ20+U10+E2NJ20U10E2
- Manufacturer Product number : 87416
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
