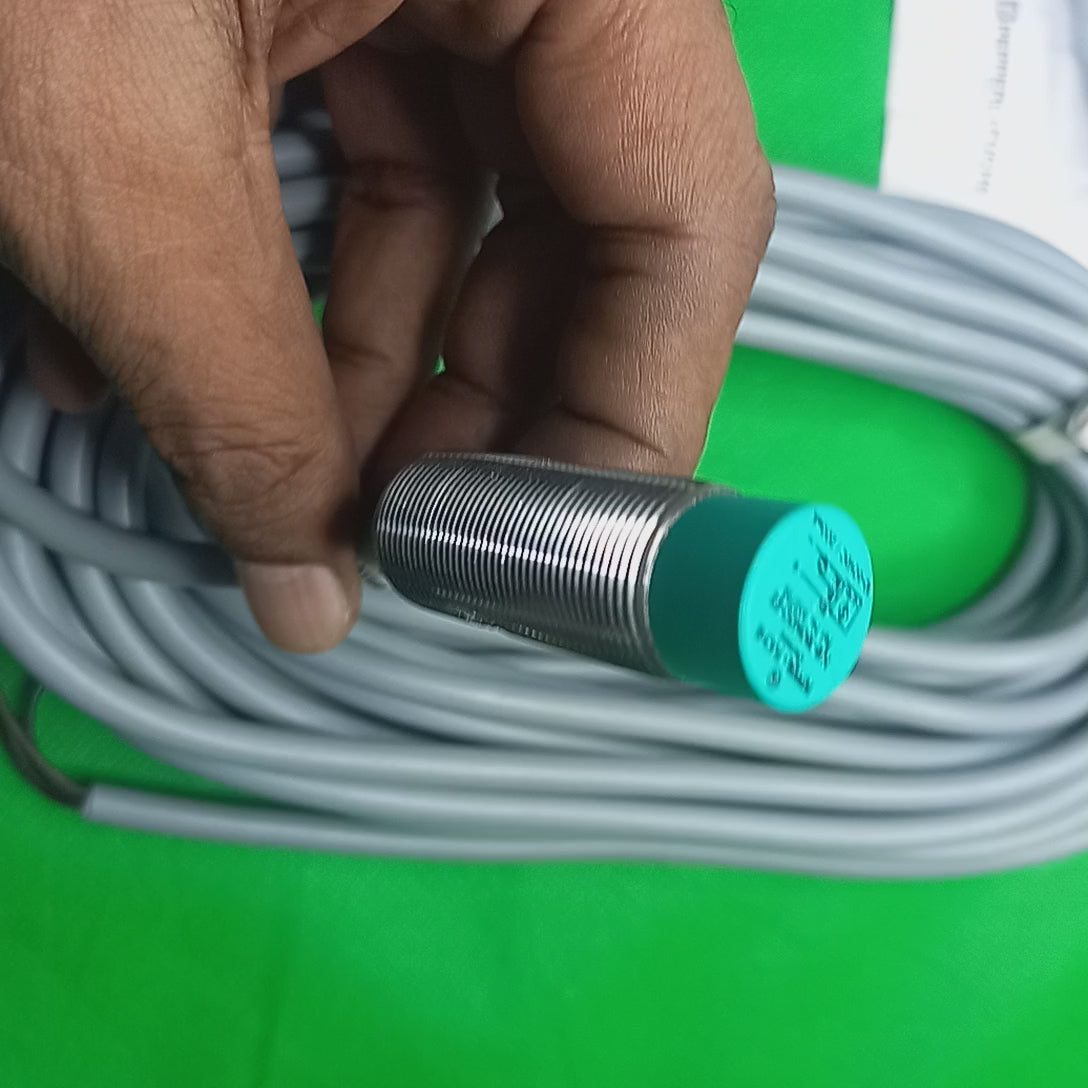

Pepperl+Fuchs NJ818GM50E2 Cable 10 Meter, M18, Sn-8mm, PNP, NO, non-flush, 3-wire
$225.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Pepperl+Fuchs NJ818GM50E2 Cable 10 Meter, M18, Sn-8mm, PNP, NO, non-flush, 3-wire
$225.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Pepperl + Fuchs
- Sensor Type: Inductive Proximity SensorInductive Sensor
- Sensor Dimensions: Ø 18mm
- Sensor Interface:
- Sensor Range : 8 mm | non-flush
- Product Condition New in Generic Brown Packett:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :

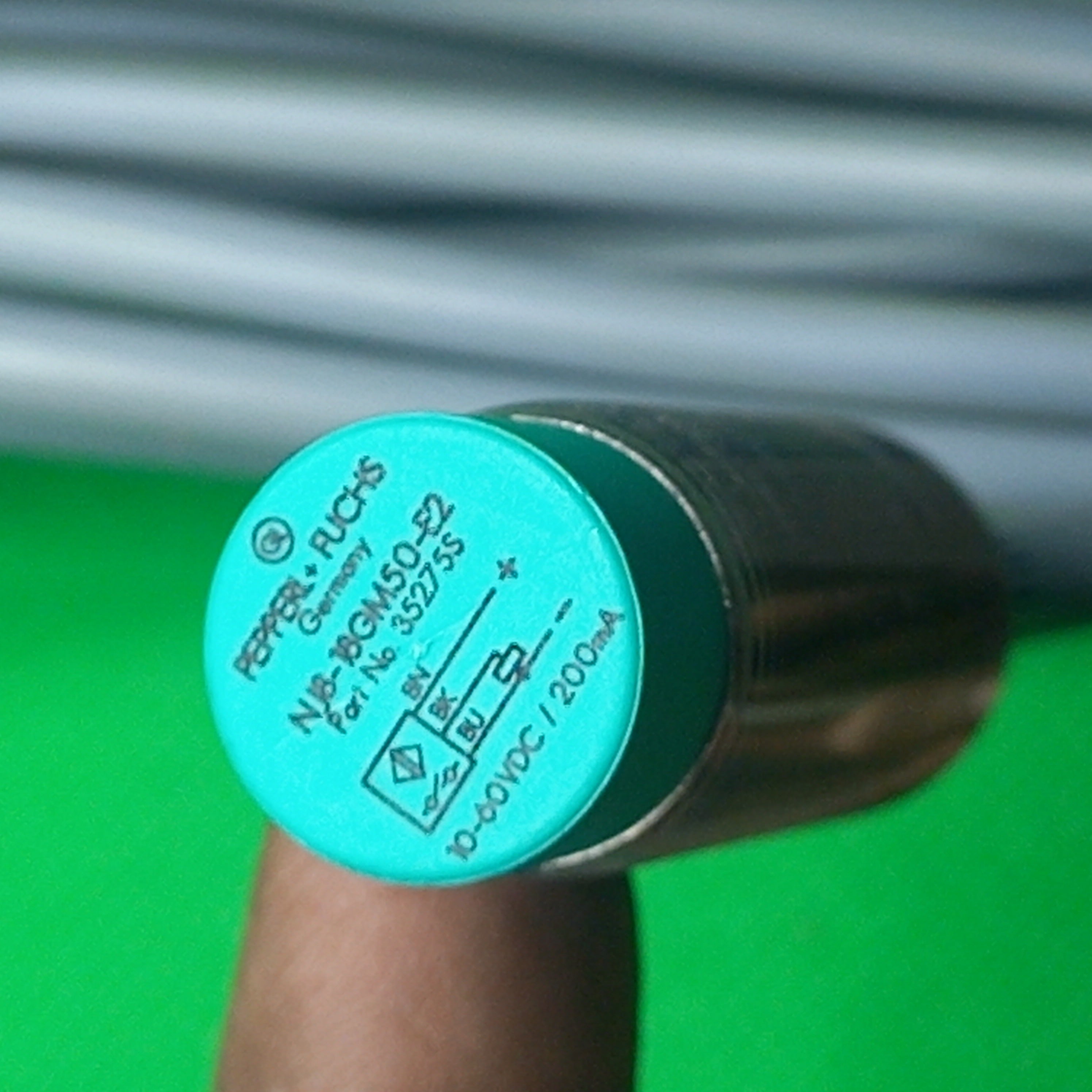

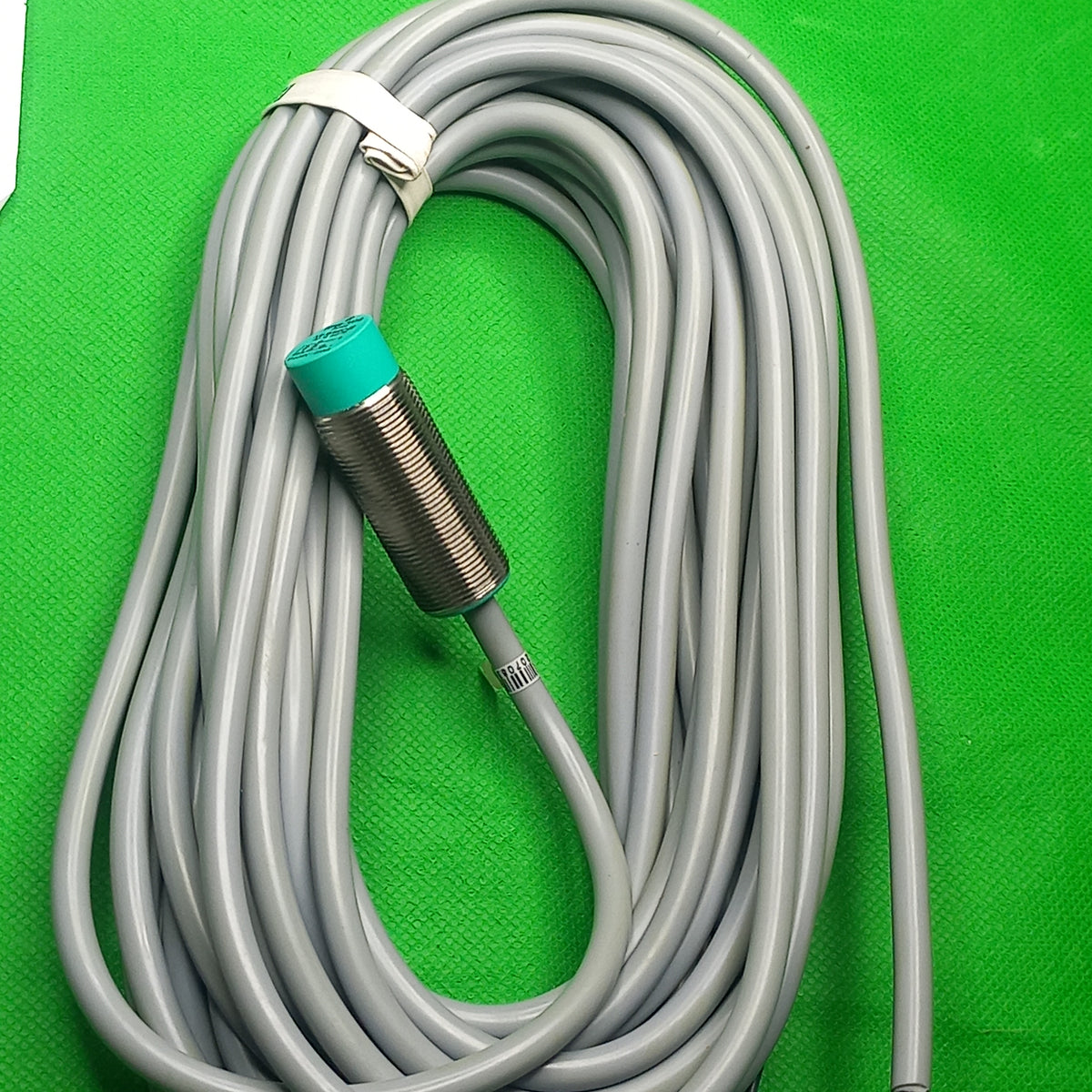

Pepperl+Fuchs NJ8-18GM50-E2 (Part No. 35275S) , Output type: PNP, Normally Open, Non Flush Installation, Operating distance 8Mm with 10 Meter Cable.
General specifications
Switching function Normally open (NO)
Output type PNP
Rated operating distance sn 8 mm
Installation non-flush
Output polarity DC
Assured operating distance sa 0 ... 6.48 mm
Actual operating distance sr 7.2 ... 8.8 mm typ. 8 mm
Reduction factor rAl 0.42
Reduction factor rCu 0.4
Reduction factor r304 0.72
Reduction factor rBrass 0.5
Output type 3-wire
Nominal ratings
Installation conditions
A 10 mm
B 54 m
C 24 mm
Operating voltage UB 10 ... 60 V
Switching frequency f 0 ... 1000 Hz
Hysteresis H 1 ... 10 % typ. 7.5 %
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop Ud ≤ 3 V
Voltage drop at IL
Voltage drop IL = 100 mA, switching
element on
Ud 1.5 ... 2.5 V typ. 1.9 V
Operating current IL 0 ... 200 mA
Lowest operating current Im 0 mA
Off-state current Ir 0 ... 0.5 mA typ. 0.01 mA
Off-state current TU =40 °C, switching
element off
≤ 100 µA
No-load supply current I0 ≤ 9 mA
Time delay before availability tv ≤ 30 ms
Switching state indicator LED, yellow
Safety-relevant product characteristics
MTTFd 1424 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Connection type cable
Housing material Stainless steel 1.4305 / AISI 303
Sensing face PBT
Degree of protection IP67
Cable
Wire end ferrules yes
Cable diameter 6.4 mm ± 0.2 mm
Bending radius > 10 x cable diameter
Material PVC
Color grey
Number of cores 3
Core cross section 0.5 mm2
Length L 2 m
Dimensions
Length 50 mm
Diameter 18 mm
- MPN : NJ8-18GM50-E2
- Manufacturer indent Nr. : NJ8-18GM50-E2 NJ8 18GM50 E2
- Manufacturer Product number : NJ818GM50E2
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
