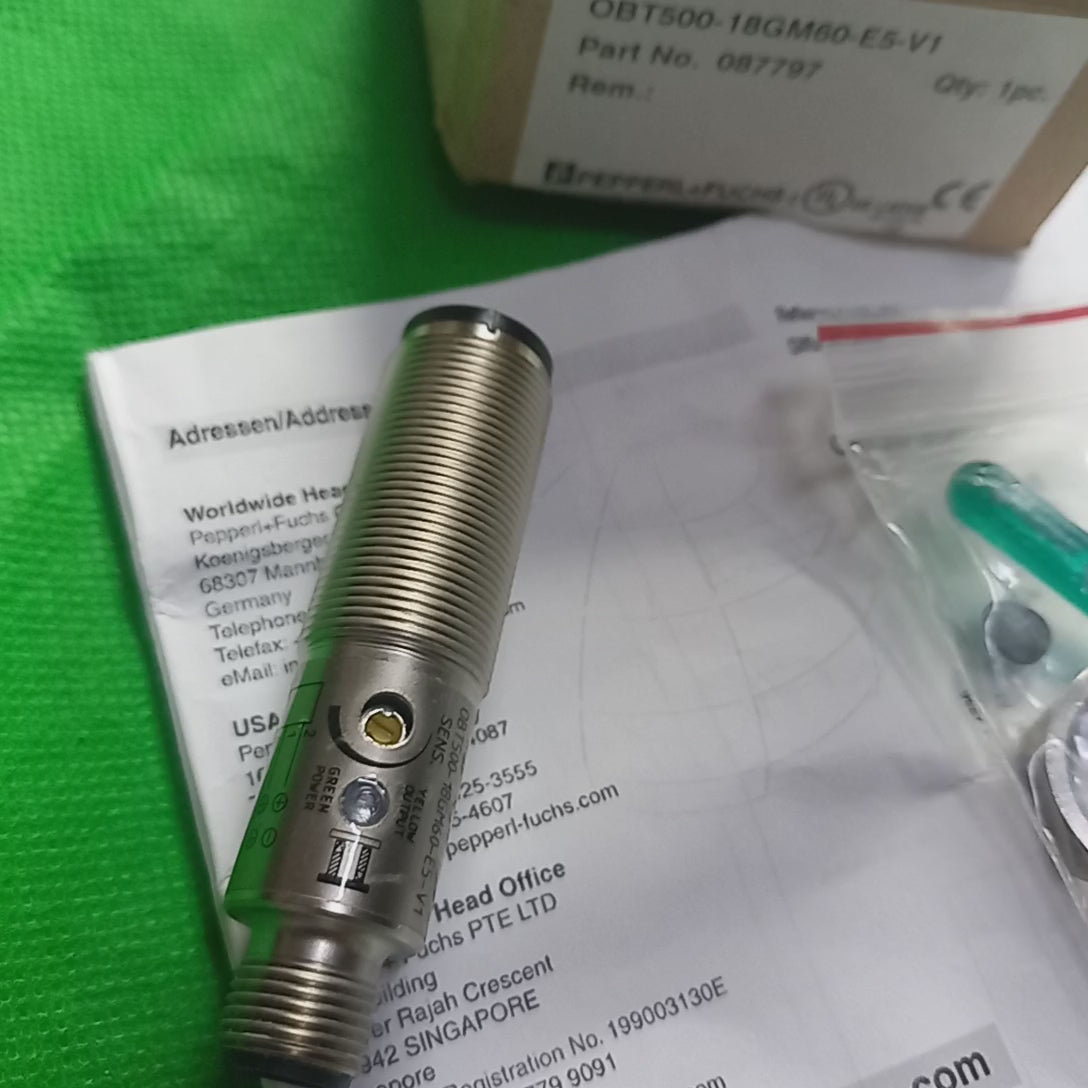

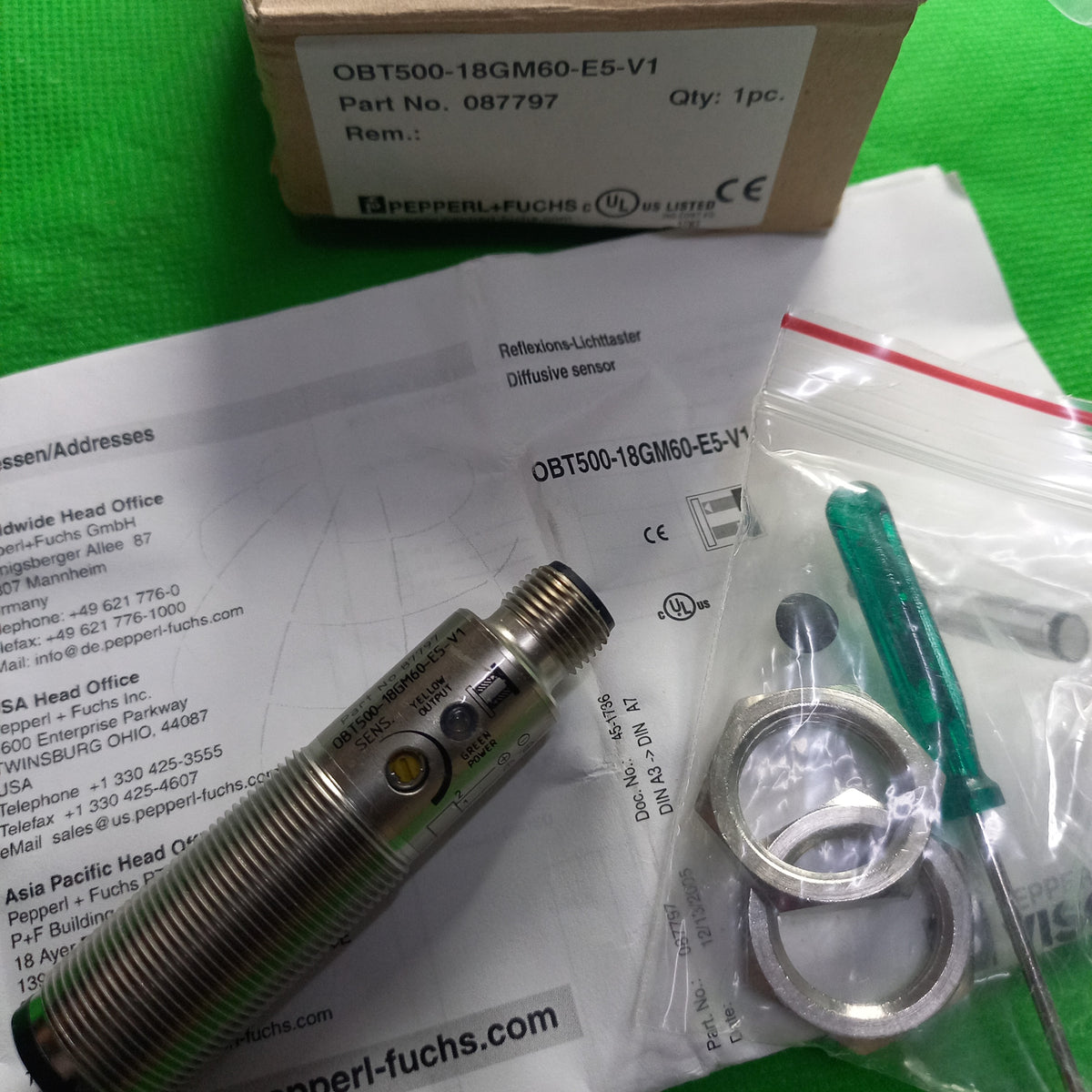

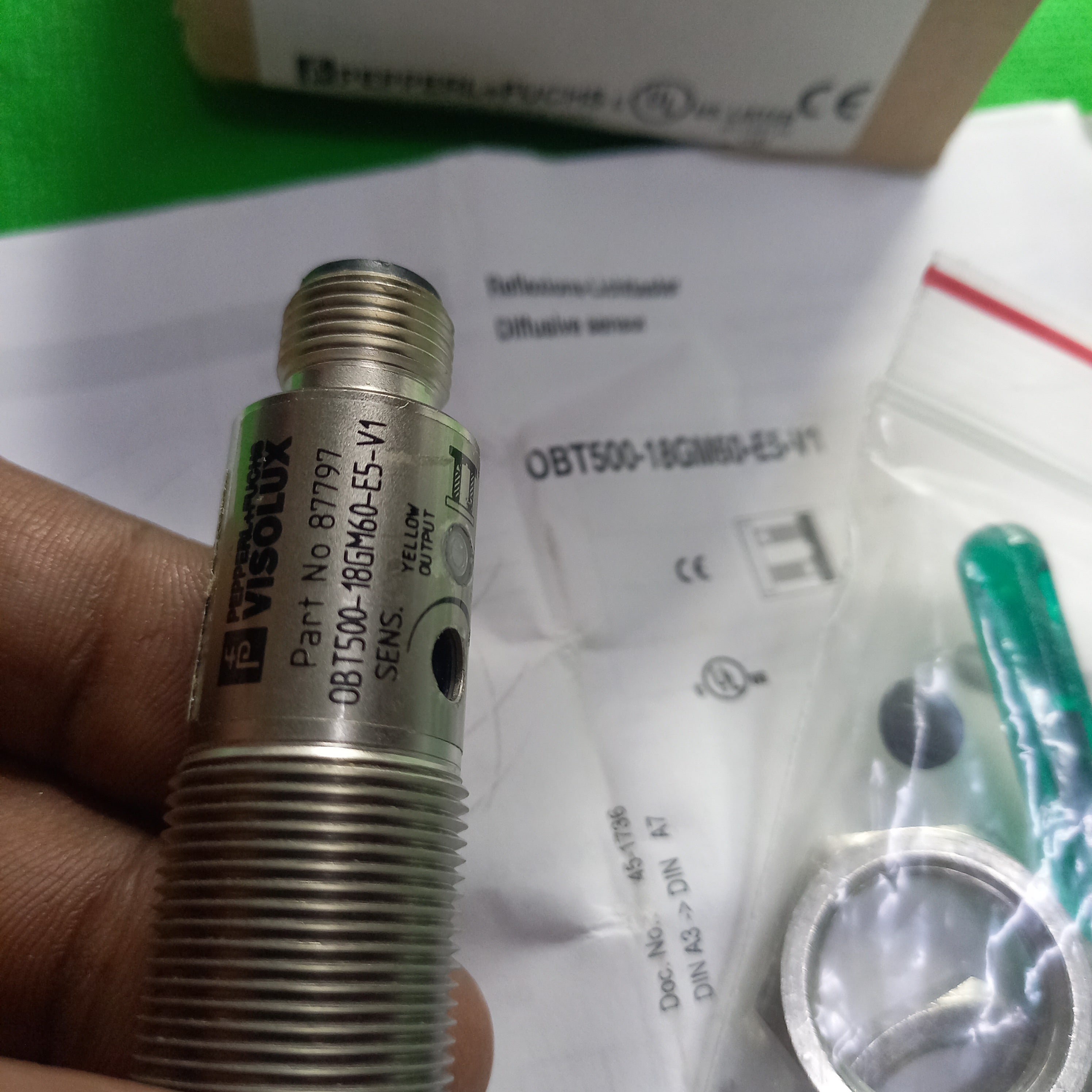

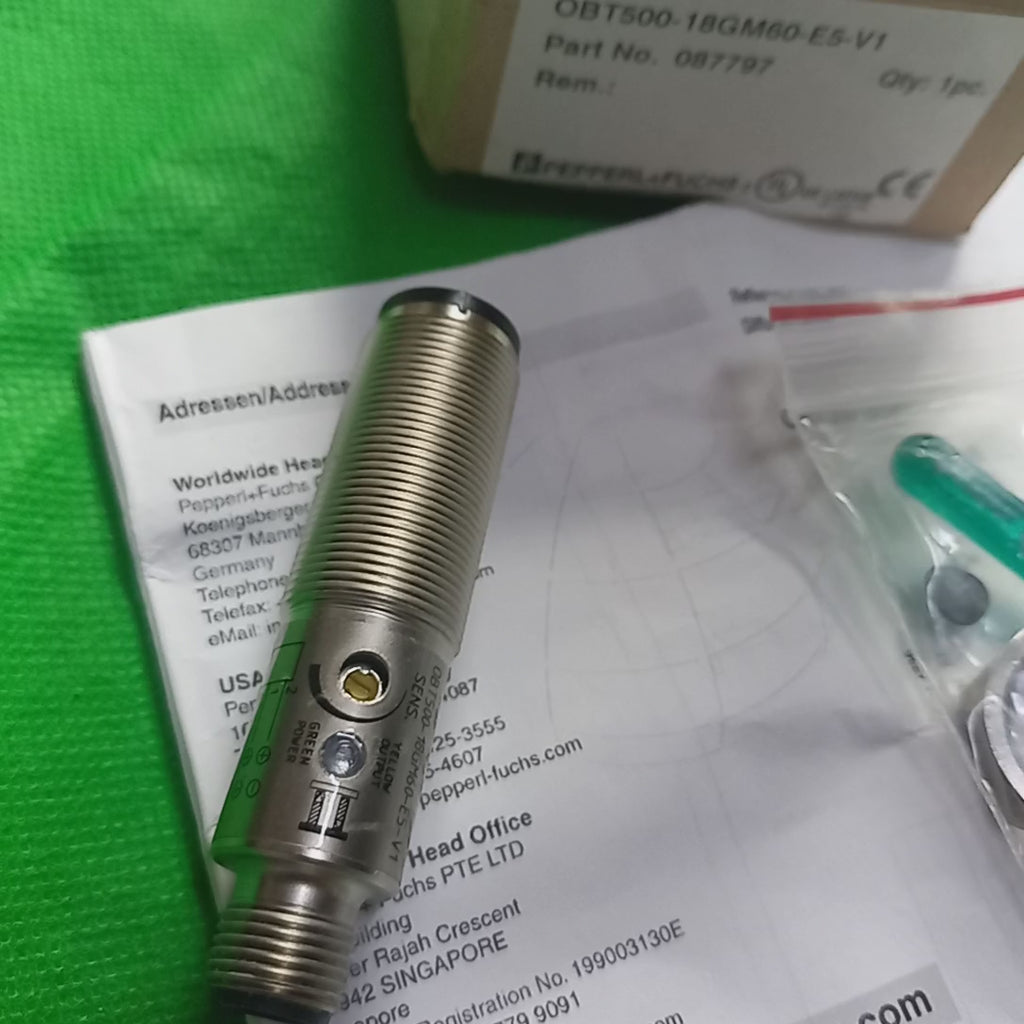

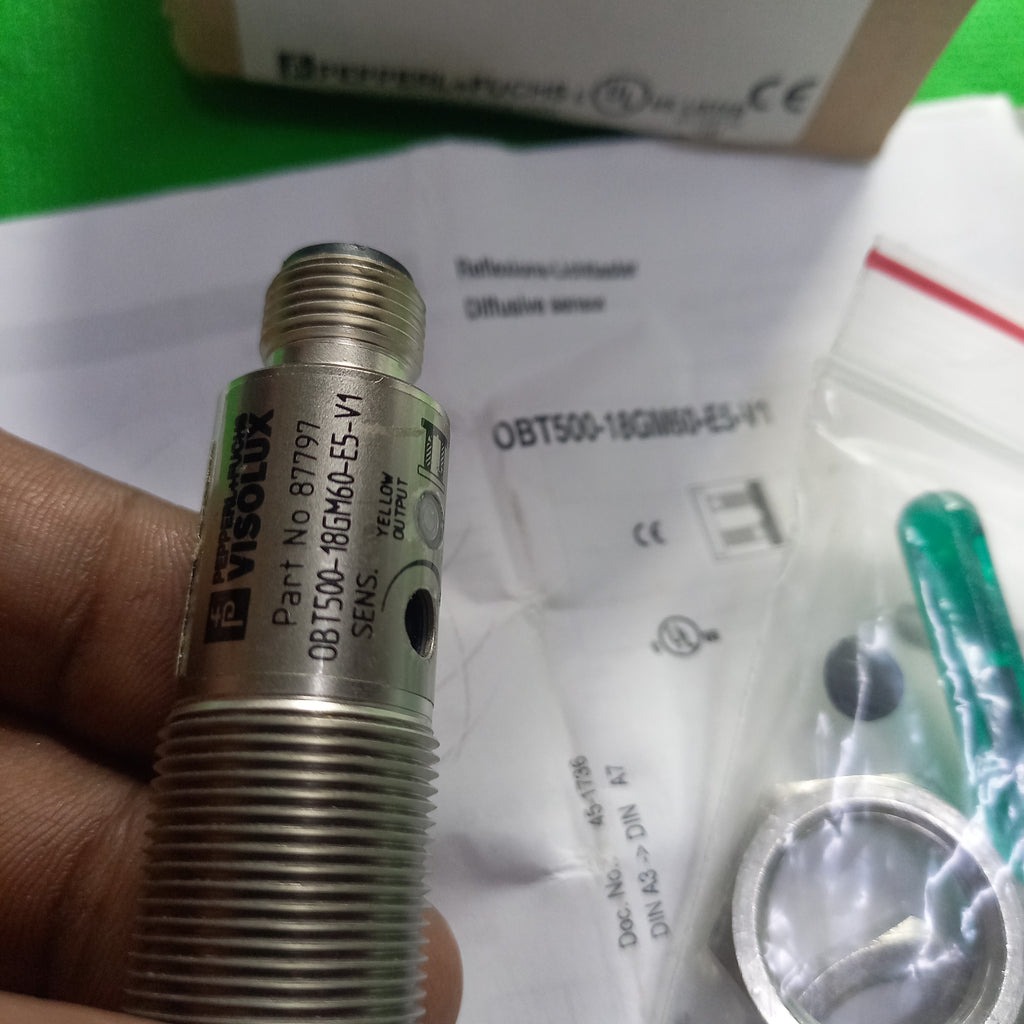

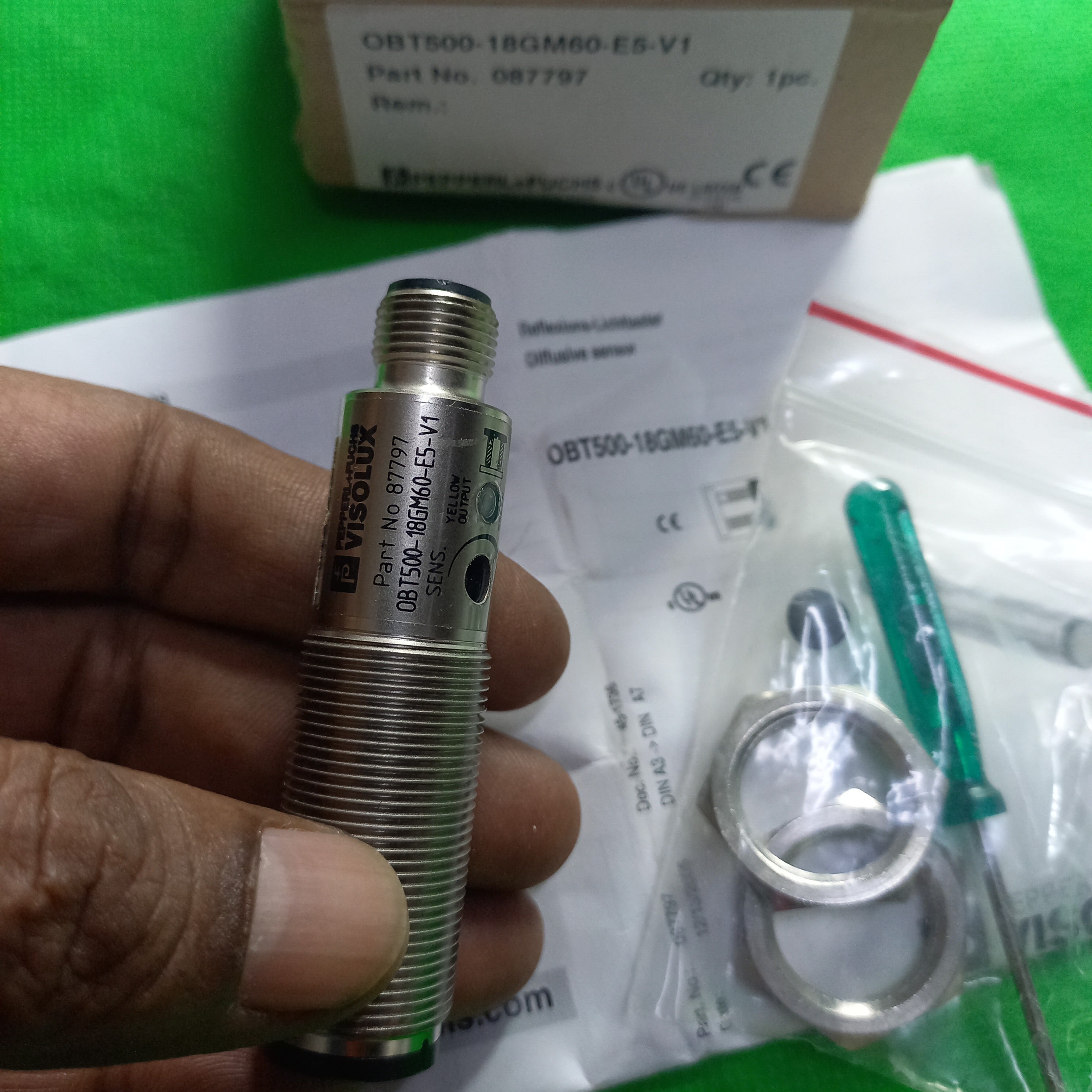

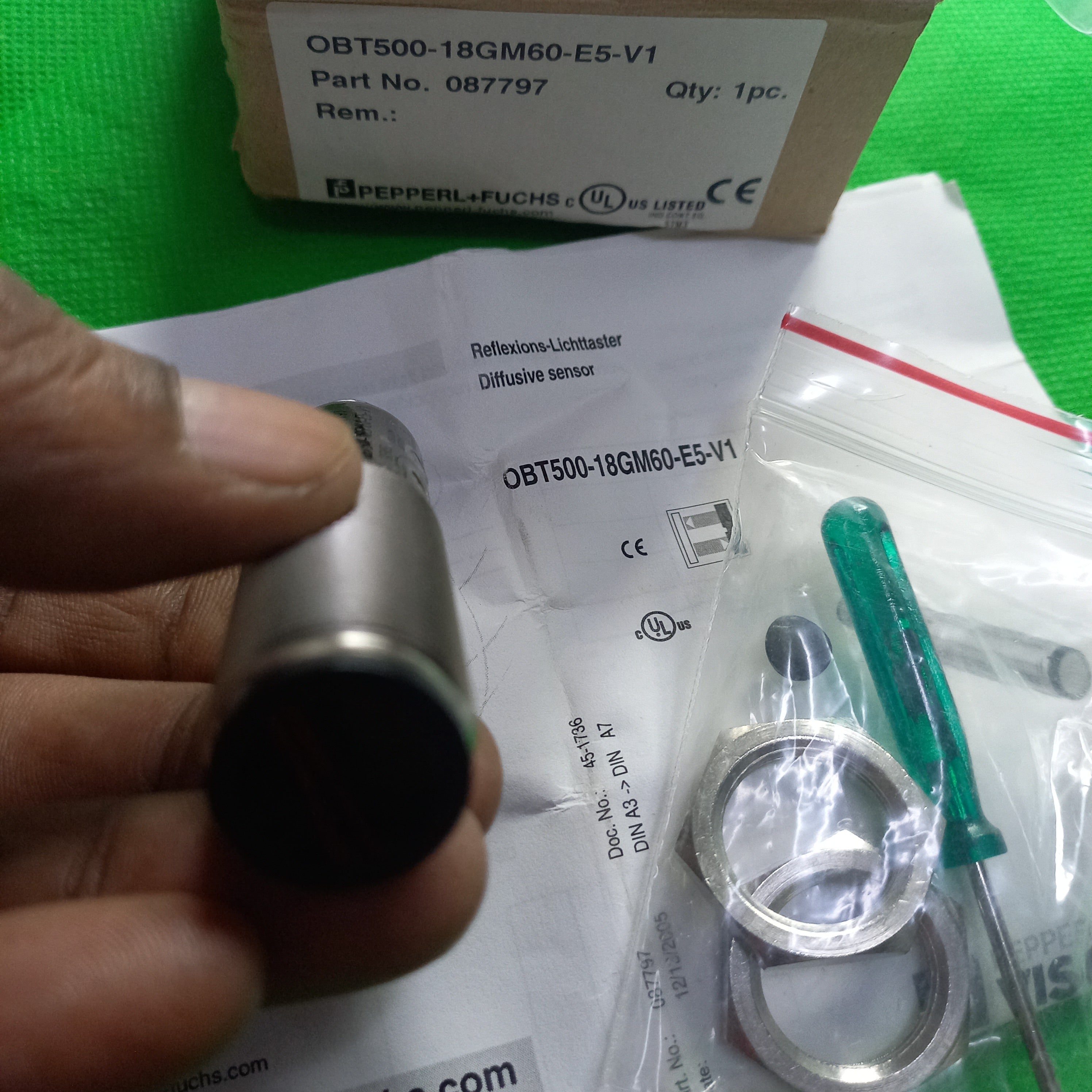

Cylinderical Series 18M, OBT500-18GM60-E5-V1 | 087797, range 500 mm, PNP
Sale price
$280.00
Regular price $300.00
Skip to product information
OBT 500-18GM60-E5-V1, Part No. 87797_Diffuse mode sensor OBT50018GM60E5V1,Detection range 0 ... 500 mm, 1 PNP output,
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
Cylinderical Series 18M, OBT500-18GM60-E5-V1 | 087797, range 500 mm, PNP
Sale price
$280.00
Regular price $300.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Balluff
- Sensor Type: Diffuse sensor, energeticLight-on/dark-on, programmable
- Sensor Dimensions: Ø 18 x 70 mm
- Sensor Interface:
- Sensor Range : Rated operating distance Sn 800 mm, Adjustable
- Product Condition New in Factory Sealed Packet:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
OBT 500-18GM60-E5-V1, Part No. 87797_Diffuse mode sensor OBT50018GM60E5V1,Detection range 0 ... 500 mm, 1 PNP output,
| Switching type | light/dark on electrically switchable | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
Technical Data
< Dual color indication LED | < High switching frequency
< Light-on/dark-on, programmable
< Degree of protection IP67
< Strong metallic housing in cylindrical shape M18 x 1
General specifications
Detection range 0 ... 500 mm
Reference target standard white 200 mm x 200 mm
Light source IRED , 880 nm
Light type infrared
Diameter of the light spot approx. 80 mm at 500 mm
Ambient light limit 10000 Lux
Indicators/operating means
Operation indicator LED green
Function indicator Dual color-LED, yellow/green
yellow: switch state
green: power on
flashing: stability control
Control elements Sensing range adjuster
Electrical specifications
Operating voltage UB 10 ... 30 V DC , class 2
Ripple 10 %
No-load supply current I0 ≤ 25 mA
Time delay before availability tv ≤ 25 ms
Output
Switching type light/dark on electrically switchable
Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current max. 100 mA
Voltage drop Ud ≤ 2.5 V
Switching frequency f 500 Hz
Response time 1 ms
Conformity
Product standard EN 60947-5-2
Standard conformity
Standards 2 UL 508
Approvals and certificates
UL approval cULus Listed, Type 1 enclosure
CCC approval CCC approval / marking not required for products rated ≤36 V
Approvals CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1
enclosure)
Ambient conditions
Ambient temperature -25 ... 55 °C (-13 ... 131 °F)
Storage temperature -40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection IP67
Connection 4-pin, M12 x 1 connector
Material
Housing brass, nickel-plated
Optical face PC
Mass 45 g
- MPN : OBT500-18GM60-E5-V1
- Manufacturer indent Nr. : OBT500-18GM60-E5-V1OBT50018GM60E5V1
- Manufacturer Product number : 87797
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
