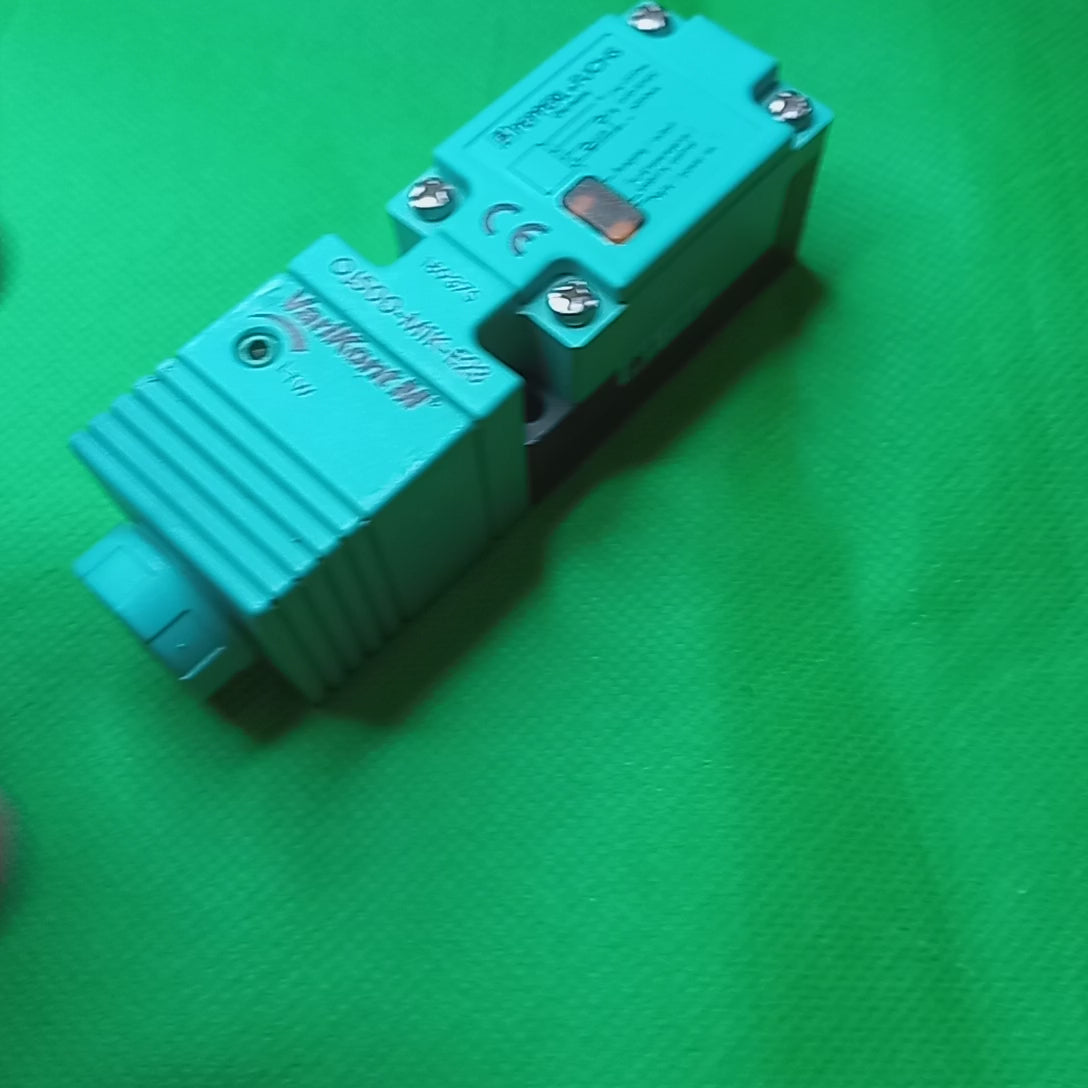

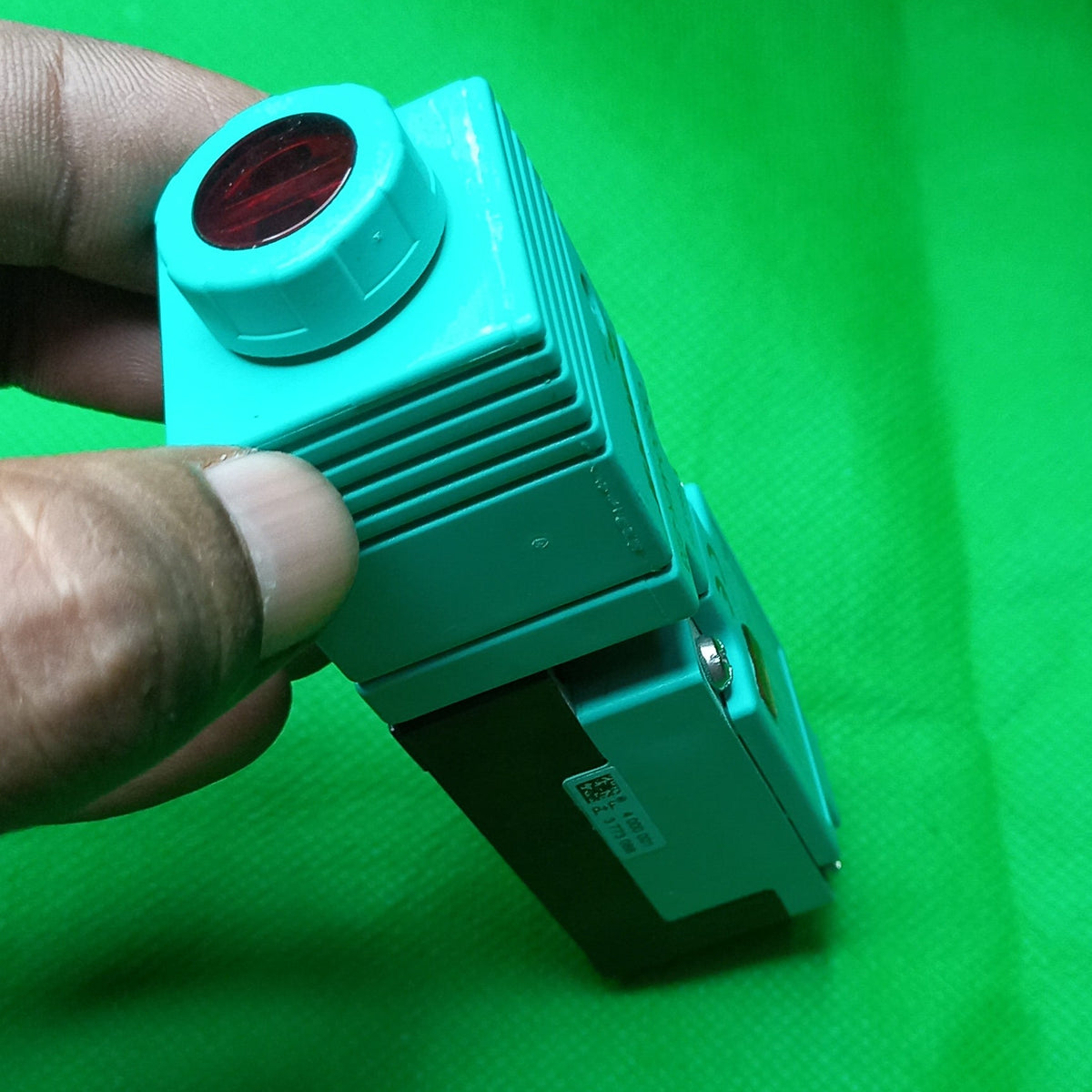

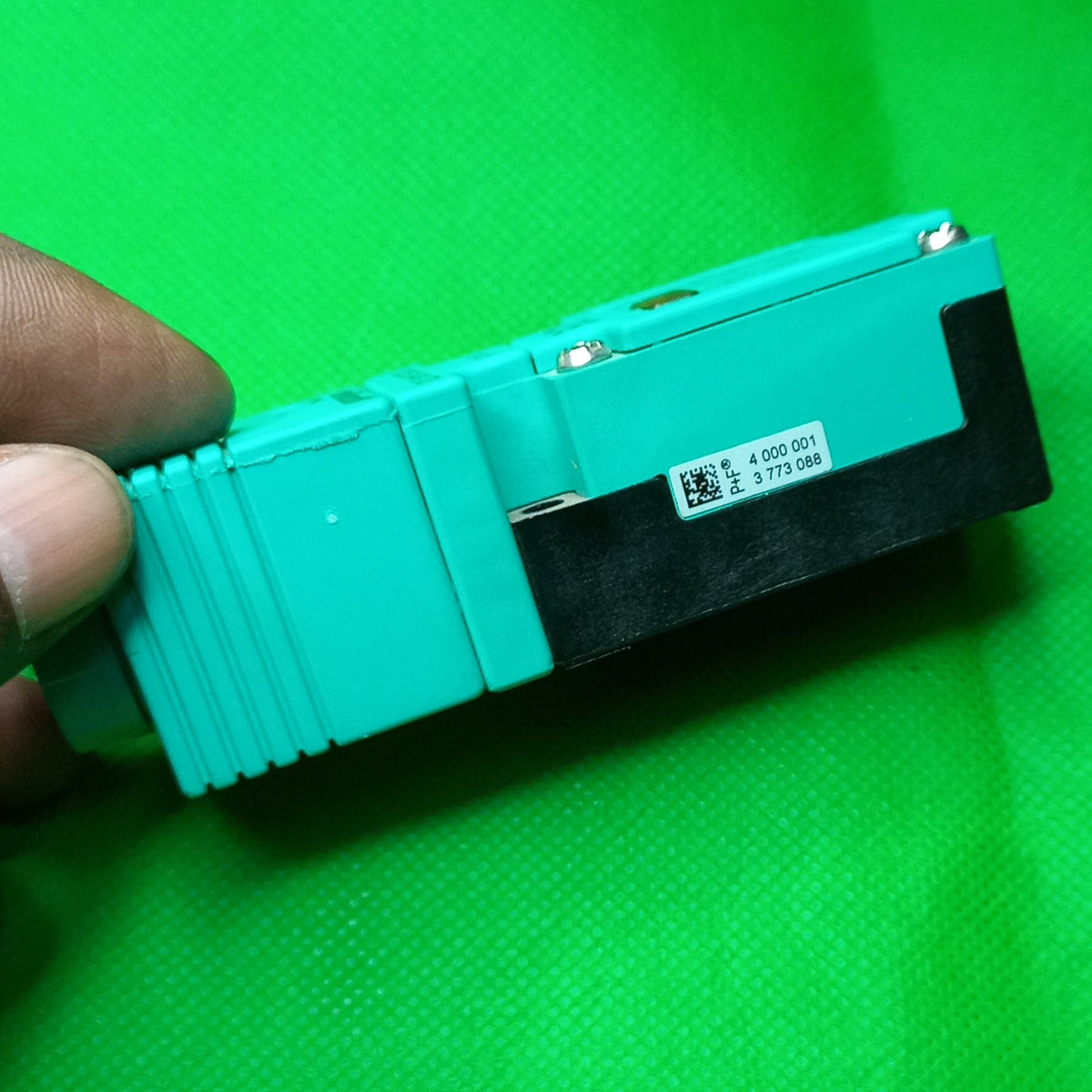

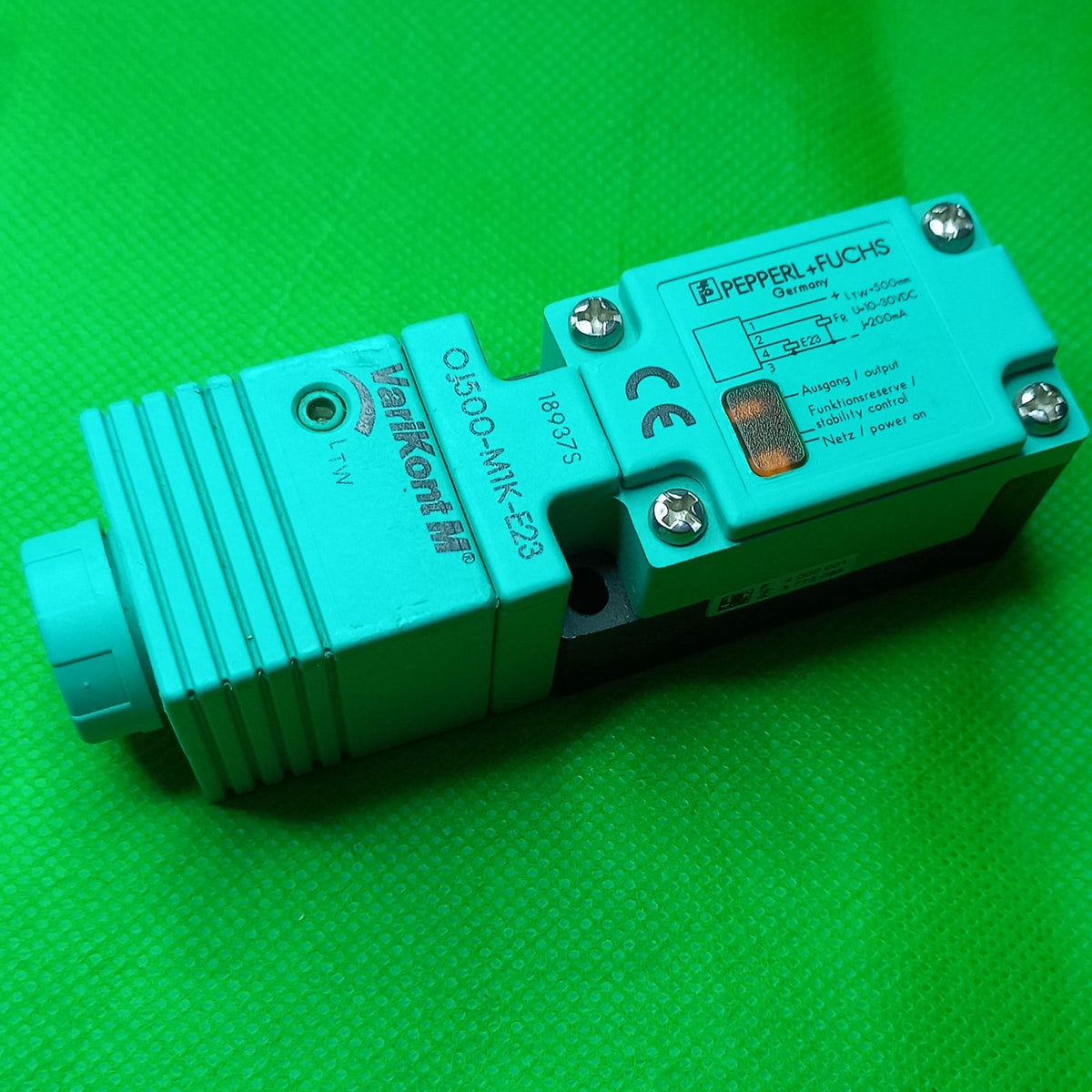

OJ500-M1K-E23 Fiber optic sensor Light-on/dark-on parameterizable-Adj. SensorHead
$190.00
Skip to product information
OJ5OO-M1K-E23 Fiber optic sensor- Fiber optic sensor for glass fiber optics
Make an Offer
Have a price in mind?
Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.
- Ready Stock | Ship Worldwide
- Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
- Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation
OJ500-M1K-E23 Fiber optic sensor Light-on/dark-on parameterizable-Adj. SensorHead
$190.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Pepperl + Fuchs
- Sensor Type: Fiber optic sensorFiber optic sensor
- Sensor Dimensions: 30x30x102mm
- Sensor Range : Sensing range [mm] 100mm
- Product Condition Refurbished:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
OJ5OO-M1K-E23 Fiber optic sensor- Fiber optic sensor for glass fiber optics
Light-on/dark-on parameterizable | Adjustable sensor head
General specifications -
Sensor range up to 100 mm (LMR 18-3,2-1,0-K4)
Detection range up to 600 mm (LME 18-2,3-0,5-K3)
Reference target standard white 200 mm x 200 mm (only for retroreflective fiberoptic cables)
Light source LED
Light type modulated infrared light
Ambient light limit 40000 Lux
Temperature influence ≤ 0.5 mm/K
Indicators/operating means
Operation indicator LED green
Function indicator LED yellow: switching state
LED red: operating reserve (flashing)
Control elements programming switch: light-on/dark-on changeover switch
selection of the operating frequency
selection of the switching frequency
pulse extension
operating reserve dynamic/static
Control elements Sensing range adjuster
Electrical specifications
Operating voltage UB 10 ... 30 V DC
Ripple 10 %
No-load supply current I0 ≤ 35 mA
Output
Stability alarm output 1 PNP, active when falling short of operating reserve (only available if 200 Hz
switching frequency is selected)
Switching type light/dark on
Signal output 1 PNP output, short-circuit protected, reverse polarity protected, open collector
Switching voltage max. 30 V DC
Switching current ≤ 200 mA
Voltage drop Ud ≤ 2.5 V
Switching frequency f ≤ 1.5 kHz / 200 Hz switchable
Response time ≤ 0.3 ms at 1.5 kHz ≤ 2.5 ms at 200 Hz
Timer function pulse extension 20 ms, switchable
Conformity
Product standard EN 60947-5-2
Approvals and certificates
CCC approval CCC approval / marking not required for products rated ≤36 V
Approvals CE
Ambient conditions
Ambient temperature -25 ... 70 °C (-13 ... 158 °F)
Storage temperature -40 ... 80 °C (-40 ... 176 °F)
Mechanical specifications
Degree of protection IP67
Connection M16 terminal compartment, core cross section ≤ 2.5 mm2
Material
Housing PBT
Optical face Scratch resistant mineral glass lens
Mass 100 g
Dimensions : Height 30 mmxWidth 30 mmxDepth 102 mm
- MPN : OJ500-M1K-E23
- Manufacturer indent Nr. : OJ500-M1K-E23OJ5OO-M1K-E23
- Manufacturer Product number : OJ500 M1K E23
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
