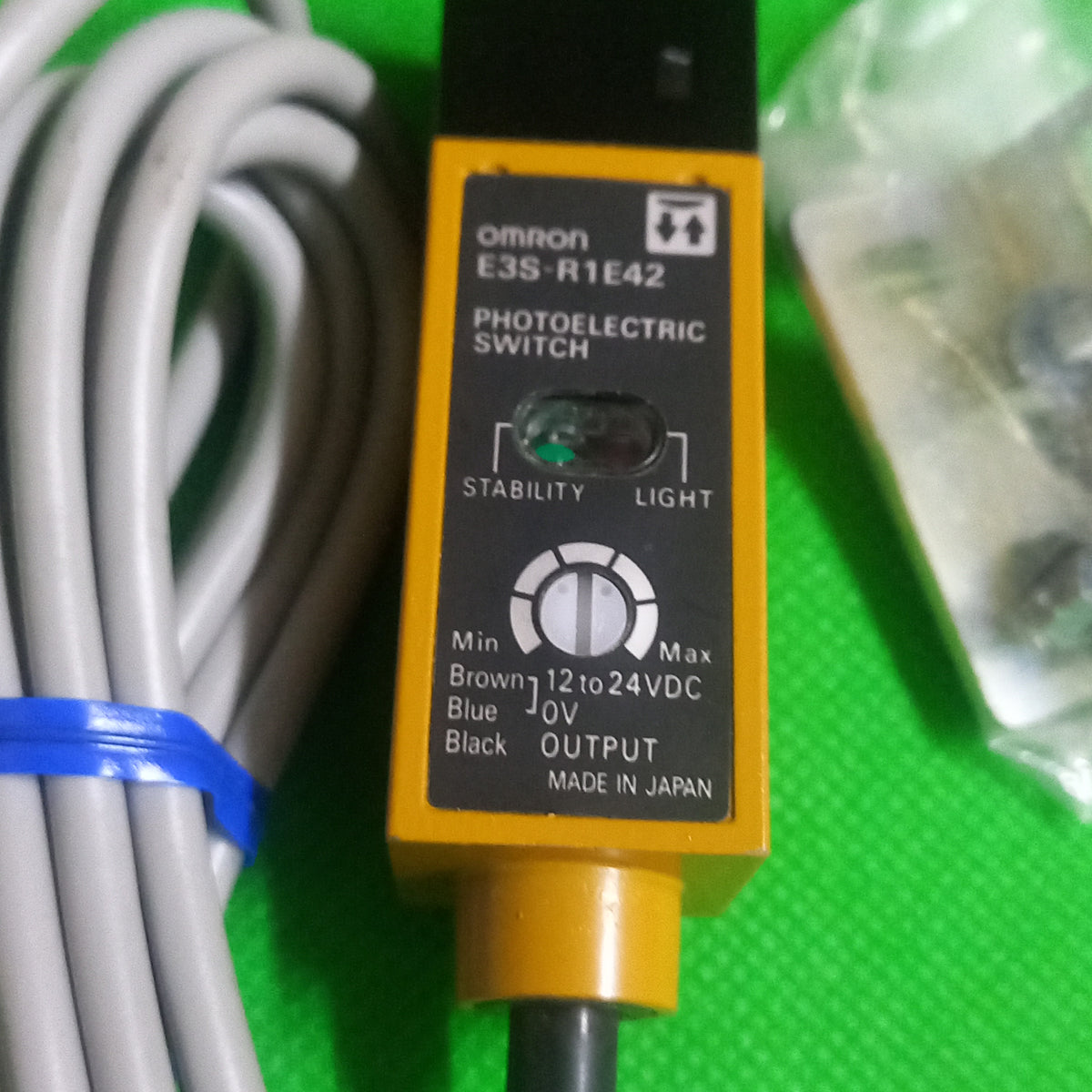

E3S-R1E42 NPN Transparent Object Detection Sensor E3S-R | E3SR Retro- reflective
$395.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
E3S-R1E42 NPN Transparent Object Detection Sensor E3S-R | E3SR Retro- reflective
$395.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: OMRON
- Sensor Type: Retroreflective SensorInductive Sensor
- Sensor Dimensions: 55x22x23mm
- Sensor Interface:
- Sensor Range : 1 m Detection Range
- Product Condition New in Generic Brown Packett:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
Packaging condition :
Omron, NPN, Transparent Object Detection Sensor -
E3S-R | E3SR - 1 m Retro- reflective (Infrared light) Sensors - Ideal for Detecting Glass Wafers and Other Transparent Objects
RS Stock Number: 71138668
Application: Detecting plastic bottles and other transparent containers
Sensing method Retro-reflective
Model NPN E3S-R1E4, R1E42
Sensing distance 1 m
(When using E39-R1)
Standard sensing Opaque: 75-mm dia. min.
object 10-mm-dia., 1.0-mm-thick, 30-mm-long
cylindrical glass objects
Directional angle 3° to 10°
Light source Infrared LED (940 nm)
(wavelength)
Power supply voltage 12 to 24 VDC±10%; ripple: 10% max.
Current consumption 40 mA max.
Control output Load power supply voltage: 24 VDC max
Load current: 80 mA max. with a
maximum residual voltage: of 2 V
NPN voltage output configuration
Light-ON/Dark-ON cable connection
selection
Protection circuits Power supply reverse polarity protection, Output short-circuit protection, Mutual interference
prevention
Response time Operate or reset: 1 ms max.
Sensitivity adjustment One-turn adjuster
Ambient illumination Incandescent lamp: 3,000 lx max.
(Receiver side) Sunlight: 10,000 lx max.
Ambient Operating: -25 to 55°C
temperature range Storage: -40 to 70°C
(with no icing or
condensation)
Ambient humidity Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
range
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67
Connection method Pre-wired (standard length: 2 m)/Standard connector
Weight (packed state) Pre-wired models: Approx. 190 g
Ma- Case Zinc die-cast
terials Lens Polycarbonate
Mounting Iron
Bracket

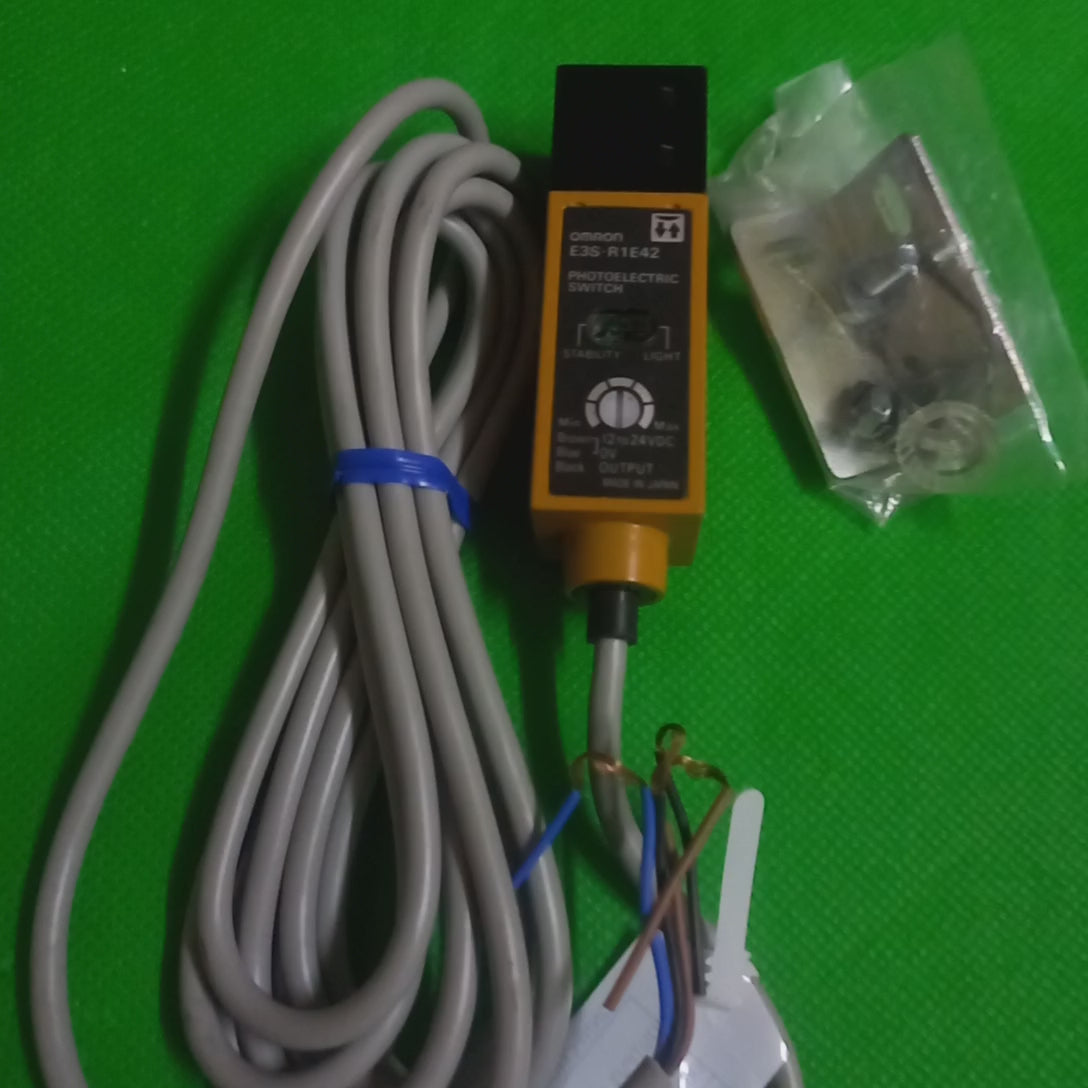

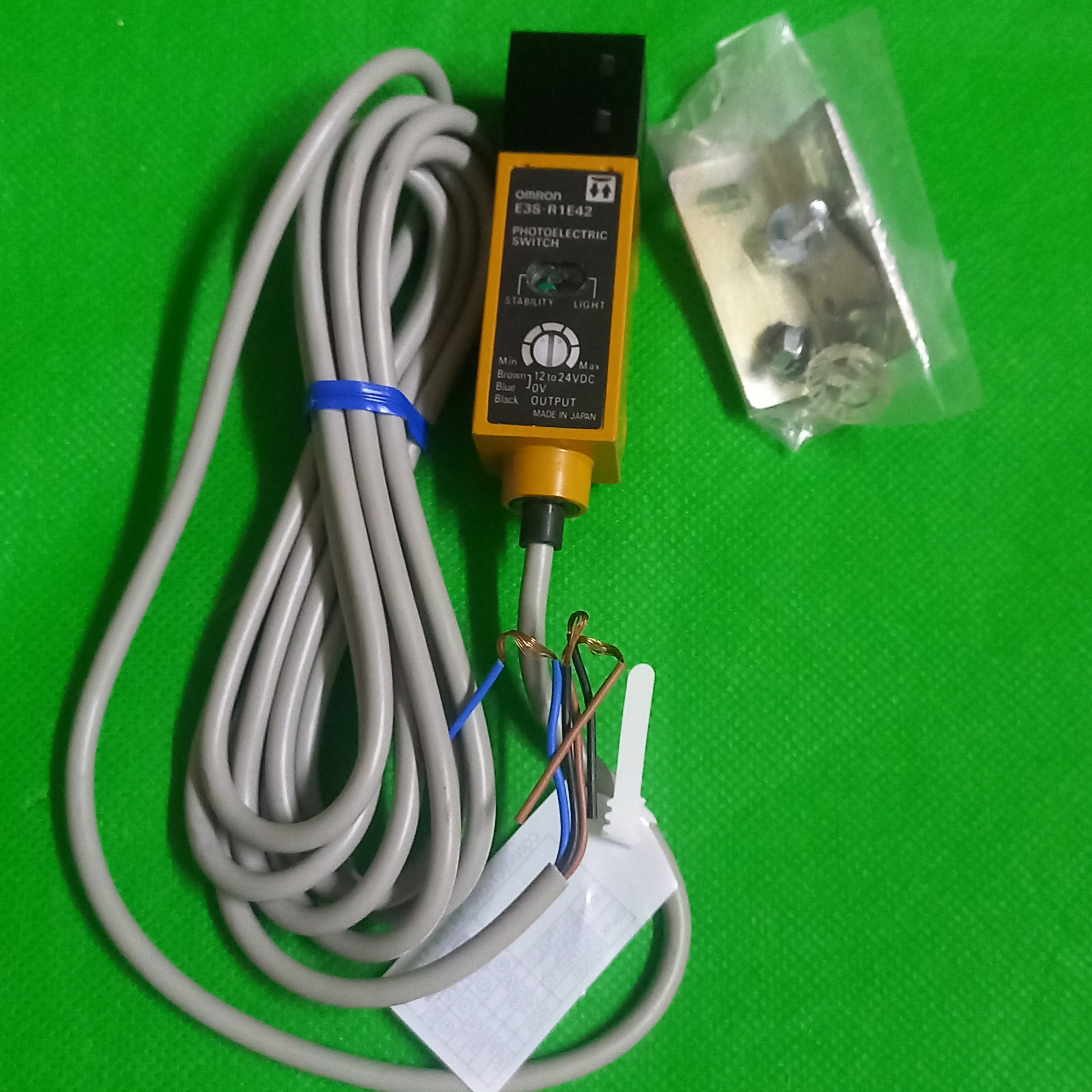

Accessories Mounting Bracket (with screw),
Adjustment screwdriver, Sensitivity
adjuster, Instruction manual, Reflector
- MPN : E3S-R1B4
- Manufacturer indent Nr. : E3S-R1B4E3SR1
- Manufacturer Product number : E3S-R1
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
