Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

• Manufacturer Part Number: Pepperl + Fuchs
• Sensor Type: Block | Cube Housing - Rectangular Square- Inductive Sensor ( Limit Switch Style)Inductive Sensor
• Sensor Dimensions: 55x55x128mm
• Sensor Range : Range 40 mm | non-flush

• Product Condition Opened original packaging:
  Authorization status : Independent reseller
  Manufacturer warranty status : Not represented as included
  SpareFaber warranty : One-year limited seller warranty

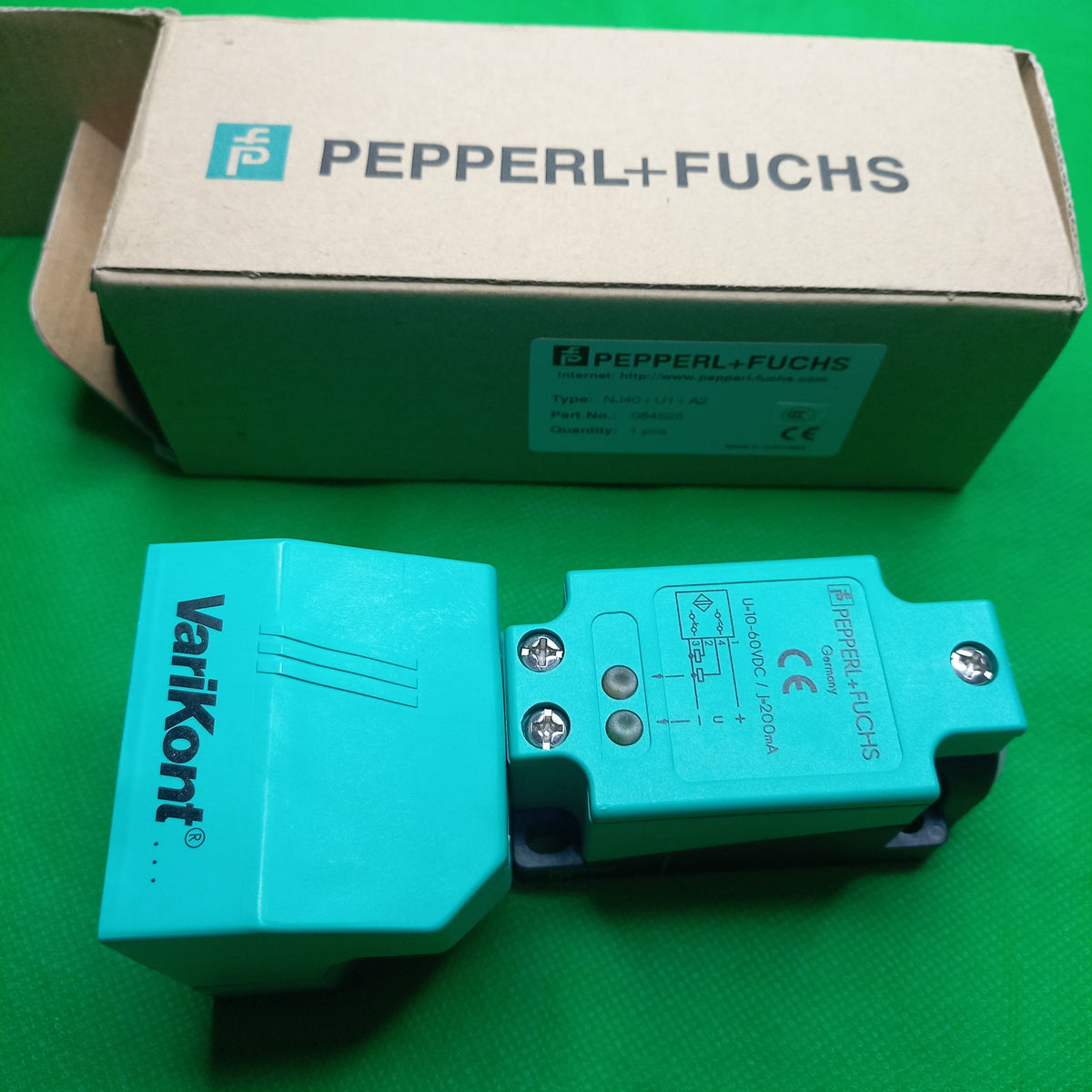

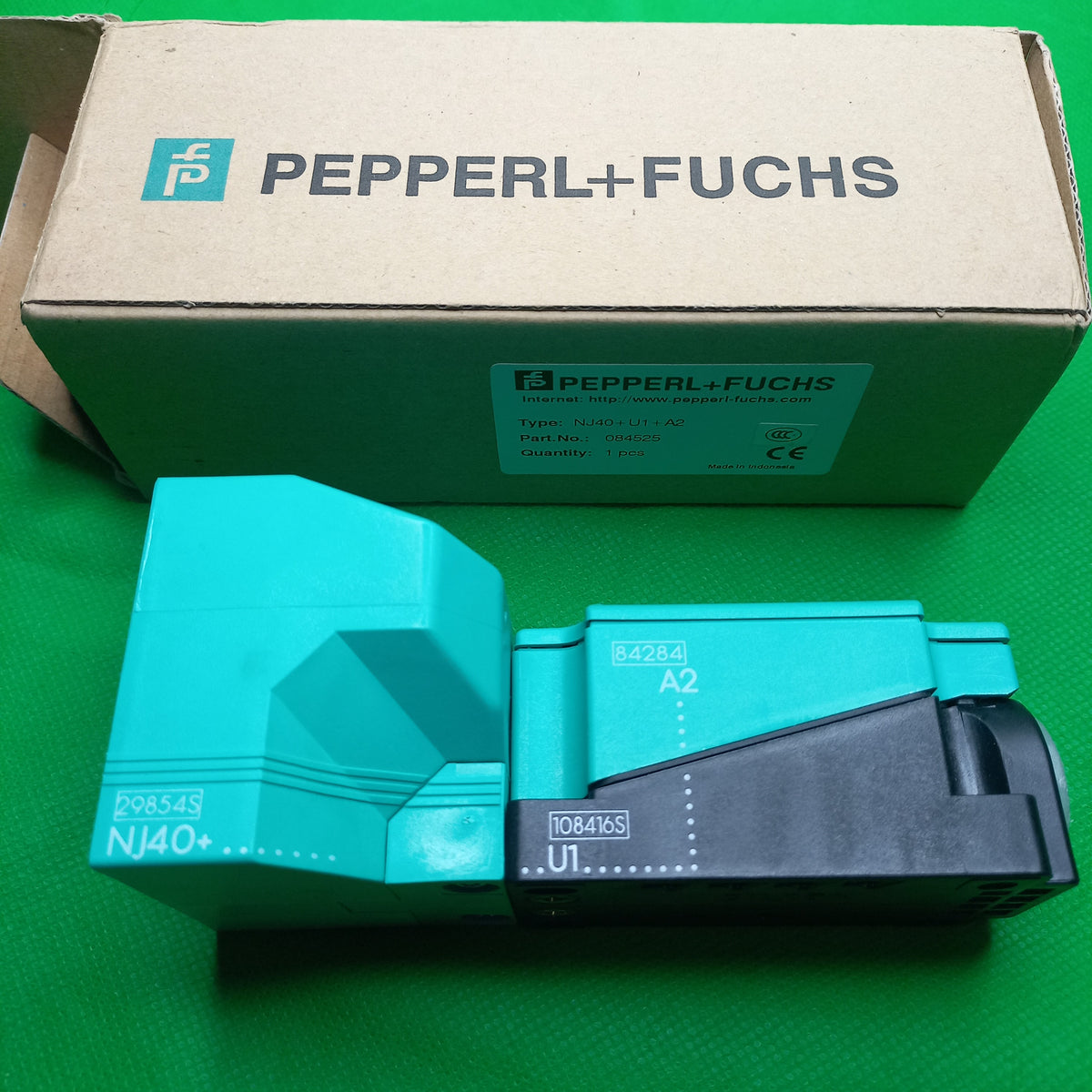

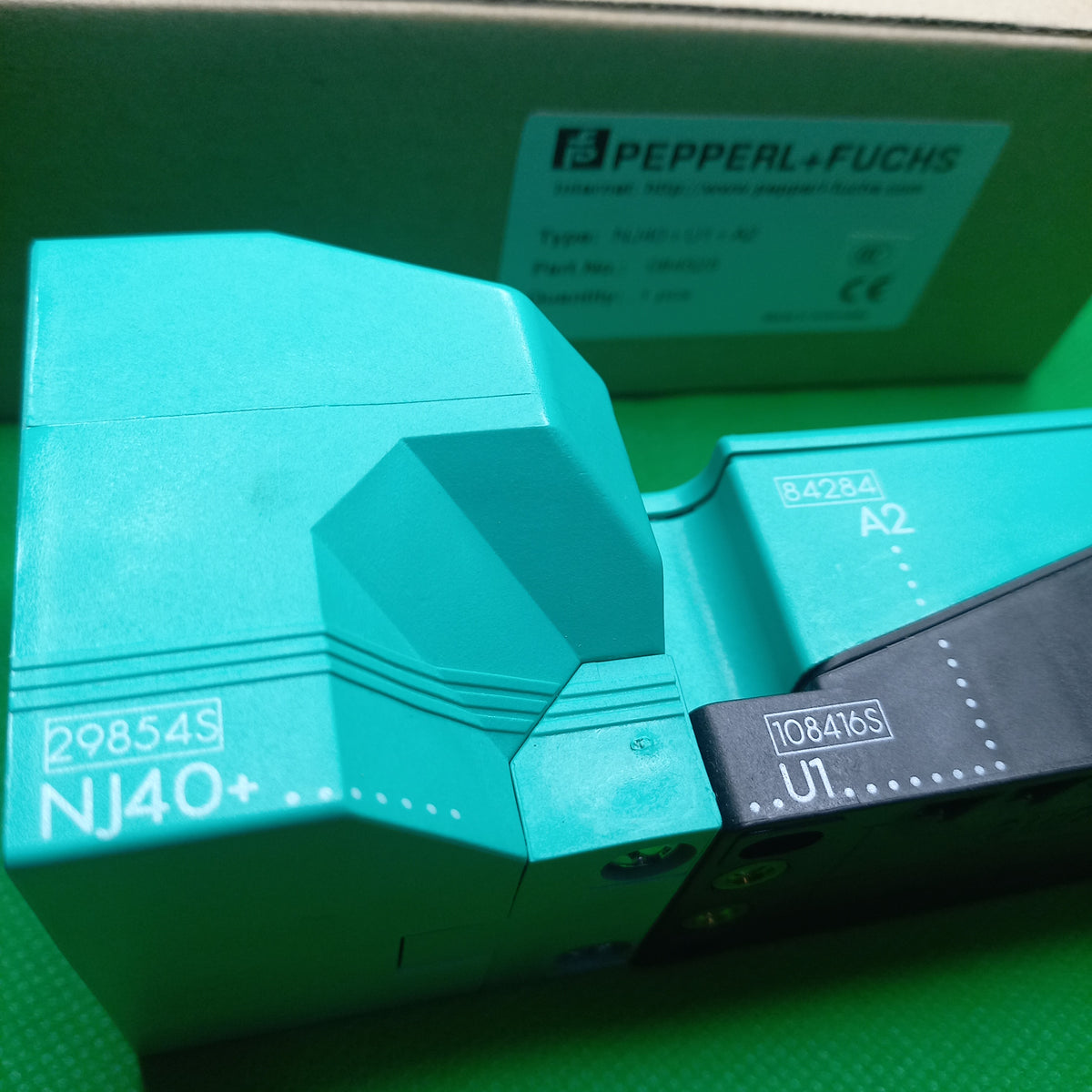

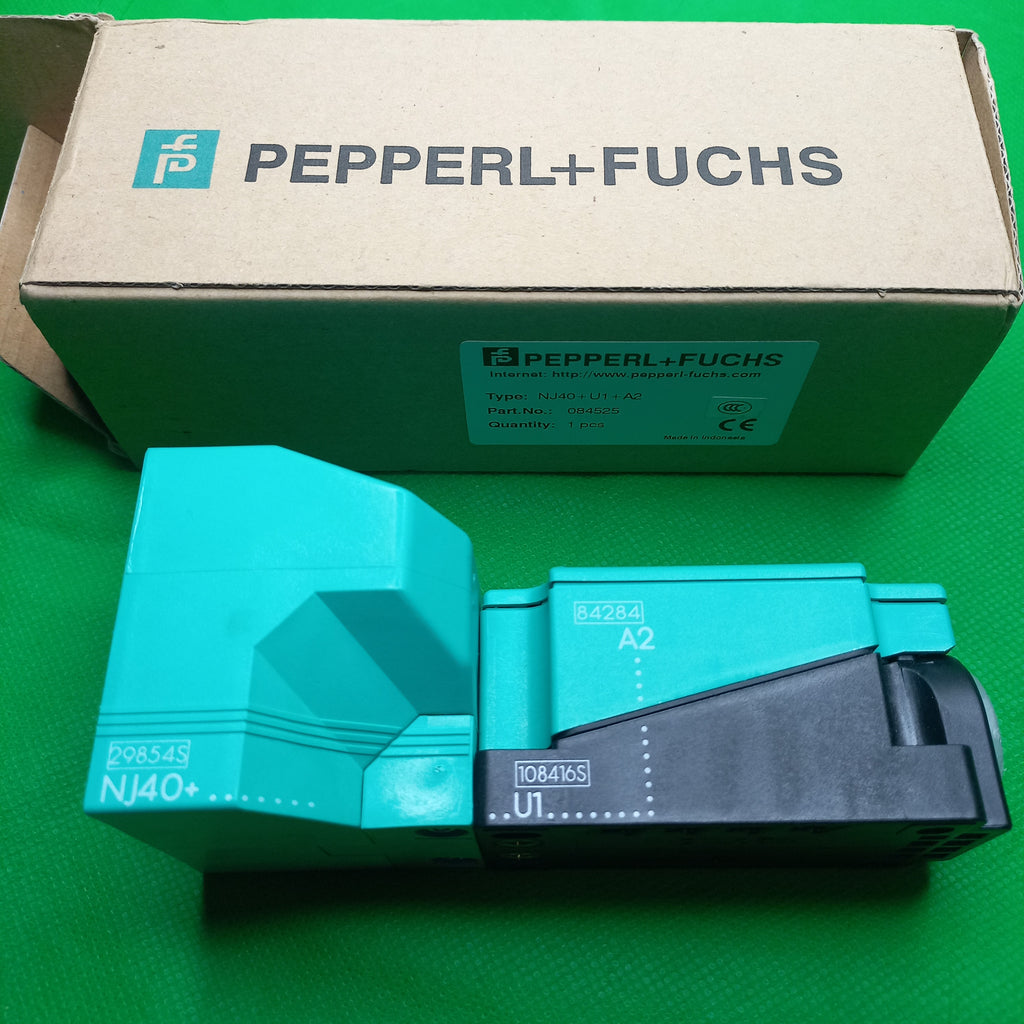

PEPPERL FUCHS 84525 | NJ 40+U1+A2 | 40mm Sensinig distance | 4 Wire- PNP complimentary ouptut | Non Flush, DC 10 ... 60 V

Technical data of NJ40+U1+A2

General specifications

Switching function		complementary
Output type		PNP
Rated operating distance	sn	40 mm
Installation		non-flush
Output polarity		DC
Assured operating distance	sa	0 ... 32.4 mm
Reduction factor rAl		0.5
Reduction factor rCu		0.45
Reduction factor r304		0.8
Output type		4-wire



Installation conditions click here

Operating voltage	UB	10 ... 60 V
Switching frequency	f	0 ... 100 Hz
Hysteresis	H	1 ... 10 typ. 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop	Ud	≤ 2.8 V
Operating current	IL	0 ... 200 mA
No-load supply current	I0	≤ 10 mA
Time delay before availability	tv	≤ 100 ms
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow



Connection type		screw terminals
Information for connection		A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 %
Core cross section		up to 2.5 mm2
Minimum core cross-section without wire end ferrule 0.5 mm2 , with connector sleeves 0.34 mm2 Maximum core cross-section without wire end ferrule 2.5 mm2 , with connector sleeves 1.5 mm2
Housing material		PBT
Sensing face		PBT
Degree of protection		IP68
Mass		345.5 g

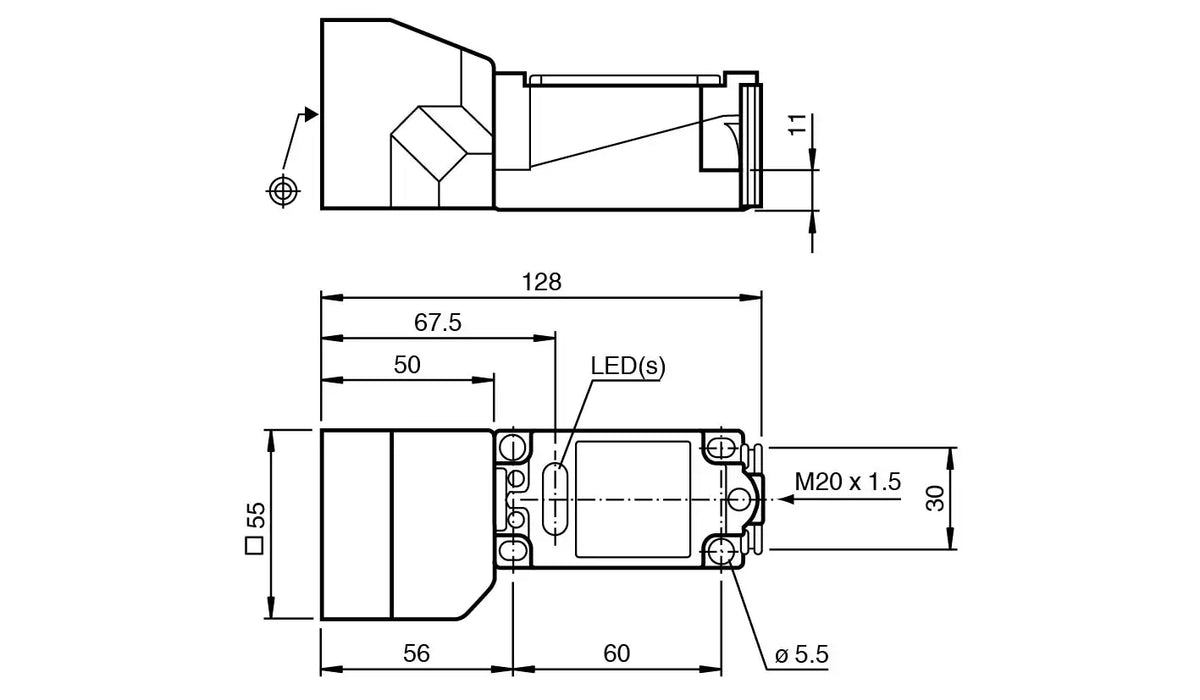

Dimensions
Height 55 mm Width 55 mm Length 128 mm

• MPN : NJ40+U1+A2
• Manufacturer indent Nr. : NJ40+U1+A2NJ40U1A2
• Manufacturer Product number : 84525
• Alternative ways of identifying | Part Numbers | Compatible Parts : NJ40-U1-A2
• Typographic Errors in MPN | Mistakenly Known as : NJ40 U1 A2
