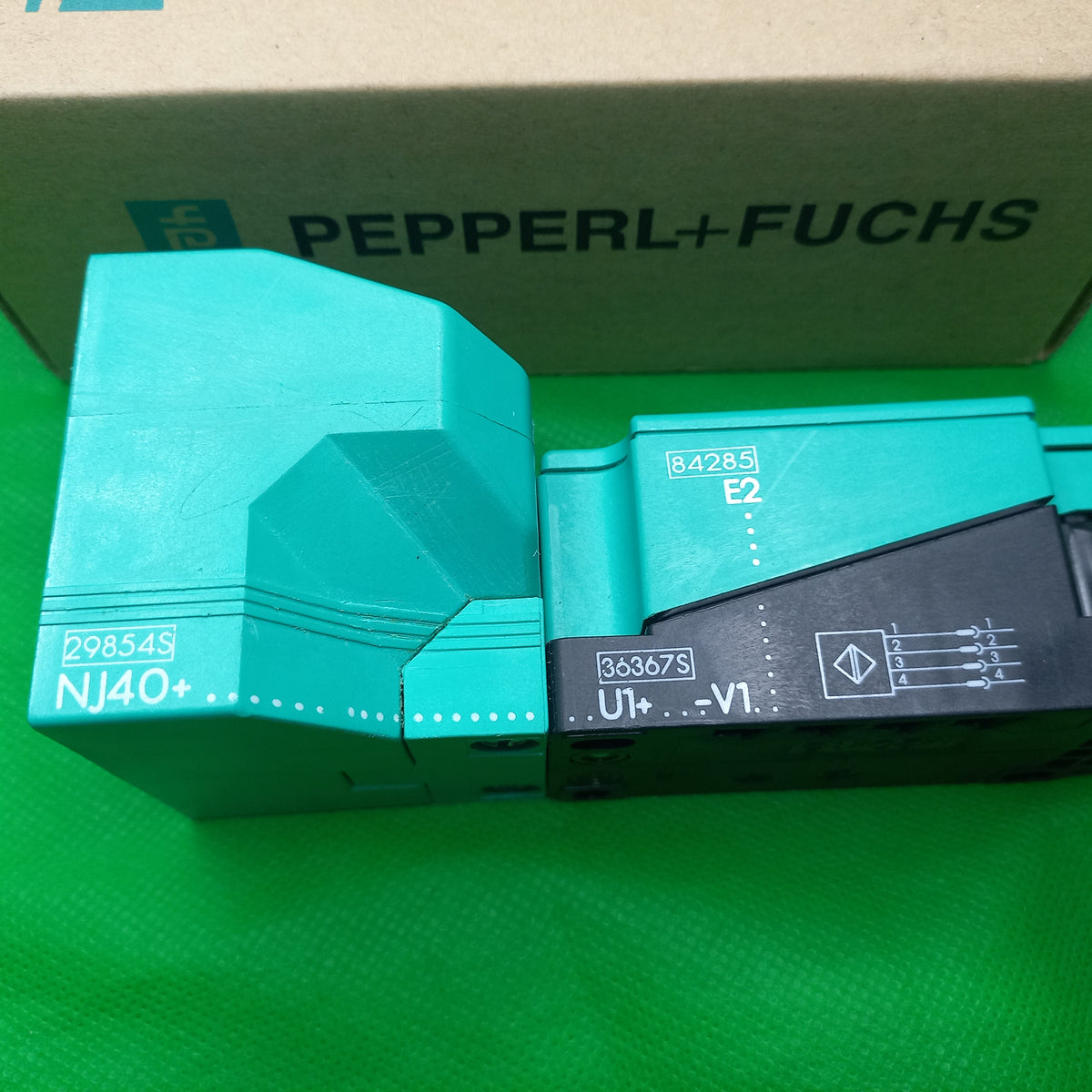

PEPPERL+FUCHS 084528_NJ40+U1+E2 3 Wire, 40mm Range, PNP, NO,Non Flush, 10 ... 60 V
$280.00
Skip to product information
- Ready Stock | Ship Worldwide
- Rush Orders can be Collected from our Store after 4 Hours of Order Confirmation
- We ship Same day if Order is confirmed before 2 PM on Weekdays
PEPPERL+FUCHS 084528_NJ40+U1+E2 3 Wire, 40mm Range, PNP, NO,Non Flush, 10 ... 60 V
$280.00
Taxes included.
Shipping calculated at checkout.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: Pepperl + Fuchs

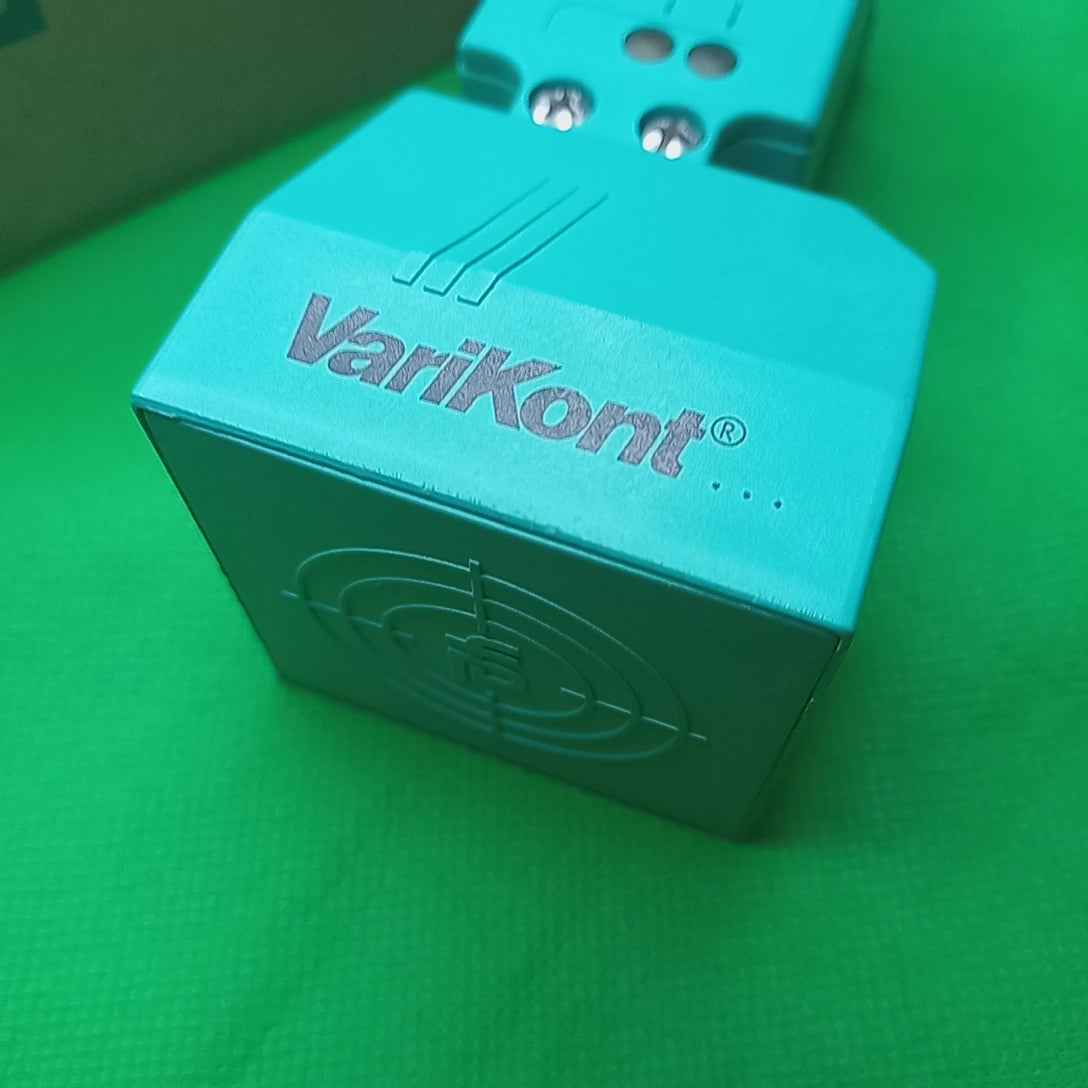

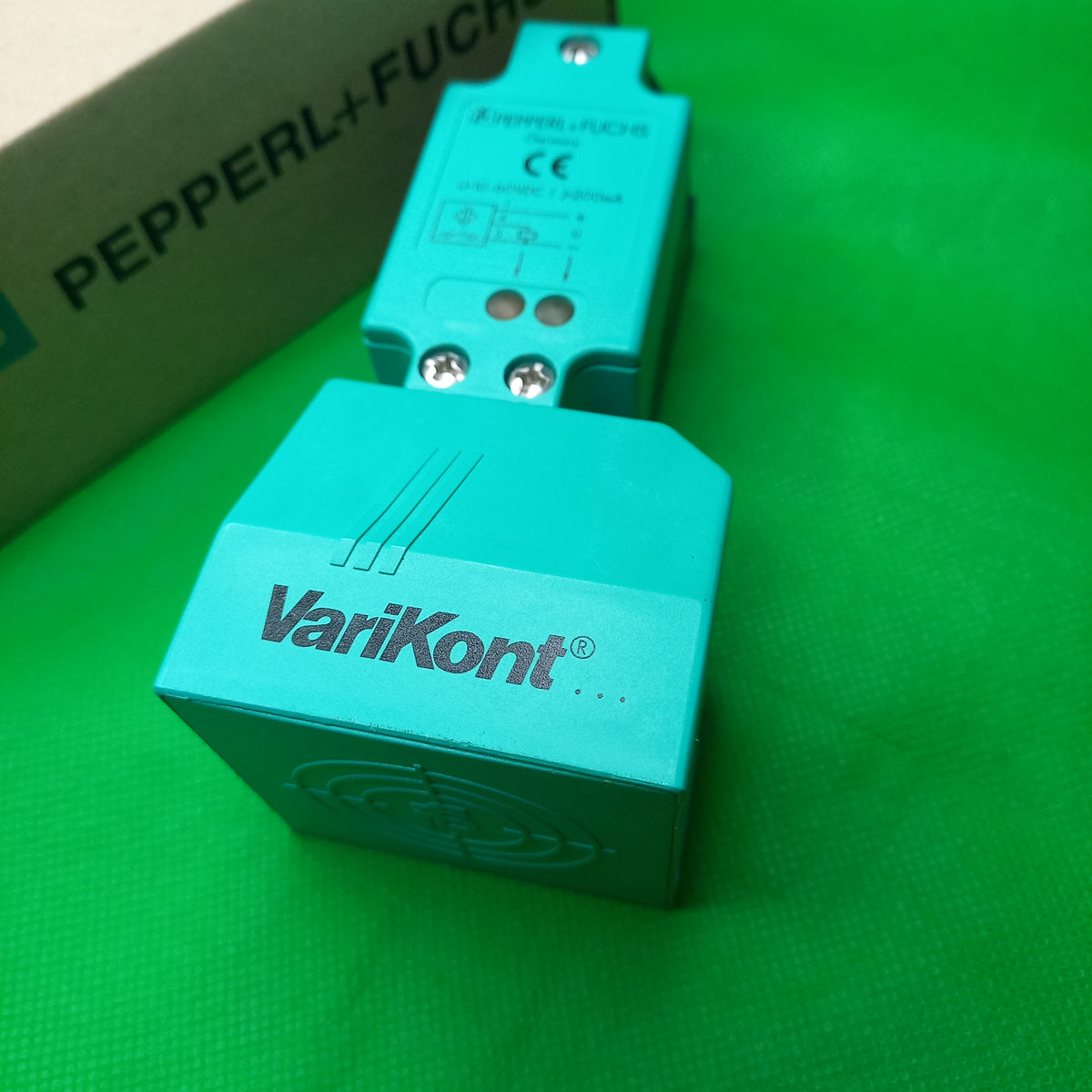

- Sensor Type: Block | Cube Housing - Rectangular Square- Inductive Sensor ( Limit Switch Style)Inductive Sensor
- Sensor Dimensions: 55x55x128mm
- Sensor Range : Range 40 mm | non-flush
- Product Condition Opened original packaging:
Authorization status : Independent reseller
Manufacturer warranty status : Not represented as included
SpareFaber warranty : One-year limited seller warranty
PEPPERL+FUCHS 084528_NJ40+U1+E2 , 3 Wire, PNP, NO,Non Flush, 40mm Range, 10 ... 60 V
Pepperl+Fuchs Factory Automation NJ40+U1+E2 ProXimity Sensor, DC, 084528, NJ40 Series
MFR Part #: NJ40U1E2 \ RS Stock Number: 70552777
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | sn | 40 mm |
| Installation | non-flush | |
| Output polarity | DC | |
| Assured operating distance | sa | 0 ... 32.4 mm |
| Actual operating distance | sr | 36 ... 44 mm typ. 40 mm |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.8 | |
| Output type | 3-wire |
| Operating voltage | UB | 10 ... 60 V |
| Switching frequency | f | 0 ... 100 Hz |
| Hysteresis | H | 1 ... 10 % typ. 5 % |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | Ud | ≤ 2.8 V |
.
| Connection type | screw terminals
|
||||||||||
| Information for connection | A maximum of two conductors with the same core cross section may be mounted on one terminal connection! tightening torque 1.2 Nm + 10 % |
||||||||||
| Core cross section | up to 2.5 mm2 | ||||||||||
|
|||||||||||
| Housing material | PBT | ||||||||||
| Sensing face | PBT | ||||||||||
| Degree of protection | IP68 | ||||||||||
| Dimensions | |||||||||||
|
|||||||||||
- MPN : NJ40+U1+E2
- Manufacturer indent Nr. : NJ40+U1+E2NJ40U1E2
- Manufacturer Product number : 84528
- Alternative ways of identifying | Part Numbers | Compatible Parts :
- Typographic Errors in MPN | Mistakenly Known as :
