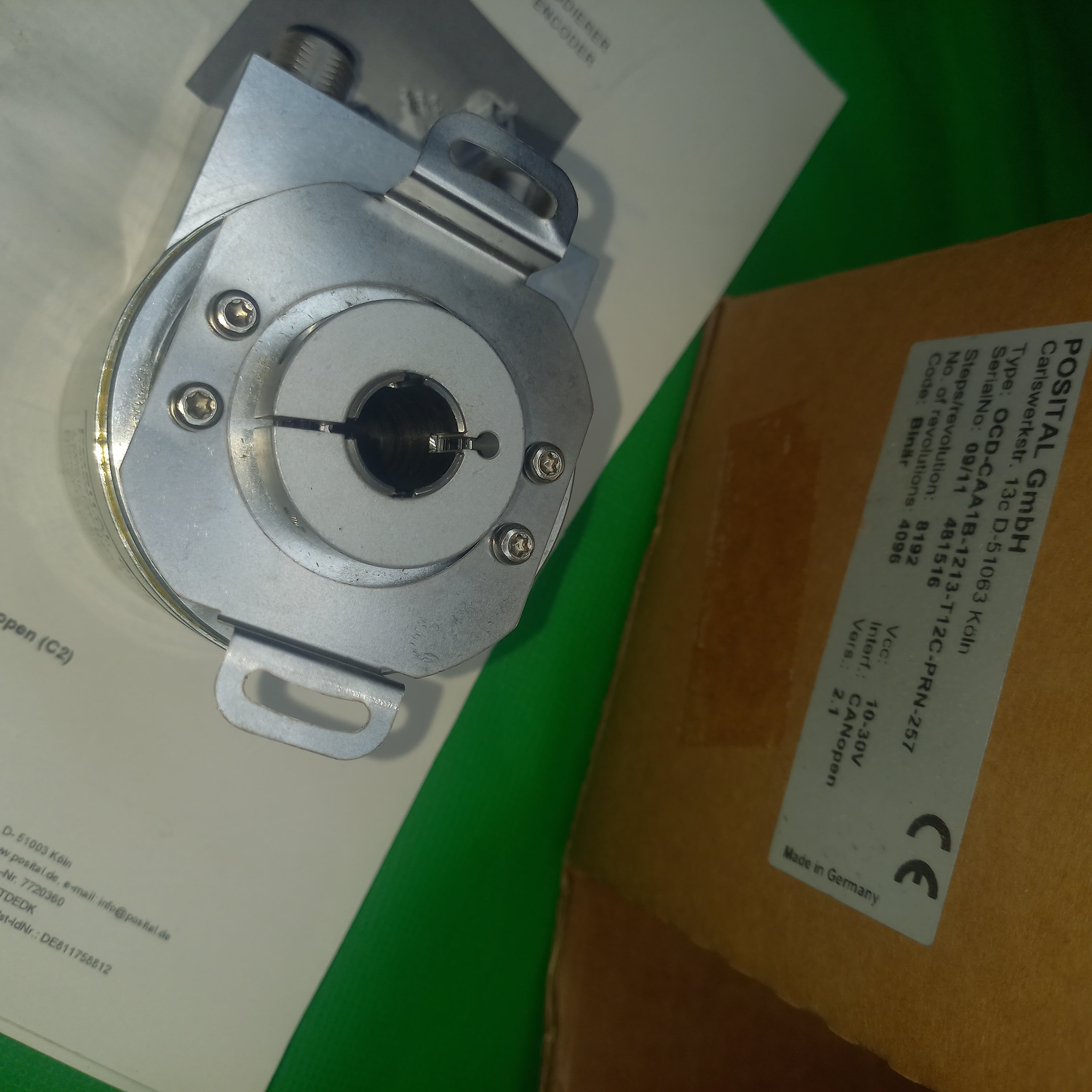

Posital Absolute Encoder OCD-CAA1B-1213 Hollow 12mm, 4096STx8192MT, Multiturn OCDCAA1B1213
Sale price
$1,598.00
Regular price
$1,880.00
Taxes included.
Shipping calculated at checkout.
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
- Dispatch Lead time = Ready Stock - Collect (In-person pickup) From Store Same day - 3~4 Hours After Cleared Payment.
- Warranty = One-year limited seller warranty
- Manufacturer Part Number = OCDCAA1B1213 T12C PRN 257
- Manufacturer MPN = OCD-CAA1B-1213-T12C-PRN-257
- Encoder Type = Absolute Encoder
- Supply voltage = 11-30vDC
- ID. NR. = OCDCAA1B1213 T12CPRN257
- indent Nr. = OCD-CAA1B-1213 T12C-PRN-257
- Alternative Part Numbers | Compatible Parts =
- Typographic Errors in MPN | Mistakenly Known as =
- Manufacturer Part Number (MPN) = OCDCAA1B1213 T12C PRN 257

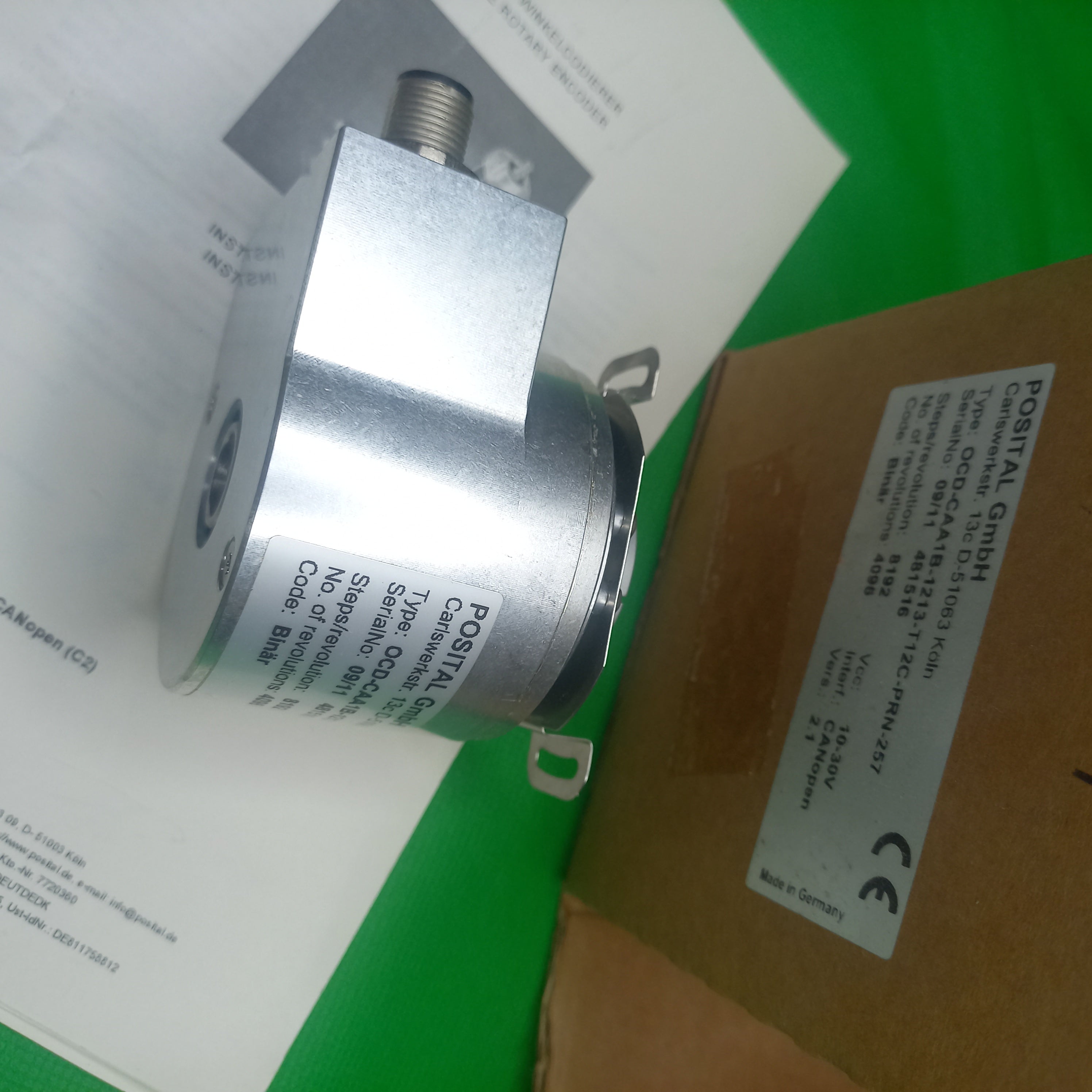

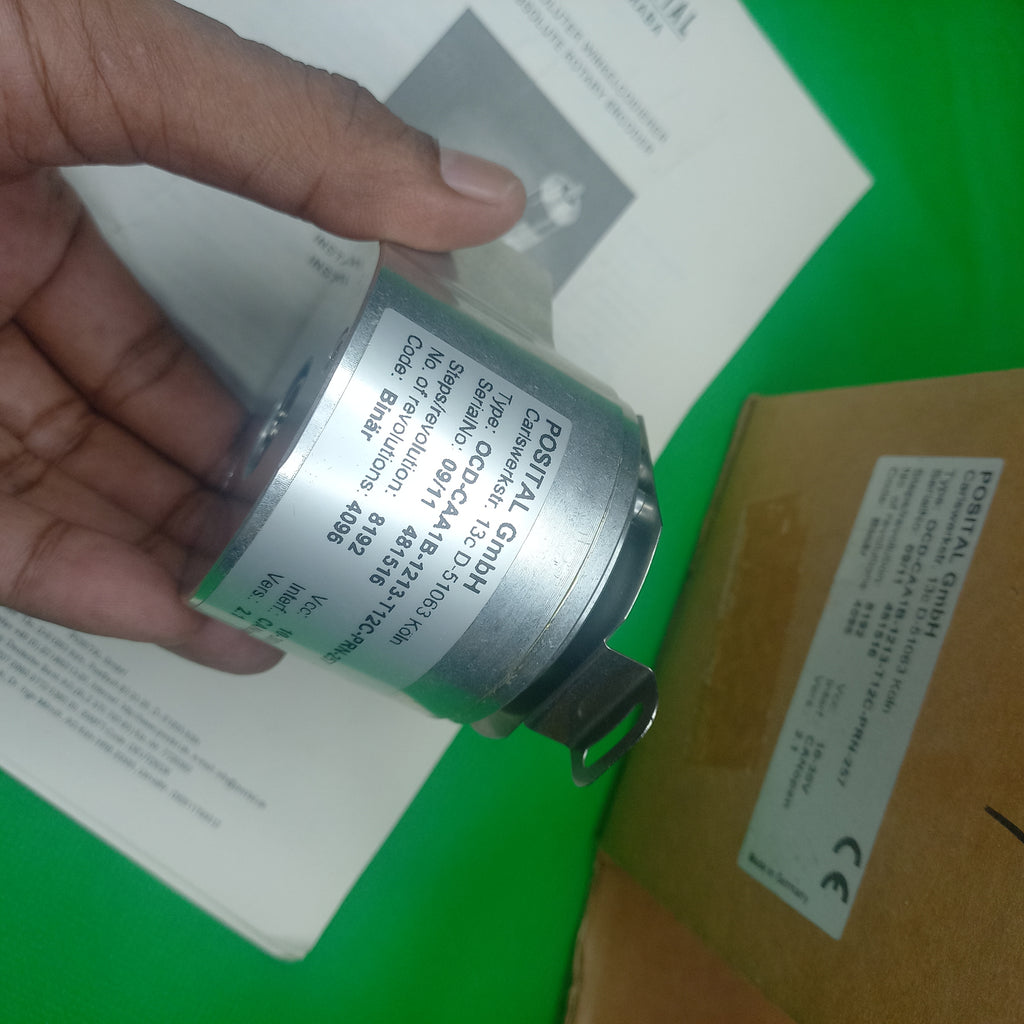

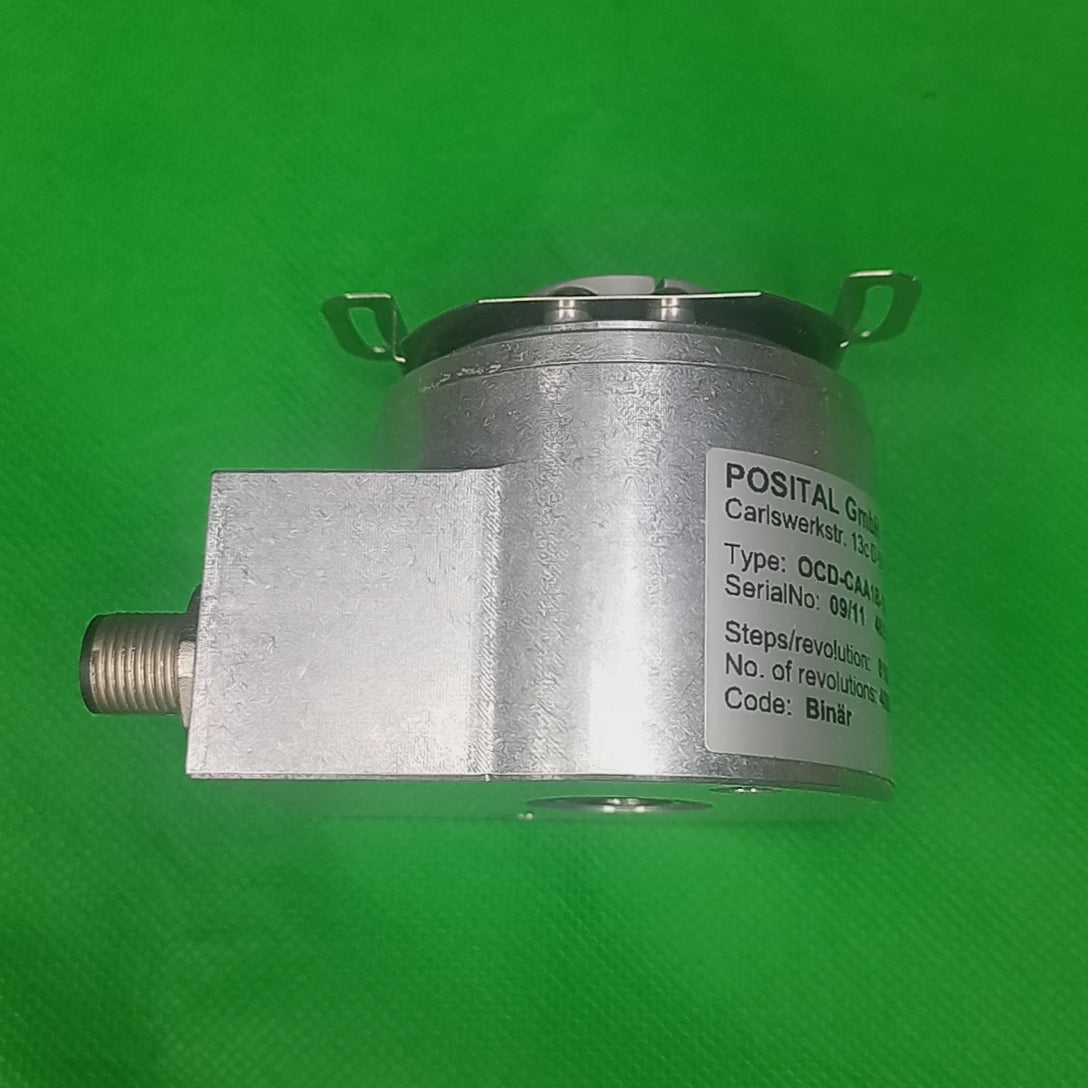

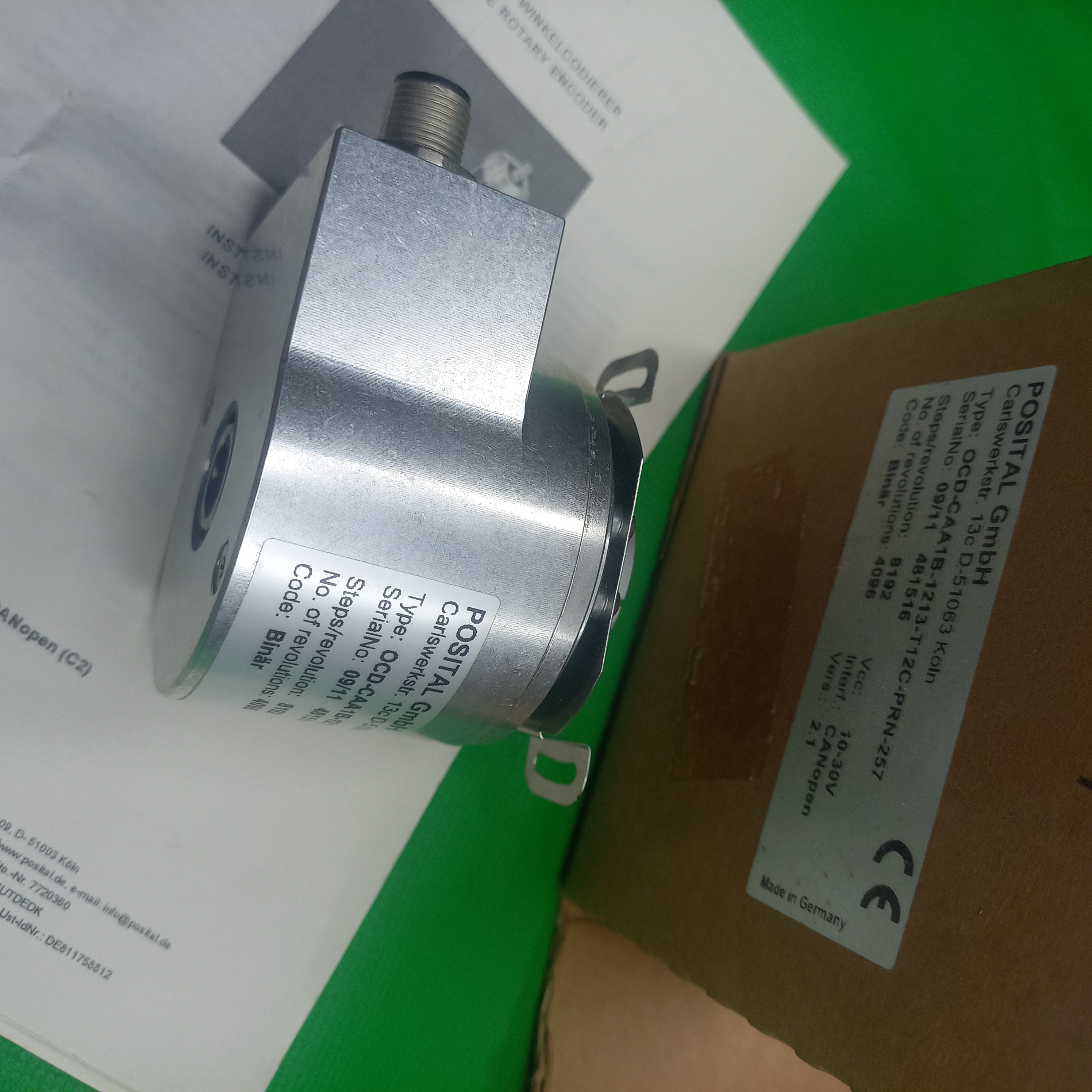

Ready Stock Posital GmbH OCDCAA1B1213 Encoder | Connection Two 5 Pin M12 Connectors | OCD-CAA1B-1213-T12C-PRN-257 | OCDCAA1B1213T12CPRN257 | CANopen Absolute (12x13bit) 8192/4096 ;12mm through hollow shaft
Evaluate possibility of using this to replace your: OCD-CAA1B-1213-T120-PRM
type: OCD
CA = means >Interface:= CanOpen
A1:= means>version = A1
B = means >Code: :=Binary
12= means >Resolution: Multiturn 4096 revolutions
13= means > Steps per revolution 8192(0.04 degrees)
T= means > flange:=Through Hollow Shaft
12= means > Shaft diameter 12mm through hollow shaft
C= means > Mechanical options= Customized

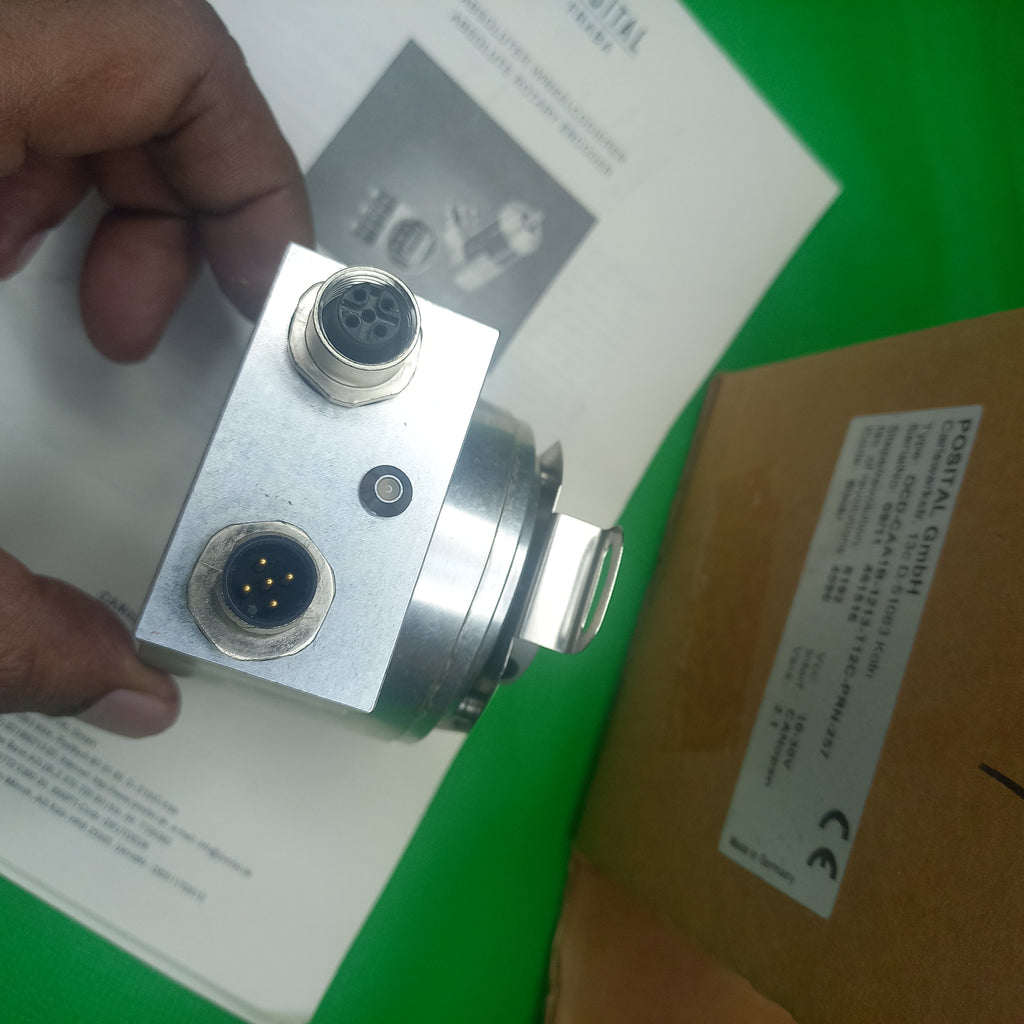

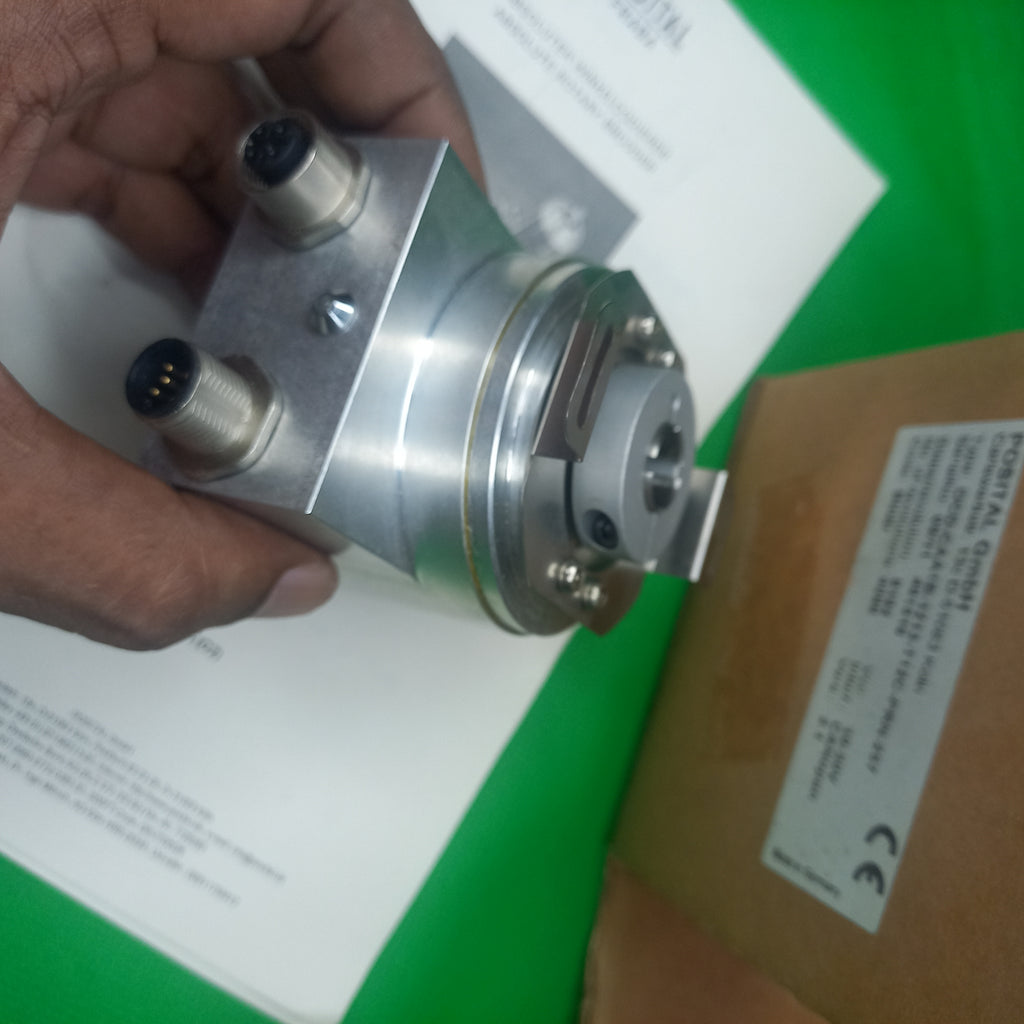

PRN= means > Connection Two 5 Pin M12 Connectors
Mechanical Design Features of this Encoder:

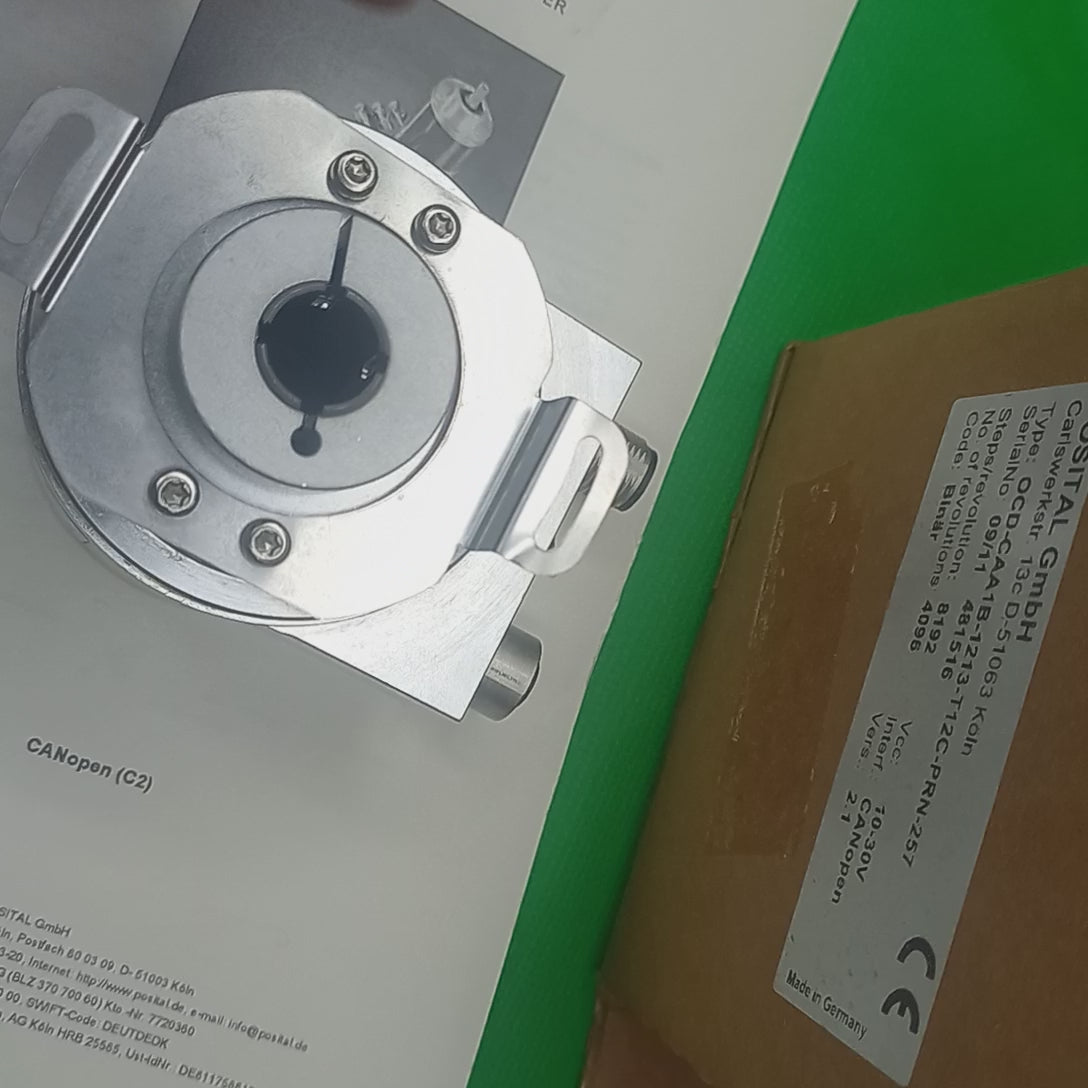

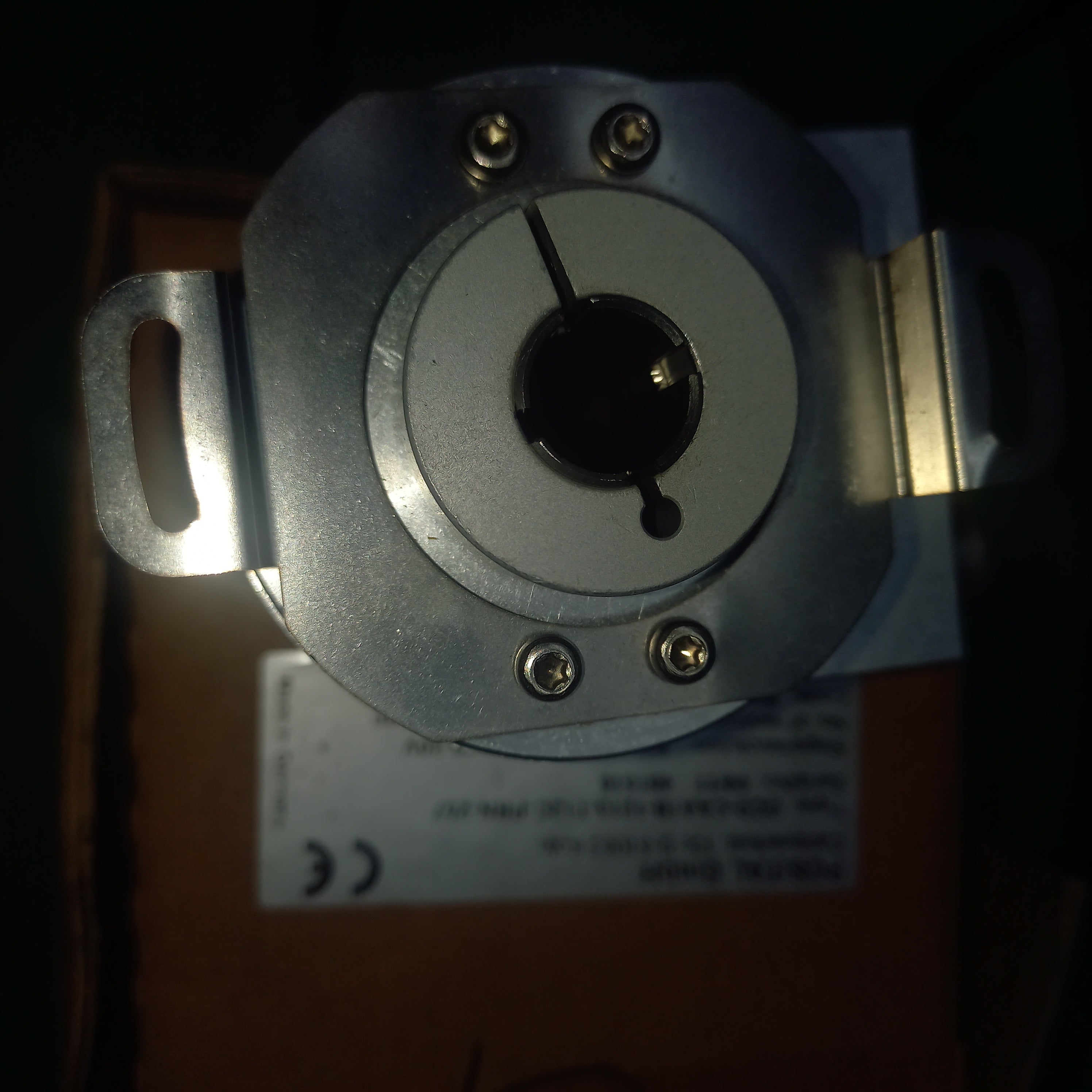

- Absolute Encoder Mechanical Design = through hollow shaft
- Absolute Encoder Construction size (flange) = Ø 58 mm
Design data for Selection | design of Shaft Coupling for this encoder
- Absolute Encoder Shaft diameter = 12mm Hollow ( Through)
Encoder Communication Protocall & interface
- Absolute Encoder Communication interface = CANopen
Encoder Performance Parameters
- Absolute Encoder - Singleturn or multiturn version = Multiturn
- Absolute Encoder - Number of steps per revolution = 8192 (13 bit)
- Absolute Encoder Number of revolutions = 4096 (12 bit)
Absolute Encoder Programmable/configurable = YES : Programmable/configurable
Encoder's Electrical Signal output connection - for Wiring to Upper Level Control PLC| CNC\ DRIVE
- Direction of Connection = Radial
- Connection Type Detail =
How Encoder body is Mouted ? Mouting Flange Design Data:
