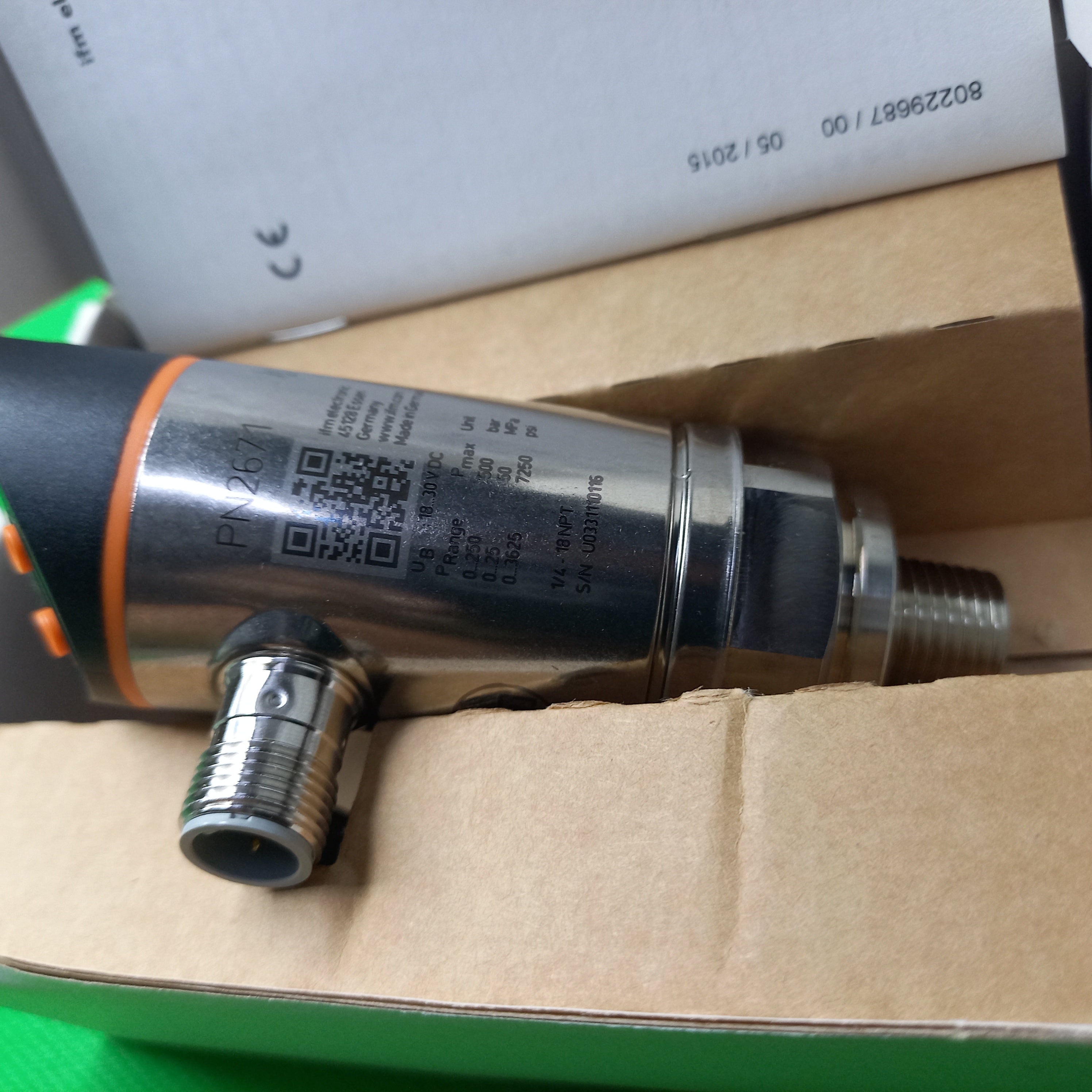

Pressure sensor with display PN2671 PN-250-SEN14-MFRKG/US/ /V Measuring range 0...250 bar
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: PN2671
- Manufacturer Alternative MPN ; PN-250-SEN14-MFRKG/US/ /V
- Manufacturer Id Nr. PN 2671
Pressure sensor with display
PN2671
PN-250-SEN14-MFRKG/US/ /V
Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
Measuring range 0...250 bar
Process connection threaded connection 1/4" NPT external thread
- Two switching outputs, one of them programmable as IO-Link and one as analogue output

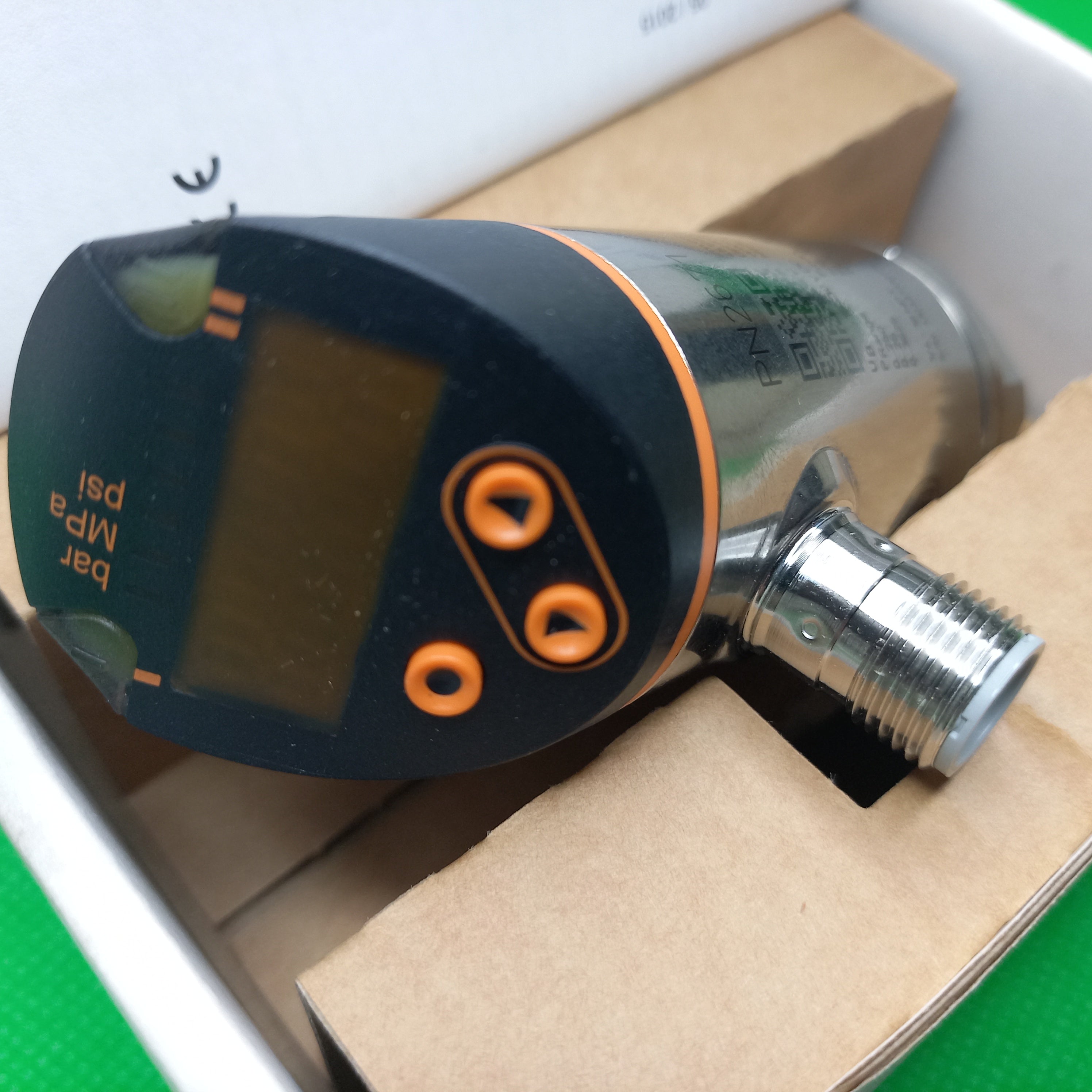

- Red/green display for clear identification of the acceptable range
- The process connection can be rotated for optimum alignment
- With long-term stability thanks to high overload protection
- Robust design for use in harsh industrial environments
- Convenient operation via buttons or parameter setting via IO-Link
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |||
| Measuring range |
|
|||
| Process connection | threaded connection 1/4" NPT external thread |
Application
| Special feature | Gold-plated contacts | |||
| Measuring element | metallic thin film cell | |||
| Application | for industrial applications | |||
| Media | liquids and gases | |||
| Medium temperature[°C] | -25...80 | |||
| Min. burst pressure |
|
|||
| Pressure rating |
|
|||
| Vacuum resistance |
|
|||
| Type of pressure | relative pressure | |||
| MAWP for applications according to CRN |
|
Electrical data
| Operating voltage[V] | 18...30 DC; (to SELV/PELV) |
| Current consumption[mA] | < 35 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 0.3 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 250 |
| Switching frequency DC[Hz] | < 500 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] | 4...20; (scalable 1:5) |
| Max. load[Ω] | 500 |
| Analogue voltage output[V] | 0...10; (scalable 1:5) |
| Min. load resistance[Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range ; refer datasheet
