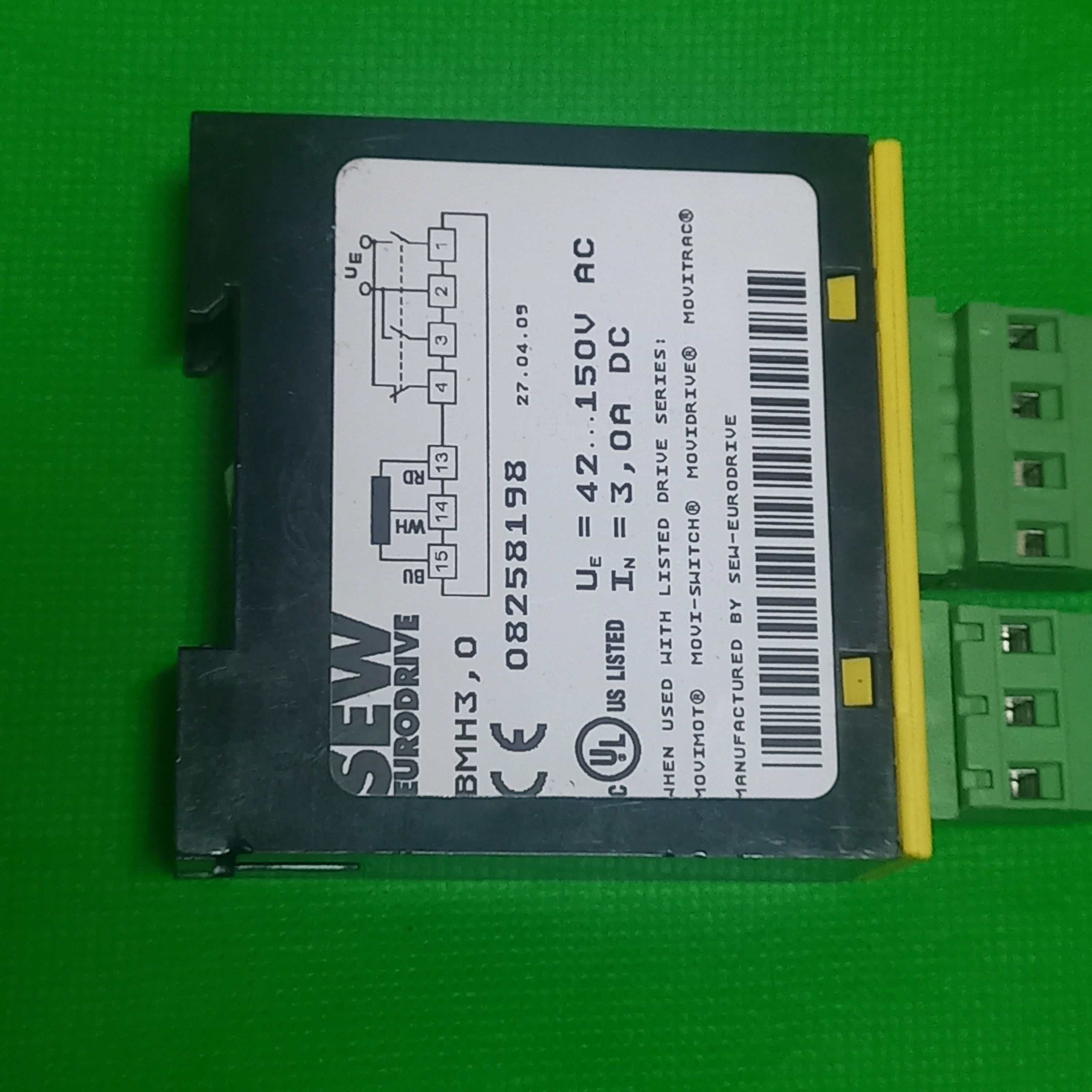

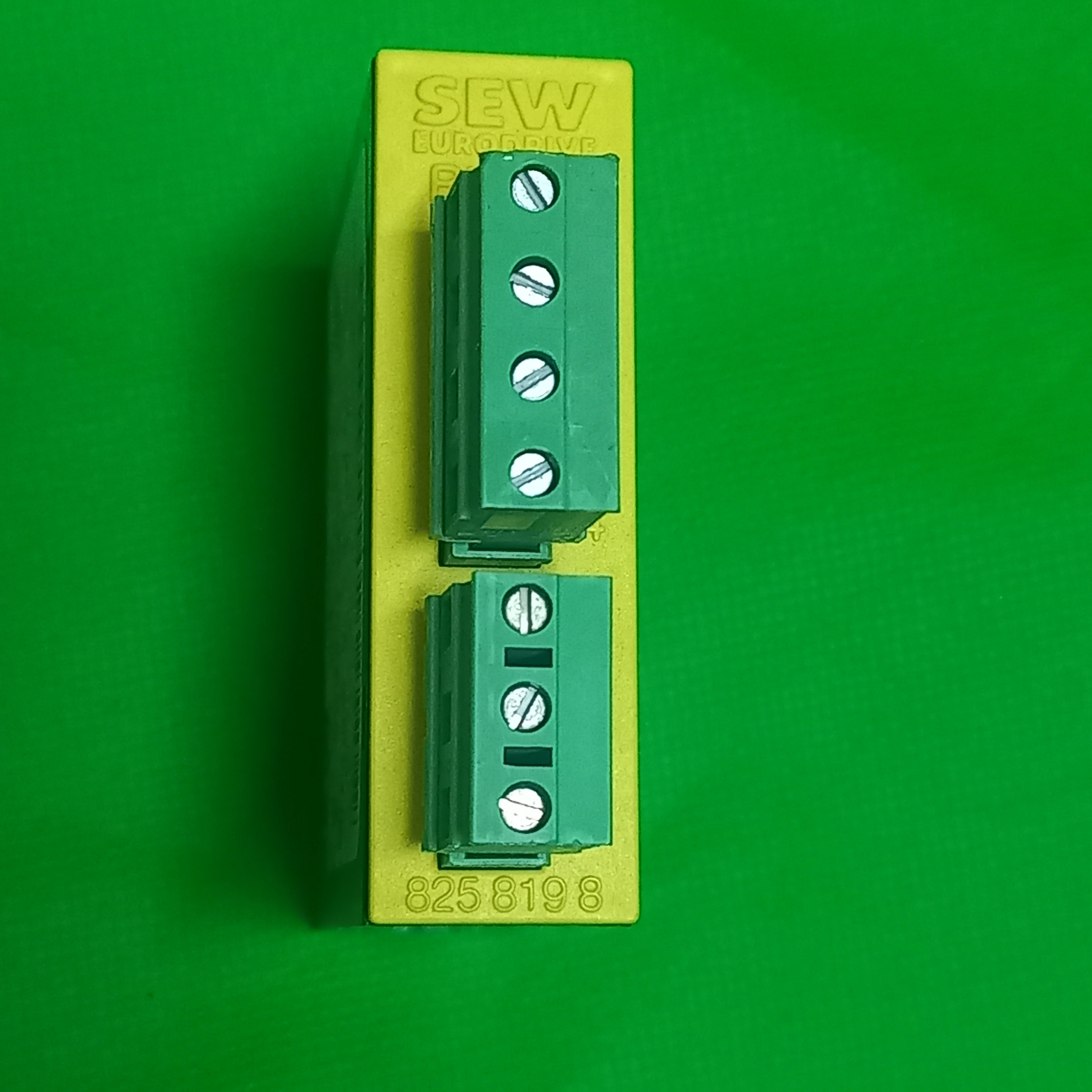

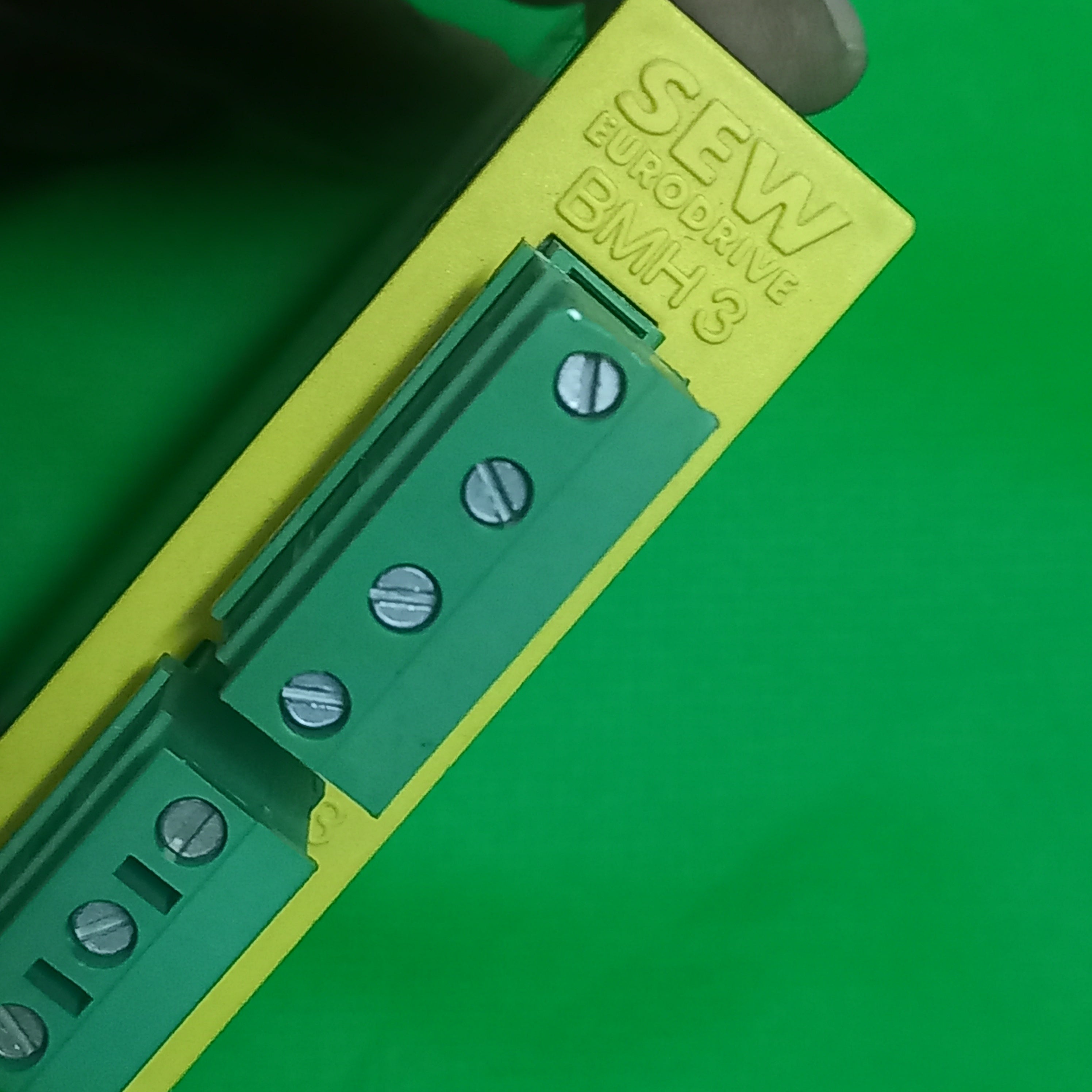

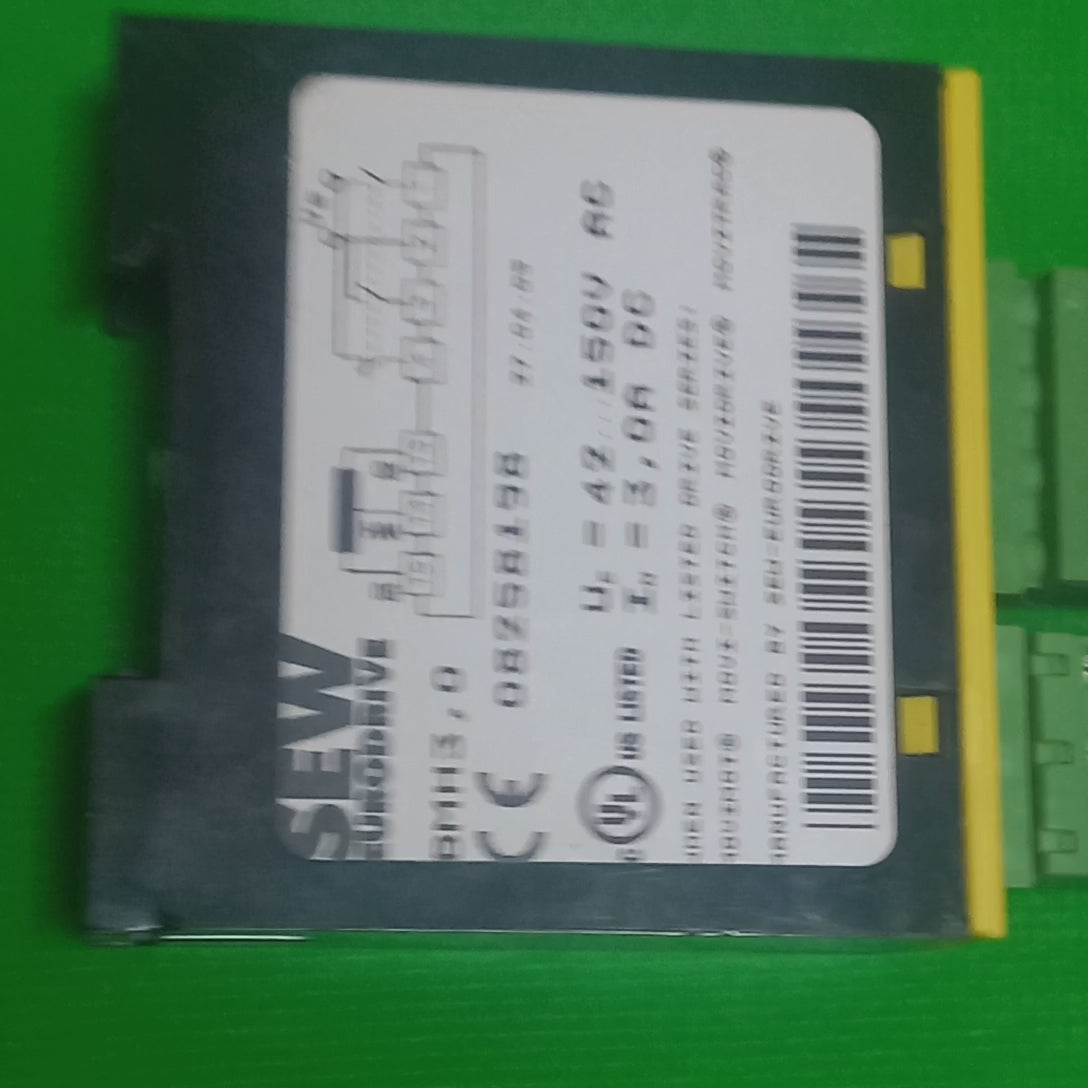

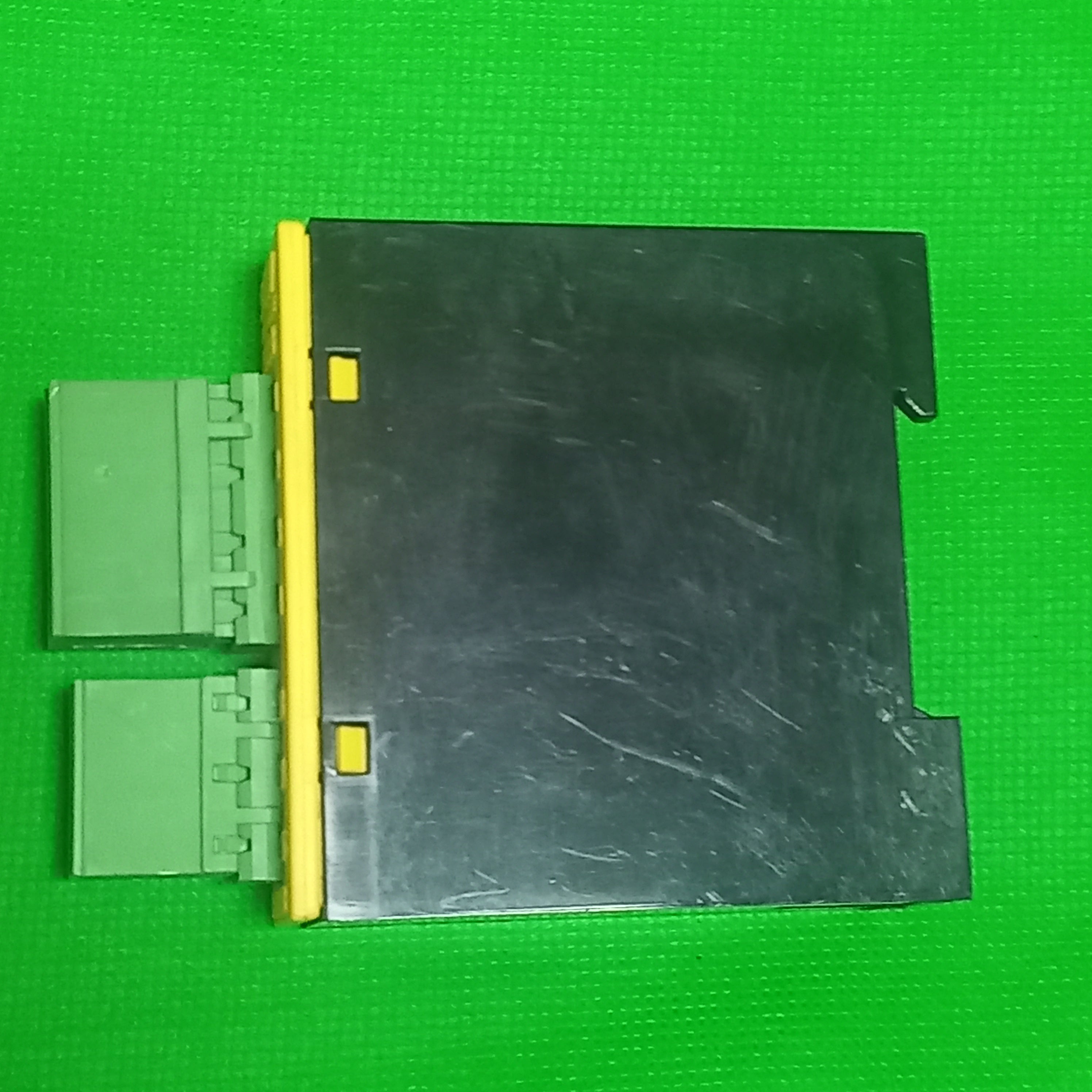

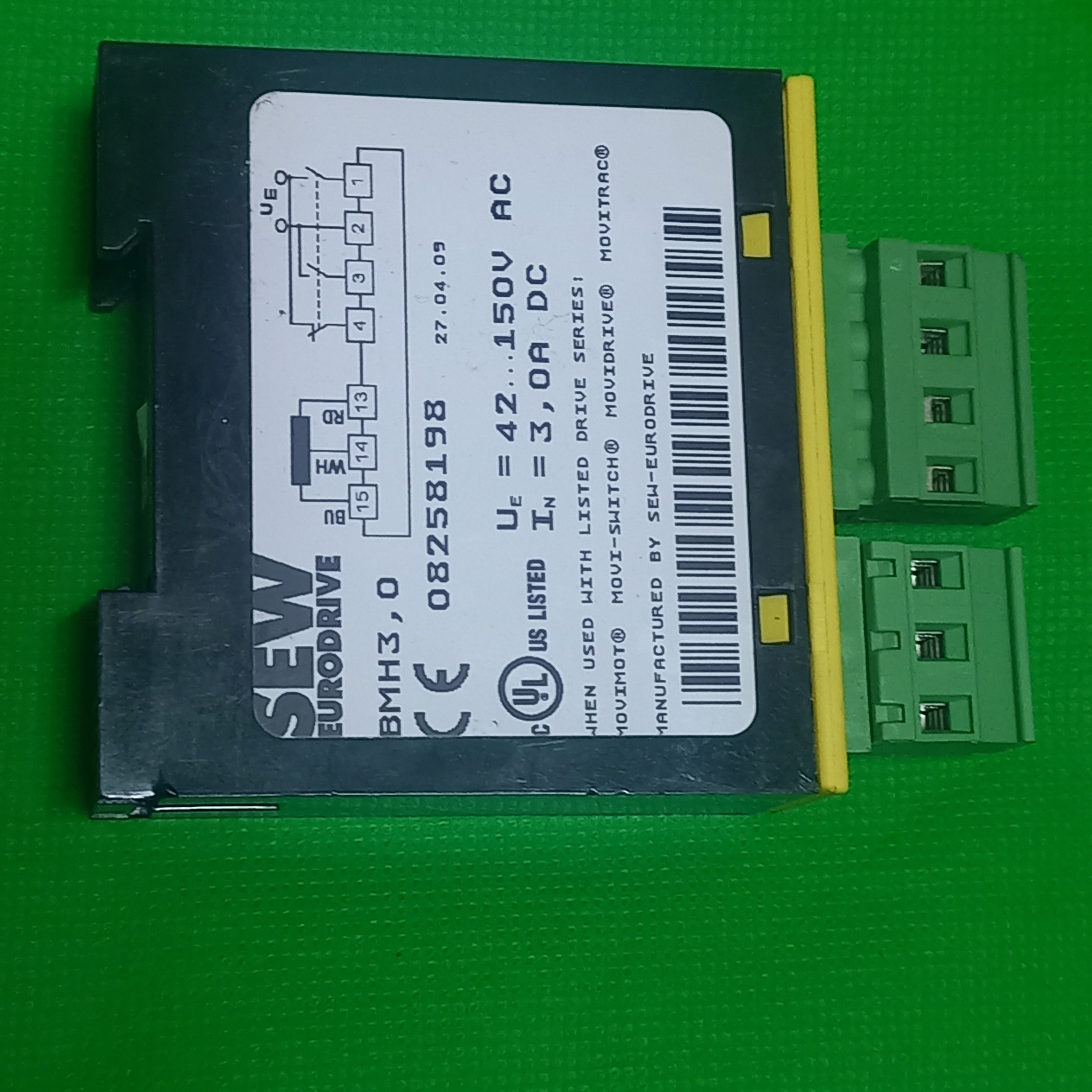

SEW Eurodrive Yellow BMH3 | Brake Rectifier BMH 3,0 | 08258198
$550.00
Skip to product information
Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days
SEW Eurodrive Yellow BMH3 | Brake Rectifier BMH 3,0 | 08258198
$550.00
Taxes included.
Shipping calculated at checkout.
Condition:New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms
- Same day ship if paid before 2 PM Local time
- One-year limited seller warranty
- New in Generic Brown Packett
- NO Original packaging - Brown Cardboard Generic Packing
- Manufacturer MPN: BMH3,0
- Manufacturer's Alternative Identification Part numberBMH 3.0 | 8258198
Ready stock | Ships today or Collect from Store Now. SEW Eurodrive Brake Rectifier BMH3,0 | 08258198
BMH One-way rectifier with electronic switching and heating function
SEW Eurodrive BMH3,0 | 08258198 Ue= 42..152V AC | In=3,0A DC
The SEW-Eurodrive BMH 3.0 (BMH 3) is a half-wave brake rectifier featuring electronic switching and an integrated heating function, designed for control cabinet installation on a DIN rail. It operates at an AC voltage input of 42–150 V with a nominal output current of DC 3.0 A (zinc yellow color code, part number 08258198).
Type BMH
Supply Voltage 3 42 – 150 VAC
Maximum Current (ADC) 3.0
Color Yellow
Part Number 825 819 8
Key Specifications & Features
Function: Combines standard fast brake release circuitry (similar to the BGE) with an auxiliary heating current to warm the motor brake while at rest.
- With integrated heating function (BMH..)
- Learn about Brake Control : here;
- Wiring Diagrams - Brake Rectifiers and Coil Data / Installation Instructions / 2008-04
Application: Prevents moisture condensation, frost buildup, and corrosion during long periods of rest in cold or wet environments.
Mounting: Built as a DIN rail module for the control cabinet rather than inside the motor's terminal box.
Wiring design: Utilizes two independent contactors—one dedicated to controlling the heating current and the other managing the brake release.
Other ways this Part is identified
- Also known as in industry:
- Typographic Errors in Part numbers
- Id Number BMH 3,0 | 08258198 |
- Ident | MLFB NumberBMH30
