SEW Eurodrive OEM MOTOR Rectifier KIT 08281602 Brake Rectifier BMK B1.5
$350.00
Skip to product information
Ready Stock | Collect from ourtore Today | We ship Worldwide| USA Shipping 3-4 Days
SEW Eurodrive OEM MOTOR Rectifier KIT 08281602 Brake Rectifier BMK B1.5
$350.00
Taxes included.
Shipping calculated at checkout.
Condition:New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms
- Same day ship if paid before 2 PM Local time
- One-year limited seller warranty
- Opened original packaging
- Original packaging with shelf wear
- Manufacturer MPN:BMK B1,5 | 8281602
- Manufacturer's Alternative Identification Part numberBMKB 1,5 | 08281602

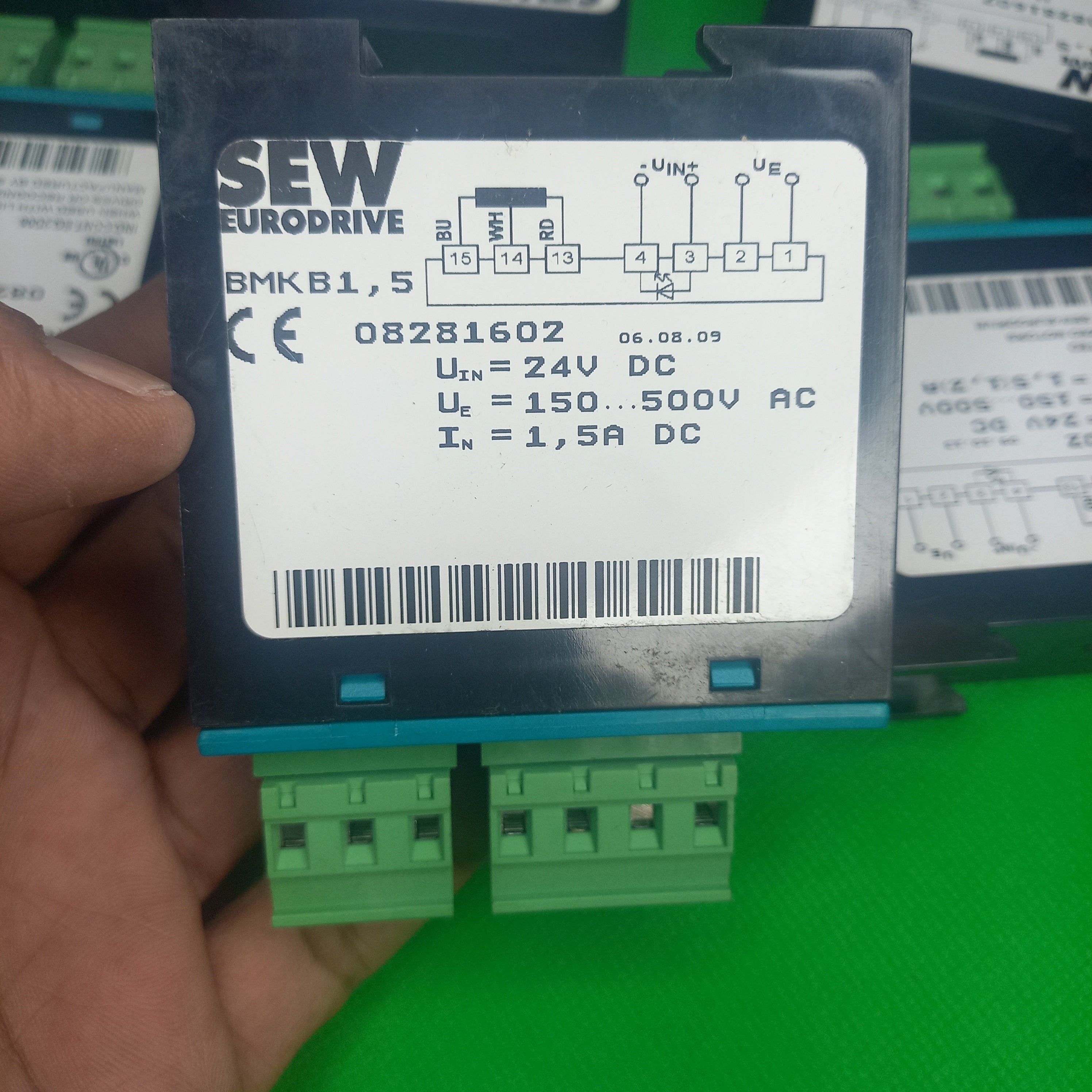

Ready stock | Ships today or Collect from Store Now. BMKB Half-wave rectifier with electronic switch mode, DC 24 V control input, cut-off in the DC circuit, and a diode to signal the readiness for operation AC 150 – 500 V 1.5 BMKB 1.5 | 8281602 | Water blue
SEW BMK 082 816 02; Brake Rectifier SEW Eurodrive 82 81 60 2 BMKB 1,5 ;
also known as ; 828 160 2 BMKB1.5 ; BMKB 1.5
The BMK Brake Control System - Optional for frame sizes 71 to 225
The BMK rectifier functions like the rectifier type BGE, however, it is controlled directly by a 24VDC control signal. The BMK is powered with the required AC supply voltage to operate the brake but the brake release is controlled by a 24VDC control signal. It is designed to be mounted in a control panel on DIN rail and not in the motors conduit box. Benefits: • Direct control using 24VDC output signal from a PLC • Direct control of the brake from an inverter (MOVITRAC®, MOVIDRIVE®, MOVIDYN®) output signal • Eliminates the need for a brake control brake power contact in most PLC and inverter installations The BMK has the same high performance functions as the BGE for fast brake release, which allow the motor brake system to cycle at a very high rate
Other ways this Part is identified
- Also known as in industry:
- Typographic Errors in Part numbers
- Id Number BMK B1.5 | 828 160 2 |
- Ident | MLFB NumberBMKB1.5 | | 082 816 02
