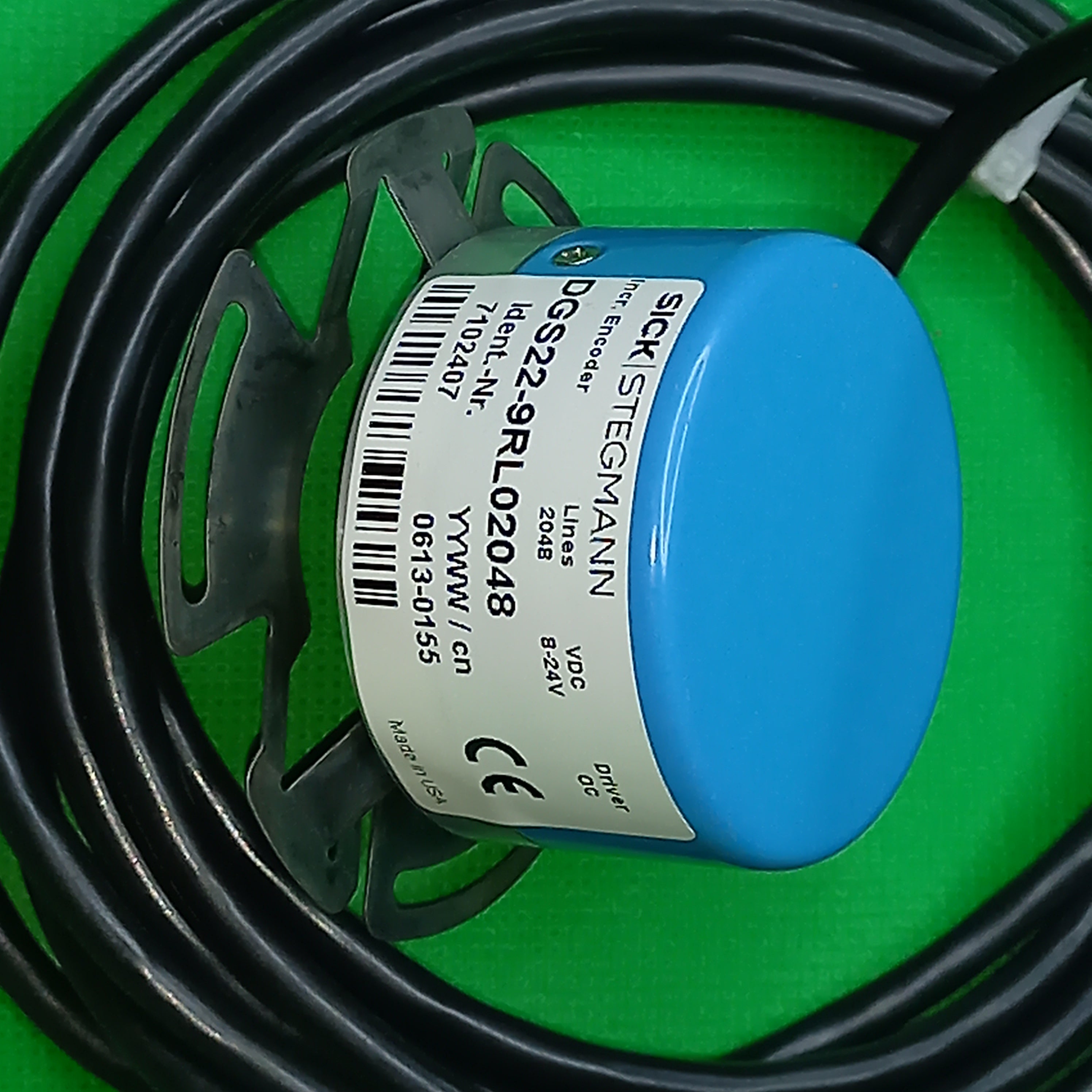

Sick DGS22-9RL02048, 7102407, 8..24 V open collector (7406/7273), 2048Lines, 3/8" Hollow
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

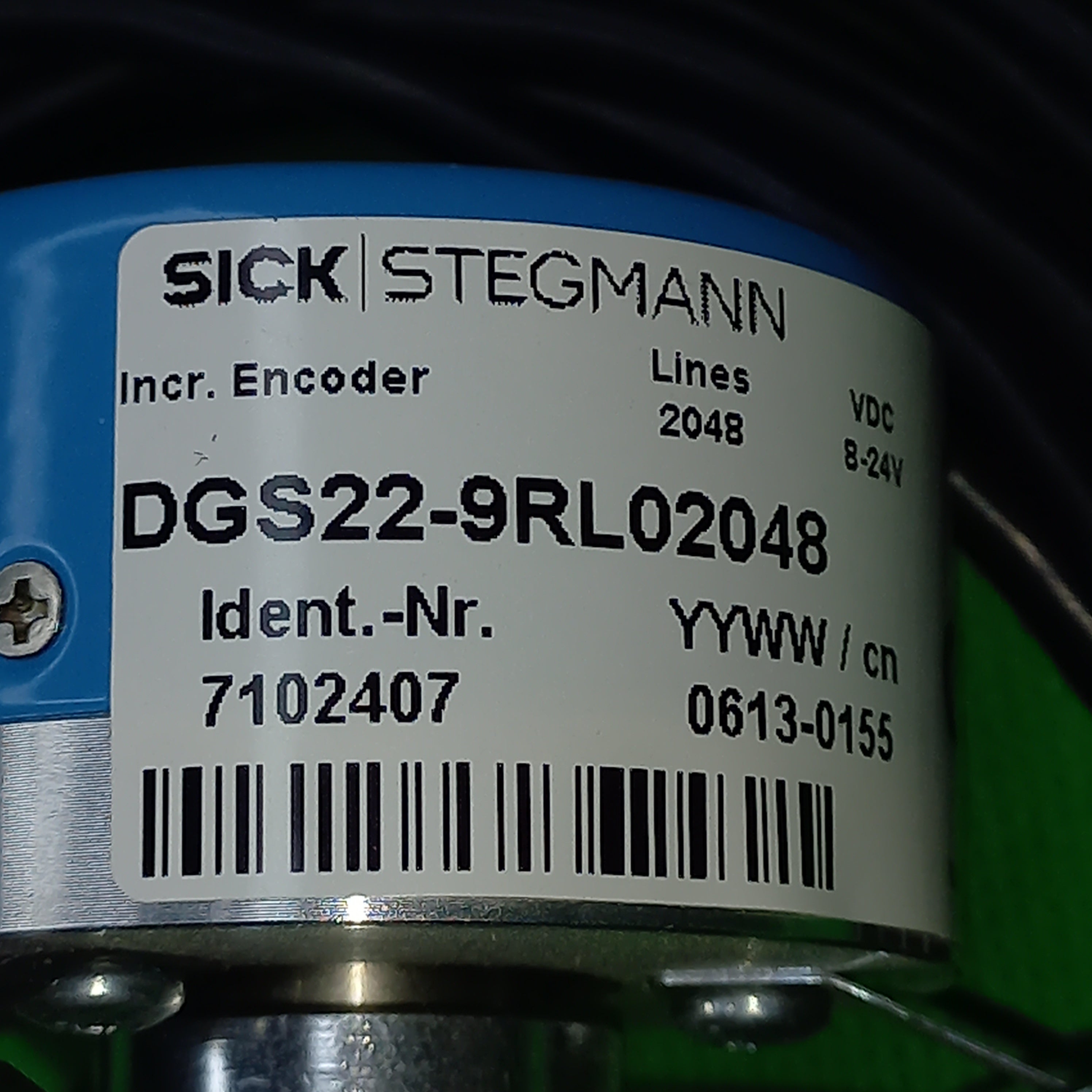

- Manufacturer Part Number: DGS229RL02048
- Encoder Type: Incremental encoder
- Supply voltage 8-24 VDC
- Encoder ID. NR.710 2 407
- Encoder SIgnal | 2048 | Open Collector | Ø 58 mm | M23 , 12-pin with Cable
Open Collector Encoder Cable Version Hollow Shaft with Flexible Flange mounting made by SICK STEGMANN DGS22-9RL02048 ;7102407 alternatively written as DGS 22-9 RL 02048 ; Indent Nr. 7102407 DGS 22 Hollow 2048 24v Open Collector
Incremental Encoder DGS 22, blind hollow shaft
- 8 …24 V open collector (7406/7273) = 9

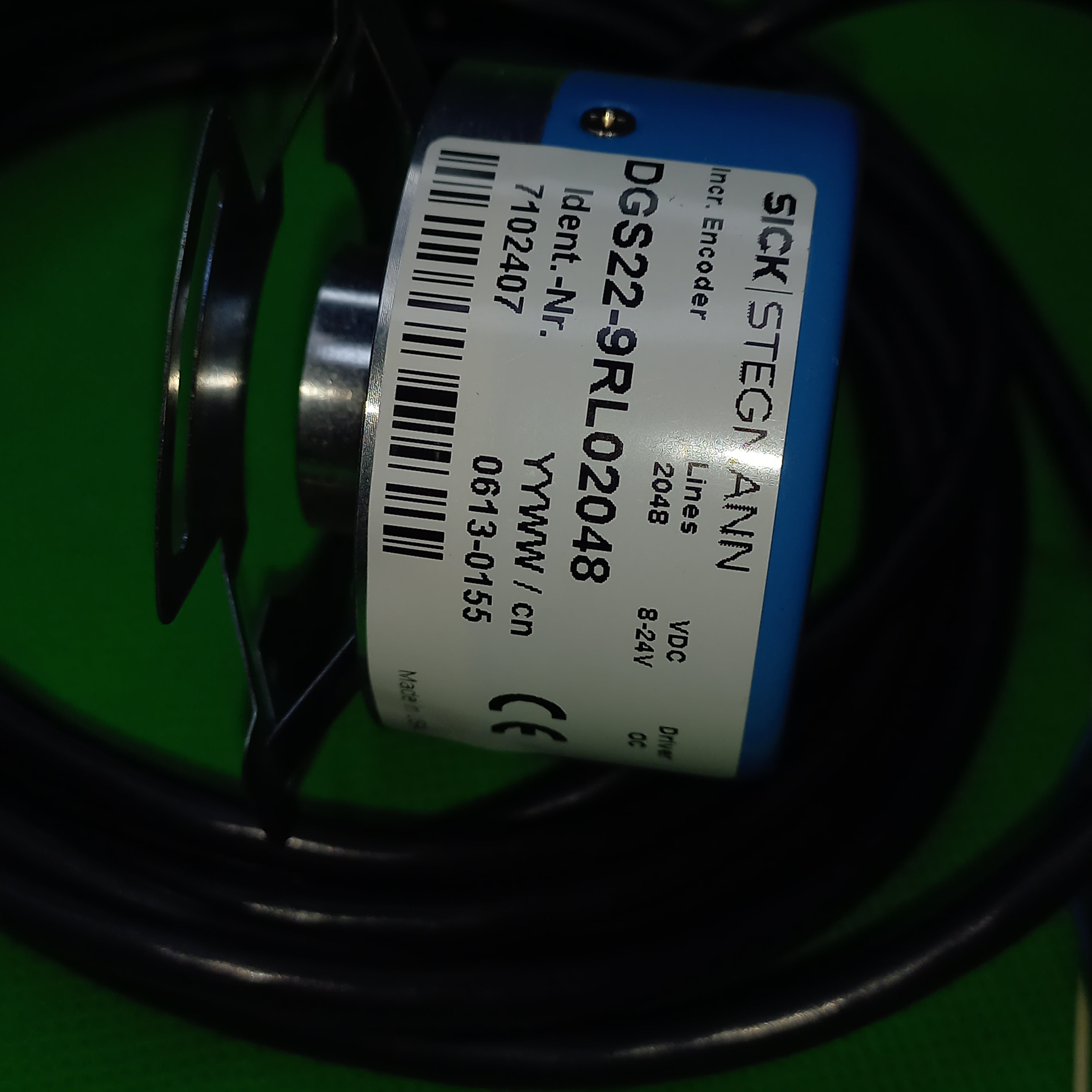

- Stator Coupling with 3/8” shaft = R

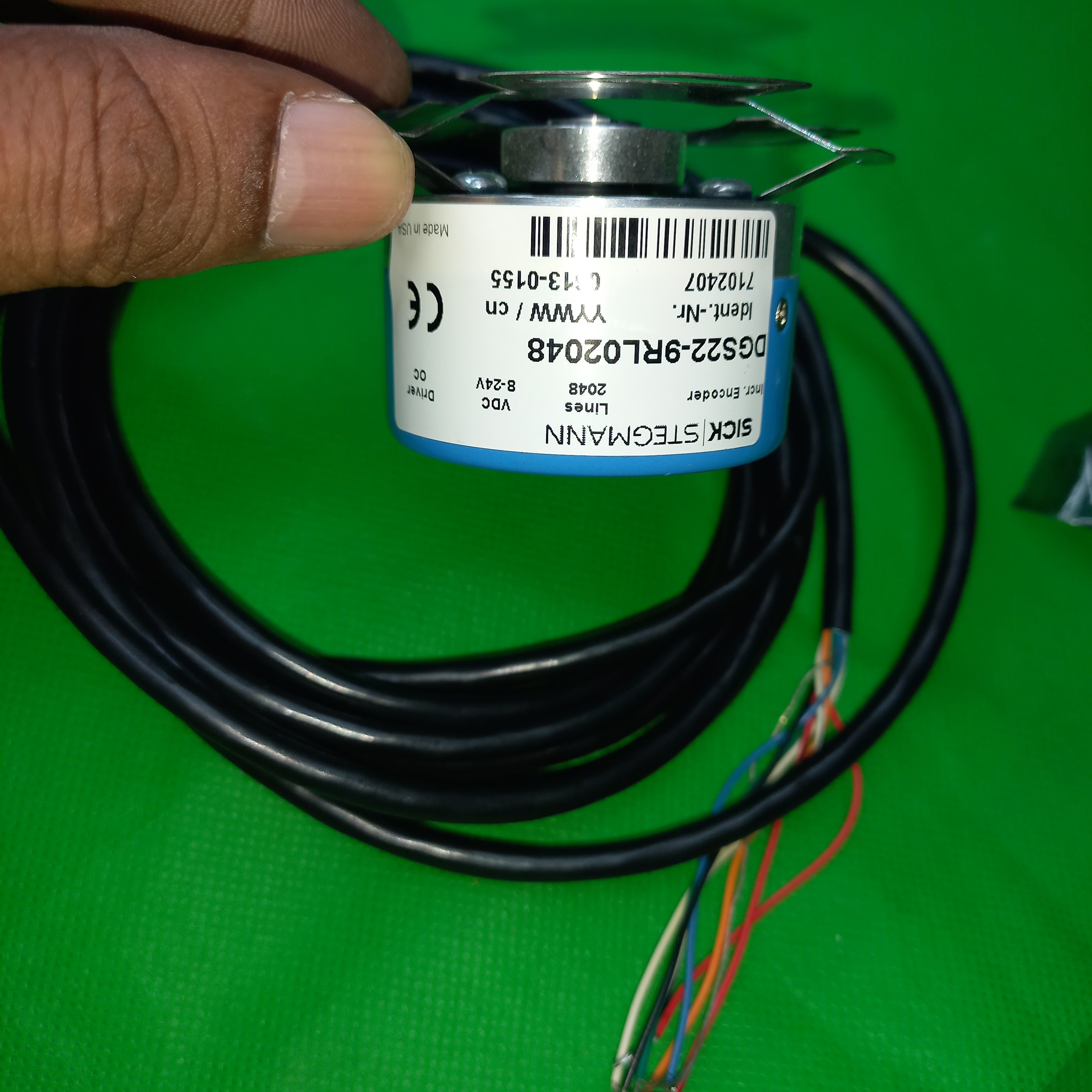

- Radial Cable 3 m = L
- Number of lines=2048
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Solid shaft, Servo flange
- Incremental Encoder Construction size (flange) Ø 58 mm

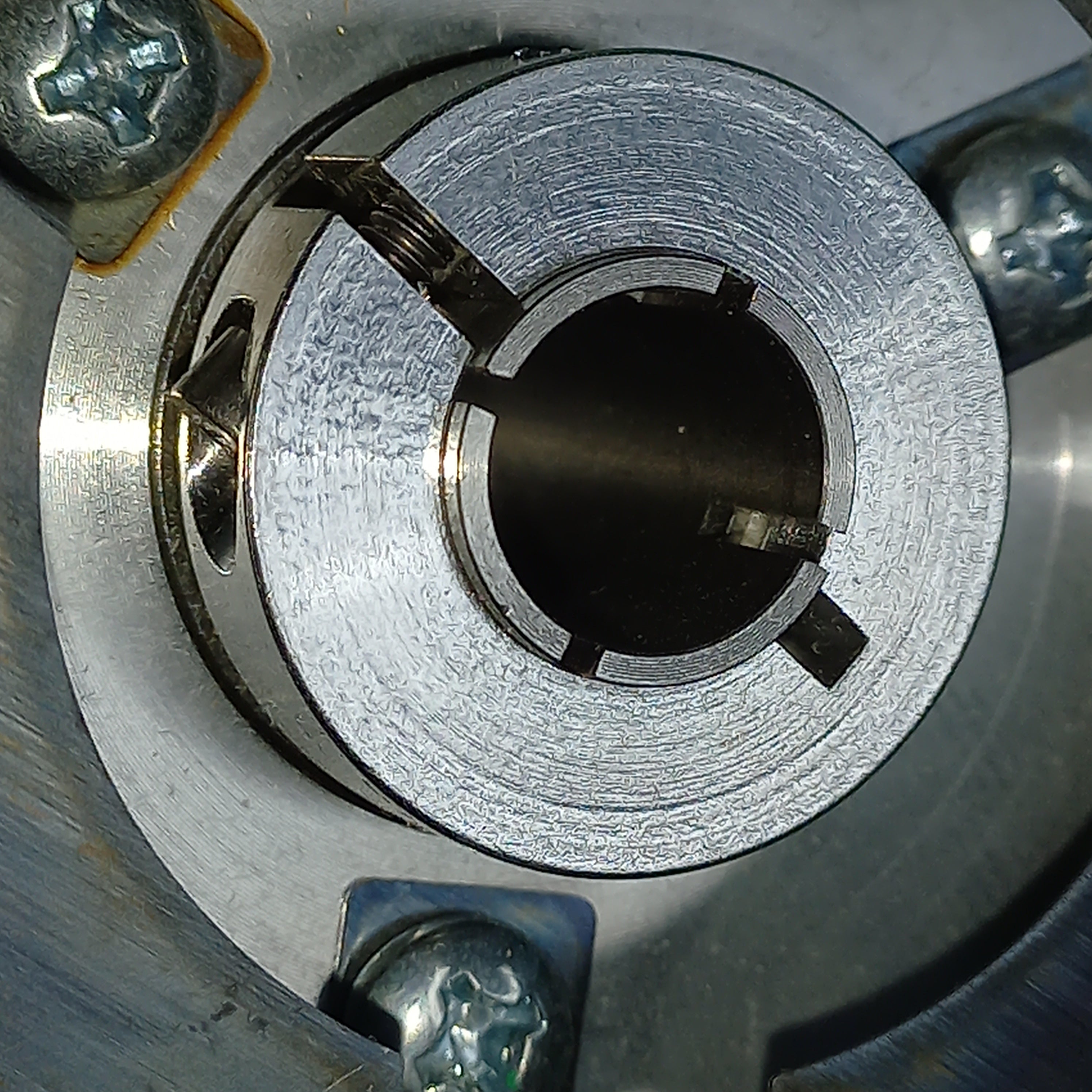

- Incremental Encoder Shaft diameter 9.52mm | 3/8" Inch
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail Open Collector
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution2048
- incremental Encoder Range of pulses per revolution1025 ... 2.500
- Signal Details:
Connection Details of encoder
- Connection type (Detail)M23 , 12-pin with Cable
- Direction of connection Radial
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNDGS22-9RL02048;7102407
- Manufacturer indent Nr.DGS 22 9 R L 02048
- 1 Manufacturer Part Number (MPN) DGS229RL02048
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
