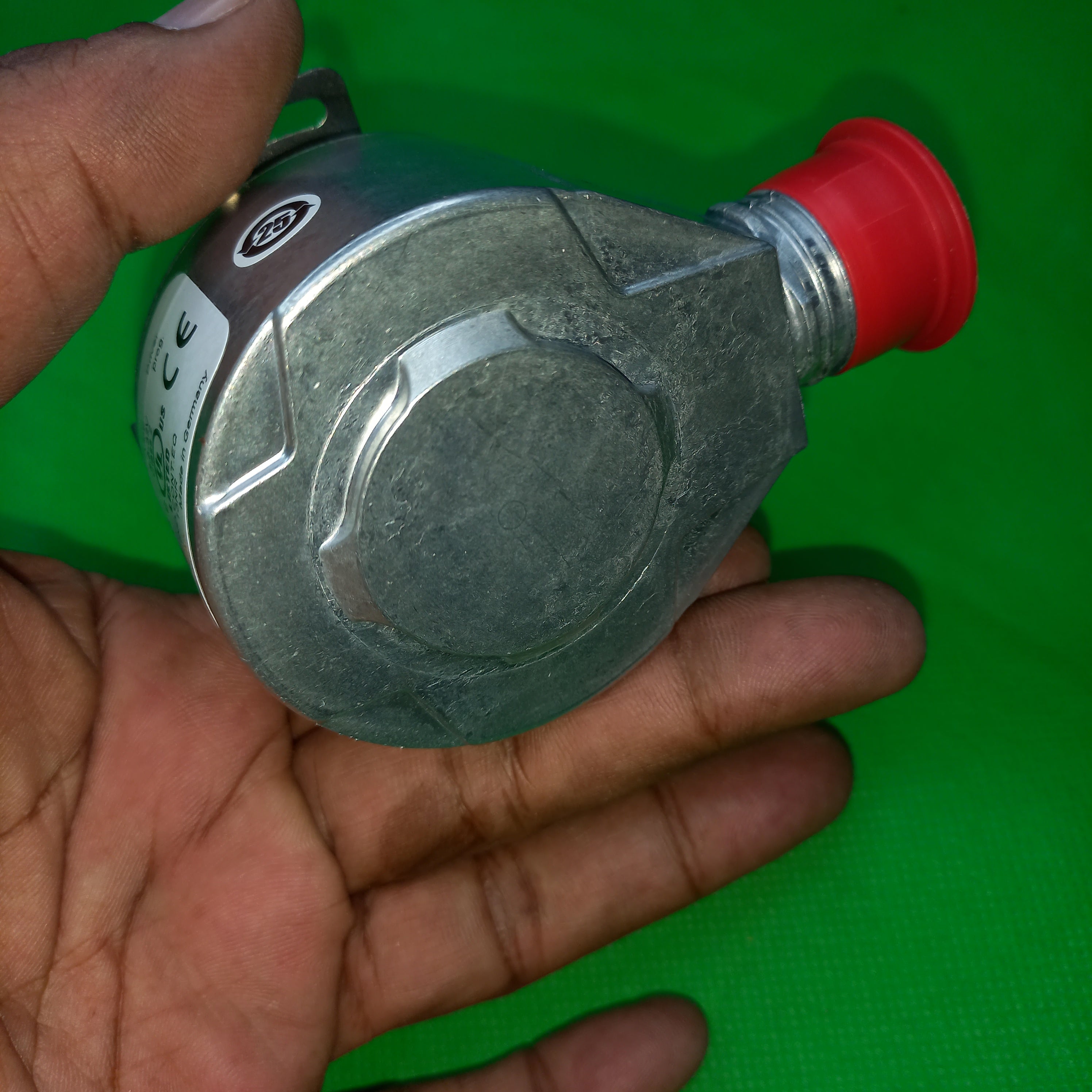

rear view of SICK Hollow DFS60B-BGPA10000 Ident-Nr. 1036770

SICK 14mm Hollow DFS60B-BGPA10000 Ident-Nr. 1036770, Prog. TTL / HTL | Prog. Lines

Sale price  $833.00 Regular price  $980.00
Skip to product information
rear view of SICK Hollow DFS60B-BGPA10000 Ident-Nr. 1036770
Make an Offer
Have a price in mind?

Send us your offer and quantity. We’ll review it and contact you if we can accept it or propose our best price.

Submitting an offer does not create an order. Your offer is subject to our acceptance and confirmation.
  • Ready Stock | Ship Worldwide
  •  Shipping Lead time 1-2 Days |Same day Emergency Rush Despatch Available upon Request.
  •  Rush Orders can be Collected from our Store after 4 Hours of Order | Payment Confirmation

SICK 14mm Hollow DFS60B-BGPA10000 Ident-Nr. 1036770, Prog. TTL / HTL | Prog. Lines

Sale price  $833.00 Regular price  $980.00
Taxes included. Shipping calculated at checkout.

Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.

  • Manufacturer Part Number: Ident-Nr. 1 036 770
  • Encoder Type: Incremental encoder
  • Supply voltage 10 ... 32 V
  • Encoder ID. NR.DFS 60 B-BGPA10000
  • Encoder SIgnal Square Wave Ouptut Signals: ABN : The encoder outputs Track A, Track B, Track N | and inverse Track A, inverse Track B, Inverse Track N, 6-channel, 10 - 30 VDC, HTL,
    | 10000 | HTL | Ø 60 mm | M12 male connector on Encoder Body, 8-pin

Ready Stock | Collect from our Store Today | Sick Encoder

Programming to your desired PPR is at No extra Cost.

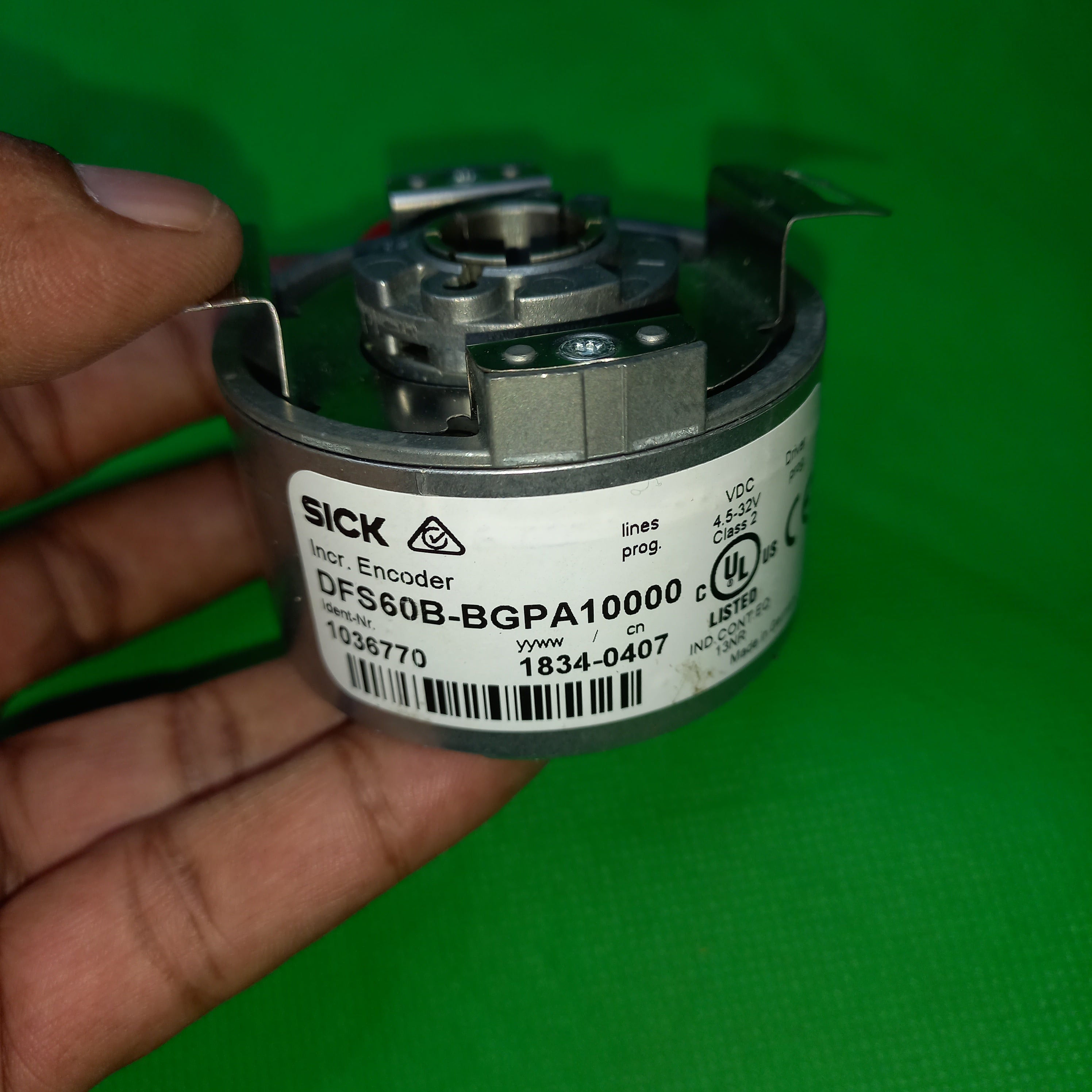

SICK Incr. Encoder

DFS60B-BGPA10000 Ident-Nr. 1036770

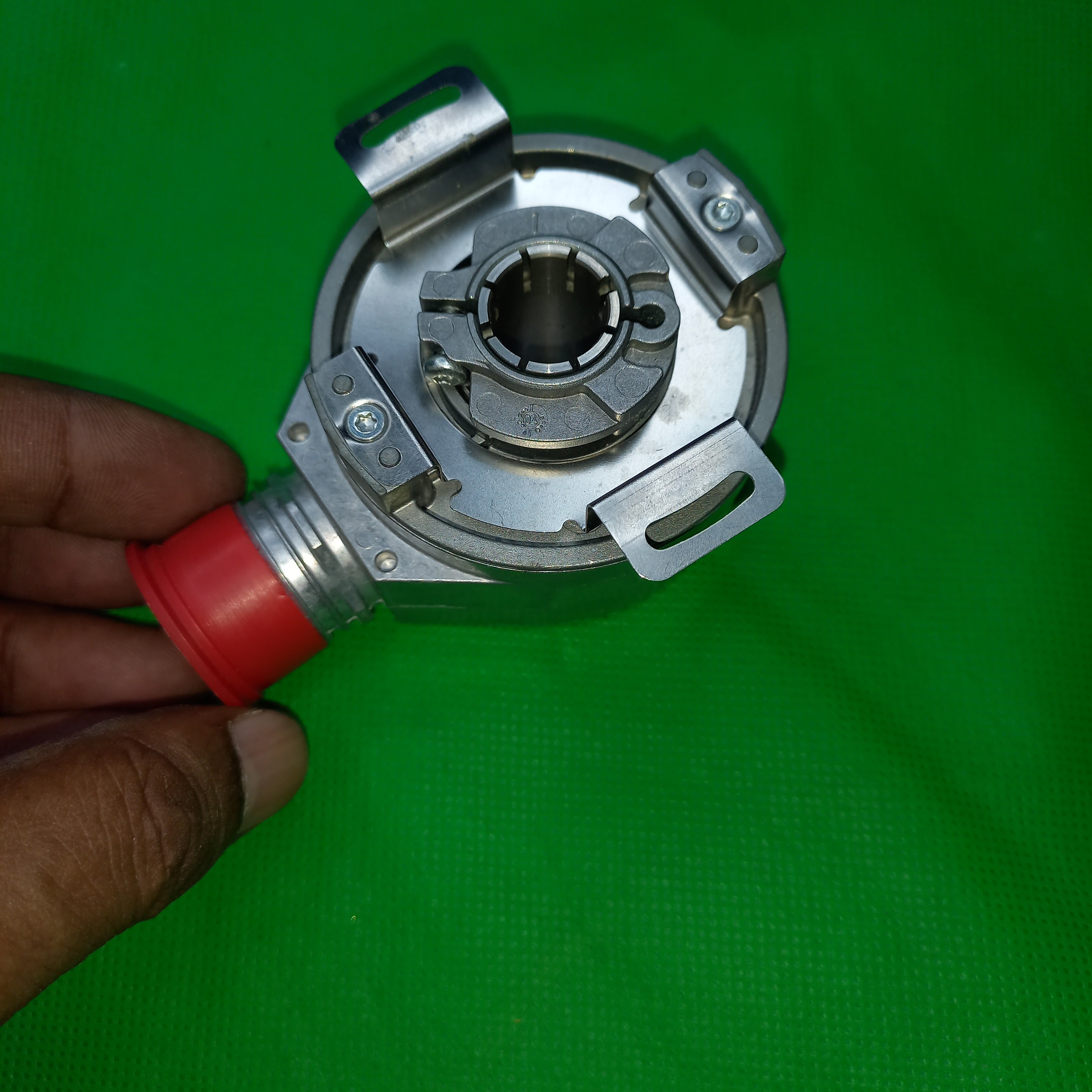

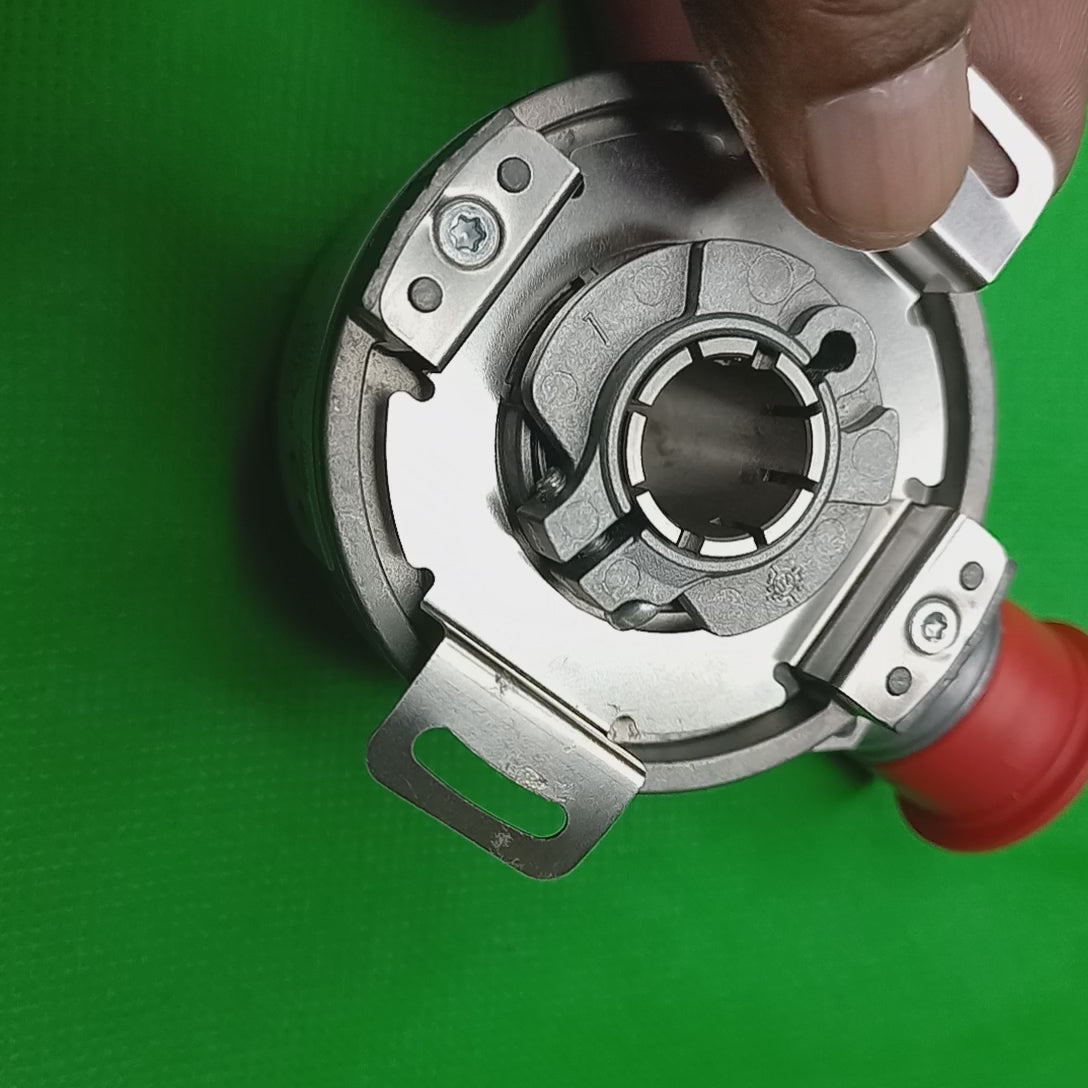

 Mechanical design Blind hollow shaft
Shaft diameter 14 mm Front clamp

Prog. Communication Interface TTL / HTL
lines prog.

Pulses per revolution 10,000
Measuring step 90°, electric/pulses per revolution
Communication interface Incremental
Communication Interface detail TTL / HTL
Factory setting Factory setting: output level TTL
Number of signal channels 6-channel

Connection type Male connector, M23, 12-pin, radial
Supply voltage 4.5 ... 32 V
Reference signal, number 1
Reference signal, position 90°, electric, logically gated with A and B


Connector pin out : Signals details here:

Encoder Type:

Salient | Special features of Encoder: The DFS60 is a high-resolution incremental encoder with a diameter of 60 mm. It offers lots of mechanical and electrical interfaces and a housing made from aluminum or stainless steel.

Encoder mechanical Design

  • Increental Encoder Mechanical Design Solid shaft, face mount flange
  • Incremental Encoder Construction size (flange) Ø 60 mm
  • Incremental Encoder Shaft diameter 14 mm

Encoder Signal Interface | Communication

  • Incremental Encoder Communication Interface detail HTL

Performance Data:

Incremental encoder PPR | Impulse | Pulses per revolution10000

  • incremental Encoder Range of pulses per revolution8193 ... 16384
  • Signal Details: Square Wave Ouptut Signals: ABN : The encoder outputs Track A, Track B, Track N | and inverse Track A, inverse Track B, Inverse Track N, 6-channel, 10 - 30 VDC, HTL,

Connection Details of encoder

  • Connection type (Detail)M12 male connector on Encoder Body, 8-pin
  • Direction of connection Radial

Mounting Arrangement for Encoder Body

- Check Datasheet or Contact us

  • Manufacturer Alternative MPNDFS60B-BGPA10000 Ident-Nr. 1036770
  • Manufacturer indent Nr.DFS-60B-BGPA-10000
  • 1 Manufacturer Part Number (MPN) Ident-Nr. 1 036 770
  • Alternative ways of identifying | Part Numbers | Compatible Parts
  • Typographic Errors in MPN | Mistakenly Known as DFS 608-BGPA 10000
