Sick_CNS 50, 1:3 taper shaft_Lines 4096 _Pole pair_4,_CNS50-AAA012X04_1033968
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 103 3 991
- Encoder Type: Incremental encoder
- Supply voltage 4.5-5 VDC
- Encoder ID. NR. Ident. Nr. 1033991
- Encoder SIgnal | 4096 | incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | | | Ø 47 mm |

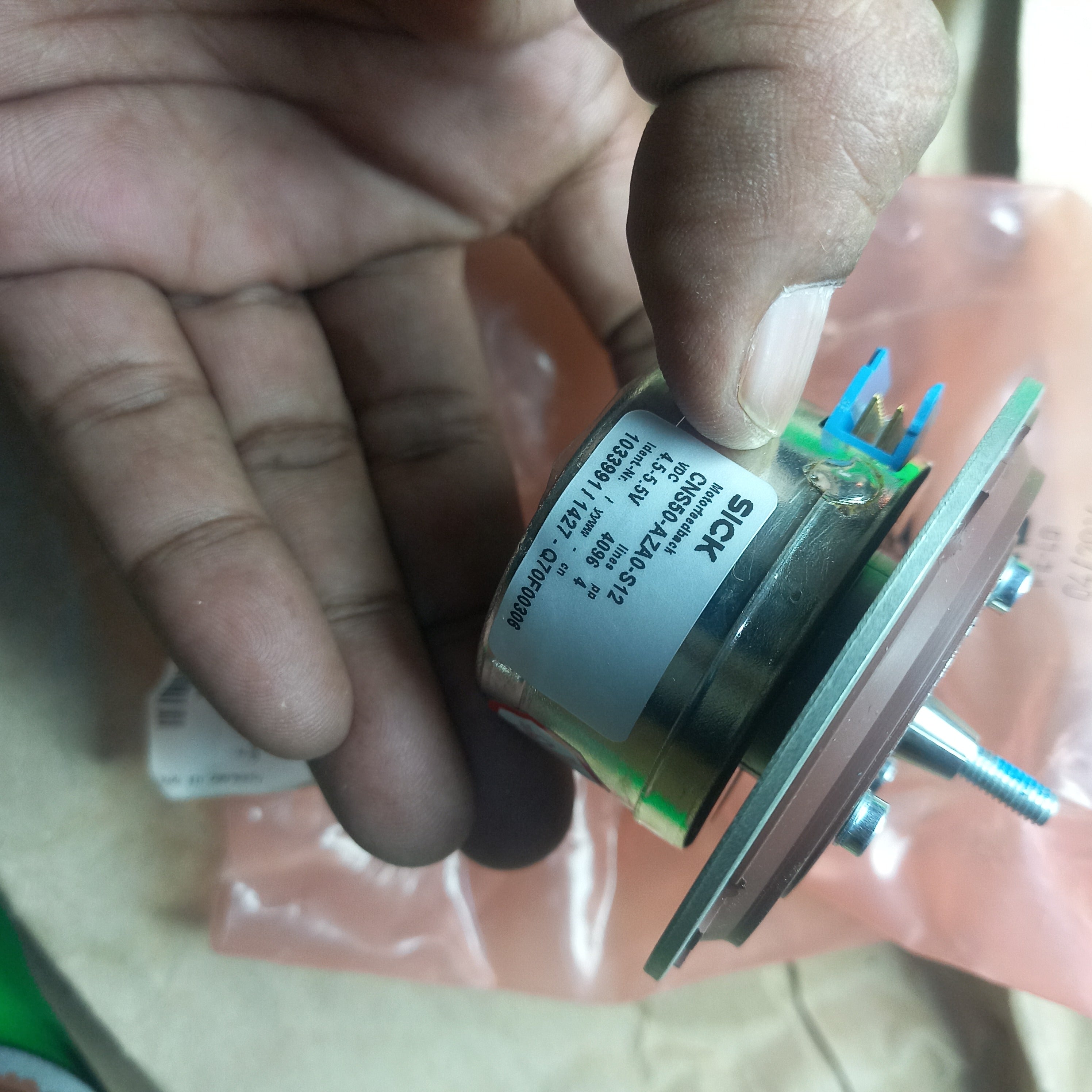

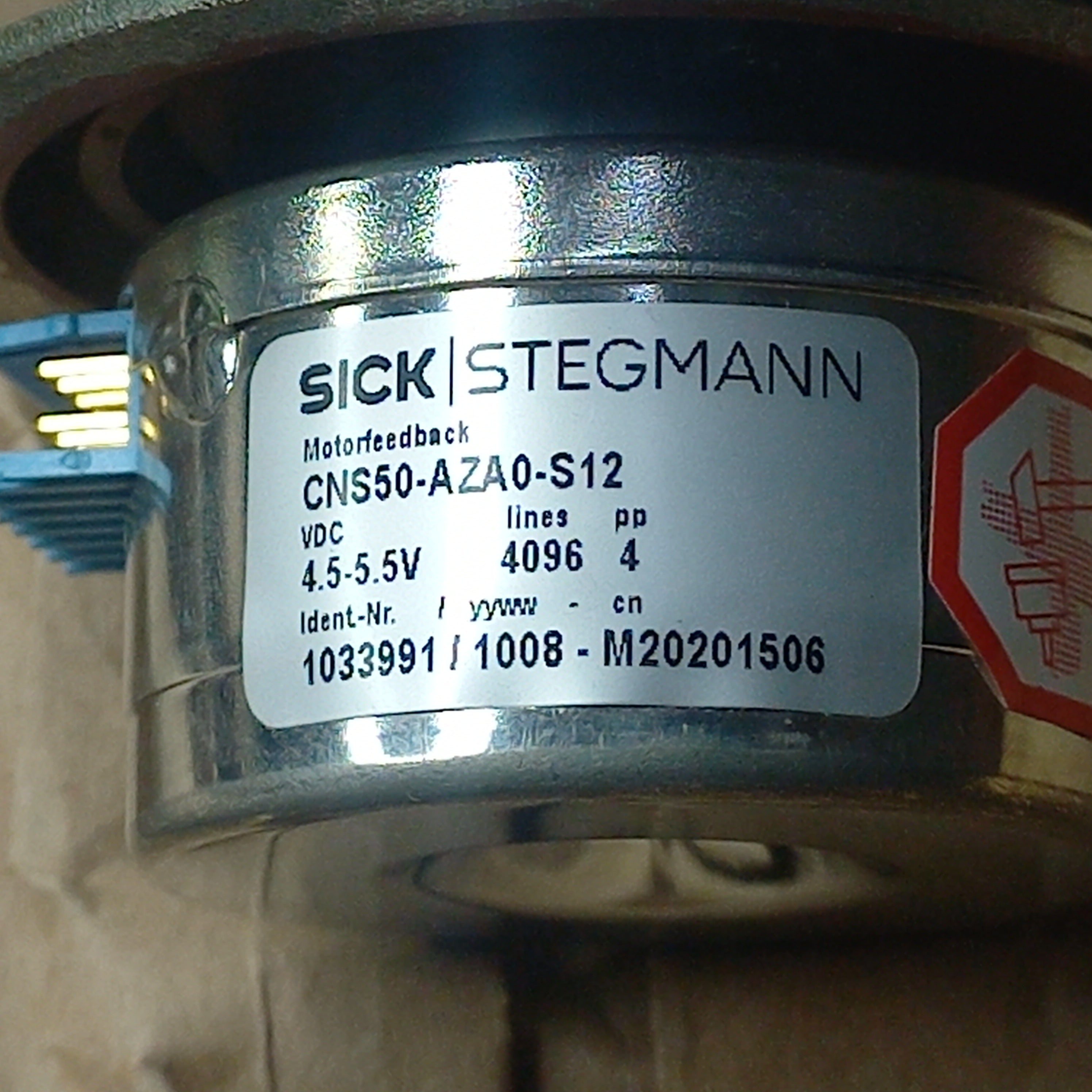

Sick Motorfeedback CNS50-AZA0-S12, Ident. Nr. 1033991, 4096 Lines, Pole pair 4, based on CNS50-AAA012X04 | 1033968
-
Default encoder, which the special encoder is based on: CNS50-AAA012X04
-
Sick Stegmann CNS 50
-
1:3 taper shaft with rubber stator coupling

-
2rowx8 pin =16 pin Connector

- Stator Coupling -Round Flange rubber stator coupling
- Shaft :

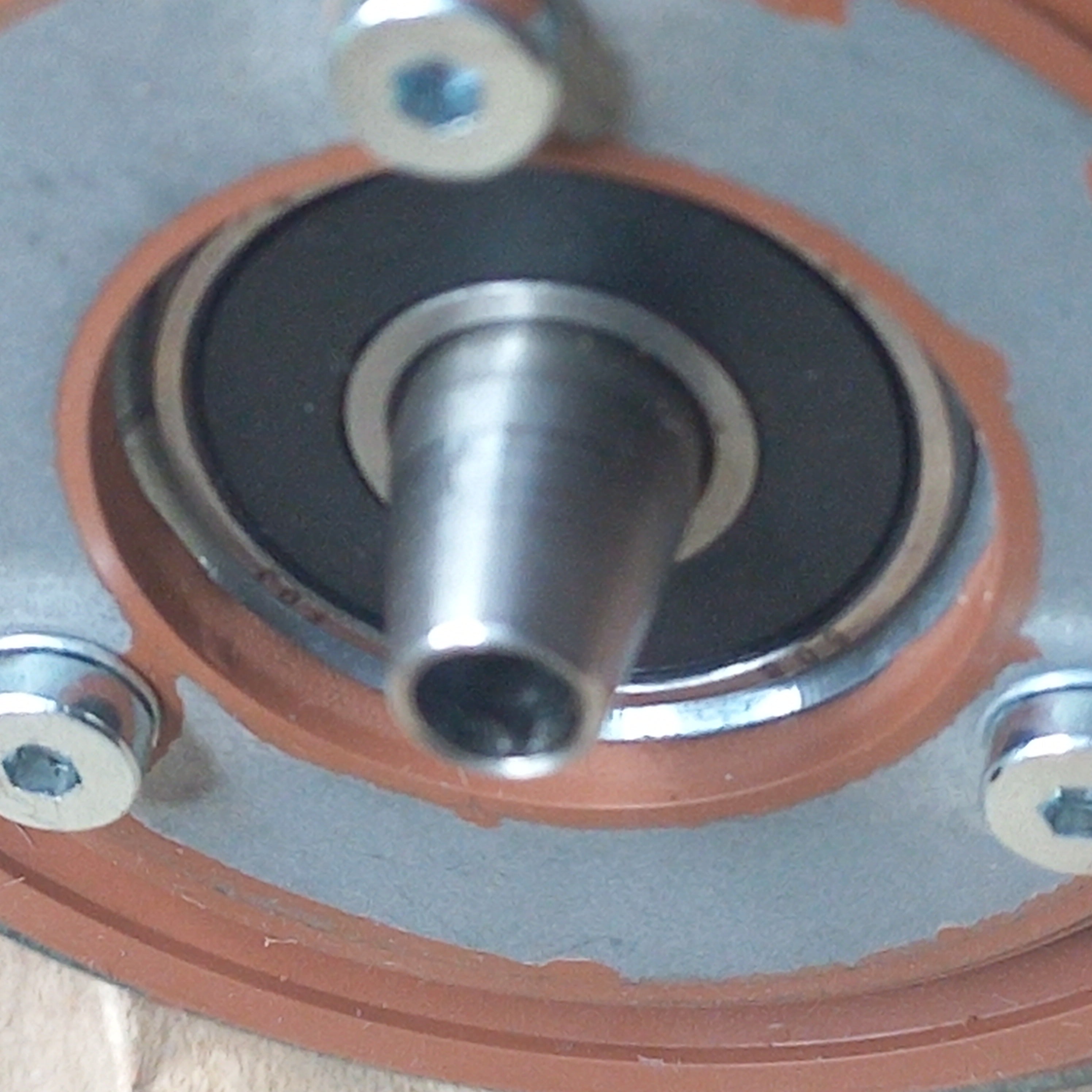

1:3 taper shaft
shaft

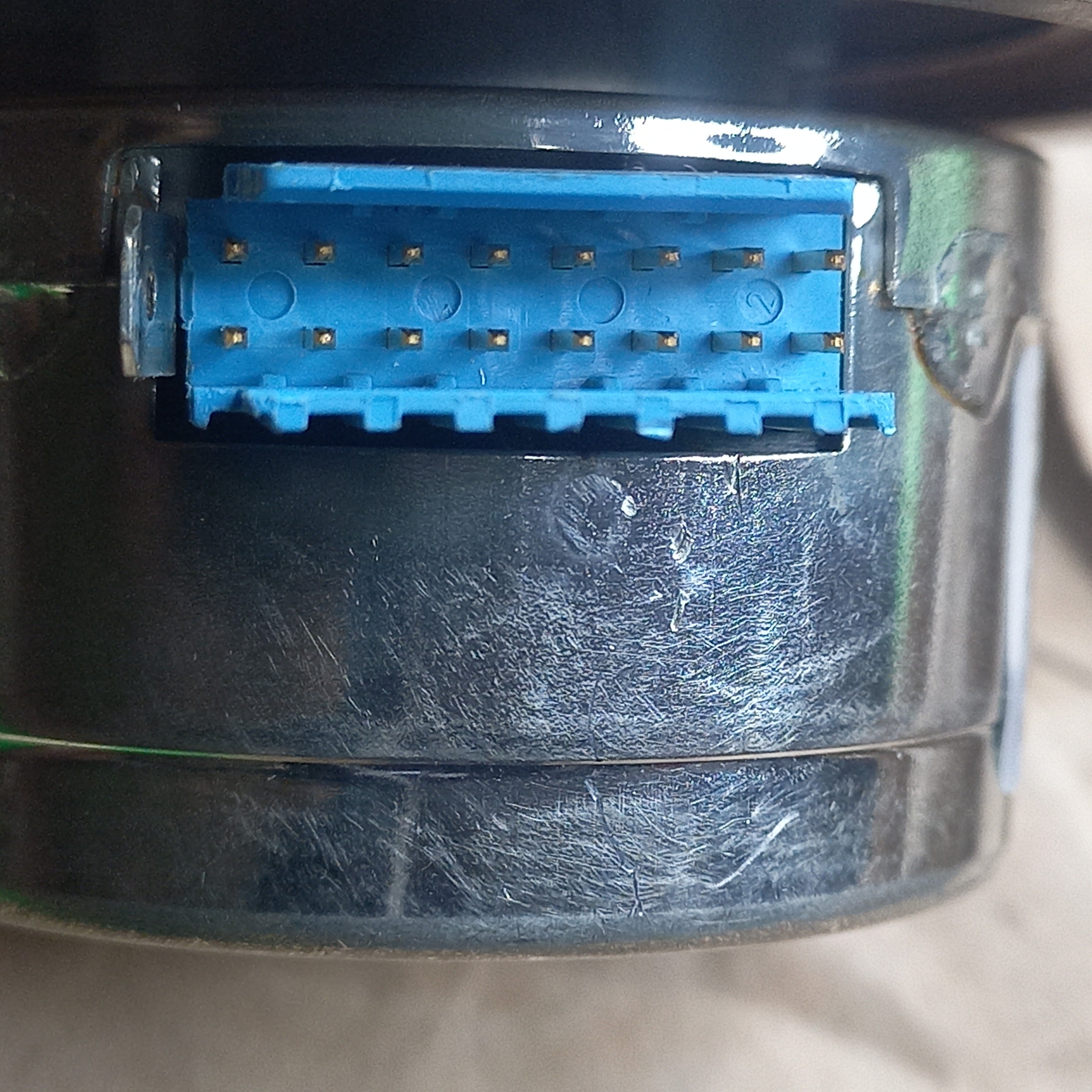

Connection : Connector ( 2rows x 8pins ) 16 PIn - incremental resolution : 4096
- PolePair 04
- Default encoder, which the special encoder is based on: CNS50-AAA012X04
The CNS50 is an incremental motorfeedback series, for servo motors, with commutation signals.
Incremental signal: high resolution, for the speed evaluation
Z Signal (index): for a single turn positioning (after referencing one turn)
Commutation signals: For the commutation of the servo motor (synchron motor)
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Sick Motorfeedback Mounting option Z = taper with Special ROUND Flange
- Incremental Encoder Construction size (flange) Ø 47 mm
- Incremental Encoder Shaft diameter 1:3 taper shaft with rubber stator coupling
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | |
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution4096
- incremental Encoder Range of pulses per revolution2501 ... 5.000
- Signal Details:
Connection Details of encoder
- Connection type (Detail)
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPNCNS 50-AZA0-S12
- Manufacturer indent Nr.CNS50-AAA012X04 Indent. Nr. : 103 3 968
- 1 Manufacturer Part Number (MPN) 103 3 991
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
