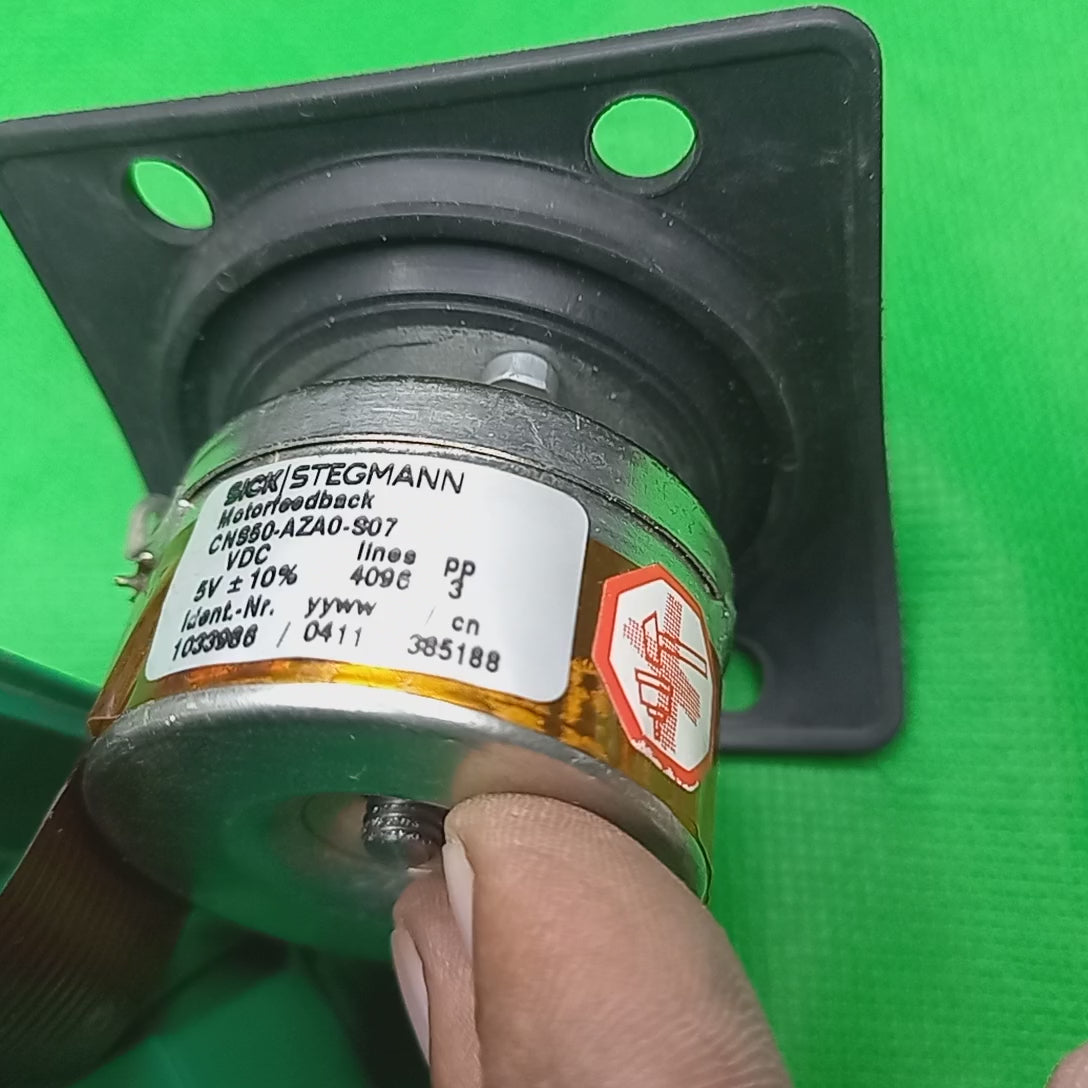

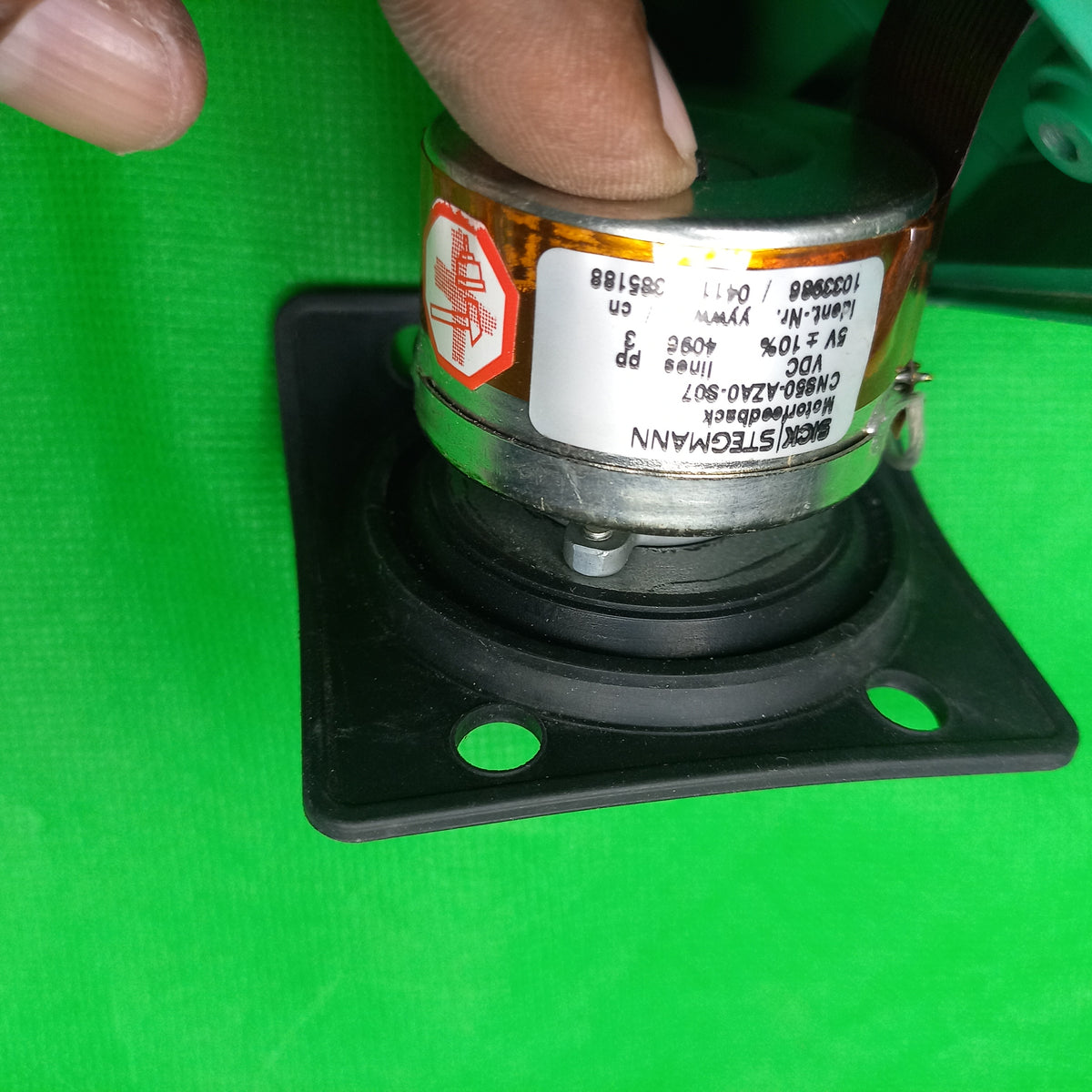

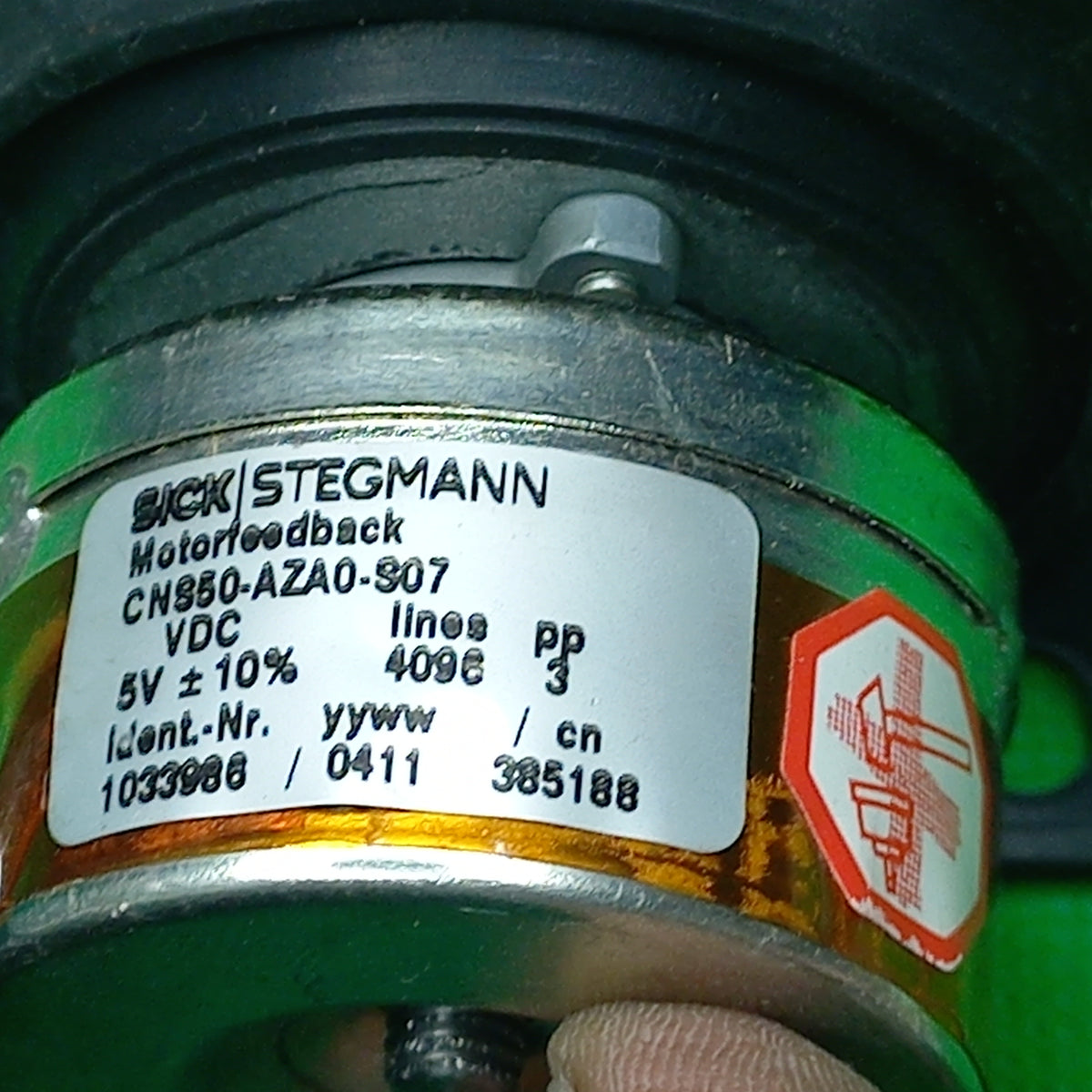

CNS50-AZA0-S07 VDC 5V ; Lines: 4096; pp=3, Ident. Nr. : 1033986
You Are Welcome to use your OWN COURIER Account for Shipping.
Please Choose: In Store PICKUP option (instead of Ship) at Checkout/Payment Screen.
You Pay zero Shipping & You can Arrrange pickup via your DHL/ FEDEX/ UPS account.
Condition: New surplus / new old stock. SpareFaber is an independent reseller and is not an authorized distributor of this brand. Manufacturer warranty is not represented as included. Any stated warranty is provided solely by SpareFaber under our Limited Seller Warranty terms.
- Manufacturer Part Number: 103 3 986
- Encoder Type: Incremental encoder
- Supply voltage 4.5-5 VDC
- Encoder ID. NR. Ident. Nr. 1033986
- Encoder SIgnal | 4096 | incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | | | Ø 47 mm |
CNS50-AZA0-S07 | CNS50AZA0S07 |
VDC 5V ; Lines: 4096; pp=3, Ident. Nr. : 1033986
Encoder Type:
Salient | Special features of Encoder:
Encoder mechanical Design
- Increental Encoder Mechanical Design Sick Motorfeedback Mounting option Z = taper with Special ROUND Flange
- Incremental Encoder Construction size (flange) Ø 47 mm
- Incremental Encoder Shaft diameter 7mm plug in shaft ( sick stegmann)
Encoder Signal Interface | Communication
- Incremental Encoder Communication Interface detail incremental motorfeedback series, for servo motors, with commutation signals. Incremental signal: high resolution, for the speed evaluation Z Signal (index): for a single turn positioning (after referencing one turn) Commutation signals: For the commutation of the servo motor (synchron motor) | | | |
Performance Data:
Incremental encoder PPR | Impulse | Pulses per revolution4096
- incremental Encoder Range of pulses per revolution2501 ... 5.000
- Signal Details:

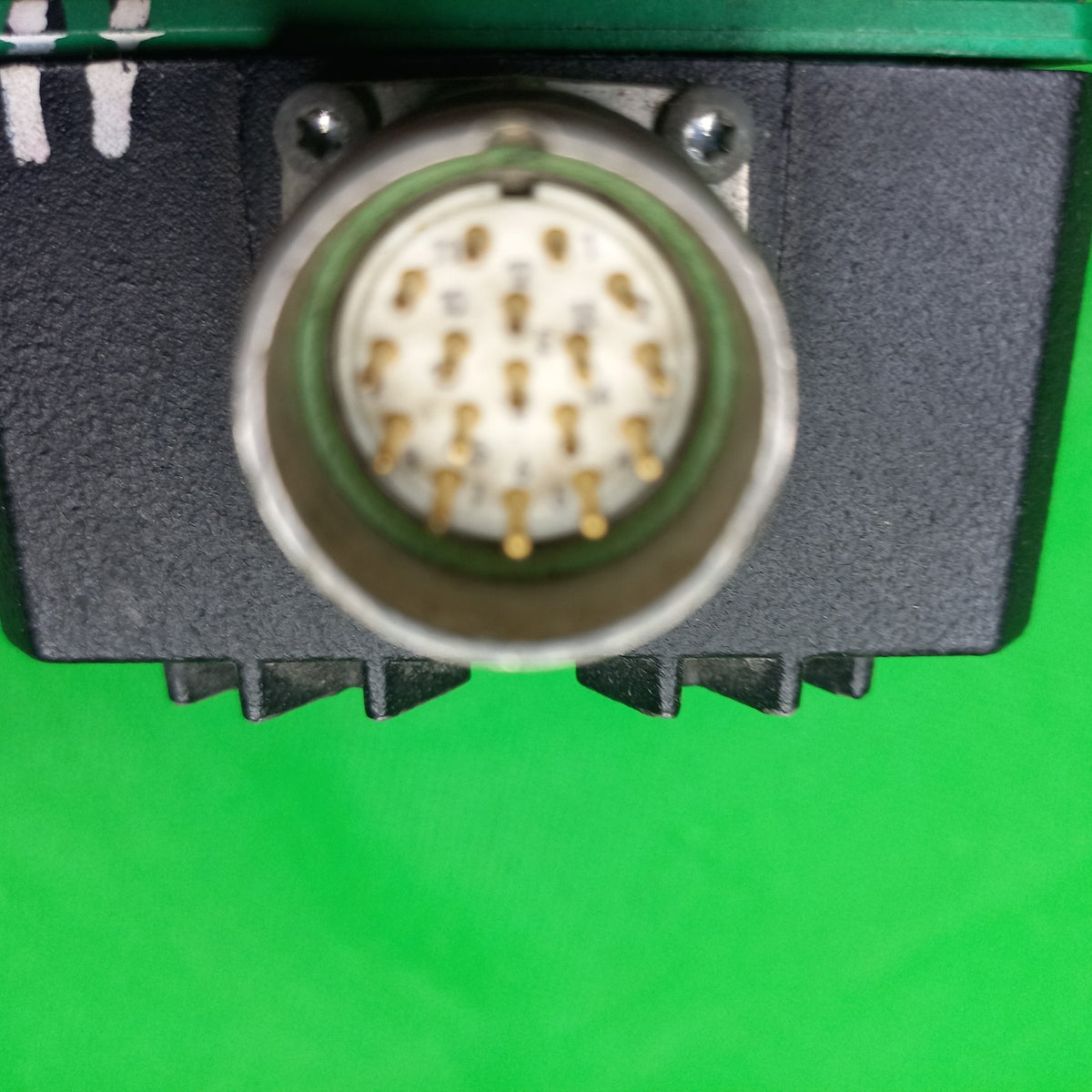

Connection Details of encoder
- Connection type (Detail)
- Direction of connection
Mounting Arrangement for Encoder Body
- Check Datasheet or Contact us
- Manufacturer Alternative MPN CNS 50-AZA0-S07
- Manufacturer indent Nr. CNS50AZA0S07 1033986
- 1 Manufacturer Part Number (MPN) 103 3 986
- Alternative ways of identifying | Part Numbers | Compatible Parts
- Typographic Errors in MPN | Mistakenly Known as
